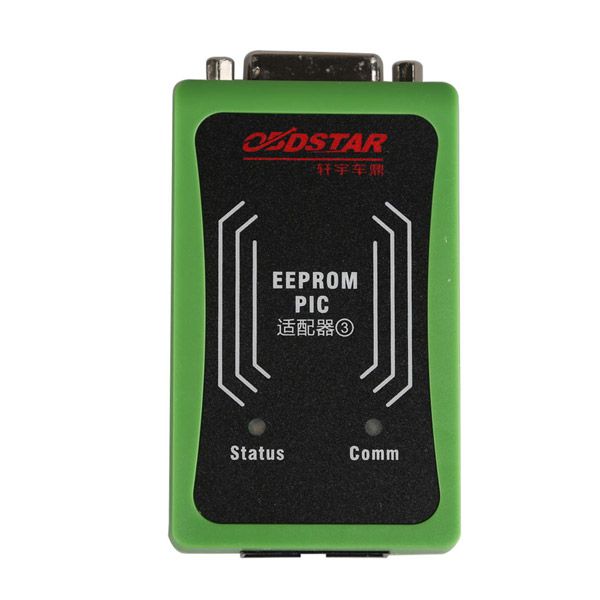

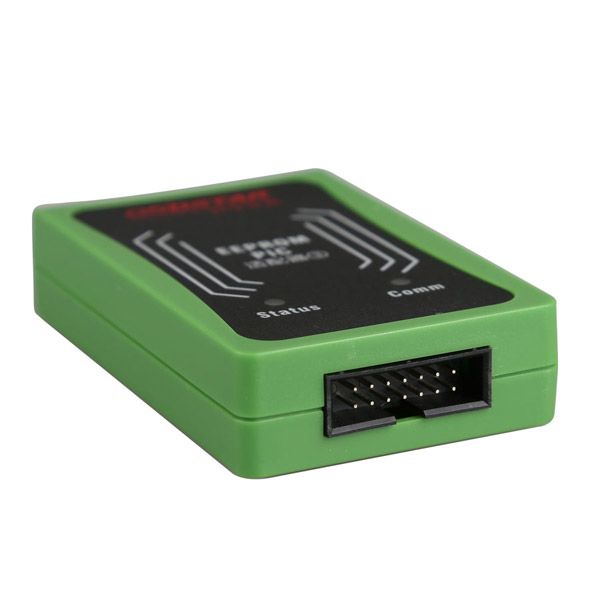

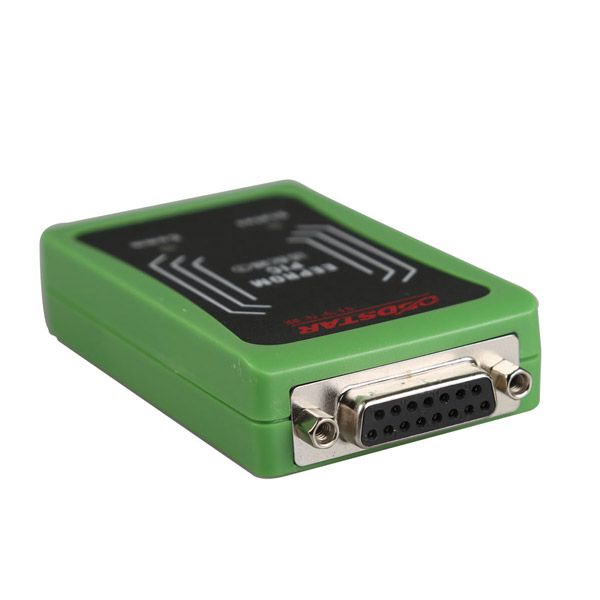

OBDSTAR PIC and EEPROM 2-in-1 Adapter for X-100 PRO Auto Key Programmer
How to Use the OBDSTAR EEPROM Adapter
1. This EEPROM Adapter must be used together with the OBDSTAR X100 PRO and cannot function independently.
2. You must provide your OBDSTAR X100 Pro device serial number so we can activate the EEPROM Adapter authorization for you. The adapter can only be used after activation.
Supported Functions and Vehicle Models
Supported EEPROM Chip Types
- 24C01/02/04/08/16/32 – read/write/save/recovery data
- 93C46/56/66/76/86 – read/write/save/recovery data
- 25010/020/040/080/040/080/040/080/256 – read/write/save/recovery data
- 95010/020/040/080/040/080/040/080/256 – read/write/save/recovery data
Supported Security Code Reading Functions by Brand
- Audi
- Baic E150, E130
- Buick
- Cadillac SLS, SRX
- Changan CM8, Yue Xiang, Zhi Xiang, Benben
- Changhe
- Chery STEC immobiliser and DIAS immobiliser
- Chevrolet Cruze, Trax
- Chrysler
- Citroen Elysee
- Dflz
- Dfpv S3 (security password)
- Geely Emgrand
- Great Wall
- Hafei
- Hnmazda
- Hawtai
- Huapu
- MG3
- Jiangling
- Liebao
- Skoda
- Volkswagen (VW)
- Zznissan
- Zotye
Note: Requires removal of the EEPROM chip to read the password.
Package Contents
- 1pc x EEPROM Adapter
