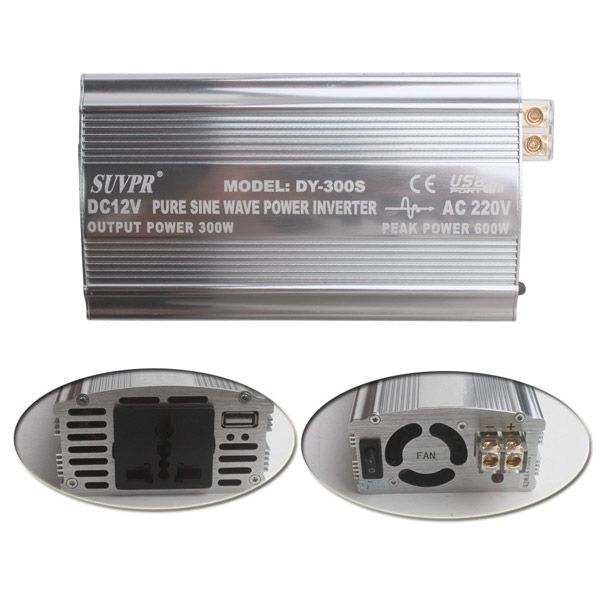

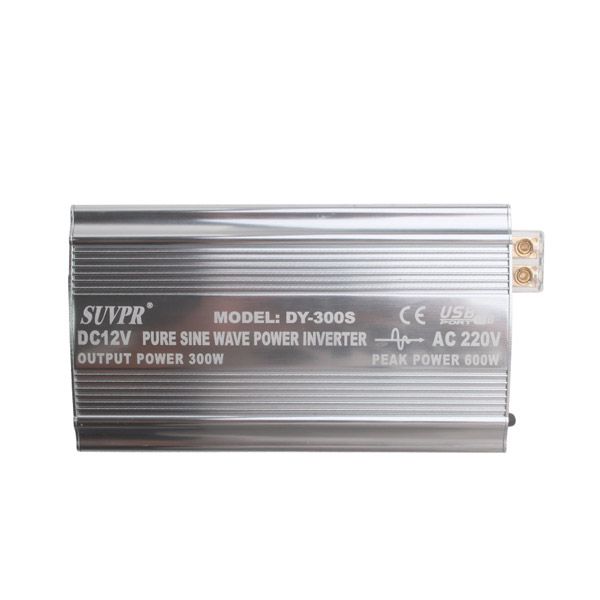

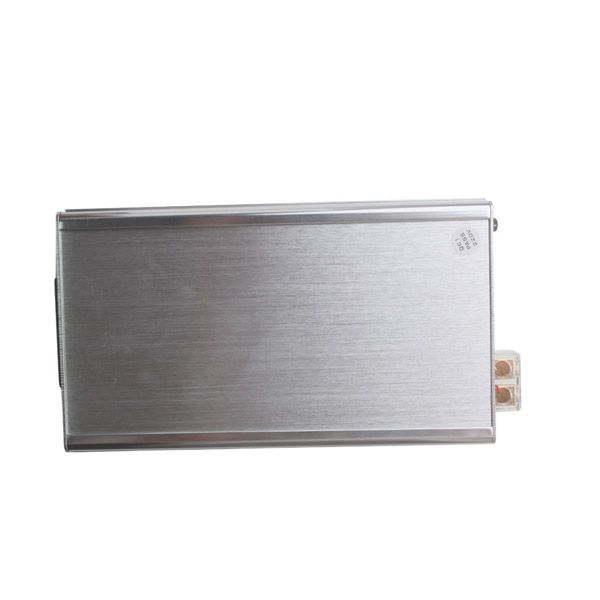

DY-300S 300W Pure Sine Wave Power Inverter
Technical Information:
Product Name:300W Pure Sine Wave Power Inverter
Product Model: DY-300S
DC Features:
DC Input Voltage: DC12V
Voltage Range of Input: DC10V±0.5V-15V±0.5V
Starting Up Voltage: DC11V-DC13V
Over Voltage Protection: DC15V±0.5V
Low Voltage Protection: DC10V±0.5V
Stand-by Current: At DC12V, <0.8A
Rated Current of Input: 30A
USB Output: 5V,0.5A
AC Features:
AC Output Voltage: AC220V±5%
Rated Current of AC output:1.4A
Output Frequency: 50Hz±0.5Hz
Rated Power: 300W
Maximum Output Power:360W
Output Waveform: Pure Sine Wave
Waveform Distortion: <5%（Linear loads）
Transfer Efficiency: >85%
Using Ambient
Ambient Temperature: -5℃~+40℃
Relative Humidity: 0-80%, non-condensing
Elevation: <1000m
Specification:
Shell Material: Al
Case Color: Silver Gray
PCS/CTN: 20pcs

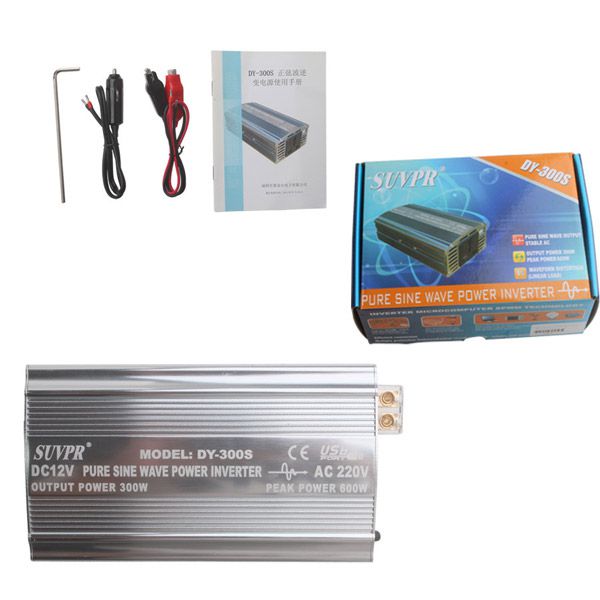

Package List:

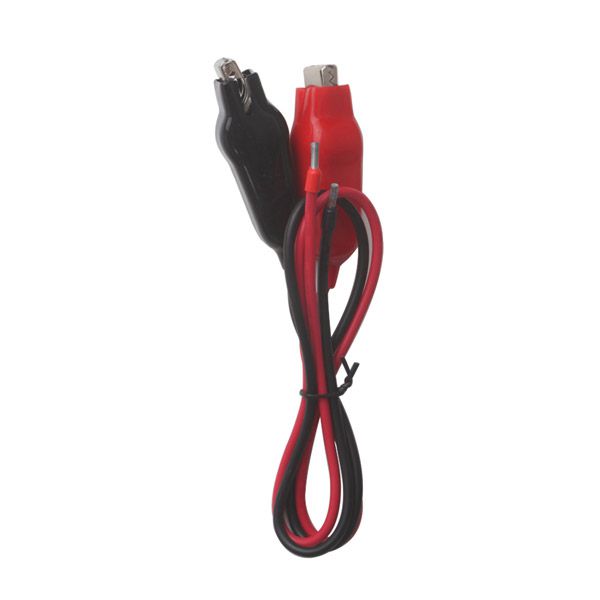

1pc x DC Cable

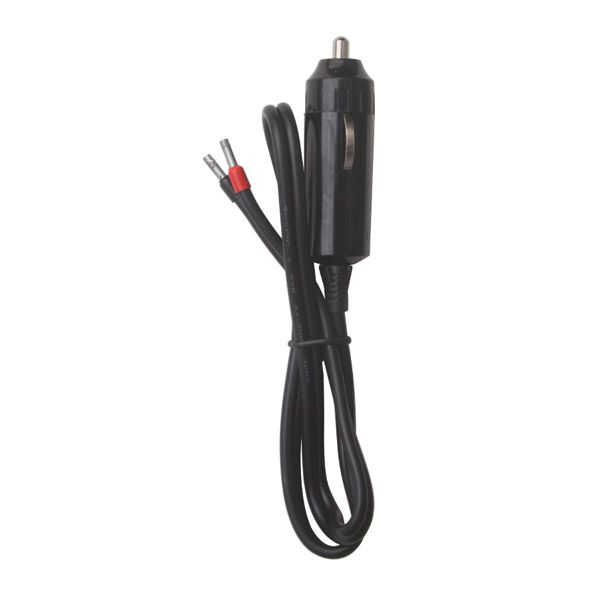

1pc x Cigar Lighter Cable

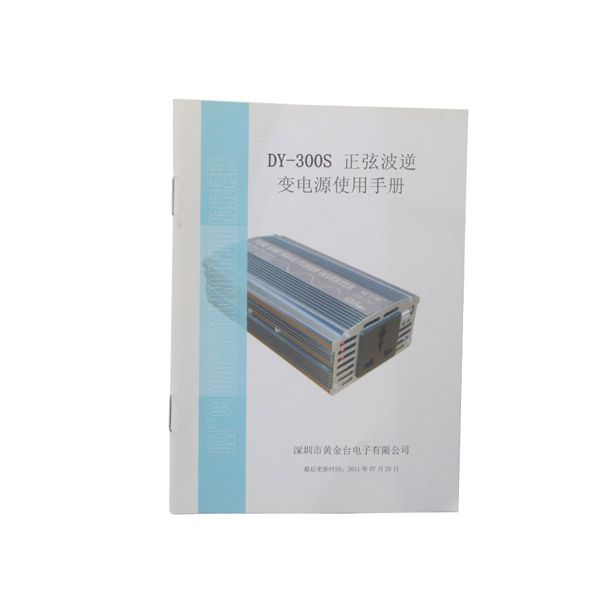

1pc x Manual

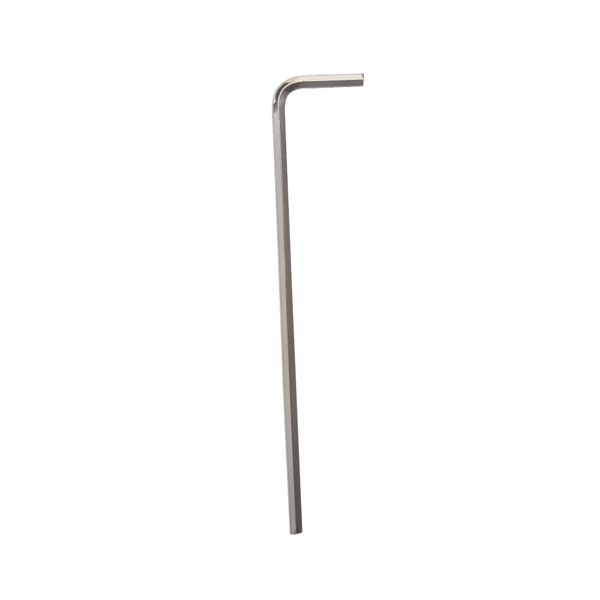

1pc x Allen Wrenchl
