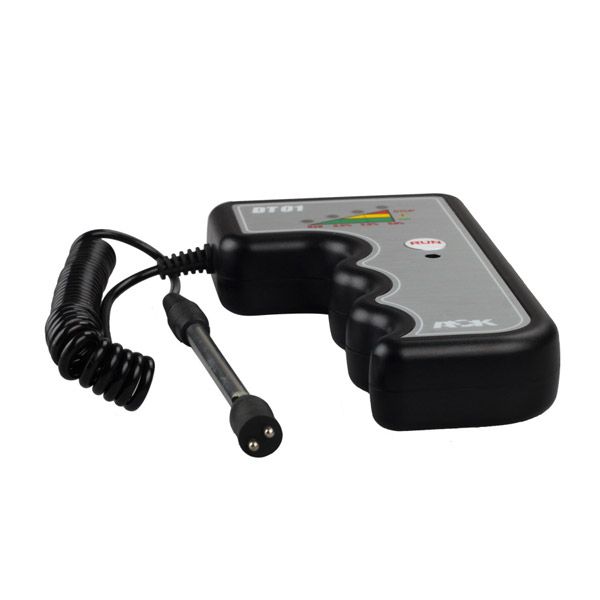

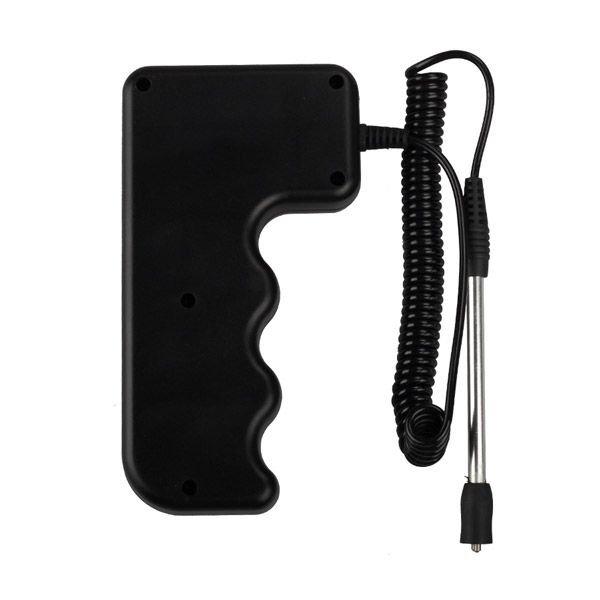

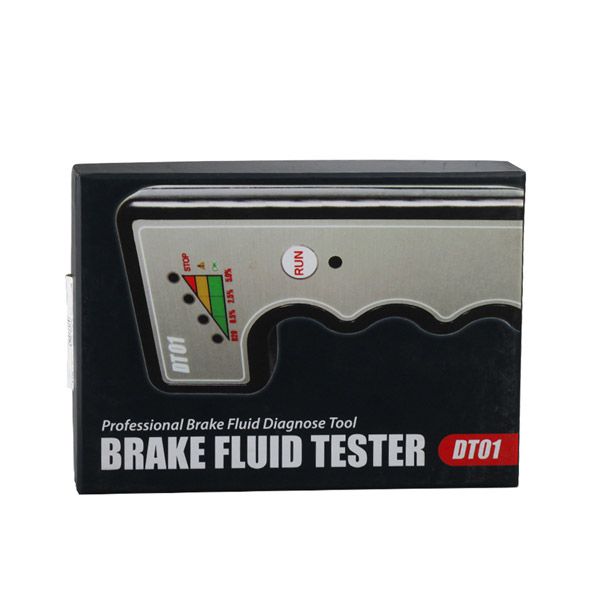

DT01 Brake Fluid Tester
Function:
Test water content in brake fluid
Specifications:
Power Supply: 9V Battery
Suitable Standards: DOT3, DOT4
Dimensions: 130*180*31mm
Display: LED lights
User's Manual:
1. Clean two electric poles of the test bar head, and put it into new break fluid or dry air.
2. Press and hold the RUN button, use a straight headed screwdriver to adjust the reset screw clockwise until the second status indicator light up, and then turn anti-clockwise until it goes out.
3. Dip the test bar head into the break fluid tank 2cm deep and press the RUN button, judge the condition of break fluid according to the diagrams on the back of the box.
4. Clean up the test bar and put the tester back into the box.
Package List:
1pc x Brake Fluid Tester
