KT4000/KT5000 Digital Reptile Dimming Aquarium Temperature Controller Outlet PID Heating Cool Day/night Chauffage Regulator Thermostat EU/UK Plug

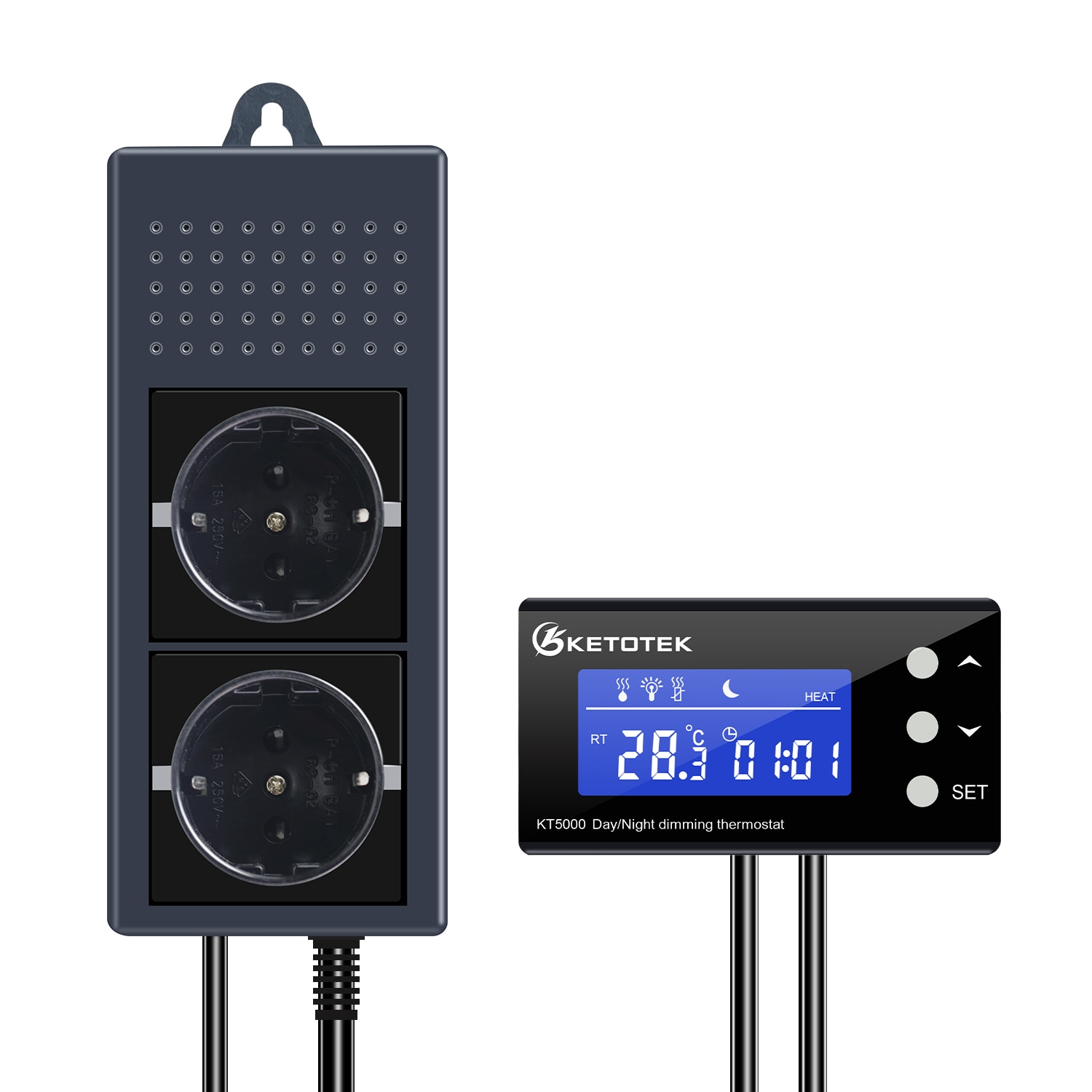

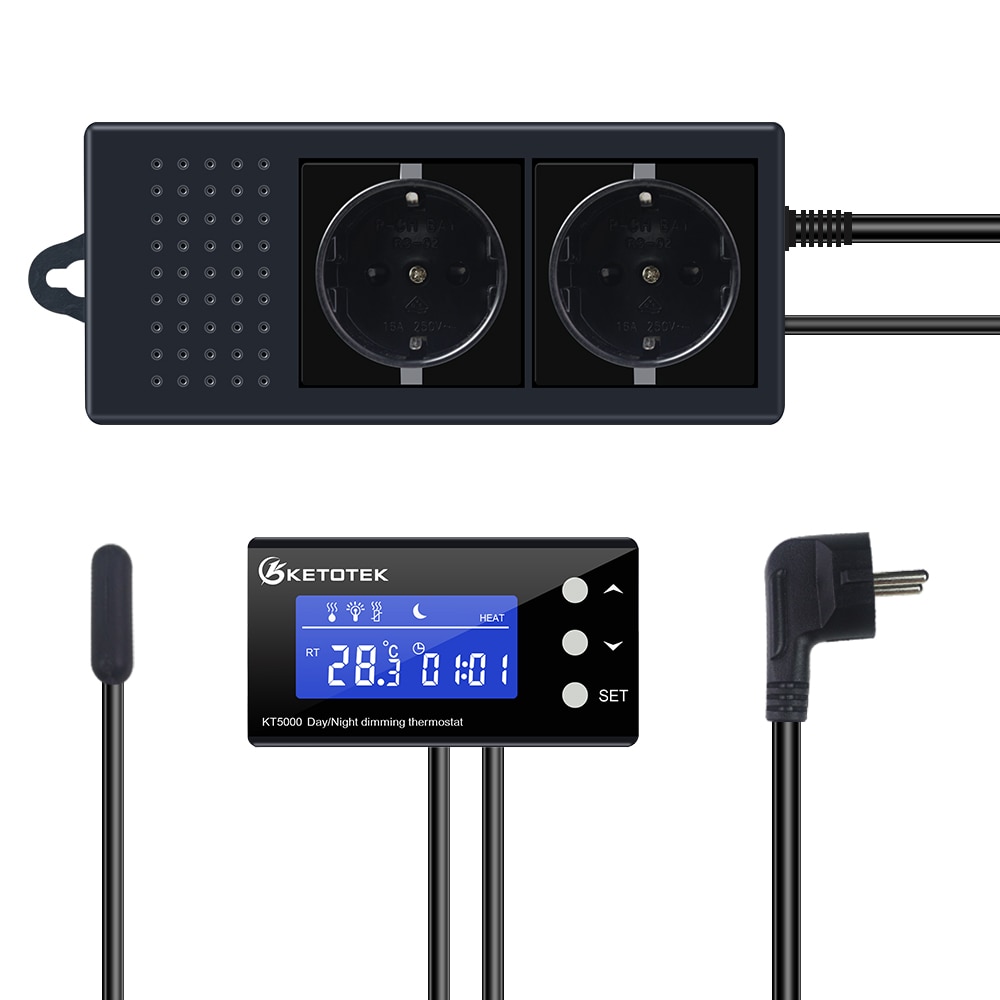

KT5000 Pid Day/Night dimming thermostat + timer
Features:
- Blue tape LCD display, simple operation
- Temperature adjusted per 0.1°C
- Two timers can be set during 24 hours
- Separate Day and Night Temperature can be set.
- Real Time Clock - An inbuilt real-time clock to control the light so simulating the day and night as in the real environment. One Heating/Cooling socket plus one timer socket help to set timing output function
- Can be used in both wet and dry environments

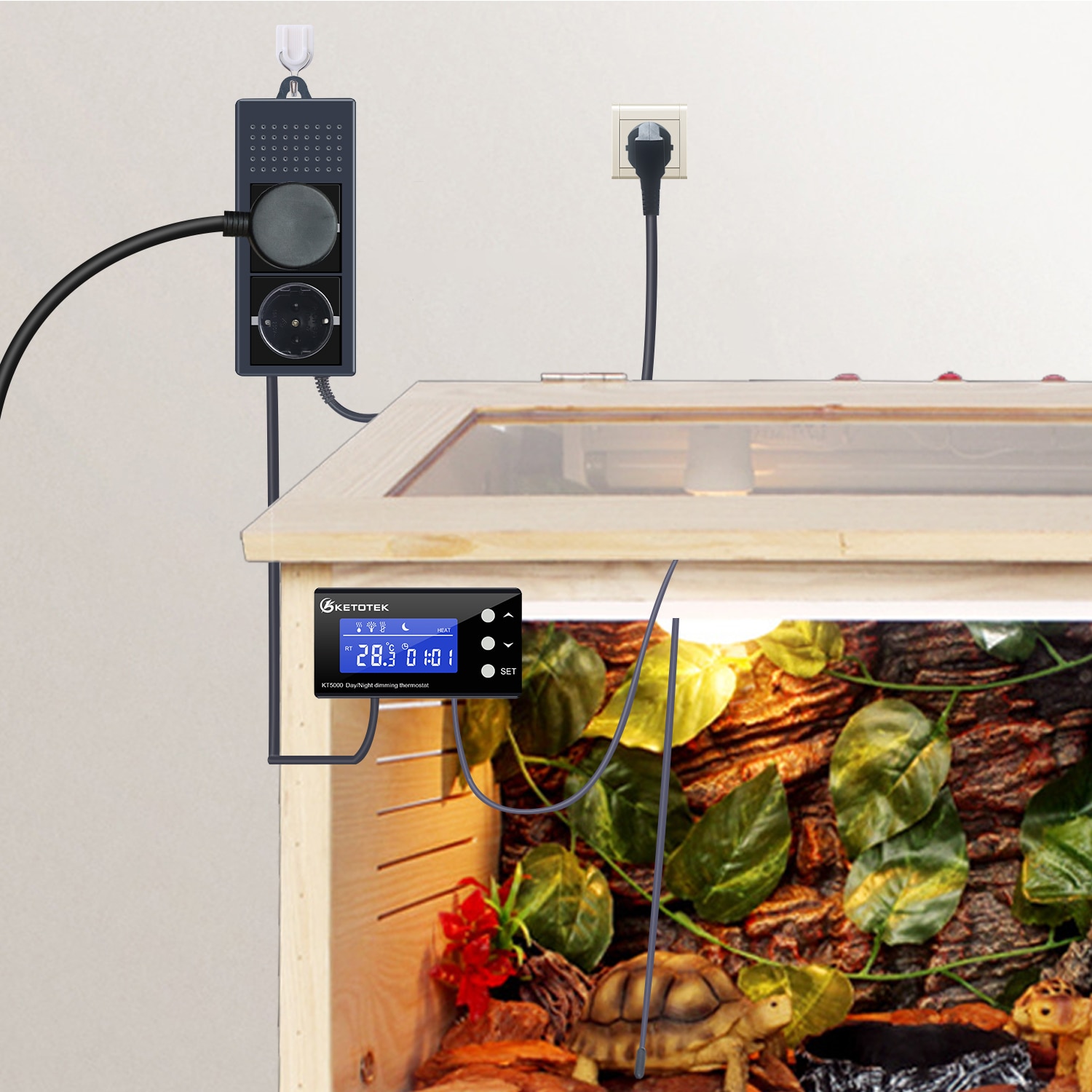

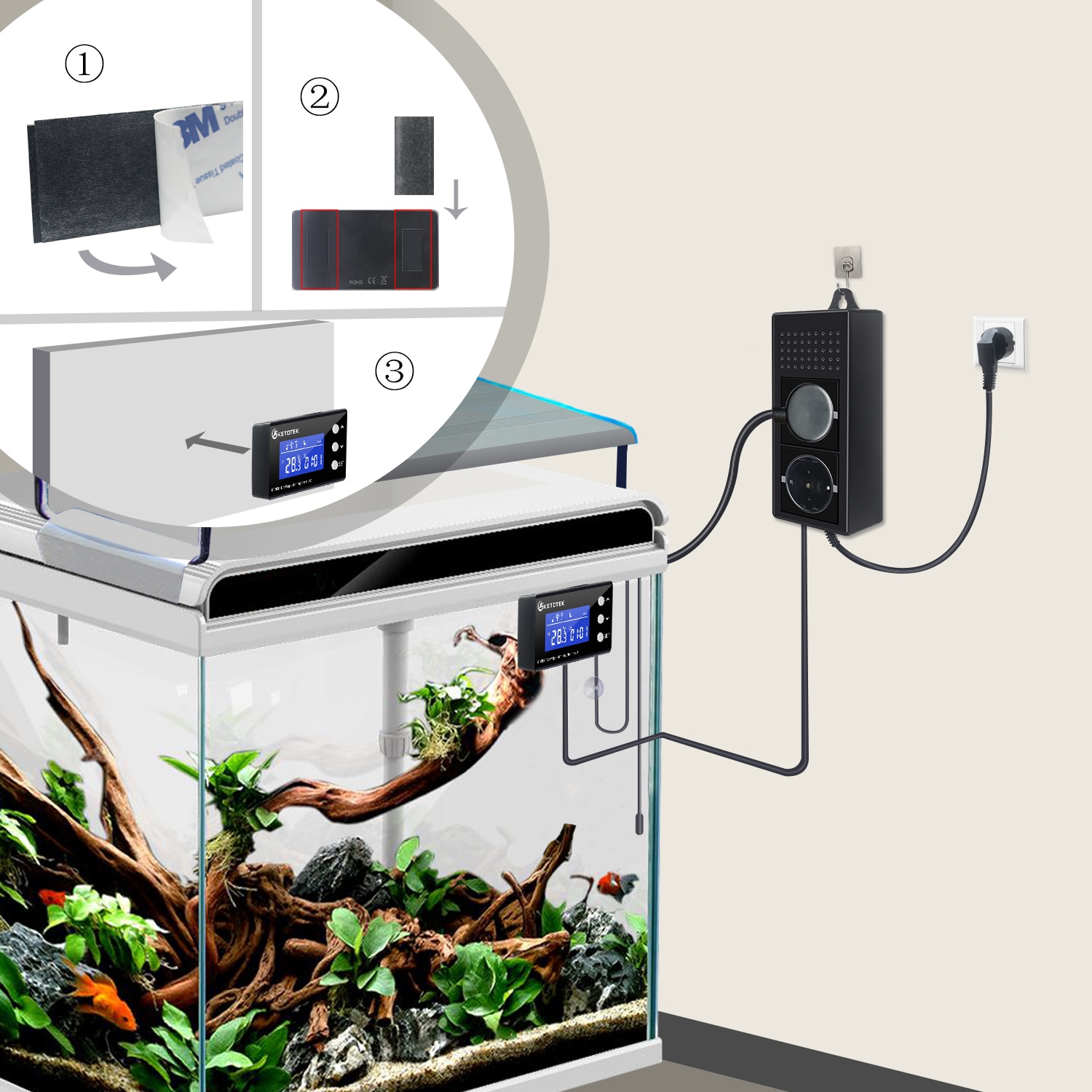

- Small and elegant appearance, can adopt attached on the glass, or stand on the table, or install into the aquarium and terrarium, fit for different operating requirements of users.
Parameters:
| Model Number | KT5000 |
| Temperature Measuring Range | 0°C~50°C |
| Temperature Controlling Range | 0°C~50°C |
| Resolution | 0.1°C |
| Measuring Accuracy | 1.0°C |
| Power Supply | 220V AC+/-15% |
| Input | 1 NTC Sensor |
| Timer Output | Resistance load MAX 1100W, Inductive load MAX 275W, Incandescent bulb MAX 220W |
| Heating Output | Resistive load MAX 440W |
| Working Temperature | -10°C~60°C |
| Working Humidity | 20%~85% |
| Power Consumption | <=3W |
| Key Sound | YES |

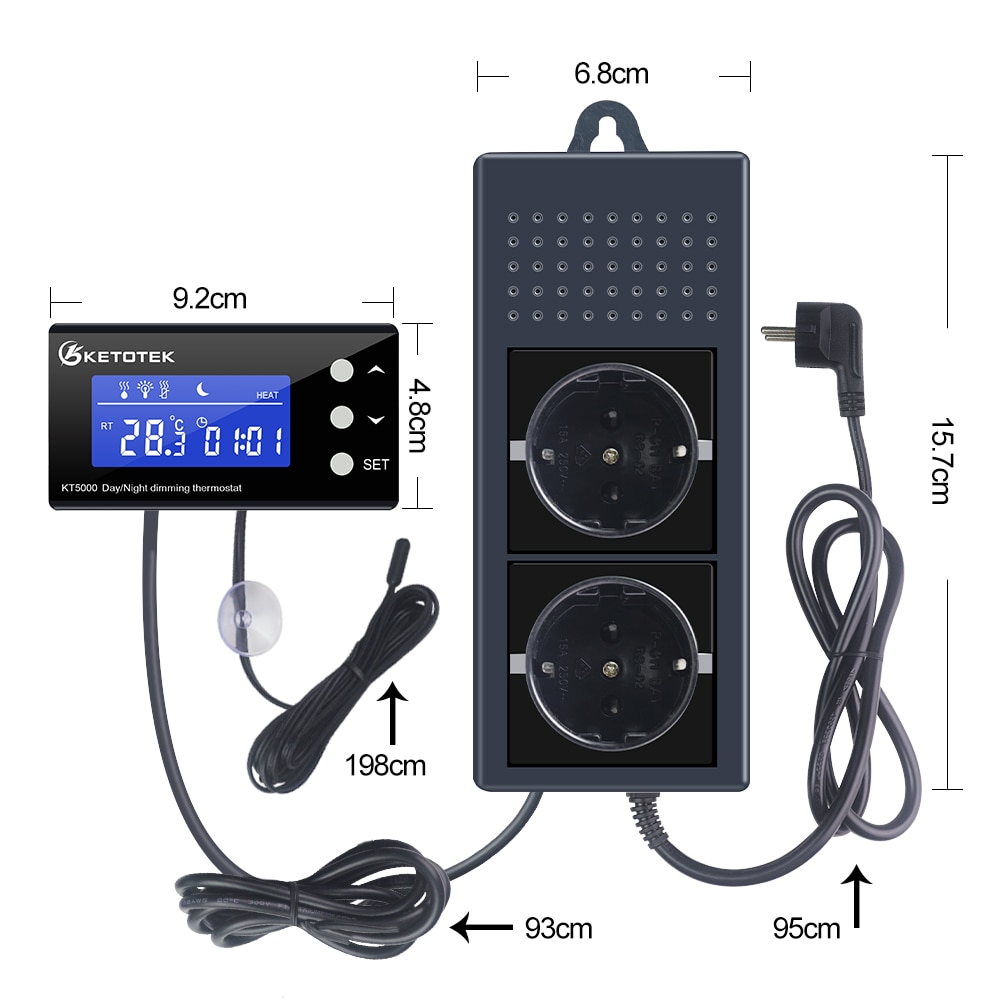

| Size of the display | 92x50x6.5mm |
| PID Control | YES |
| Menu item | Set | Default value | Remark |
| HEAT（MODE） | HEAT | HEAT | |
| Daytime Temperature（SET） | 0.0~50.0°C | 25°C | Set step 0.1°C |
| Nighttime Temperature（SET） | 0.0~50.0°C | 20°C | |
| Daytime FROM | 00:00—22:59 | 08:00 | |
| Daytime TO | 01:00—23:59 | 18:00 | If TO time is earlier than FROM time, display error message "ERR". |
| Alarm over temperature | 0.0~5.0°C | 5.0°C | Set step 0.1°C |
| First Timing control L1: ON: FROM, OFF: TO | 00:00~23:59 | 00:00~06:00 | Disabled if FROM and TO are same |
| Second Timing control L2: ON: FROM, OFF: TO | 00:00~23:59 | 12:00~18:00 | Disabled if FROM and TO are same |
| Real Time | 00:00~23:59 | Real-time | |
Package Included:
1 x thermostat

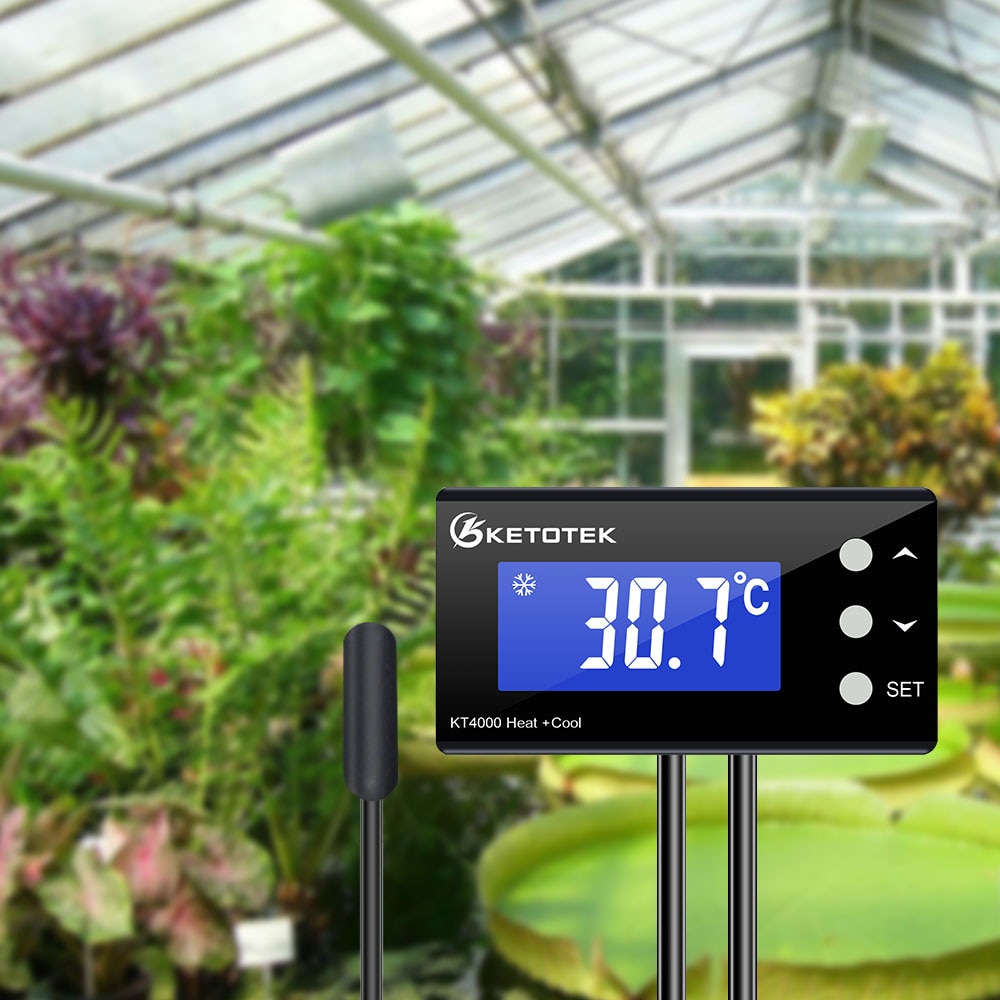

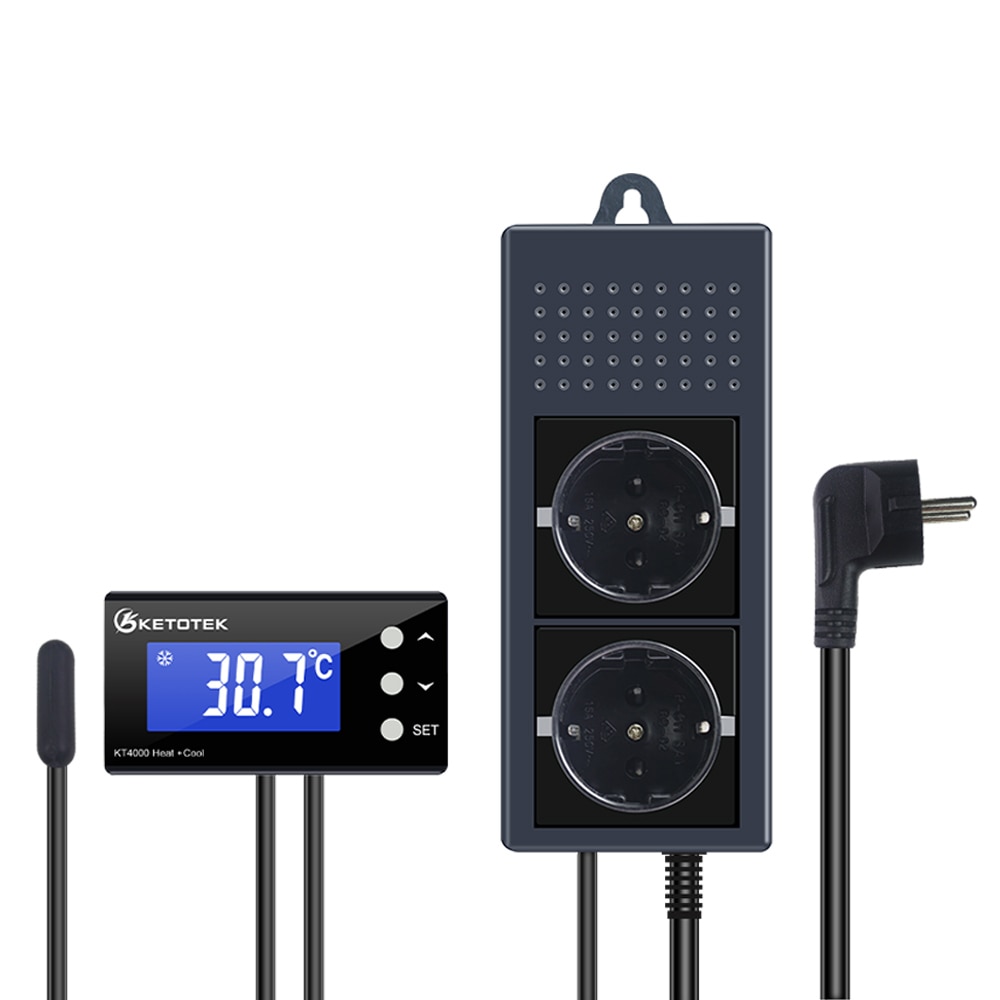

KT4000 heat and cool thermostat
Features:
- Heating and cooling relay output.
- Two temperature setpoint. easy to use.
- Plug and play design. Reading with Celsius(°C) unit.
- Compressor Delay protection function ( 0-10min, default: 0 min)
- Temperature calibration function (-10~10°C, default: 0°C)
- Alarm when temp exceed temperature limit or sensor error
- All parameters setting can be saved after short circuit.
- Refrigerating control output delay protection
- Can be used for aquarium, pet breeing, domestic freezer,incubator, BBQ, water tanks, refrigerator, industrial chiller,steamer, industrial equipment and other temperature controlled system.
Specifications
- Power Supply: 220Vac±15% , 50
- Temperature control range:-50~99°C, default: 20°C
- Resolution: 0.1°C, adjustment step: 0.1°C
- Accuracy: +/-1°C
- Heating differential value:0.5~20 °C, default: 2°C
- Cooling differential value:0.5~20°C, default: 2°C
- Sensor input: NTC Waterproof sensor 3m/9.84ft
- Relay contact capacity: Cool Heat 10A
- Power consumption: ≤3W
- Temperature control range :-50~99°CHeating differential value：0.5~20°CCooling differential value:0.5~20°CSensor input:NTC Waterproof sensor2m/9.84ftRelay contact capacity:Cool Heat(10A@220Vac each)Ambient temperature:-20-60°Chumidity:20% -85%RHHeating and Cooling Relay output:yesCooling Delay start:YesTemperature calibration :yesData saved when power off :yesAlarm：Alarm when temp exceed temperature limit or sensor errorCodeFunctionSet RangeDefaultLSTemperature set value-50~99℃20°CHdHeating differential value0.5~20°C2°CLdCooling differential value0.5~20°C2°CPLSet cooling delay output0~10 minutes1AHHigh temperature alarm-50~99°C99°CALLow temperature alarm-50~LS1°C-50°CCATemperature Calibration-10~10°C0°CReset:long press UP and DOWN buttons for 3 seconds

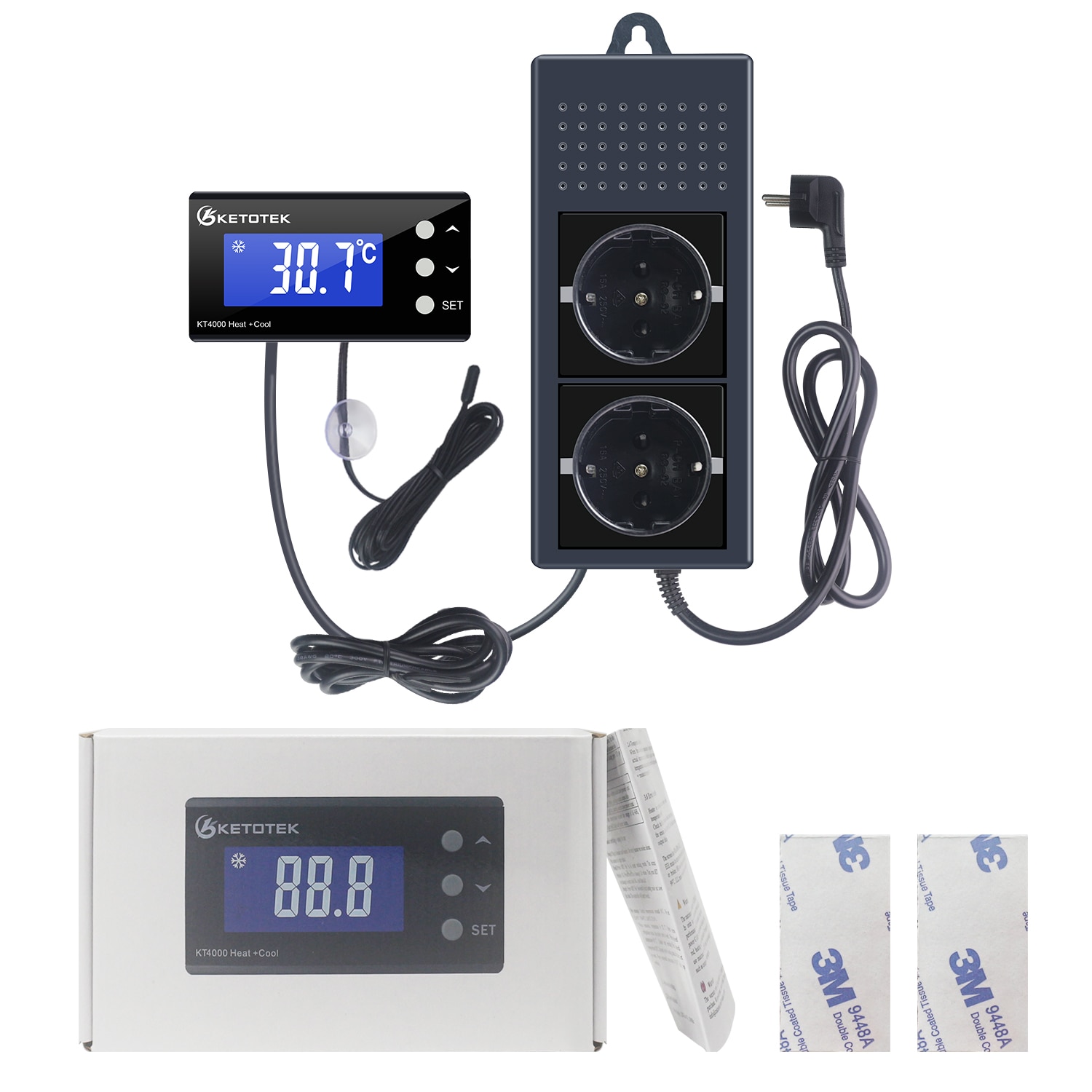

Package Content :
- 1 x temperature controller
- 1 x waterproof sensor
UK Plug
EU Plug:
