Autel MaxiDiag Elite MD702 Four System with Data Stream European Vehicle Diagnostic Tool
Description:
Autel MaxiDiag Elite MD702 Four system support European vehicle Engine, Transmission, Airbag and ABS four system diagnose, support data stream read and data print via PC Link. It is fast and easy diagnostics at the right price.
Feature & Function:
1. One tool can do it all-reads and clears trouble codes on four systems ( Engine, Transmission, ABD and Airbag)
2. Supports all 10 test modes of the latest J1979 OBD II test specs,including Read Codes, Erase Codes, Live Data, Freeze Frame,I/M Readiness, O2 Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information
3. Reads live datastream and freeze frame
4. OBD II code tips guide technicians to the root cause of trouble code faster
5. Turns off warning lights
6. Enhanced OBD II Mode 6
7. Data graphing
8. One year free software upgrade
9. Prints data via PC
Specification:
Display: TFT color display (320 x 240 dpi)
Operating Temperature: 0 to 60°C (32 to 140 °F)
Storage Temperature: -20 to 70°C (-4 to 158 °F)
External Power: 12.0 to 18.0 V power provided via vehicle battery or adapter
Length\Width\Height: 212 mm (8.35”)\110.5 mm (4.35”)\37.5 mm (1.48”)
Main Unit Weight: 0.28kg(without wire) 0.484kg(with wire)
Supported Vehicle list:
Benz, Smart, Sprinter, Maybach, BMW, Mini, VW, Seat, Skoda, Audi, Opel, Land Rover, Jaguar, Volvo, Porsche, SAAB, EU Ford, Vauxhall

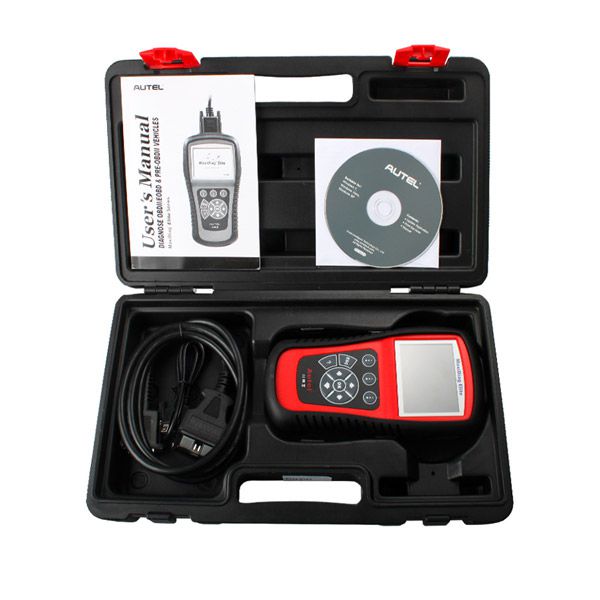

Package list:

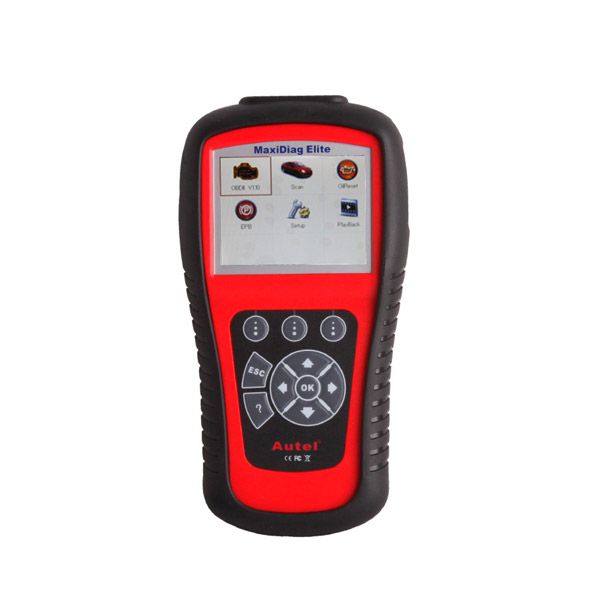

1pc x MD702 Main unit
1pc x SD Card

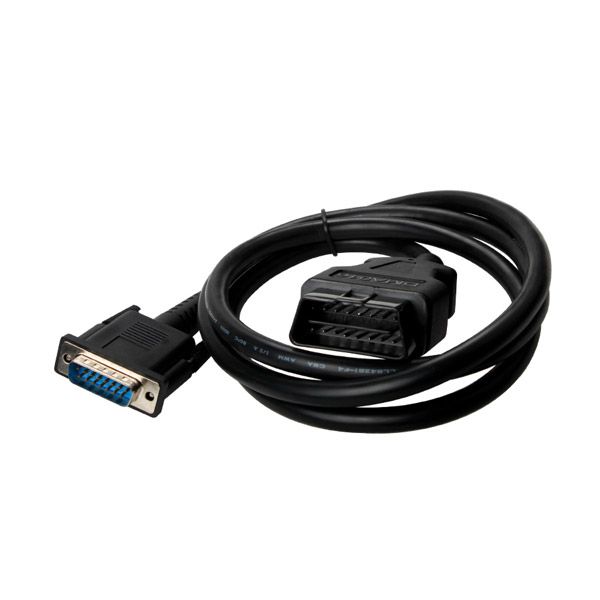

1pc x OBDII Cable
1pc x USB Cable
1pc x CD
1pc x User's Manual

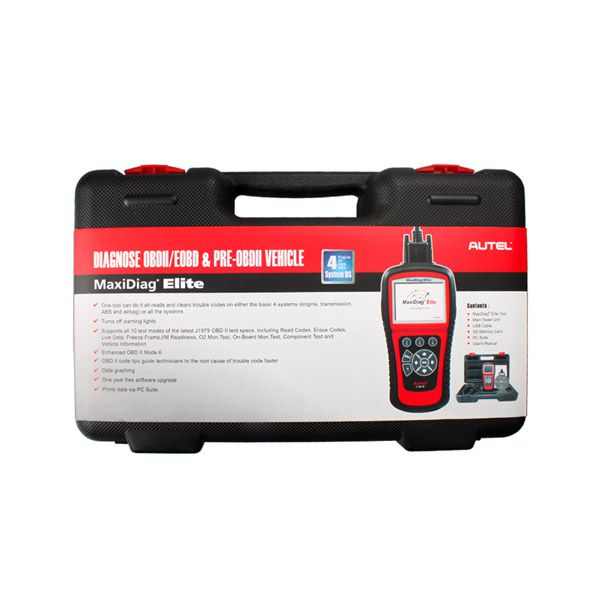

1pc x Carry Case
