TOPDON BT100 12V Car Battery Tester Digital Automotive Diagnostic Battery Tester Analyzer Vehicle Cranking Charging Scanner Tool
Description：

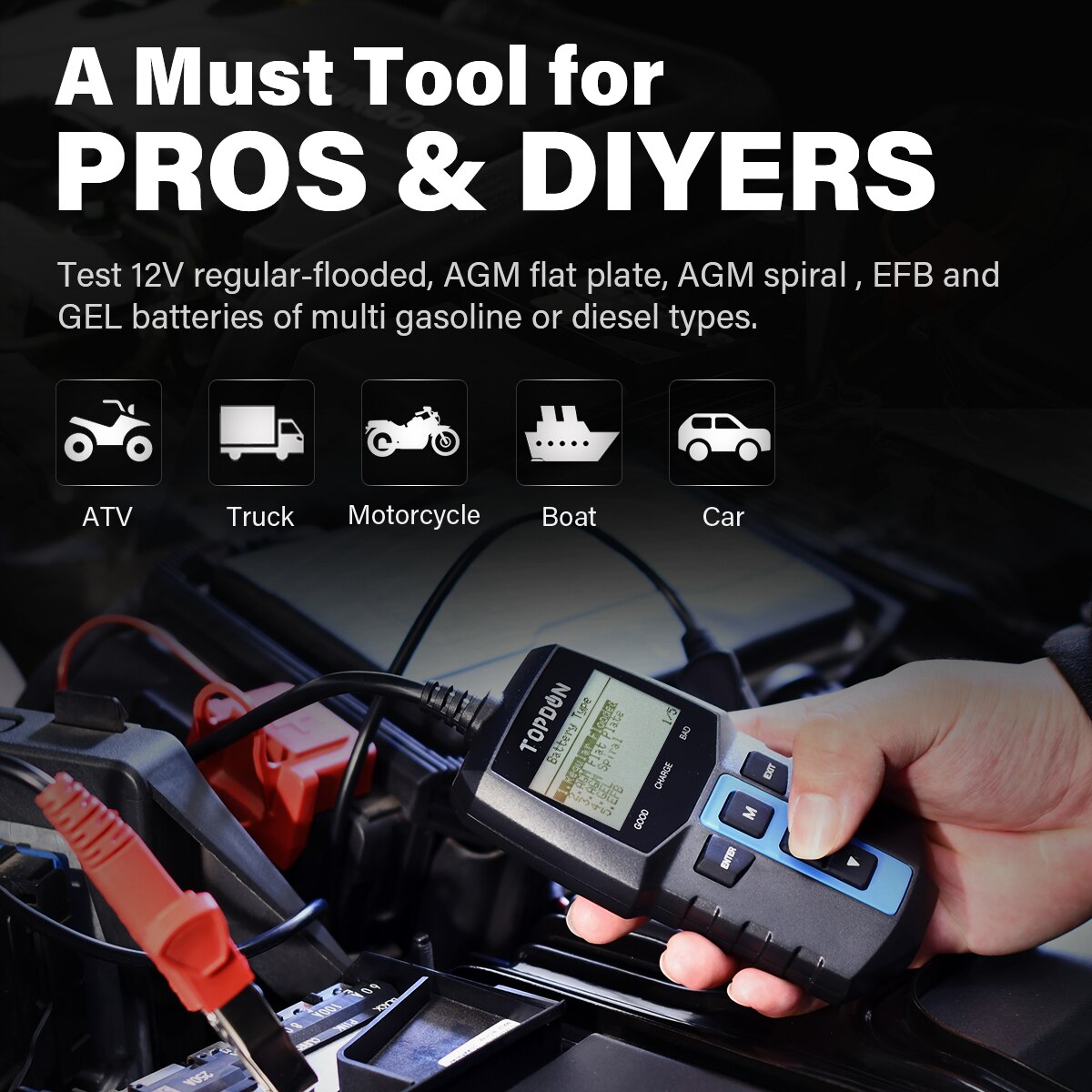

Small compact design, scan faster and indicates test results directly. Even a beginner can use this unit to analyze any 12V batteries healthy, tells you everything about the battery: voltage, charge, cranking power, resistance test，and how much life is left in the battery (level of Ohm resistance). Give you data review,can test 12v lead-acid battery of multi gasoline or diesel types,including car,truck,motorcycle,atv,suv,boat,yacht,even golf cart,support regular flooded,Agm flat plate,AGM spiral,Gel and Efb battery.

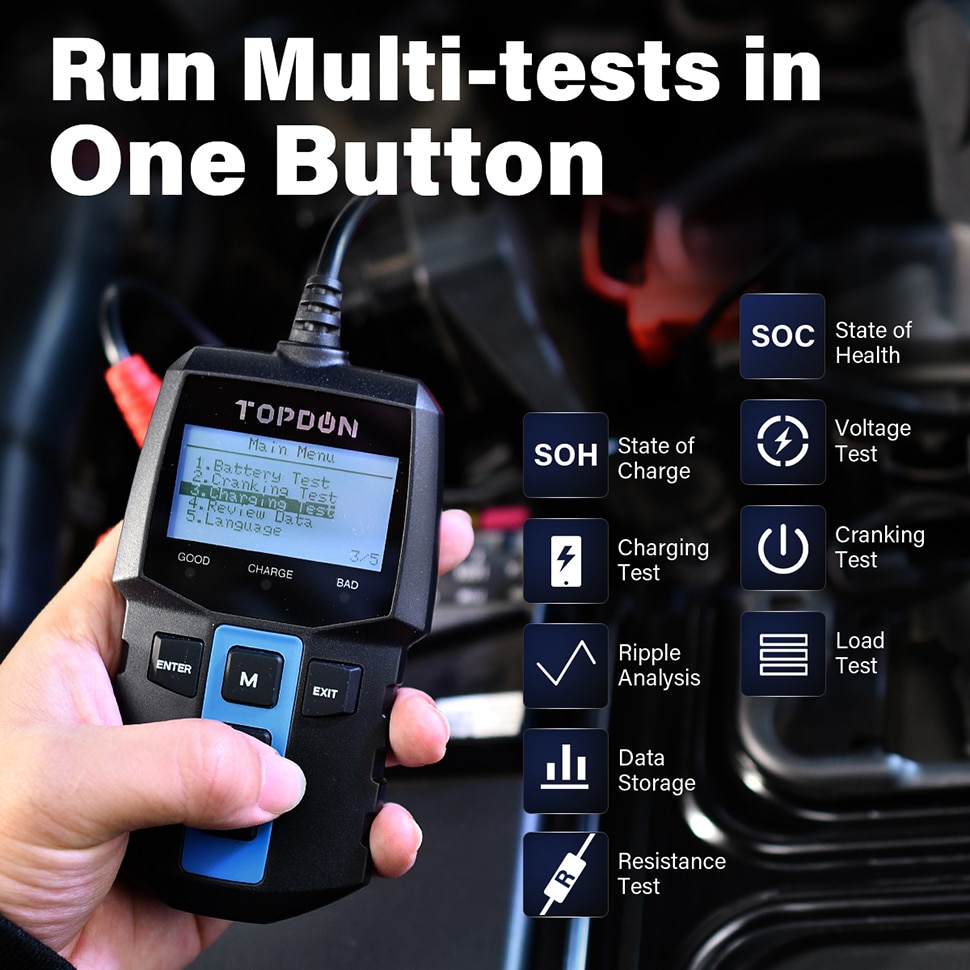

Function:
1.Identify battery status Good,Bad or Replace
2.Check Battery Capacity- Cold Cranking Amps (CCA）， DIN,EN and IEC information relative to battery rating .
3.Check internal Resistance Value (Ohm）
4.Display battery life in percentqage(%)
5.Battery Cranking Test ,Load Test
6.Battery Charging Test ,Ripple Test
7.Support battery ripple test and review test data
Specifaction:
Display:128*64mm LCD display
Working Temperature: -20°C~65°C (-4°F~140°F)
Storage Temperature:-20°C~70°C(-4°F~158°F)
Dimendions:136.5*75.5*22.5mm
N/W:260g
Battery Test
Battery Test displays SOH (State of Health), SOC (State of Charge), Voltage, Current, Rating, and the reliable analysis results on readable LCD screen for your reference. Regularly check your battery status for signs of weakness or erosion, keep a close eye on battery function you can fix potential problems before they happens.

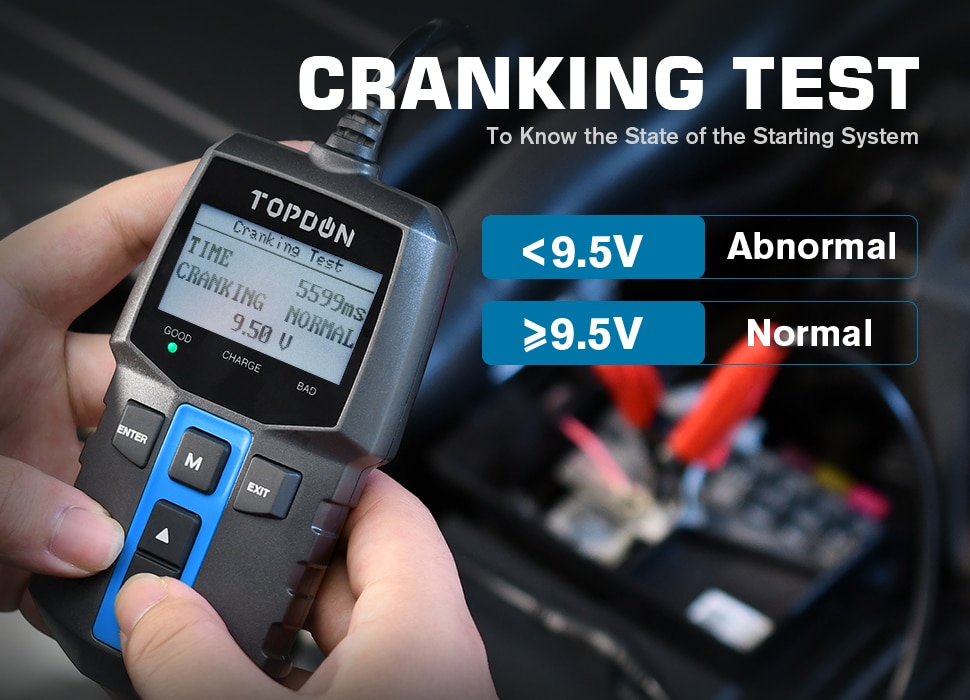

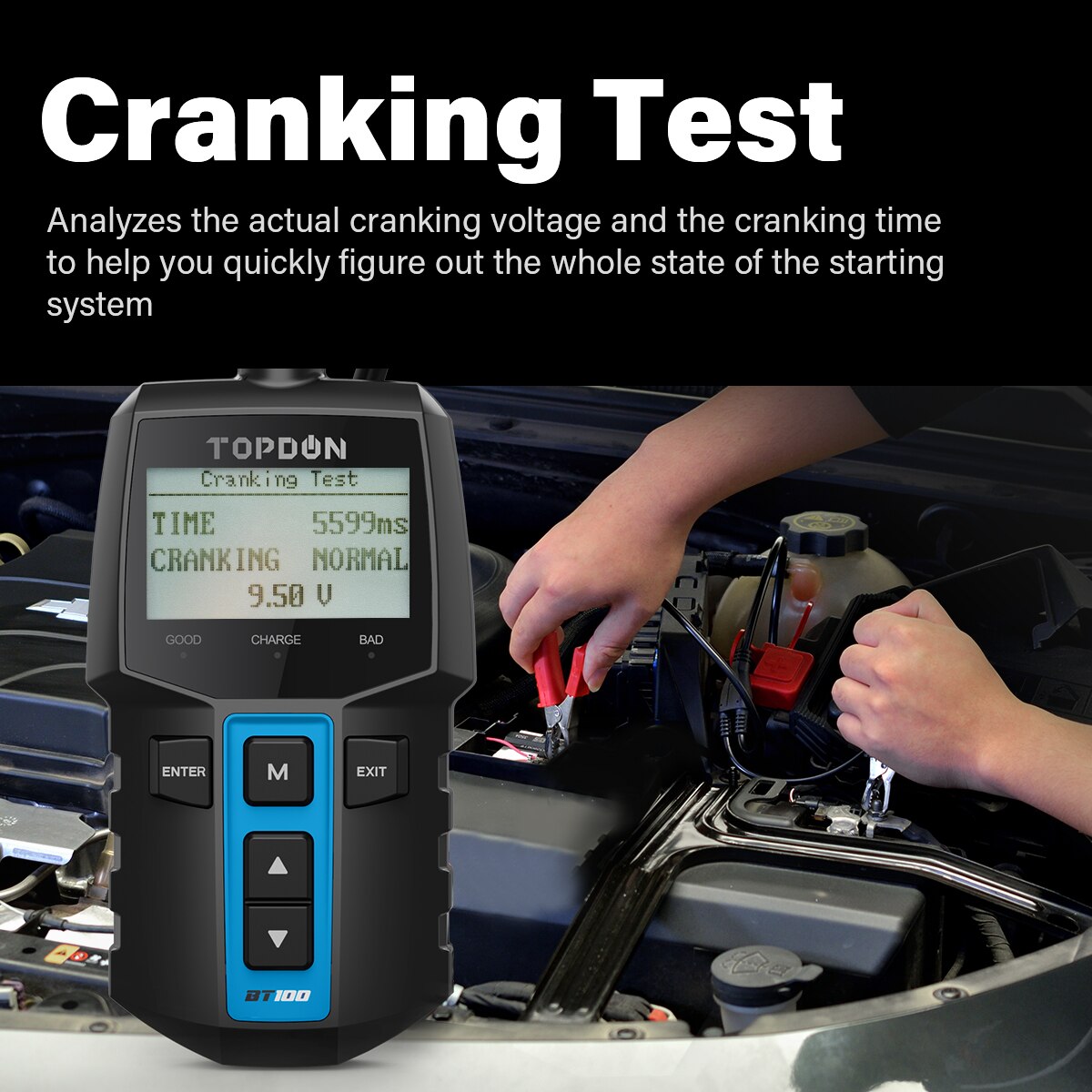

Cranking Test
Cranking Test to Know the State of the Starting System
Cranking voltage ＞10.5V,discharge performance good,no actions needed
Cranking voltage 10V~10.5V,discharge performance not bad ,need recharging
Cranking voltage 9.6V~9.9V,discharge performance bad,need replace
Cranking voltage ＜9.6V,discharge performance very bad,need replace ASAP
2). Charging Volt: Low – check the drive belt of the generator and the connection between generator and battery, or follow the manufacturer’s suggestion to eliminate generator fault;
3). Charging Volt: High – replace the generator assembly or a regulator to avoid battery damages;
4). No Volt Output – check the generator connection cable and the belt;
5). Diode Test – there is at least one diode is damaged if ripple volt is too high.
TOPDON BT100 automotive battery analyzer can run tests on 12V lead-acid batteries including regular flooded, AGM flat plate, AGM spiral, GEL and EFB batteries with a much wider test range (100-2000 CCA). Cover 10 major rating standards – CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE,
