Original Xhorse NEC Key Adaptor works together with VVDI MB BGA(Without soldering/ Without wire jumper/ Not need other adaptor)
VVDI MB NEC Key Adaptor is a one of our nec adapter Tools, you can buy VVDI MB NEC Key Adaptor from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

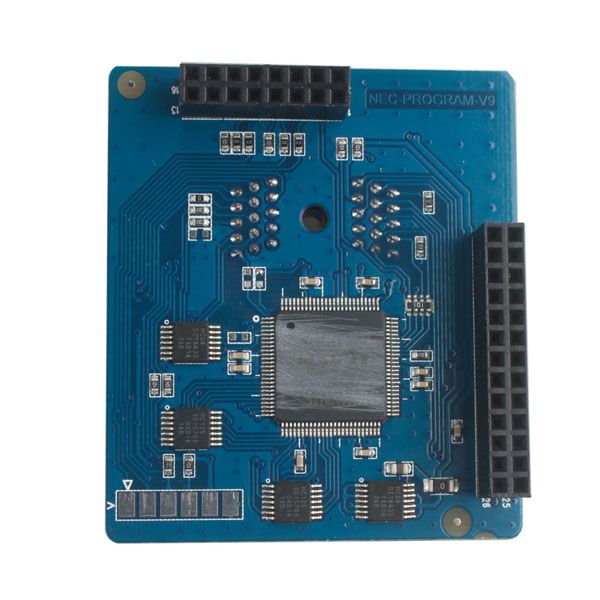

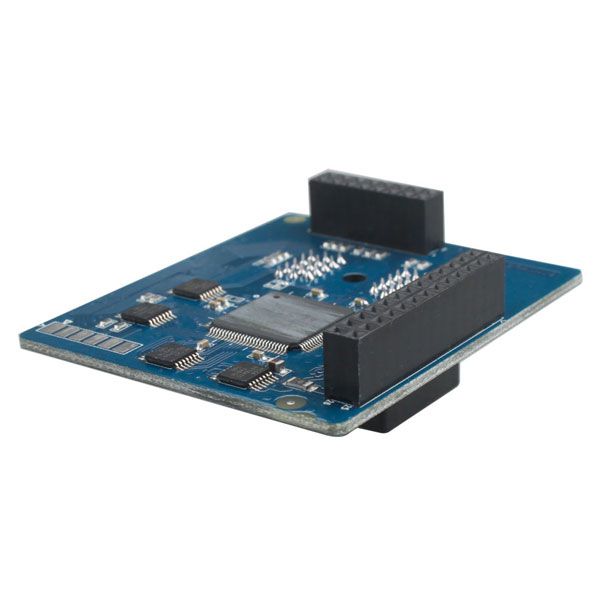

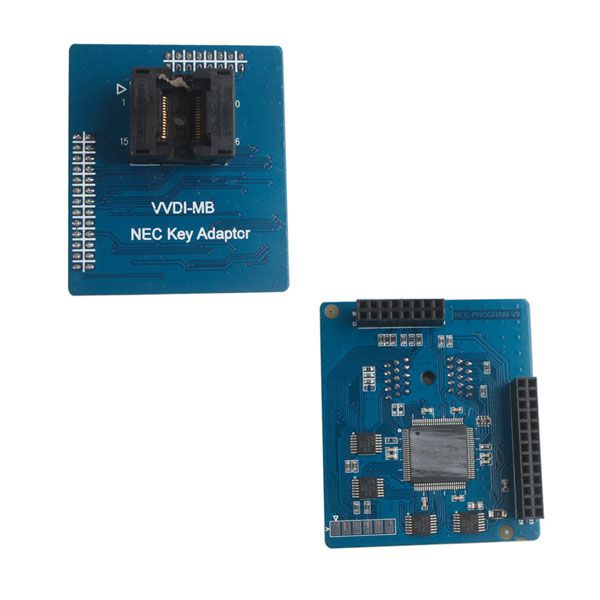

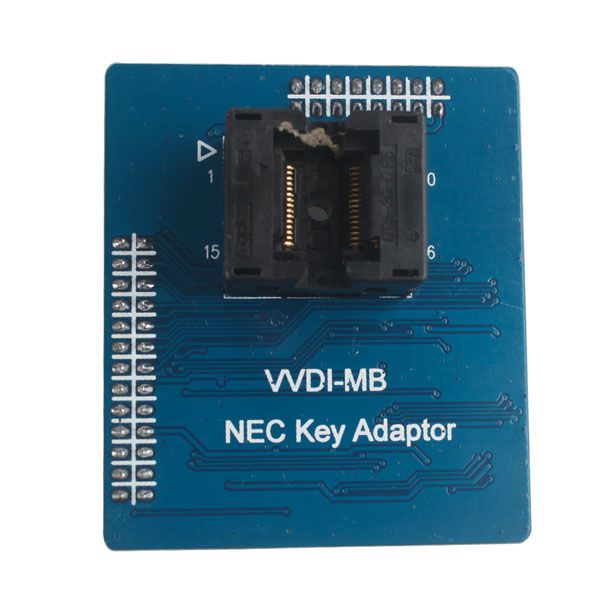

images of VVDI MB NEC Key Adaptor
Original NEC Key Adaptor support versions:
Can Work Together with VVDI MB BGA
(Without soldering/ Without wire jumper/ Not need other adaptor)
Can Work Together with VVDI MB BGA
(Without soldering/ Without wire jumper/ Not need other adaptor)
Updating supports more versions
Support v51 v57 get password directly
Support normal key v28 v35 v40 v51 v57 renew on board
Support keyless go keys v03 v06 v07 v08 v09 v61 renew on board
Support normal key v28 v35 v40 v51 v57 write key file by IR or on board
Support keyless go keys v03 v05 v06 v07 v08 v09 v59 v61 write key file by IR or on board
The above keys all with NEC chip (not BGA type).
You need solder the NEC chip from key and place it to NEC adaptor.
For NEC V51 V57 version, support read password from working key directly, no need read password from EIS.
For all NEC types, you must use “Identification key” to read one time before renew/write key
How to place key NEC chip to adapter via read/write/renew key via NEC adapter?
The above keys all with NEC chip (not BGA type).
You need solder the NEC chip from key and place it to NEC adaptor.
For NEC V51 V57 version, support read password from working key directly, no need read password from EIS.
For all NEC types, you must use “Identification key” to read one time before renew/write key
How to place key NEC chip to adapter via read/write/renew key via NEC adapter?
Notes: NEC Key Adaptor is optional,renew ESL adaptor under devoleping, will be realeased later.
Package including:
1pc X VVDI MB NEC Key Adaptor
