Yanhua Mini ACDP Key Programming Master Basic Module with Yanhua Mini ACDP BMW CAS1 CAS2 CAS3 CAS3+ CAS4 CAS4+ IMMO Key Programming and Odometer Reset Module
Yanhua Mini ACDP Key Programming Master Basic ModuleYanhua Mini ACDP BMW CAS1 CAS2 CAS3 CAS3+ CAS4 CAS4+ IMMO Key Programming and Odometer Reset Module
Solder-free programming & Data safety
WiFi connection & Free connection
1.Overturn the traditional work mode: Single operation is changed to team cooperation.
2.Change of operation mode: PC operation is changed to mobile phone operation
3.Change of test connection mode: Electric soldering iron is changed to no-solder dedicated connecter.
4. Change from artificial observation to intelligent monitoring: Artificial observation/trying is changed to automatic detection algorithm, graphical indication the reliability of connection. Ensure tha data is not damaged and lost.
5.Change of service mode: Offline service is changed to online synchronous service.
![yanhua-bmw-acdp-tool](/upload/temp/yanhua-mini-acdp-basic-plus-bmw-cas1-cas2-cas3-cas3-cas4-cas4-immo-1.jpg)
Yanhua ACDP Function:
1. Memory programming:
Support 93/24/25/35/95 series EEPROM in circuit (ICP)and on board(OBP)programming and parts of Freescale/ NEC MCU in circuit programming(ICP)
2. BMW module programming:
(1) Support BMW CAS1 CAS2 CAS3 CAS3+ CAS4 CAS4+ Immo Key Programming and Odometer reset, program recovery.
(2)BMW ECU data reading and ISN code reading.
3. VW module programming: MMC instrument
4. Instrument mileage and airbag ECU reset/maintenance is under development.
5. Benz, BMW, Audi and various models are upgraded successively.
![Yanhua-Mini-ACDP-programming-master-bmw-function](/upload/temp/yanhua-mini-acdp-basic-plus-bmw-cas1-cas2-cas3-cas3-cas4-cas4-immo-2.jpg)

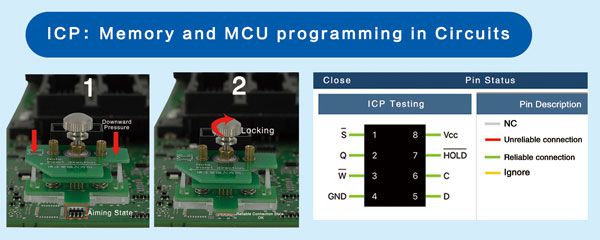

ICP: Memory and MCU programming In Circuits
![Yanhua-Mini-ACDP-bmw-icp](/upload/temp/yanhua-mini-acdp-basic-plus-bmw-cas1-cas2-cas3-cas3-cas4-cas4-immo-3.jpg)

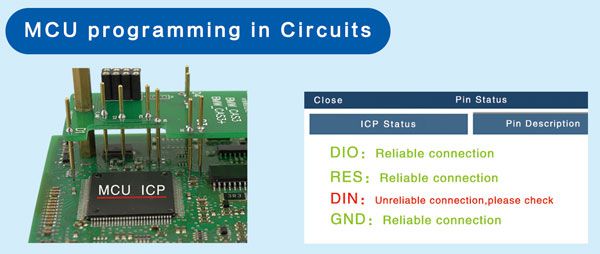

MCU programming in Circuits
![Yanhua-Mini-ACDP-programming-master-mcu](/upload/temp/yanhua-mini-acdp-basic-plus-bmw-cas1-cas2-cas3-cas3-cas4-cas4-immo-4.jpg)

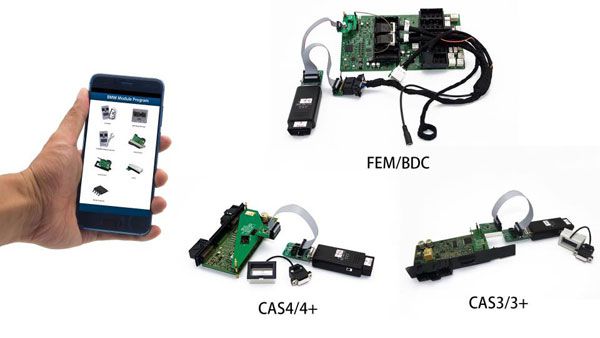

BMW IMMO & Mileage Programming for all series
No need to remove chip
No need soldering
No need to cut the line
No need to lift the pin
CAS-CAS3+ Module
Key Programming by OBD
Read CAS EEPROM
Add Keys
Reset Mileage
Back up or recover CAS
All keys lost
CAS4/CAS4+ Module
Read CAS4 EEPROM without soldering/welding
Add Keys without soldering/welding
Reset Mileage without soldering/welding
Back up or recover CAS without soldering/welding
All keys lost without soldering/welding

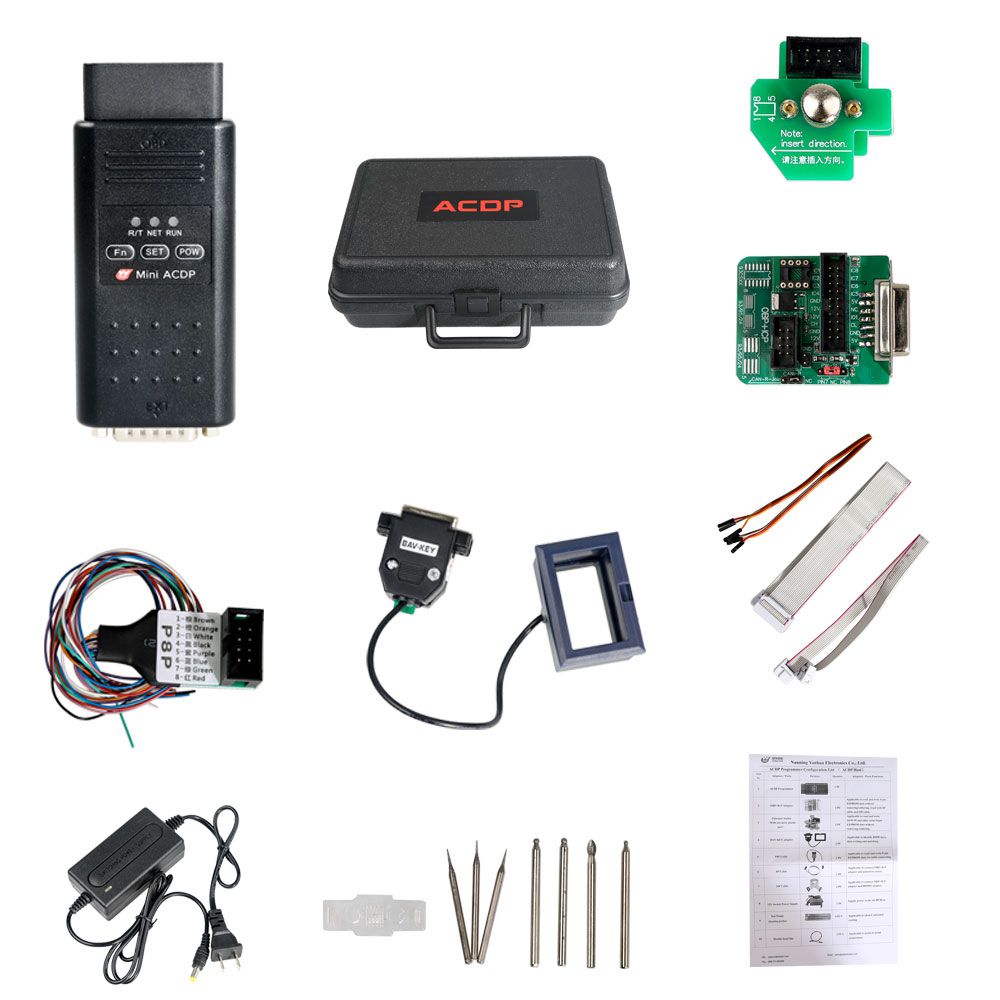

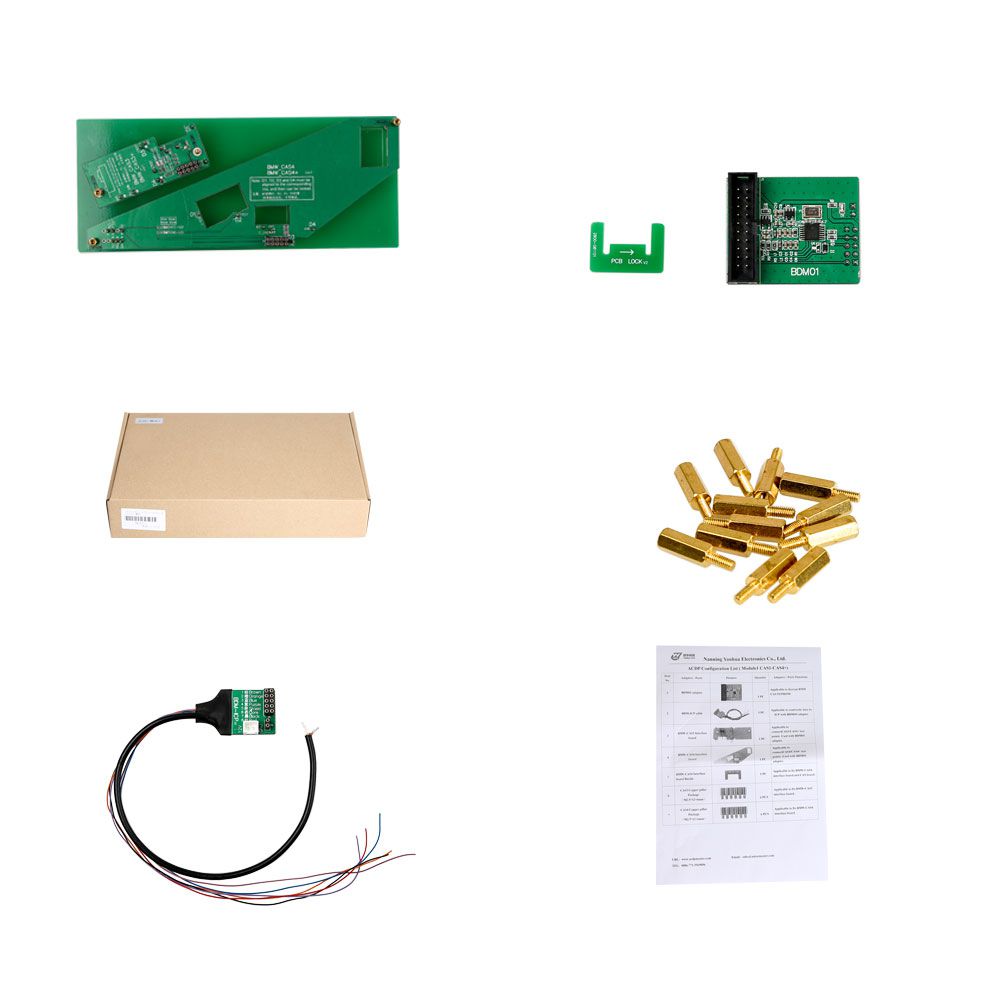

Packing list:
1set Yanhua Mini ACDP Basic Module
1set BMW CAS1 - CAS4+ IMMO & ODO Authorization and Adapter
