Original Xhorse VVDI PROG Programmer with PCF79XX Adapter

The built-in update software allows user to update VVDI Prog firmware timely.High-speed USB communication interface enable the software automatically connect.Smart operation mode: the possible causes of error will be listedReserve ports: for future update.The self-test function enable you check if the machine works well.Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.
Item No. COBD24922
5 stars, 9 reviews.
In Stock
Price:
US$499.00/ piece
Discount Price:
US$449.00/ piece 10%
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question
Description

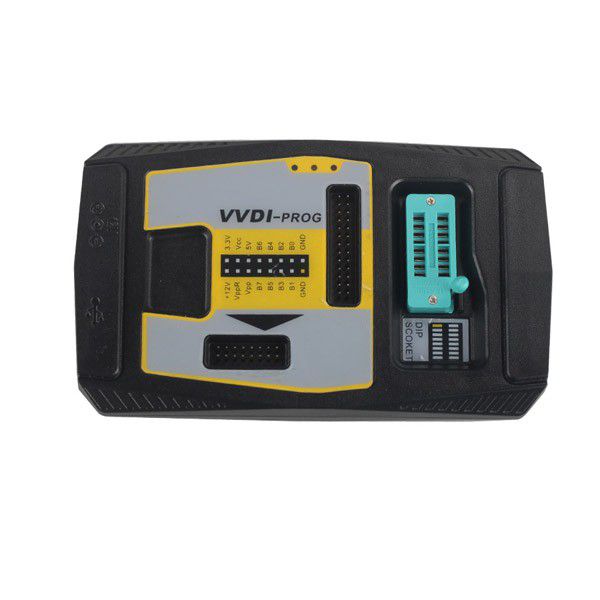

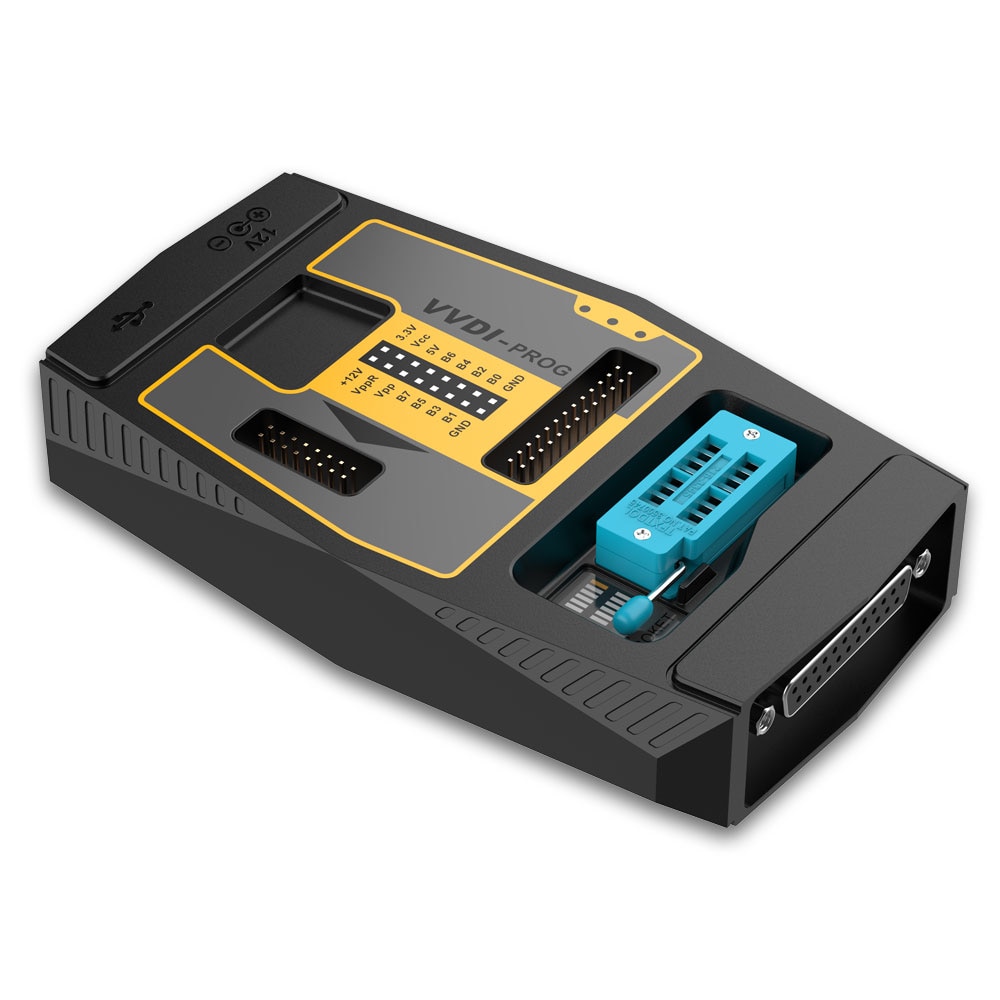

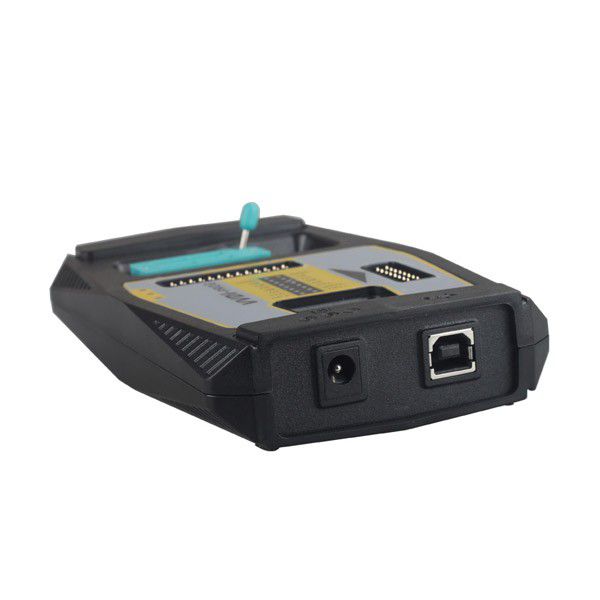

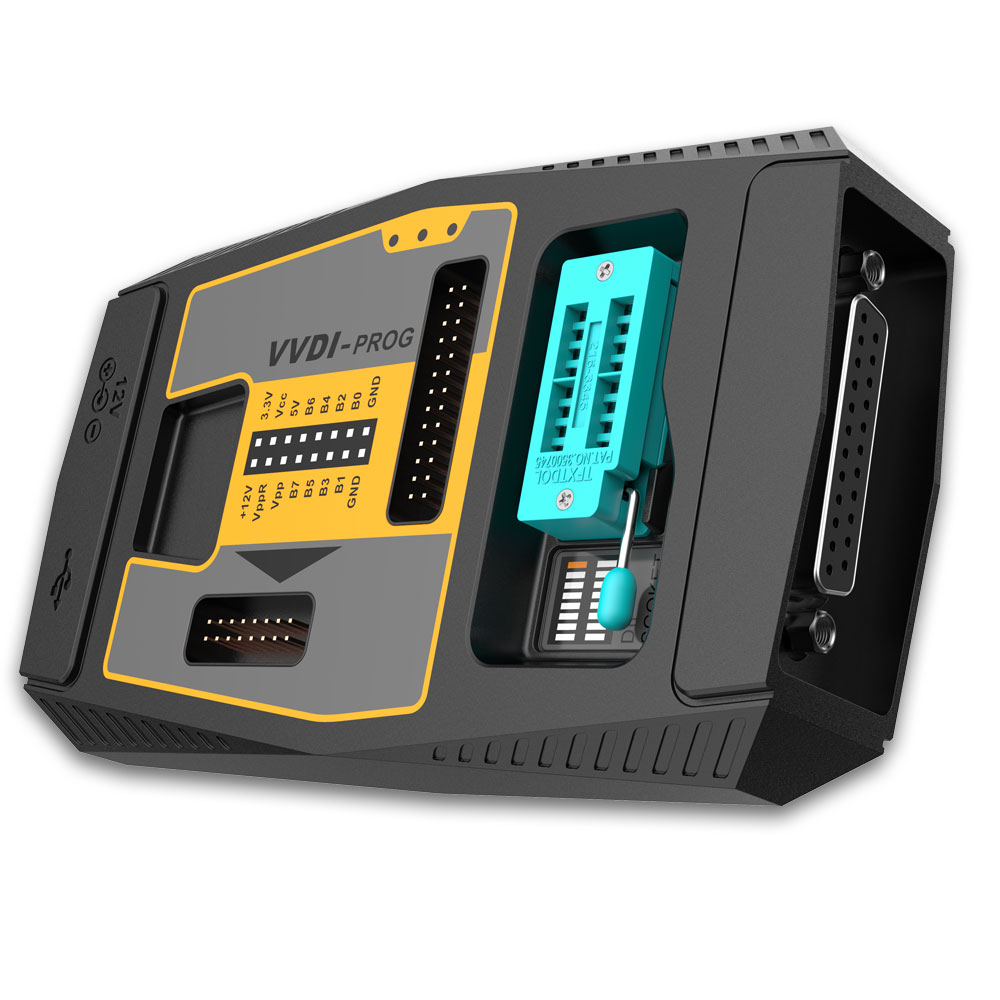

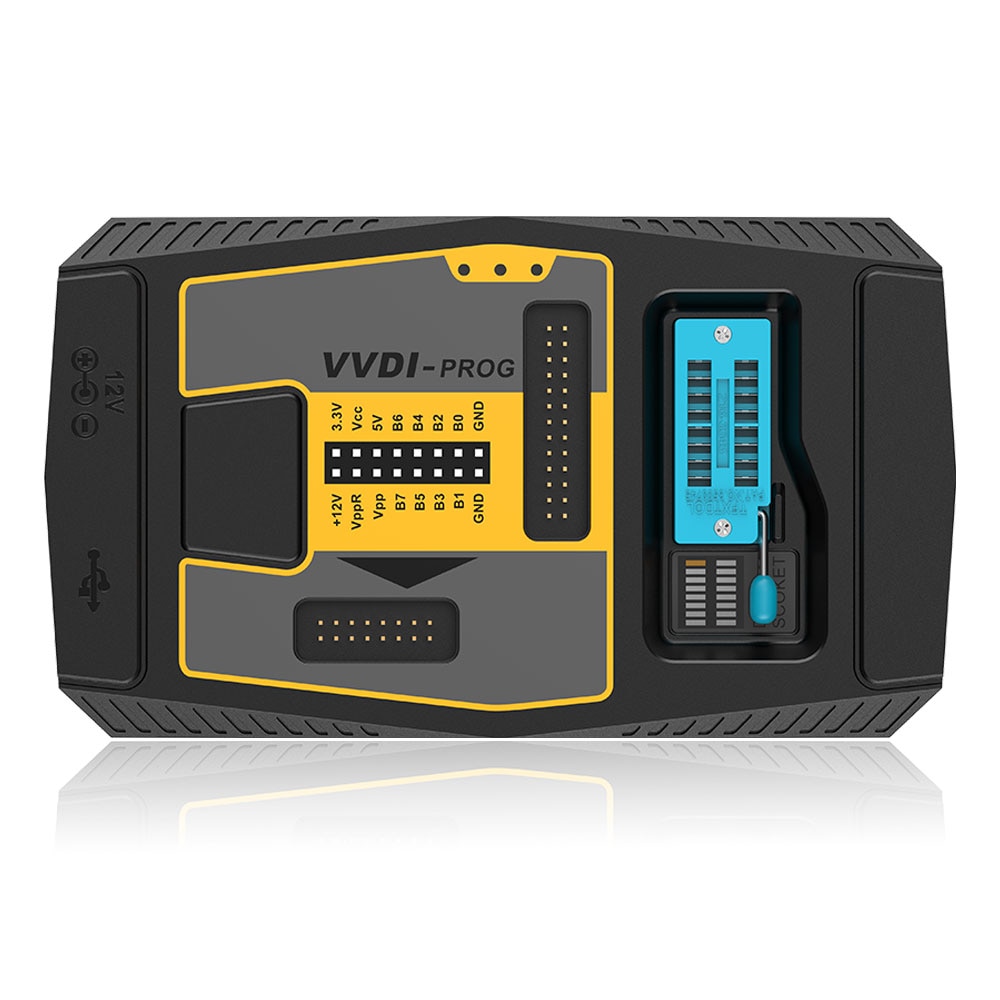

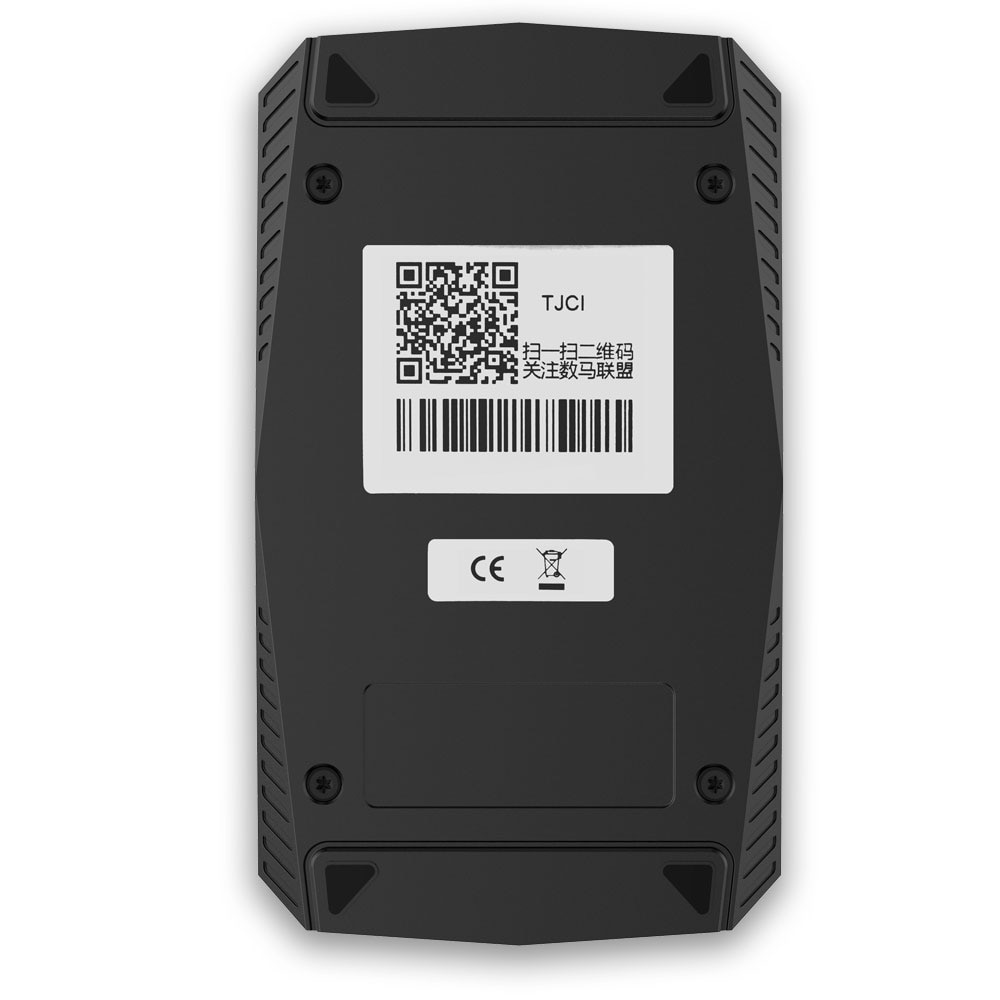

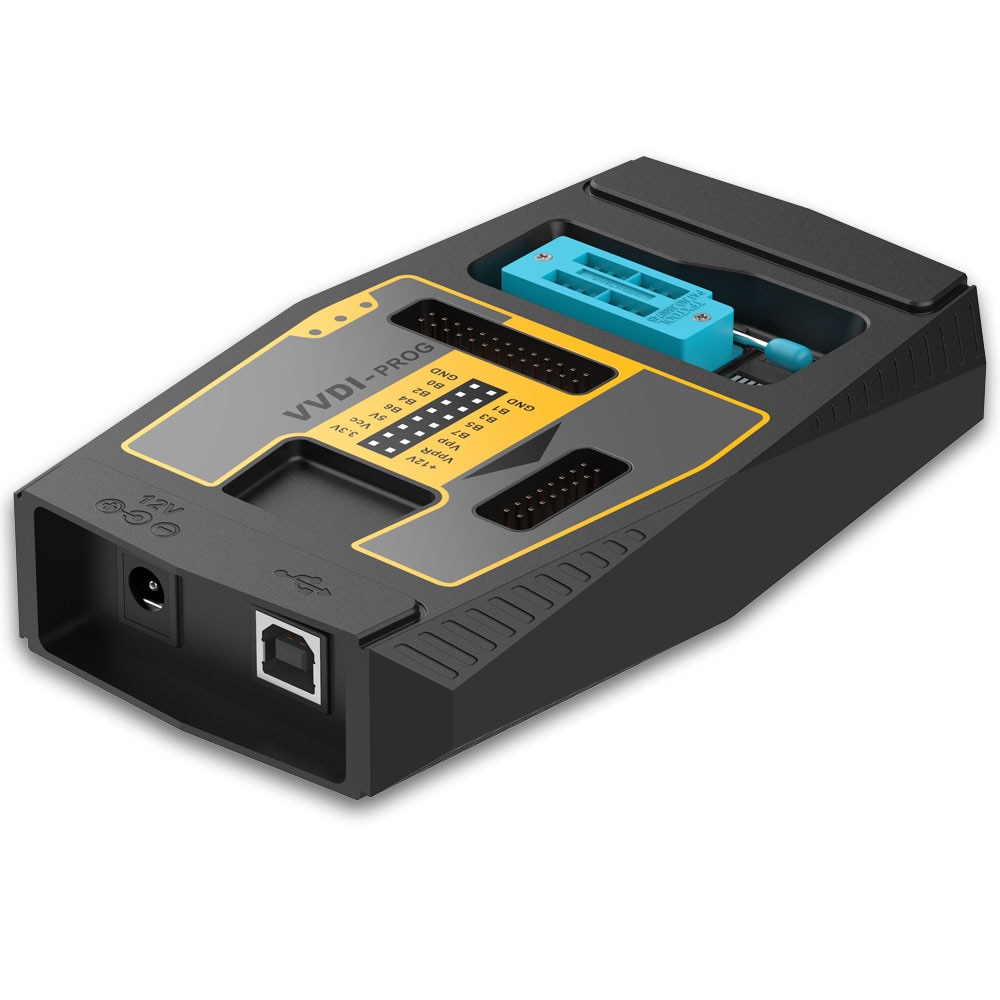

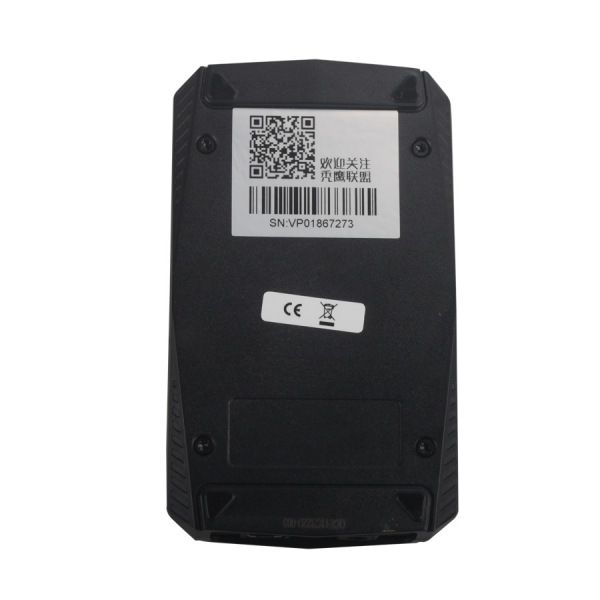

Parts1:Xhorse VVDI PROG Programmer
Software Version: 4.9.7
Firmware Version:2.2.2

VVDI PROG Language: English,French,Italian,Spanish,Arabic,Cezch,Polish,Portuguese,Russian,Turkish,Chinese

VVDI-Prog programmer can get free for BMW ISN read function and NEC, MPC, Infineon etc chip continously update service.

1512100445176811

TOP 6 reasons to get VVDI PROG Programmer

1. Built-in update software: Make VVDI Prog firmware update timely.
2. High-speed USB communication interface: Make software automatically connect.
3. Smart operation mode: possible causes of error will be listed
4. Reserve ports: For future update.
5. Self-test function: Check if the machine works well or not.
6. Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed


VVDI Prog Programmer Introduction:

Main Function:

Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series,
MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and
most eeprom chips etc .
Support chip data verify, checkblank function
Support data file compare function

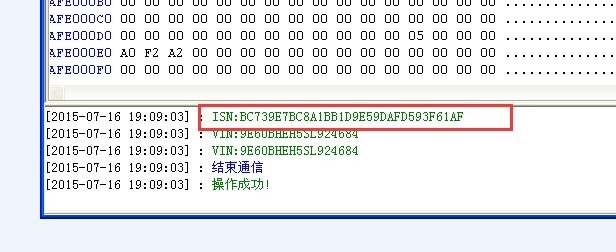

Support R&W for BMW N20, N55 ECU(show ISN directly)
Stable R&W MC9S12XE series chips(5M48H/1N35H/2M53J/3M25J etc.)
Support renew PCF79XX remote, currently support for BMW E/F series (Please Note PCF79XX adapter is optional)
Lots of connection diagram


VVDI Prog Update Log:

VVDI PROG latest software version V4.9.7 update
v4.9.7 (2020-11-23)
* This version DON't need update firmware
+ Add VVDI PROG USER MUNUAL 4.9.7 version in Doc folder
+ Add TC21X-8F,
TC22X-12F,
TC22X-16F,
TC23X-16F,
TC23X-24F,
TC23X-32F options in <2-MCU>->
+ Add XC2261N-24,
XC2263N-16,
XC2263N-24,
XC2263N-40,
XC2264N-16,
XC2264N-24,
XC2264N-40,
XC2265N-16,
XC2265N-24,
XC2265N-40,
XC2268N-40,
XC2285-56F,
XC2286-56F,
XC2287-56F,
XC2285-72F,
XC2286-72F,
XC2287-72F,
XC2285-96F,
XC2286-96F,
XC2287-96F,
XC2285M-56F,
XC2286M-56F,
XC2287M-56F,
XC2285M-72F,
XC2286M-72F,
XC2287M-72F,
XC2285M-104F,
XC2286M-104F,
XC2287M-104F,
XC2788X-104F,
XC2788X-136F,
XC2787X-136F,
XC2787X-200F,
XC2786X-96F,
XC2785X-104F,
XC2785X-72F,
XC2285M-104F,
XC2286M-104F,
XC2287M-104F,
XC2788X-104F,
XC2788X-136F,
XC2787X-136F,
XC2787X-200F,
XC2786X-96F,
XC2785X-104F,
XC2785X-72F options in <2-MCU>->
+ Add HC908JK1,
HC908JK3,
HC908JL3,
HC908JK8,
HC908KX8 options in <2-MCU>->
+ Add MC9S08QL4, MC9S08QL8 options in <2-MCU>->
+ Add D70F3735,
D70F3736,
D70F3737,
D70F3738,
D70F3792,
D70F3793,
D70F3841,
D70F3842 options in <2-MCU>->
+ Add 5-SERIES-CHAIR-SWITCH-MODULE option in <8-OTHERS->
+ Add S350 GATEWAY CONTROLLER option in <8-OTHERS->
v4.9.5 (2020-08-24)
* This version DON't need update firmware
* Fix RH86 bug
* Fix RH850 Series bugs
+ Add VVDI PROG USER MUNUAL 4.9.5 version in Doc folder
+ Add 24AA025, 24AA1025,24AA1026 options in<1-EEPROM&FLASH->
+ Add FOTON(MC9S12G128) option in <4-IMMOBILIZER->
+ Add HC05X32(1D69J) option in <4-IMMOBILIZER->
+ Add 300C-46 option in <4-IMMOBILIZER->
+ Add S350-CONTROL-UNIT-PKE option in <4-IMMOBILIZER->
+ Add MAXUS-V80 option in <5-DASHBOARD->
+ Add CAPTU-AIRBAG option in <7-AIRBAG->
+ Add for VOLVO-AIRBAG(2020) option in <7-AIRBAG->
+ Add C205-CHAIR-MODULE option in <8-OTHERS->
+ Add for FAW-BCM(MPC5603BxLQ) option in <8-OTHERS->
+ Add BOYUE-PRO(2020)-PEPS-CONTROLLER option in <8-OTHERS->
+ Add BOYUE-TIRE-PRESSURE-MODULE option in <8-OTHERS->
+ Add VV5-TAILGATE(2017) option in <8-OTHERS->
+ Add RFA-SECURED(SPC560B60L3) option in <8-OTHERS->
+ Add MAGOTAN-LEFT-FRONT-DOOR-MODULE option in <8-OTHERS->
+ Add MAGOTAN-REVERSING-RADER-MODULE option in <8-OTHERS->
v4.9.4 (2020-05-26)
* This version DON't need update firmware
+ Add VVDI PROG USER MUNUAL 4.9.4 version in Doc folder
+ Add R7F701330 option in <2-MCU->
+ Add for FENGJUN-7 option in <5-DASHBOARD->
+ Add for TOYOTA-RAV4 option in <5-DASHBOARD->
+ Add for BAOJUN-310/560 AIRBAG option in <7-AIRBAG->
+ Add T300 AIRBAG option in <7-AIRBAG->
+ Add NEW VISION AIRBAG option in <7-AIRBAG->
+ Add for BAODIAN AIRBAG option in <7-AIRBAG->
+ Add for LYNKCO-AIRBAG option in <7-AIRBAG->
+ Add for SRS-VW62 option in <7-AIRBAG->
+ Add for AUDI-AC-CONTROLLER(R7F701548) option in <8-OTHERS->
+ Add for FRM-E-SERIES-XDT256 option in <8-OTHERS->
+ Add for ESCORT-BCM option in <8-OTHERS->
+ Add 8th-for SONATA-AC-CONTROLLER option in <8-OTHERS->
+ Add SKODA-RADIO-STREAM option in <8-OTHERS-> ​
​v4.9.3 (2020-04-29)
* This version DON't need update firmware
* Fix 93Cxx ERASE BUGs
+ Add VVDI PROG USER MUNUAL 4.9.3 version in Doc folder
+ Add S2943 option in<1-EEPROM&FLASH->
+ Add S2943(CLIP) option in<1-EEPROM&FLASH->
+ Add EIZ-W906-9S12XDT384,EIZ-W906-9S12XDP384(ADAPTER), EIZ-W906-9S12XDP512,EIZ-W906-9S12XDP512(ADAPTER) option in <4-IMMOBILIZER->
+ Add CRAFTER-EZS-9S12XDT384,CRAFTER-EZS-9S12XDT384(ADAPTER),CRAFTER-EZS-9S12XDP512, CRAFTER-EZS-9S12XDP512(ADAPTER) option in <4-IMMOBILIZER->
+ Add ARRIZO3 option in <5-DASHBOARD->
+ Add FIAT500 option in <7-AIRBAG->
+ Add for GLC260-ELECTRONIC-TAILGATE-UINT(2016),V260-STEERING-COLUMN(2016) options in <8-OTHERS->
+ Add for BESTURN B90 CONTROL UNIT-PKE(2015)option in <8-OTHERS->
+ Add for CLIO-HFM-MODULE option in <8-OTHERS->
+ Add for PHAETON-REVERSE-RADAR-UINT(2012) option in <8-OTHERS->
v4.9.2 (2020-03-16)
* This version DON't need update firmware
+ Add VVDI PROG USER MUNUAL 4.9.2 version in Doc folder
+ Add STM32F405RG,
STM32F405OG,
STM32F405VG,
STM32F405ZG,
STM32F405OE,
STM32F407VE,
STM32F407ZE,
STM32F407IE,
STM32F407IG options in <2-MCU>->
+ Add FRM-E-SERIES-XEQ384-READ,
FRM-E-SERIES-XEQ384-WRITE,
FRM-F-SERIES-XEP100-READ,
FRM-F-SERIES-XEP100-WRITE,
FRM-F-SERIES-XET512-READ,
FRM-F-SERIES-XET512-WRITE options in <8-OTHERS->
+ Add ENVISION—TAILGATE-COMPUTER options in<8-OTHERS->
+ Add for PHAETON—TAILGATE-COMPUTER(2012)options in<8-OTHERS->

VVDI Prog Cables and Function:

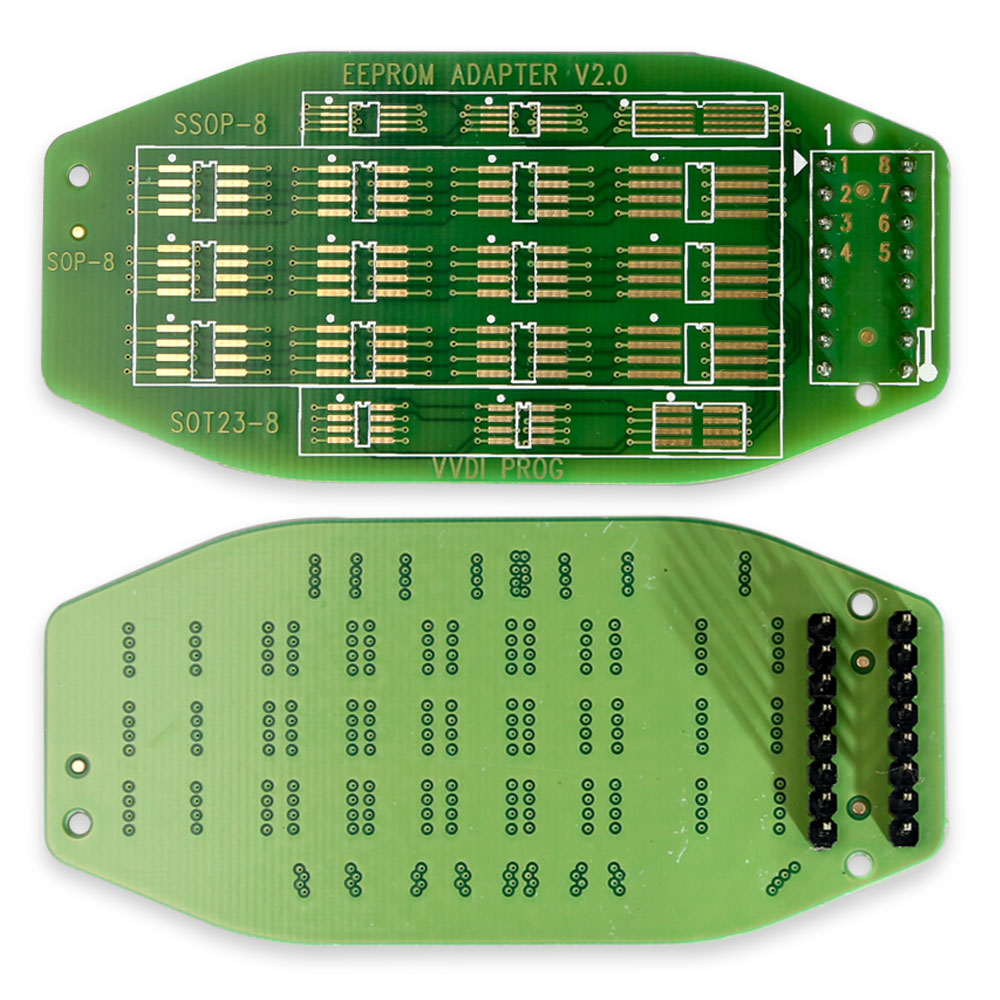

16Pin Locking Socket

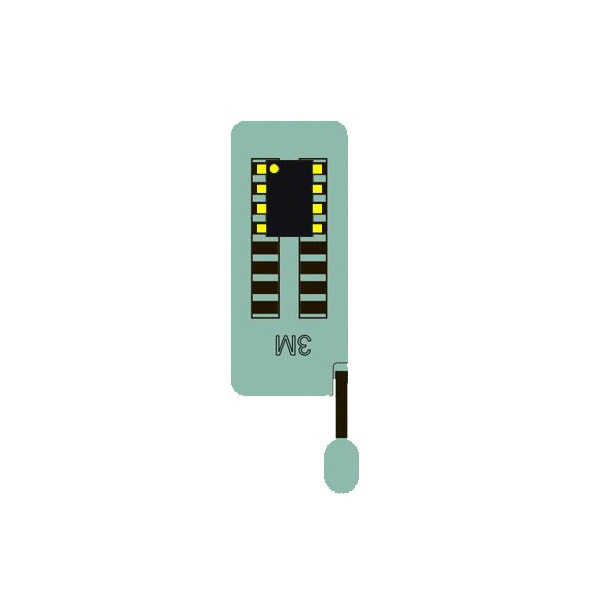

Read the common EEPROOM, note: please insert the chip by following the below picture.
1509090204192715

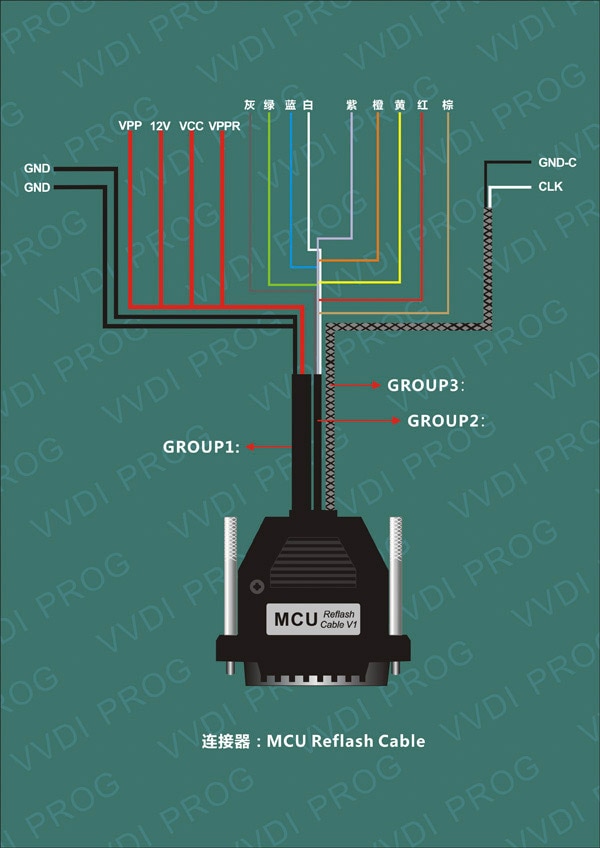

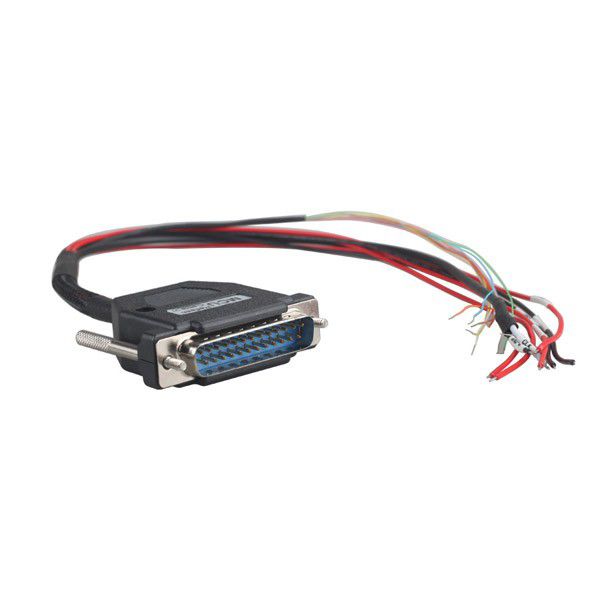

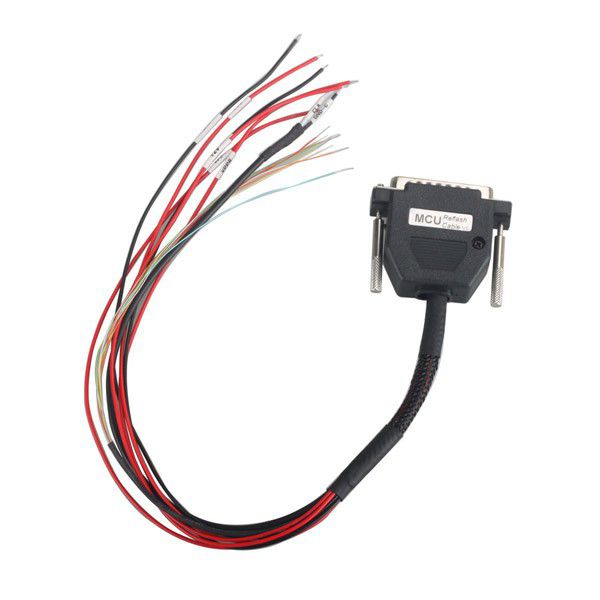

1.3.2 MCU Reflash Cable
Used to program MCU on board

1509090204192716

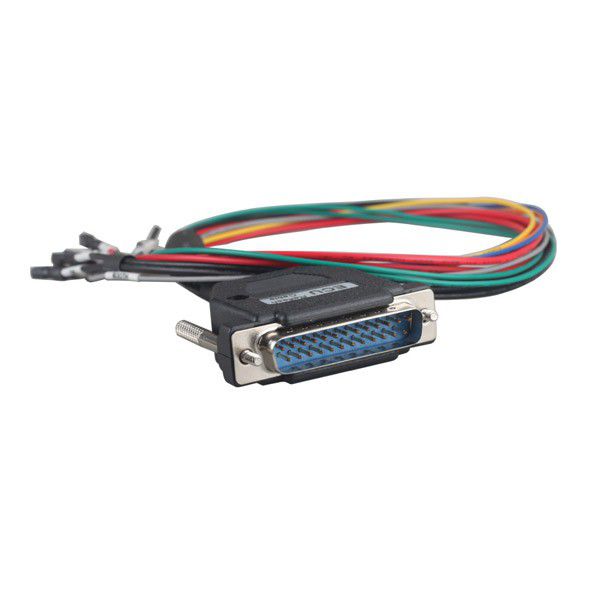

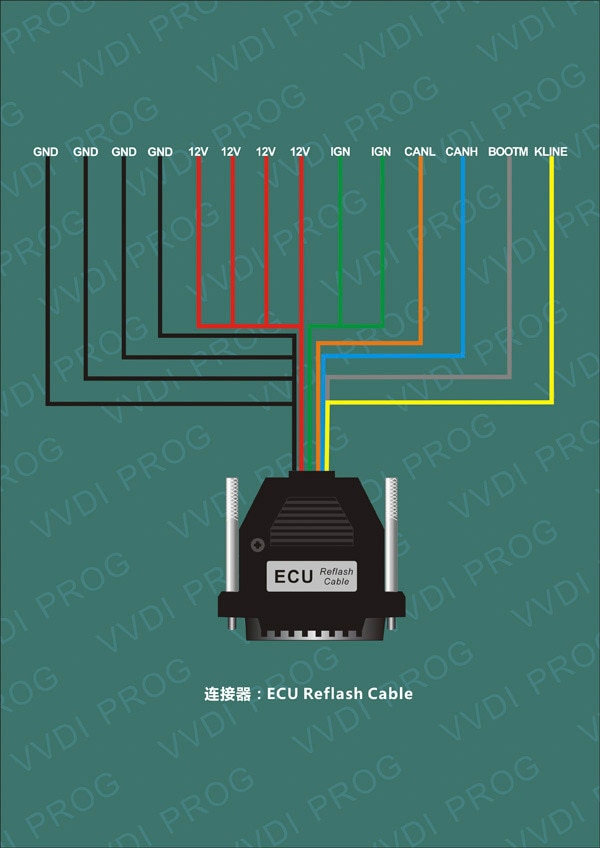

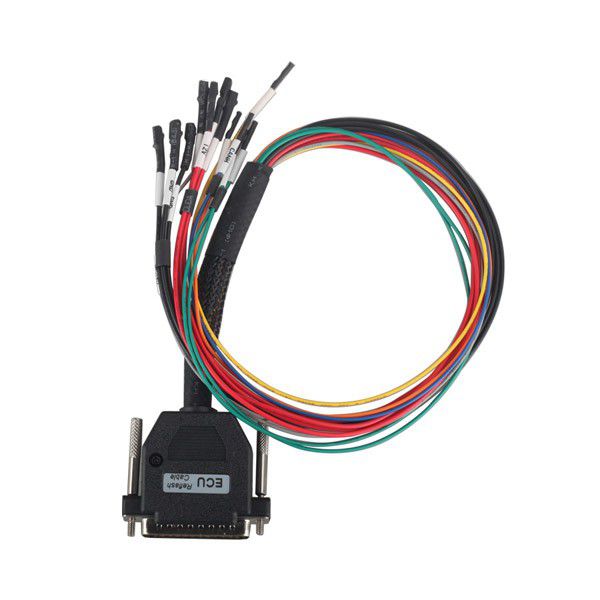

1.3.3 ECU Reflash Cable
Used to program ECU
1509090204192717

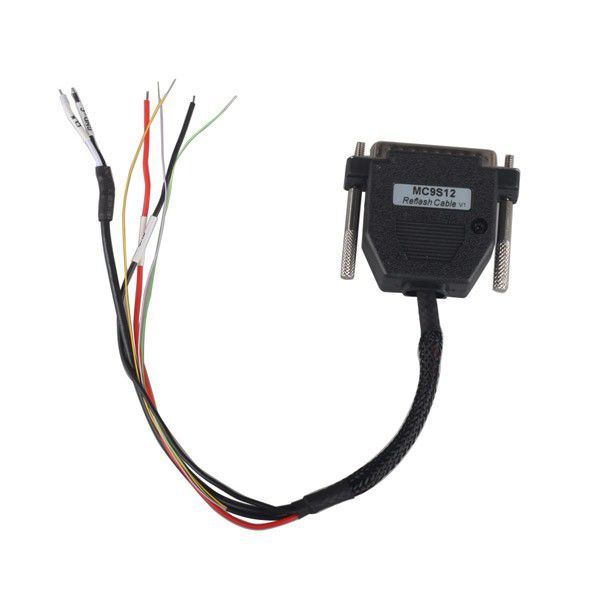

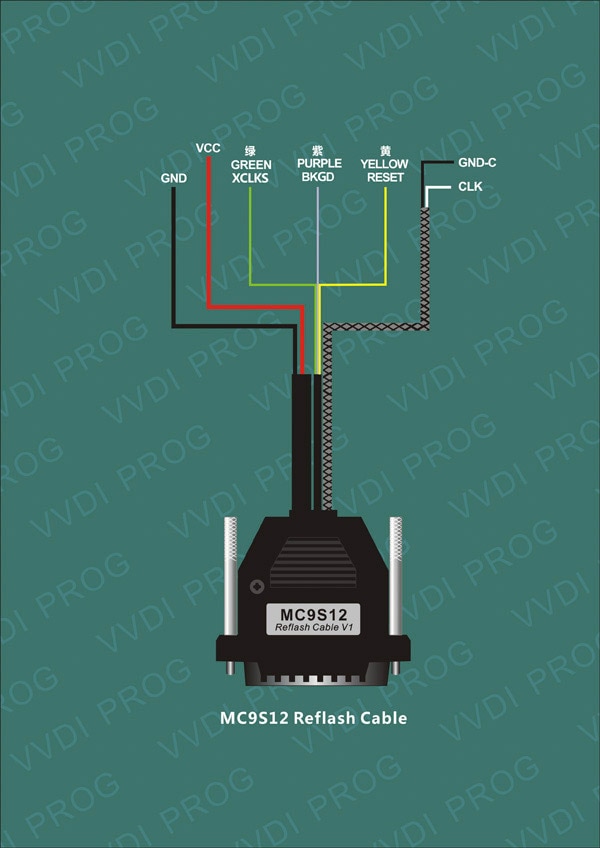

1.3.4 MC9S12 Reflash Cable
Used to program MC9S12 series chip

1509090204192718
How to Update VVDI-Prog Software & Firmware?

Software Update
You can get from our "Download" page or in description,we always list out download link.

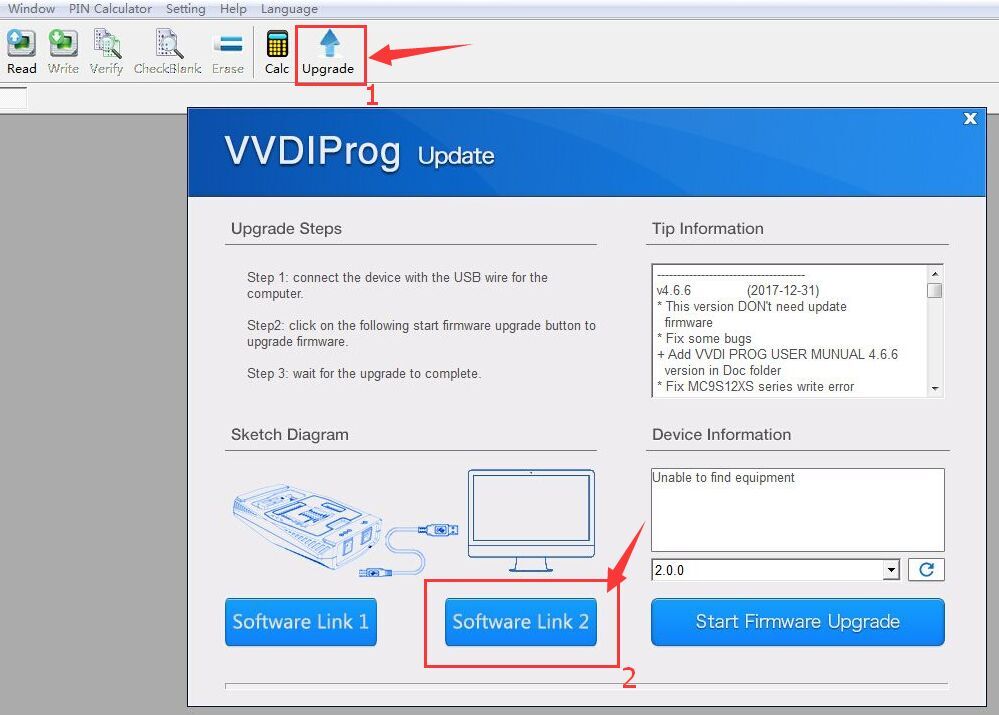

Get in VVDI prog software:Click the "Upgrade" button enter the upgrade interface, show as following
19070515623122725810
Firware:
Please note: Firmware is necessary only when you are told to update. Press "Start Firmware Upgrade" button.

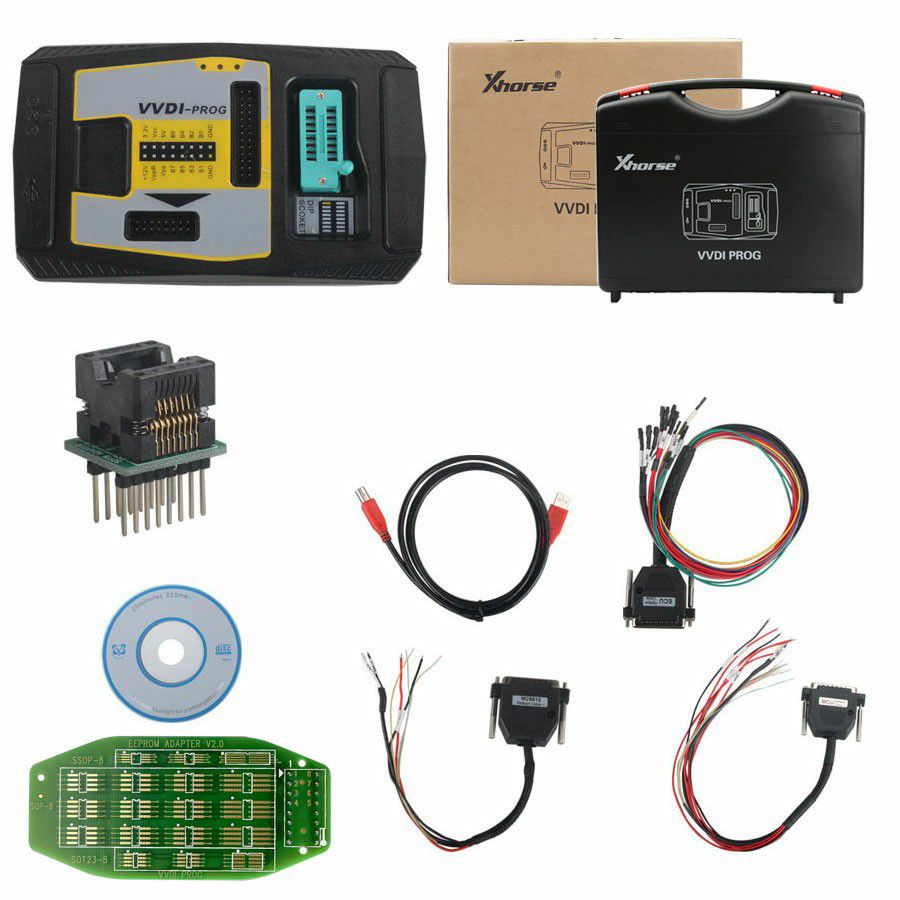

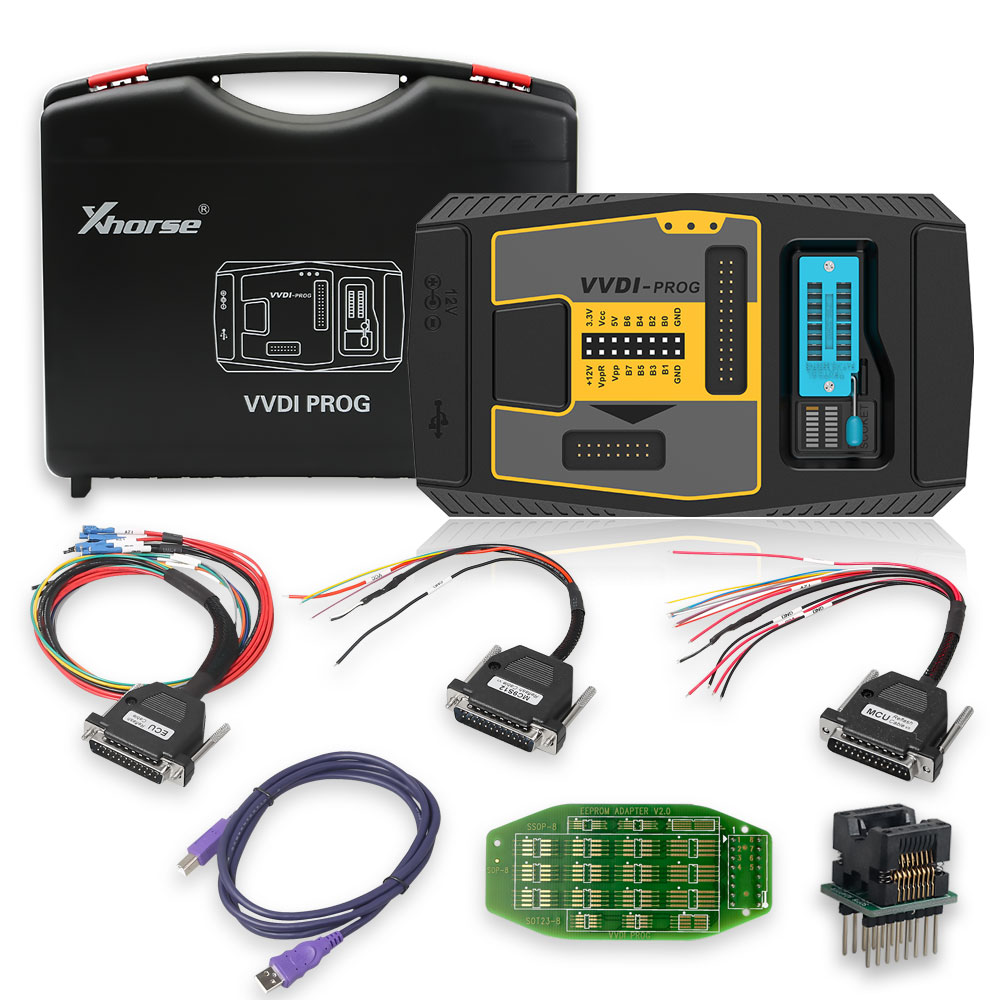

Package List:

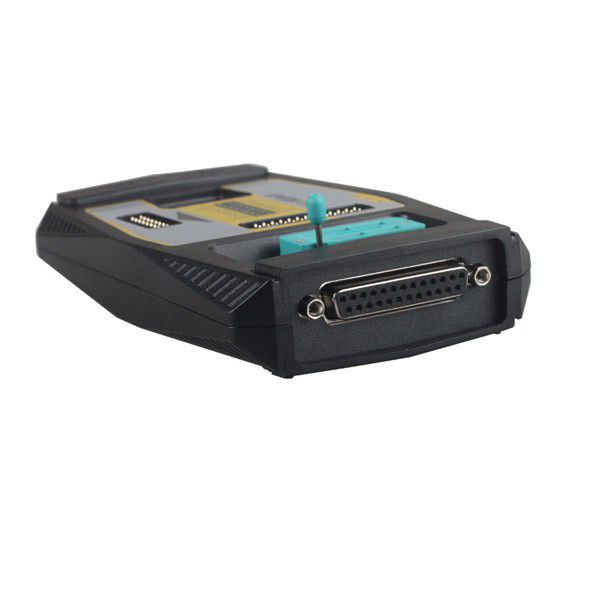

1pc x Programmer multiplexer

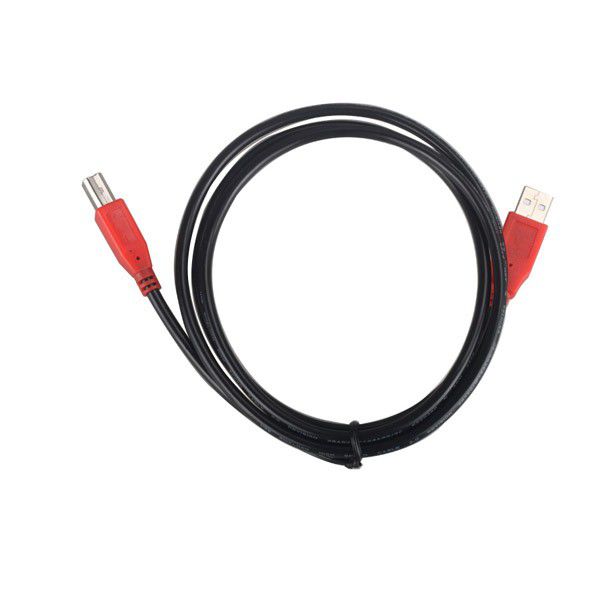

1pc x Square USB cable

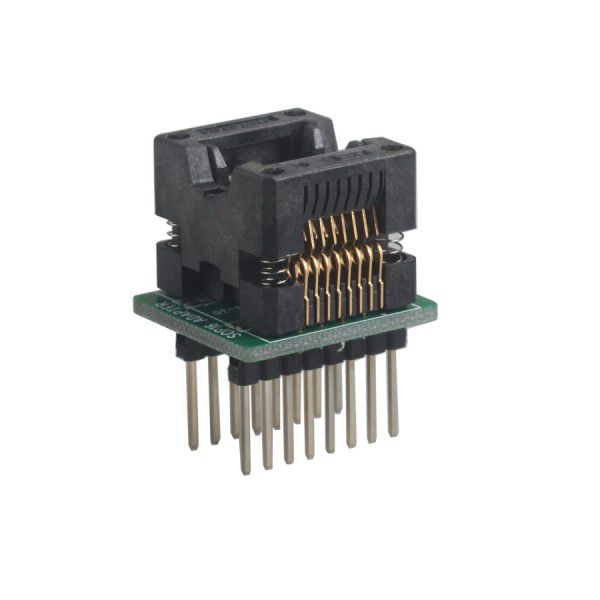

1pc x SOP16 test socket
1pc x 16pin converter (Support SOP/SOT/SSOP)
1pc x MCU reflash cable
1pc x ECU reflash cable
1pc x MC9S12 reflash cable (Used to program MC9S12 series chip)

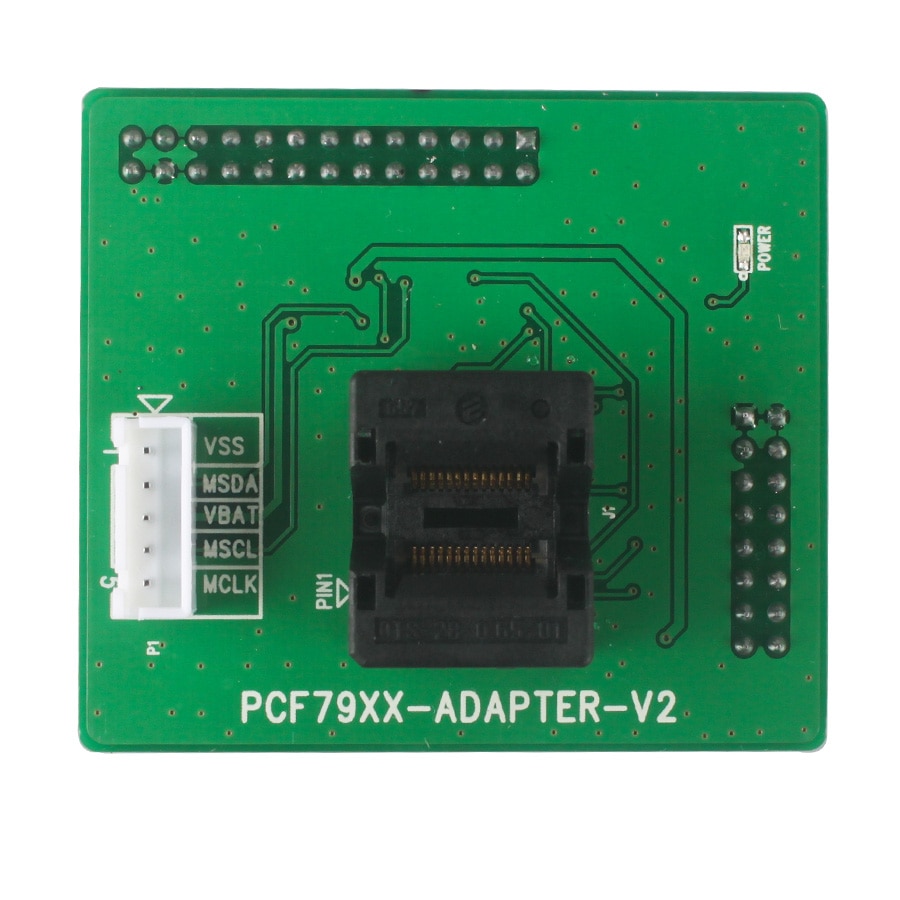

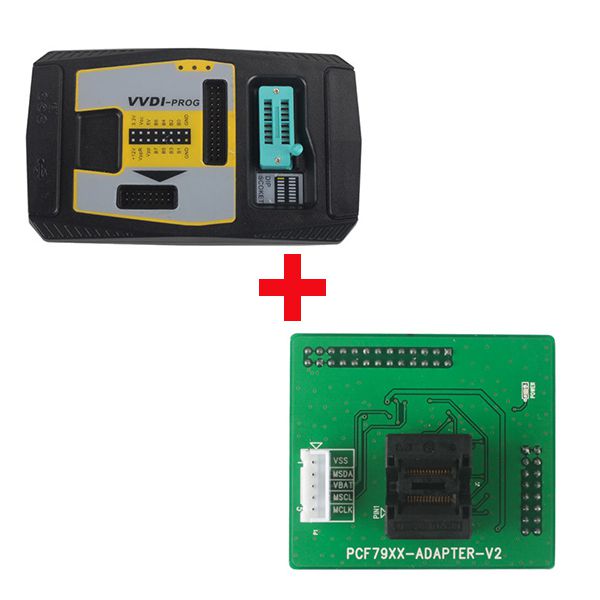

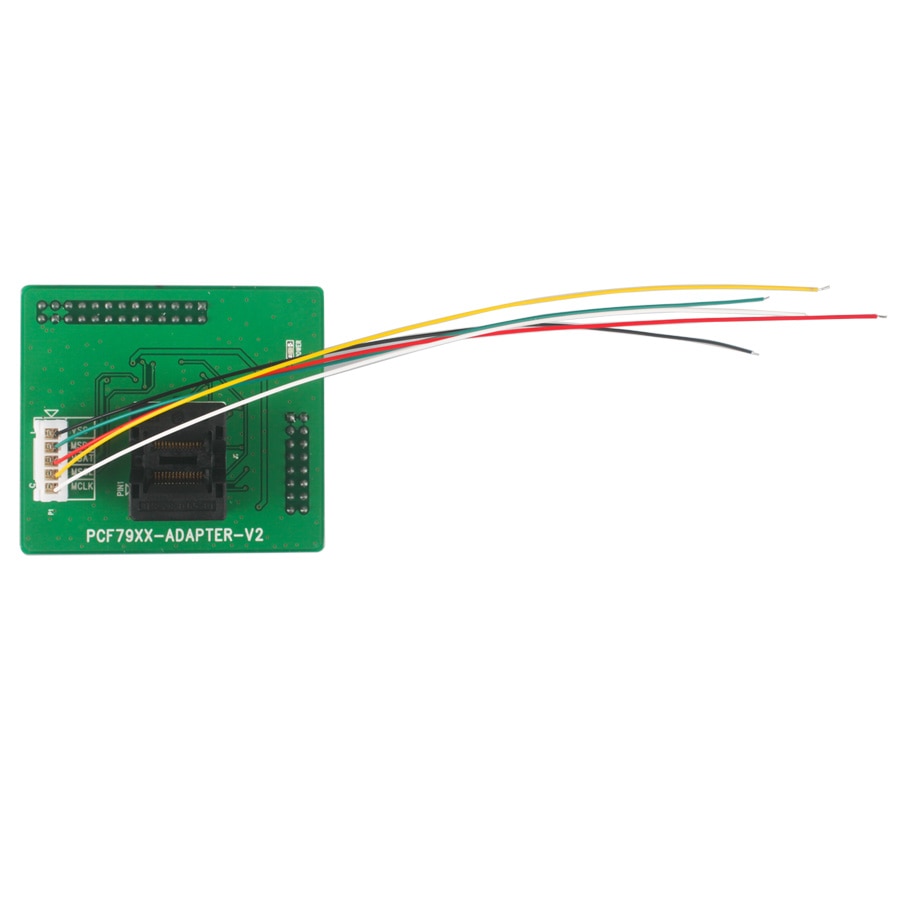

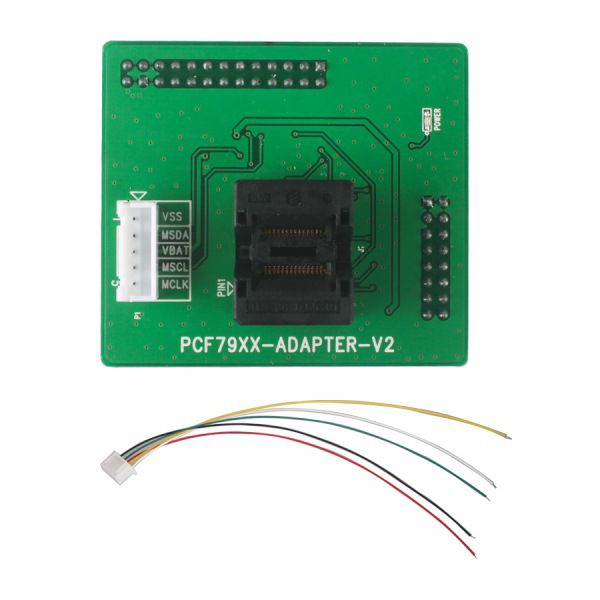

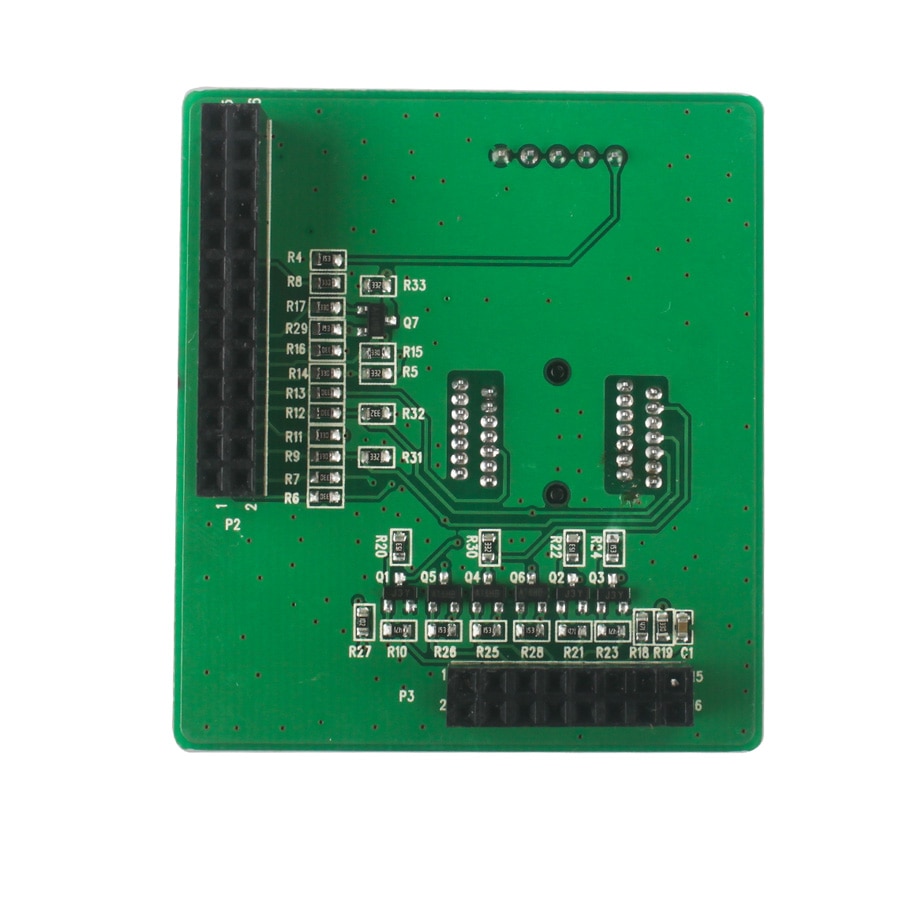

Part2:PCF79XX Adapter
1. Supported Chip Models:
PCF7922 PCF7941 PCF7945 PCF7952 PCF7953 PCF7961
2. Two Optional Ways to Read Write PCF79XX Chip

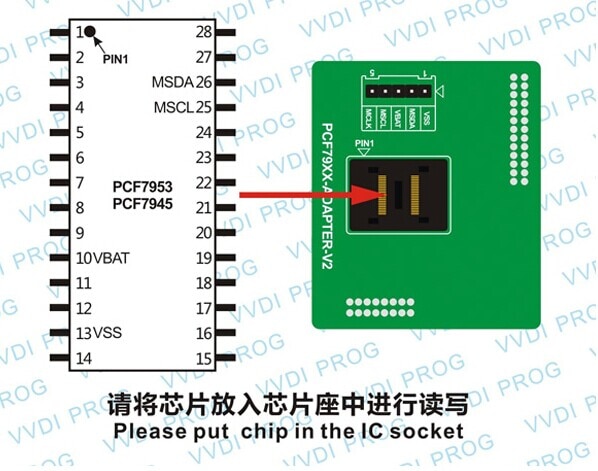

(1) Remove the chip and put it in the IC socket, select option “PCF79XX chip” shown as follows.
2015122334664721

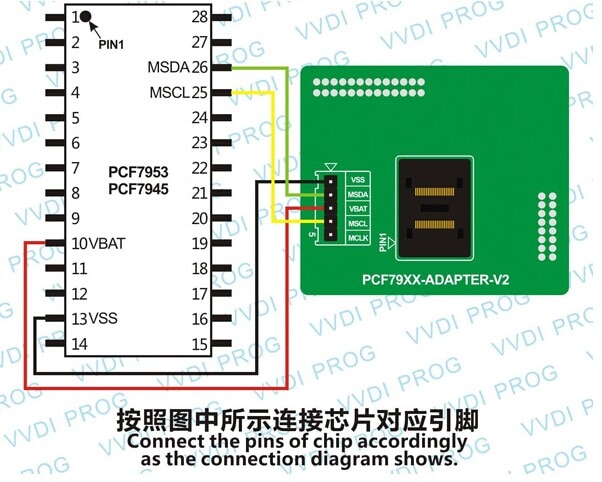

(2) Connect wire to the circuit board, select option “PCF79XX adapter” shown as follows.
2015122334664722


Note: If PCF79XX adapter option can't recognize chip due to the affection of circuit board, just remove chip and put it in IC socket, then use option “PCF79XX chip” to operate.

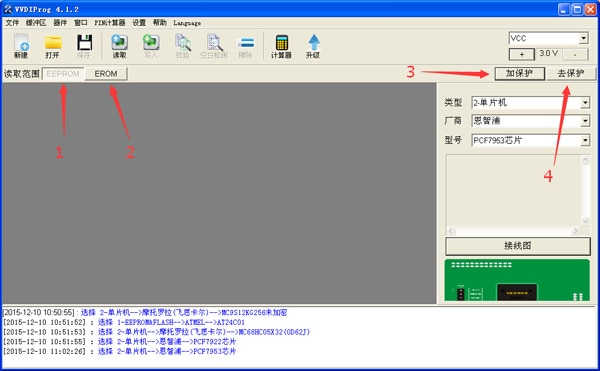

3. VVDI PROG Programmer (click) Options Description
2015122334188623
(1) “EEPROM”: data storage space, it can read & write in protected status.
(2) “EROM”: program memory space (equal to other chip’s FLASH space), it can read & write in unprotected status.
(3) “Protected”: click “Protected” to lock chip and unable to read out chip data.
(4) “Unprotected”: click “Unprotected” to unlock chip and able to read out chip data.
After unlock, the original data in the chip will be cleared.
4. PCF79XX Chip Function

Currently PCF79XX chip support lock, unlock and read/write data.
Package list :
1pc x PCF79XX-Adapter
2019112484978698201911248497869920191124849787002019112484978701201911248497870220191124849787032019112484978697
201512105657437020151210565743712015121056574372
