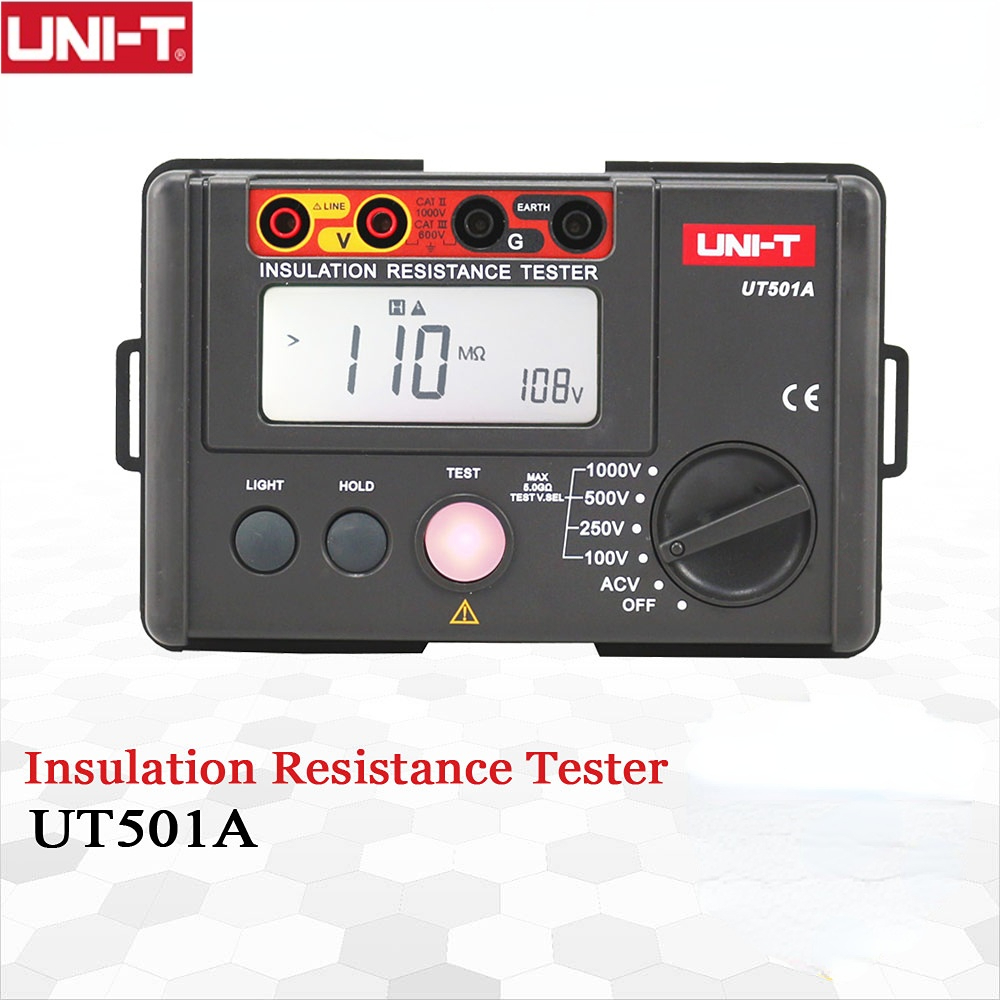

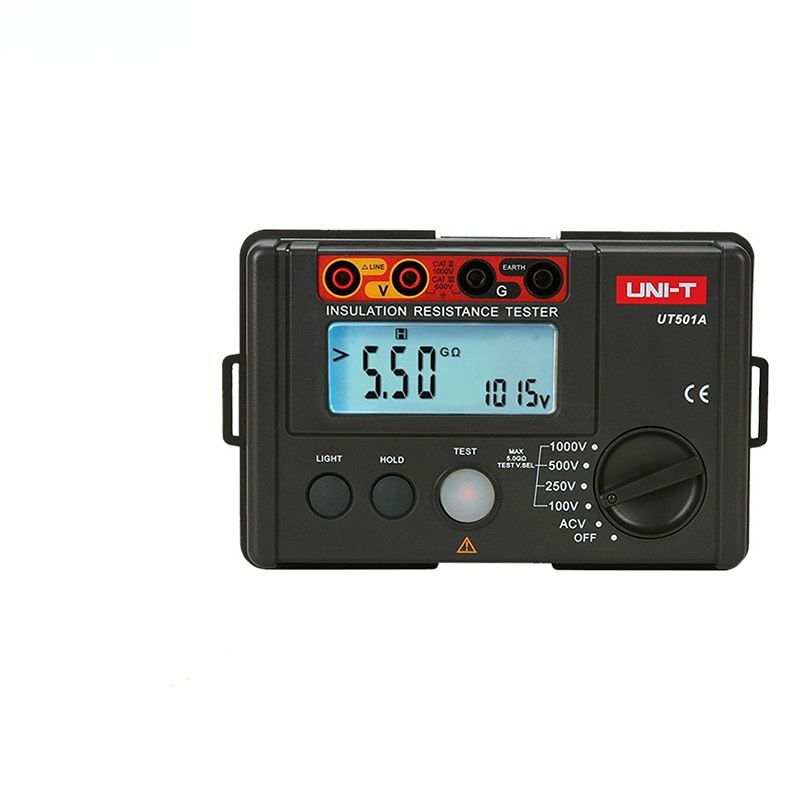

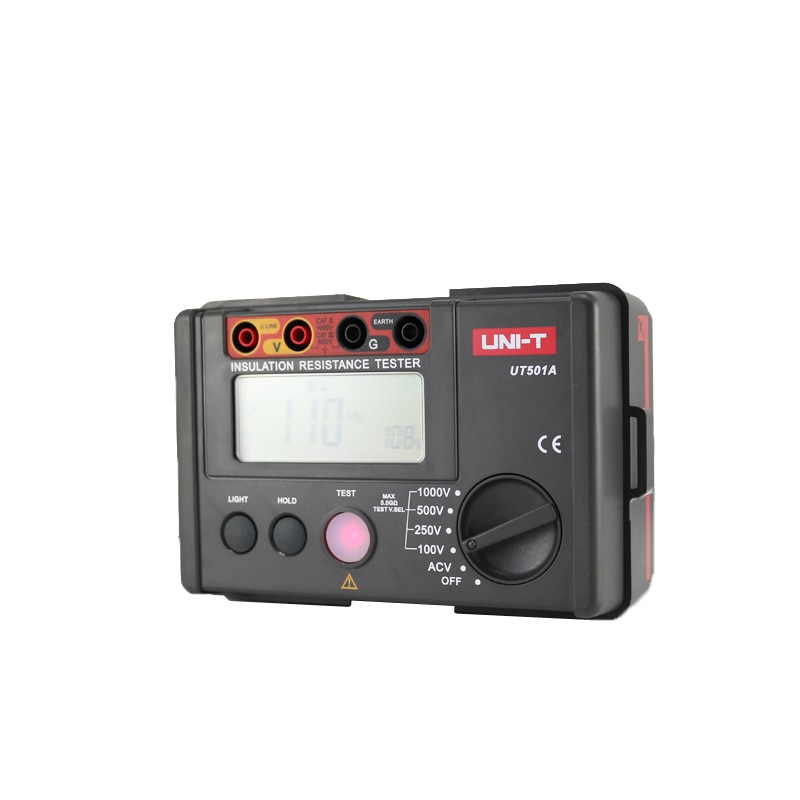

UNI-T UT501A Insulation Resistance Testers Auto Range Lcd backlight High Voltage Indication
| Specifications | Range | Accuracy | |
| Model |
| UT501A | |
| Insulation Resistance (Ω) | Test Voltage | 100V/250V/500V/1000V | 0%~10% |
| 100V | 0.00MΩ~100MΩ | ±(3%+5) | |
| 250V | 0.00MΩ~99.9MΩ | ±(3%+5) | |
| 100MΩ~5.5GΩ | ±(5%+5) | ||
| 500V | 0.00MΩ~99.9MΩ | ±(3%+5) | |
| 100MΩ~5.5GΩ | ±(5%+5) | ||
| 1000V | 0.00MΩ~99.9MΩ | ±(3%+5) | |
| 100MΩ~5.5GΩ | ±(5%+5) | ||
| Load Current | 50V(R=50KΩ) 1mA | 0%~10% | |
| 100V(R=100KΩ) 1mA | 0%~10% | ||
| 250V(R=250KΩ) 1mA | 0%~10% | ||
| 500V(R=500KΩ) 1mA | 0%~10% | ||
| 1000V(R=1MΩ) 1mA | 0%~10% | ||
| Short Circuit Current |
| <2mA | |
| AC Voltage (V) | 30V~750V | ±(2%+3) | |
| Features | |||
| Display Count |
| 1999 | |
| Auto Range |
| √ | |
| Low Battery Indication |
| √ | |
| LCD Backlight |
| √ | |
| Alarm Indication |
| √ | |
| Alarm Buzzer |
| √ | |
| High Voltage Indication |
| √ | |
| Overload Indication |
| √ | |
| Auto Discharge |
| √ | |
| Test Voltage Vice Display |
| √ | |
| 10MΩ Internal Resistance Test |
| √ | |
| General Characteristics | |||
| Power | 1.5V Alkaline Batteries (5#) x 6 | ||
| LCD Size | 70.6mm x 34mm | ||
| Product Color | Red and Grey | ||
| Product Weight | 500 g | ||
| Product Size | 150mm x 100mm x 71mm | ||

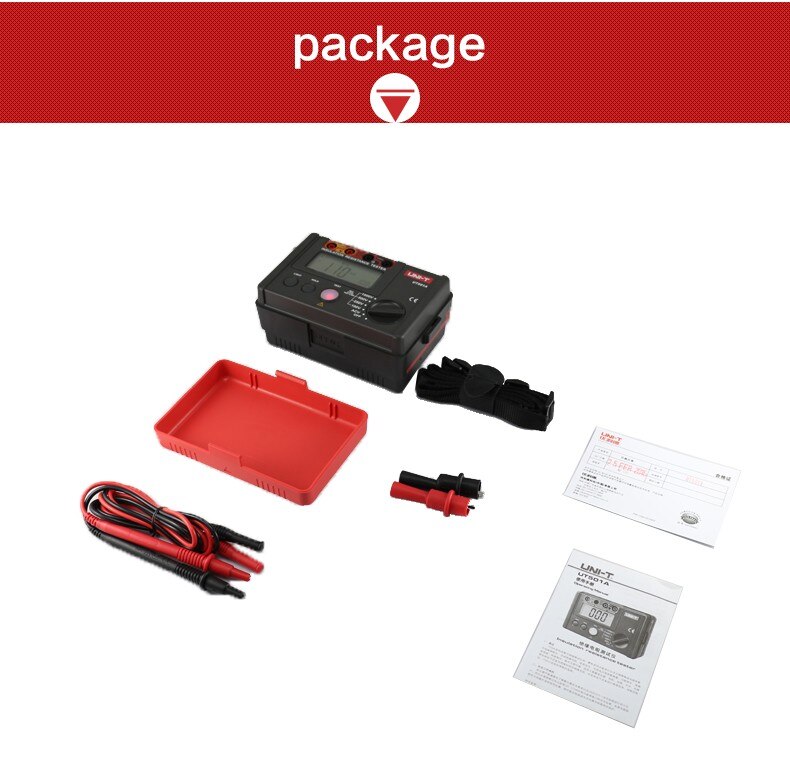

| Standard Accessories | Test Lead, Probe, Alligator Clip, Batteries, Carrying Bag, Gallus | ||
| Standard Individual Packing | Gift Box, User Manual, Warranty Card | ||
Notice please: battery no include!
