Description
Top 4 Reasons to Get Denso Intelligent Tester IT2:
1. Software Version: V2017.01 Software For TOYOTA Software For Suzuki2. Supported Languages: English/ German/ French/ Spanish/ Italian/ Chinese
3. Update By Card, latest card
SO1474. Supported Vehicles: TOYOTA and North America Area Suzuki
Notice:
Computer System Requires: Windows XP

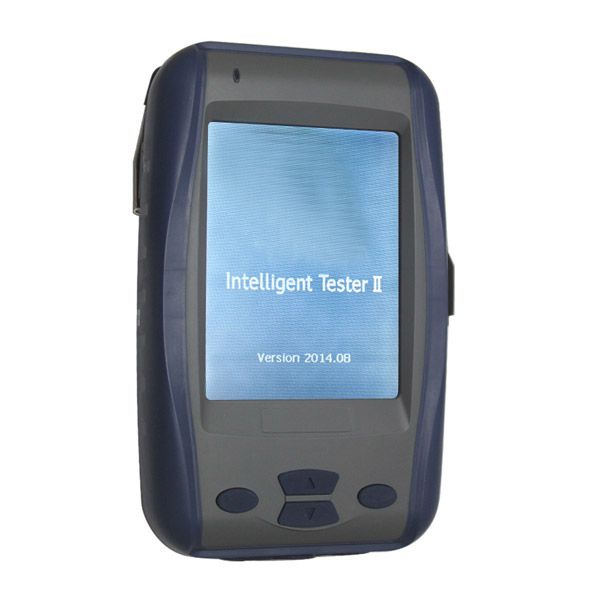

2015.12V Toyota Intelligent Diagnostic Tester-2(DST-2) for Toyota Lexus and Suzuki is a touch screen tool that allows you to diagnose control system for engines, ABS and airbag, even through CAN-diagnosis communication.
For Suzuki, it is mainly for North American Suzuki, if you are looking for global Suzuki diagnostic tool, please choose
GM TECH2 plus Suzuki software.
There is 3 cards in the package, 2017.01 toyota and 2017.01 suzuki,another blank card is for backup.
IT2 for Toyota Function:
1. All types of Toyota(made after 1996) and Lexus including read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.
2. DENSO Diagnostic Tester-2(DST-2) for TOYOTA & LEXUS enables you to diagnose control system for engines, ABS and airbag, even through CAN-diagnosis communication.
3. CAN communication Diagnosis DST-2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.
4. Voltmeter and Oscilloscope not only communicates basis diagnosis (Diagnostic code, ECU data monitor, Active test), but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.
5. Data recording to your PC saved data such as data-list can be downloaded to your pc.
IT2 for Toyota Specification:
1. Feature
Source voltage DC 10-32V
Power consumption normail:7w(12VDC) charging:10w(12VDC)
Operation temp: 0~45°C
Storage temp: -10~ 60°C
LCD Display 5.7 inch
Touch panel input: by finger or stylus pen
Key four(up, down, two function keys)
Built-in clock for a time stamp
PC communication PC card slot CF x 1ch
USB Host: 1ch function:1 ch
Serial 1ch ( RS-232C)
Vehicle communication CAN, ISO9141
Back up power supply lithium-ion battery 7.4v 1000mAH
2. Character
1) Touchscreen & back lighting control
2) Easy & quick
3) You needn't worry about the after service since factory has an open patio for maintenance.
Toyota Intelligent Tester for Suzuki:
Supports North American Suzuki car model afters 1996 year, for all system diagnose and programming.

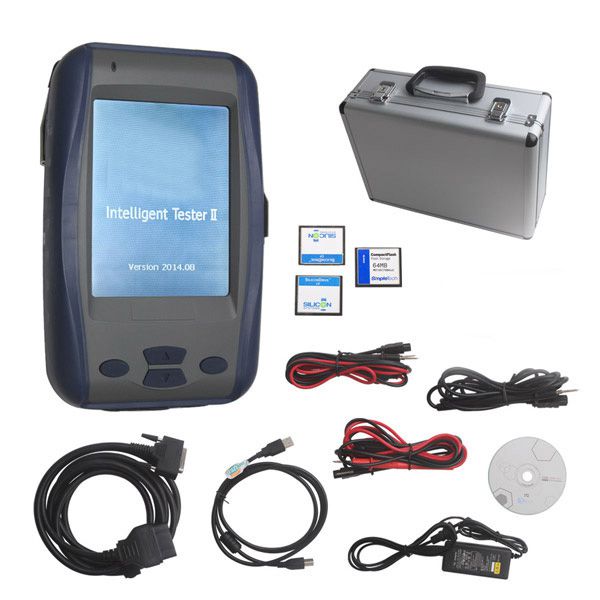

Package list:
1. Mainframe -- 1pc

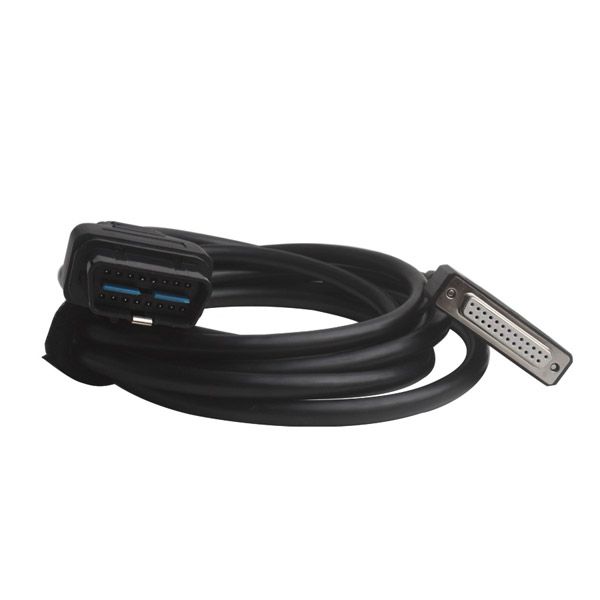

2. OBD-II -- 1pc

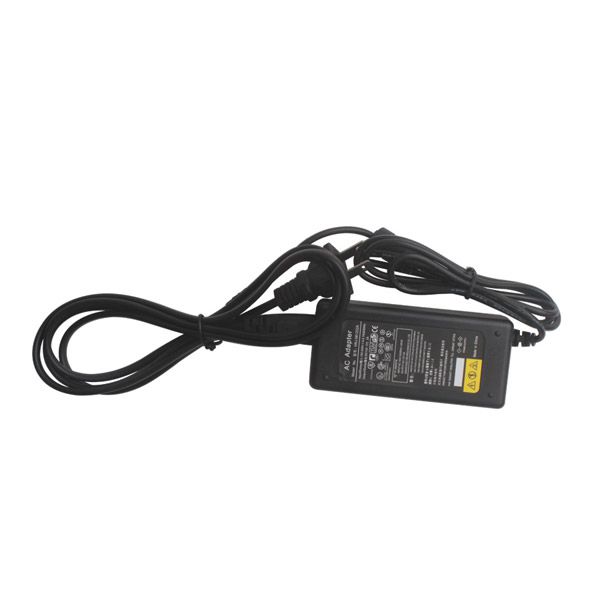

3. Charging line -- 1pc
4. Lin line -- 1pc

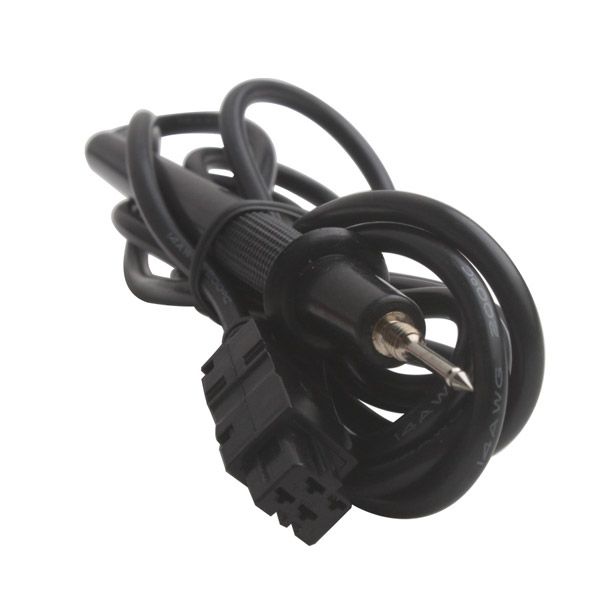

5. Measuring leads for multimeter 1 -- 1pc
6. Measuring leads for multimeter 2 -- 1pc

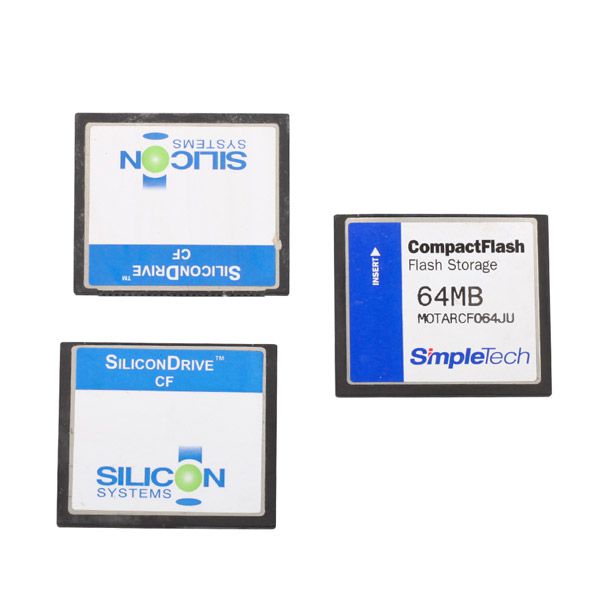

7. Memory card--3pcs

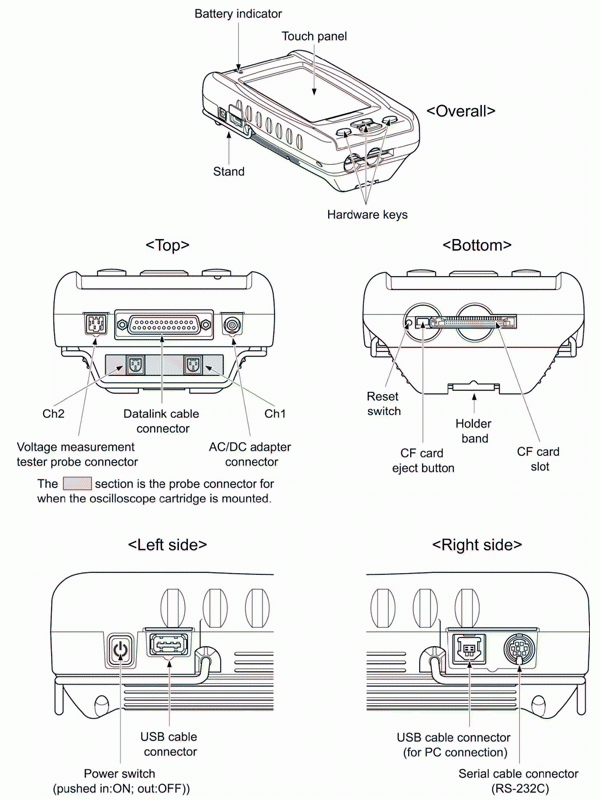

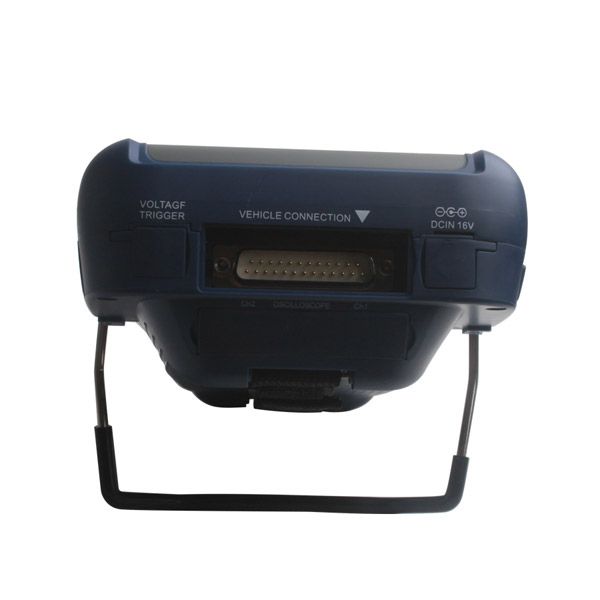

Toyota ITS2 Names of the Parts:
The names of the Intelligent Tester II parts are as follows.
Frequently Asked Questions:
Q: is Toyota ITS2 with CF card?
A: Yes, Toyota IT2 is with CF card. There is a CF card slot at the back of Toyota IT2 main unit. When you use the main unit, please do not take it off, CF card is used to store the tested result. Please refer "Toyota ITS2 Names of the Parts".
Q: Is this new and with the oscilloscope too?
A: Yes, it is with oscilloscope function.
Q: Can i use this product to do airbag coding?
A: Yes, you can.It can do airbag coding and simple ecu programming.
without Oscilloscope
