The OpenPort 2.0+ combined with our EcuFlash software.
The OpenPort 2.0+ is capable of reflashing a large number of newer Subaru and Mitsubishi vehicles.
Other cars is coming soon.
Highlights:
1. Tactrix Openport 2.0+ can work for TOYOTA, Jaguar and LandRover diagnostics.
2. The OEM software we have test on TOYOTA ,LAND ROVER and Jaguar are all excellent.!!!
3. Supports these major OBD protocols:CAN 2.0 (CAN/ISO15765) and K-line (ISO9141/ISO14230(KWP2000)/dual K line)
4. Field upgradable software
5. Record stand-alone data to microSD / microSDHC card without a laptop.
Tactrix Openport 2.0+ECUFLASH Specifications:
1. 72Mhz 32-bit processor
2. USB 2.0 full speed device (USB-A/Mini cable included)
3. J2534 PassThru support with Windows DLL

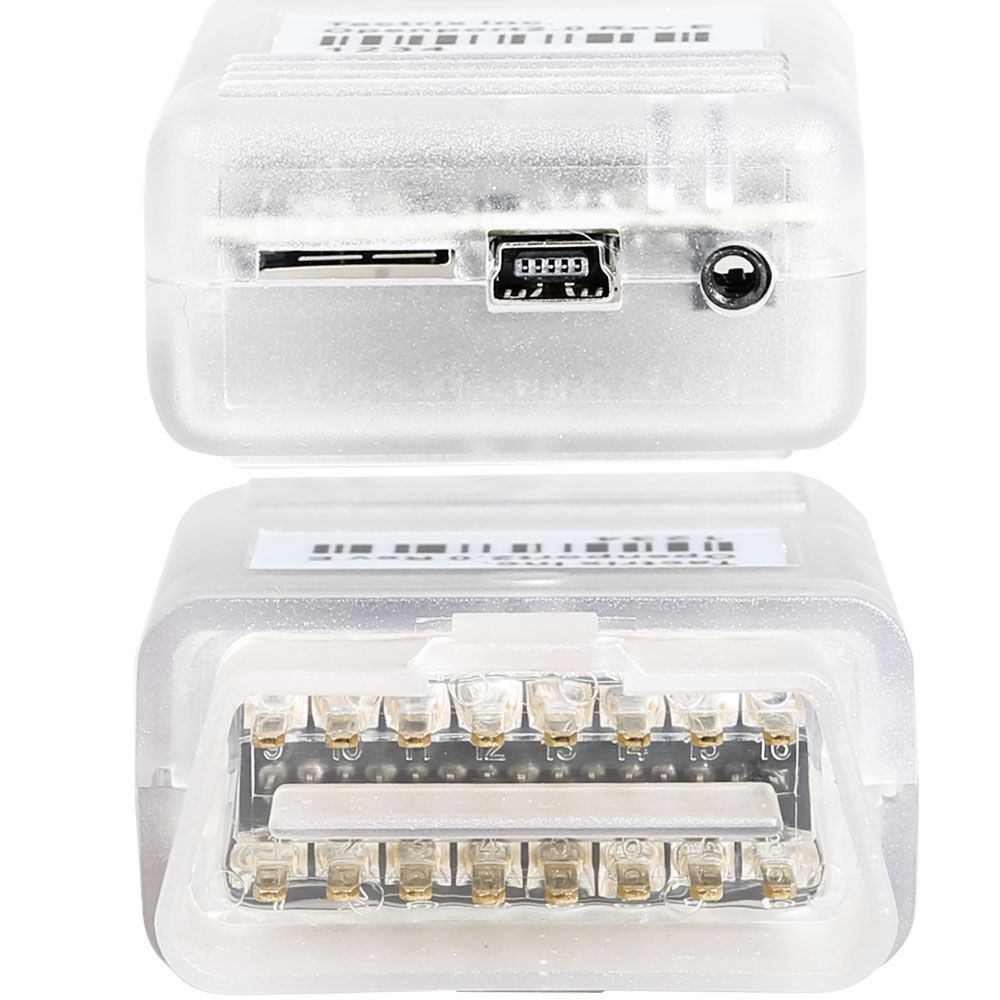

4. Able to apply GND or 5V-25V to OBD pins 1,3,9,11,12,13 or AUX 2.5mm stereo connector
5. Able to log from Innovate Motorsports 2.5mm stereo MTS data bus
6. RGB status LEDs
For ECU flash you can get info from this list:
US Domestic Market Vehicles currently supported by EcuFlash | ||||
Make | Model | Year(s) | Compatible OpenPort Interfaces | Init Connector Needed? |
Subaru | Impreza WRX | 2001-2002 | 1.2 1.3S 1.3U 2.0 | 2001-2002 |
2003-2005 | 1.2 1.3S 1.3U 2.0 | 2003-2005 | ||
2006-2007 | 1.2 1.3S 1.3M 2.0 | |||
2008-2009 | 2.0 | |||
Impreza STi | 2004-2007 | 1.2 1.3S 1.3M 1.3U 2.0 | ||
2008-2009 | 2.0 | |||
Impreza 2.5RS | 2005 | 1.2 1.3S 1.3M 1.3U 2.0 | ||
Impreza 2.5i | 2005-2006 | 1.2 1.3S 1.3M 1.3U 2.0 | ||
2007-2009 | 2.0 | |||
Forester 2.5 | 2005-2006 | 1.2 1.3S 1.3M 1.3U 2.0 | ||
2007-2009 | 2.0 | |||
Forester XT | 2004-2006 | 1.2 1.3S 1.3M 1.3U 2.0 | ||
2007-2009 | 2.0 | |||
Tribeca | 2006 | 1.2 1.3S 1.3M 1.3U 2.0 | ||
2007-2009 | 2.0 | |||
Legacy / Outback 2.5i / 3.0r | 2005-2006 | 1.2 1.3S 1.3M 1.3U 2.0 | ||
2007-2009 | 2.0 | |||
Legacy GT / Outback XT | 2004-2006 | 1.2 1.3S 1.3M 1.3U 2.0 | ||
2007-2009 | 2.0 | |||
Baja | 2004-2006 | 1.2 1.3S 1.3M 1.3U 2.0 | ||
Mitsubishi | Evo 5 | 1.3M 1.3U 2.0 | Mitsu (for 2.0 only) | |
Evo 6 | 1.3M 1.3U 2.0 | Mitsu (for 2.0 only) | ||
Evo 7 | 1.3M 1.3U 2.0 | Mitsu (for 2.0 only) | ||
Evo 8 | 1.3M 1.3U 2.0 | Mitsu (for 2.0 only) | ||
Evo 9 | 1.3M 1.3U 2.0 | Mitsu (for 2.0 only) | ||
Evo 10 | 2.0 | |||
(all 2nd Gen) | 1996-???? | 1.3M 1.3U 2.0 | Mitsu (for 2.0 only) | |
Eclipse GS/GT | 2001-2003 | 1.3M 1.3U 2.0 | Mitsu (for 2.0 only) | |
Lancer OZ | 2002-2004 | 1.3M 1.3U 2.0 | Mitsu (for 2.0 only) |

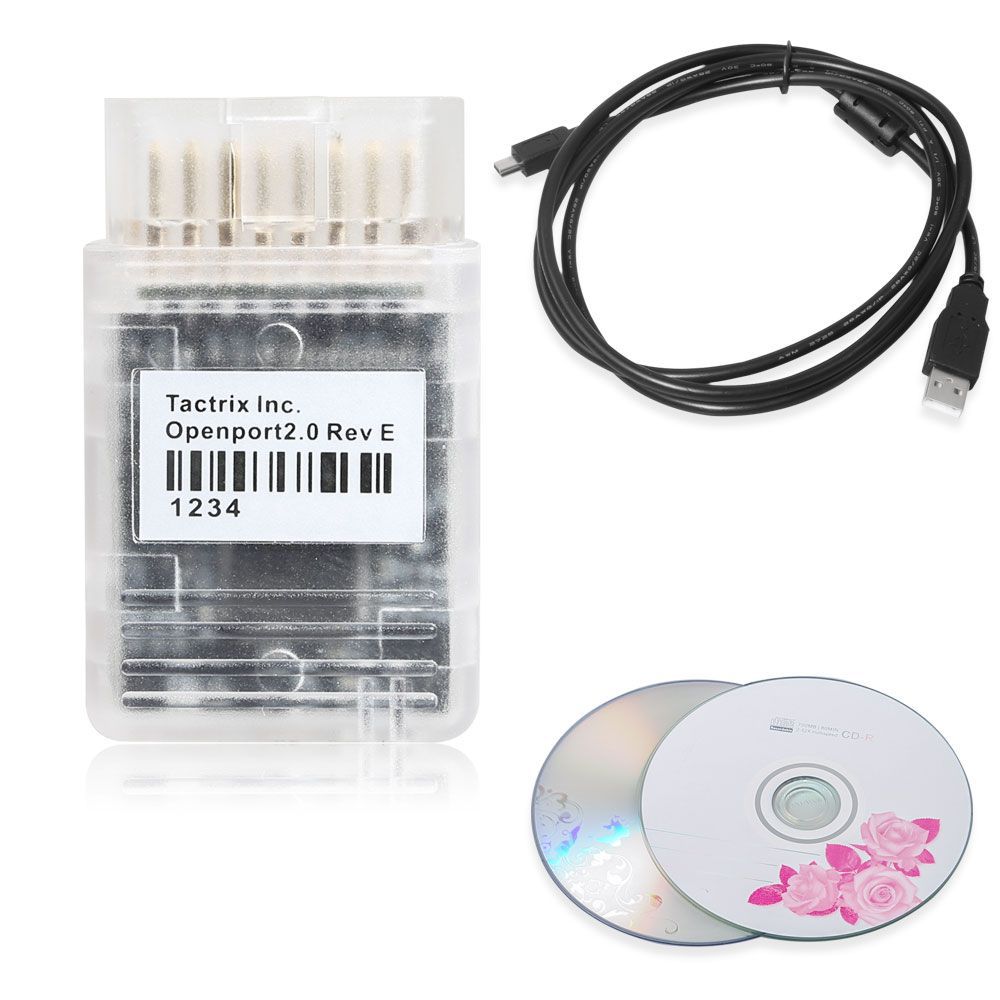

Package includes:

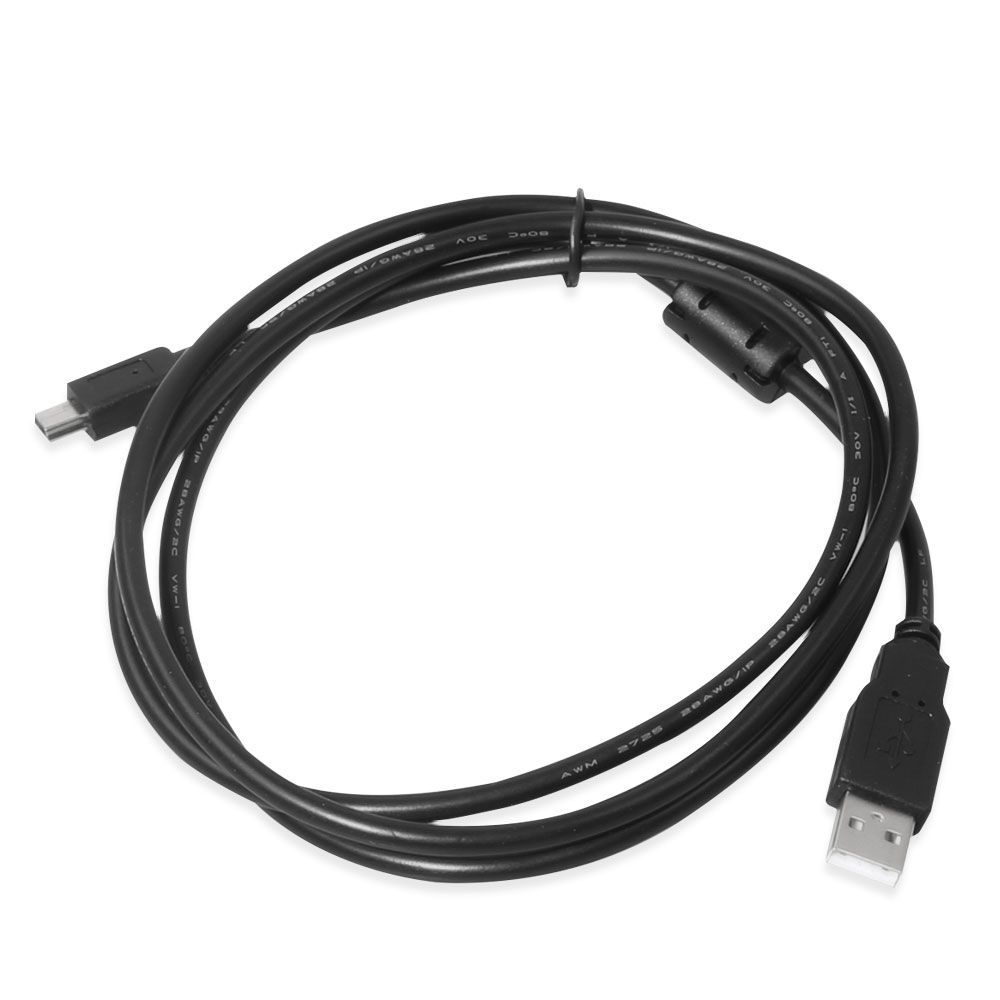

1 pc x USB Cable
1 pc x CD
