Description:
Cummins INLINE 5 software supplies engine information quickly, getting the inside details you need. No matter what kind of equipment you run, INSITE is the one support product to have in your virtual tool box to fit every Cummins electronic engine.
Function:
1.Trip and vehicle information
2.Parameter and feature adjustment
3.Accurate problem diagnosis
4.Complete wiring diagram sand sensor location maps
5.Step-by-step trouble-shooting information
6.Fault tree information
7.Fault code and symptom-based diagnostics
8.Engine diagnostic tests
9.Tools to create templates for a group of vehicles
10.Fleet management/driver reward programs
11.Audit trail information
12.Enhanced ECM security
Cummins INLINE 7-6 is offered in four functional levels:
Basic, LITE, RSGR and Pro, ranging from a read only access level to full-function access and capability for the service professional. TOP Authority for FREE
Attention: this tool only can be used with Win 7, cannot work with XP.
Specification:
1.Supports SAE J1708/J1587 and J1939/CAN data links
2.Supports USB full speed port at up to 2M baud rate
3.Supports RS-232 PC/PDA serial port at up to 115.2k baud rate
4.Is fully compliant with TMC's RP1210 standard
5.Small enough to fit in pocket
6.Aluminum housing provides ruggedness
7.Derives 8 V to 50 V DC power from vehicle
8.Includes advanced processor for maximum speed and performance
9.Internal Flash memory allows firmware upgradeability
10.Includes 5 LED to indicate power and USB, RS-232, J1708/J1587, and J1939/CAN communications
11.Rated for -40° to +85° C operating temperature
12.INLINE 5 meets Cummins in-cab environmental test requirements

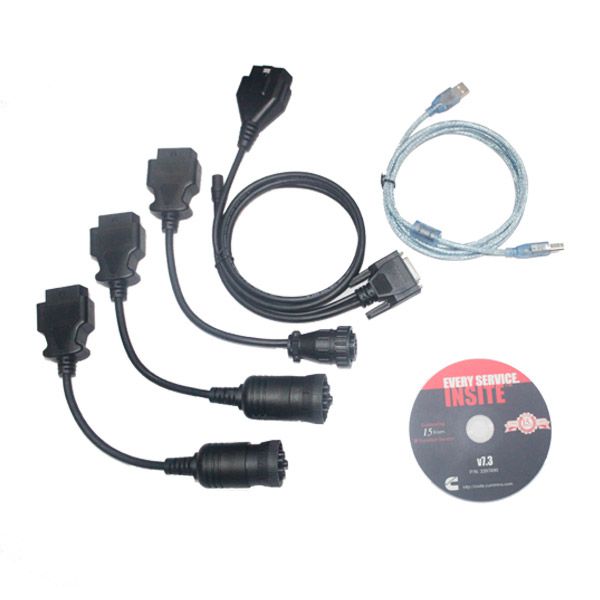

Package list:

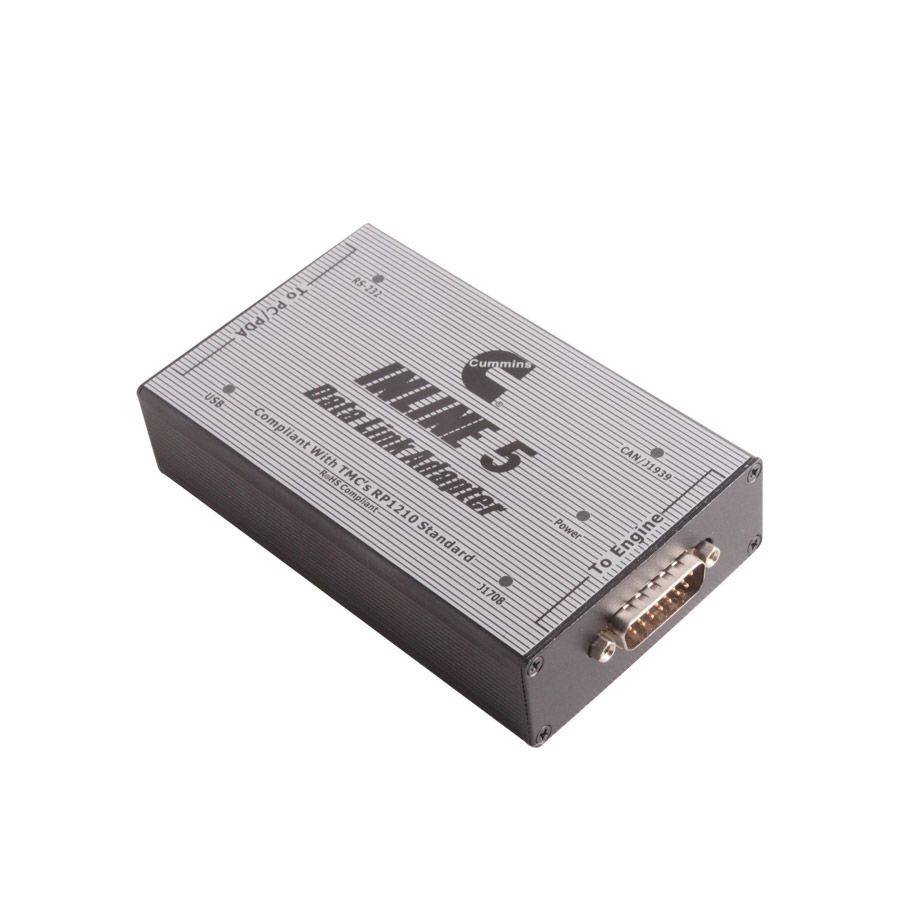

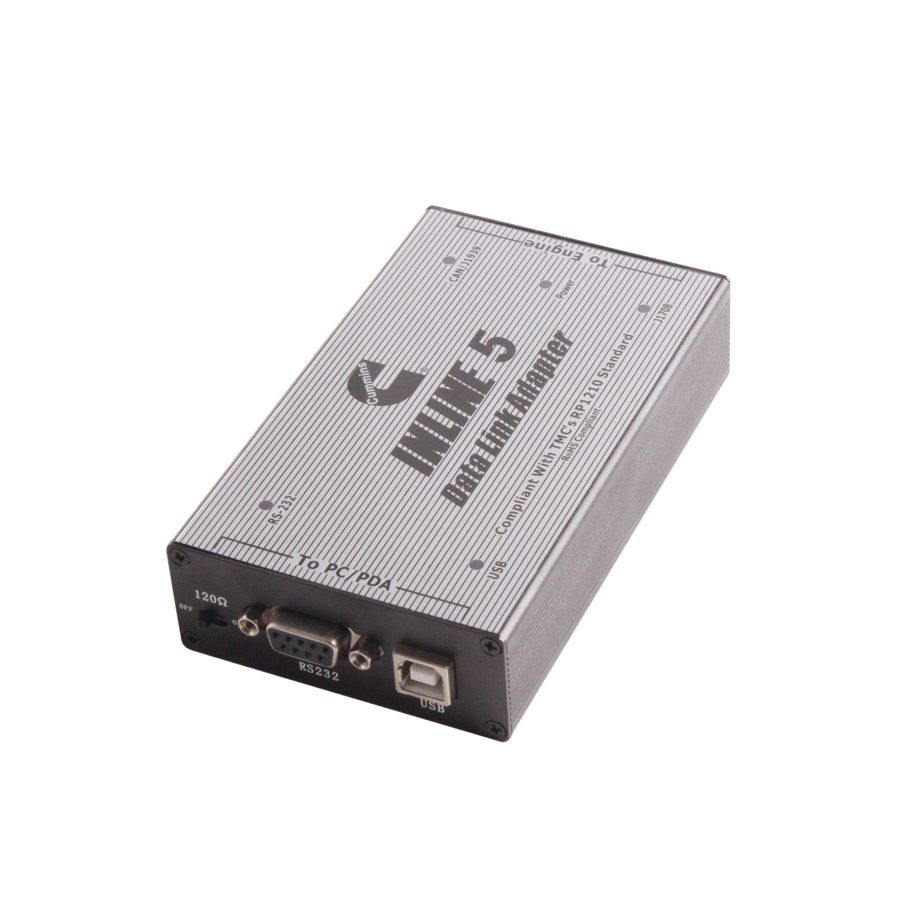

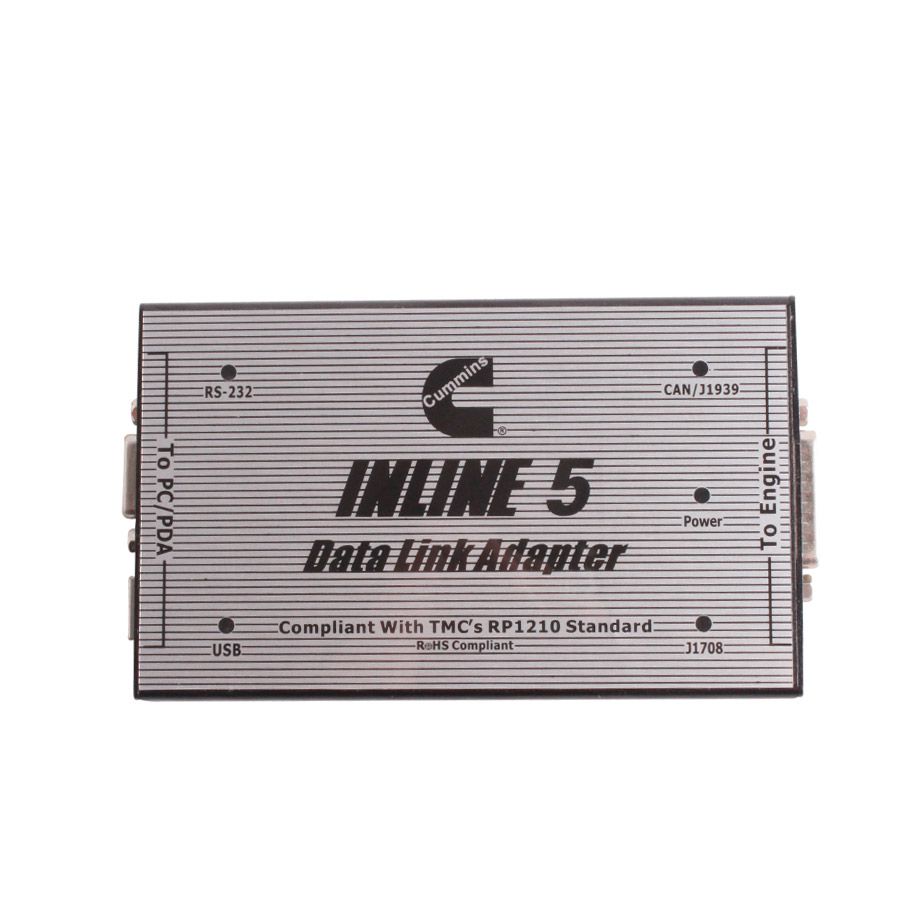

1. INLINE 7-6 data link adapter (P/N 3165033)
2. USB 2 meter cable (P/N 4918419)

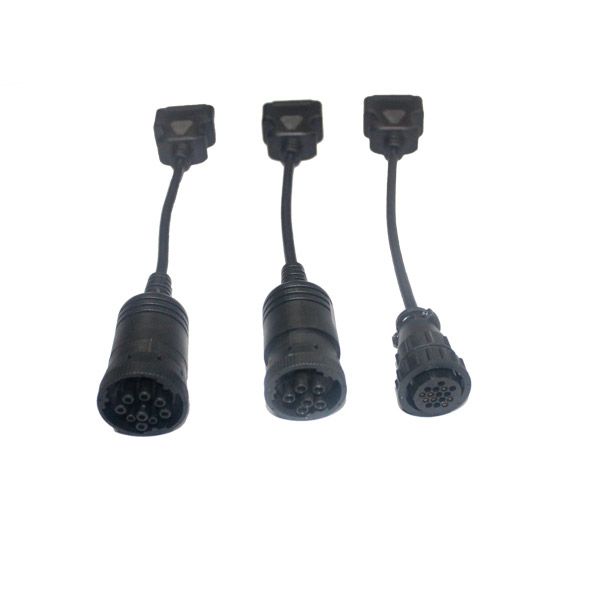

3. DB25F/9-pin data link cable (P/N 3165159)
4. DB25F/6-pin data link cable (P/N 3165160)
5. OBDII 16pin cable
6. INLINE 5 software CD (P/N 4918417)
7. Carry Case
