Preface
Thanks for purchasing SR-USB MINI
Features
1.16mm Condenser Capsule for Professional Studio Quality
2.Cardioid Pattern, Accurately Pickup
3.Super Low Self-noise, Perfect Sound Restoration
4.Zero-latency Monitoring and Muting Functions
5.Built-in Pop Filter for Pop Shielding

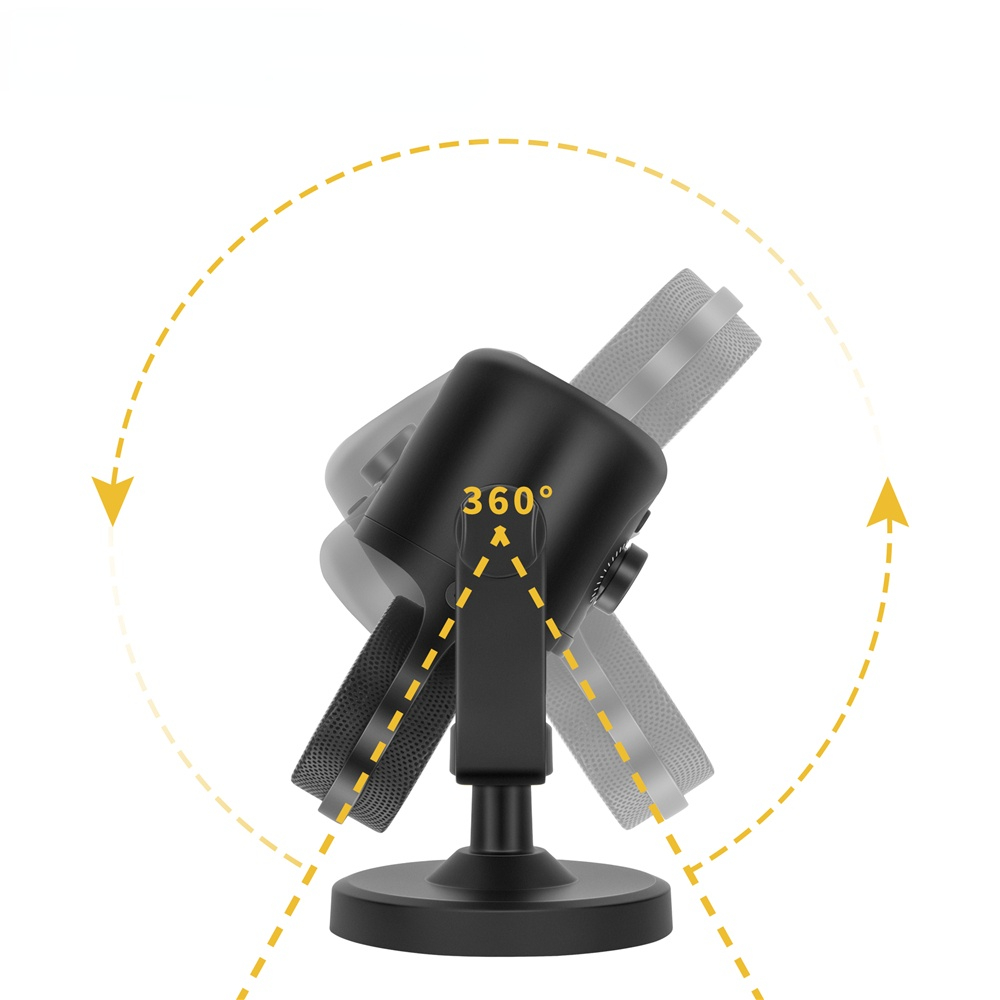

6.Integrated 360-degree Swing Mount and Detachable DeskStand

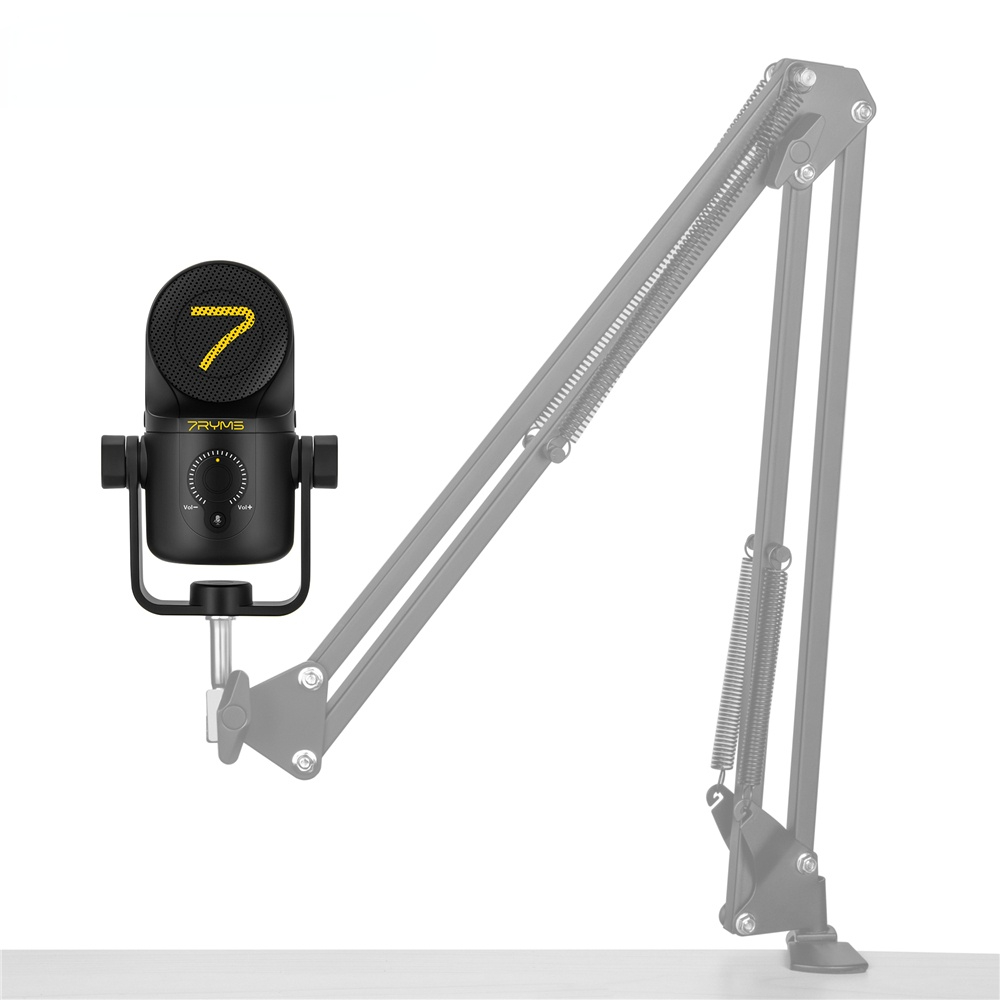

7.Bottom Standard 3/8 Threaded Hole for Microphone Stand
Tips
1.SR-USB MINI is suitable for USB devices of Windows, MacOS, Android and iOS system, it is not available for smartphones or other recording devices with 3.5mm audio input port
2.When using with lightning devices, it is recommended to use USB-lightning adapter, USB C-lightning audio cable is not available for SR-USB MINI
3.Please aim the front of the microphone at the sound source to get an excellent recording
Item Check List
Microphone
USB C-USB C Audio Cable
USB C-USB A Audio Cable
Portable Package
Guarantee Card
User Guide
Specification
Acoustic Principle | Condenser |
Polar Pattern | Cardioid |
Frequency Response | 20Hz~20kHz |
Sample Rate | 48kHz |
Resolution Rate | 16-bit |
Dynamic Range | 96dB |
Maximum SPL | 110dB |
Power | USB 5VDC/100mA |
Output | USB-C |
Dimension | 77x70x149mm |
Net Weight | 259g |
Working Temperature | 0~50℃ |
Storage Temperature | -20~60℃ |
