Function:
Suitable for remote control rolling code chip: HCS200 and HCS201, specially for mutual duplicating Steelmate Remote Control.
Configuration and Parameters:
Number of buttons: 3 buttons (lock button, unlock button, rear box button)
Electric current: 27A Working Voltage: 12V
Parts: Pins, key blank
Frequency: 315/433MHZ
Dimensions: 35 × 72 × 17mm
Weight: 0.06kg
Operation guide for Mutual-Duplicating Remote Controller
1.Clear code:
It's necessary to clear the original codes of the copy code remote control.
Press and hold the "unlock" button and "luck" button simultaneously for 2 seconds till the LED indicator flashes 3 times.
Keep pressing the "lock button" button and release the "unlock" button, then press the "unlock" button for 3 times within 5 seconds.
The LED indicator fast flashes 2 times to indicate the code clear is finished.
2.Copy code:
Firstly mutual duplicating "luck" button, then "unlock" button.
3.Retrieve Code:
In case if you lost the codes you are using by accident, dont worry you can retrieve them by following the step below:
firstly mutual duplicating "unlock" button, then match key in the car.
Package including:

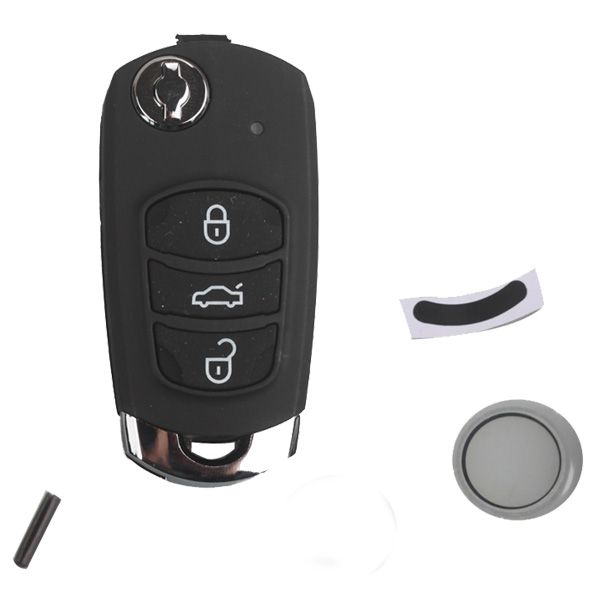

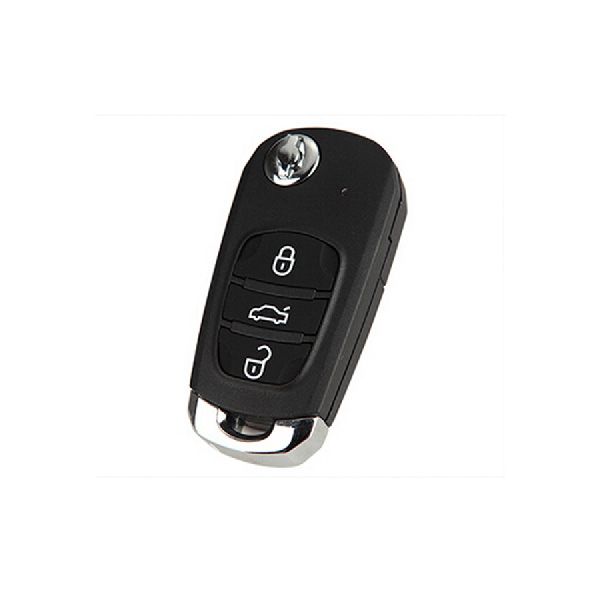

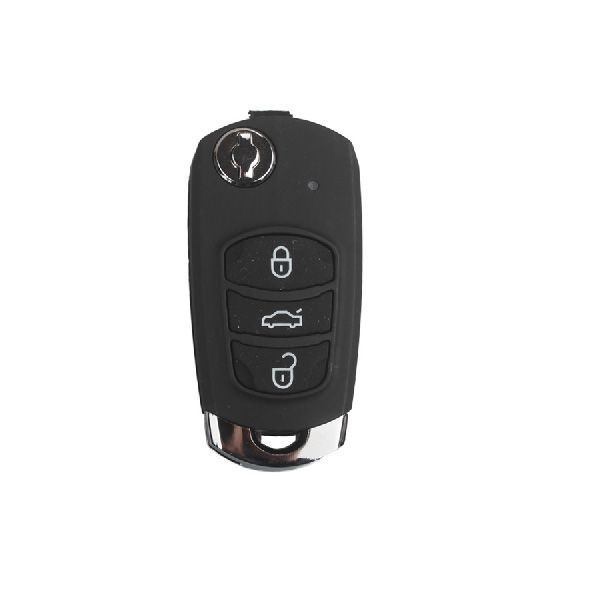

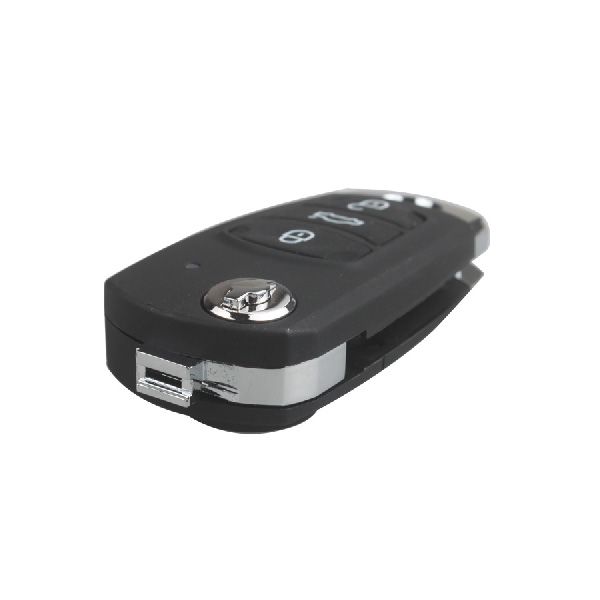

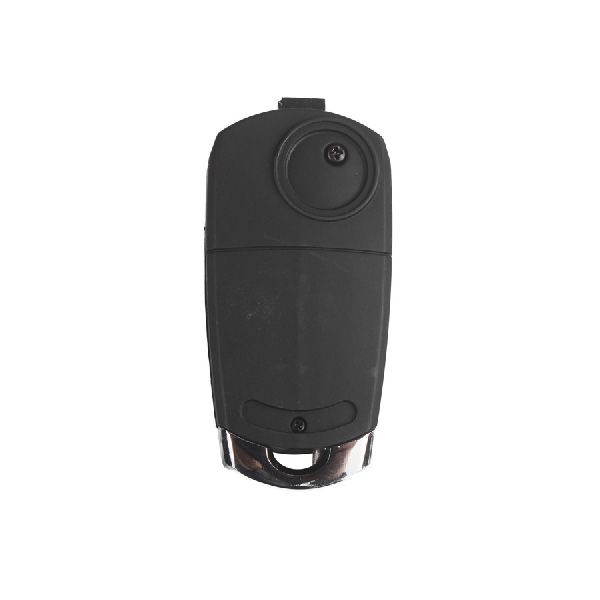

1X RD068X Steelmate Rolling Code Mutual-Duplicating Remote Controller
