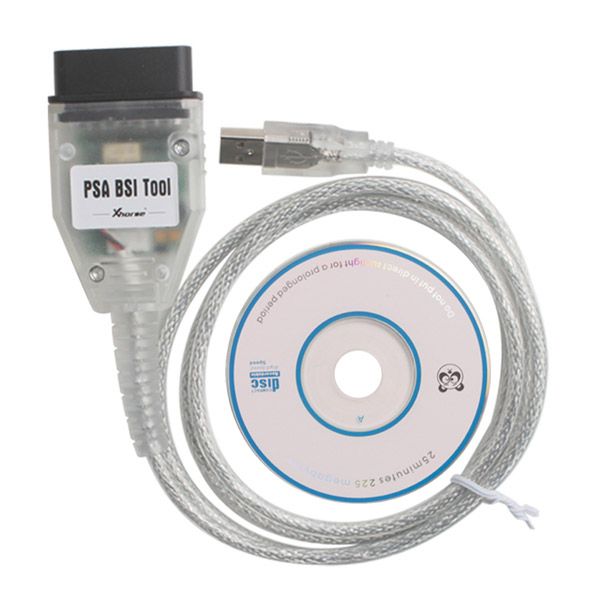

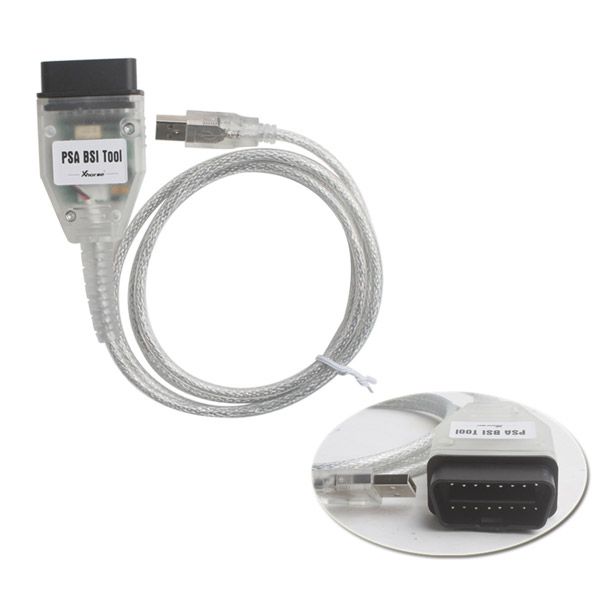

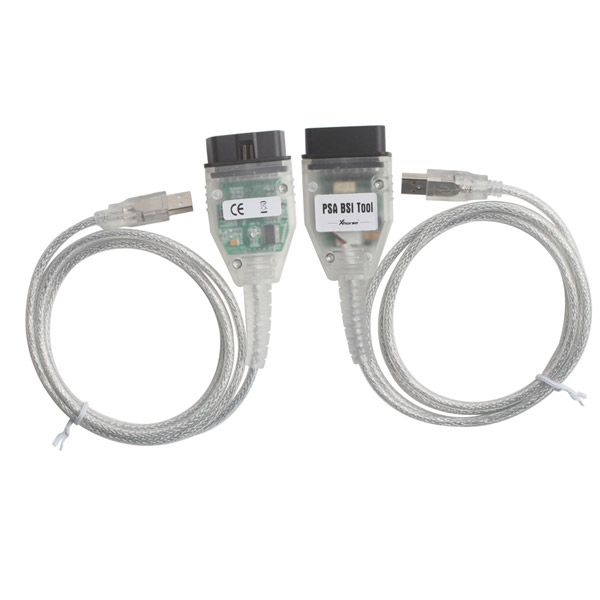

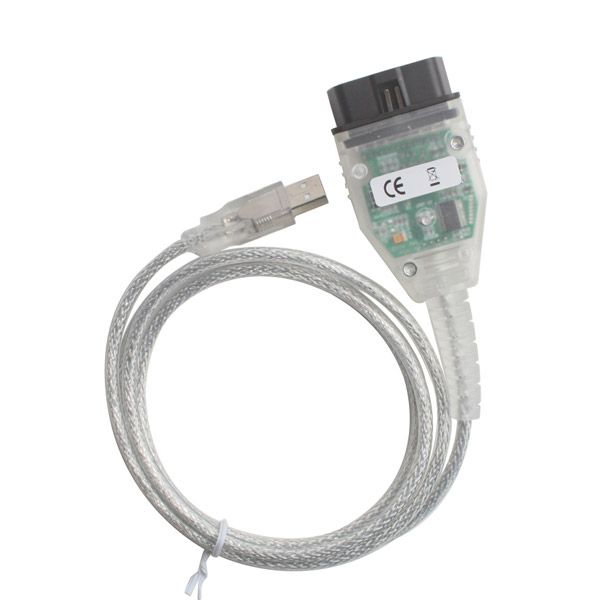

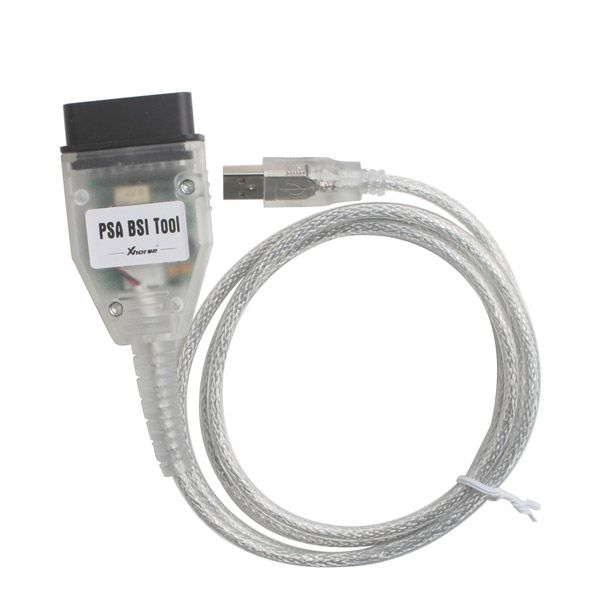

PSA BSI tool for Peugeot and Citroen Odometer
Note:
Software Version: V1.2
Update: By email
Language: English Only
Operating System: Win XP only
"PSA BSI Tool" Include hardware device and software, also user manual. You must connect hardware to PC before run the software.
1. Functions for Simens with CAN:
a) Read EEprom memory BSI
b) Write EEprom memory BSI
c) Read BSI flash
d) Programming new KM in BSI
2. KM Function:
a) Read KM: Can read KM stored in BSI.
b) Write KM: Can write KM stored in BSI.
3. Functions for Valeo and Johnsons Control with CAN
a) Programming new KM in BSI
b) Reprogramming flash for Johnsons Controls.
4. PIN KEY Function:
Support Read PIN code stored in BSI, with this code you can run Key Learning function.
1. Read PIN: Read PIN stored in BSI.
2. Key Learning: You can go to Key Learning after you get the PIN code. It will enter into another window. Includes “Get Immo Status” and “Key Learning”.
a. Get Immo Status: You can get the key status for the current car.
b. Key Learning: You can add new key to car.
5. EPROM/FLASH Function:
Includes Read/Write EEPROM, Read/Write Flash, Save File, Load File..
a) Read EEPROM: Only support read BSI produced by Siemens VDO.
b) Write EEPROM: Only support write BSI produced by Siemens VDO.
c) Read FLASH: Support all BSI type, support to backup flash before other operation.
d) Write FLASH: Only support Write BSI produced by Johnson Controls. The write data must be read with this tool.
e) Save To File: Save the read data to a file.
f) Load From File…: Load the saved file, prepare for written operation.

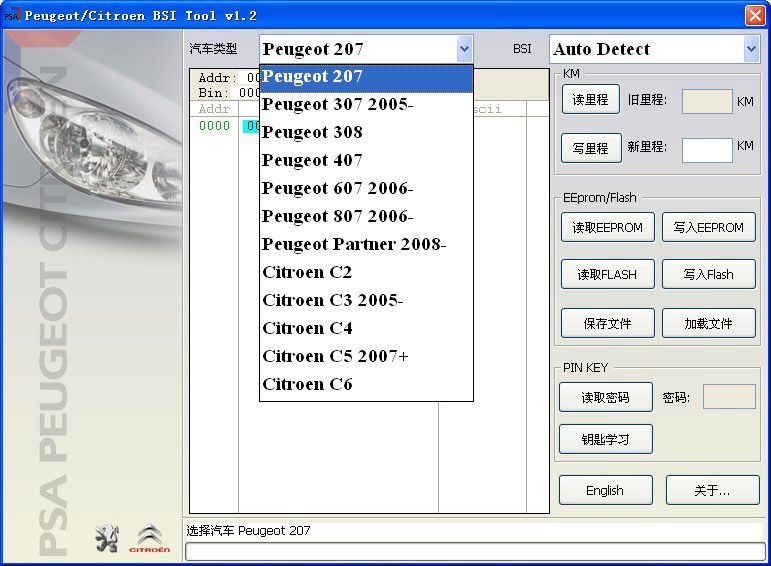

2. Operated models
1) Peugeot 207
2) Peugeot 307 after 2005
3) Peugeot 308
4) Peugeot 407
5) Peugeot 607 after 2006
6) Peugeot 807 after 2006
7) Peugeot Partner after 2008
8) Citroen C2
9) Citroen C3 after 2005
10) Citroen C4
11) Citroen C5 after 2007
12) Citroen C6
Package including:
1pc x PSA BSI Tool

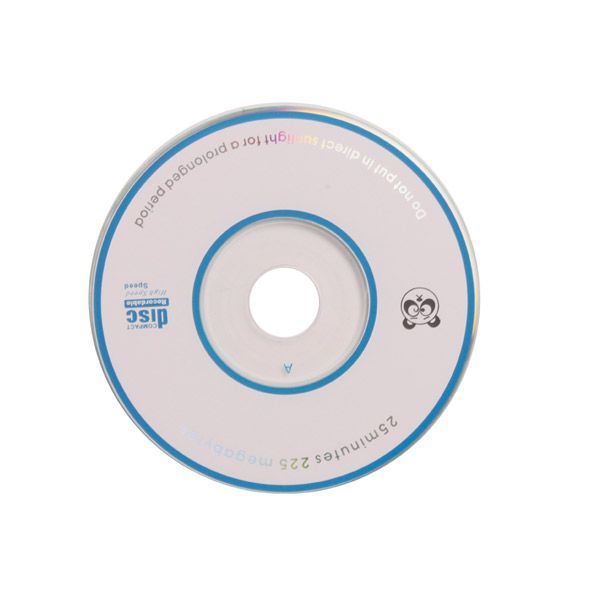

1pc x CD
