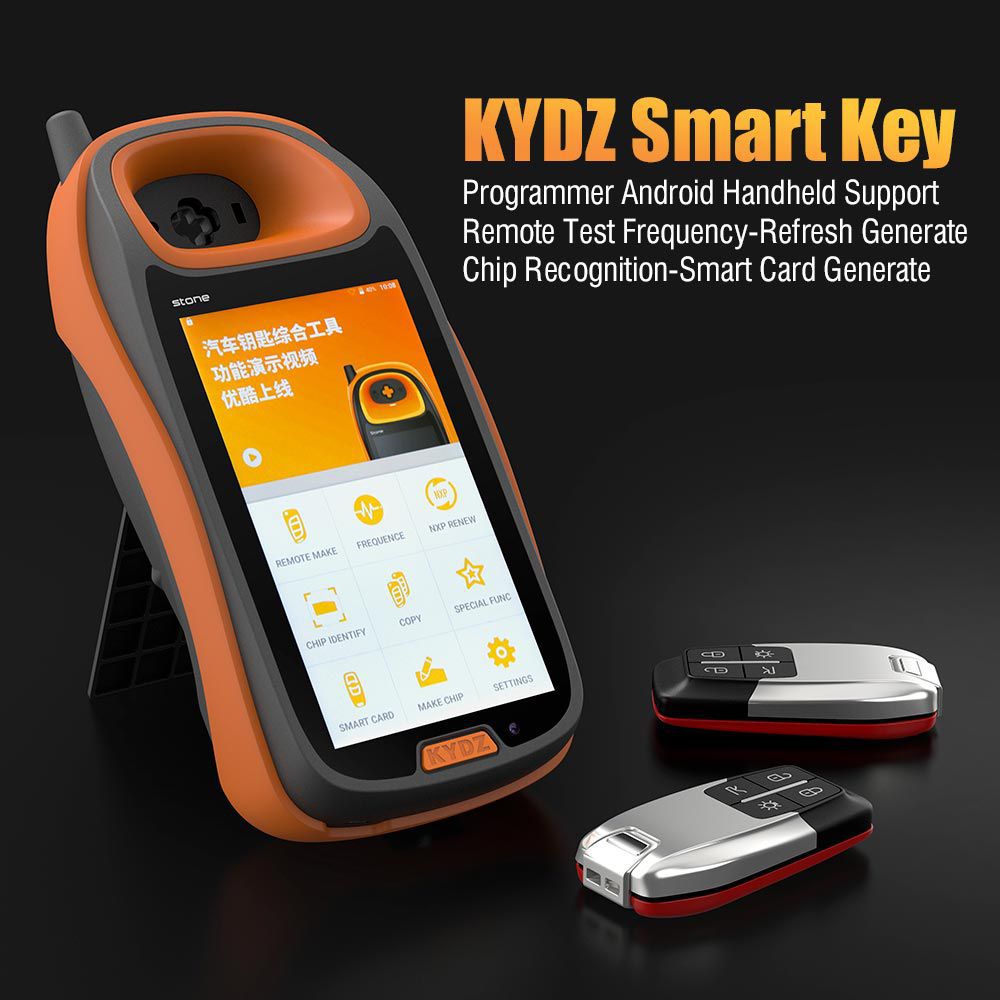

KYDZ Smart Key Programmer Android Handheld Supports Remote Test Frequency-Refresh Generate Chip Recognition-Smart Card Generate

KYDZ Smart Key Programmer Android Handheld Supports Remote Test Frequency-Refresh Generate Chip Recognition-Smart Card Generate

KYDZ Smart Key Programmer Functions:

1. Chip Identification, Copy and Generation
2. Anti-theft Data write Key
3. Remote Generation
4. Support Frequency Detection, Infrared Detection
5. NXP Renew
6. Smart Card Generation

Power On and Off:

1.Power on: press the battery button in 3 to 5 seconds, entering the Android screen, then click the “agree”.
2.Power off: press the battery button in 2 to 3 seconds,appearing the word “power off”, then click the “power off”.

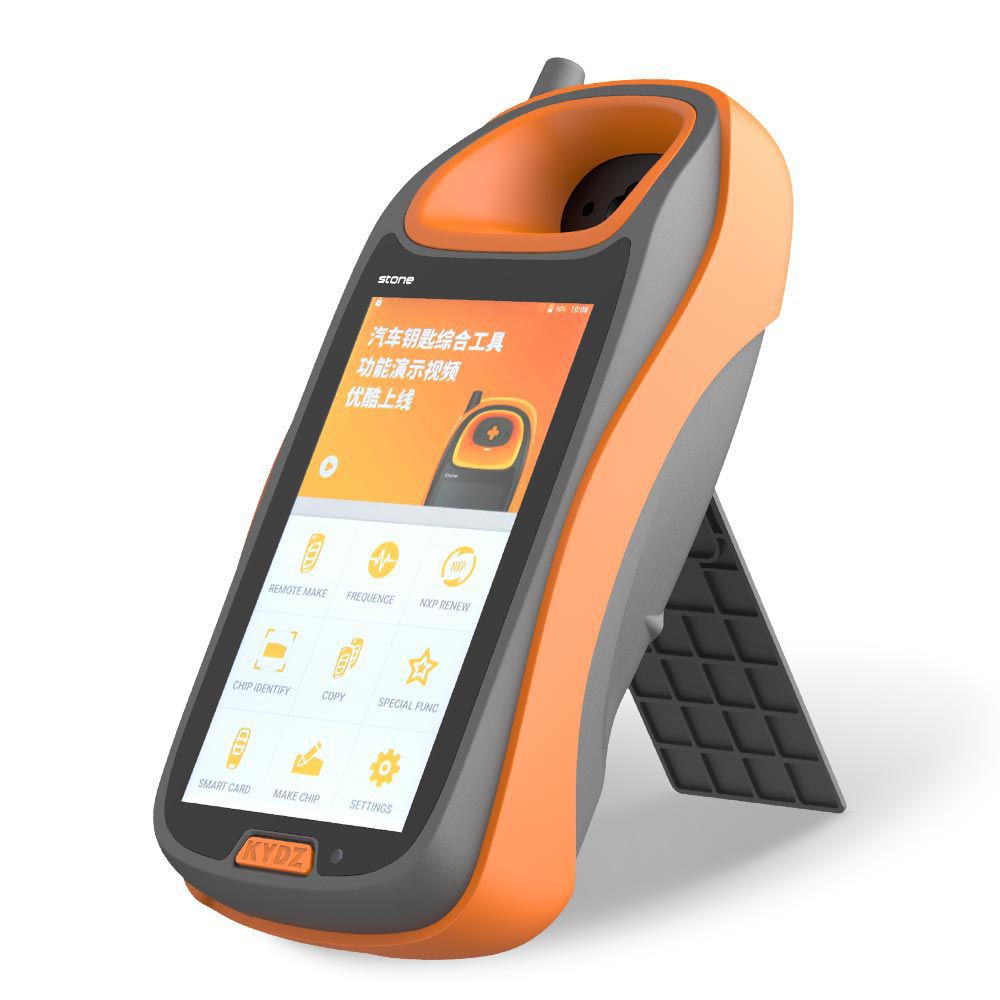

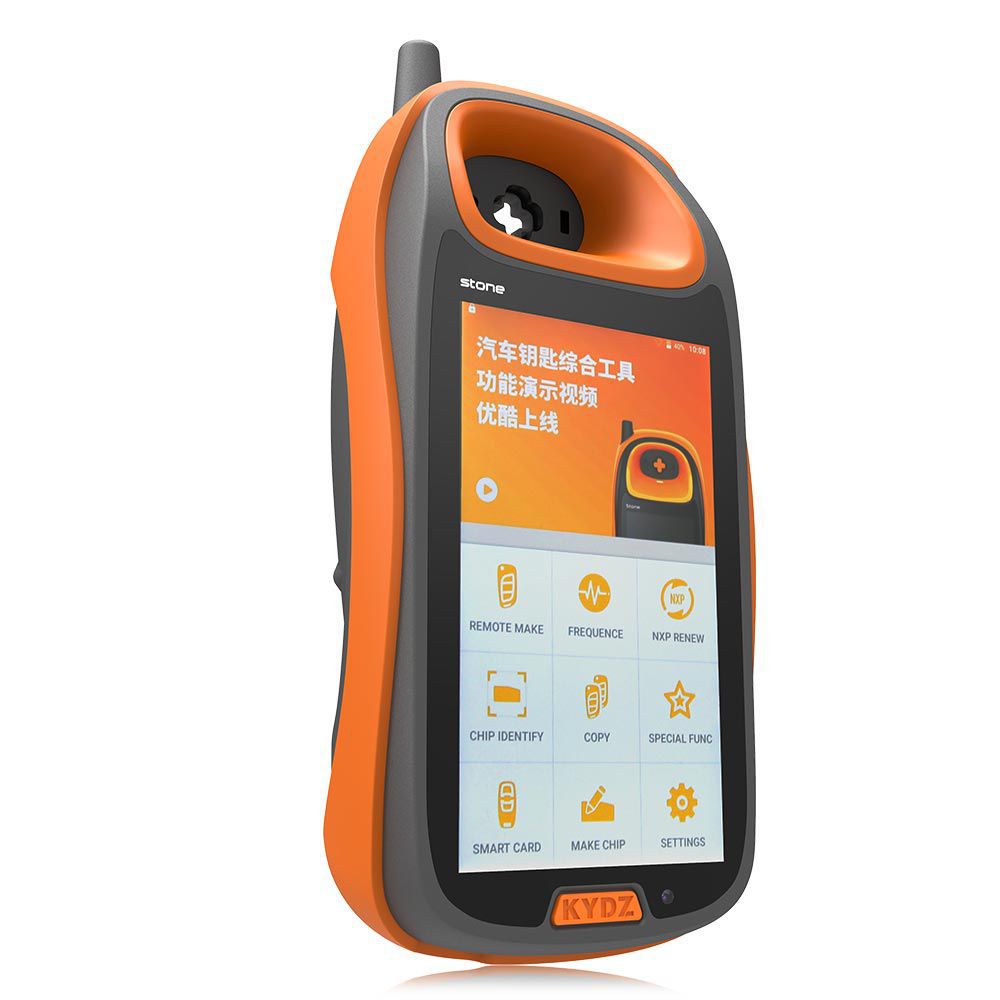

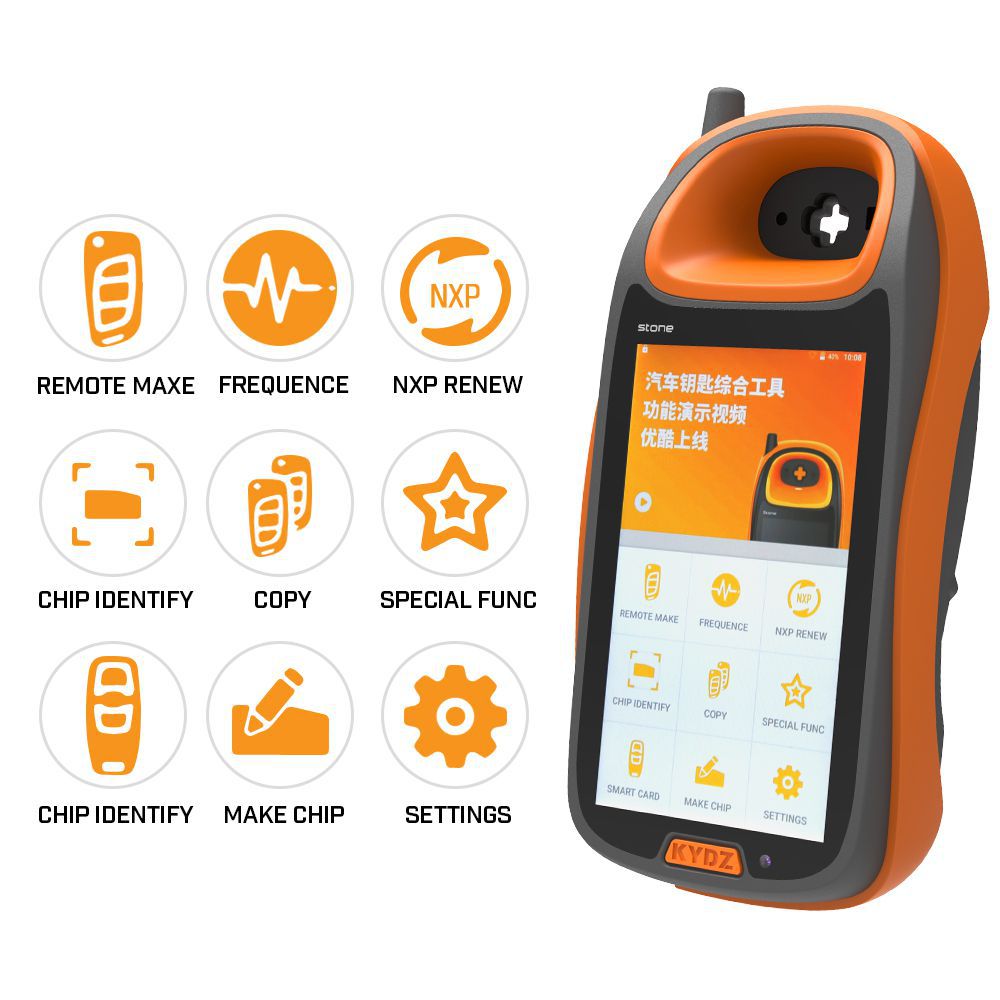

Home Page Description:

1. Active message showing: show the new message of KYDZ
2. Remote making: producing the RKE remote key.
3. Detecting the frequency and infrared.
4. NXP renew: OEM and after market is supported.
5. Chip identify:recognize the chip,edit,read the EEPROM.
6. Copy:(still research and develop).
7. Special function:(still research and develop).
8. Smart card:producing all kinds of PKE remote keys.
9. Making chip:G make,G mass,ID67,ID68,ID70,ID70E,ID33,ID40,ID4, ID42,ID43,ID44,ID45,ID46,ID60,ID61,ID62,ID63 and so on.
10. Setting: wifi setting,display setting, volume setting, language setting, PC mode.

Using Instruction:

1. Remote Making
Please check if the battery of the RKE remote key can work before making, then clicking the “remote make”-----choose the area----choose the type of car----enter the screen of remote make----put the RKE remote key into the Key slot----appear the word “connect the remote key”----click generate---remote making-----read successful----confirm.

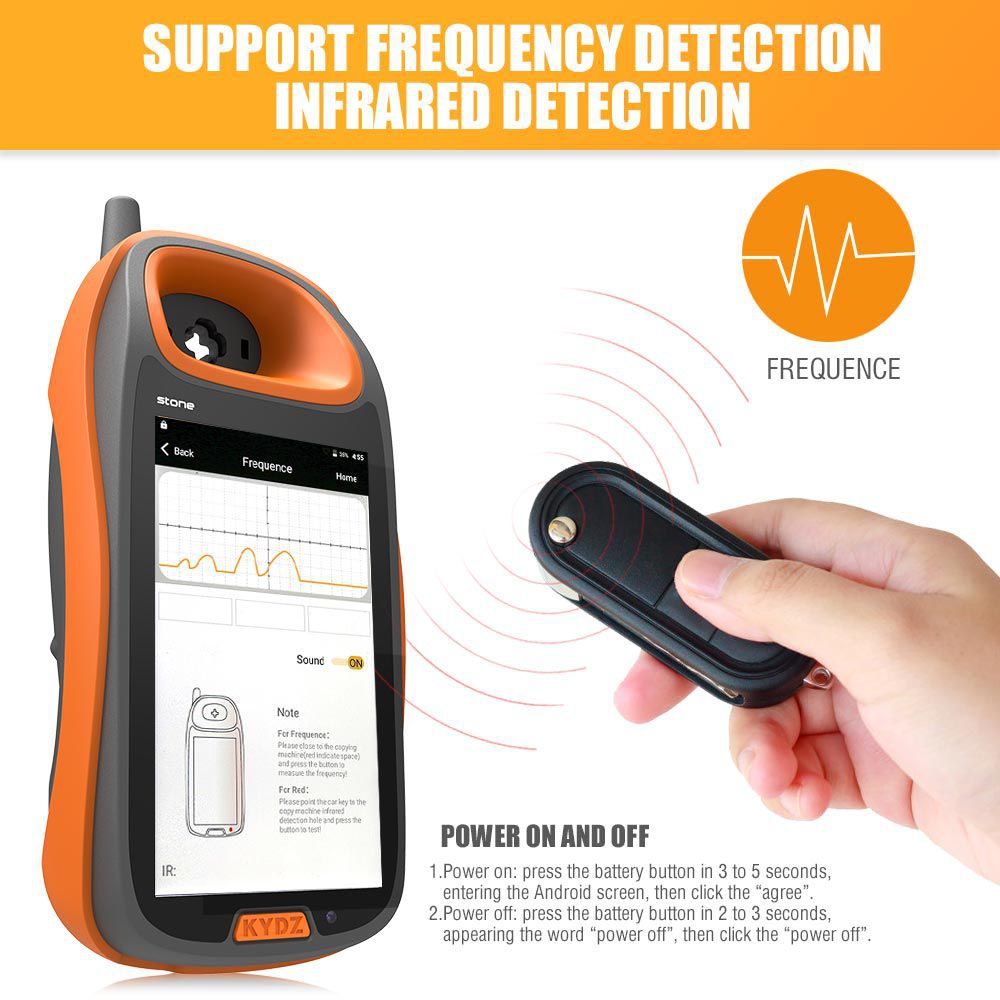

2. Detecting Frequency

(1)Detecting Frequency: click “frequency”-----put the remote key near this machine----press the button of the remote key----appearing relative information of the key.
(2)Detecting Infrared:click “frequency”-----put the remote key near this machine----press the button of the remote key----appearing information.

3. NXP Renew

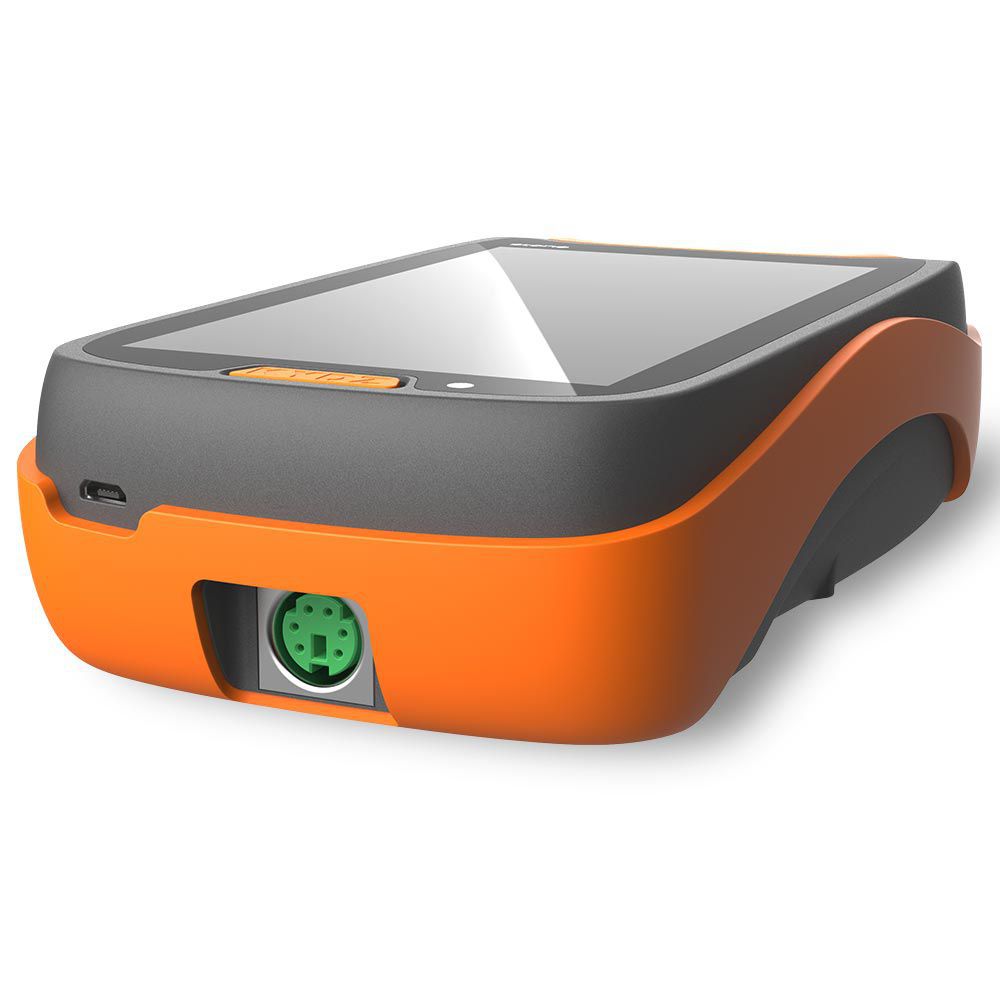

Click“NXP renew"----choose the area----choose the type of the car-----enter the screen and connect the circuit-----use the PS2 wire to connect the port of the PS2--------click “refresh/update”-------reading the chip------read successful----click “confirm”

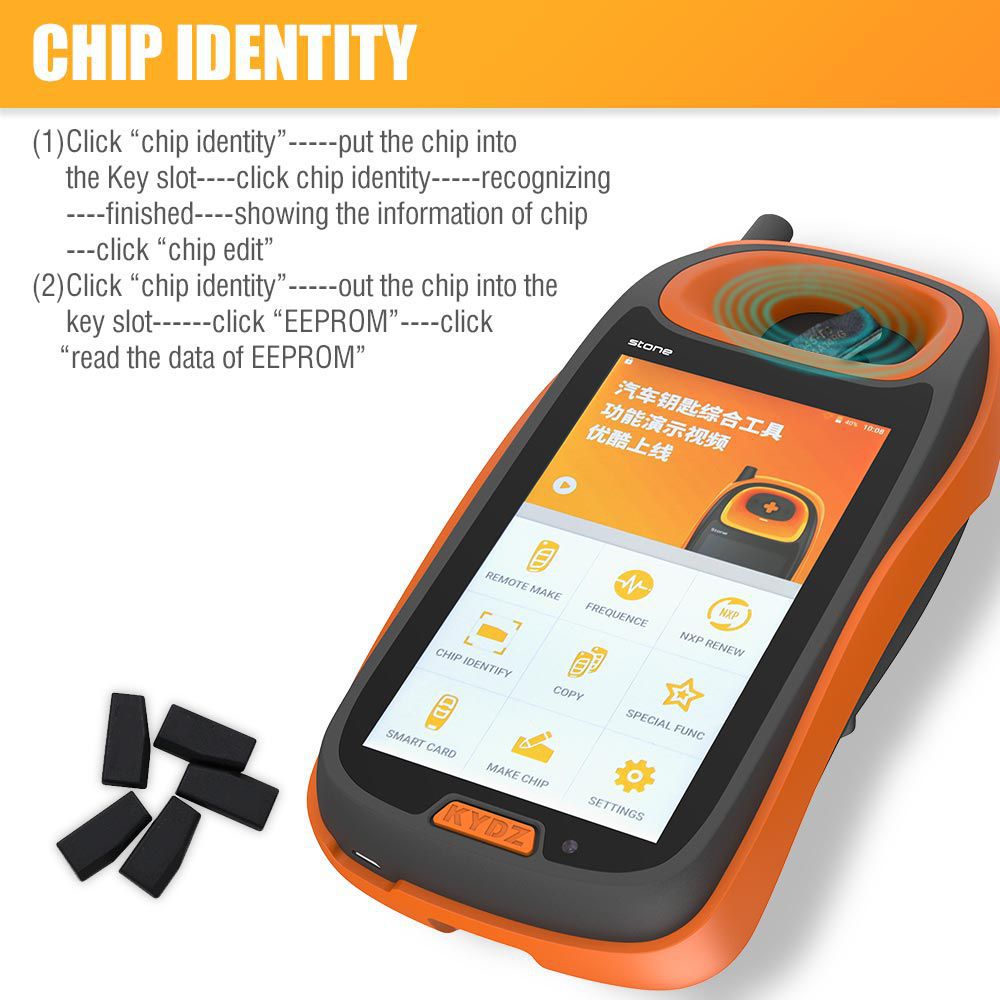

4. Chip Identity
(1)Click “chip identity”-----put the chip into the Key slot----click chip identify-----recognizing----finished----showing the information of chip---click “chip edit”
(2)Click “chip identity”-----out the chip into the key slot------click “EEPROM”----click “read the data of EEPROM”

5. Copy:(still research and develop).

6. Special function:(still research and develop).

7. Smart Card
Please check if the battery of the RKE remote key can work before making, then clicking the “remote make”-----choose the area----choose the type of car----enter the screen of remote make---read PKE remote key---adjust it until it display the “PKE remote key”----click “generate”--confirm

8. Making Chip
(1)Car model:put the chip into the key slot----click “make chip”----car model----choose the area----choose the type of the car----click “Importing files”---confirm----back to the last interface---click “generate”--confirm
(2)Image generator：put the chip into the key slot----click “make chip”---click “image generator”---choose G producing as your need.
(3)Unlock: put the chip into the key slot-----click “make chip”-----click “unlock”----choose the area----the the type of the car--- detecting the battery---detecting the data of the factory----reset the chip.

9. Setting
(1)WIFI setting: click “setting”---click “wifi setting”----choose the internet------connect
(2)display setting:click “setting”---click “display setting”----adjust the light of the screen as you want
(3) volume setting:click “setting”---click “volume setting”----adjust the volume of the screen as you want
(4)language setting:click “setting”---English/Chinese
(5)PC mode:connect to the computer
(6)About: showing the version of this machine

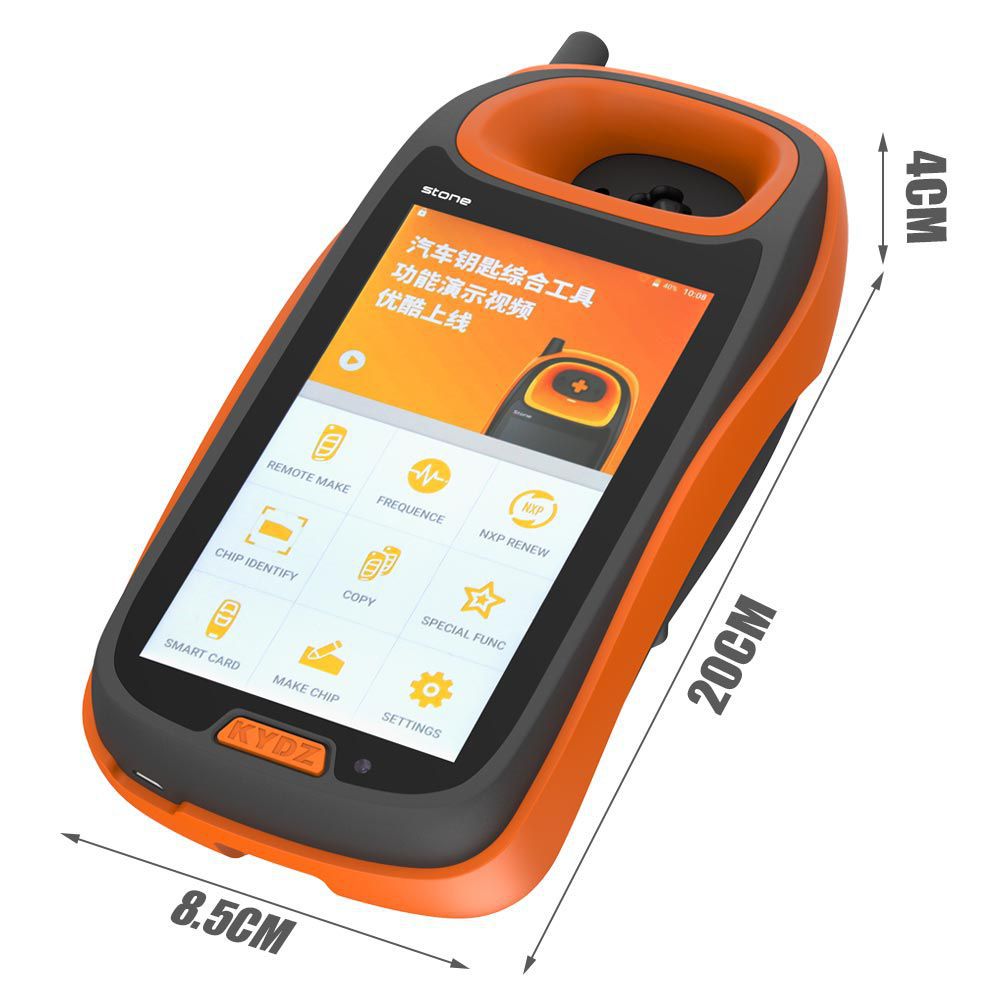

Product Parameter

1.Size: 5.0 inch
2.Battery: 5000mAh/3.7V
3.Charging: DC 5V/1A
4.Using environment: -10°C---55°C

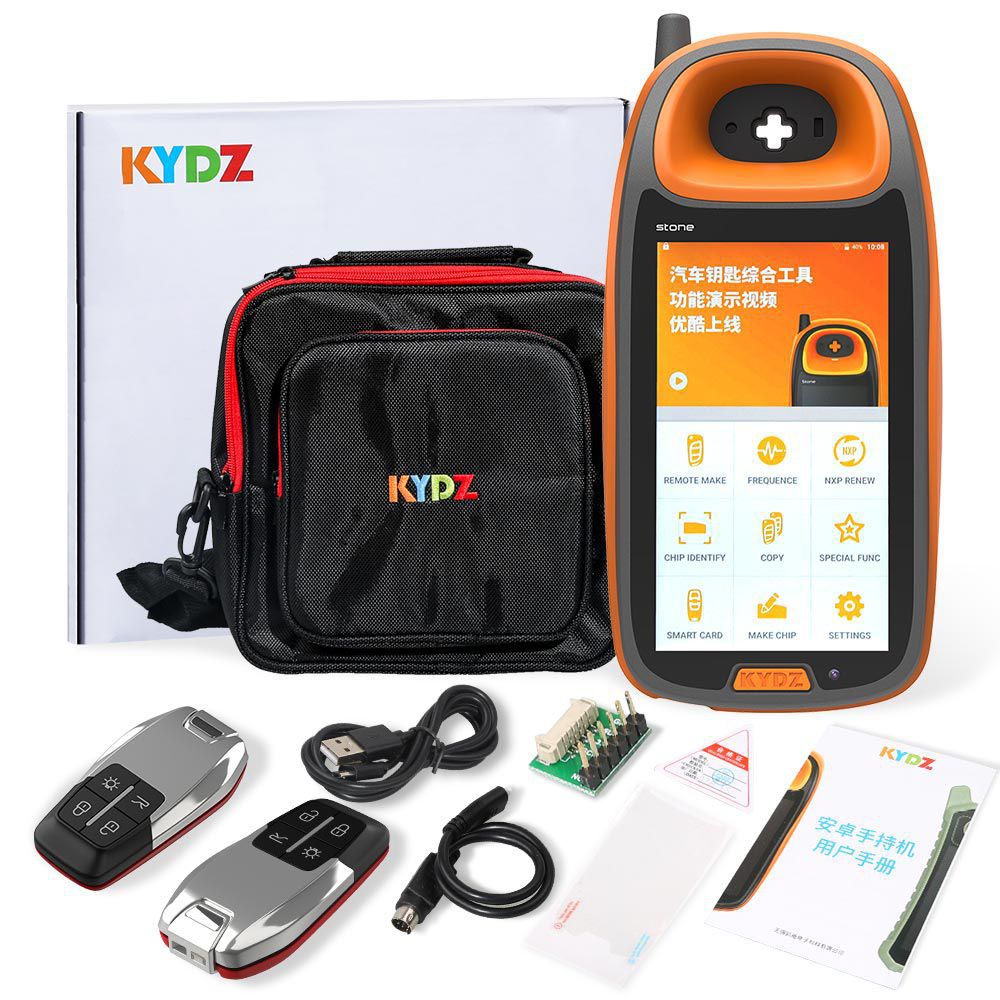

Package includes:

1set x KYDZ Smart Key Programmer
