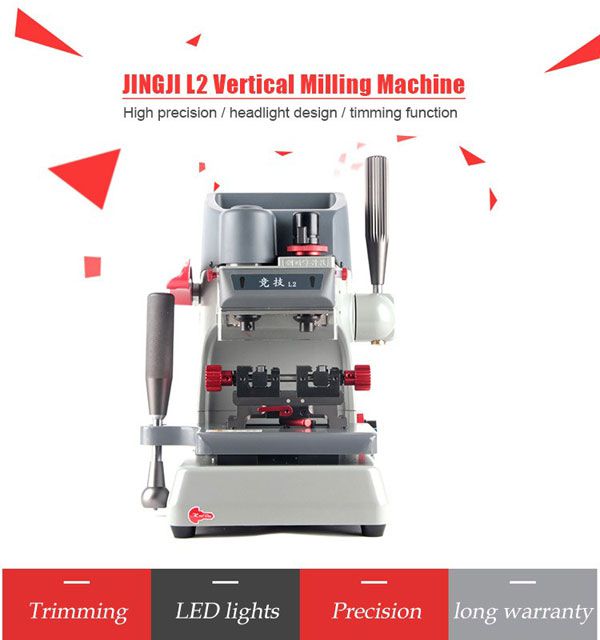

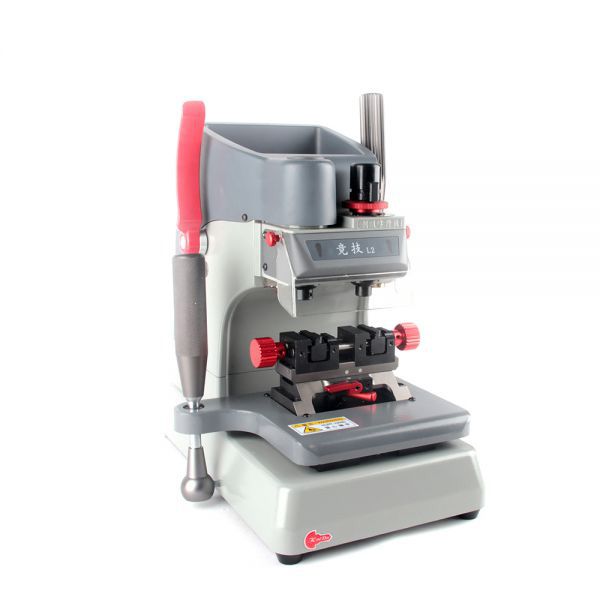

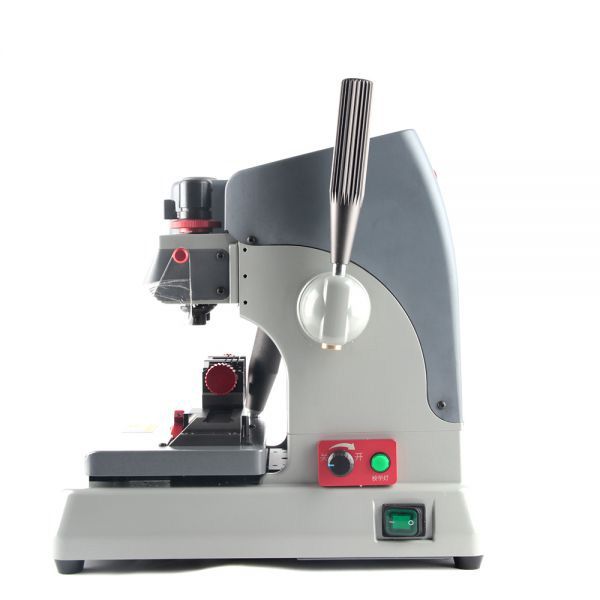

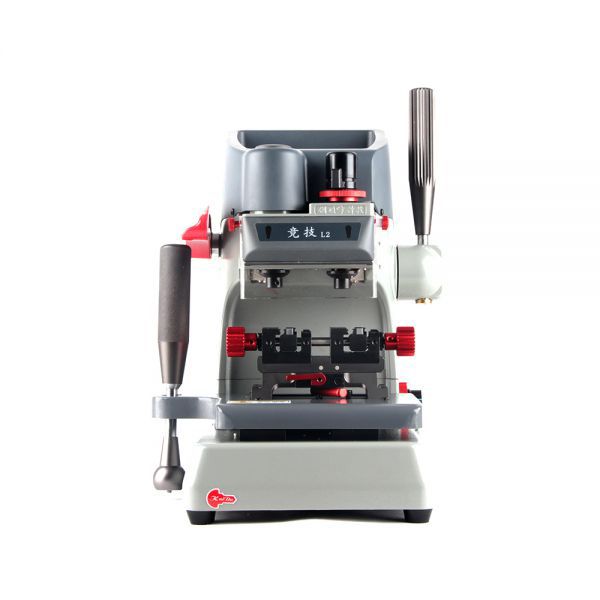

Kaida JingJi L2 Multi-Functional Vertical Operation L2 Milling Key Cutting Machine
Ideal for dimple and laser keys,,removable jaw,cutter speed regulated to 8000rpm,LED callibration system,spring loaded tracer point,micrometric adjustment tracer system,cutting depth locking mechanism,armrest support design
JingJi L2 Key Cutting Machine Features
1.Callibrtion system indicated by LED light makes cutt ing precise2.Long-lasting motor makes cutting speed maximum to 8000rpm
3.Removable jaw guarantees quick replacement
4.Two grooves clamp for different key duplicating purpose
5.Automatical precised callibration system
6.Horizontal movement locking mechanism makes vertical cutting stable
7.Cutting depth locking mechanism makes accurate result
8.Spring loaded tracer point makes perfect depth alignment
9.Micrometric adjustment tracer system limits the cutting difference within 0.03mm
10.Armrest support makes the cutting forward stable and smooth
11.Large storage area for key blanks or other accessories
1.Clamp to secure the original key
2.Cutter insert axis
3.Armrest support
4.Clamp to sec ure k ey bl ank
5.X,Y axis s lide handle
6.Jaw secure/remove bar
7.Tracer grip lock ring
8.Tracer depths adjustment knob
9.Cutting depth locking handle
10.Tracer insert axis
11.X axis movement locking bar

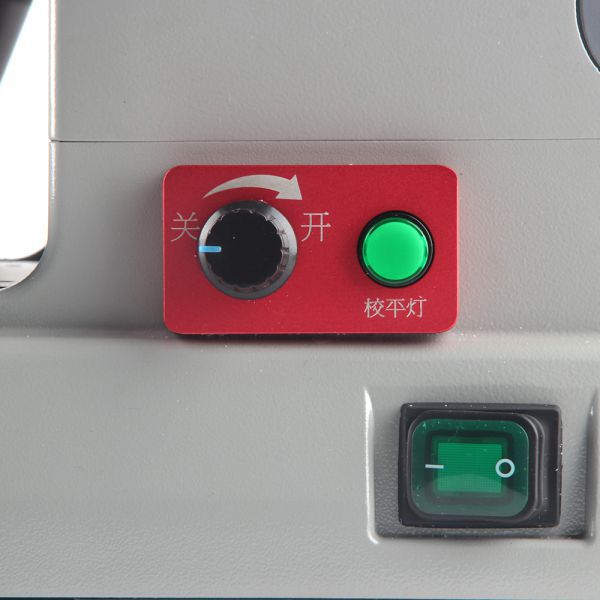

12.Cuttings peed control knob
13.Calibration button
14.Power socket AC11 0V/ 220 V
15.Main power switch
16.Power cable
17.Tracer and cutter
JINGJI L2 Machine Parameters:
JINGJI L2 Machine Accessories List:
Packing List

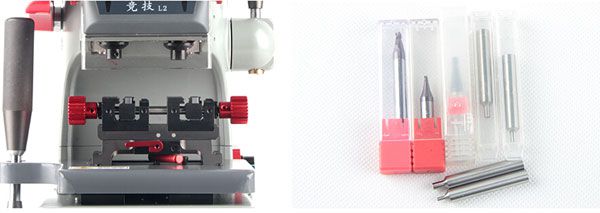

1 full set x JingJi L2 Key Cutting MachineJingji L2 Jaw Functions Display:
