FVCI is a PASS-THRU device of FCAR. VCI use 3 ARM microcontrollers design, this will make the processing capacity of FVCI stronger and support OEM software better. It supports J2534 protocol, and it will support other protocol for free later. In addition, the hardware of FVCI supports multiply communication manner of DOIP protocol, and it can setup Ethernet(tx_+, tx_-, rx_+, rx_-) and active line to any pin number of OBD2 except for ground pins and power pin.
FVCI J2534 diagnostic and programming
Product feature:
- Three ARM microcontrollers.
- Three individual physical communication channels for protocols(CAN, single wire CAN, KWP, PWM, VPW, SCI and so on).
- Ethernet converts to OBD2 for DOIP protocol, the pins(tx_+, tx_-, rx_+, rx_-, active line) can set any pin number of OBD2 except for ground pins and power pin.
- Program voltage output between 5v and 20v.
- One Ethernet port.
- One analog input port.
Fcar FVCI Passthru specification:
Hardware function | |
J2534 | ISO15765 |
ISO14230 | |
ISO9141 | |
ISO14230 | |
J1850 | |
SCI | |
Single wire CAN | |
DOIP | Ethernet port convert to OBD2 |
Local area network of FVCI convert to OBD2 | |
Program voltage port | 5v-20v |
Ethernet port | 1. Ethernet port to ODB2 interface for DOIP |
2. Ethernet port to local area network of FVCI | |
Analog input | 15 pins analog input |
Vehicle port | 26 pins port communicate to vehicle |
Update pin | Use for update firmware of FVCI |
DC | 12v power supply |
FVCI J2534 support function
Diagnose function
TOYOTA TechstreamHONDA HDS
Volkswagen ODIS
VOVOL VIDA
GM GDS
BMW ISTA
JARGUR LANDROVER JLR SDD
Reprogramming
Acura, Honda
Audi
BMW
Chrysler, Dodge, Jeep, Eagle, Plymouth
Ford, Lincoln, Mercury
GM
Hyundai
Infiniti
Isuzu
Jaguar
Kia
Land Rover
Lexus
Mazda
Mercedes-Benz
Mini
Mitsubishi
Nissan
Porsche
Subaru
Suzuki
TOYOTA, Scion
Volkswagen
Volvo
FVCI Device interface

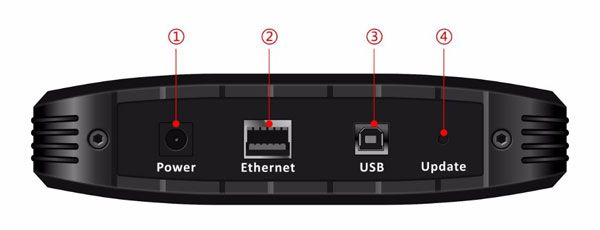

Right panel
1) DC 12V/1A
2) Network port
3) USB port
4) Update pin, use for firmware update
Left panel

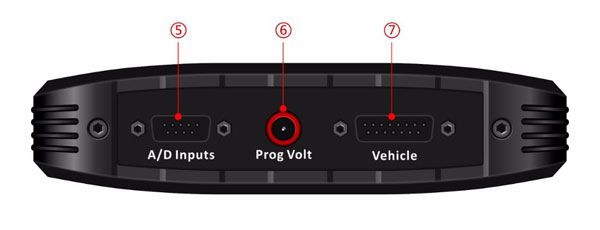

5) Analog input
6) Programming voltage supply, 5V-20V, 120ma
7) Vehicle communication port

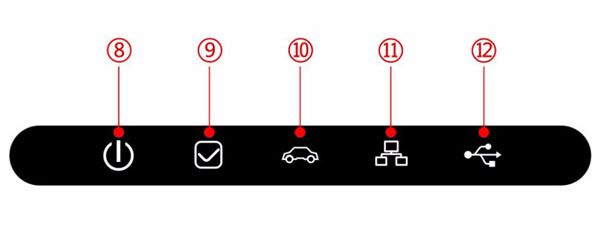

Lamp panel
8) Device power status lamp
9) Software of device running status lamp
10) Vehicle communication status lamp
11) Network connection status lamp
12) USB connection status lamp
How to Update Fcar FVCI J2534 Passthru Software & Firmware?
Official website: www.fcar.com1. Click “FVCI” icon on the desktop. Note: The computer must be connected to internet.
2. Click “Read Version” can read FVCI software and hardware version.
3. Click “Firmware Update” can update the hardware.
4. Click “Software Update” can update the software.

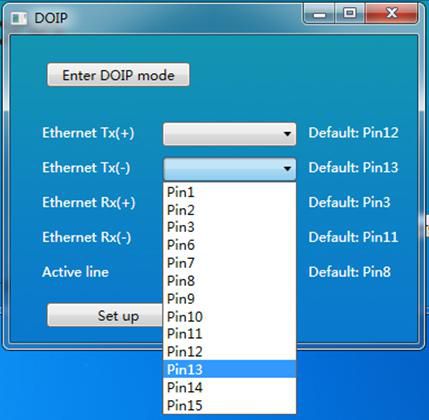

5. Click”DOIP”, then click “Enter DOIP mode”, the FVCI will enter the situation of Ethernet convert to OBD2 of DOIP.
6. Click ”Firmware Refresh” when you operate“firmware update” error.
Update Tips
1) Please enable internet connection before upgrade
2) The firmware version and software version must be the newest version meanwhile. Otherwise the device will appear some error.
3) If you use “Firmware update” failed, you can use “Firmware refresh”.
