433Mhz Wireless Wall Switch RF Smart Switch Receiver Module wall panel transmitter Safety Remote Control AC 110V 220V for Lamp
Product Application Area:
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on
Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission
Remote control humidifiers, microwaves, coffee machines
Remote control Taking Care for the elderly, children
Features:

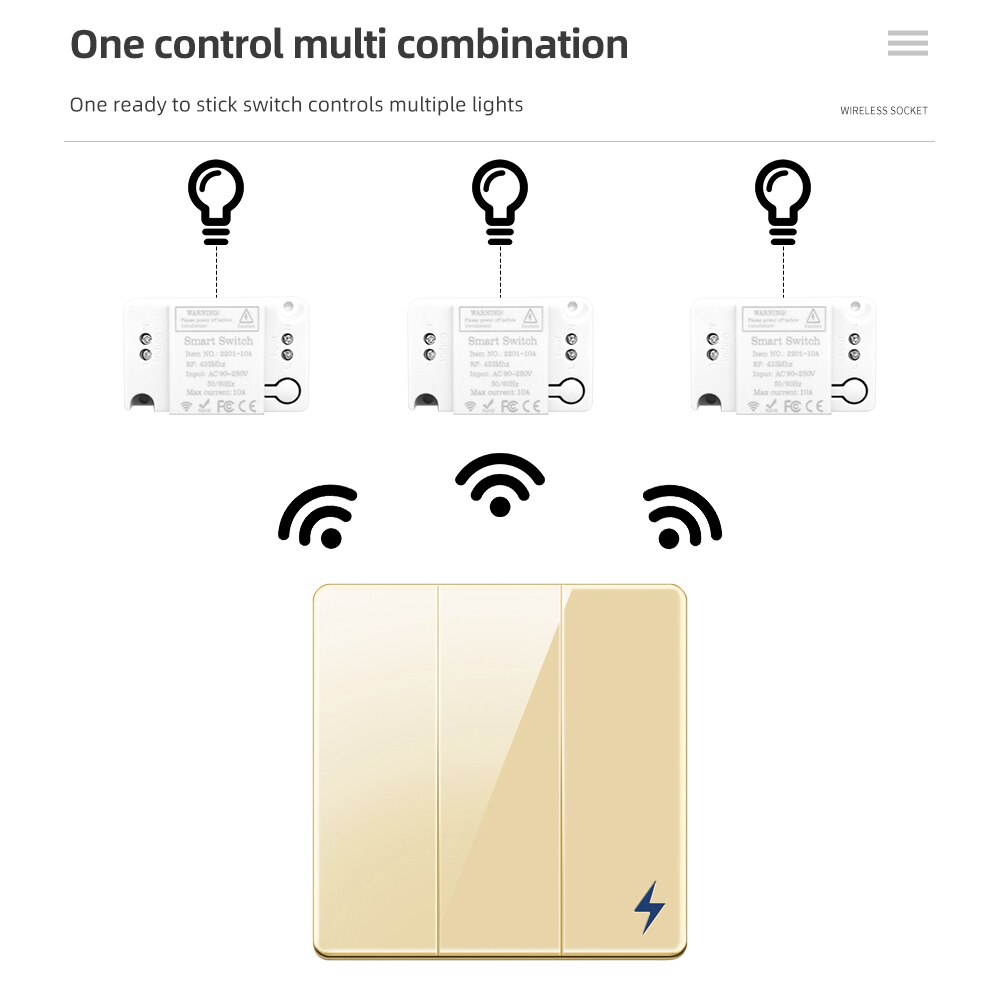

1:Multi switches Control One/Multi Lights Receiver in the meanwhile
2:Avoid Darkness and Save Energy(1.Set the remote control at different locations to quickly turn on or off the lights.
2.Turn the lights on in advance to avoid darkness,Turn off the lights after leaving, save energy.)
3:More convenient remote control (When you wake up at anytime, the wall panel switch is more convenient.and it will not distrube babies and other family members.)
4:Multiple control methods
Technical Data Of Wall Panel Remote Control :
Switch type:1P, 2P, 3P
Working Voltage: CR2032 Battery (Not included);
Working Frequency: 433mhz;
Material:ABS+PC
Code specification: 1527;
Distance: Indoor(20 Meters), Outdoor(≥50 Meters / Open Space);
Working Current : 20-25ma;

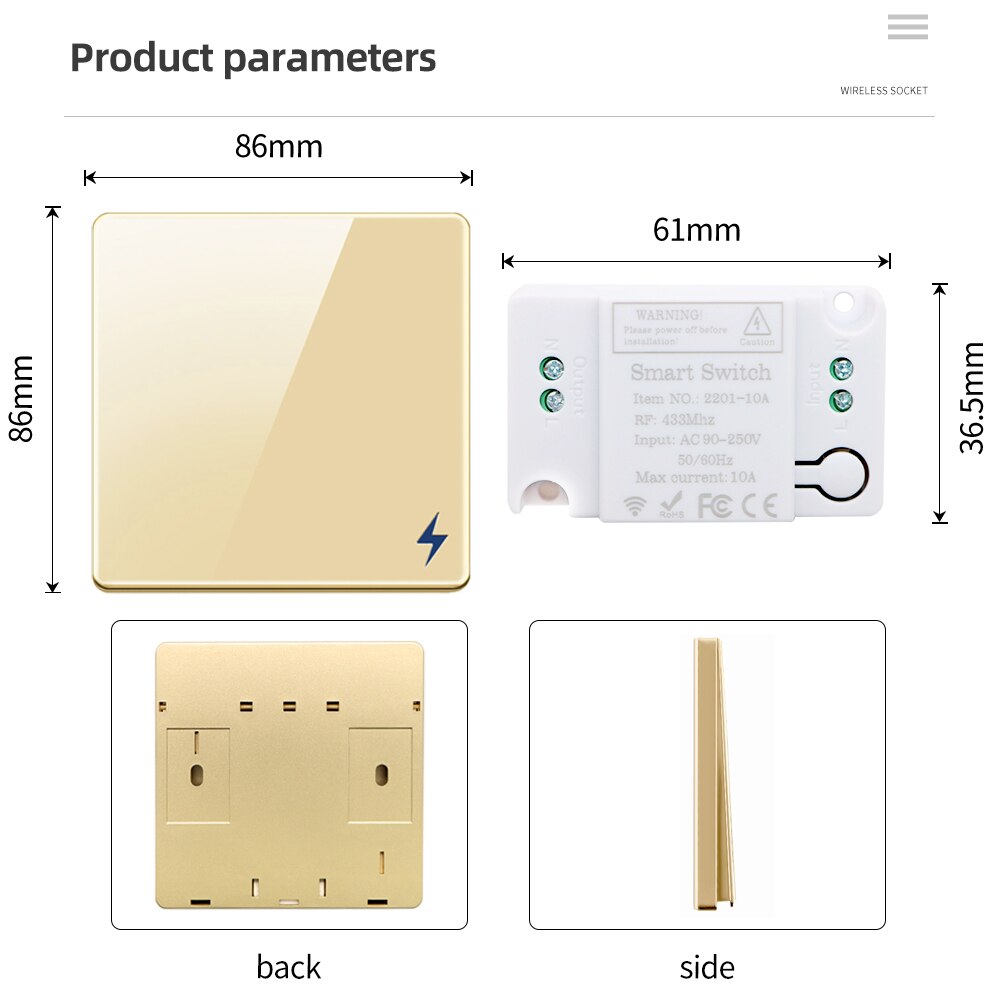

Size: 86*86*13mm (L,W,H);
Weight:50g;

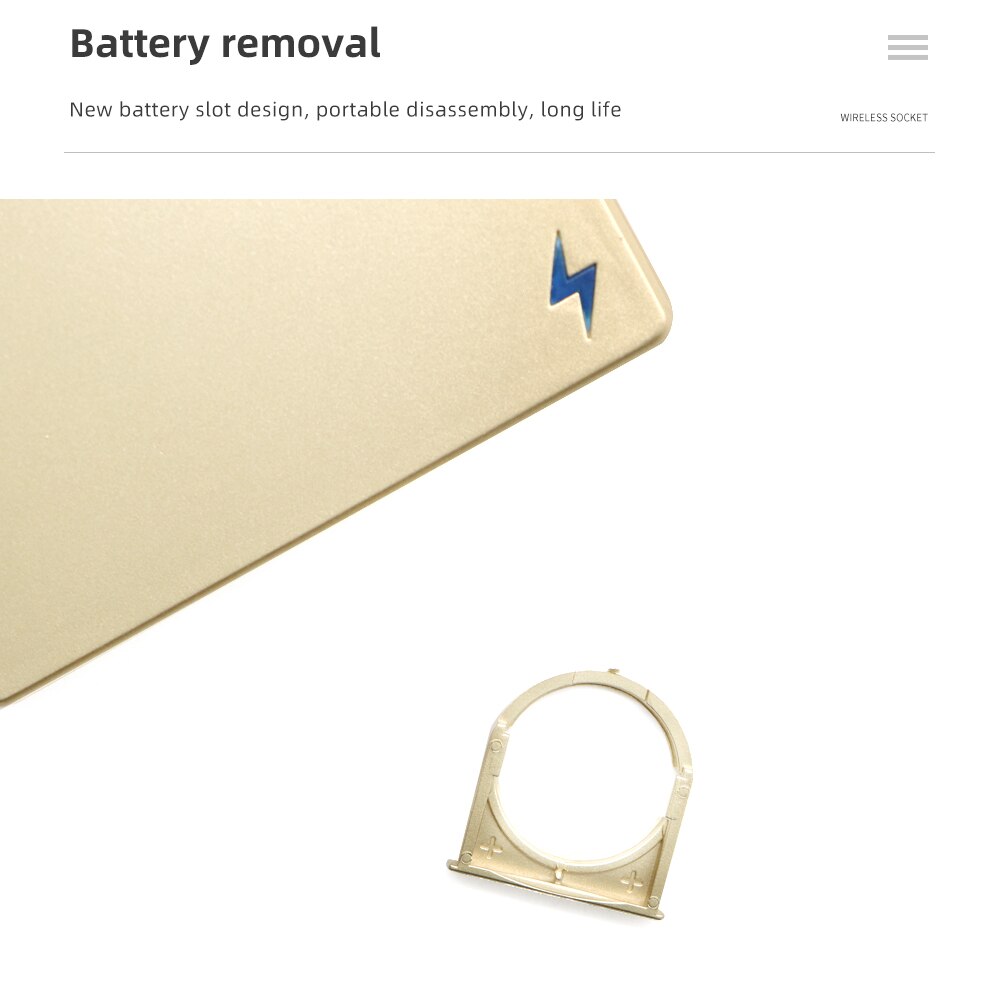

Unique Design: Battery Bay, easy to install;
Technical Data Of Receiver Module:
Input Power:AC90V-250V 50/60Hz
Maximum load: 10A
Static current: 3.6 mA ~ 5.5mA
The total load power: <1000w
RF Frequency:433MHz
RF working mode:superheterodyne
Receive sensitivity: <108dbm
Transmitting distance:>50m ( open space)
Decoding mode:MCU software decoding
Remote storage:20pcs
Support remote type: EV1527 Learning code, 2262 Fixed code(Rolling code can be design)
Working mode: Momentary, Toggle, Latching, Automatic energize when power on

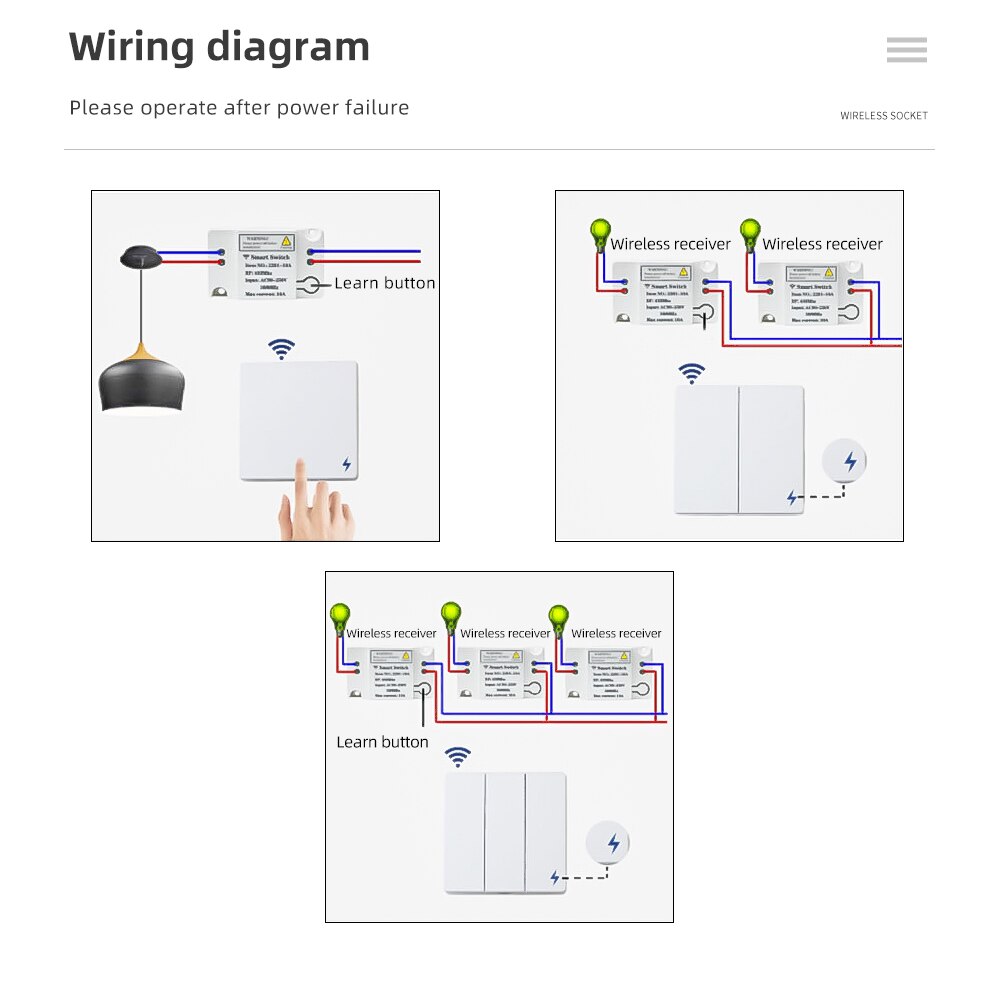

Wiring type:fixed terminal
Output Te Wiring type rminal:N L
Dimension : 61*36.5*22mm (L,W,H)
Color: white
