vp298 programmer
VP-298 is a reliable, high speed, high performance and low cost of high-level general-purpose programmer. Integrated menu-driven interface, support for seven languages.
2013 Newest Wellon Programmer VP-298 VP298 is a one of our vp298 programmer Tools, you can buy 2013 Newest Wellon Programmer VP-298 VP298 from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150
images of 2013 Newest Wellon Programmer VP-298 VP298

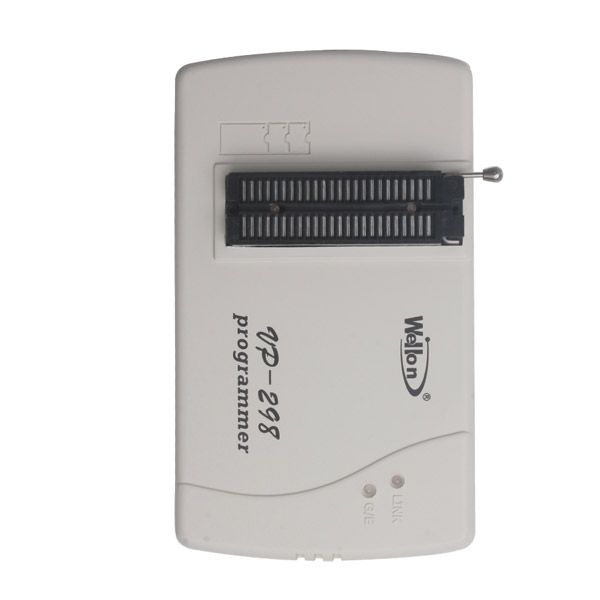

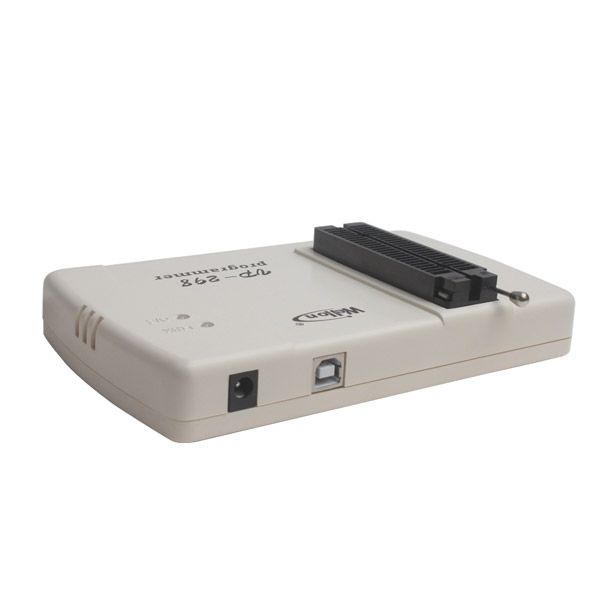

Wellon Programmer VP-298 VP298
Support for dozens of manufacturers of PLD, E (E) PROM, FLASH, MCU, etc. thousand kinds of programmable devices. Can test TTL & CMOS standard logic devices and memory. This programmer for electronic product development, mass burning chips, mobile phones, computers, car maintenance.
System requirements: WindowsXP/Vista/ Windows 7 (32bit and 64bit)
Supported Language: Chinese(Simplified)/ Chinese(Traditional)/ English/ Korean/ Poland/ Italian/ Portuguese/ Dutch..
•Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/0.6A
•Standby current: <200 mA; Operating Current :250-350mA
48 Pin ZIF socket pin-drivers.
•Interface with LAPTOP, PC or compatibles through USB port
•Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
•Manages 16 and 32-bit word split (Set Programming)
•Features Test Vector capability and multiarray fuse map editor
•Test TTL/CMOS logic ICs Access Memory devices
•Optimum programming for each individual device
•Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
•Device insertion and poor-pin-contact check
•Support 1.5v Low voltage devices
•Not need exterior adapter for mostly devices.
•Auto-run mode starts programming automatically upon detection of chip insertion

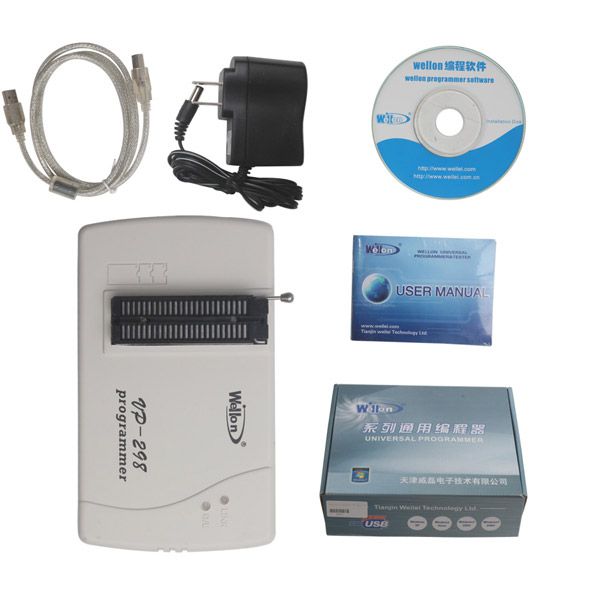

Package list:
1 VP-298 programer

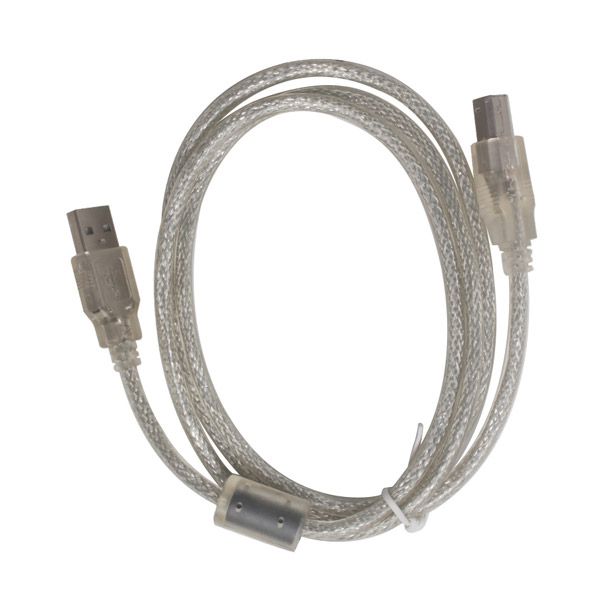

1 usb cable

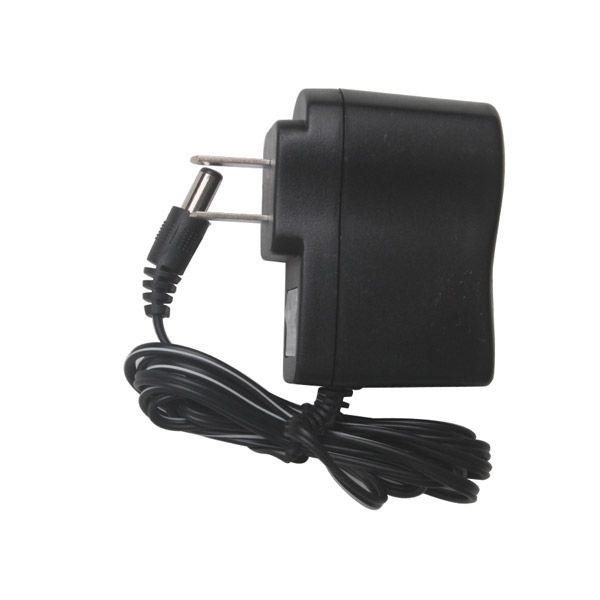

1 power adapt
1 user manual
1 cd disk
Go to Buy: 2013 Newest Wellon Programmer VP-298 VP298
