toyota key maker
Smart Key maker supportsToyota and Lexus smart key system,supports K line and CAN-BUS protocols.It is a safe and fast key programmer for toyota and lexus 4D chip. It can only work for 4D chip and smart key.
High Quality Smart Key Maker OBD for 4D Chip for Toyota and Lexus is a one of our toyota key maker Tools, you can buy High Quality Smart Key Maker OBD for 4D Chip for Toyota and Lexus from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

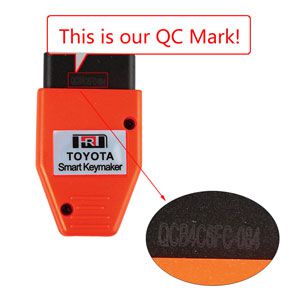

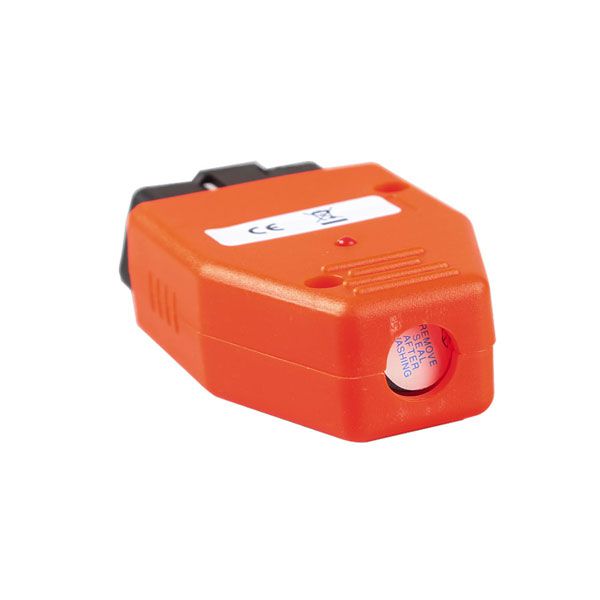

images of High Quality Smart Key Maker OBD for 4D Chip for Toyota and Lexus
Smart Keymaker OBD for 4D chip (Support Toyota L-exus Smart Key)
Top 6 Reasons to Get Smart Keymaker:
1. Safe and efficient: Only need 20 seconds to add one key
2. It is safe for the security alarm system
3. Support all kinds of Toyota and Lexus smart key system: support K line and CAN-BUS protocols
4. It is the most safe and fast Key Programmer device for Toyota and Lexus series till now.
5. It supports all key lost
6. Please read the operation instructions and important notice before making a key
Toyota Smart Keymaker User Manual Download
Function:
1. Use the main key to add the other keys:
Connect the programmer to the OBD port of the car, there are some short beep sounds after power on, it enters auto search car status.
Press the start button twice to wake up the anti-theft module. When the connection with the module is done successfully after 7 seconds, there is a long beep 4-5 sounds (4 sounds means the system is IV K system, 5 sounds means V CANBUS system). Wait 30 seconds, there are a long beep sounds, it means the car enter into add key state.
2. Add smart key:
Put the original car key (with the logo side) access to the start button, you should hear two beep sounds. SEC light will flash twice; within 5 seconds, put the key close to the start button, you should hear 2 beep sound, SEC light will flash twice; after learn all the smart key, wait 30 seconds till SEC light begin flash, and the car will close adaptation mode automatically.
3. All the key was lost or only have vice key, need to do initialization:
Press constantly the LED button, and plug into the OBD port of the car, after two short beep sounds, finish press, it enters into auto search car status.
Press the start button twice, in order to wake the anti-theft computer. When the connection with the Computer of car is done successfully after 7 seconds, there is a long beep 4-5 sound (4 sounds mean the system is IV K system, 5 sounds mean V CANBUS system), 5 seconds later, LED light go out. Wait 10-16 minutes,there are a long beep sounds, and LED light flicker, it means the car enter into study key state.
All keys lost matching mode: Add every smart key which need to program(with the logo side)access to the start button, meanwhile you will here two beep sound. SEC light will shine twice; After you finisher studying all the smart keys, wait 30 seconds till SEC light shining, the system will Auto-close study state
Toyota 4D OBD Key Programmer support models:
Toyota All models from 2003 to 2012, 4D key type only
Lexus all models from 2001 to 2009, 4D key type only.
Using Tips:
1. Must use the right new smart keymaker, and follow the right step above, otherwise you take the consequences.
2. If the device can not match the key, and LED light shining constantly, pls clear the error code by using anti-theft system such as T300.
3. After finishing program keys, the key can strat but the SEC light is still turn on, maybe you use the vice key, only main key can manually shut the study mode.
4. Don't try to open the cover of programmer and dash board, otherwise you will not responsible for the repair also not accept return.
5. This machine is only provided for the legal auto repair. Otherwise you will take the above consequences.
Package list:
1 x Toyota smart Keymaker
