panel solar

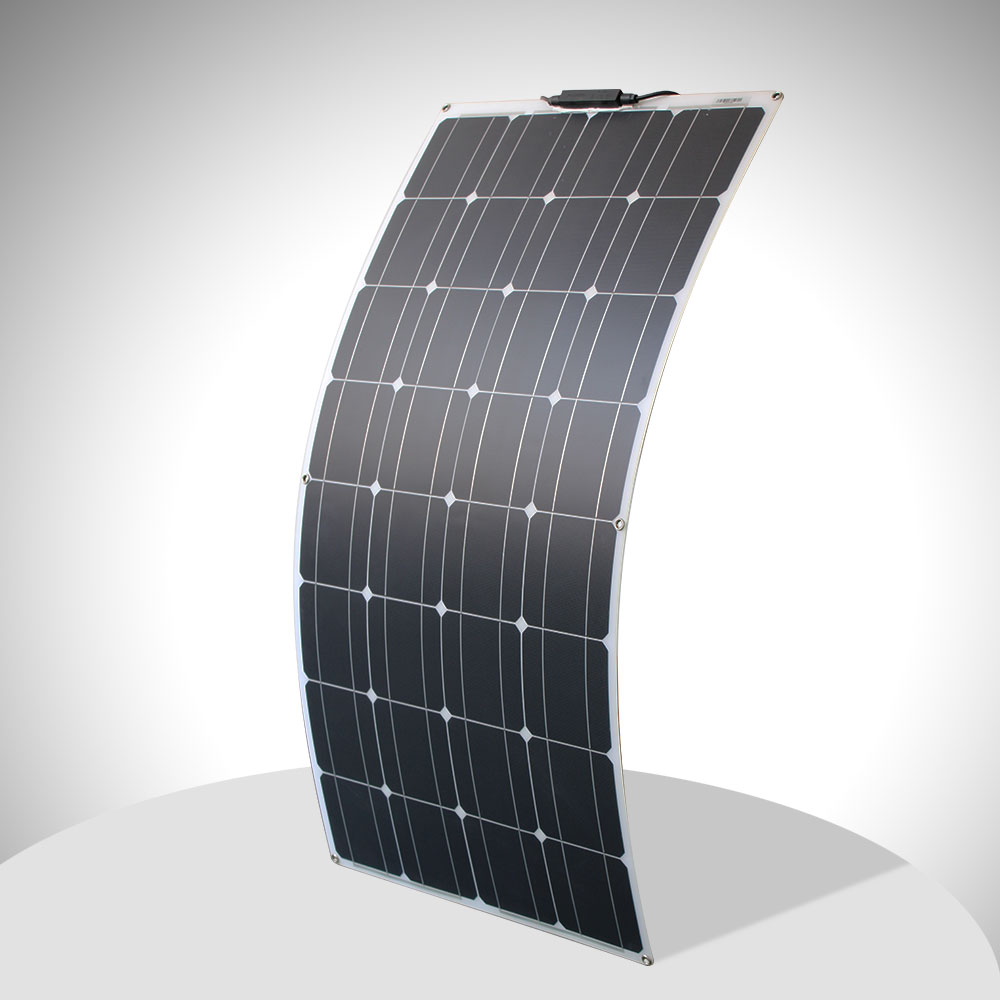

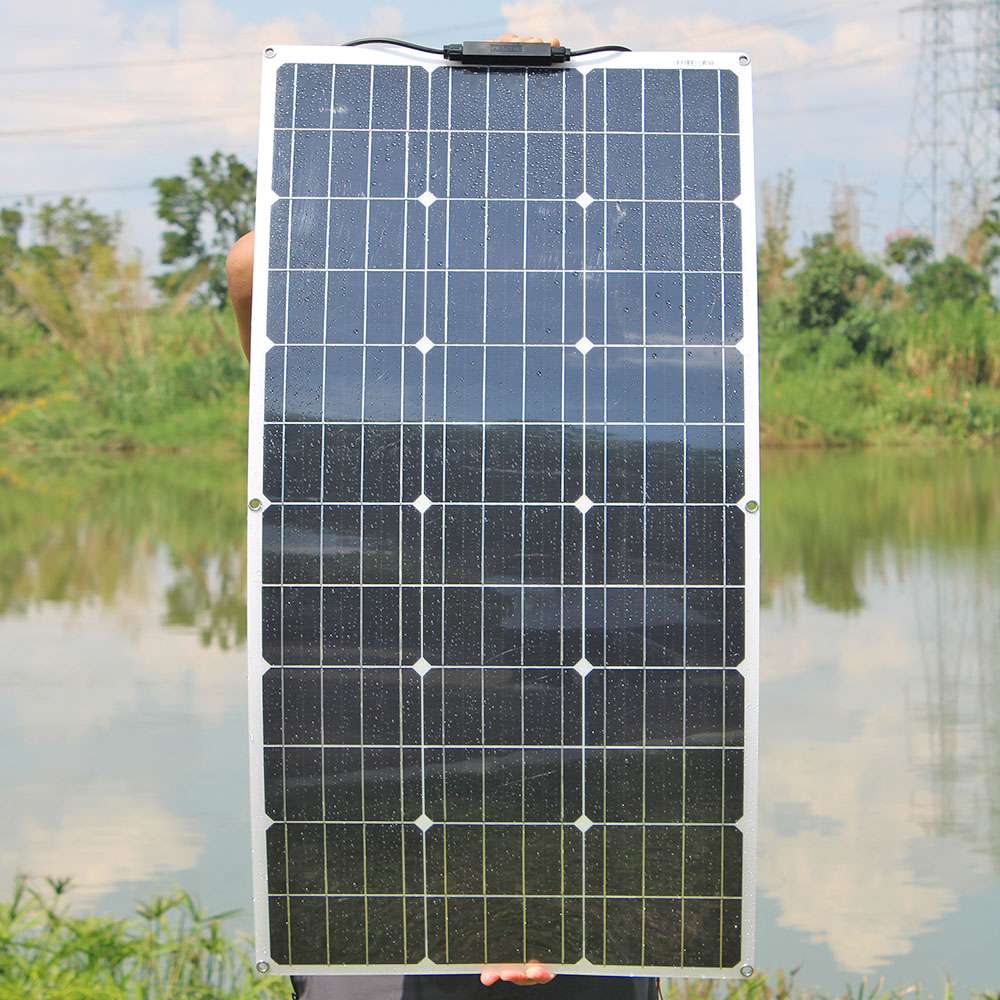

12V 100W Lightweight, high efficiency flexible solar panel is thin and durable, just about 4 pounds, it’s just fourth of its standard counterpart’s weight. The mono crystalline solar cells flexible solar panel is perfect for marine or Caravan, on tent top. The 16V 100W solar panel can charger the 12V car battery, power bank, portable solar power stations. The solar panel can be connected in parallel or series to achieve the high voltage input or current input for the fast charging function. With 6 eyelet and waterproof PV connector, it’s easy to install and just plug and play! It is environmentally friendly power which reduces carbon emissions to slow global warming and climate change. Do your own solar power system, buy our flexible solar panel at now!

Products Parameter at Standard Test Conditions

Max Power 100W

Max Power voltage 16V

Max Power Current 6.25A

Open Circuit Voltage 19.2V

Short Circuit Current 6.68A

Number of cells in Series 32

Cell size 125X125mm

Max Power tolerance ±3%

Temperature coefficient of Pmax -0.38%/℃

Temperature coefficient of Voc -60.5mV/℃

Temperature coefficient of Isc 2.2mA/℃

NOTC 47℃+/-2℃

Operating Temperature -20℃ - +65℃

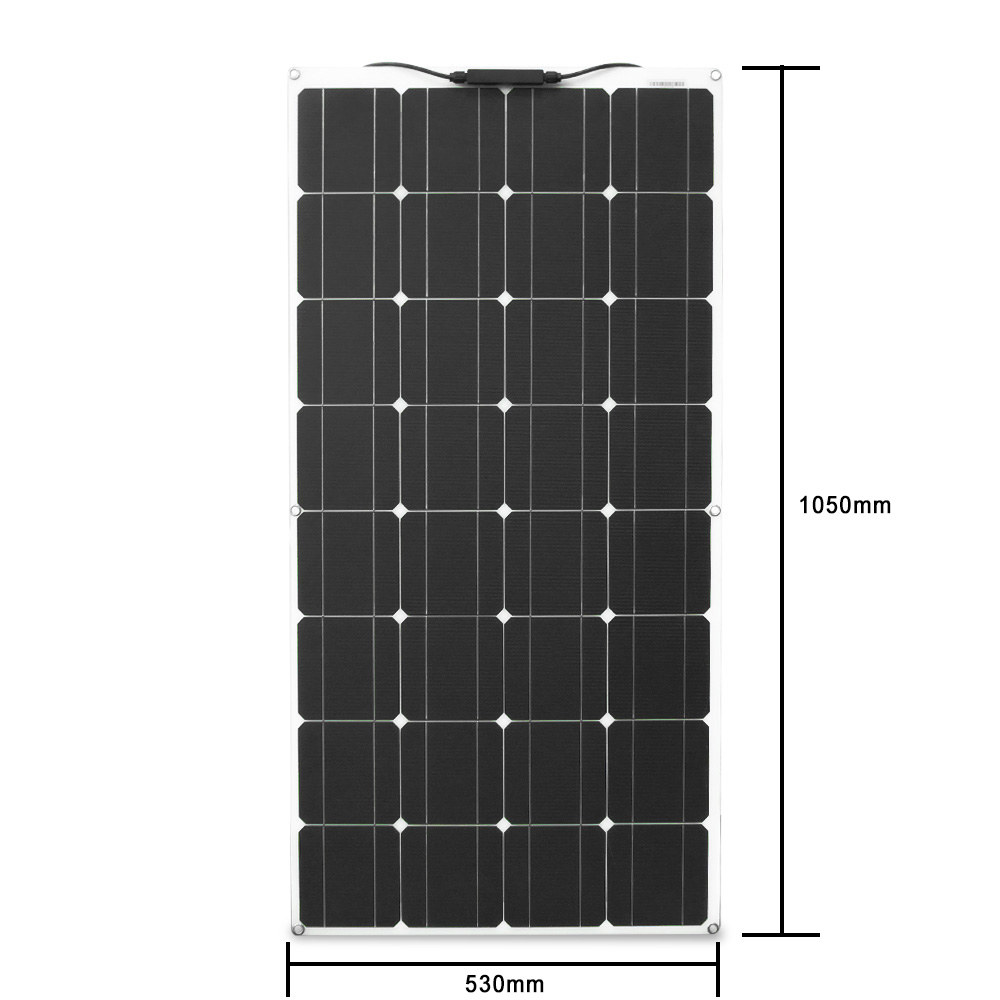

Dimension 1050X530X2.5mm

Weight 1.9kg

Cable 0.9 meter 2X2.5mm

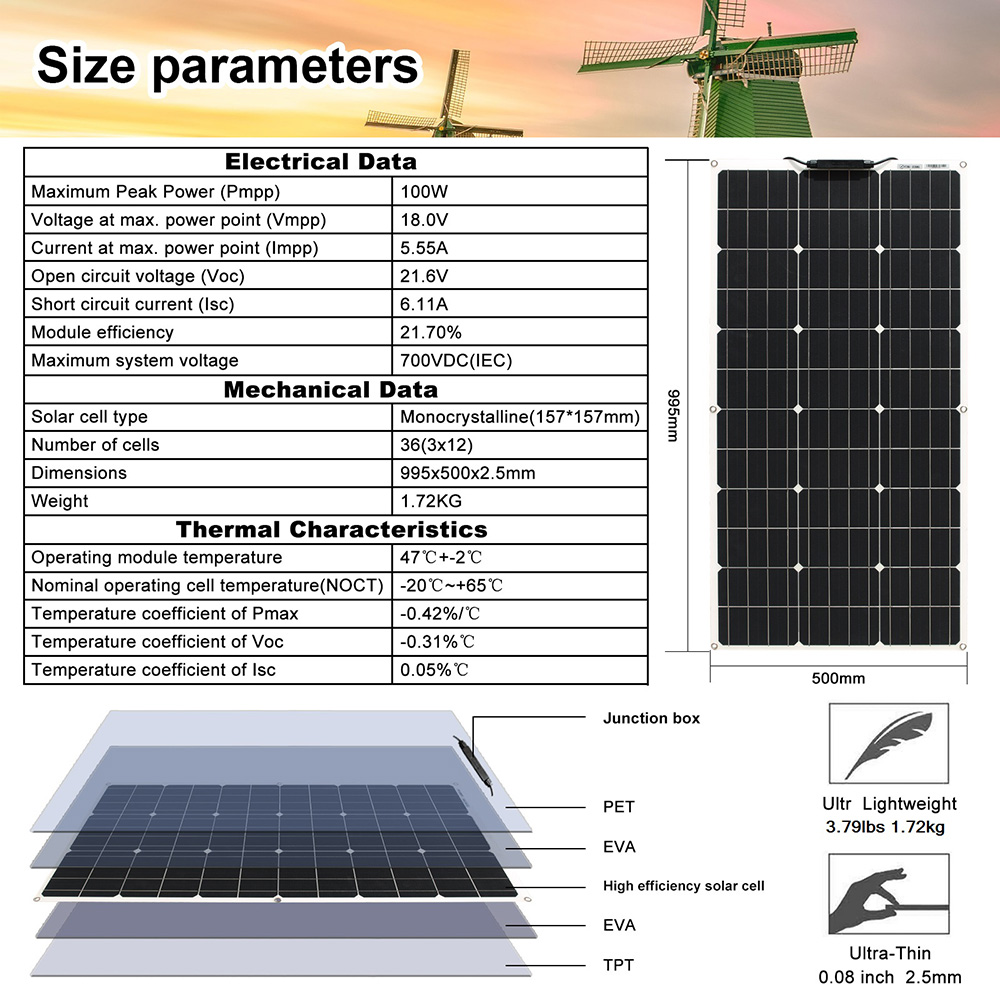

Our newly developed 100w 18v solar panel is smaller in size, higher in power and thinner than 100w 16v solar panel.

Features:

High Efficiency

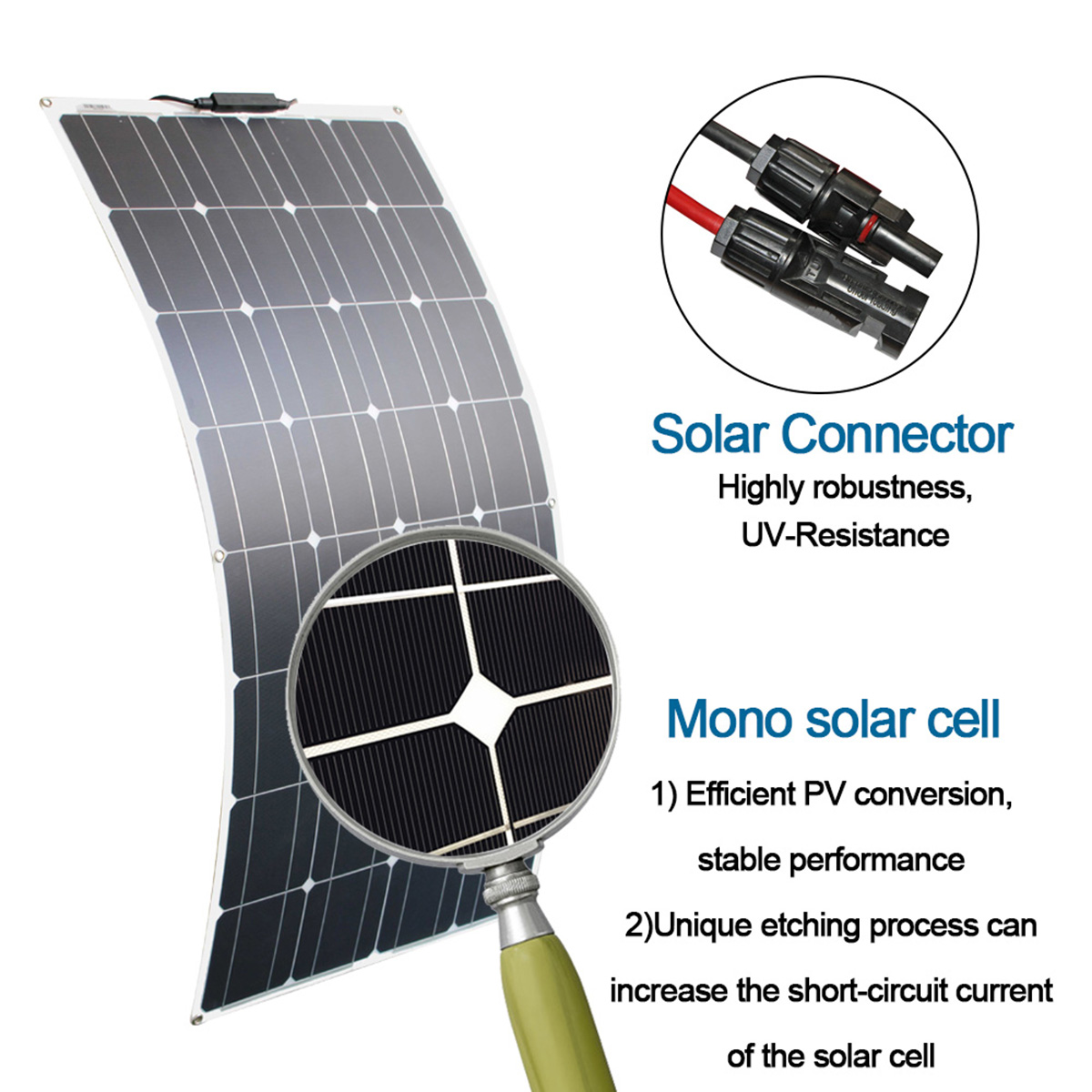

With the Highest conversion efficiency Mono crystalline solar cell, the solar panel has an excellent performance and maximum power output even in the low light conditions, it’s the latest technology in the Photovoltaic industry.

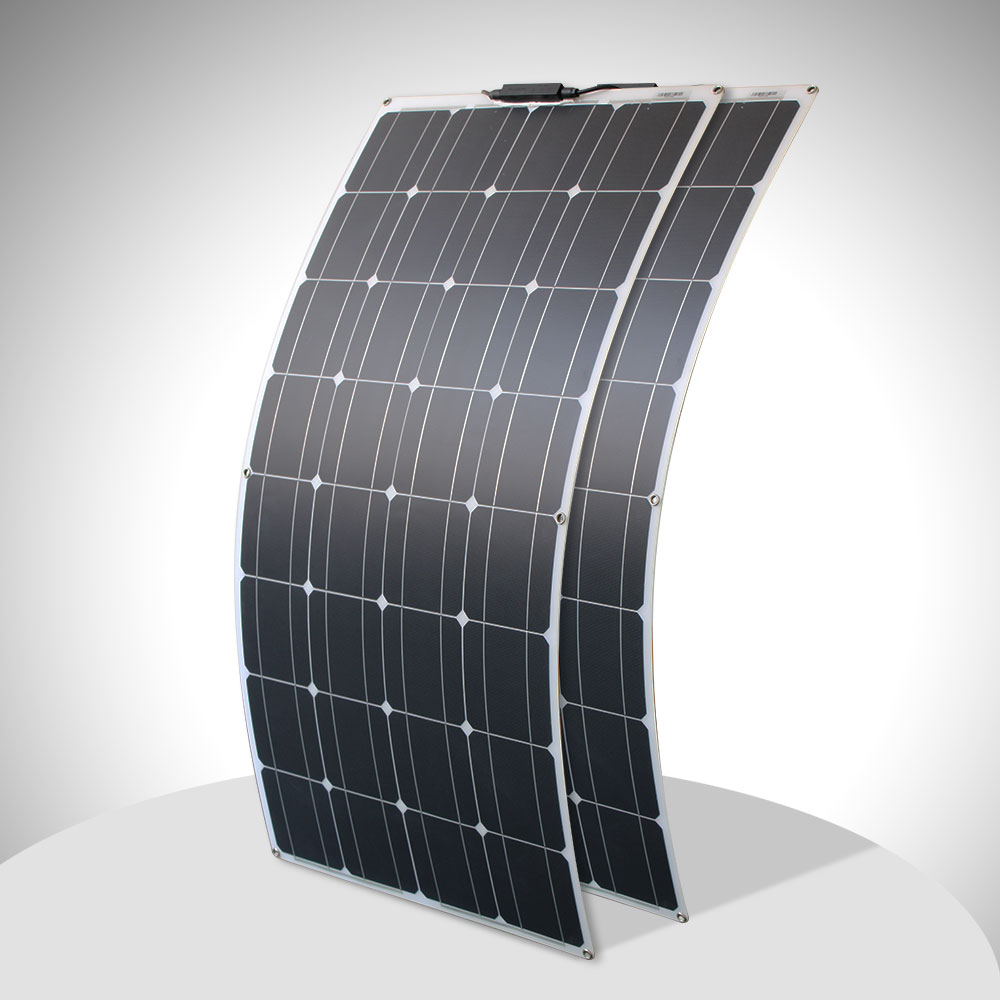

Super light and flexibility

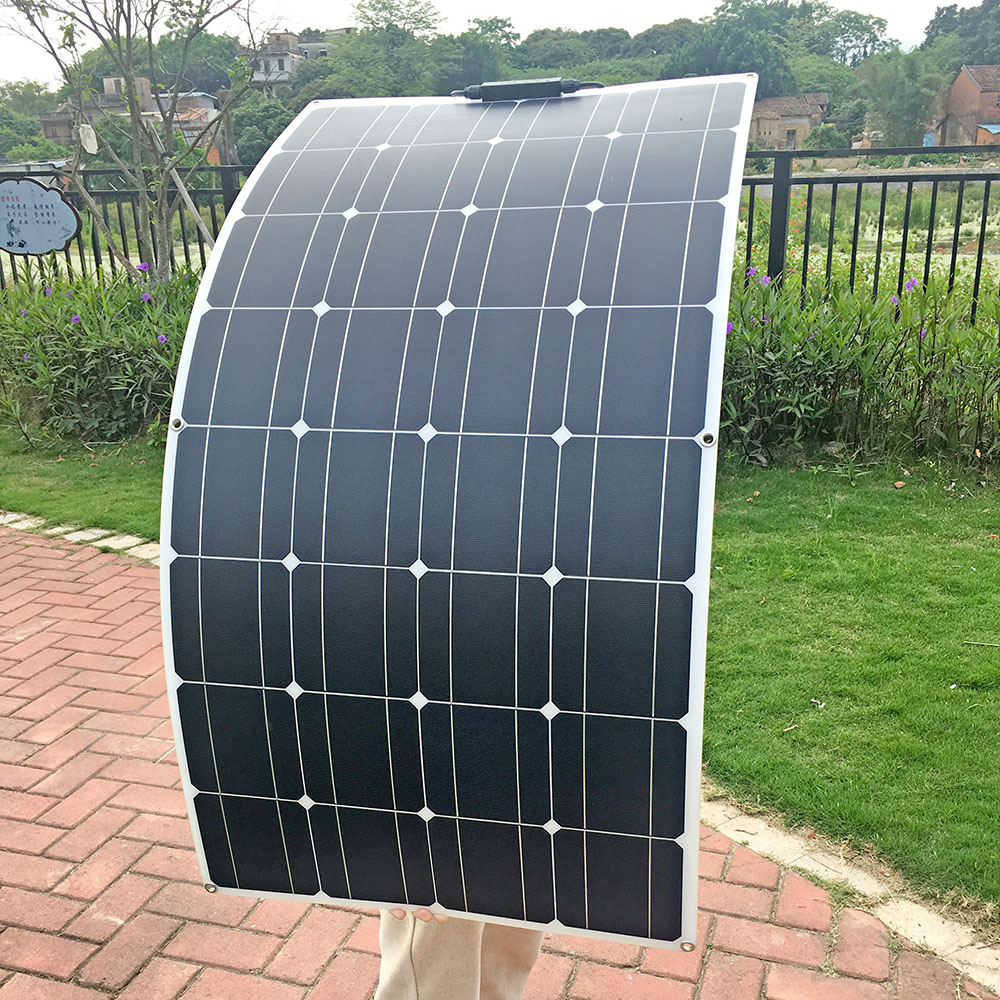

Thanks to advanced polymer materials, the 12V flexible solar panel weights 75% less than conventional glass solar panel. With 30% bending degree, the products can be installed on some curved surface.

Durable and Reliable

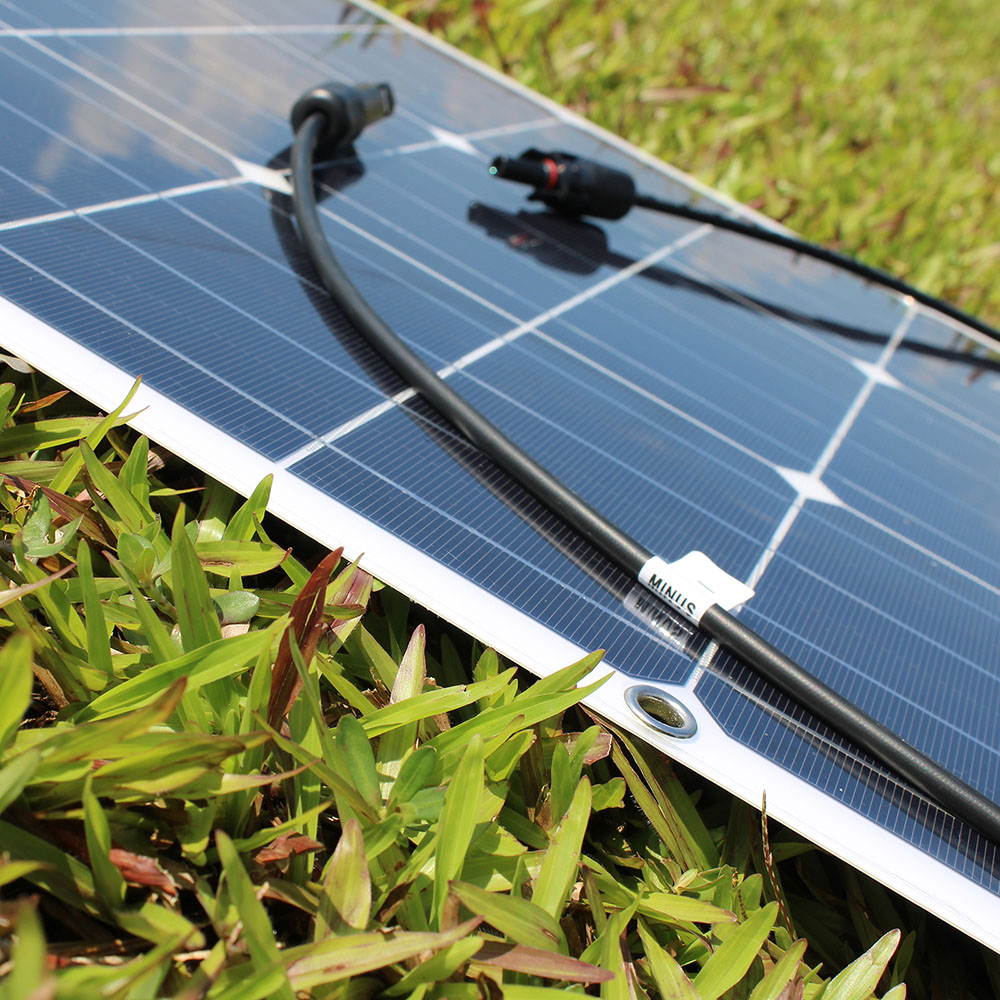

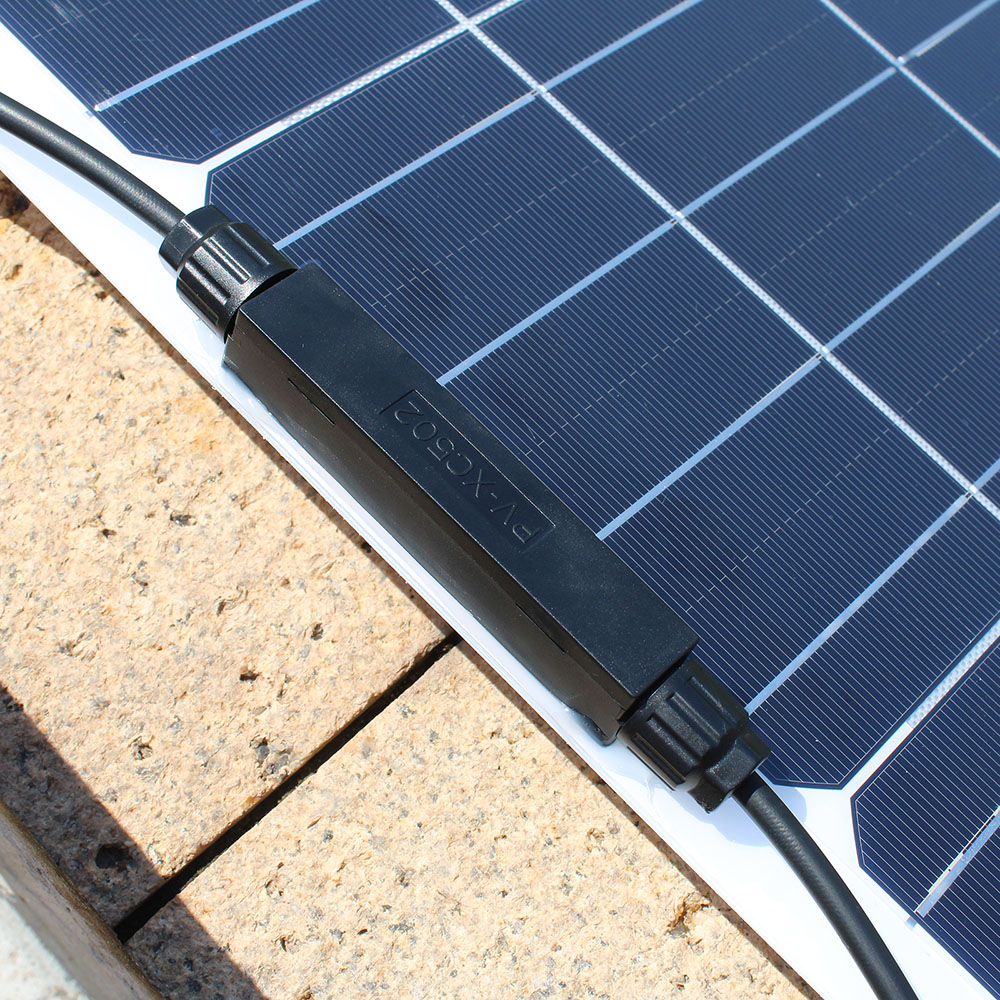

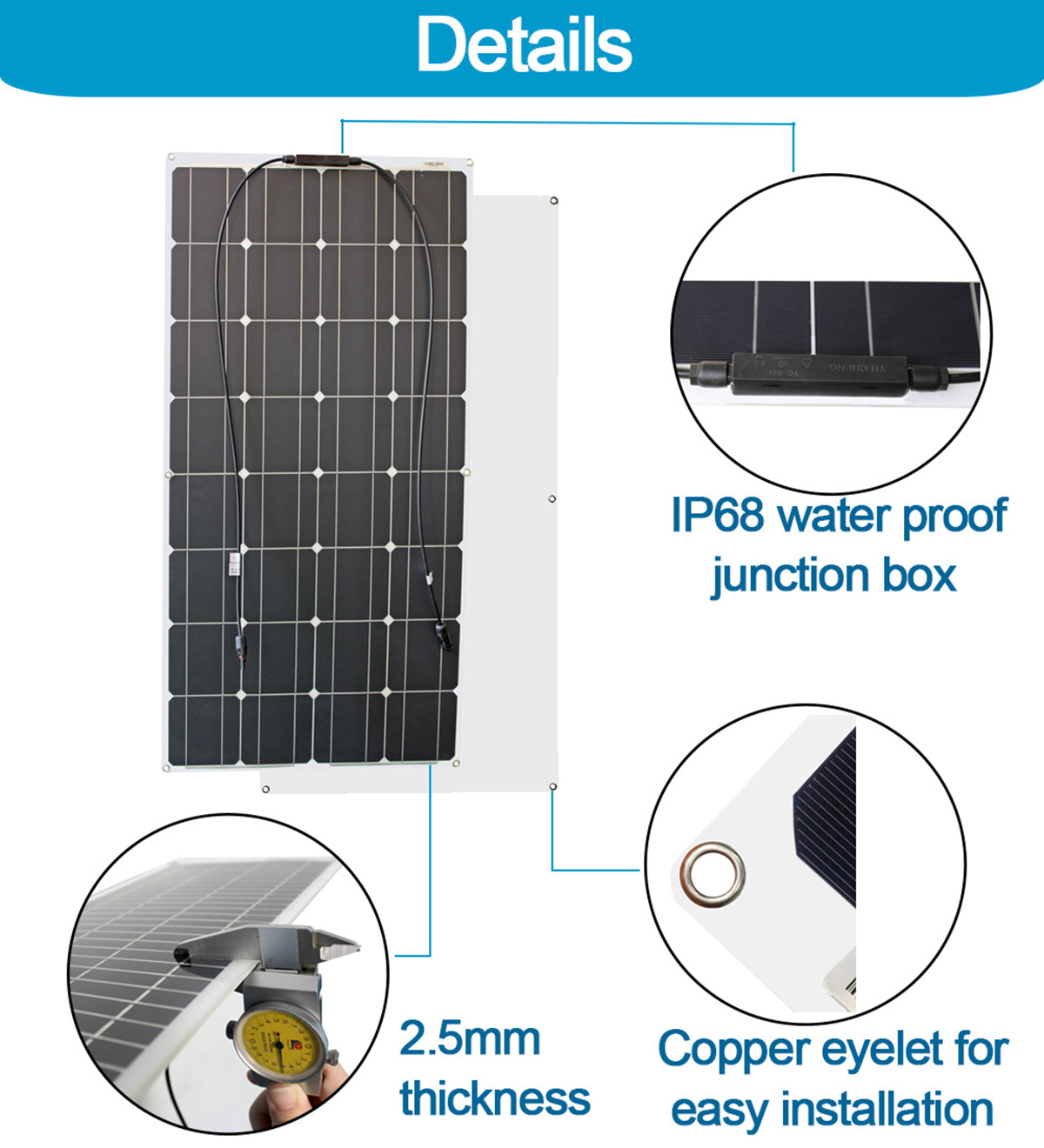

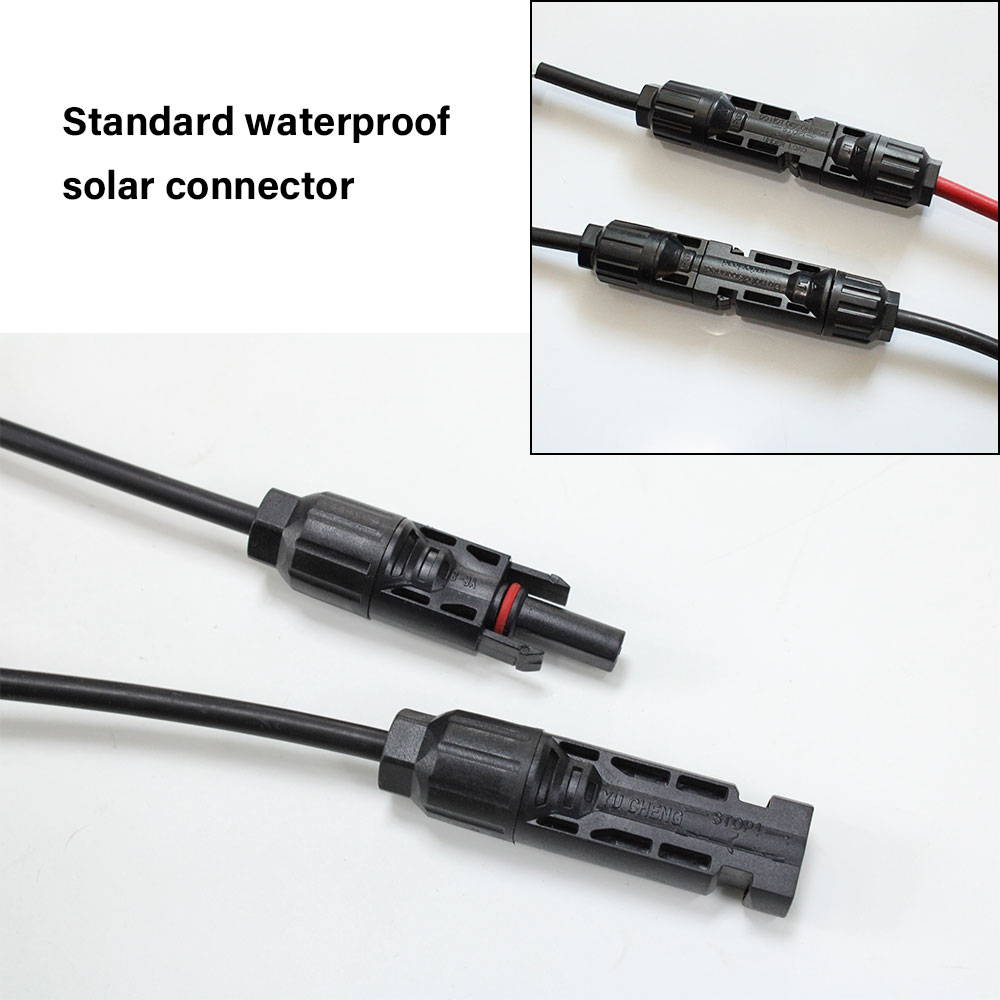

With PET, EVA, TPT, multi-bus bar PERC solar cells, after the high temperature lamination process, the solar panel is more durable and reliable; it’s waterproof with glue sealed junction box and IP67 PV connector.

Easy installation and Widely applications

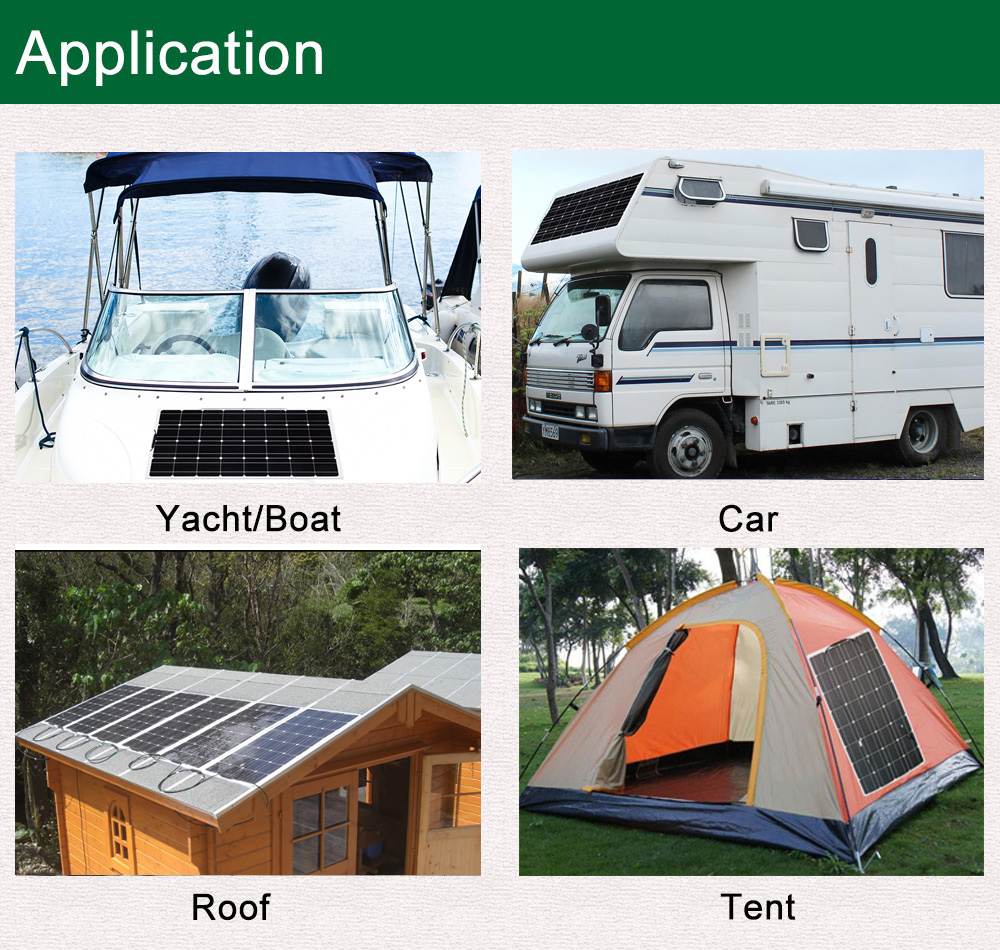

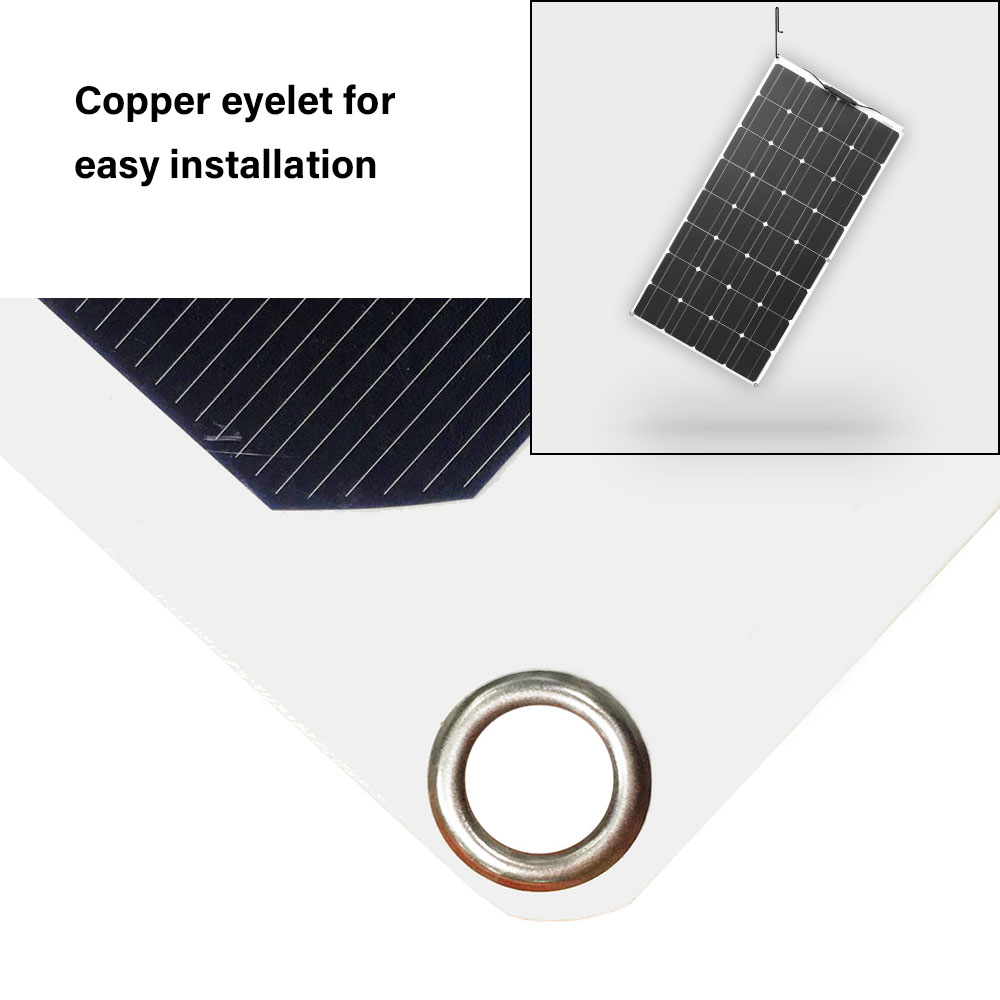

Six evenly spaced metal grommet is for the fast mounting and securing; The solar panel can be installed on uneven surface, so it’s widely used to charger the AGM/GEL/Lithium battery, for RV, boat, cabin, tent, yachts, trailer, golf-car.

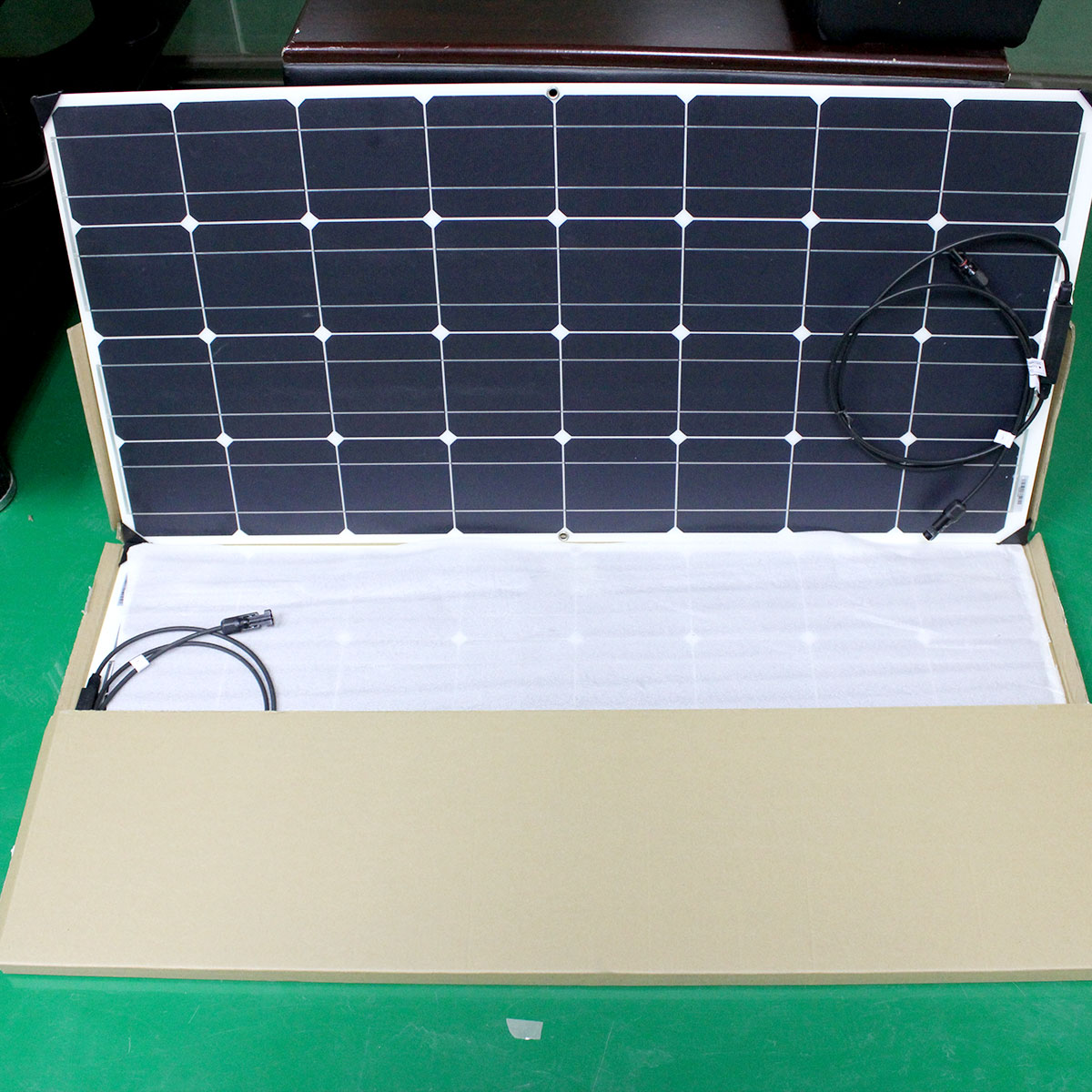

Packing list:

100w solar panel kit:

1* 100w Flexible Solar Panel

10A PWM Charge Controller with LCD Screen & Dual USB ports

2*3M Cables with solar panel connector

2*3M cable with alligator clip

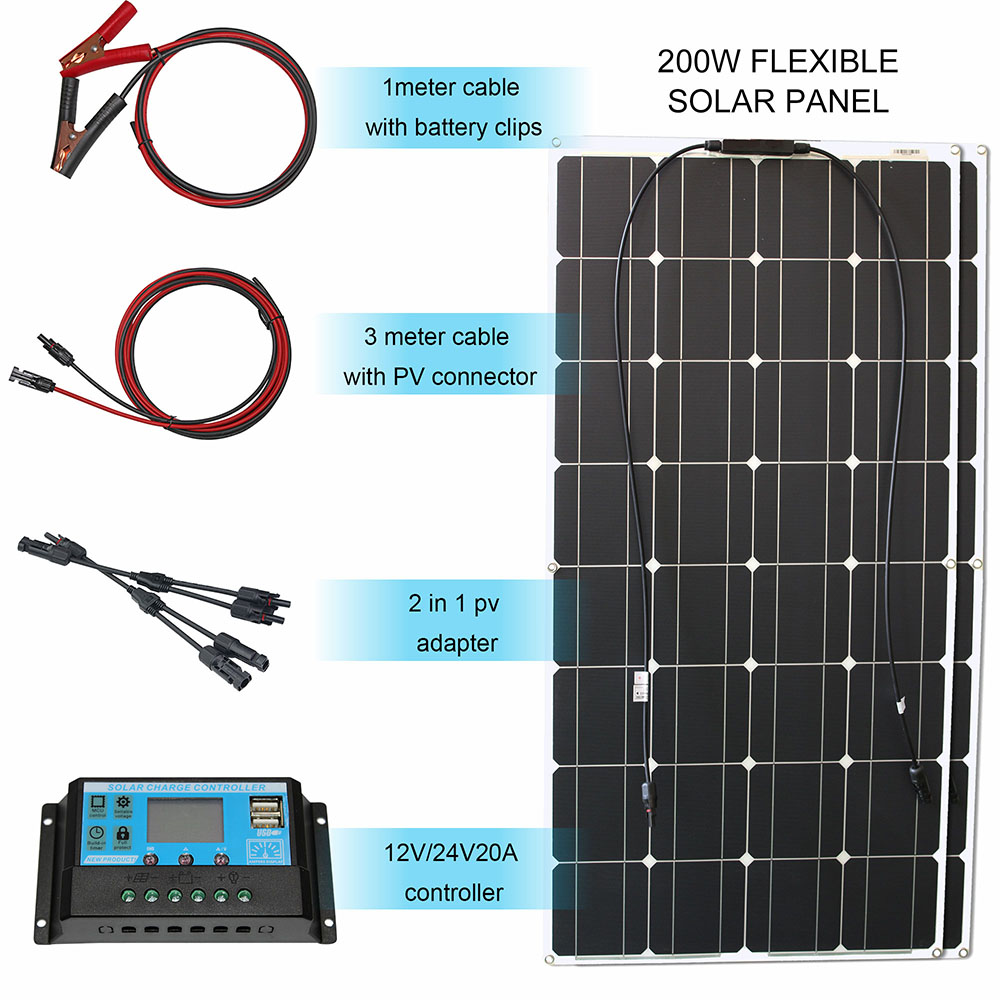

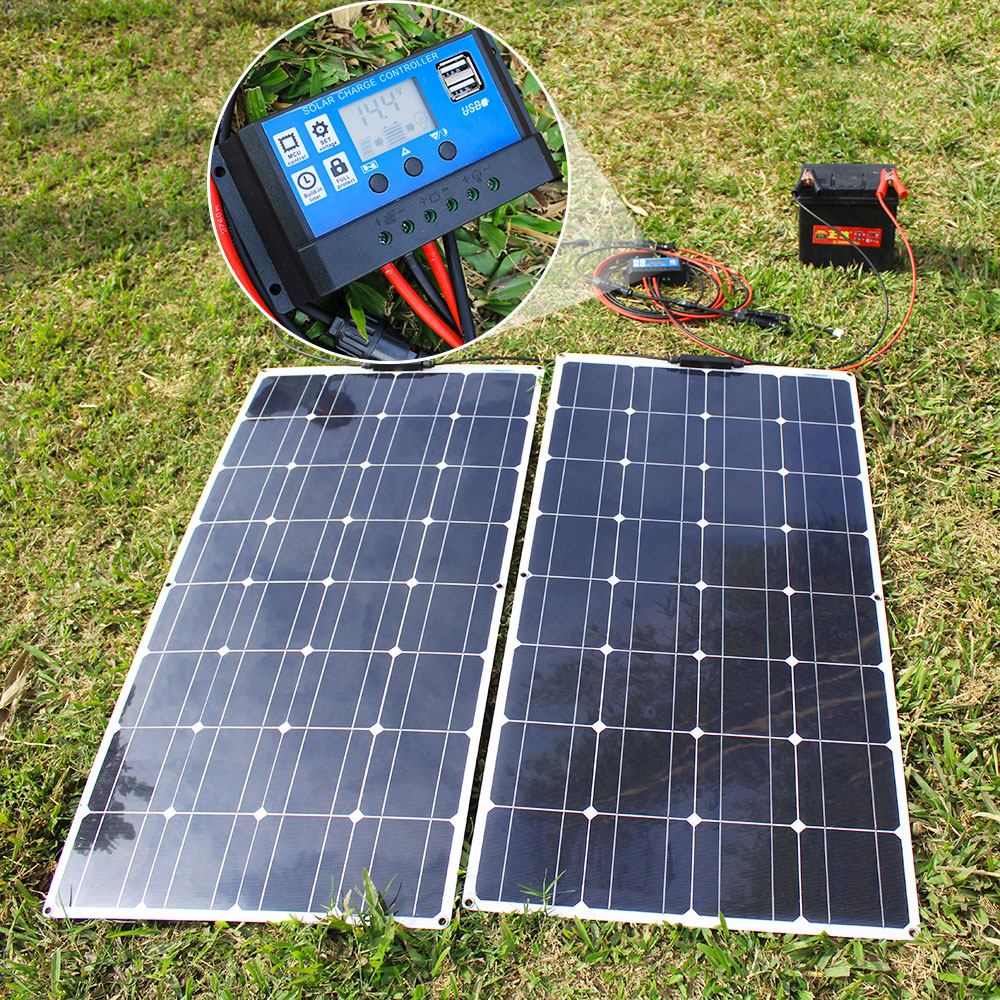

200w solar panel kit:

2* 100w Flexible Solar Panel

20A PWM Solar panel controller with LCD Screen & Dual USB ports

2*3M Cables with solar panel connector

2*3M cable with alligator clip

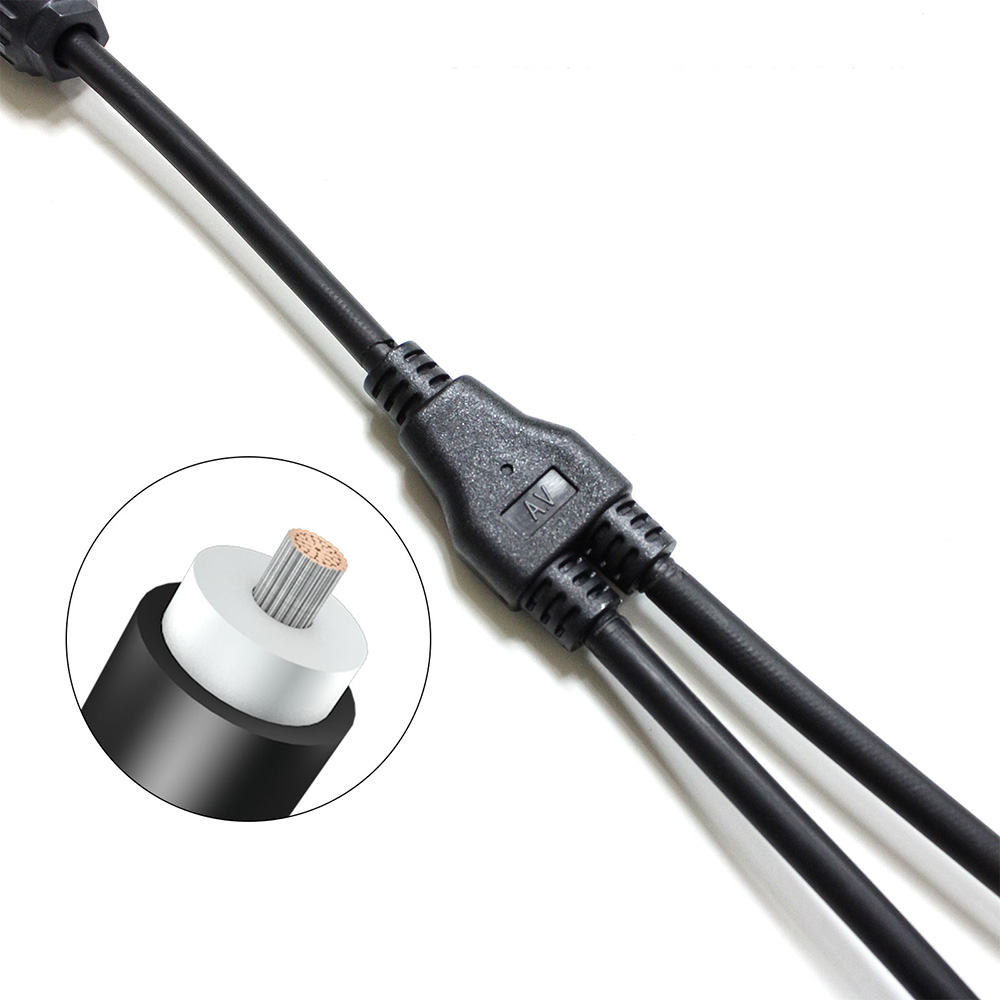

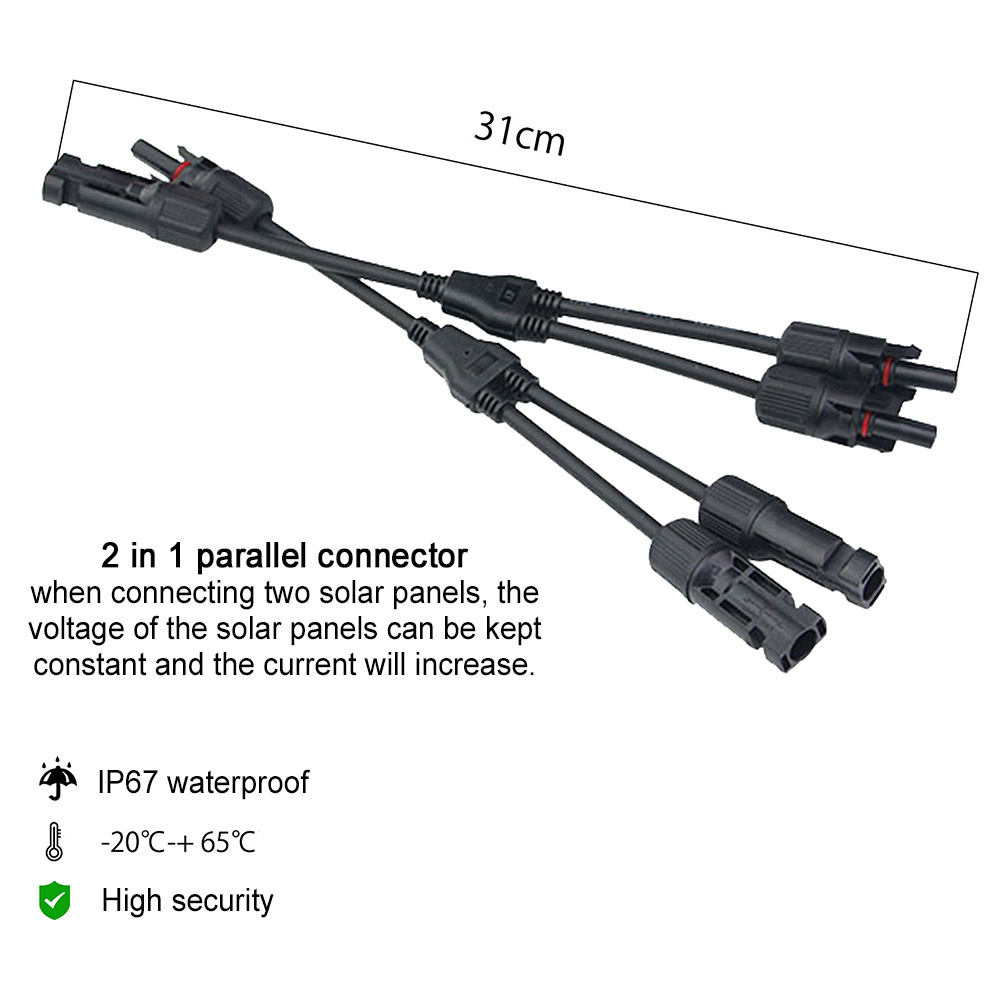

1 set 2 in 1 adapter

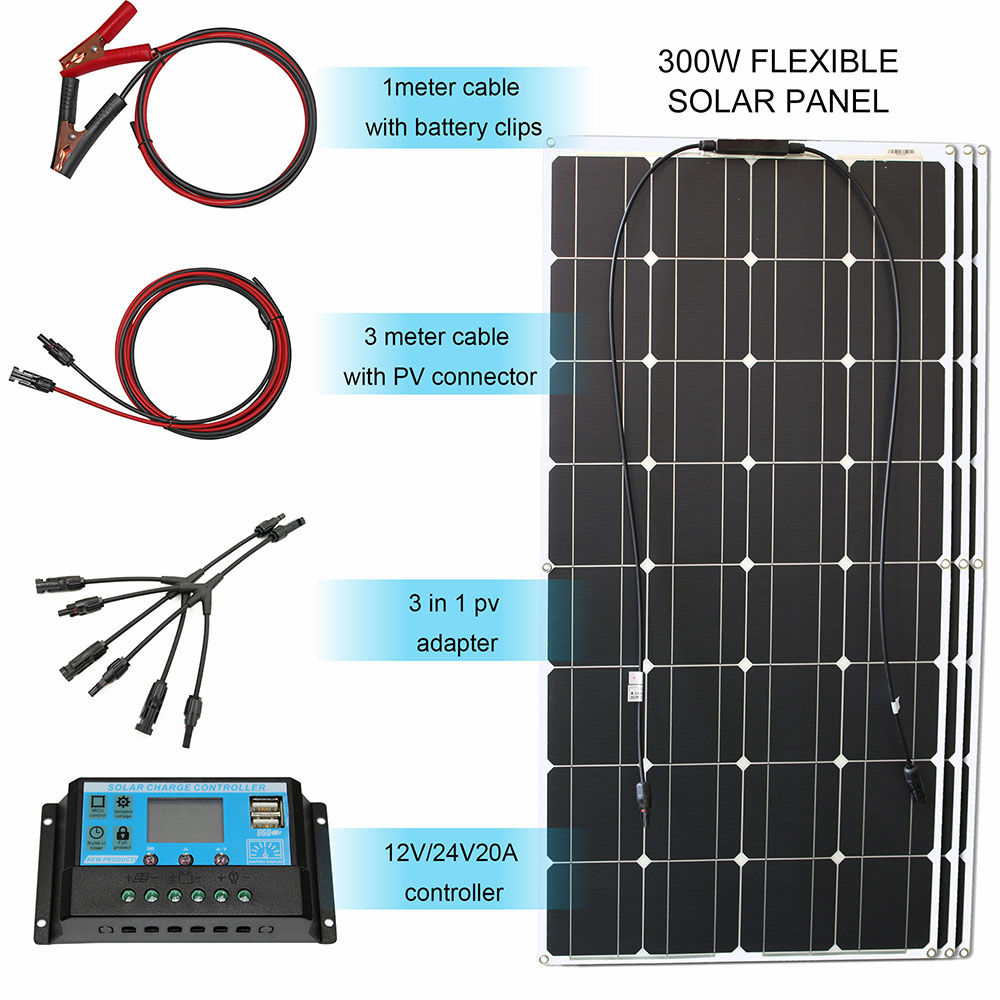

300w solar panel kit:

3* 100w Flexible Solar Panel

30A PWM Solar panel controller with LCD Screen & Dual USB ports

2*3M Cables with solar panel connector

2*3M cable with alligator clip

1 set 3 in 1 adapter

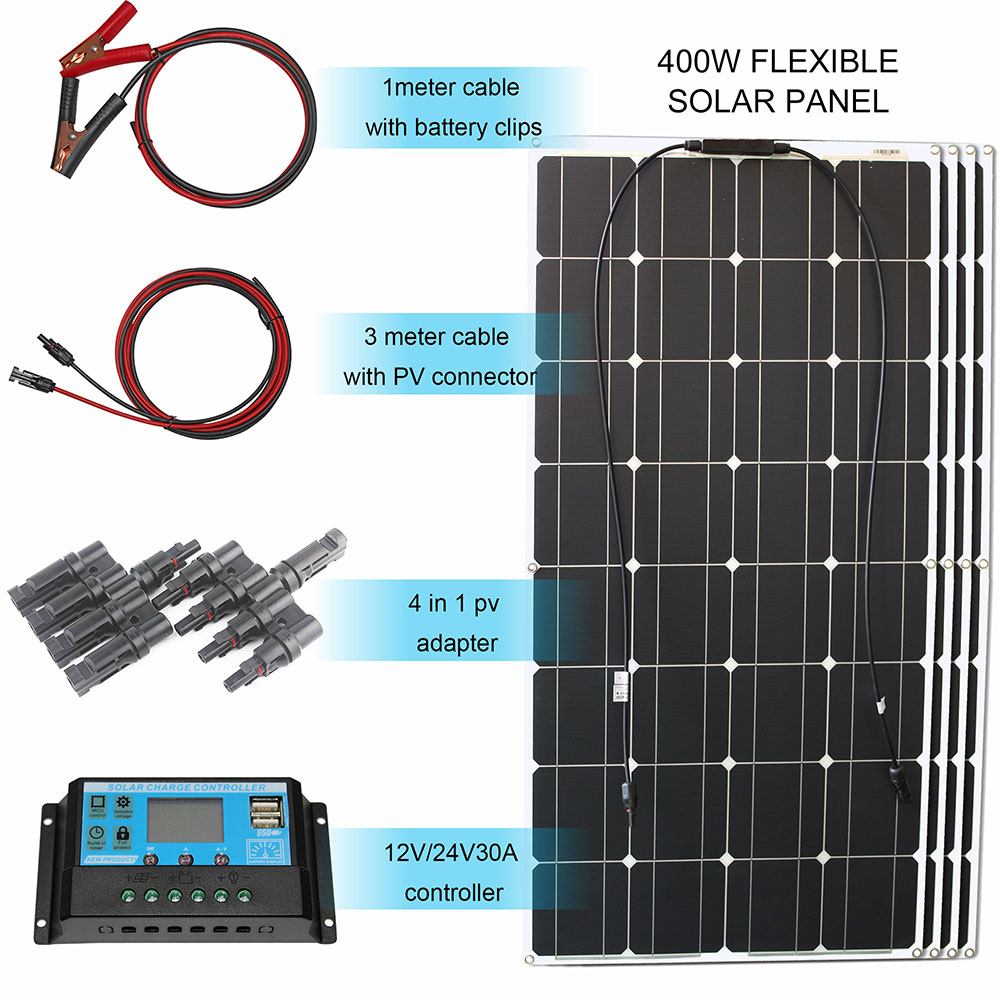

400w solar panel kit:

4* 100w Flexible Solar Panel

40A PWM Solar panel controller with LCD Screen & Dual USB ports

2*3M Cables with solar panel connector

2*3M cable with alligator clip

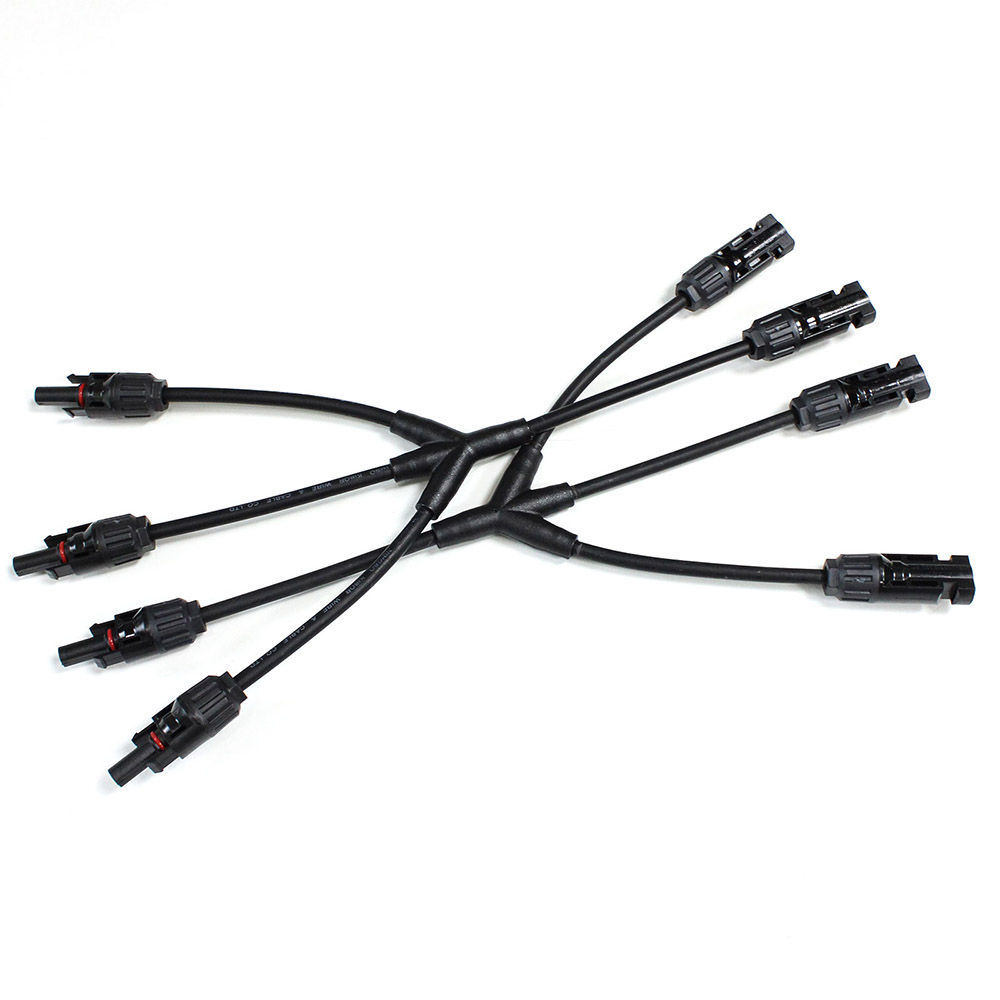

1 set 4 in 1 adapter

100w solar panel:

100w solar panel = 1pcs 100w flexible solar panel(without accessories）
200w solar panel = 2pcs 100w flexible solar panel(without accessories）

Anti-reflective PET to absorb more sunlight keeping higher output.

0.5mm EVA keep the solar panel more durable.

21% high conversion efficiency solar cell.

TPT to keep the solar panel lifetime more than 10 years.

Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

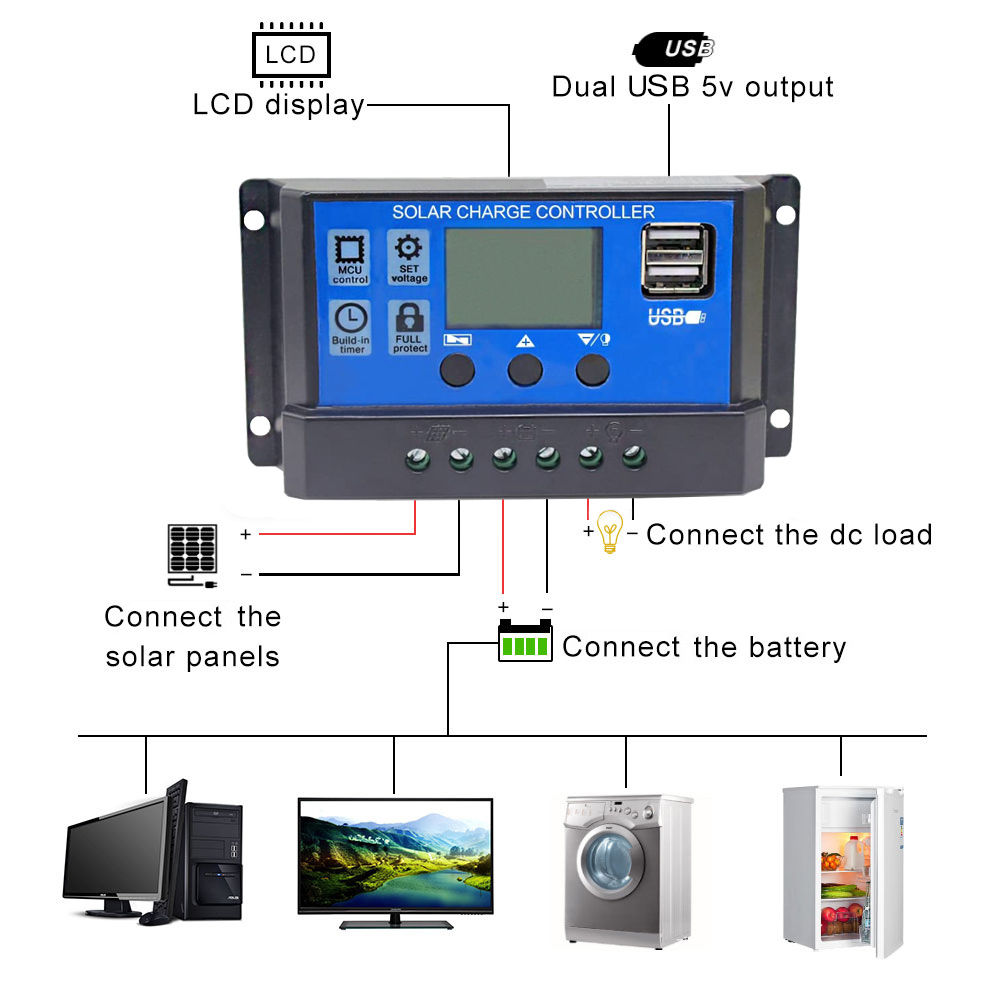

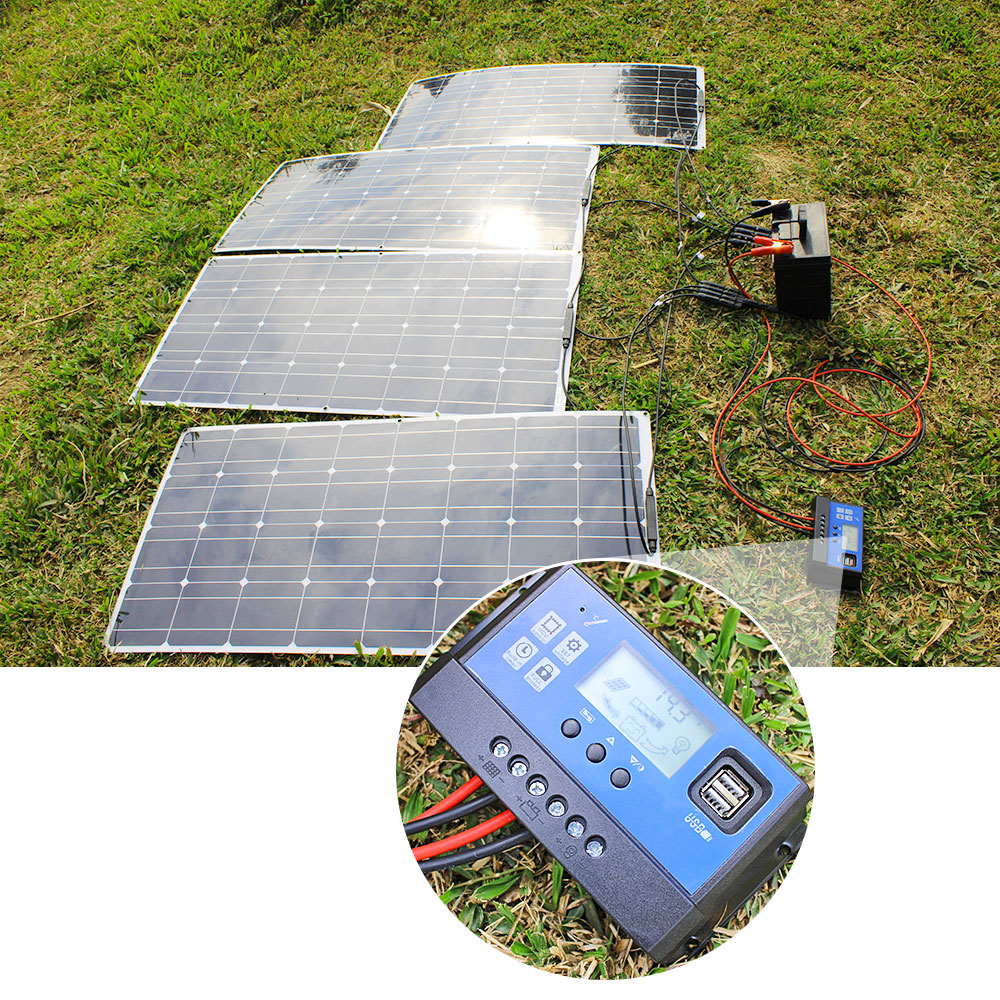

System Connection:

1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
