Xhorse VVDI MB BGA TOOL

Xhorse VVDI MB Tool Benz Key Programmer with 1 Year Unlimited Token and Get free EIS/ELV Test LineFrequently online updateSupport Benz key,read password and prepare new key via IR.More necessary functions for Benz key programming

Xhorse VVDI MB Tool V5.1.6 Benz Key Programmer with 1 Year Unlimited Token and Get free EIS/ELV Test Line is a one of our Xhorse VVDI MB BGA TOOL Tools, you can buy Xhorse VVDI MB Tool V5.1.6 Benz Key Programmer with 1 Year Unlimited Token and Get free EIS/ELV Test Line from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

images of Xhorse VVDI MB Tool V5.1.6 Benz Key Programmer with 1 Year Unlimited Token and Get free EIS/ELV Test Line

Xhorse VVDI MB Tool V5.1.6 Benz Key Programmer with 1 Year Unlimited Token and Get free EIS/ELV Test Line

Xhorse VVDI MB Tool Benz Key Programmer with 1 Year Unlimited Token and Get free EIS/ELV Test Line

Highlights:

1. Support BE key, read password and prepare new key via IR.

2. NEC V051,V057 support on board get password

3. All NEC keys support on board write and erase

4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.

5. Support renew EIS and ELV

6. Support write EIS and ELV

7. Support online generate key file

8. Unlock ELV function
9. mercedes Locks Platform Test Line for W164 W166 W204 W205/W222 W212 W221 ISM 7-G
10. with 1 Year Unlimited Token and Get free EIS/ELV Test Line

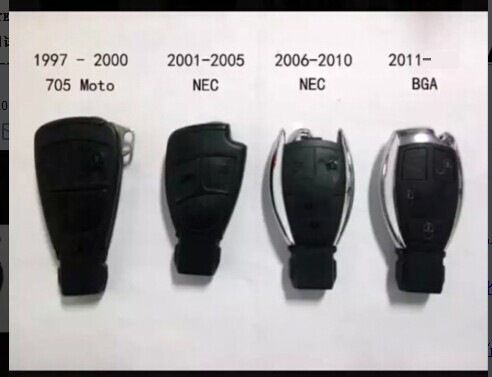

Support Key Types Display:

Latest Technical Details:

VVDI MB BGA tool update goes well, the following workable models are for reference only.

Model Support IR/OBD:

W164, W164 2009+

A166, W197,W212, W218, A246

A169, W209, W211

W172, W204, A207

W203

W204, W207, W212 only by dump

W209 only by dump

W210

W215, W220

W230

W216

W221

W906

Keys Version Supported:

v03, v06, v08

v05, v07, v09

v59,v61

Feedback:

I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 - MCU ??? -read PSW IR - not successful
W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.08.08 - MCU 1L85D - read PSW IR - not successful
W203: EIS/EZS A203.545.05.08 - MCU ??? - read PSW IR - OK
W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
W220: EIS/EZS A215.545.02.08 - MCU ??? - read PSW IR - OK
W220:EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successfulW639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK

Only support parts of HC05, HC08 motorola eis(K line),if cannot support will show error, need to remove eis get eeprom. we have tested W215 ok, but not means all W215 can support.in fact only support parts of this type.

please refer to change W204 esl steps:
ESL:Clear TP, Renew ESL(need erase password)
EIS:Renew EIS(need password & erase password)
Write EIS data back,then Personalize W204ESL

Package List:

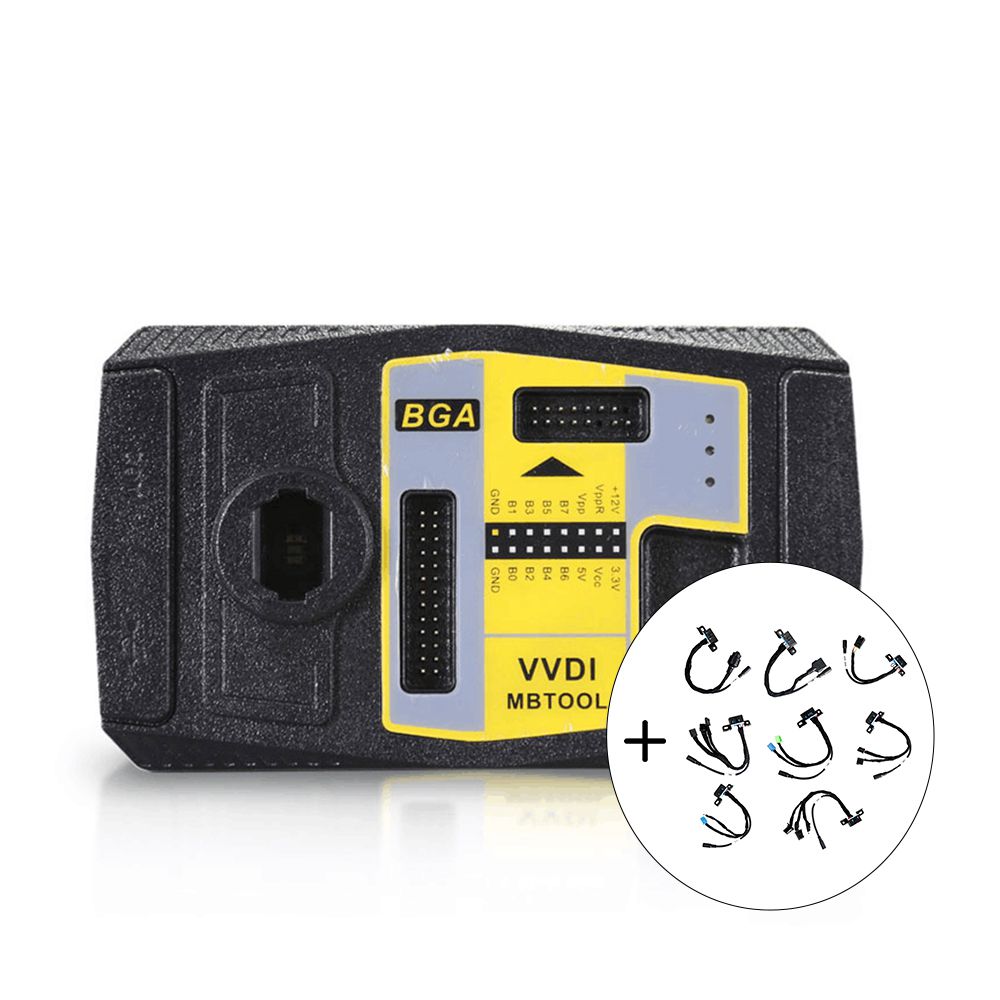

1. VVDI-MB TOOL Device
2. IR Adaptor
3. USB Cable
4. NEC Adaptor 1
5. NEC Adaptor 2
6. NEC Adaptor Base PCB
7. K Line in OBD Line
8. OBD Line
9. Plastic Box
10. Carton Box

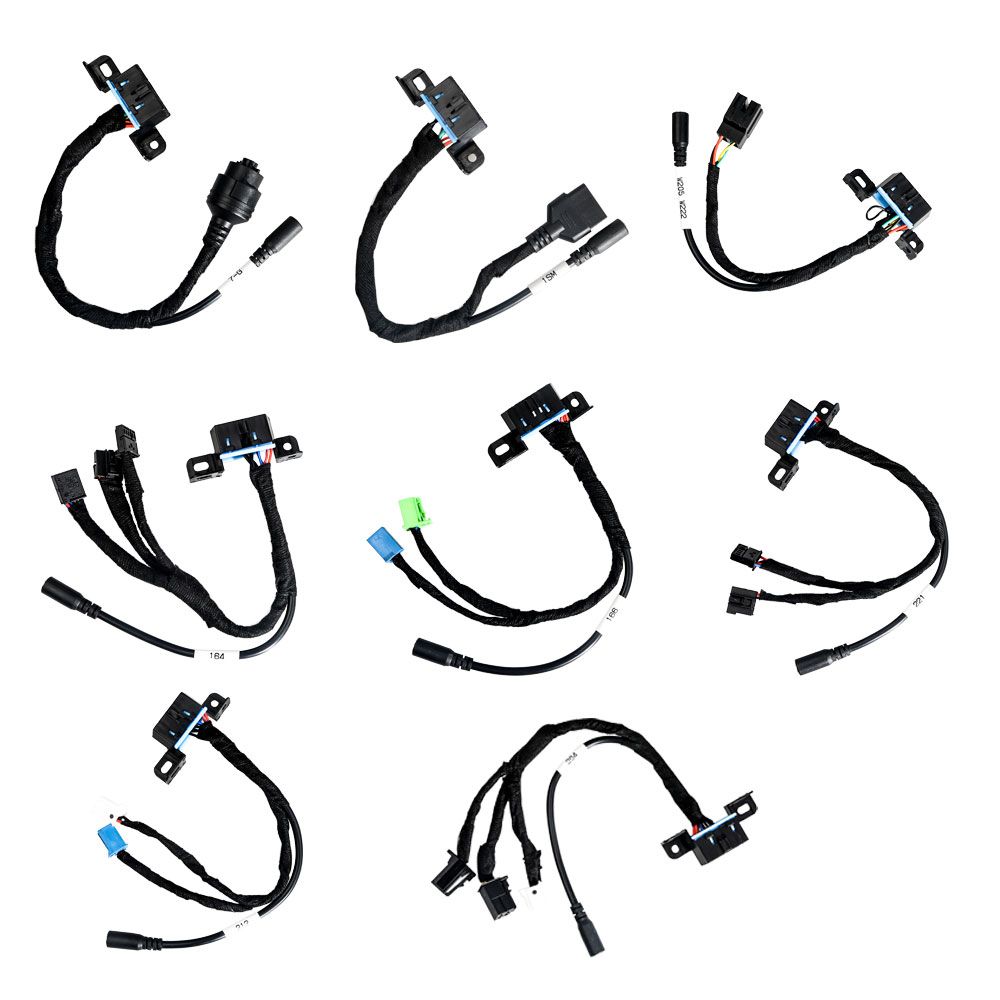

11. mercedes Locks OBD Test line

Go to Buy: Xhorse VVDI MB Tool V5.1.6 Benz Key Programmer with 1 Year Unlimited Token and Get free EIS/ELV Test Line
