Viecar VP005 Viecar VP006 ELM327 OBD2 Scanner
Viecar VP005 Viecar VP006 ELM 327 V2.2 Bluetooth 5.0 PIC18F25K80 WIFI ELM327 OBD2 Scanner for Android/IOS OBD Car Diagnostic Tool
Viecar VP005 Viecar VP006 ELM 327 V2.2 Bluetooth 5.0 PIC18F25K80 WIFI ELM327 OBD2 Scanner for Android/IOS OBD Diagnostic Tool is a one of our Viecar VP005 Viecar VP006 ELM327 OBD2 Scanner Tools, you can buy Viecar VP005 Viecar VP006 ELM 327 V2.2 Bluetooth 5.0 PIC18F25K80 WIFI ELM327 OBD2 Scanner for Android/IOS OBD Diagnostic Tool from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150
images of Viecar VP005 Viecar VP006 ELM 327 V2.2 Bluetooth 5.0 PIC18F25K80 WIFI ELM327 OBD2 Scanner for Android/IOS OBD Diagnostic Tool
Viecar VP005 Viecar VP006 ELM 327 V2.2 Bluetooth 5.0 PIC18F25K80 WIFI ELM327 OBD2 Scanner for Android/IOS OBD Car Diagnostic Tool
Note
Ty-pe C cables are not provided in our packaging, please buy or use your own.

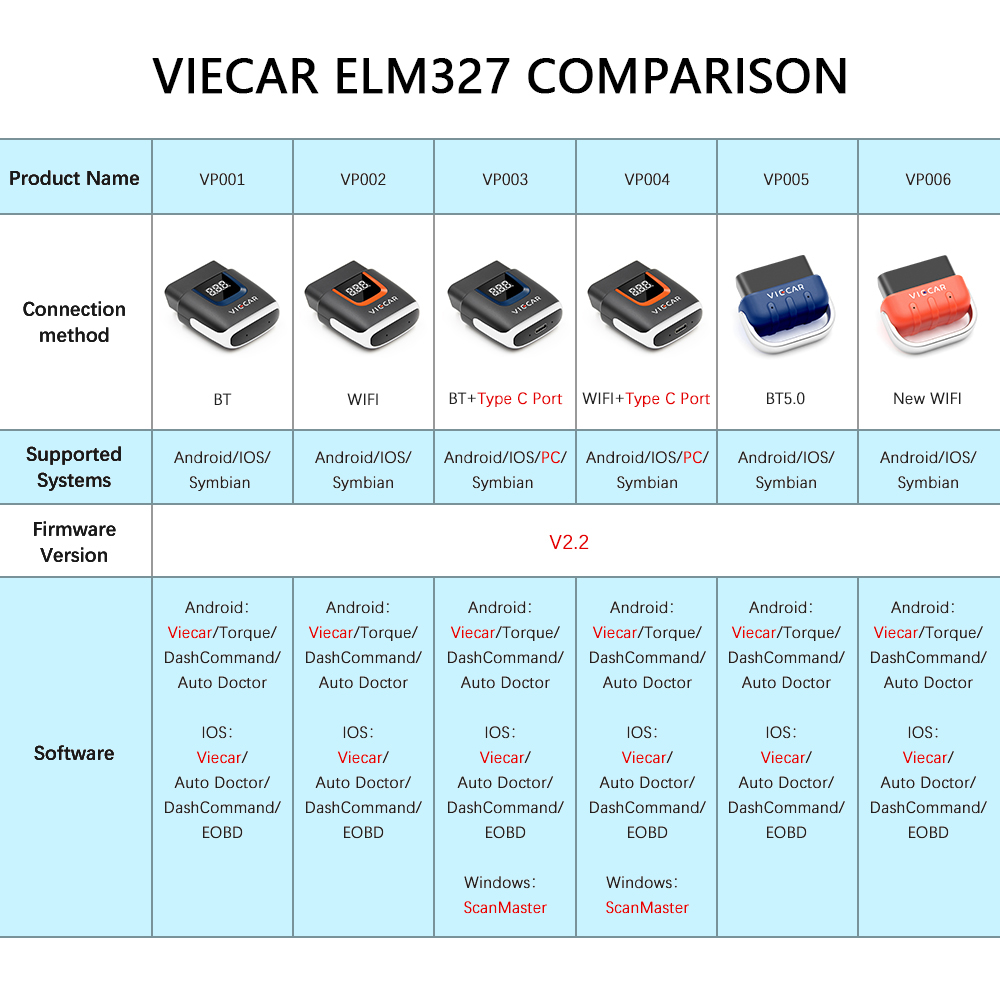

Viecar ELM327 Comparison
1.Product Name: Vircar ELM327 V2.2 VP001/VP002/VP003/VP004/VP005/VP006
2.Connection method:
VP001(Bluetooth 4.0)
VP002（WIFI）
VP003（Bluetooth 4.0+Type-C）
VP004（WIFI+Type-C）
VP005 (Bluetooth 5.0)
VP006 (New WIFI)
3.Supported systems：Android/IOS，PC need with Type-C
4.Firmware Version：V2.2（better than V1.5/V2.1）
5.Support systems：

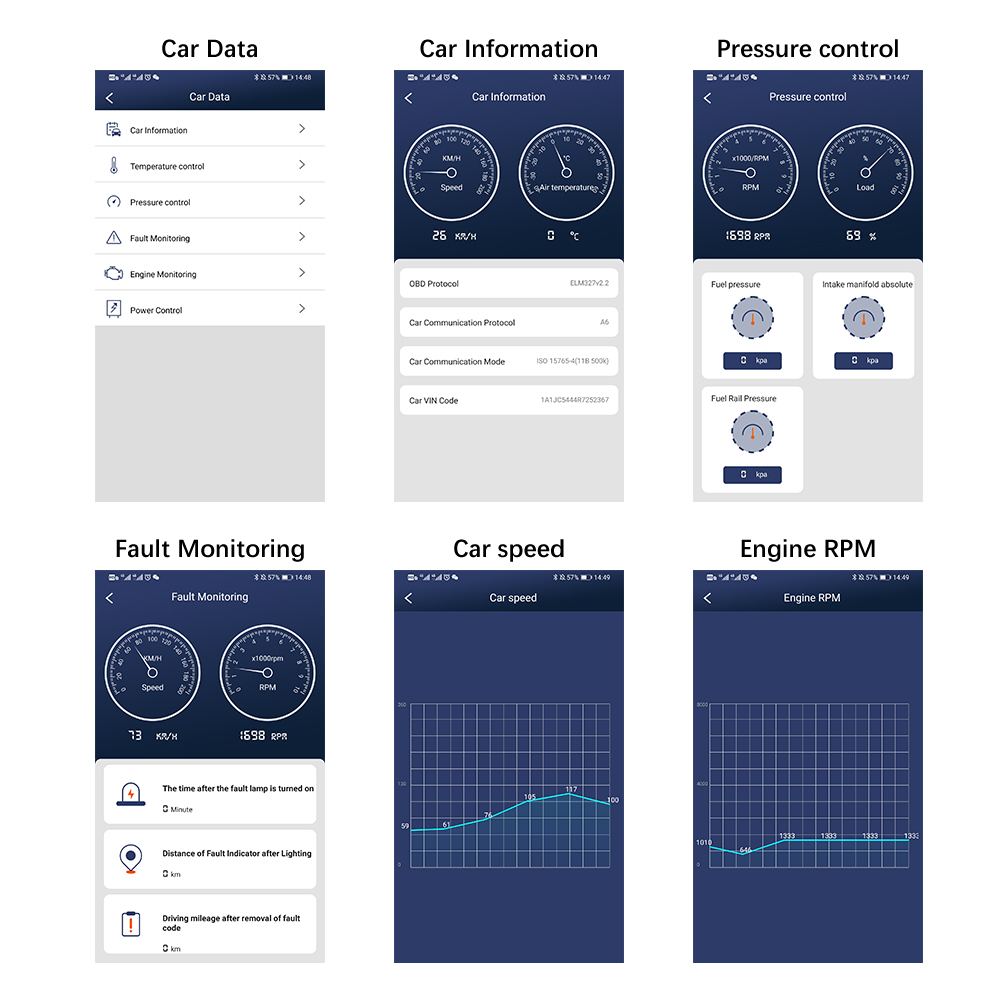

Android：Vicar/Torque/Dash Command/Auto Doctor
IOS：Vicar/Auto Doctor/Dashcommand/EOBD
Windows：ScanMaster
Download QR code for original Viecar software
1.Android password：a123456
2.IOS don't need password
3.PC：WWW.ELM327.COM
Supported Vehicle Data
1.Read error diagnostic code
2.Clear the fault code (clear the error code and turn off MIL)
3.Engine revolutions per minute (RPM)
4.Calculated load value
5.Coolant temperature
6.Fuel system status
7.Speed
8.Short-term fuel situation
9.Long-term fuel situation
10.Intake manifold pressure
11.Fuel injection advance time
12.Intake air temperature
13.Air flow rate
14.Throttle absolute position
15.Oxygen detection voltage associated with short-term fuel state
16.Fuel system status
17.Fuel pressure
18.Fuel consumption monitoring, etc.
Remarks: The number of data items supported by the model year is also different, subject to actual support.

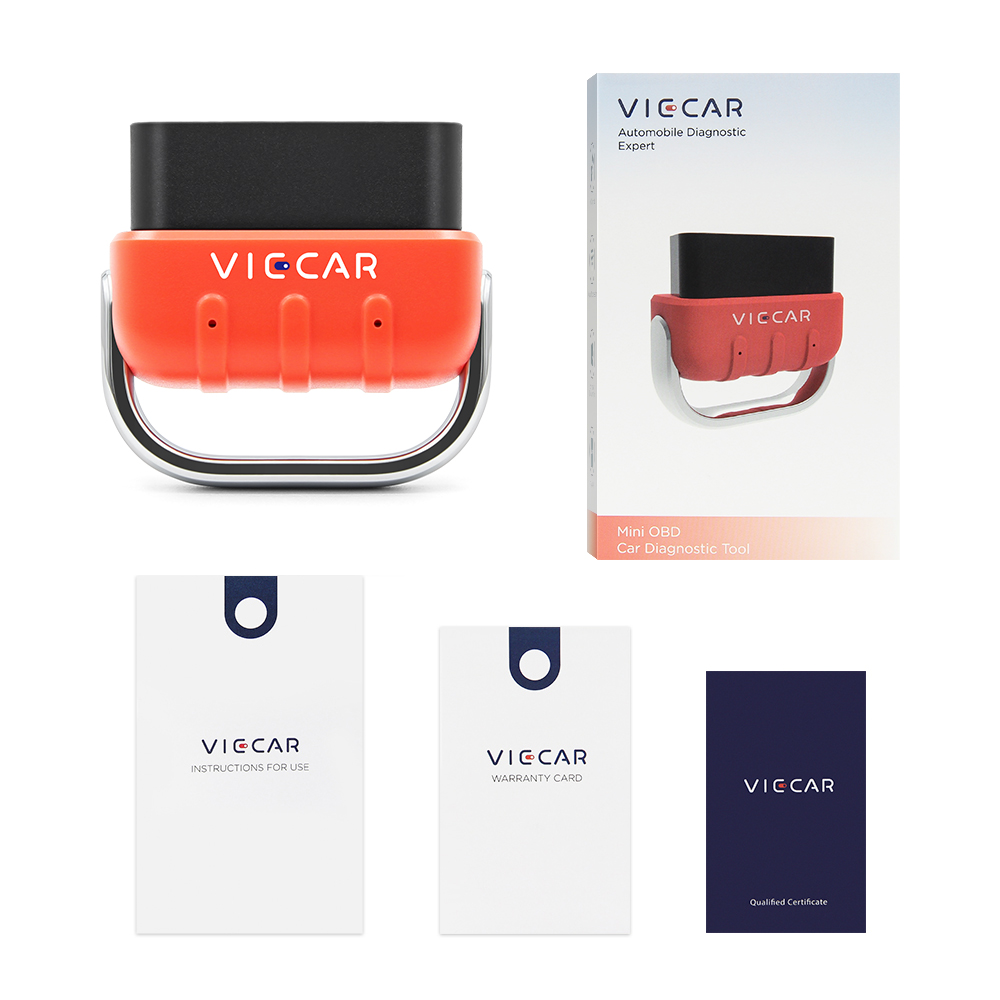

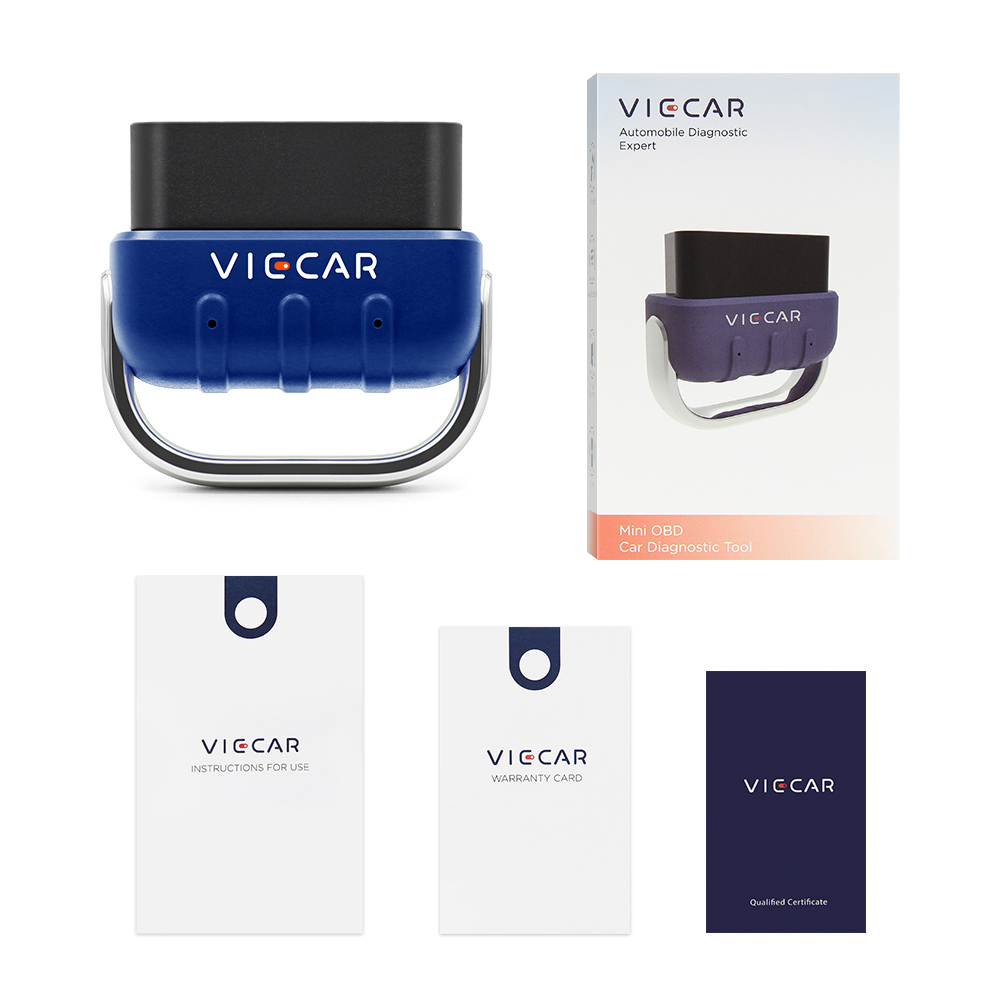

Packing List
1pc x original Viecar ELM327
1pc x instruction manual
1pc x warranty card
Product Description

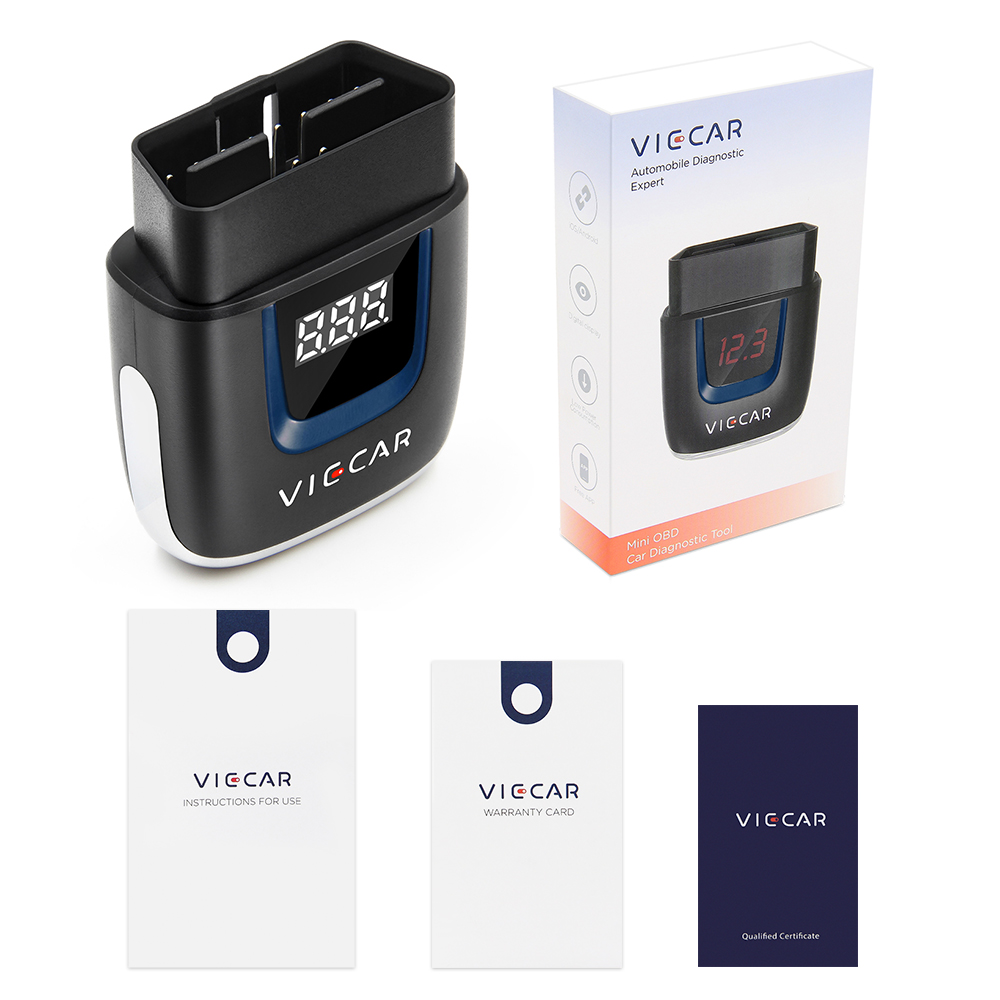

The VP001-VP004 is WIFI/Bluetooth 4.0/Ty-pe C（USB),VP005 VP006 is Bluetooth 5.0 and New WIFIOBD product with the following features:
1. Compatible with dual mode WIFI/Bluetooth 4.0/5.0 data transmission With USB2.0 transmission（With your choose）
2. Nine protocols supporting the OBD II/EOBD standard
3. Wide power supply range: 9~36V power supply; reliable overcurrent and overvoltage protection;
4. With standby low power mode to ensure the safe use of car batteries;
5. With digital tube display voltage, current, enhance customer experience
Supported Agreement
SAE J1850 PWM (41.6 Kbaud )
SAE J1850 VPW (10.4 Kbaud )
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 Kbaud )
ISO 14230-4 KWP (fast init, 10.4 Kbaud)
ISO 15765-4 CAN (11bit ID, 500 Kbaud)
ISO 15765-4 CAN (29bit ID, 500 Kbaud)
ISO 15765-4 CAN (11bit ID, 2500 Kbaud)
ISO 15765-4 CAN (29bit ID, 250 Kbaud)
Technical Parameters
SSID: Viecar
Firmware Version：V2.2
Main control chip: PIC18F25K80
Software platform: support Android /IOS/ Windows
Working voltage: DC 9～3 6V
Working current: 40mA
Standby current: 5mA
Operating environment: -20 ~ 65 ° C
Storage temperature: -40 to 80 ° C
Dimensions: 56*45.8 *24mm
Wide power supply range: 9~36V power supply; reliable overcurrent and overvoltage protection：(Only VP001-VP004,VP005/VP006 Can not display)
