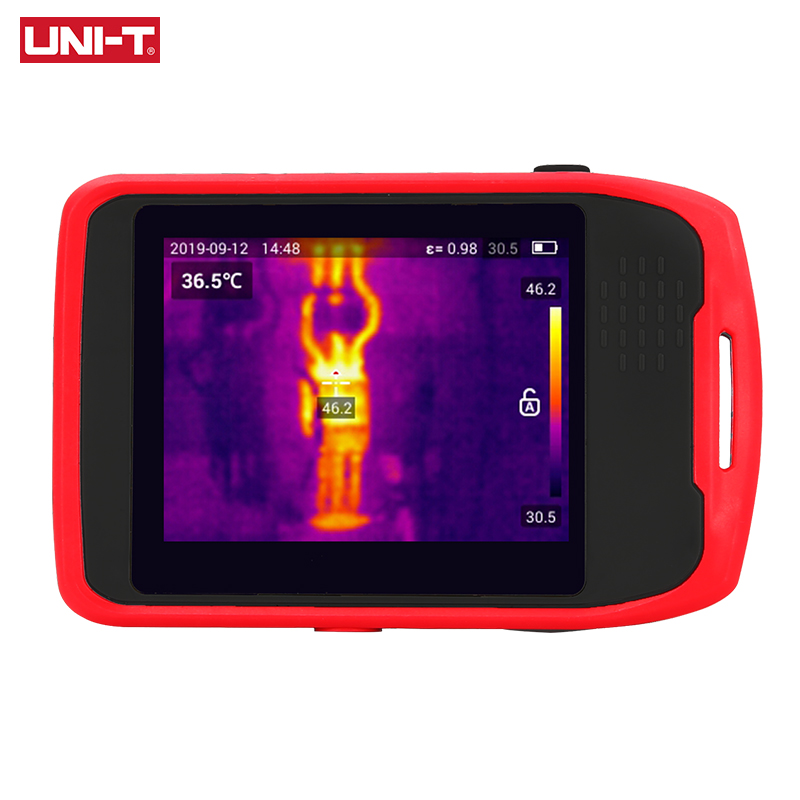

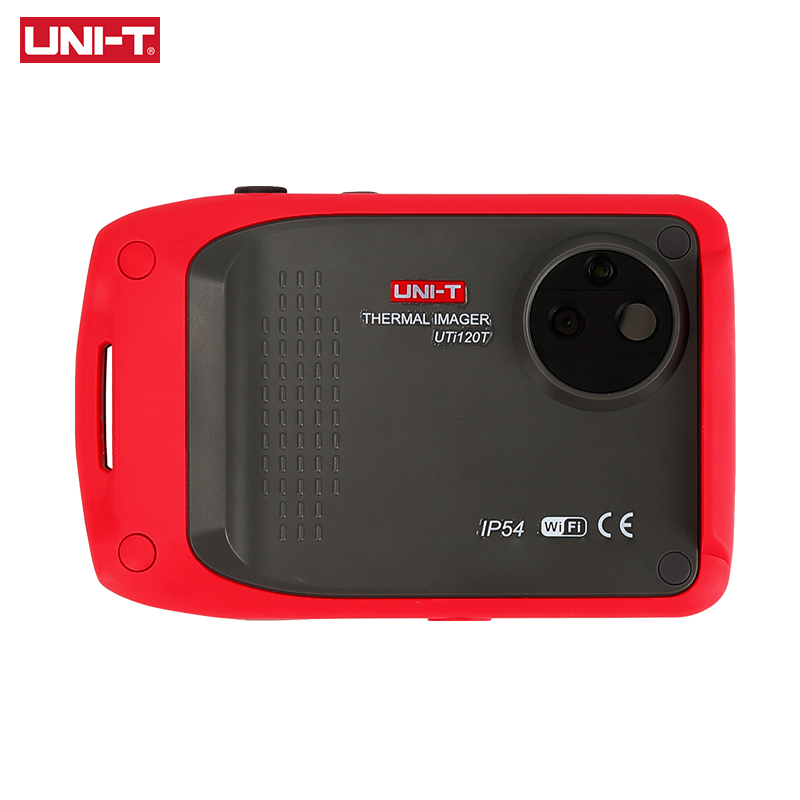

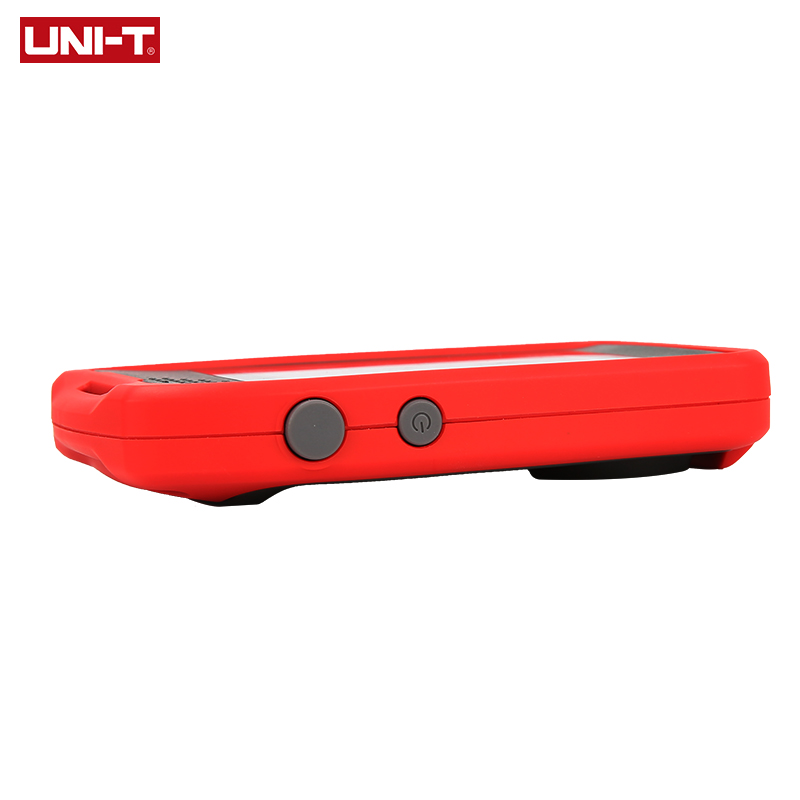

images of UNI-T UTi120T Pocket Mini Thermal Infrared Imager Camera 120x90 Pixel Thermovision Touch Screen Temperature Tracking WIFI

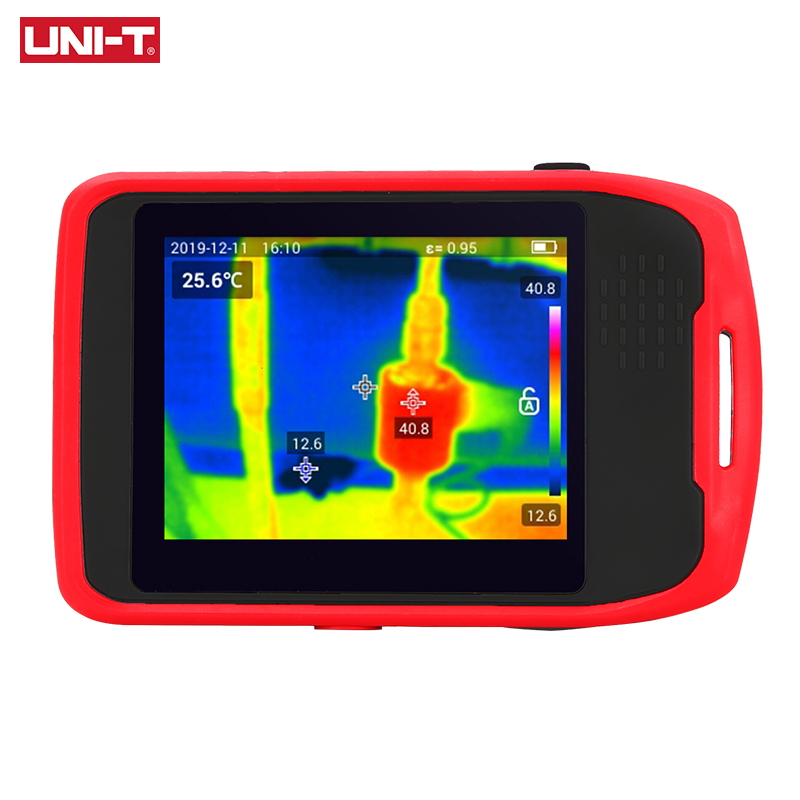

UNI-T UTi120T 120x90 Pixel Thermal Infrared Imager Camera For Phone Thermovision Touch Screen Temperature Tracking WIFI

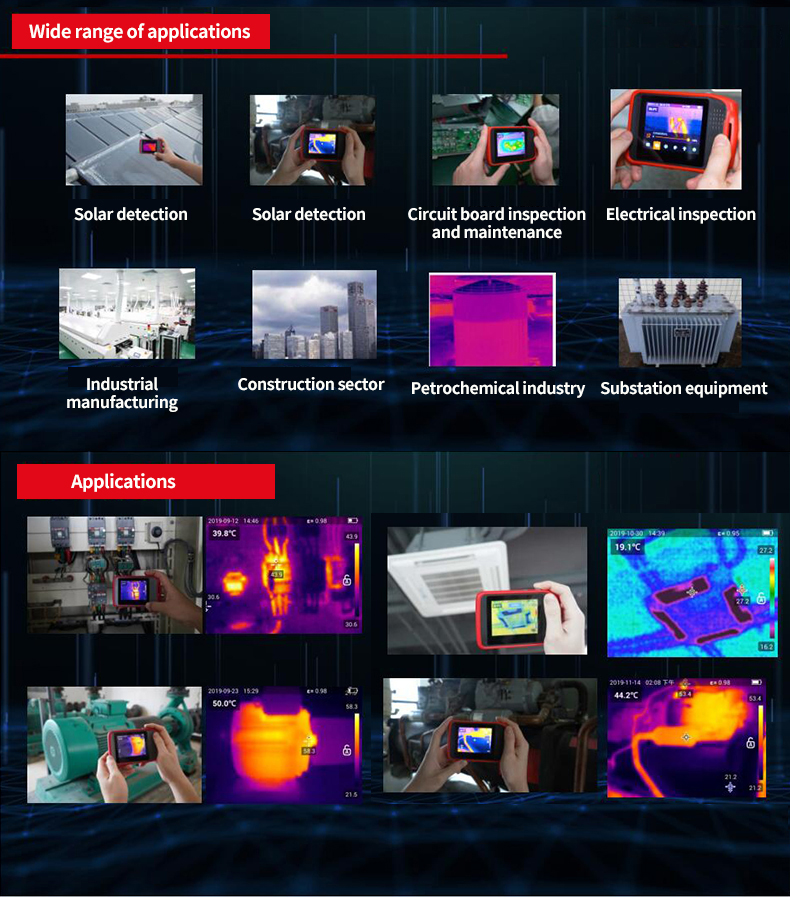

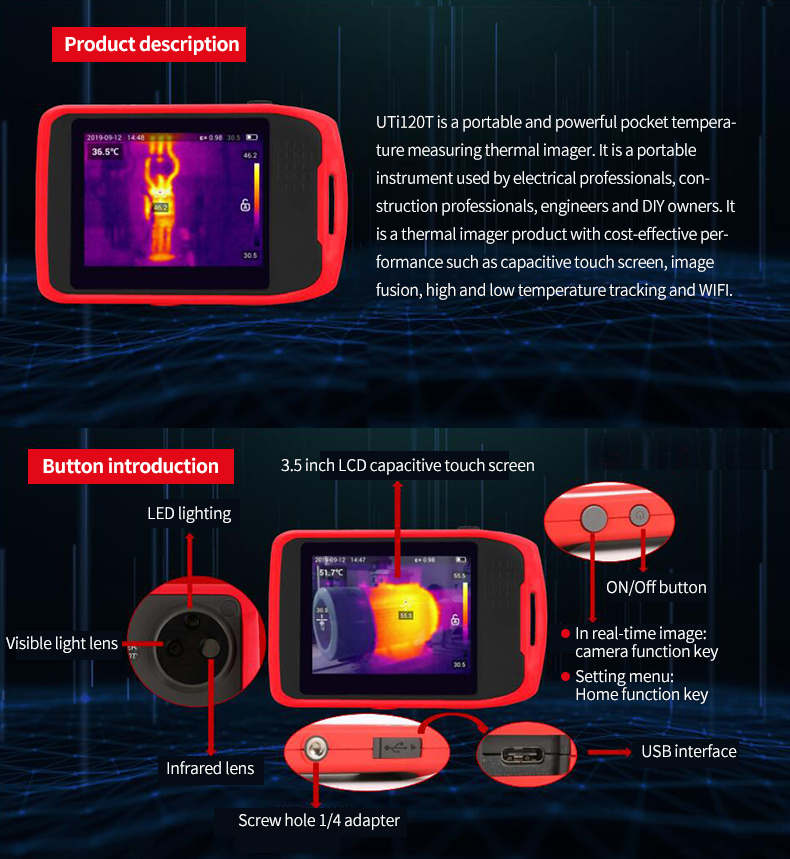

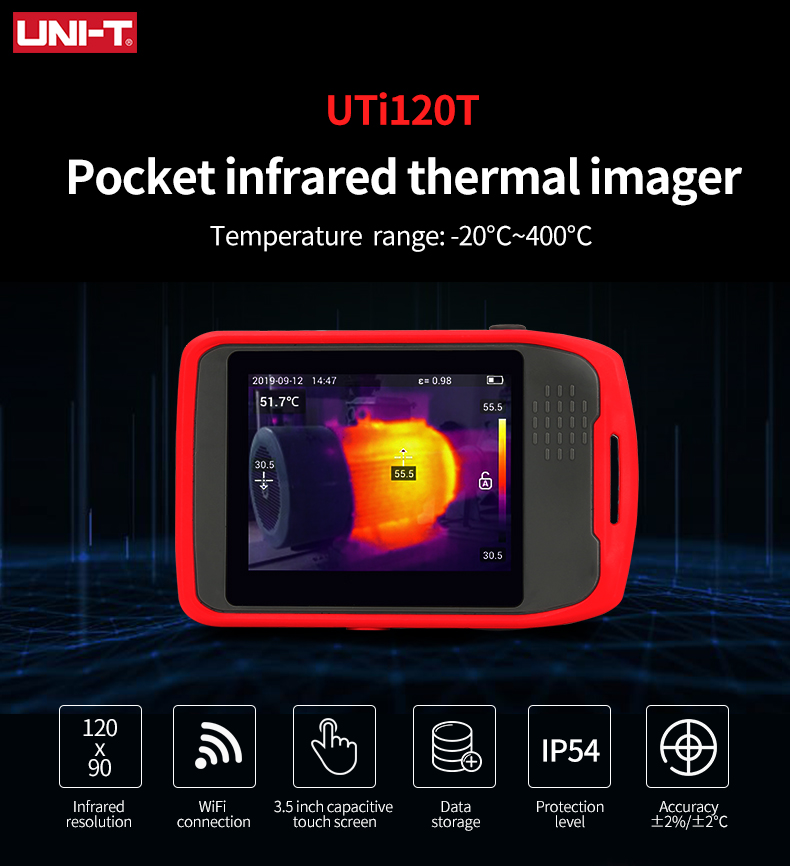

UTi120T is a portable and powerful pocket temperature measuring thermal imager. It is a portable instrument used by electrical professionals, construction professionals, engineers and DIY owners.It is a thermal imager product with cost-effective perormance such as capacitive touch screen, image fusion, high and low temperature tracking and WIFI.

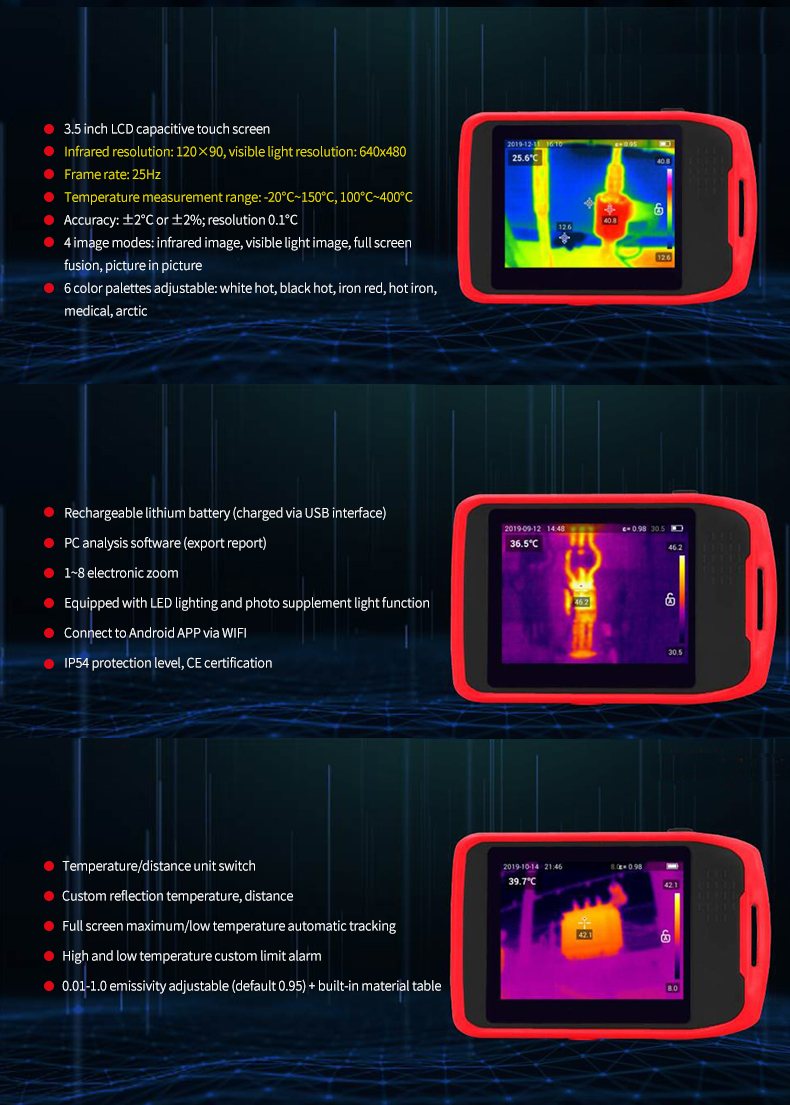

Feature

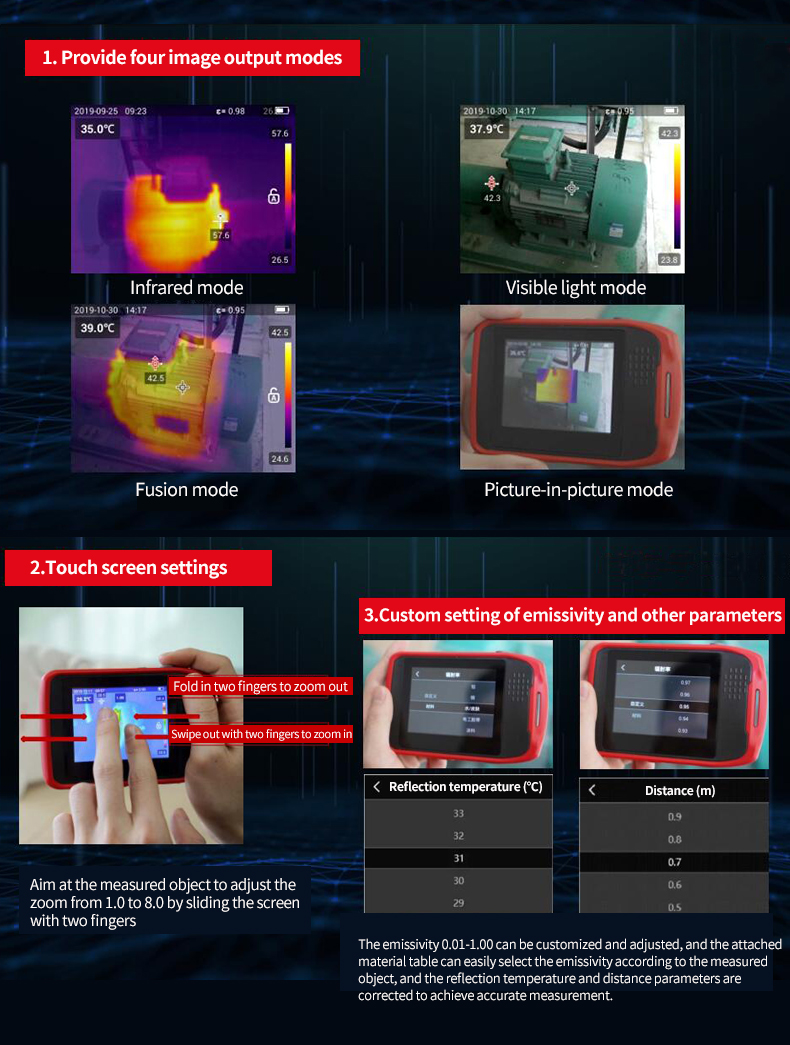

1.Display modes: Thermal, image blending, visible light
2. Connect to Android APP via WIFI

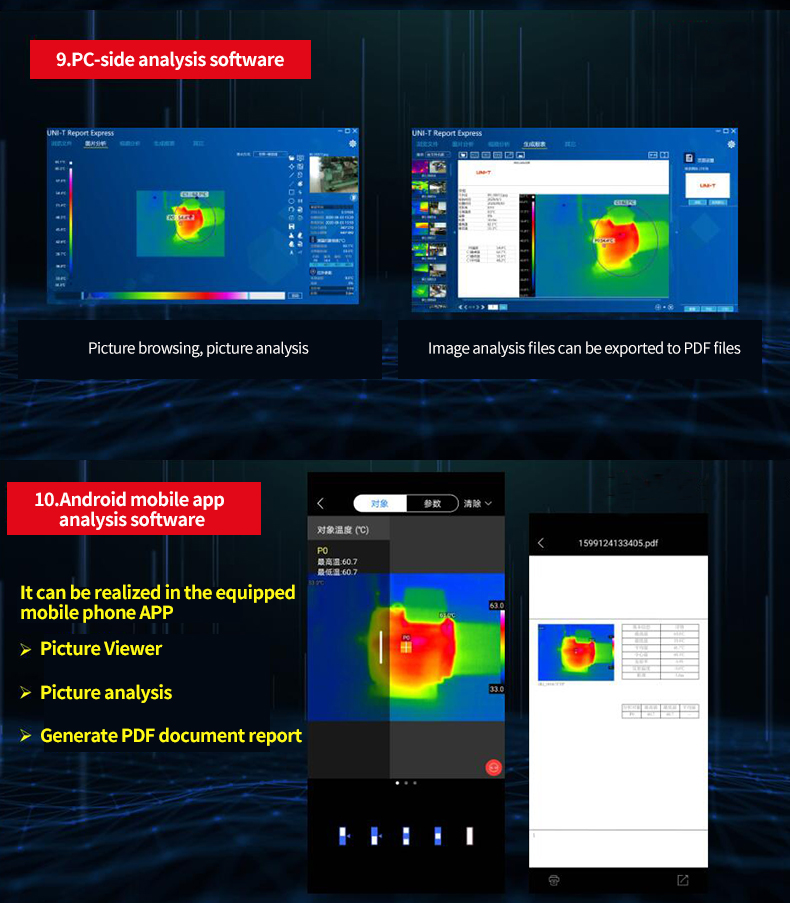

3.PC analysis software
4.3.5 inch LCD capacitive touch screen
4.Auto capture of Hi/Lotemperature
5. Customize reflection temperature and distance

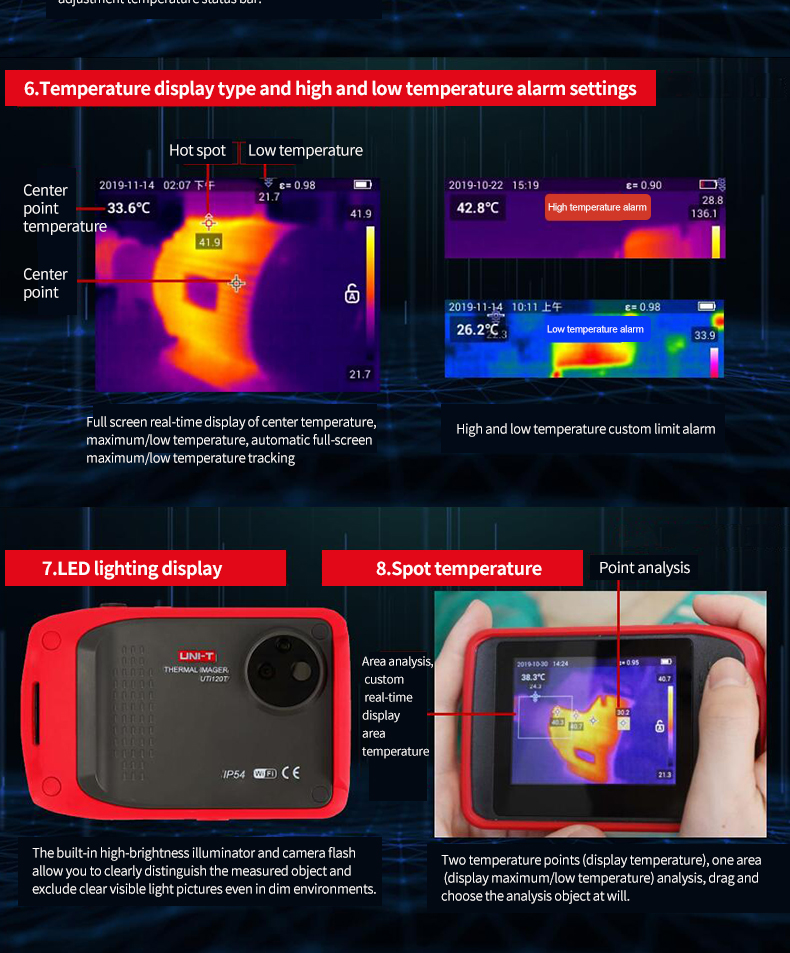

6. High and low temperature custom limit alarm
7. Equipped with LED lighting and photo supplement light function
8. Rechargeable lithium battery (charged via USB interface)
9. IP54 protection level, CE certification
2. Connect to Android APP via WIFI
3.PC analysis software
4.3.5 inch LCD capacitive touch screen
4.Auto capture of Hi/Lotemperature
5. Customize reflection temperature and distance
6. High and low temperature custom limit alarm
7. Equipped with LED lighting and photo supplement light function
8. Rechargeable lithium battery (charged via USB interface)
9. IP54 protection level, CE certification
Parameter
| Specifications | |
| Model | UTi120T |
| IR resolution | 120×90 pixels |
| Field of view (FOV) | 50°×38° |
| Thermal sensitivity (NETD) | ＜60mk |
| Temperature range | -20~400℃ |
| Spatial resolution (IFOV) | 7.6mrad |
| Frame rate | 25Hz/9Hz |
| Measurement accuracy | ±2℃ or ±2% whichever is greater |
| Focus | Focus free |
| Digital zoom | 2×, 4×, 8× |
| Display modes | Thermal, image blending, visible light |
| Display | 3.5”LCD |
| Auto capture of Hi/Lotemperature | √ |
| Measurement modes | Point, area |
| WIFI | √ |
| PC analysis software | √ |
| Drop proof | 1m |
| IP rating | IP54 |
| General Characteristics | |
| Power | Li-ion battery (3.7V 5000mAh) |
| Product color | Red and grey |
| Product net weight | 212g |
| Product size | 205mm x 124 mm x 65mm |

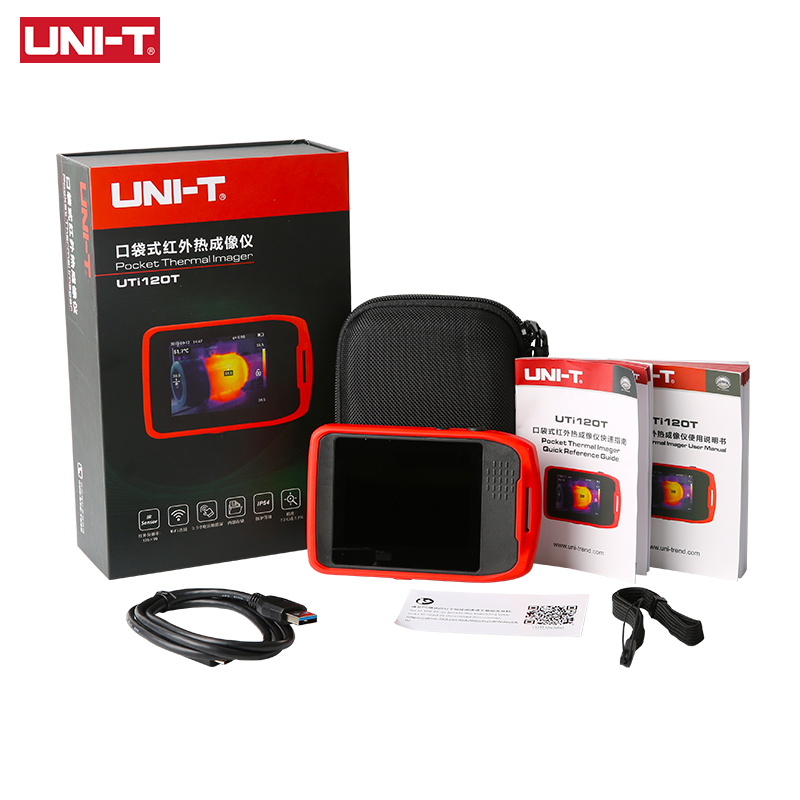

| Standard accessories | Carrying bag, micro USB cable,micro SD card |
| Standard individual packing | Blister, gift box, English manual |
