UNI T UTi120 Mobile 10800 Pixel Infrared Thermal Imager Camera
UTi120Mobile is a thermal camera for smart phone. This product is compact, portable, and easy to operate. Users can find problems faster and easily with it. wholesale UNI-T UTi120 Mobile 10800 Pixel Infrared Thermal Imager .
UNI-T UTi120 Mobile 10800 Pixel Infrared Thermal Imager Camera For Android Phone Thermographic Digital Infrared Thermometer is a one of our UNI T UTi120 Mobile 10800 Pixel Infrared Thermal Imager Camera Tools, you can buy UNI-T UTi120 Mobile 10800 Pixel Infrared Thermal Imager Camera For Android Phone Thermographic Digital Infrared Thermometer from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150
images of UNI-T UTi120 Mobile 10800 Pixel Infrared Thermal Imager Camera For Android Phone Thermographic Digital Infrared Thermometer

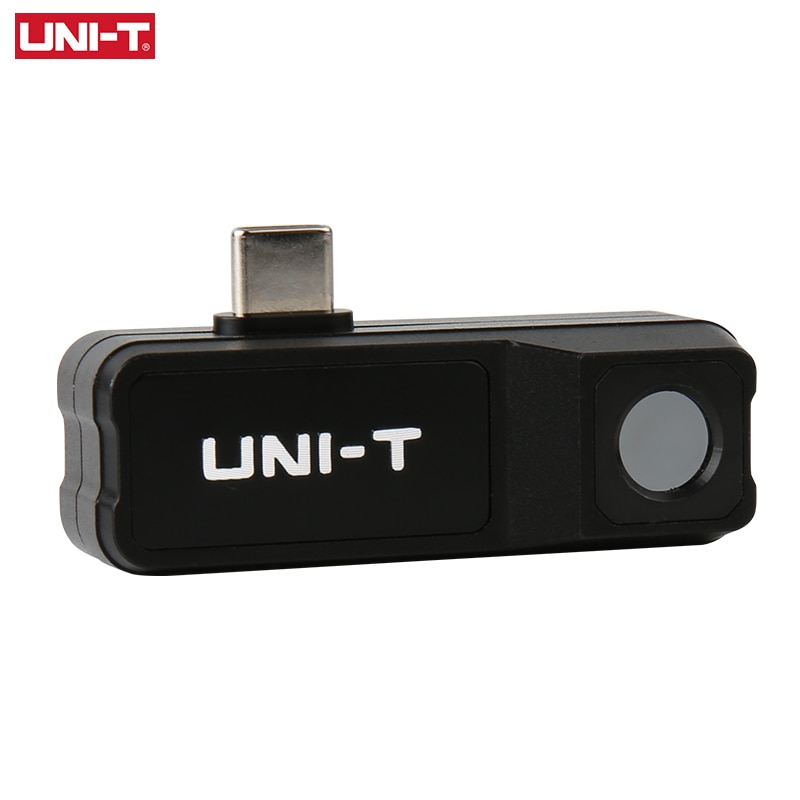

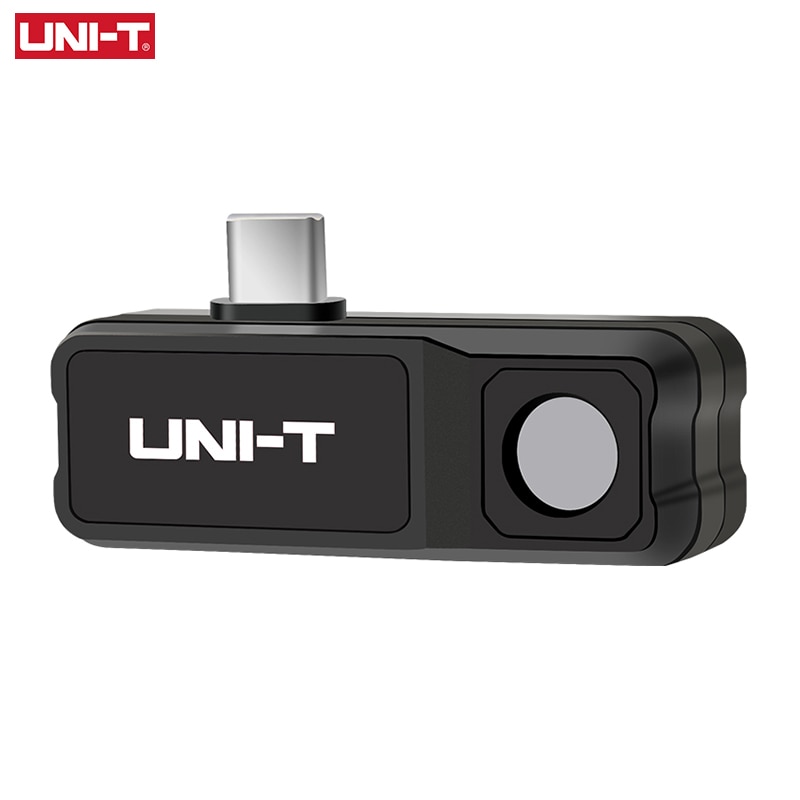

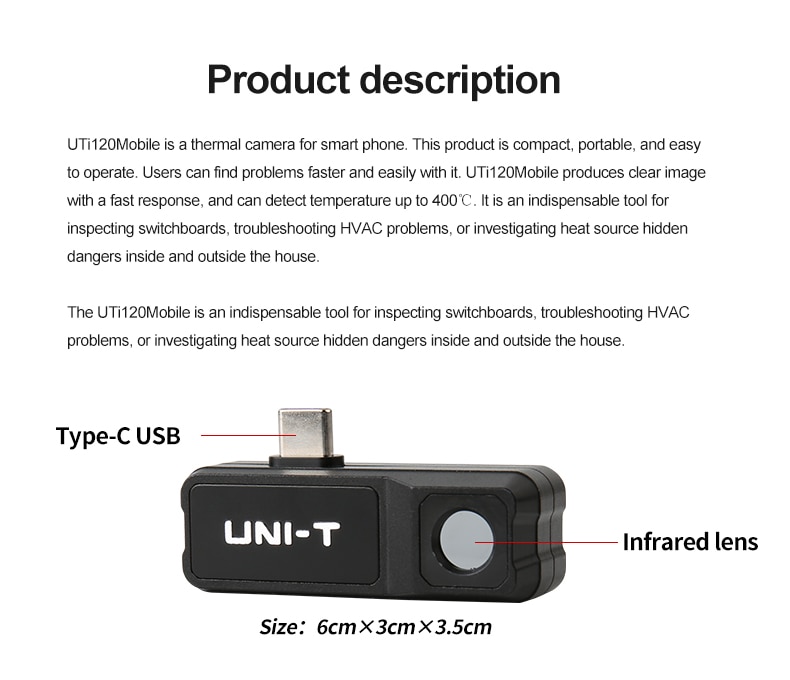

UTi120Mobile Thermal Imager

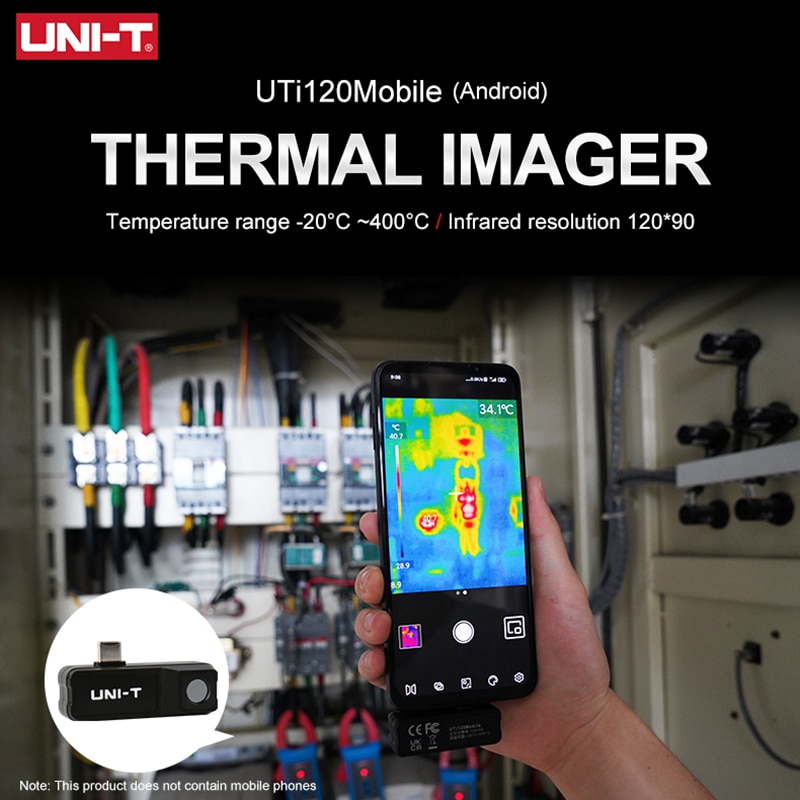

UTi120Mobile is a thermal camera for smart phone. This product is compact, portable, and easy to operate. Users can find problems faster and easily with it. UTi120Mobile produces clear image with a fast response, and can detect temperature up to 400℃. It is an indispensable tool for inspecting switchboards, troubleshooting HVAC problems, or investigating heat source hidden dangers inside and outside the house.
1. Image capture
2. Video recording
3. Visible and thermal image fusion
4. App analysis on smart phone
5. 2m drop proof
6. Extension cable support multiple scenarios
Parameter
| Specifications | UTi120Mobile |
| Certifications | CE, FCC, RoHS |

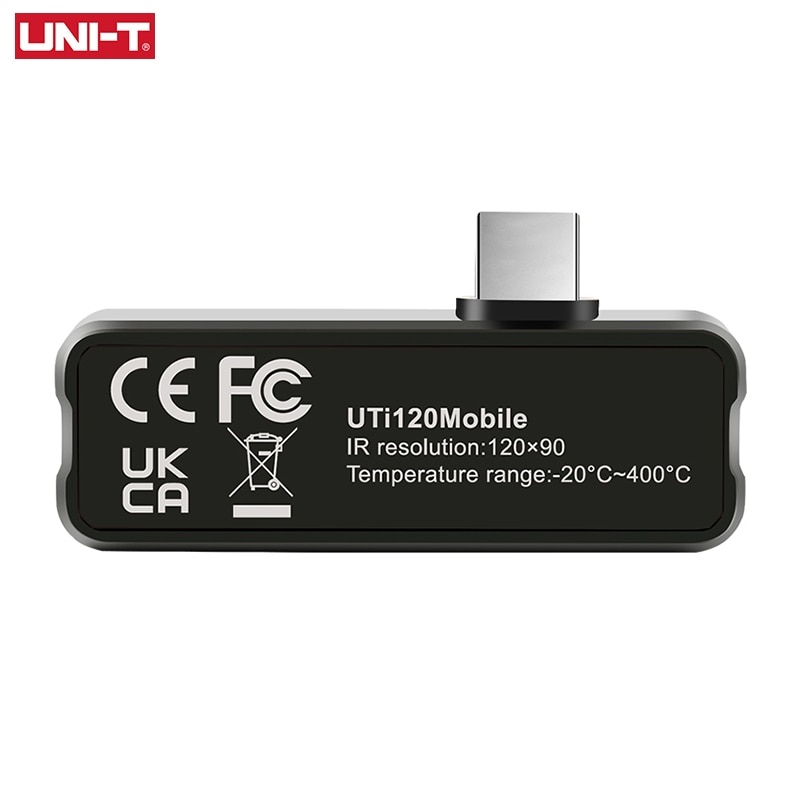

| IR resolution | 120×90 pixels |
| Field of view (FOV) | 50°×38° |
| Thermal sensitivity (NETD) | ＜60mk |
| Temperature range | -20~400℃ |
| Emissivity | 0.1-0.99(adjustable) |
| Frame rate | 25Hz |
| Measurement accuracy | ±2℃ or ±2% whichever is greater |

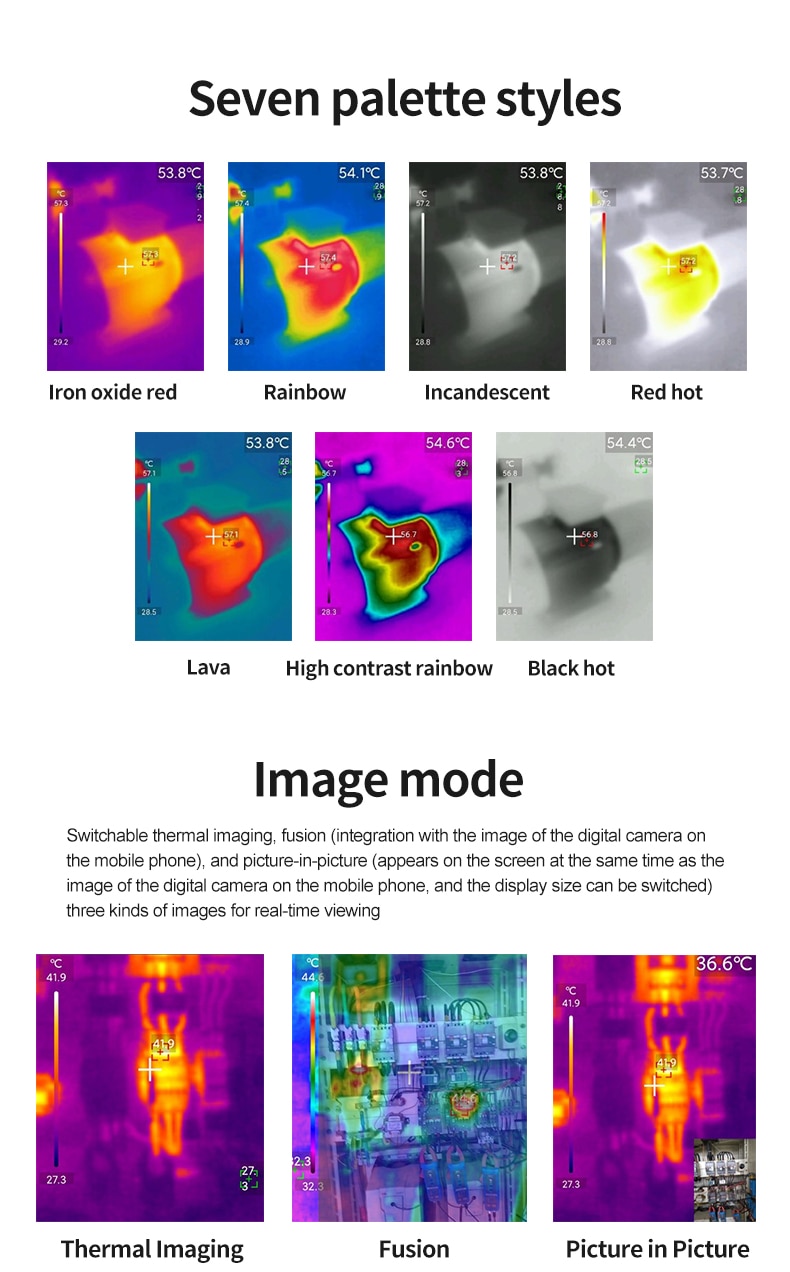

| Display modes | Thermal, blending(blend with image of mobile phone ), PIP |
| Image capturing modes | Take photos or videos |
| Plate | Iron Red, Rainbow, Gray scale, Red hot, Black White, Lava, High-Contrast Rainbow |
| Image format | JPG |
| Data communication | Type-C USB |
| Drop proof | 2m |
| General Characterisitics |
|
| Product color | Black and grey |
| Product net weight | 25g |
| Product size | 53X18.2X18.5mm |

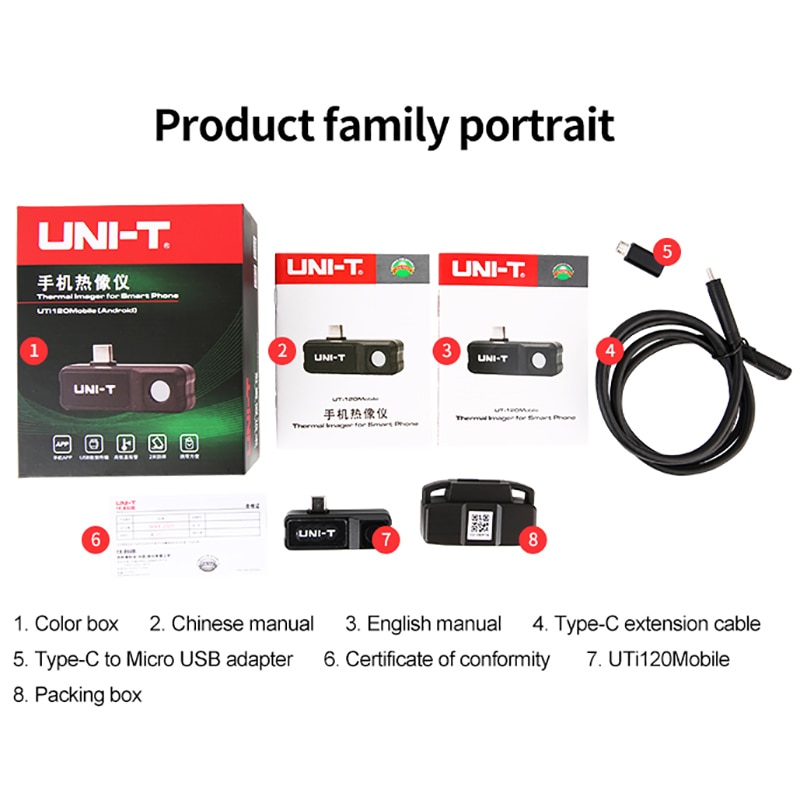

| Standard accessories | Type-C male to female extension cable, USB adapter |
The UTi120Mobile is an indispensable tool for inspecting switchboards, troubleshooting HVAC problems, or investigating heat source hidden dangers inside and outside the house.

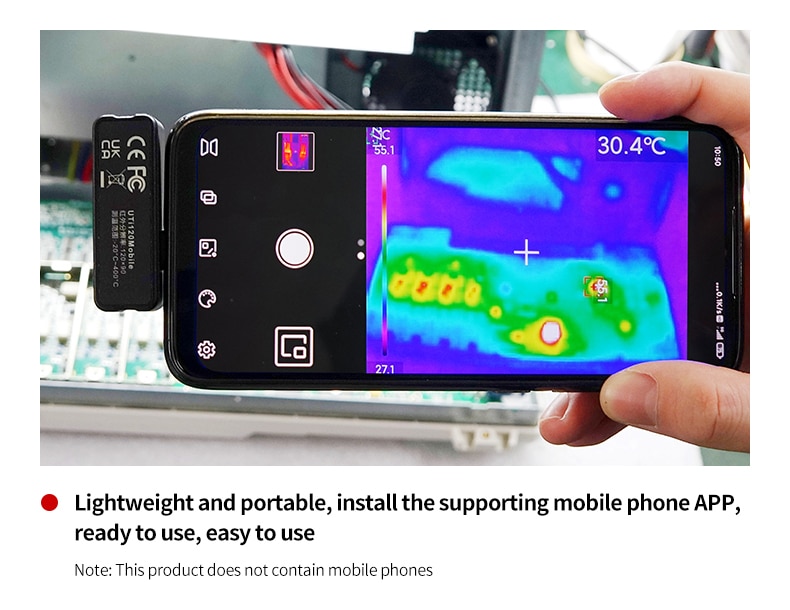

The product is equipped with mobile app software.

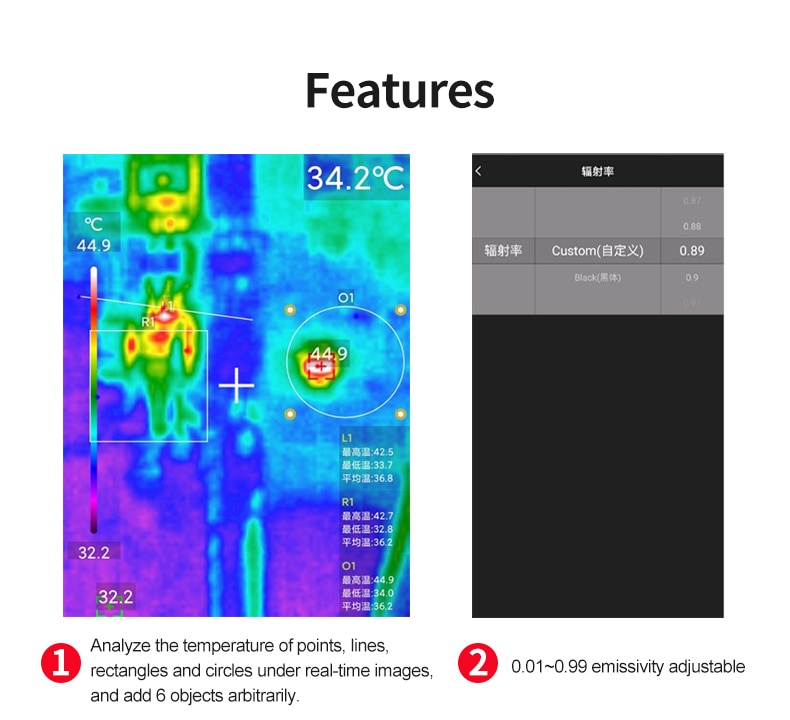

Real-time image analysis
0.01~0.99 reflectivity

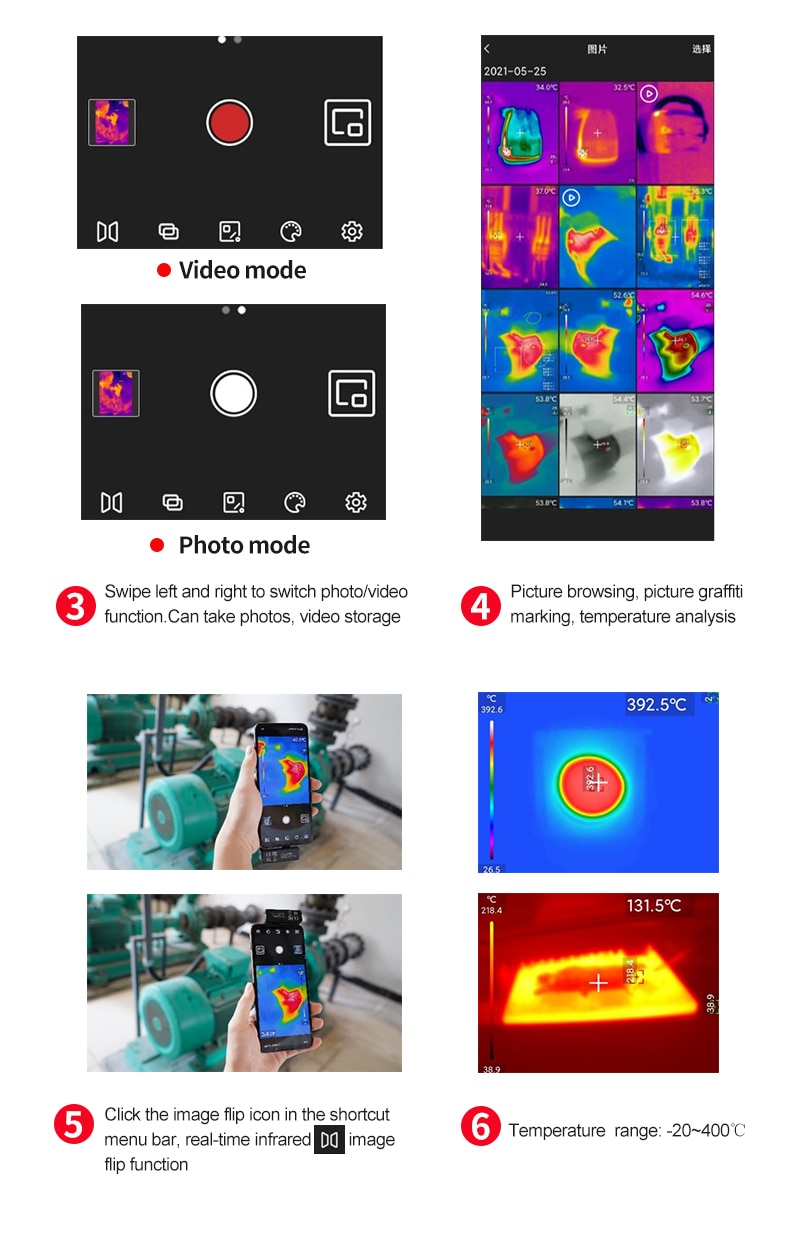

Swipe left and right to switch the photo/video function
Editable pictures
Image flip function
Temperature measurement range: -20~400℃
