UNI T UTI120P Mini Thermal Imager
The UTi120P makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 120 × 90 pixel thermal sensor, which provides great image performance.
UNI-T UTI120P Mini Thermal Imager 10800 Pixel Infrared Camera Thermography Industrial Thermographic Camera Infrared Thermometer is a one of our UNI T UTI120P Mini Thermal Imager Tools, you can buy UNI-T UTI120P Mini Thermal Imager 10800 Pixel Infrared Camera Thermography Industrial Thermographic Camera Infrared Thermometer from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150
images of UNI-T UTI120P Mini Thermal Imager 10800 Pixel Infrared Camera Thermography Industrial Thermographic Camera Infrared Thermometer
UTi120P Thermal Imager
1. UTI120P has 10800 pixels.Thermal Imager has over 10,000 pixels to troubleshoot hot and cold spots
2. Measure temperature range from -20°C to 400°C
3. Adjustable emissivity from 0.10 to 0.99
4. Store and share images with optional microSD Card

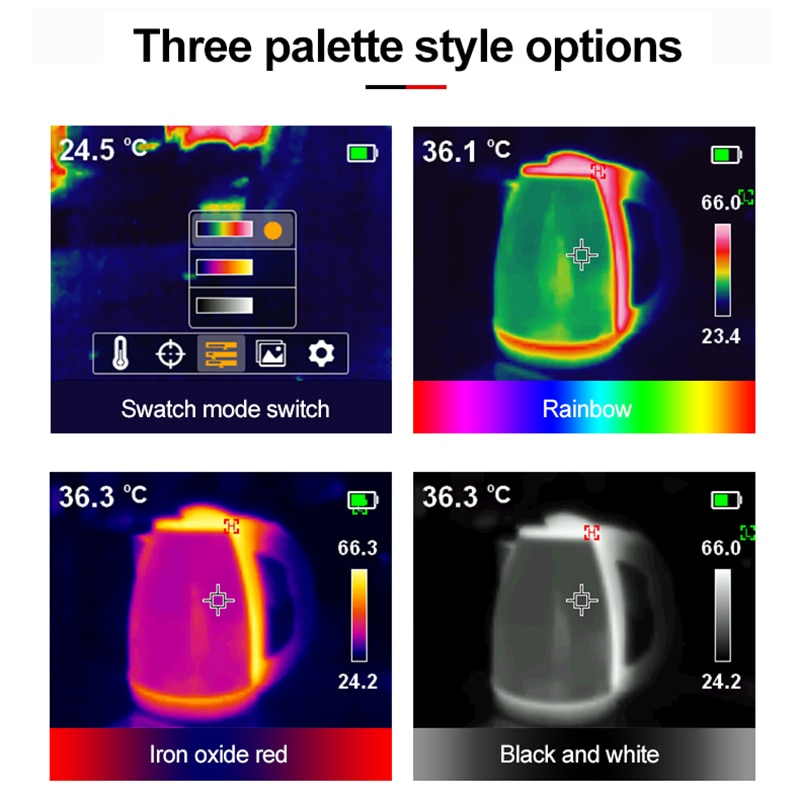

5. Select color from total 6 palettes to best capture the event
6. 1m drop proof
UTi120P is widely used in HVAC equipment maintenance, automotive manufacturing, chemical and smelting industries, etc.
Parameter
| Specifications | UTi120P |
| Certification | CE, RoHS |
| IR resolution | 120 x 90 pixels |
| Field of view (FOV) | 51° x 38° |
| Thermal sensitivity (NETD) | ＜60mk |
| Temperature range | -20~400℃ |
| Spatial resolution (IFOV) | 7.3mrad |
| Frame rate | 25Hz |
| Measurement accuracy | ±2℃ or ±2% whichever is greater |
| Palettes | 3 |
| Emissivity | Adjustable (0.01-1.00) |
| Focus | Focus free |
| Display modes | Thermal |
| Display | 2.4”TFT LCD |
| Auto capture of Hi/Lo temperature | √ |
| Measurement modes | Point, area |
| PC analysis software | √ |
| Drop proof | 1m |
| General Characteristics | |

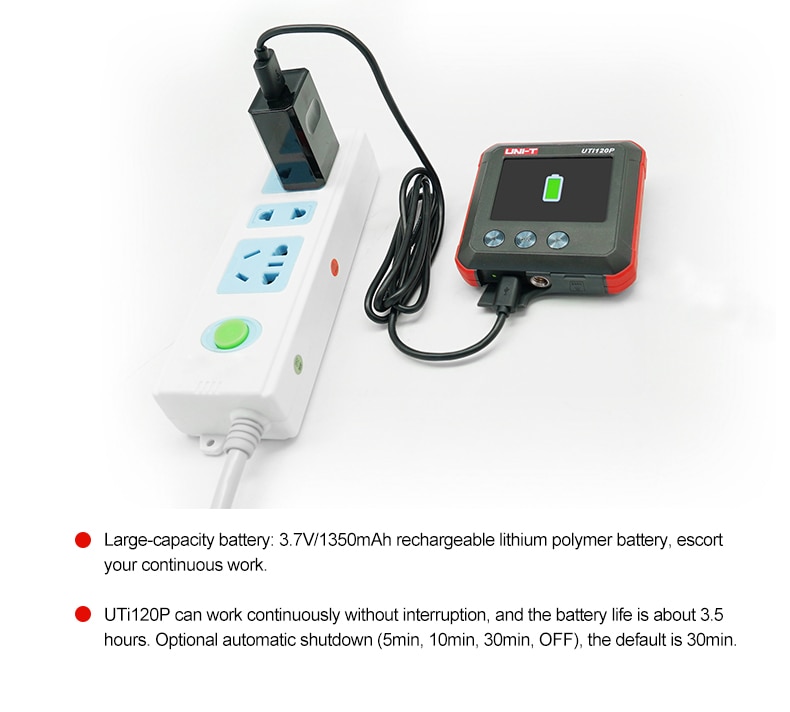

| Power | Li-ion battery (3.7V 1300mAh) |
| Product net weight | 125g |
| Product size | 76mm x 76 mm x 22mm |
| Standard accessories | Carrying bag, micro USB cable, micro SD card, English manual |
