UNI T UT139S True RMS Digital Multimeter
UNI-T UT139S True RMS Digital Multimeter Temperature Probe LPF pass LPF (low pass filter) function, wholesale UNI-T UT139S True RMS Digital Multimeter, buy UNI-T UT139S True RMS Digital Multimeter from Chinaobd2.com
UNI-T UT139S True RMS Digital Multimeter Temperature Probe LPF pass LPF (low pass filter) function is a one of our UNI T UT139S True RMS Digital Multimeter Tools, you can buy UNI-T UT139S True RMS Digital Multimeter Temperature Probe LPF pass LPF (low pass filter) function from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

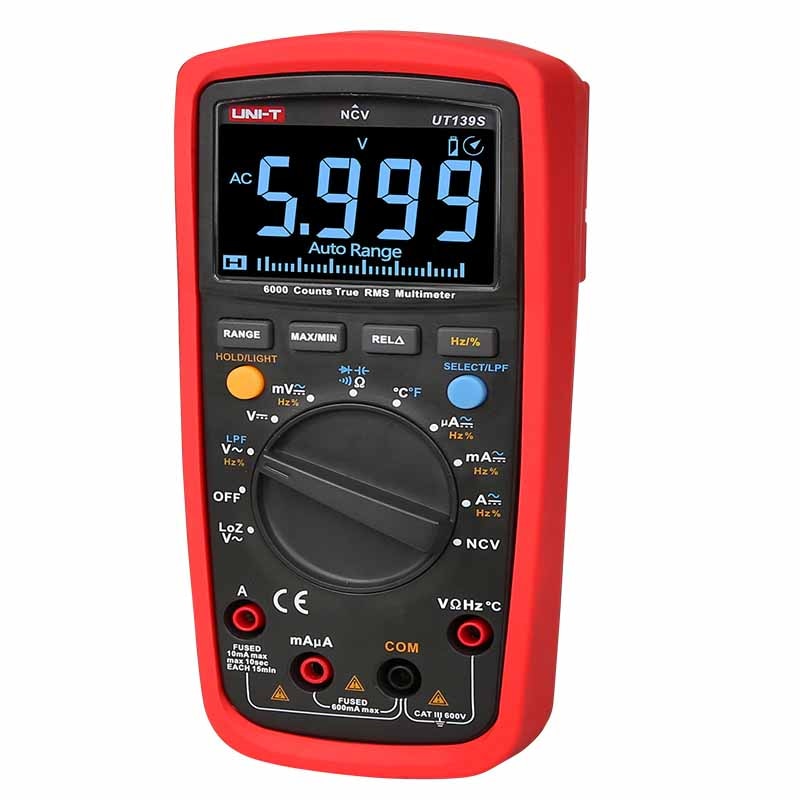

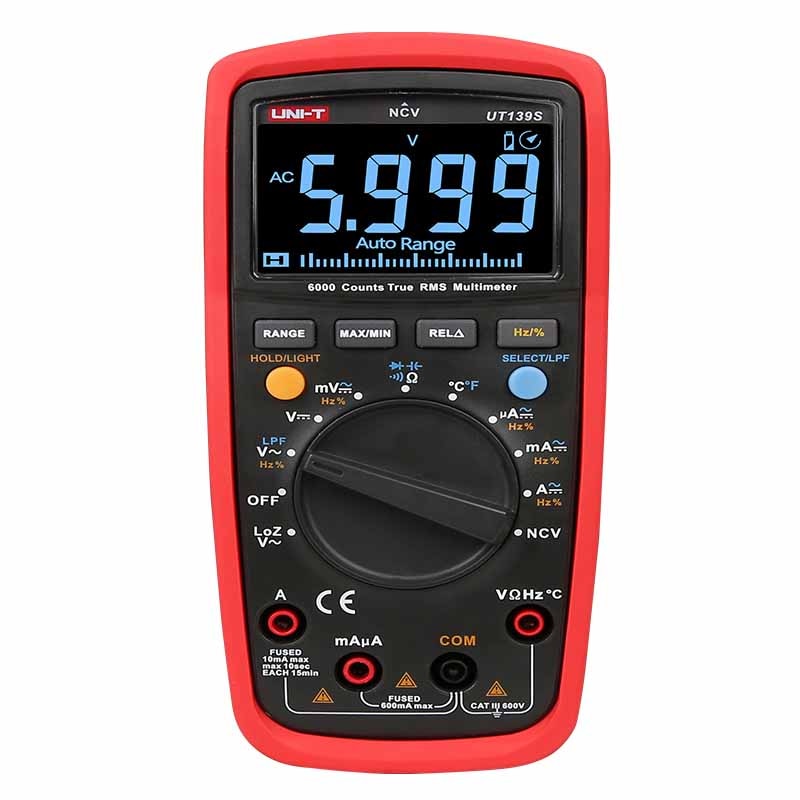

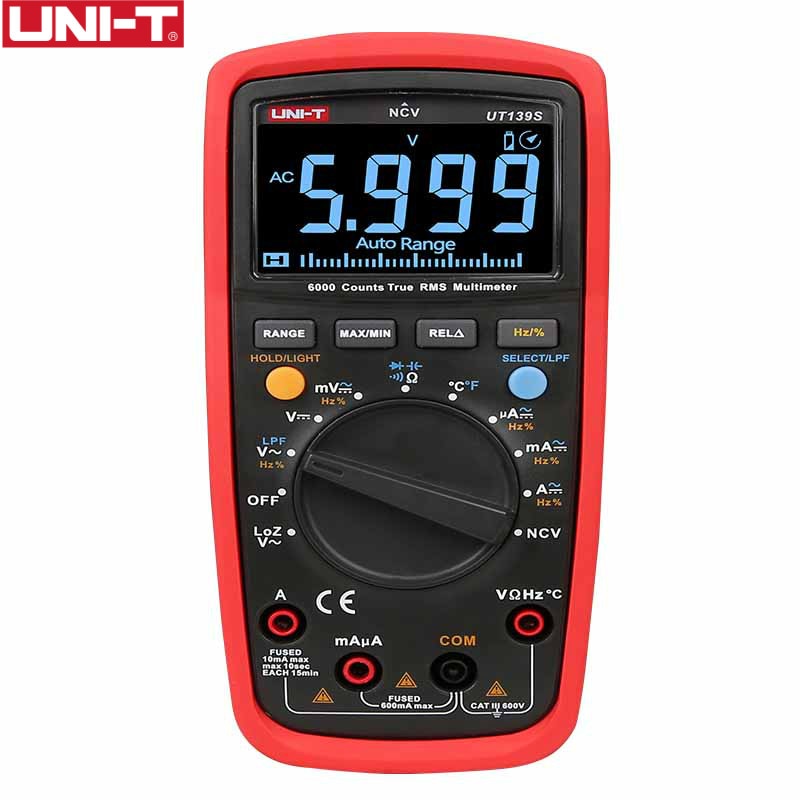

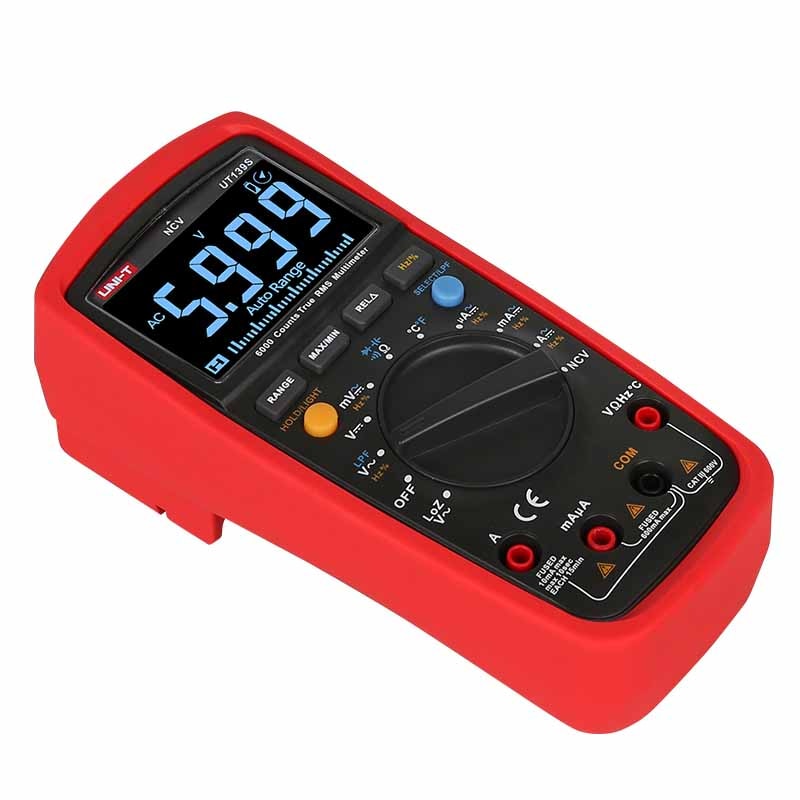

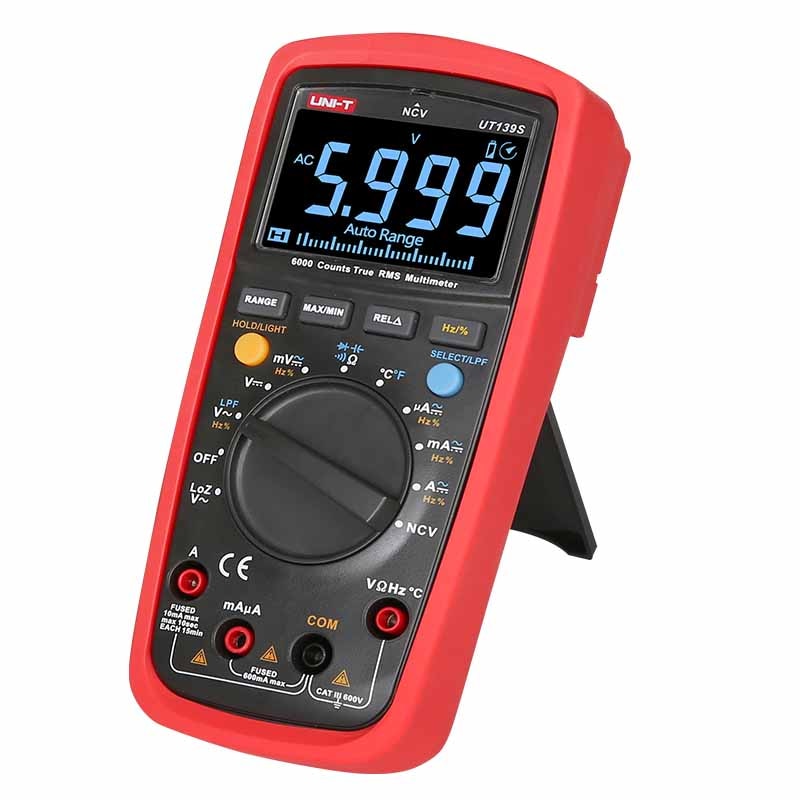

images of UNI-T UT139S True RMS Digital Multimeter Temperature Probe LPF pass LPF (low pass filter) function
1. True RMS
2. NCV
3. Auto and manual ranges selectable
4. LPF (low pass filter) function
5. LoZ (low impedance input) function
6. 31-segment analog bar graph
7. Black EBTN screen
8. Diode, duty ratio and continuity buzzer
| Functions | Range | Basic Accuracy |
| UT139S | ||
| DC voltage (V) | 60mV/600mV /6V/60V/600V | ±(0.5%＋2) |
| AC voltage (V) | 60mV/600mV /6V/60V/600V | ±(0.8%+3) |
| DC current (A) | 600μA/6000μA /60mA/600mA/6A/10A | ±(0.7%+2) |
| AC current (A) | 600μA/6000μA /60mA/600mA/6A/10A | ±(1.0%+3) |
| Resistance (Ω) | 600Ω/6kΩ/60kΩ /600kΩ/6MΩ/60MΩ | ±(0.8%+2) |
| Capacitance (F) | 9.999nF/99.99nF /999.9nF/9.999μF /99.99μF/999.9μF/9.999mF/99.99mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Temperature (℃) | -40～1000℃ | ±(1.0%+4) |
| Temperature (℉) | -40～1832℉ | ±(1.5％+5) |
| Features | ||
| Safety rating | CAT III 600V | |
| True RMS | √ | |
| LCD display | EBTN | |
| Display count | 6000 | |
| LPF (ACV) | √ | |
| LoZ (ACV) | √ | |
| Diode | √ | |
| Continuity buzzer | √ | |
| Duty cycle | √ | |
| NCV | √ | |
| Sampling rate | 3 times/s | |
| Analog bar graph | 31 segments | |
| Range selection | √ | |
| Max/Min | √ | |
| Relative mode | √ | |
| Drop proof | 1m | |
| General Characteristics | ||
| Product color | Red and grey | |
| Product net weight | 345g | |
| Product size | 170×80×48mm | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 40pcs | |
| Standard carton size | 645×450×340mm | |
| Standard carton gross weight | 23.12kg | |
Notice please: battery no include!
