T130 EVAP Smoke Leak Tester
The T130 Automotive EVAP smoke machine leak tester is a professional machine for automotive smoke leak detection, adopted visual smoke test system. By heating up special oil (mineral oil or baby oil) into smoke and blow smoke into sealed pipe system. Quickly locate leaked parts. Reduce the cost of repeating vehicle returns, dramatically reducing diagnostic time.
MR CARTOOL T130 EVAP Smoke Leak Tester Machine Automotive with Oil Level Gauge 12V Dual Mode Smoke EVAP Leak Detector is a one of our T130 EVAP Smoke Leak Tester Tools, you can buy MR CARTOOL T130 EVAP Smoke Leak Tester Machine Automotive with Oil Level Gauge 12V Dual Mode Smoke EVAP Leak Detector from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150
images of MR CARTOOL T130 EVAP Smoke Leak Tester Machine Automotive with Oil Level Gauge 12V Dual Mode Smoke EVAP Leak Detector
【Working Principle】The T130 Automotive EVAP smoke machine leak tester is a professional machine for automotive smoke leak detection, adopted visual smoke test system. By heating up special oil (mineral oil or baby oil) into smoke and blow smoke into sealed pipe system. Quickly locate leaked parts. Reduce the cost of repeating vehicle returns, dramatically reducing diagnostic time.
【Powerful Function】T130 car evap leak detector equipped with air flowmeter to observe the current airflow volume for better control the smoke effect. T130 smoke machine EVAP leak tester adopted dual mode design (smoke mode& air mode) and alarm indicator to help control easily. And ready for diagnosis and maintenance at any time.
【EVAP System Supported】 Comes with EVAP special connector, it can help you apply with EVAP system of all vehicles, including auto, off-road, ATV, light trucks & speedboats. Connects T130 Fuel Pipe Leak Detector to the car's EVAP access port, then produce smoke. You will find out to leak point in piping where smoke come out. Please repair the leakage.

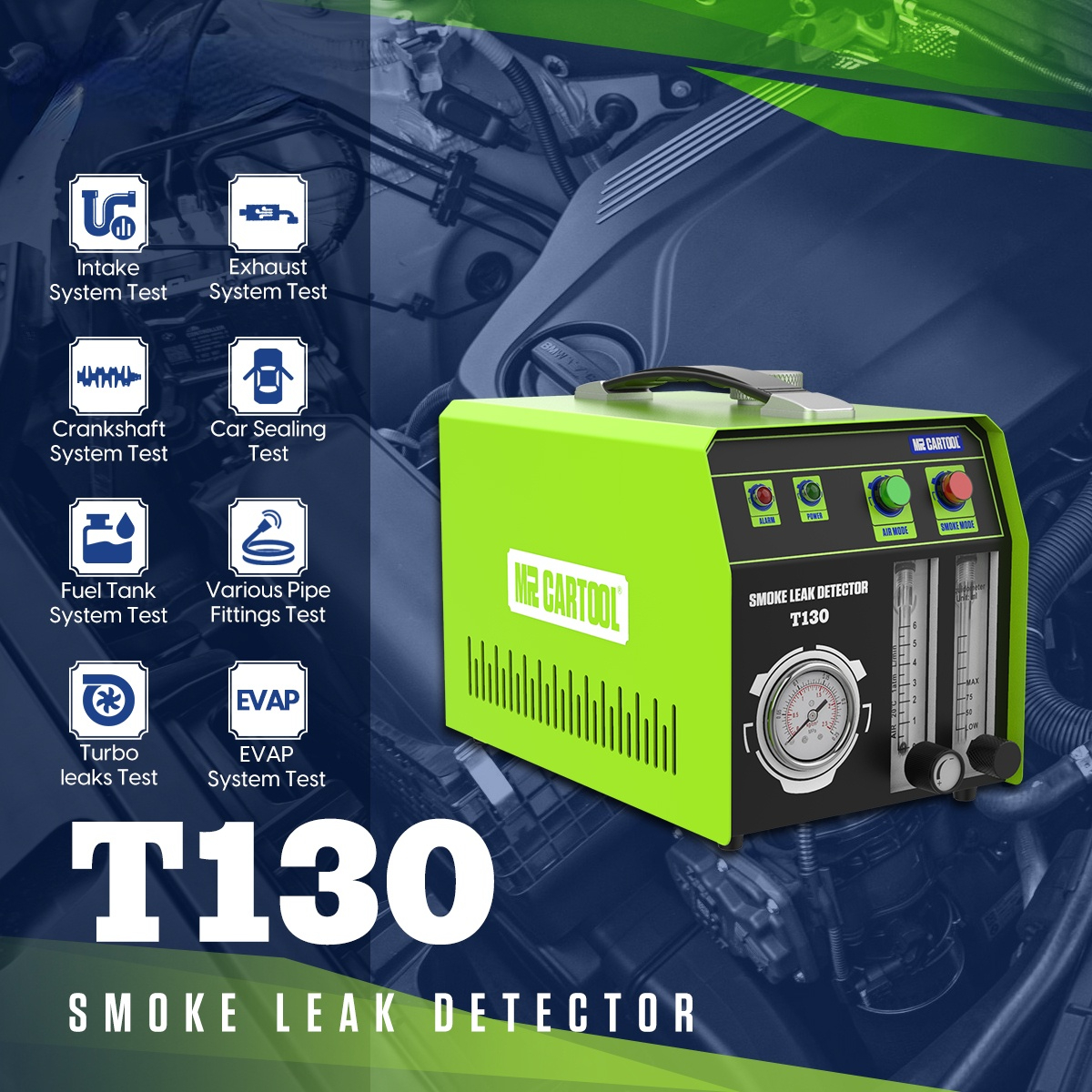

【Multiple Test Functions】The evap smoke machine leak tester supported Intake System Test, Exhaust System Test, Crankshaft System Test, Car Sealing Test, Fuel Tank System Test, Various Pipe Fittings Test and Turbo leak Test. Equipped with an oil level meter to observe the current test oil volume. And with an oil drain port to recover the remaining test oil after the testing.
【After- Sales Service】 We offer 2 years warranty according to the specific type of the fault. You don’t need to buy an extended warranty service again. We guarantee that all the parts, accessories and device for replacement are brand new. 24 hours E-mail supports can help to resolve any issues of using.
Main Features:
1. More directly, accurate and faster than traditional leak detection methods such as soap bubbles and throttle cleaners.
2. Adopting smoke generator technology facilitate smoke stability and large amount output.
3. Built-in air pump, ready for testing and maintenance.
4. Compact, lightweight design allows for any placement of machine for work.
5. Test oil is non-toxic and non-corrosive.
6. The air pump can be regulated separately.
7. The smoke generator can be regulated separately.
Multiple Test Functions:
EVAP System Test: T130 automotive pipe leak detection machine can test the leakage of fuel evaporation in the EVAP system.
Tightness Test : T130 vacuum smoke leak detector automotive can test the tightness and leakage of the tested pipeline under system pressure.
Exhaust System Test: T130 EVAP vacuum smoke machine tool can test the air tightness and damage degree of the pipes in the exhaust system.
Intake System Test: T130 EVAP smoke machine leak tester can test the air tightness and damage degree of the pipes in the intake system.
(Note: Not applicable to air conditioning system piping)

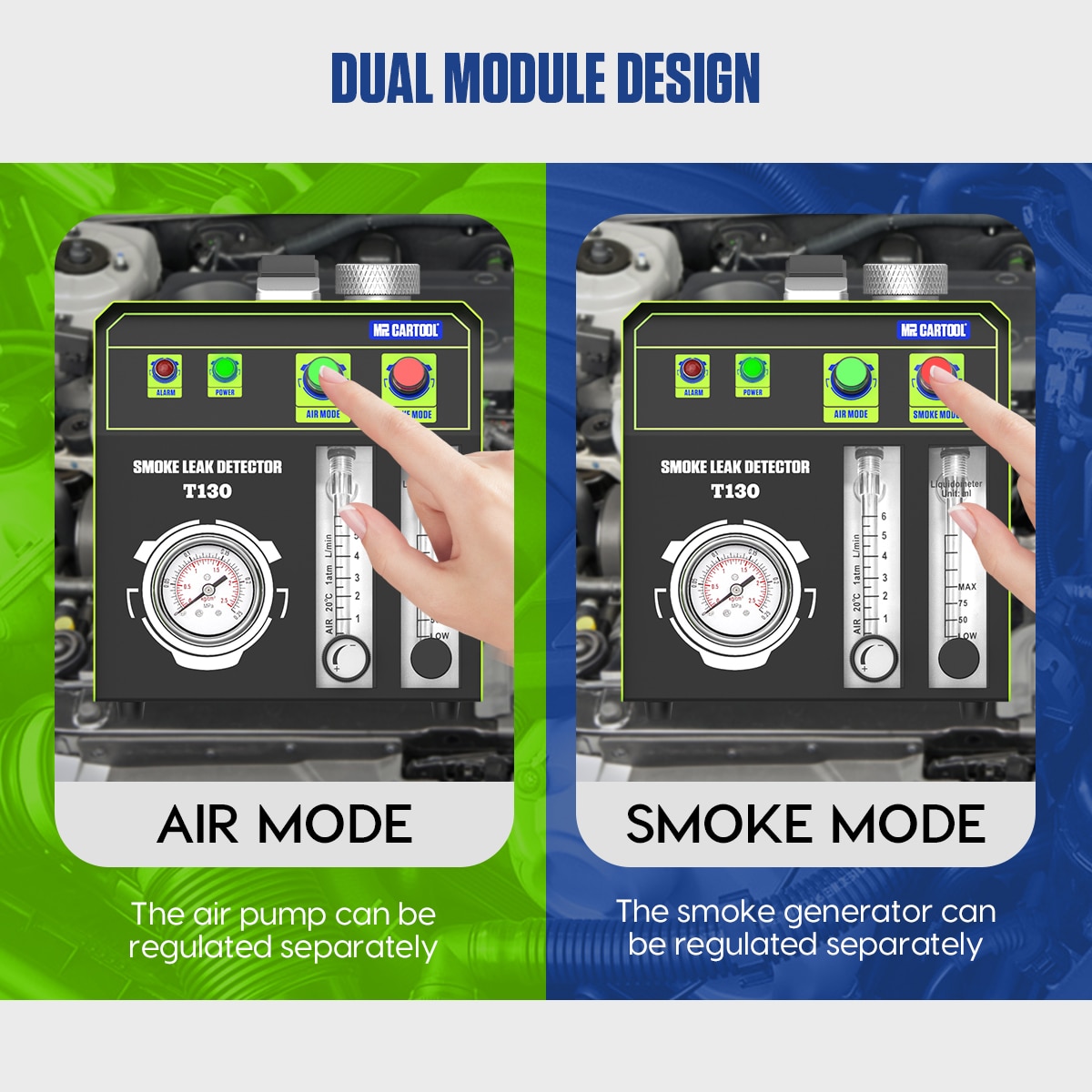

Dual Mode Design:
Air Mode: The air pump can be regulated separately.
Smoke Mode: The smoke generator can be regulated separately.

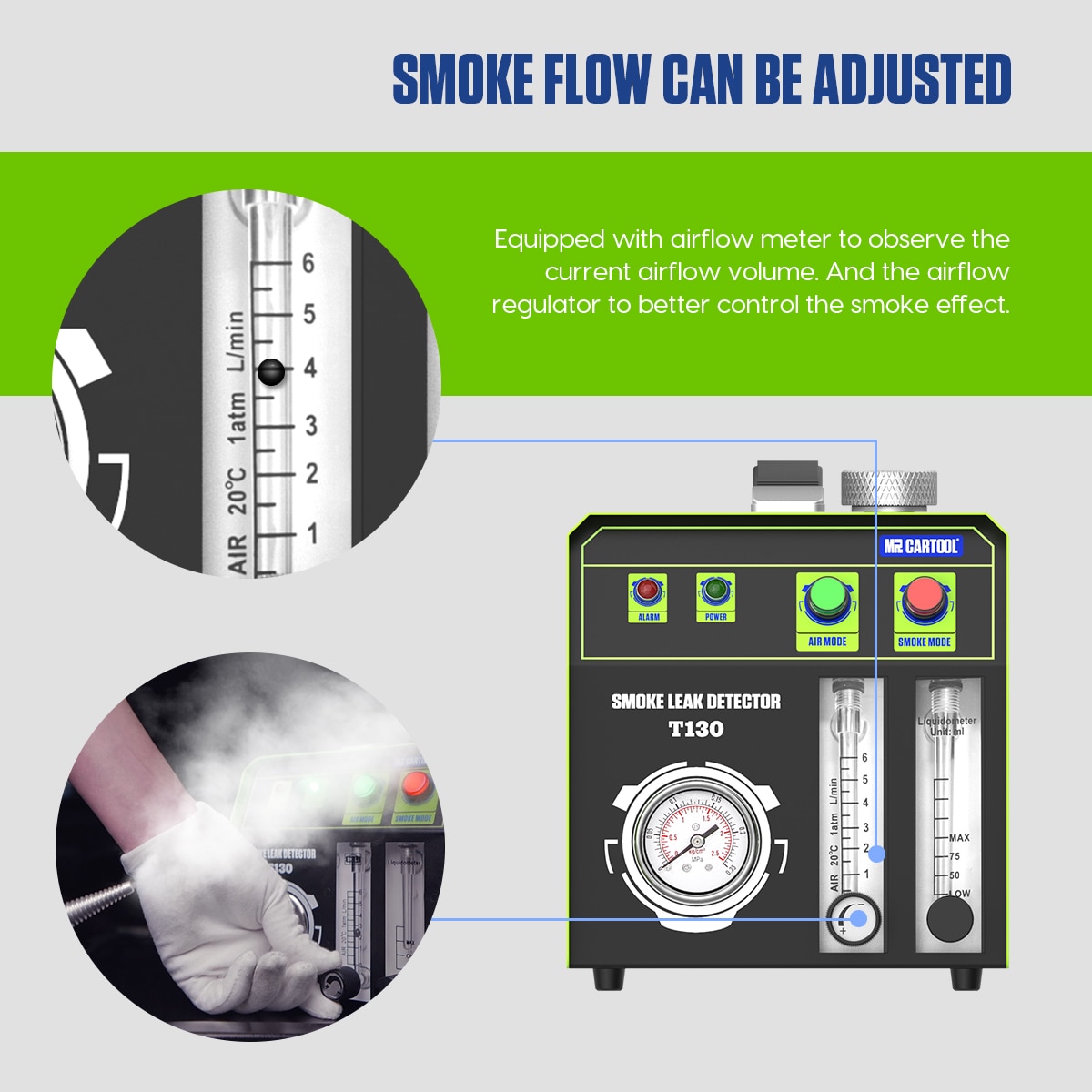

Smoke Flow Can be Adjusted
Equipped with airflow meter to observe the current airflow volume. And the airflow meter regulator to better control the smoke effect.

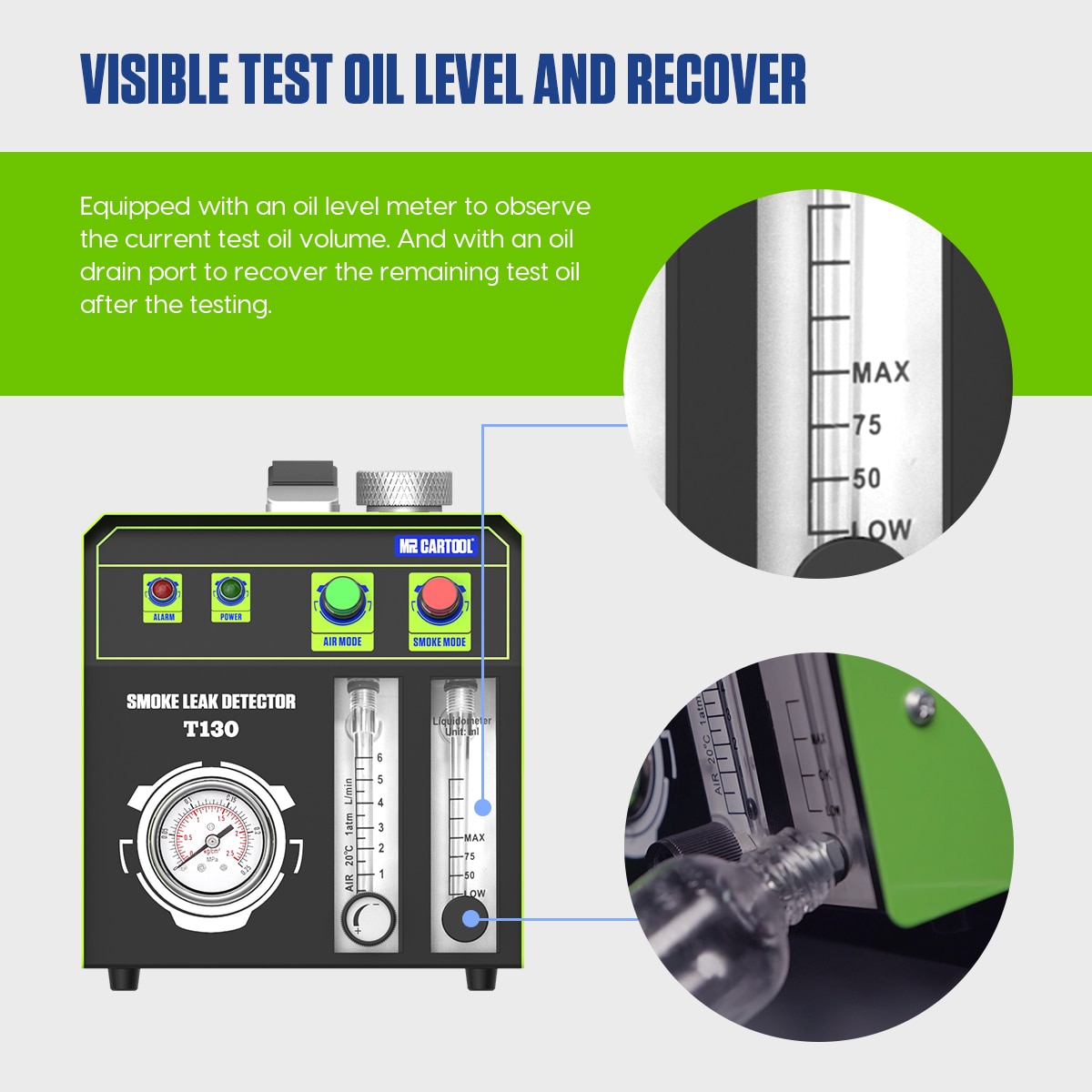

Visble Test Oil level and Recover
Equipped with an oil level meter to observethe current test oil volume. And with an oil drain port to recover the remaining test oil after the testing.
Wide Range Of Application
For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, AT Vs, light trucks and speedboats. Suitable for all car models.

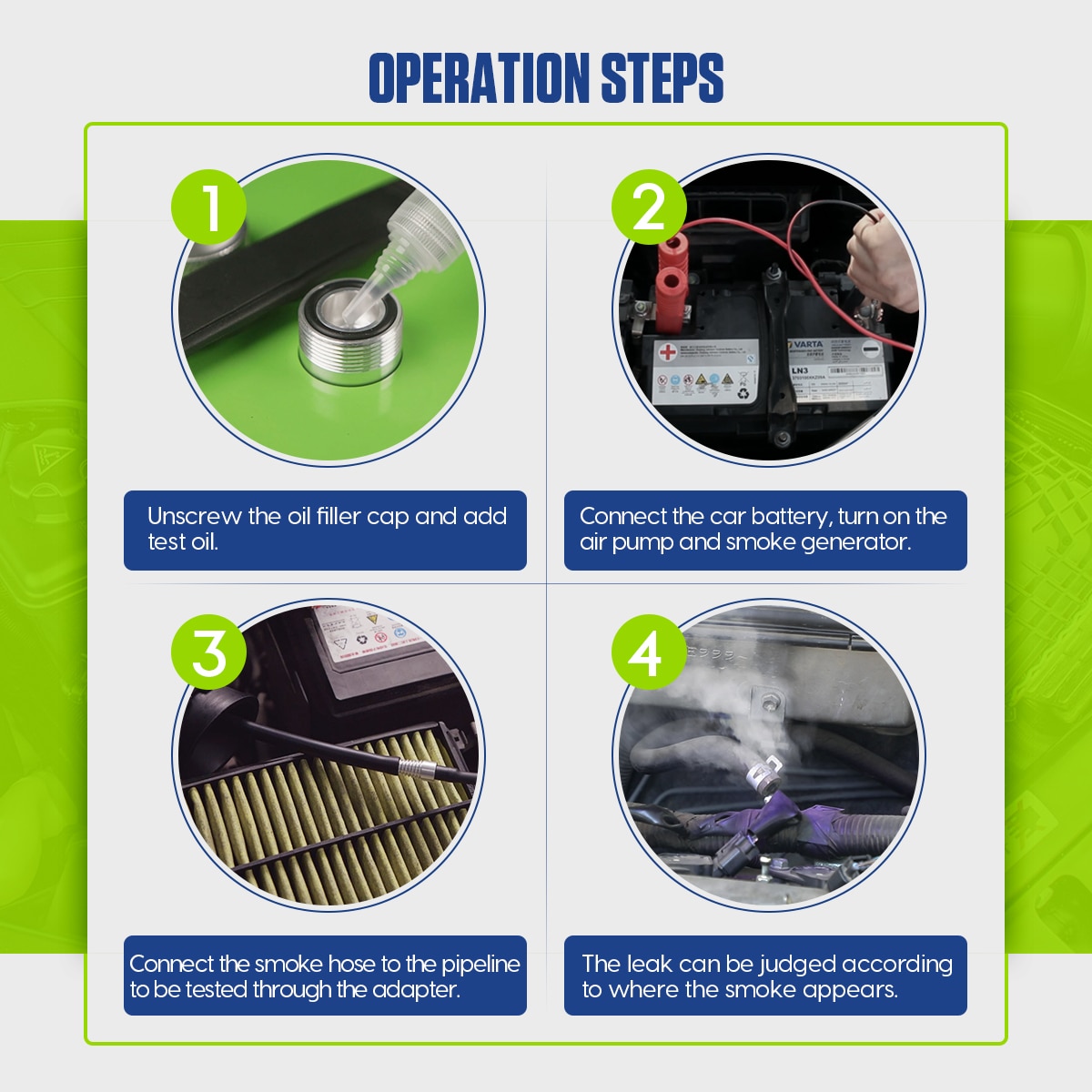

How to do leakage test ?
1. Unscrew the oil filler cap and fill it with10ml baby oil into the detector for the first time.
2. Connect the car battery, then turn on the air pump and smoke generator.
3. Connect the smoke hose to the pipeline to be tested through the adapter.
4. In about 10 seconds, the leaks can be found according to where the smoke appears.
With Handle Design:
Exquisite and compact design eliminates the need to worry about the inconvenience of carrying the smoke leakage diagnostic device to go out, greatly improving the convenience.

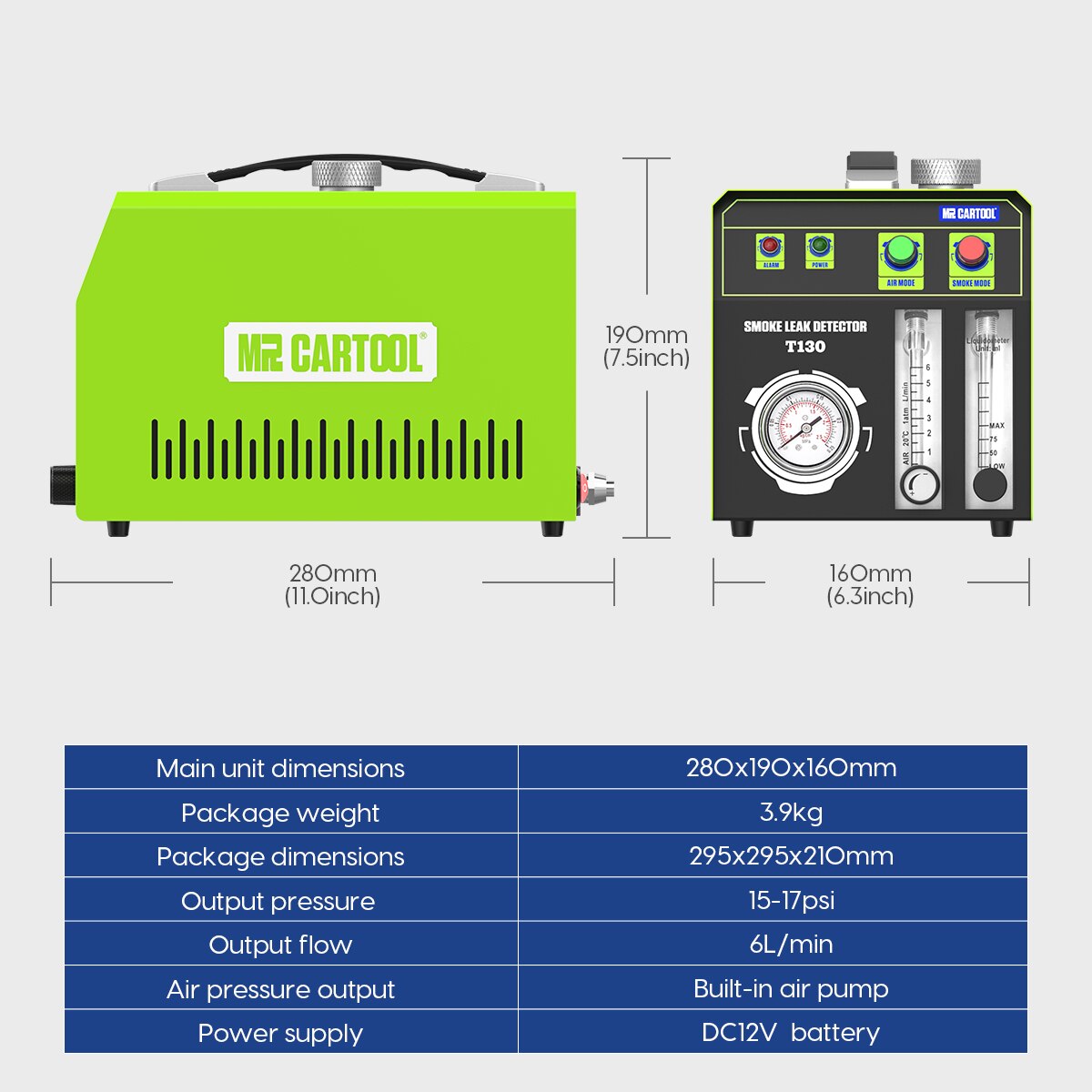

Specification:
Output pressure: 15~17Psi
Output flow：6L/Min
Power supply：12V
Air source：Built-in
Test oil capacity: 15ML
Package weight: 3.9 KGS/8.6 LBS
Air Pressure Output: Built-in air pump
Dual Modes: Smoke mode & air mode
Dimensions of the Main Unit：160x280x190mm/6.3x11.02x8.6inch
Package Size：295x295x210mm/11.61x11.61x8.27inch
Test Oil: Mineral oil or baby oil (Not included)
Multi Protections: Oil outlet, power switch and over-heat protection
Overheat & Anti-frost PROTECTION: Overheat Protection: 80℃, Anti-frost Protection: -15℃
