SEC-E9 is a all-in-one key cutting and duplicating machine. Its embedded 8-inch tablet eases the machine use dramatically. Thanks to the built-in decoder and key reading capability, it's the machine that is suitable for key duplicating as well as creating key from bitting.
2019 Latest SEC-E9 CNC Automated Key Cutting Machine with Android Tablet Get Free Ford Tibbe Jaws FO21 Clamp is a one of our SEC E9 Reviews Tools, you can buy 2019 Latest SEC-E9 CNC Automated Key Cutting Machine with Android Tablet Get Free Ford Tibbe Jaws FO21 Clamp from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150
images of 2019 Latest SEC-E9 CNC Automated Key Cutting Machine with Android Tablet Get Free Ford Tibbe Jaws FO21 Clamp
SEC-E9 CNC Automated Key Cutting Machine Get Free Ford Tibbe Jaws FO21 Clam
SEC-E9 Description:
SEC-E9 portable metal desktop air cooling fully automatic smart key cutting machine is able to cut standard keys and high security keys, such as BMW, VW, HONDA, OPEL,etc, SEC-E9 also supports to cut house keys, including dimple keys, tubular keys, single standard keys and motorcycle keys. Ford Tibbe keys and LDV keys are available to cut. SEC-E9 is a good choice for locksmith since you do not need to buy other small key cutting machines for house keys, just need to buy the corresponding clamps for different key types. Moreover, SEC-E9 can cut a new key without original key. It is the main difference from the traditional manual key cutting machine.
Top 10 Reasons to Get SEC-E9 CNC Automated Key Cutting Machine:
1. Latest Version: V16.0.0.3 Newly added key data includs: Scion, Toyota, Lexus, Renauit, Nissan, Acura, Subaru, Chrysler
2. Can directly search key bitting nuMBer by key code for some keys. No need to search from Instacode
3. Support all key lost, can cut a new key by bitting nuMBer
4. Multi-Language: English, Spanish, French, German, Italian, Korean, Portuguese, Russian, Turkish, Czech.
5. Can cut veritcal milling, flat milling, internal milling and external milling.
6. Work on Car, Truck, Motorcycle, House Key, Dimple & Tubular Keys, cut automobile keys,motorcycle keys ,dimple keys, tubular keys, and single-sided standard keys.
7. Can cut Tibbe keys and LDV keys
8. Auxiliary Clamp is available
9. CE Approved
10. Free Update Online
SEC-E9 Key Cutting Machine Newly Update(2018-12-10)
Software version is 16.0.0.3, Database version is 15.16.
Newly added key data includes:
1. YM23 8-cut（IC card 1896）key
2. FIAT 500L key and key code
3. ONDA motorcycle CB150 key
4. Oldsmobile, Mahindra, maruti key and key code
Improved key data includes:
1. Improved Hyundai,Kia,Toyota menu: add new choices of manufacture year in and after 2015.
2. Hyundai,Kia,Toyota key and key code
3. HONDA（IC card 982）key code
4. Mitsubishi,Maserati,Chevrolet key code
Two ways to enter key data:
1. Search car manufacturer, model and manufacture year
2. Search key blank or IC card
Three ways to get key cuts:
1. decode original keys
2. Input key cuts
3. Search key code
SEC-E9 CNC Automated Key Cutting Machine Features:
Built-in database, support key missing teeth inquiry;
Light weight, small size, easy to work out;
Equipped with two spindle belts, decoder and cutter;
Interpretation and cutting can be completed at one time;
Support plain milling key, face milling key, Allen key(F021), Stiletto key andCylinders key;
Repair the wear keys to recover the original precision.
Quick Function of SEC E9:
Key data search
Key cutting history
Frequently used key data registration
Last key
Clamp calibration
Tool length calibration
Automatic setting of clamp origin
Checking calibration value
SEC-E9 Key Cutting Machine Car List:
Acura/Alfa Romeo/Aston Martin/Auti/BMW/Bentley/Buick/Cadillac/Carryboy/Chevrolet/Chrysler/Citroen/Dacia/Daewoo/Daihatsu/Dodage/Eagle/Ferrari/Fiat/ Ford(Australia)/Ford(Europe,USA)/Fuso Trucks/GMC/Hino Truck/Holden/Honda/Hummer/Hyundai/Infiniti/Isuzu/Iveco/Jaguar/Jeep/Kia/LDV/LaMBorghini/
Lancia/Land Rover/Lexus/Lincoln/MAN Trucks/Mack Trucks/Maserati/Mazda/mercedes/Mercury/Mini/Mitubishi/Neiman/Nissan/OPEL/Peugeot/Plymouth/
Pontiac/Porsche/Range Rover/Renault/Rolls Royce/Rover/Saab/Saturn/Scania/Scion/Seat/Skoda/Smart/Ssangyong/Subaru/Suzuki/Tata/Toyota/Triumph/
Volkswagen/Volvo/Volvo Trucks
SEC-E9 Key Cutting Machine Household Key List:
AGA/ASSA/ATP/AXA/Abloy/Absa/Abus(SD)/Ace/Alpha/American Padlock/Anchor/Anker/Ankerslot/Atal(SD)/Atala/BAB/BKS/BMB/BTV/Basta/Batu/
Bauer/Bellville/Beram/Best/Beta/Brabantia/Briggs&Stratton/Brisant/Burg/CES(SD)/CIB/CL/Caver/Chicago(SD)/Chubb/Cisa(SD)/City/Clausor/
Colomenca/Corbin(SD)/CorbinRusswin/Corni/Cyber Lock/Dad/Detex/Diebold/Difi/Diplomat/Doblina/Dom(SD)/Dorma/Dubois/E-Z-SET/ERA/Elgin/Emhart/Emka/Etna/Eurolocks/Eurospec/Evva/FAB/FB/FFFacchinetti/FPB/FTH/Falcon/Fama/Feb/Flambo/Fort(SD)/Fral/ GEGE/GHE/GSA/Gete/Goa/GuLi/Guard/GuervilleRiquier/Hafele/Henkna/Hobes/Hon/Hudson/Hurd/Huwil/IFAM/Ideal/Ikea/Iseo(SD)/ JCB/JPM/JinDianYuanZi/Jore/Junkunc/Padlock/Kaba(SD)/Kale/Kasp/Keiper/Kiferm/Kwikset/LaFonte/Lane/Las/Legge/Lips(SD)/Lista/ Litto/Lockwood/Lowe&Fletcher(SD)/MCM/MEFA/MLM/Marco/Marks/Master/Mauer/Maxus/Merit/Meroni(SD)/MetalRousseau/ Mippart/Miwa/National/Neiman/Nemef/Nobo/Norwalk/ODA/Omec/PYCM/Papaiz/Penn/Pfaffenhain/Prefer/Presta/Protec/QLP/ Riople/Ronis(SD)/Royal/Ruko/Runo/Russwin/SOS/STA(SD)/Sama/Santos/Sargent/Sargent&Greenleaf/Schlage/Securemme/ Securicraf/ShangHaiQiuJing/Showa/Siam/Sofi/Sperrkolb/Squire/Strafor/Strattec/Sul/Talon/Technal/Teka/Technal/Teka/Teknion/ Terca/TesaThomee/Touch/Trelock/TriMark/TrioVing/UAP/Unifor/Union/VIP/Vachette/Vario/Veronelli/Vinco/Viro/Weiser/Weslock/
Whitco/Wigro/Wilka(SD)/Wilmont Breeden/Winkhaus(SD)/Yale(SD)/YueMa/Yvel/Zadi(SD)/Zwiss-Ikon
SEC-E9 Punch Key List
AGA/AGB/Abloy/Abus/Alpha/Atal/Atra/Avocet/Azbe/Baton/Bricard/CES/CVL/Cadman/Cays/Chubb/Cisa/Corbin/DOSSIV/DOM/Domus/
Esety/Ezcurra/FAC/FAG/GTV/Gerda/Goal/IFAM/Iseo/Kada/Kaken/Kale/Keso/Lince/Lips/Lock Focus/Lockman/M&C/M-loy/MCM/MLS/Magnum/Master/Mauer/Miwa/Mottura/Mul-T-Lock/Omec/Pfaffenhain/Potent/Royal/Guardian/STS/Securemme/Showa/Space/Squire/Tecon/Tesa/UCEM/Viro/WanJia/West/Wika/Winkhaus/Yale/Yardeni/Zadi
SEC-E9 Motorcycle Key List:
Aprilia/BMW Cycles/Ducati/Harley/Davidson/Honda Cycles/KTM/Kawasaki/Kymco Cycles/Moto Guzzi/Peugeot Cycles/Suzuki Cycles/Victory/Yamaha
SEC-E9 Tubular Key List:
AGA/Beaver/Bilma/Bumil/Chicago/Dynaconsult/Fort/LYF/Lowe&Fletcher/Meroni/R.O.C/Ronis/SAG/Sentry
SEC-E9 Automated Key Cutting Machine Specification:

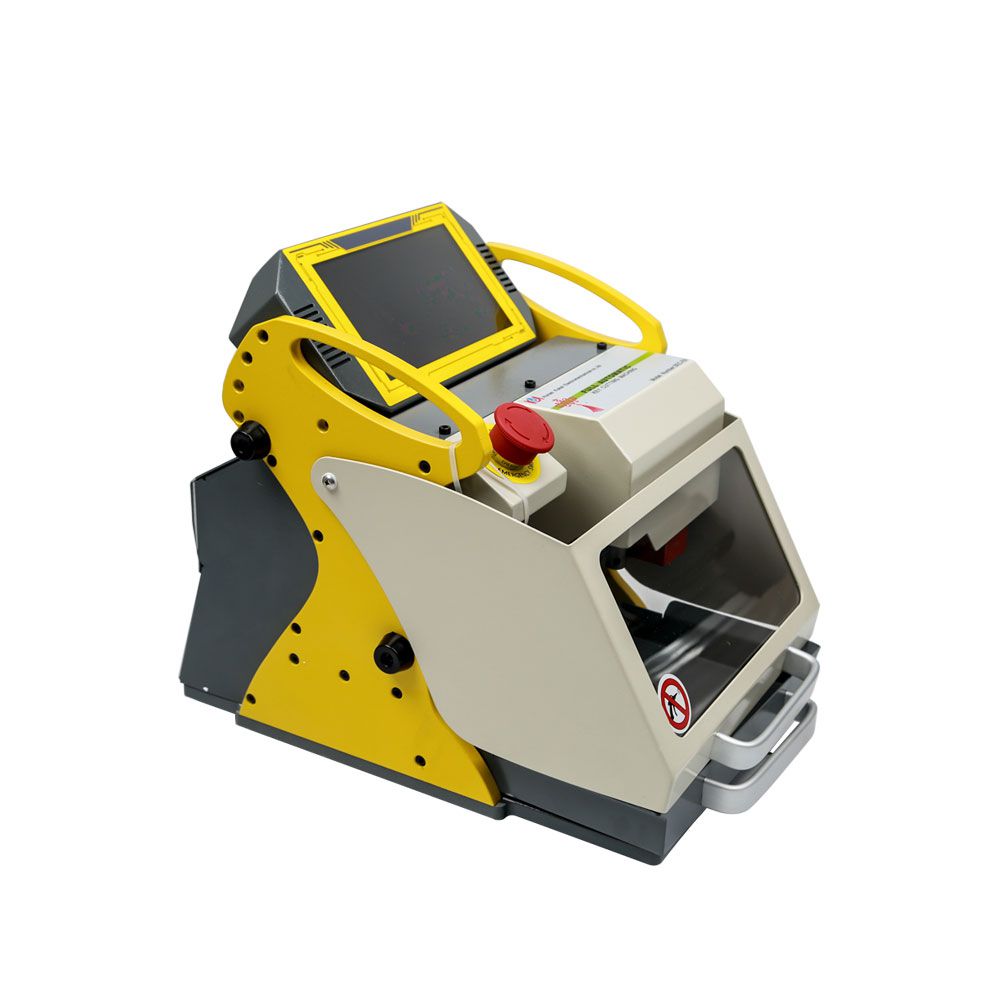

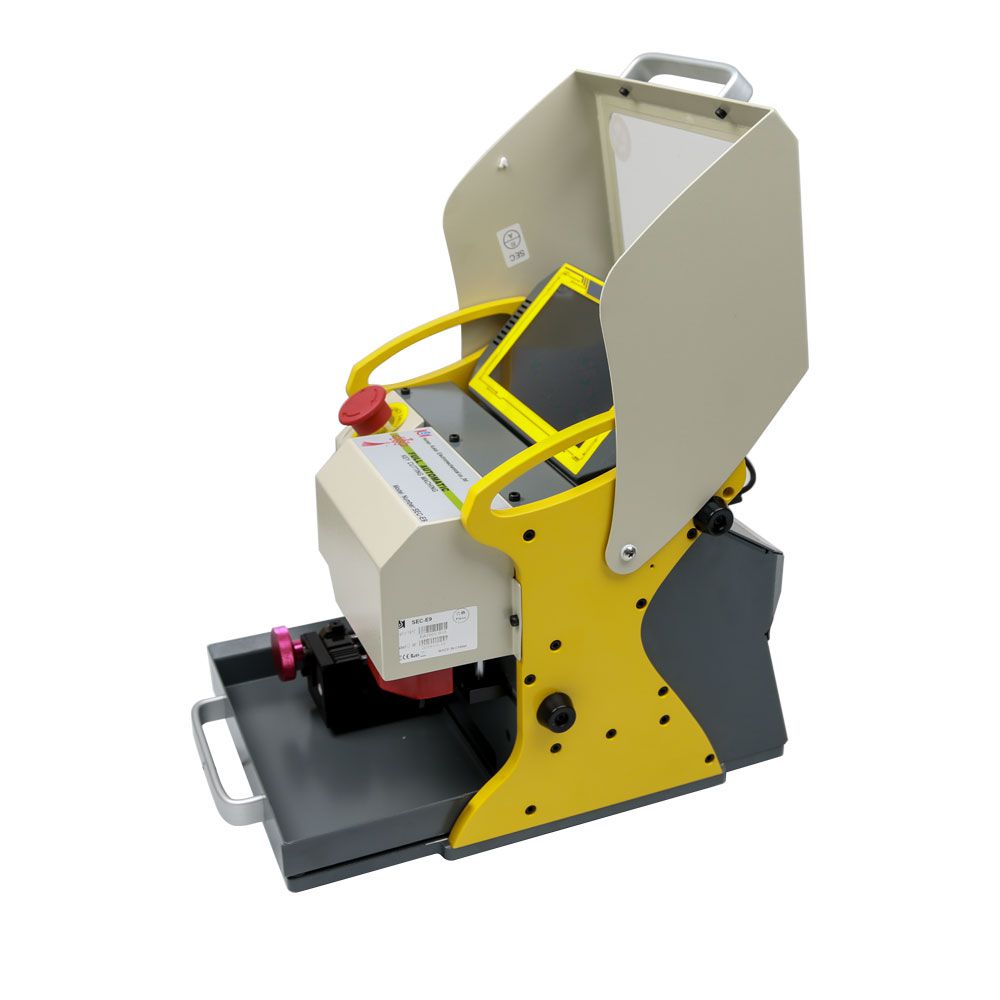

Product name: SEC-E9 Fully Automated Key Cutting Machine
Product No.: SEC-E9
Dimension: 255(W) * 360(H) * 340(D)m
Weight: 19.5KG
Resolution: XY: 0.005mm Z: 0.0015mm
Spindle Revolution: 16000+rp
Temperature: 0- 40
Humidity: 10-90
Usage : The duplicating and cutting of automobile keys and domestic key
1. Click ”Setup”
2. Click”Wifi”
3. Connect Wifi
4. Press ”UpdateCheck” after the wifi is connected successfully.
( Please notice that you just need to click the ”UpdateCheck” once, no need to click it repeatedly)
5. Click ”Upgrade” button
6. After upgrading successfully, the tablet PC will automatically jump to the main page.
Notice
1. Please keep the Wifi conncted when upgrade
2. Please keep the network smooth
3. Please do not turn off tablet PC when upgrading
4. Please do not operate the tablet PC when downloading the upgrade files.
5. Please disconnect Wifi after upgrade is done. ( otherwise the system will generate garbage when tablet PC updates automatically . Also cause the system to run slowly.)
Difference Between SEC-E9 Machine Gen I to Gen VI Difference:
SEC-E9 Key Cutting Machine FAQs:
Q: Can the SEC-E9 machine cut household keys?
A: definitely yes!
Q: Condor mini cannot support the moto key; SEC-E9 support that?
A: Yes,SEC-E9 can cut motorbike keys without issues.
Q: What’s the different between Condor key cutting machine and SEC-E9?
A: SEC-E9 can cut motorcycle keys and household keys that Condor cannot support.
SEC-E9 Key Cutting Machine Reviews:
Reviews 1:
SEC-E9 key cutting machine is used for cutting car keys and household keys. It covers cylinder and laser keys with adapters for other key styles.Computerized Electronic Automobile Key Cutting Machine, different with traditional key cutting machine,easy to operate and copy.
Reviews 2:
Sec-e9 fully automatic key cutting support cut 99% car keys, including standard keys and high security keys, such as BMW, VW, Audi, mercedes, Honda, OPEL,etc. It also supports to cut house keys, including dimple keys, tubular keys, single standard keys and more.Mainly applied to automobile key cutting and duplicating, especially for most foreign car key blanks(including ford tibbe), and household keys, standard key(edge or doubled-sided non laser keys),

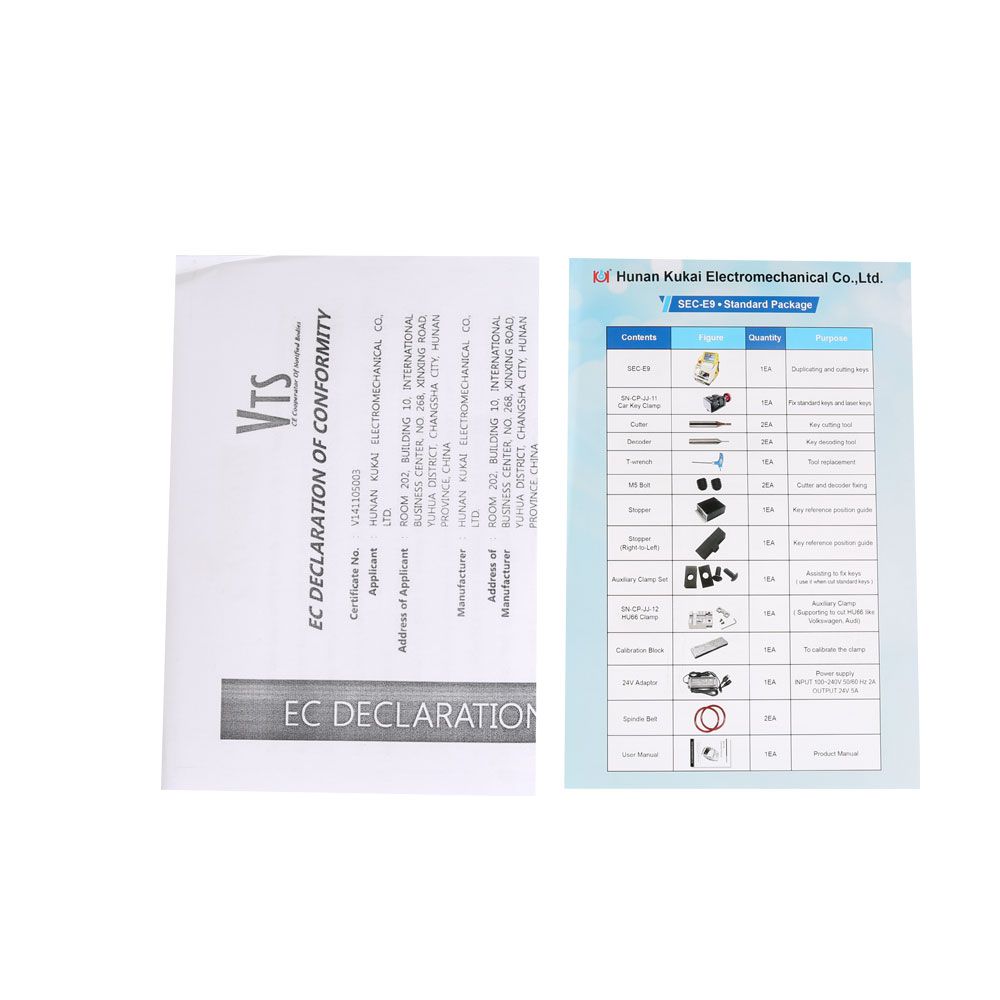

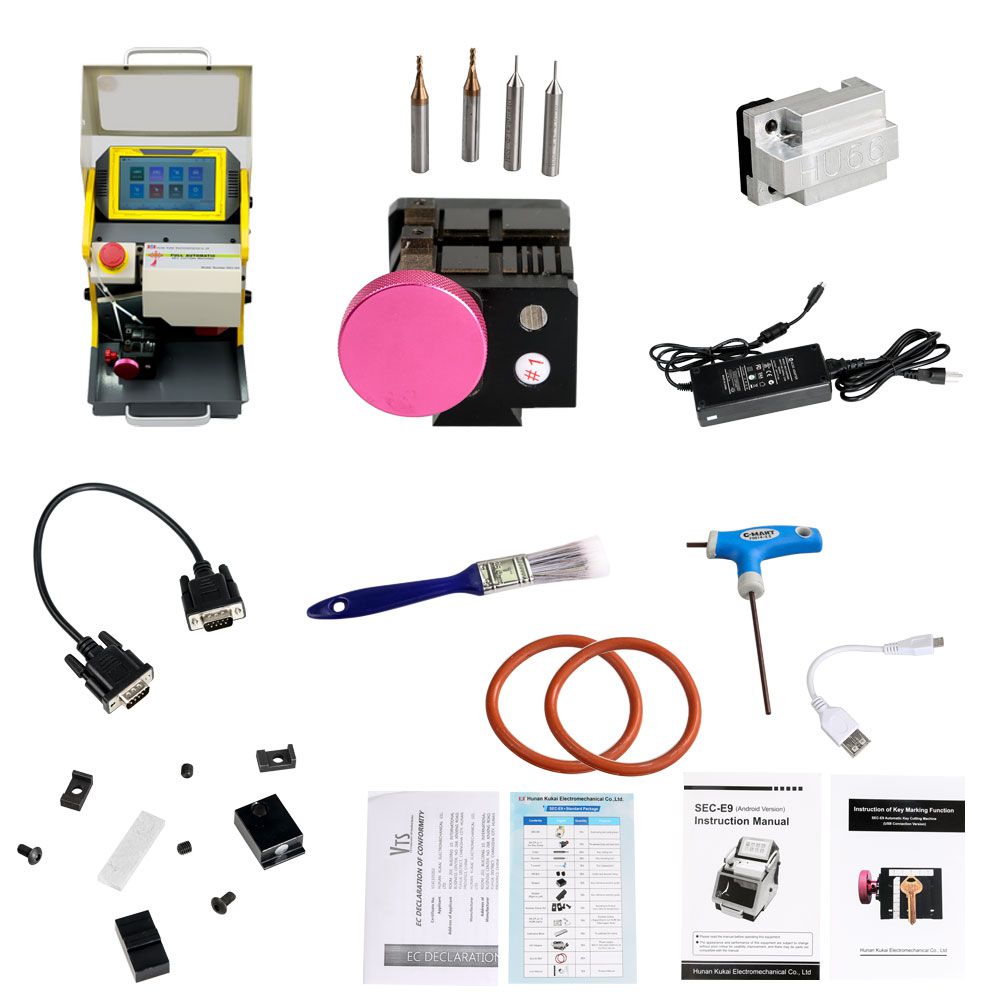

SEC-E9 Key Cutting Machine Standard Package
| Contents | Purpose |
| SEC-E9 Key Cutting Machine | Key cutting and duplication |

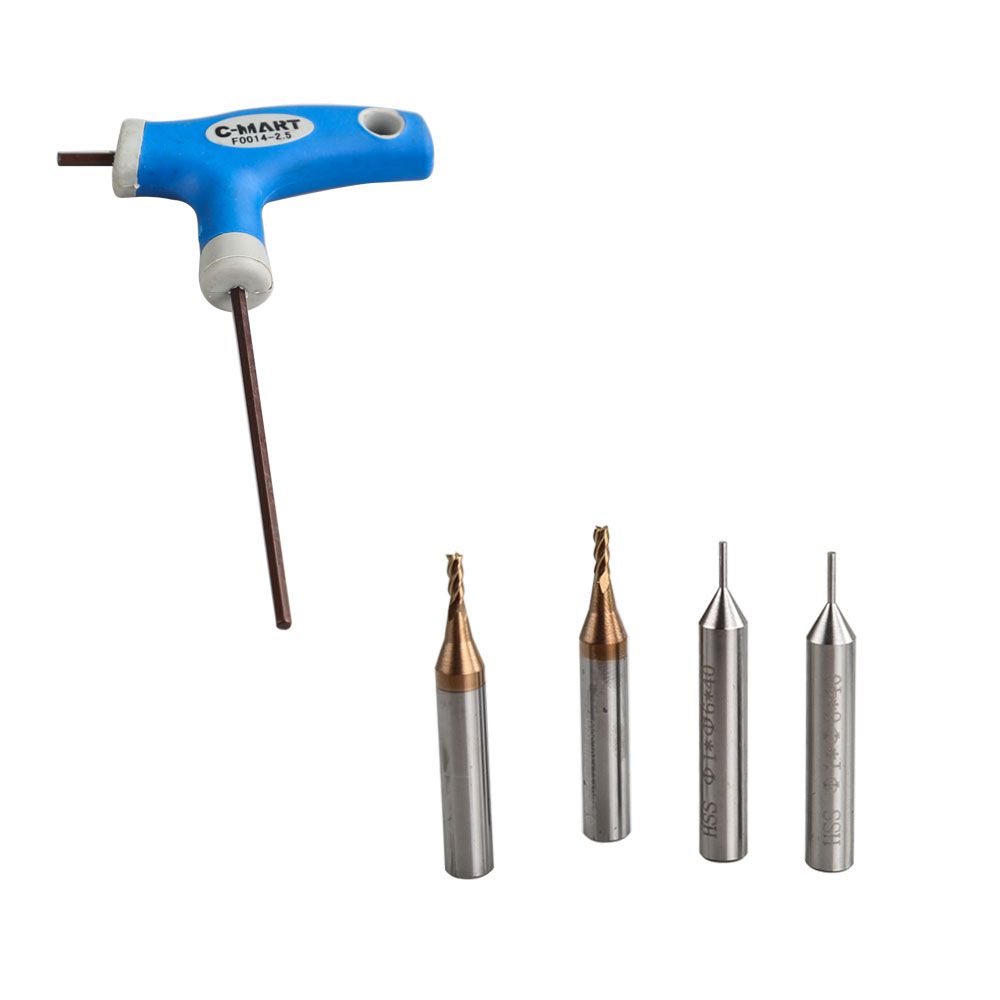

| Cutter | Tool for key cutting |
| Decoder | Key decoding(copying) |
| T wrench | Tool replacment |

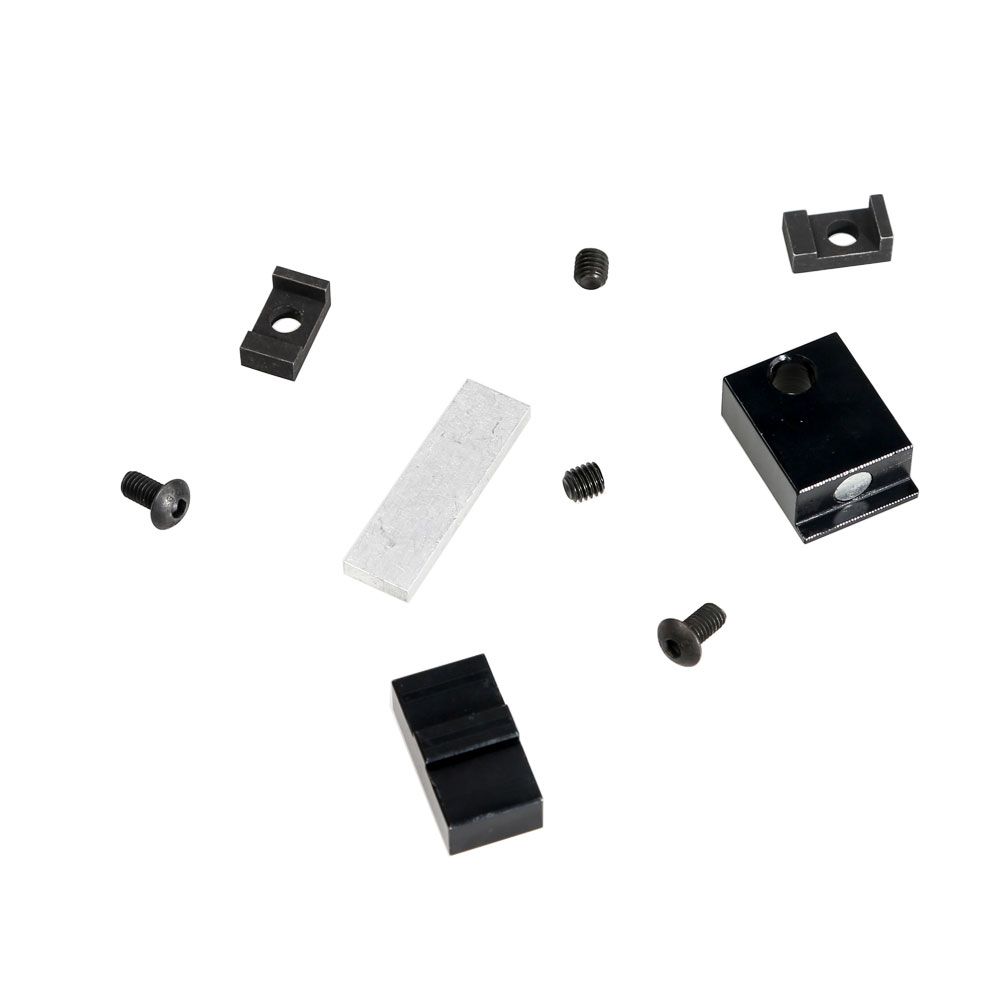

| M5 bolt | Cutter and decoder fixing |
| Stopper | Key reference position guide |
| Auxiliary clamp SX9 clamp | Key help fixing |
| Calibration block | To Calibrate the clamp |
| 24V Adapter | Power supply input 100-240V 50/60Hz output 24.OV 5A |
| Spindle belt | Ensure high-torque key cutting |
| User manual | Product Manual |
SEC-E9 Optional Parts:

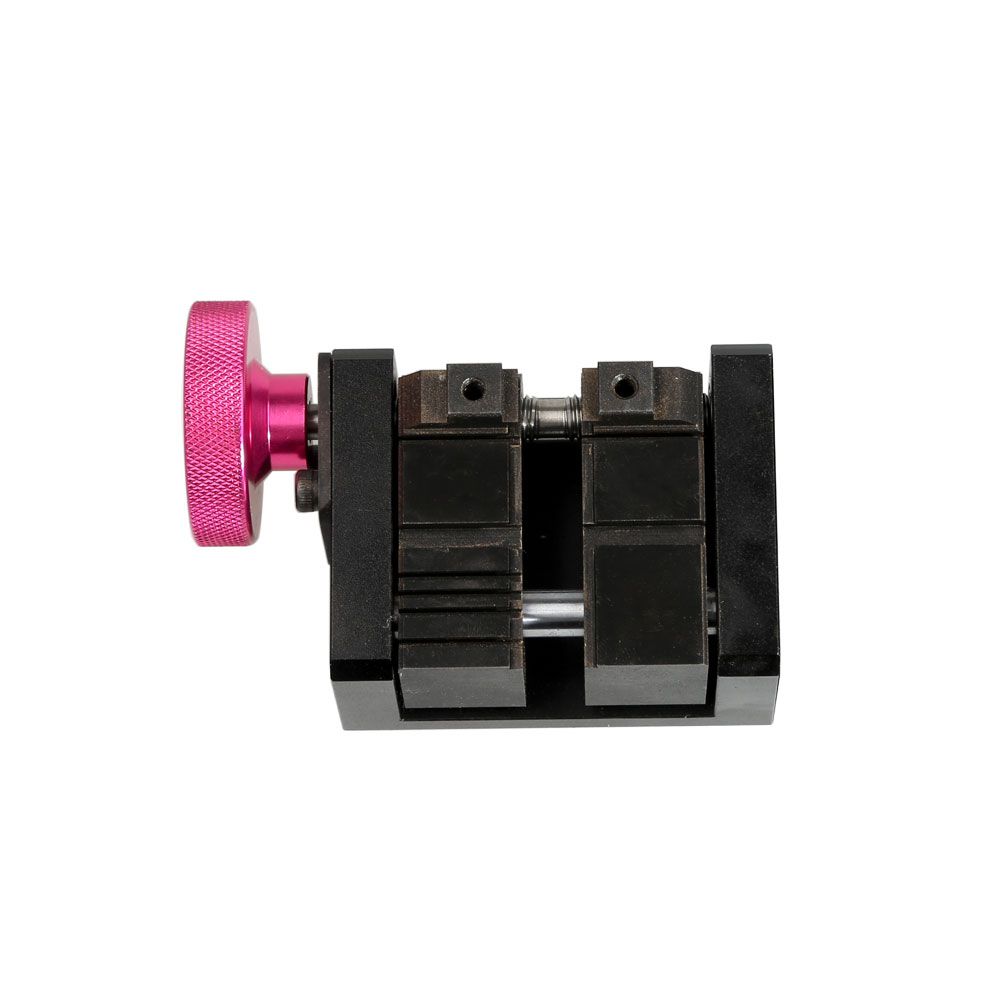

Different kinds of key clamps for SEC-E9 Key cutting machine optional. You just need to install the corresponding clamps for different key types, no software is needed when replacing the clamps. Automabile key clamp is included in the standard specification
| Item No. | Model | Clamp | Function |

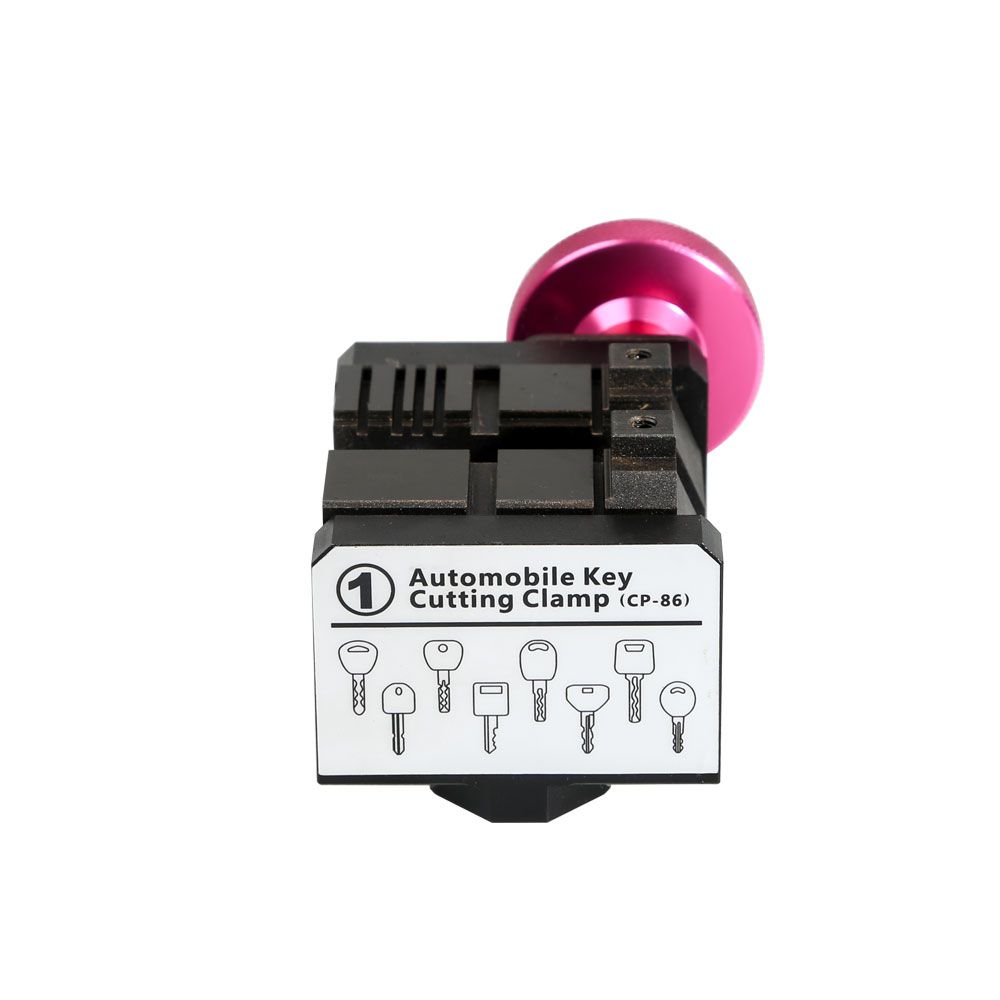

| SL433-1 | SN-CP-JJ-01 | Standard Clamp | cutting car keys |
| SL433-2 | SN-CP-JJ-02 | Dimple House Key Cutting Clamps | cutting dimple house keys, dimple key cutter and decoder are requested |
| SL433-3 | SN-CP-JJ-03 | Single-sided Standard Key Clamp | Cutting Single Standard House Keys |
| SL433-4 | SN-CP-JJ-04 | Tubular Key Clamp | Cutting Tubular House Keys |
| SL433-5 | SN-CP-JJ-05 | Ford Tibbe Jaws FO21 Key Clamp | Cutting Ford and Jaguar Keys |
| SL433-6 | SN-CP-JJ-06 | LDV FO19 Clamp | Cutting LDV Car Keys |
| SL433-11 | #11 | HU64 Clamp | for Benz C series, E series, GLK series, Linear,Viano and all imported Benz Maybach |

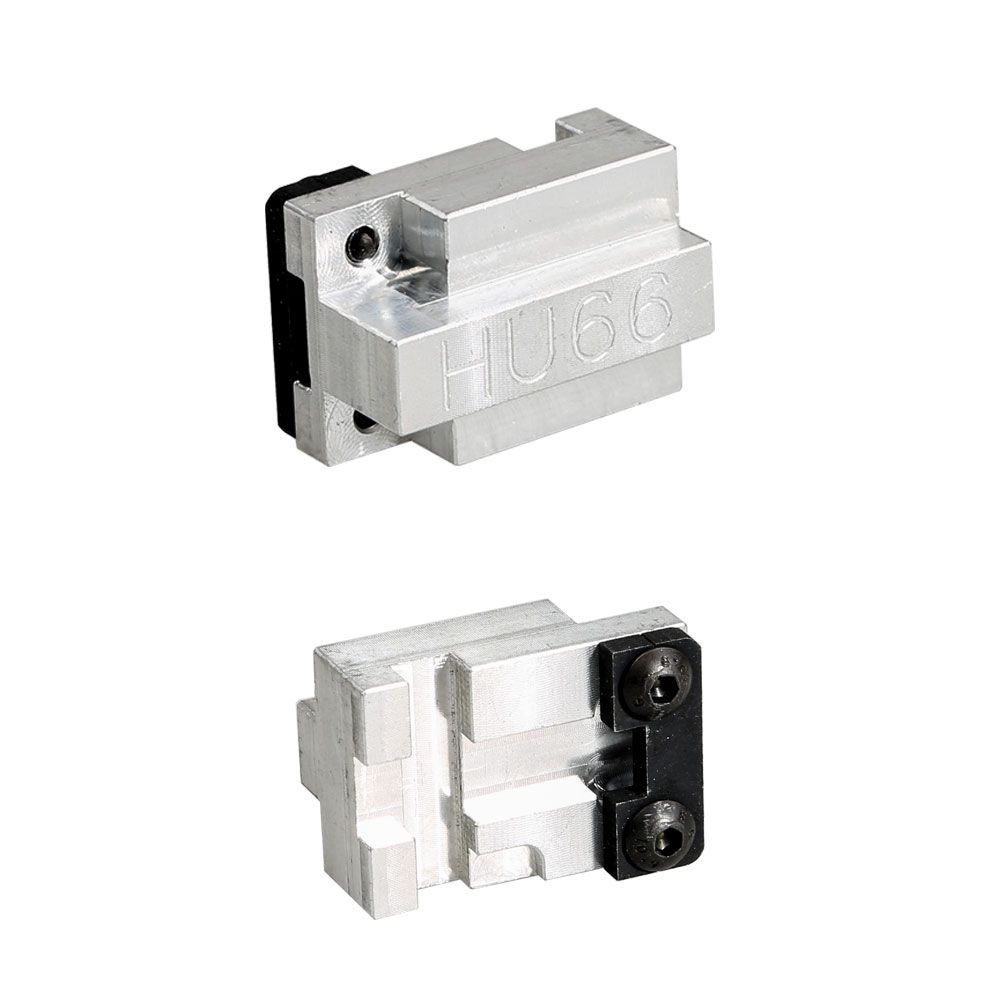

| SL433-12 | #12 | HU66 Clamp | for Sharan sharp way, Volkswagen phaeton,Beatles and other Volkswagen series, TT, Q7 and other Audi series, Bentley, Lamborghini, Skoda series, Porsche series, Roewe |
| SL433-14 | #13 | TOY2 Clamp | for New Toyota/Lexus/BYD Keys(one-side cut,thin laser key) |
| SL433-13 | #14 | VA2 Key Clamp | for New Renault Keys(one-side cut,thin laser key) |
| SL433-16 | SN-CP-JJ-16 | HU162T Clamp | For Volkswagen Golf 7, Magotan 2018, Lavida 2018, Phaeton etc. also for Audi 2018 new models |
How to Add Key Data to SEC-E9 Key Cutting Machine?

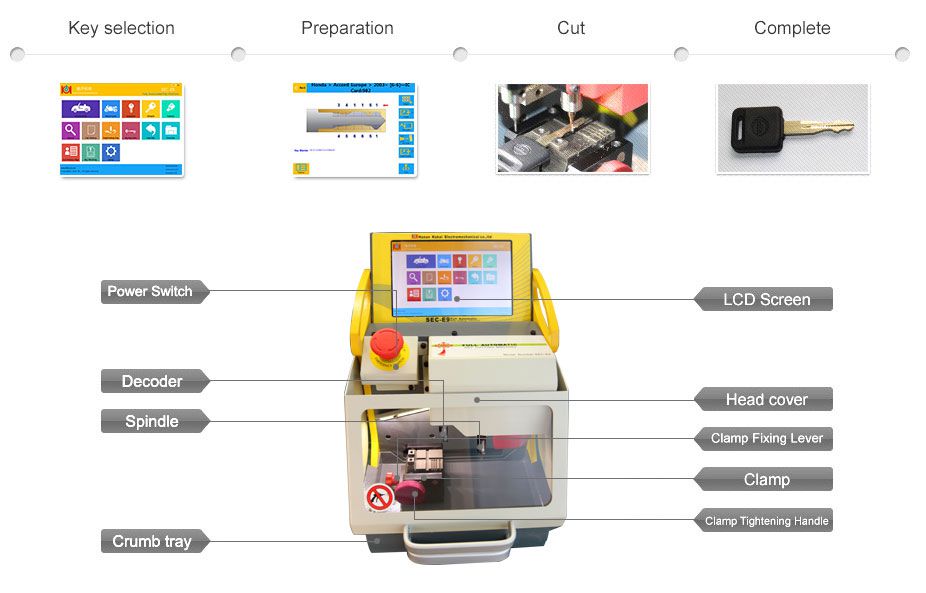

HOW TO USE SEC-E9 CNC Key Cutting Machine ?
DETAILS PARAMETER
DETAILS OF DISPLAY

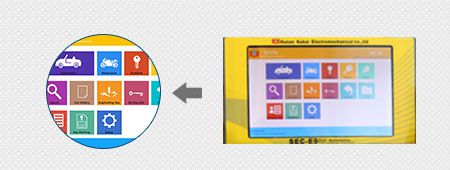

| Embedded 8-inch Tablet PC Embedded 8-inch Tablet PC offers easier key cutting capability with graphical user interface. |  |
 | Equipped with both decoder and cutter Quick and easy duplication of key is available. |
| Various types of key cutting supported -Automobile key (including ford tibbe) -Dimple key -Single-sided domestic key -Tubular key |  |

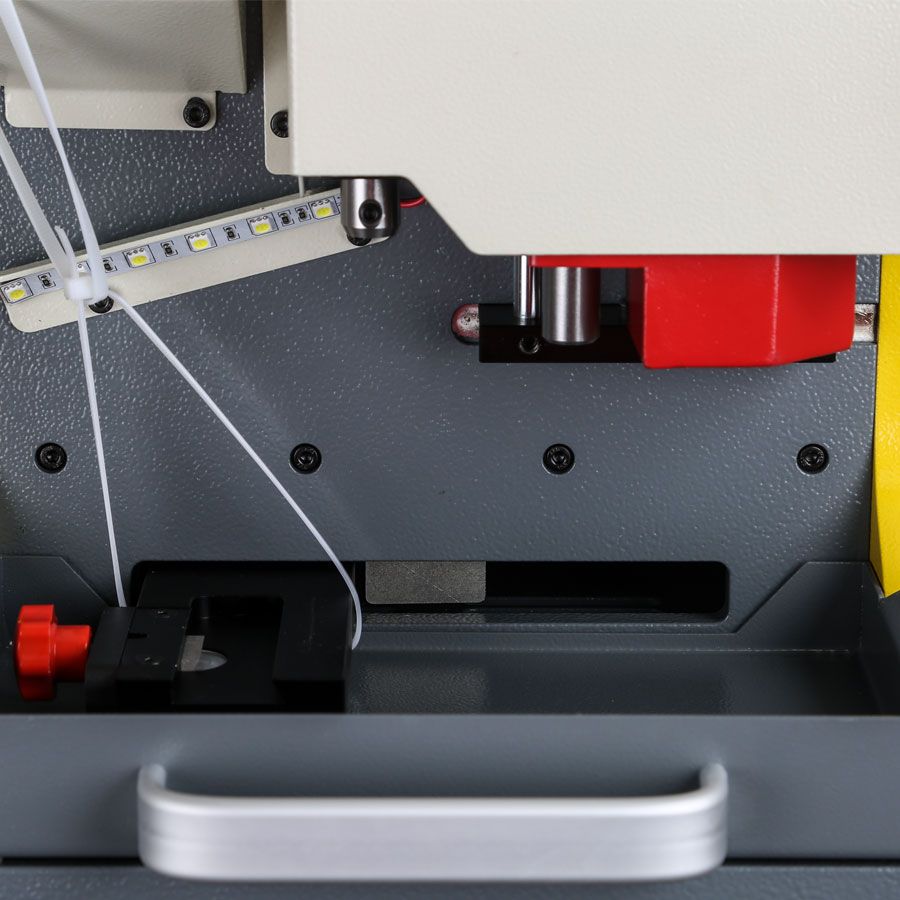

 | Replaceable vise Various kinds of replaceable clamps are available for easy key cutting. |

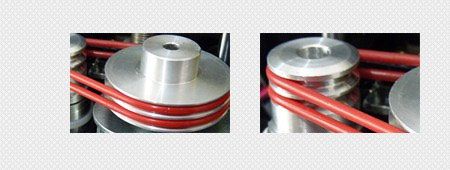

| Spindle driven by two spindle belts Supplied with two spindle belts to ensure high-torque key cutting without loss of cutting speed. |  |

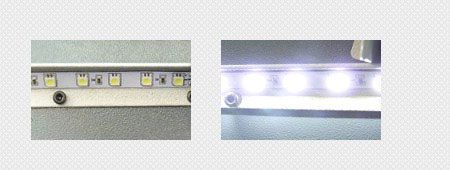

 | Wide and brighter LED light long-life imported lamp beads |
Power: 120W
Dimension: 255(W)*360(H)*340(D)mm
Weight: 24KG
Resolution: XY: 0.005mm Z: 0.0015mm
Spindle Revolution: 11000+rpm
Temperature: 0-40℃
Humidity: 10-90%
About SEC-E9:
- X/Y Axis with cross roller guide
stable and accurate-Z Axis with ball screw to drive

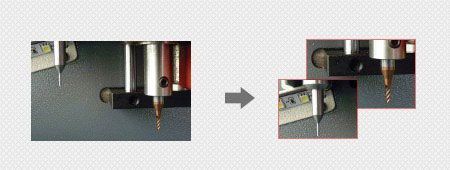

Powerful and high precision- Equipped with both decoder and cutter
Duplicating and cutting keys easily

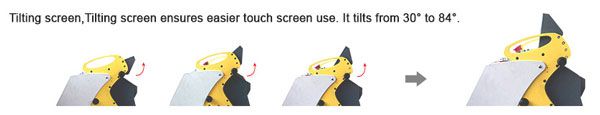

-8 inch tablet PC tilting screen
Tilting from 30° to 84°,large storage capacity
- Various types of key cutting supported With Replaceable clamp
Changed according to the cut keys
- Automatic key measurement
Key thickness, key tip position and center position could be measured
- Wide and brighter LED light
easily operating at night
- Equipped with two spindle belts&27W DC motor with 24VDC
Faster cut speed
-Upgrade
Autogrades
- Portable
easily operating outdoors
