OBDSTAR P003 for DC706

OBDSTAR P003+ Kit, working with OBDSTAR IMMO series tablets, supports reading and writing ECU eeprom & flash data and caculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc.P003+ is compatible with P003 and supports the following models require a higher frequency clock during the decryption process(ME9.0, MED9.1,MED9.6.1, ME9.6.1, MED9.5.10,EDC16C39, EDC16CP35, EDC16C8).

OBDSTAR P003+ Kit Working with OBDSTAR DC706 Series Tablets for ECU EEPROM / Flash Data / IMMO Data is a one of our OBDSTAR P003 for DC706 Tools, you can buy OBDSTAR P003+ Kit Working with OBDSTAR DC706 Series Tablets for ECU EEPROM / Flash Data / IMMO Data from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

images of OBDSTAR P003+ Kit Working with OBDSTAR DC706 Series Tablets for ECU EEPROM / Flash Data / IMMO Data

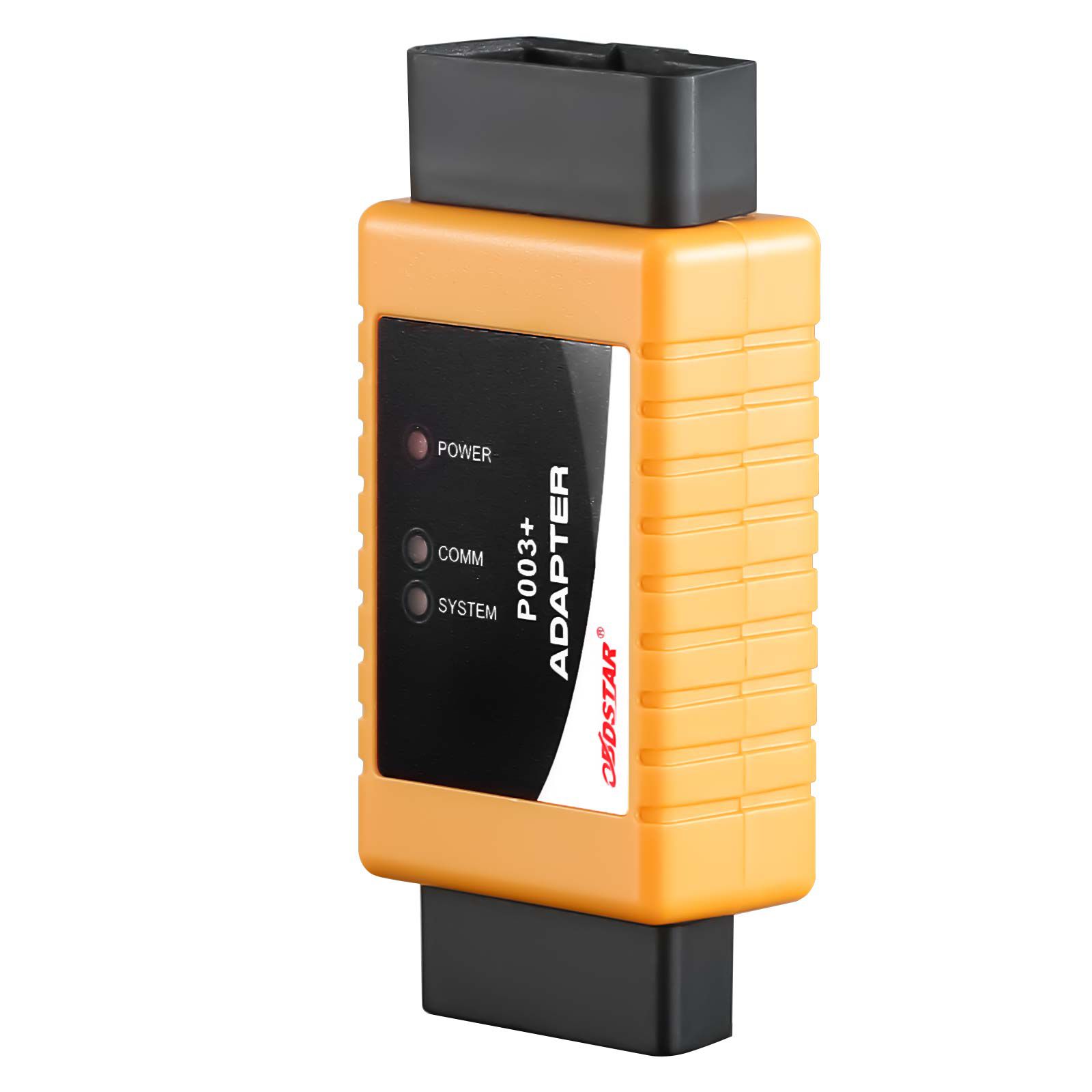

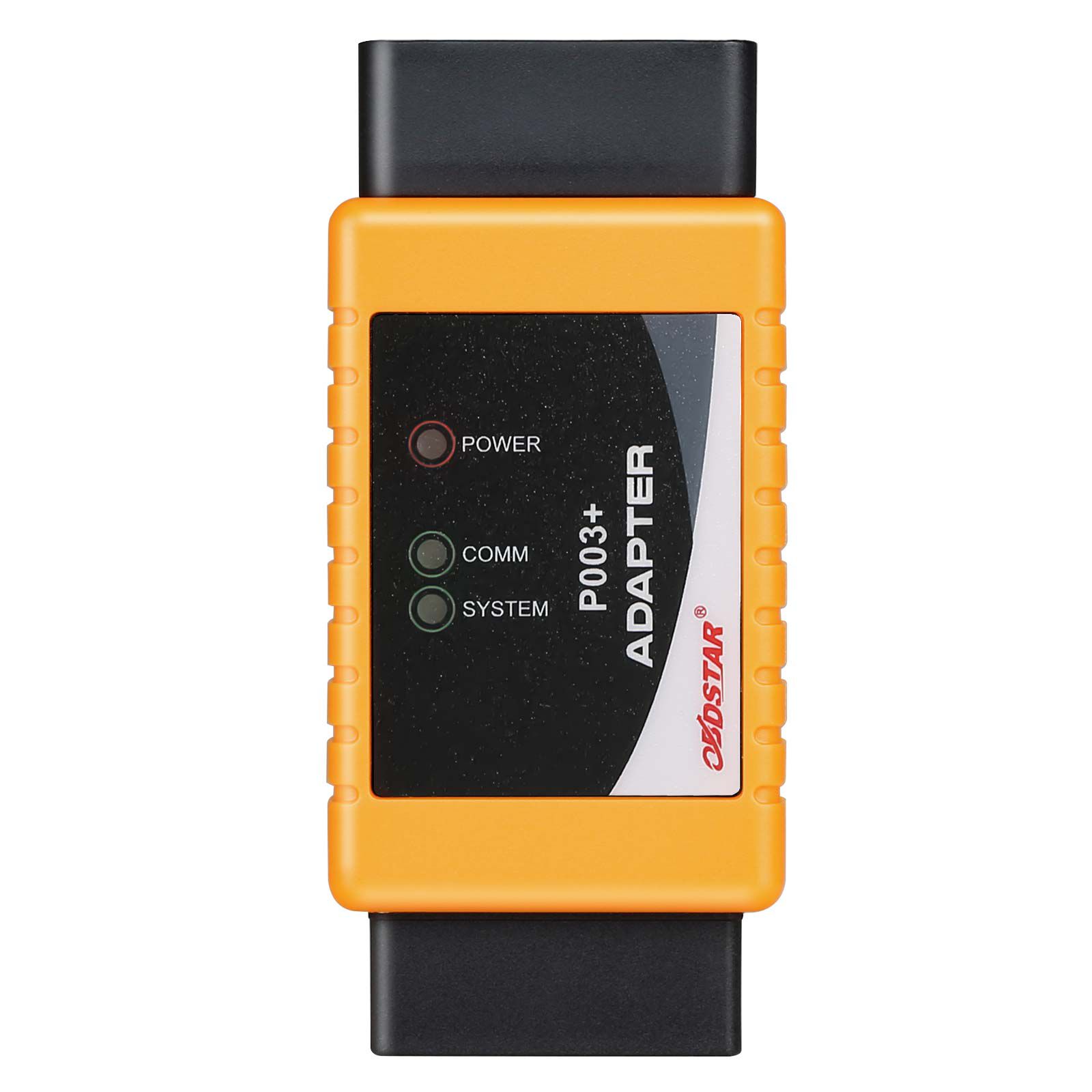

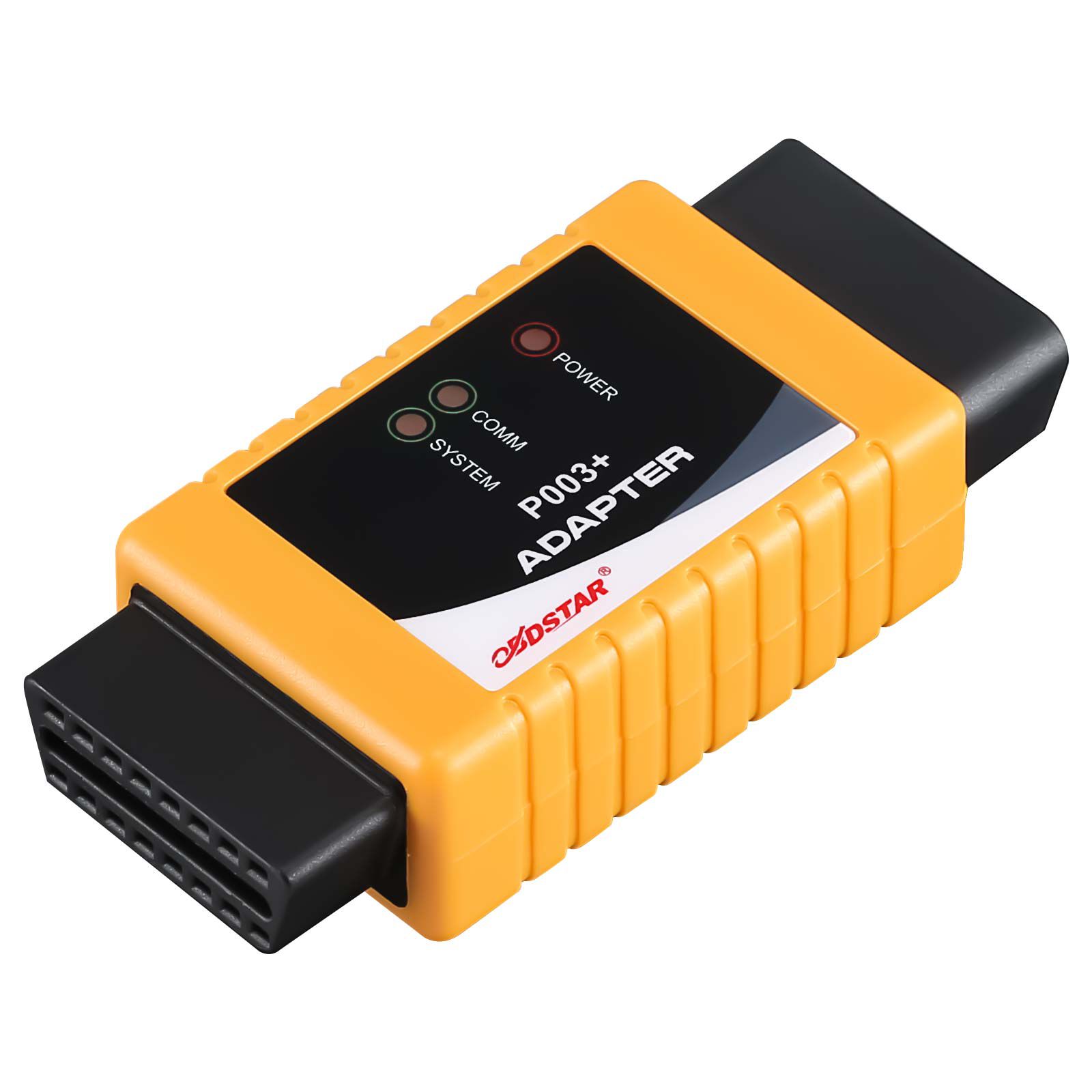

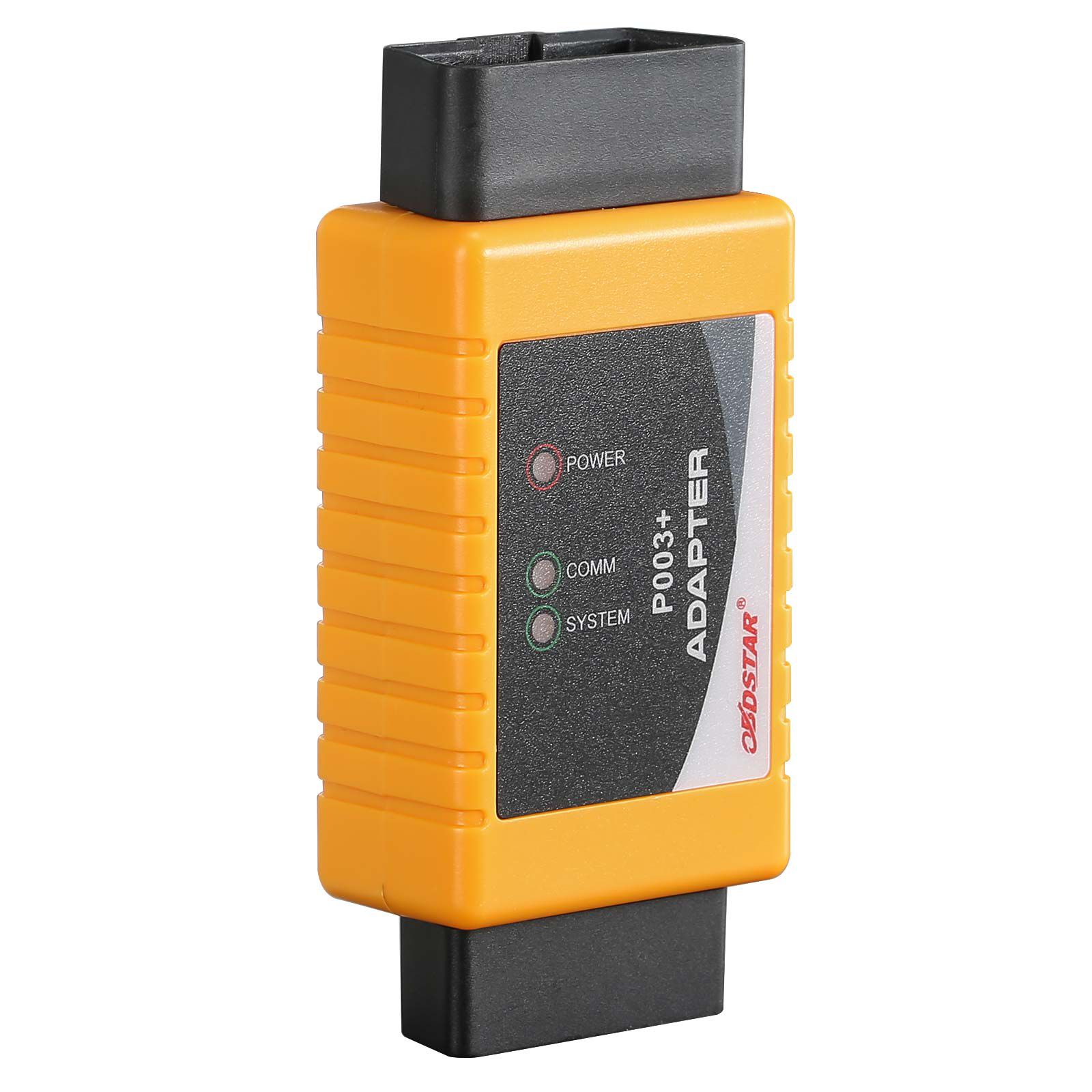

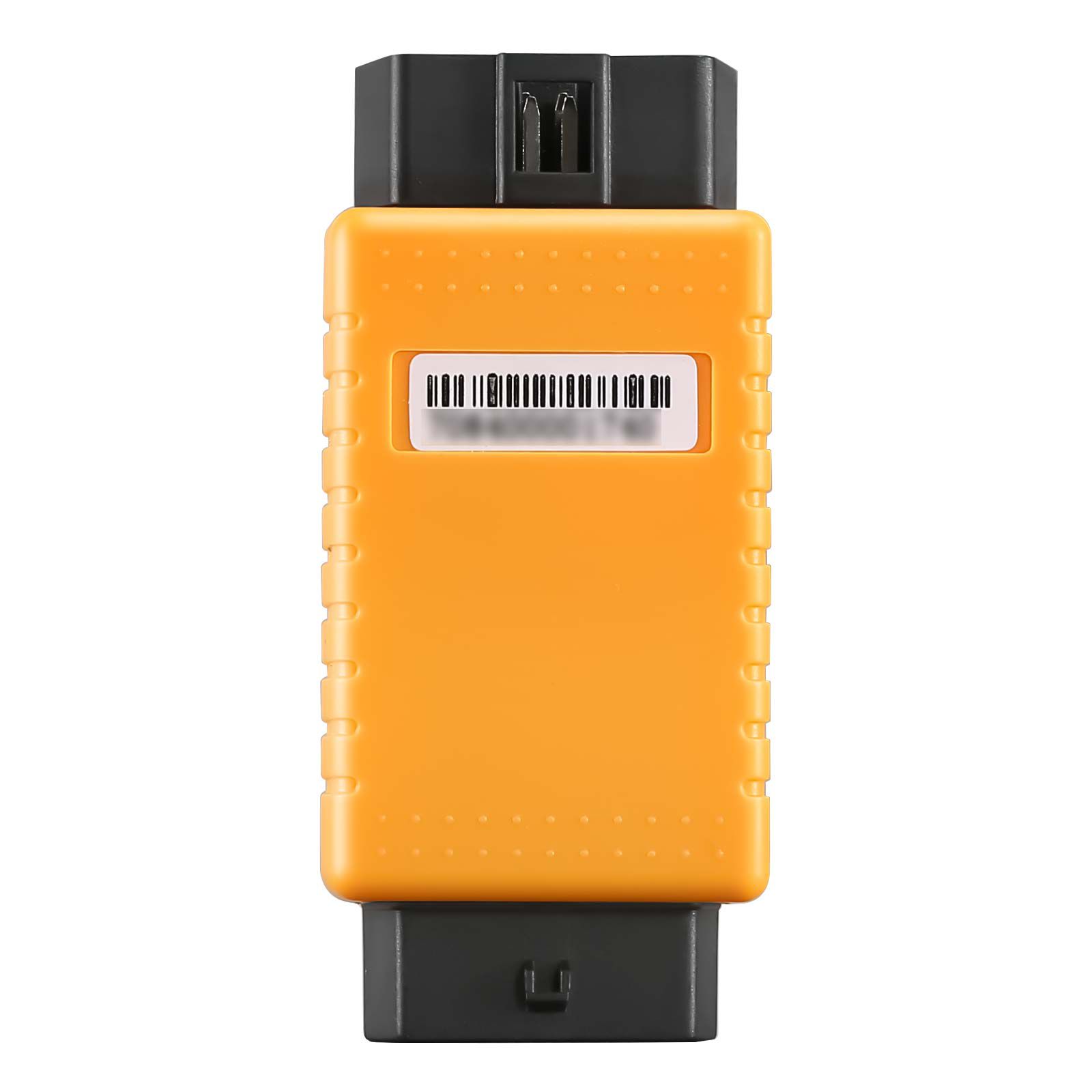

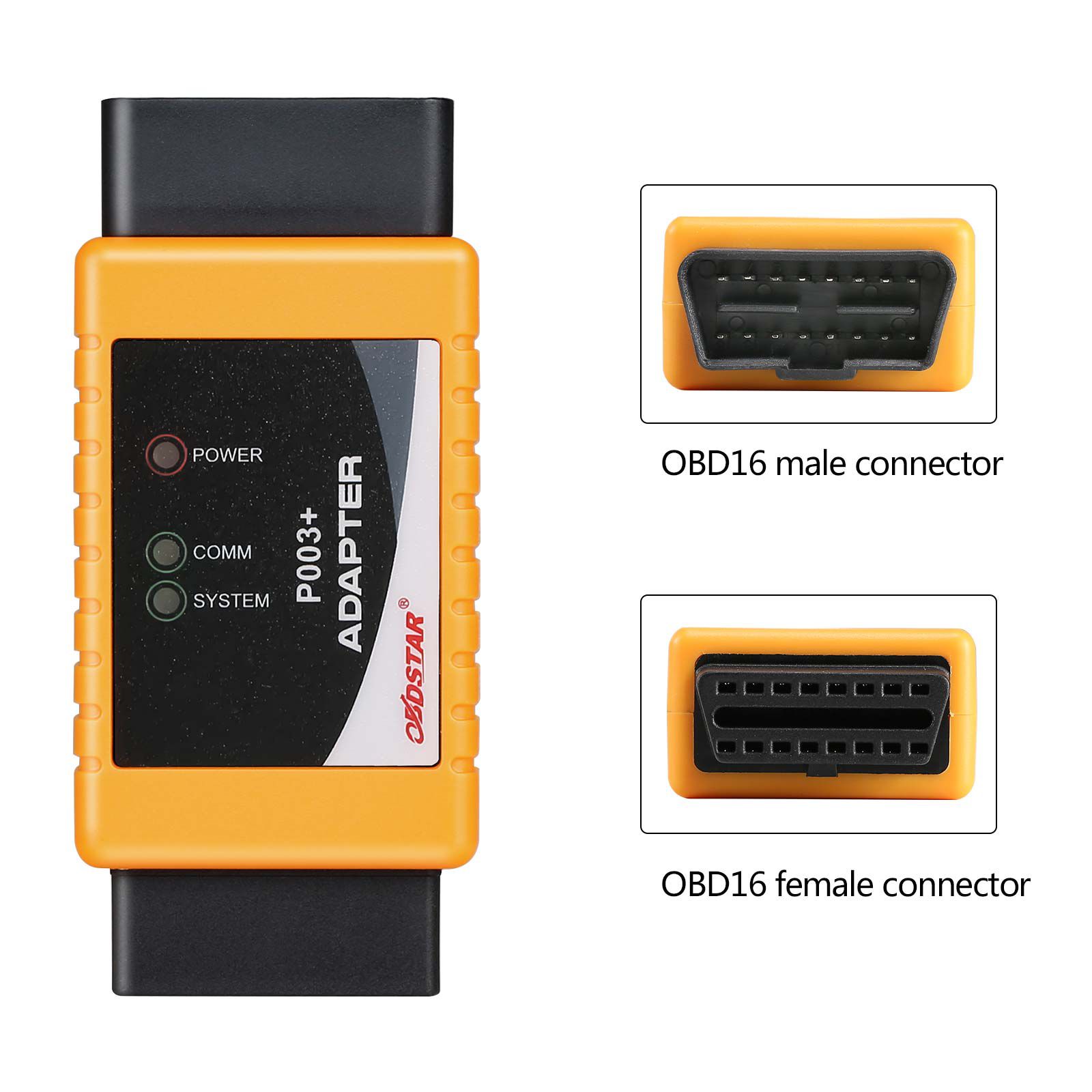

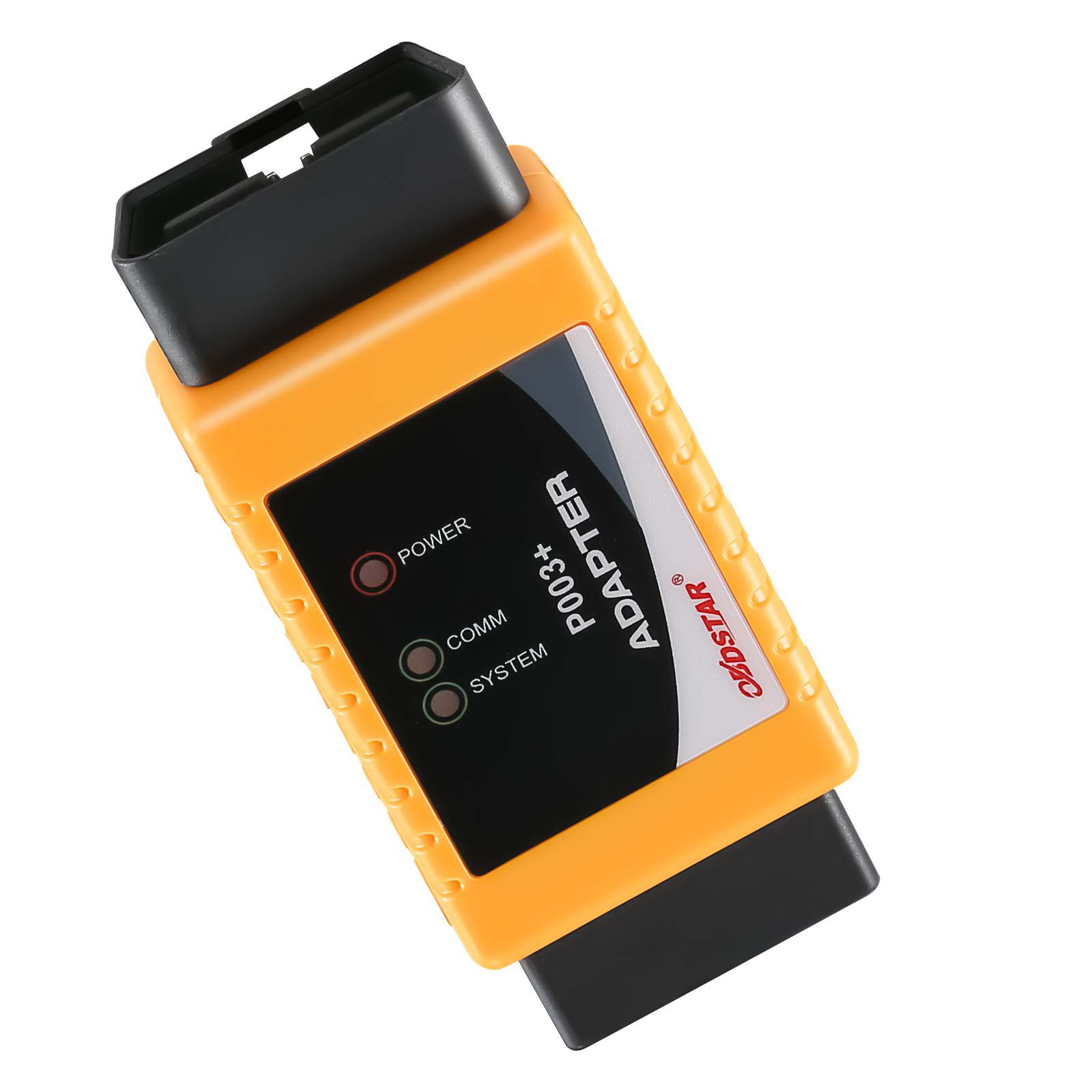

OBDSTAR P003+ Kit

The OBDSTAR P003+ Kit is designed to work with OBDSTAR IMMO series tablets, enabling users to read and write ECU EEPROM & flash data, as well as calculate IMMO data for Bosch ME17XX, MED17XX, EDC17XX, and Continental PCR2.1 systems used in Volkswagen Group vehicles (VW, Audi, Skoda, Seat), Bentley, Peugeot, Citroen, DS, Lamborghini, Porsche, Mahindra, and more.

Compatibility with OBDSTAR DC706 Series Tablets

The P003+ adapter is also compatible with OBDSTAR DC706 series tablets, expanding its diagnostic and programming capabilities across a wide range of vehicle models and ECU types.

Key Differences Between P003+ and P003

1. The P003+ is an upgraded version of the P003, offering full backward compatibility while supporting additional ECUs due to its higher internal clock frequency. This enables support for advanced ECU models including:
   • ME9.0
   • MED9.1
   • MED9.6.1
   • ME9.6.1
   • MED9.5.10
   • EDC16C39
   • EDC16CP35
   • EDC16C8
2. The P003+ adds compatibility with the P002 adapter when used in conjunction with OBDSTAR IMMO series tablets.

Product Features

• Read CS, PinCode, and MAC value from Continental PCR 2.1 ECUs
• Read EEPROM and PinCode from Bosch MED17.4.4 ECUs
• Read EEPROM and PinCode from Bosch EDC17C60 ECUs
• Read EEPROM and PinCode from Bosch MD1CS018 ECUs
• Read and write EEPROM and flash data, plus read CS, PinCode, and MAC value from Bosch MED17XX and EDC17XX ECUs
• Read and write EEPROM and flash data for Bosch ME17XX ECUs
• Read and write TCM EEPROM and flash data for T87A and 6HP transmissions
• Supports use of the P002 adapter (requires OBDSTAR IMMO series tablet)
• Enhanced support for specific ECU models:
  • ME9.0
  • MED9.1
  • MED9.6.1
  • ME9.6.1
  • MED9.5.10
  • EDC16C39
  • EDC16CP35
  • EDC16C8

Supported ECU Models and Vehicle Applications

1. Continental PCR2.1 (TC1796) – Read IMMO Data

• 2010–2014 Audi A1 (8X) 1.6L Diesel
• 2009–2012 Audi A3 (8P) 1.6L Diesel
• 2009–2013 Seat Altea 1.6L Diesel
• 2010–2016 Seat Ibiza IV (6J) 1.6L Diesel
• 2010–2012 Seat Leon II 1.6L Diesel
• 2014 Seat Toledo (KG) 1.6L Diesel
• 2010–2013 Skoda Octavia II (1Z) 1.6L Diesel
• 2010–2013 Skoda Fabia II (5J) 1.6L Diesel
• 2010–2011 Skoda Roomster (5J) 1.6L Diesel
• 2013–2014 Skoda Rapid (NH) 1.6L Diesel
• 2011–2013 Skoda Superb (3T) 1.6L Diesel
• 2012/2015 Skoda Yeti (5L) 1.6L Diesel
• 2010–2015 VW Caddy (2K) 1.6L Diesel
• 2009–2013 VW Golf VI 1.6L Diesel
• 2010–2013 VW Golf Plus 1.6L Diesel
• 2011–2014 VW New Beetle (9C) 1.6L Diesel
• 2011 VW Passat (B7) 1.6L Diesel
• 2009–2014 VW Polo V 1.6L Diesel
• 2010–2015 VW Touran (1T) 1.6L Diesel

...

2. Bosch MED17.4.4 (TC1793) – ECU Bench & Boot Mode Connection Methods

• Citroen C3 Mk2
• Citroen C4 Gran Picasso
• Citroen C4 MK2
• Citroen C5 (RD/TD)
• Citroen C6
• DS DS3
• DS DS5
• DS DS6
• Peugeot 2008
• Peugeot 208
• Peugeot 3008 (P84)
• Peugeot 3008 (T84)
• Peugeot 308 (T9)
• Peugeot 4008
• Peugeot 408
• Peugeot 508

...

3. Bosch EDC17C60 (TC1793)

• Citroen Berlingo
• Citroen C-Elysee
• Citroen C3 Aircross
• Citroen C3 MK2
• Citroen C3 Picasso
• Citroen C4 Cactus
• Citroen C4 MK2
• Citroen C4 Picasso
• Citroen Jumpy
• Citroen Spacetourer
• DS DS3
• DS DS4
• DS DS5
• Peugeot 2008
• Peugeot 208
• Peugeot 3008 (P84)
• Peugeot 308 (T9)
• Peugeot 5008 (T87-P87)
• Peugeot 508
• Peugeot Expert
• Peugeot Ranch/Partner
• Peugeot Traveller
• Opel/Saturn/Vauxhall Combo E
• Opel/Saturn/Vauxhall Crossland X
• Opel/Saturn/Vauxhall Grandland X
• Toyota Proace

...

4. Bosch MD1CS018

• Mahindra BS-6

...

5. Bosch MED17XX / EDC17XX

• EDC17U01 (TC1766)
• EDC17C46 (TC1767)
• EDC17C54 (TC1797)
• EDC17C64 (TC1797)
• EDC17CP44 (TC1797)
• EDC17CP44 MS (TC1797)
• MED17.5 (TC1766)
• MED17.5.1 (TC1766)
• MED17.5.20 (TC1766)
• MED17.5.5 (TC1766)
• MED17.5.5 HW2 (TC1766)
• MED17.5.2 (TC1767)
• MED17.5.5 (TC1767)
• MED17.5.5 HW2 (TC1767)
• MED17.5.21 (TC1782)
• MED17.5.25 (TC1782)
• MED17.1.1 (TC1797)
• MED17.1.1 MS (TC1797)
• MED17.1.6 (TC1797)

VW, Skoda, Audi, Seat, Bentley, Lamborghini, Porsche, and other compatible brands.

...

6. Bosch ME17XX

• ME17.5.6 (TC1767)
• ME17.5.20 (TC1767)
• ME17.1.1 (TC1797)
• ME17.1.6 (TC1797)

VW, Audi, Skoda, Seat, Bentley, and other compatible models.

...

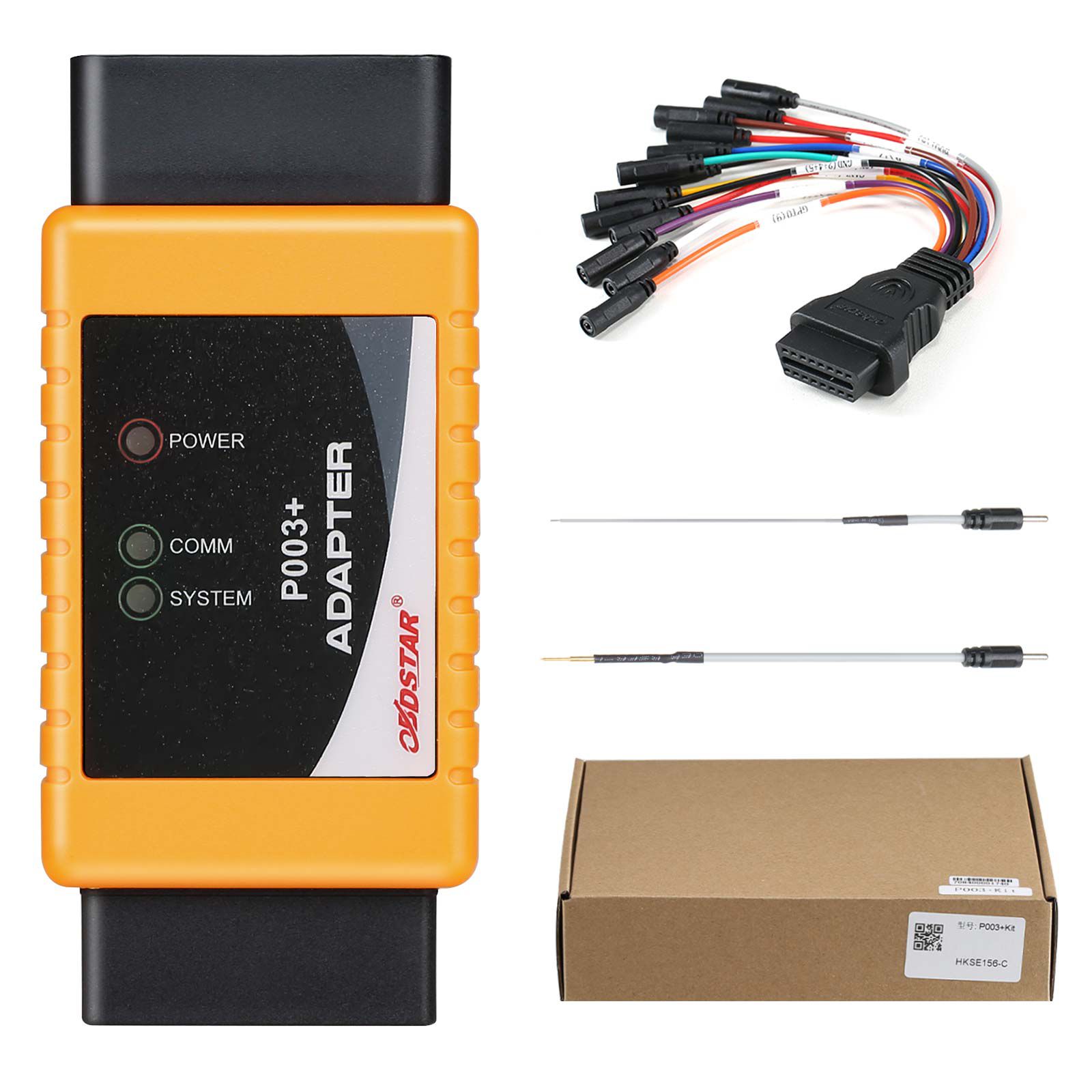

Package Includes

• 1pc x OBDSTAR P003+ Adapter
• 1pc x ECU BENCH Jumper
