OBDSTAR P001

Package offer: OBDSTAR X300 DP/Key Master DP full version plus new P001 programmer which is integrated with the EEPROM adapter, RFID adapter and Key Renew adapter 3-in-1.

OBDSTAR X300 DP/Key Master DP Full Version Plus P001 Programmer is a one of our OBDSTAR P001 Tools, you can buy OBDSTAR X300 DP/Key Master DP Full Version Plus P001 Programmer from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

images of OBDSTAR X300 DP/Key Master DP Full Version Plus P001 Programmer

OBDSTAR X300 DP/Key Master DP Full Version Plus P001 Programmer

Supports TOYOTA G & H Chip All Keys lost, BMW FEM/BDC, VAG MQB Mileage Correction, Volvo IMMO

OBDSTAR Key Master DP Full Version covers almost all functions of previous OBDSTAR Tools. X300 DP= OBDSTAR X100 Pro +OBDSTAR X200 Pro+ VAG-Pro + X300M mileage programmer + OBDSTAR X300 Pro3 Key Master (which includes F108 PSA and F100 FORD Mazda function), except SUZUKI & Nissan 20-digit pin code calculation function (able to read/calculate other digits Suziki Nissan pin code).

All in one, nothing is impossible!

Green Color OBDSTAR X300 DP (or OBDSTAR Key Master DP abroad) is a convenient device, combining Android system, immobilizer, diagnose and special function, which closely follows the global trend and greatly meets the demand of users. In addition, abundant and powerful maintenance database and car testing video have realized easier operation and real success. Furthermore, Remote guide strengthens the communication between end users and technicians, without worries about after -sell service.

• Android system is equipped with clear and user-friendly interface.
• Diagnostic function strengthens professionalism in auto key programming.
• Large amount of videos help users to operate it easily.
• Maintenance database offers more powerful data.
• Remote guide achieves zero distance between users and technicians.
• Report center helps mutual improvement of terminal experience and technology.
• Industrial design ensures that the tool works stably under tough environment, such as high or low temperatures.
• Supports English, simplified Chinese, traditional Chinese, allows you to use in any country

OBDSTAR X300 Key Master DP Key Programmer Software update

One key upgrade ; Free update for one year,after that, it will cost 170USD/year


Language: English (default), Turkish, Thai, Portuguese, French, Russian. If you need to change language, please buy SP283-S.


OBDSTAR Key Master DP Key Programmer Vehicle coverage:

BENZ, BESTURN, BMW, CHANGHE, CHERY, CHRYSLER(CHRYSLER/DODGE/JEEP), DFFENGSHEN, DFPV, FAW, FIAT, FORD/LINCOLN, GEELY/HUAPU/SQYL, GM(BUICK/CADILLAC/CHEVROLET/GMC/HUMMER), GREATWALL, HAWTAI, HIMIKO, HNMAZDA, HONDA/ACURA, HONGQI, HYUNDAI, ISUZU, JAC, JAGUAR, KIA, LANDROVER, LIEBAO, LUFENG, LUXGEN, MASERATI, MAZDA, MITSUBISHI, NISSAN/INFINITI, OPEL, PEUGEOT/CITROEN, Porsche, PROTON, QQROS, RENAULT, ROEWE/MG, SGMW, SMART, SSANGYONG, SUBARU, SUZUKI, TJFAW, TOYOTA/LEXUS, VW/AUDI/SKODA/SEAT, YOUNGLOTUS, ZZMAZDA, ZZNISSAN;

Note: There may be some difference to software in different countries. If you need more specific information, pls feel free to contact us or our distributors in your area.

OBDSTAR Key Master DP Key Programmer User Manual
How to Register and Update OBDSTAR X300 DP Tablet

OBDSTAR X300 Key Master DP Key Programmer Features

• Read and clear fault codes;
• Clear key memory;
• Program keys, proximity keys, smart key, flip keys;
• Program after-market and OEM keys;
• Display live data;
• Component actuation;
• Read keys from immobilizer memory
• New ECU programming;
• New mechanical key number programming;
• Vehicle identification key programming;
• Reset ECU& Reset immobilizer;
• New remote controller programming;
• Immo PINCODE reader;
• Mileage adjustment via OBD;
• With full and strong database for the most important vehicle makes;
• VCI diagnose
• One key upgrade via wifi
• Remote assistance
• Built-in repair video
• Report center
• EEPROM chip read and immobilizer initialization;
• EPB(Electric park brake);
• Oil/Service reset;
• Battery matching;
• ABS
• TPS
• SRS reset
• TPMS(low tire)reset
• Steering angle reset
• CVT learning/Value reset
• EEPROM/PIC adapter
• OBDII
• Diagnosis (Newly adds FORD Diagnosis)

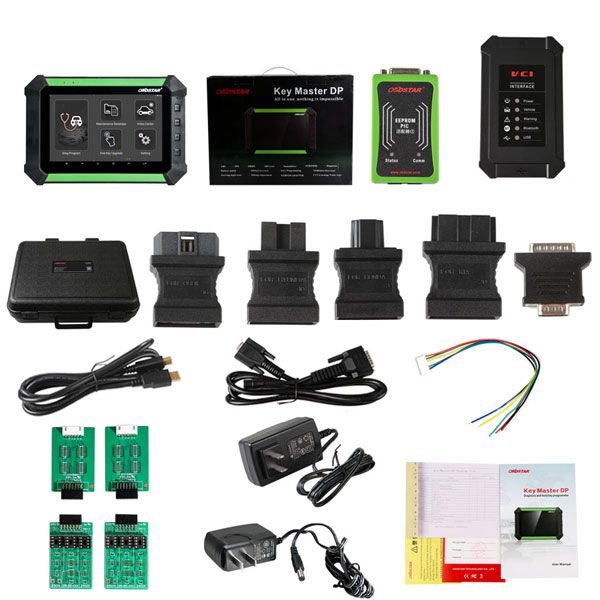

OBDSTAR X300 DP Android Tablet Key Programmer Configuration:

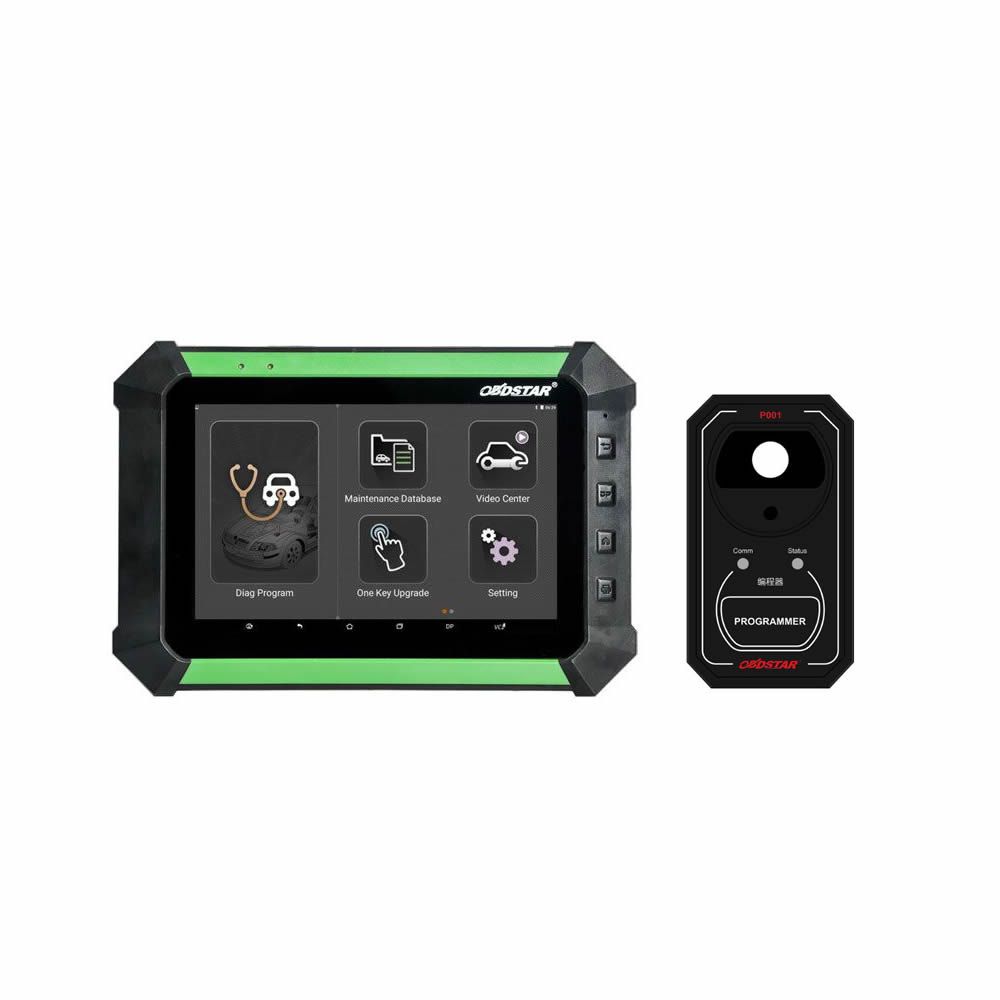

OBDSTAR P001 Programmer for X300 DP/Key Master DP

OBDSTAR P001= EEPROM adapter+ RFID adapter + Key Renew adapter +Free TOYOTA Smart Key Emulators

On the basis of original adapter features, P001 programmer, integrated with the EEPROM adapter, RFID adapter and Key Renew adapter, is a multifunctional programmer.
It brings a brand new experience, which not only allows auto technician to reduce more cumbersome procedures, but also can be compatible with simulated smart keys to realize the Toyota all lost.

P001 programmer uses dual coils with stronger signal, supporting a wider range of RFID. It is also required in recent model upgrades, as follow:

• Ferrari 458/F12/F149;
• Maserati mechanical key;
• Fiat 500/Viaggio/Palio/Siena/Boyue/Pailang/Ottimo, etc.
• Iveco;
• Alfa Romeo;
• Volkswagen MQB;
• Toyota simulated cards;
• BMW;
• Porsche;

What device does P001 programmer work with?

P001 works with OBDSTAR X300 DP/Key Master DP/X300 DP Plus both full and standard version. Cannot used with other OBDSTAR Key Programmers, X100 Pro/X300 pro3 etc. Please provide your X300 tablet Serial Number when purchase the P001 adapter.

P001 programmer (full package):
P001 programmer unit + C001 circuit board + C002 circuit board + W001 data cable + W002 data cable + W003 data cable + Toyota simulated smart keys (free);

Remark: Customer purchasing P001 programmer can obtain a set of Toyota simulated smart keys for free.


OBDSTAR P001 Adapter Accessories

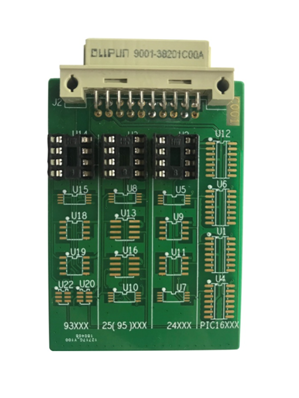

Accessory 1: C001 circuit board


C001 circuit board is compatible with old NO. 3 and 4 circuit boards, applying to EEPROM chip dismantling and reading, Tianjin FAW and VIZHI immobilizer coil initialization and other functions.

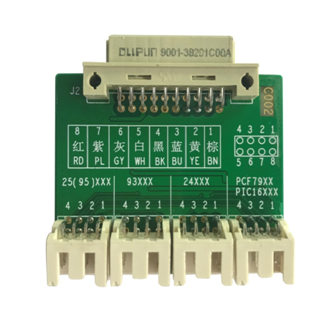

Accessory 2: C002 circuit board

The newly developed C002 circuit board is connected by W001, W002 or W003 without welding the chip.

Accessory 3: W001 data cable

W001 data cable can read or write data by linking the chip with a bonding wire

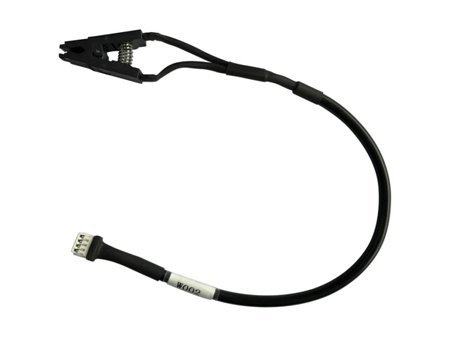

Accessory 4: W002 data cable

W002 data cable can read or write data by clamping the chip (SOP 8-pin) directly without welding EEPROM.


Accessory 5: W003 data cable

W003 data cable can read or write data by clamping positive pole and negative pole with red and black clips and contacting the data interface with yellow and blue probes


Wiring Instruction
To better understand the connection among P001 programmer and its accessories, examples for W001 and W003 wiring instructions are as below. (During the actual operation process, there is a diagram of wiring inside tablet)

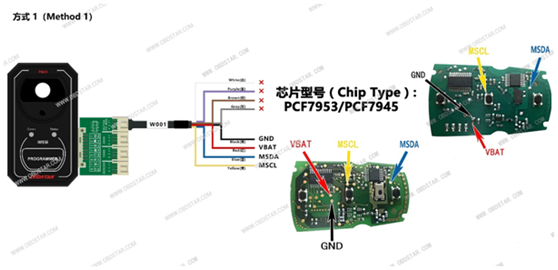

Way 1. W001 Connecting

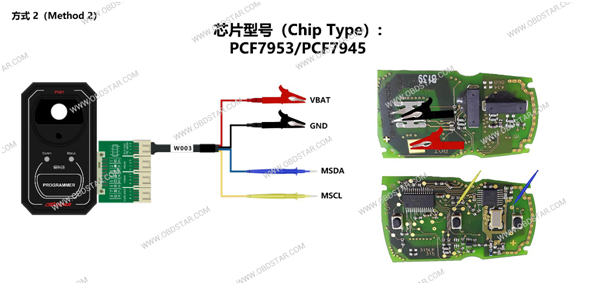

Way 2. W003 Connecting

About Toyota simulated smart key


1.Why use a Toyota simulated smart key?
For the Toyota/Lexus 2007-2016 models, if all smart keys are lost, the instrument table must be removed and the ECU must be replaced. The cost is very high!
This Toyota simulated smart key can generate a Toyota key with our devices in the case of all keys lost, so the ignition switch can be turned on, and then a new smart key can be added and programmed with our devices.


2.What are the advantages of the Toyota simulated smart key?

• Save costs;
• Reusable.

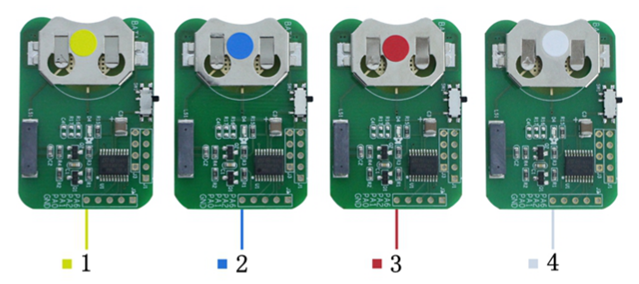

3. How many types of Toyota simulated smart keys in total?

There are 4 types at present, and the 5th one is in development.


4. Which type of smart keys can be simulated?
Simulated key 1 applies to the vehicle with 94/D4 type of smart key;
Simulated key 2 applies to the vehicle with 98 type of smart key;
Simulated key 3 applies to the vehicle with 88/A8 type of smart key;
Simulated key 4 applies to the vehicle with A9 type of smart key;

Go to Buy: OBDSTAR X300 DP/Key Master DP Full Version Plus P001 Programmer
