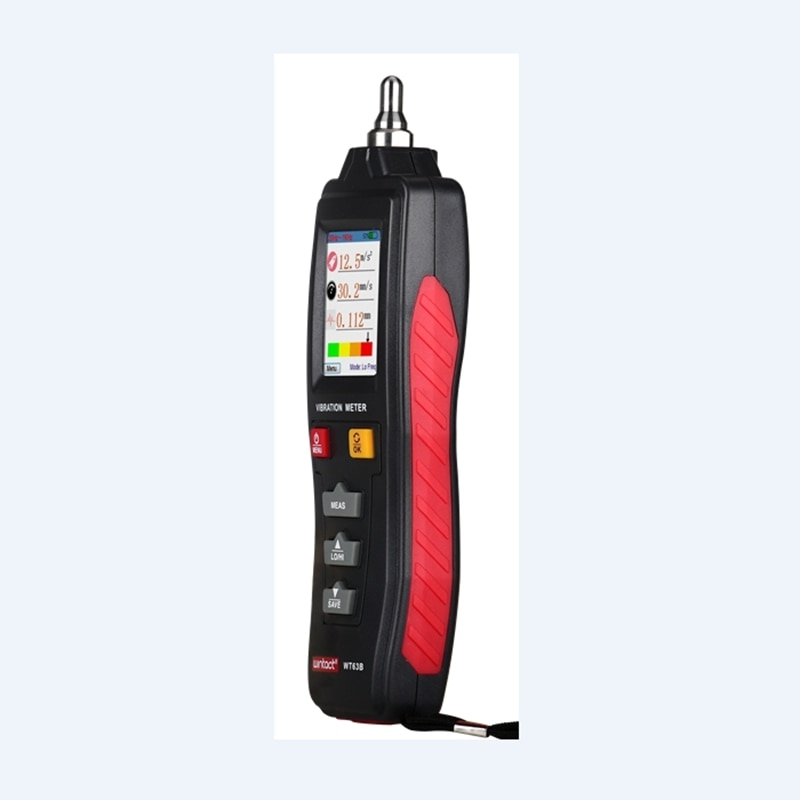

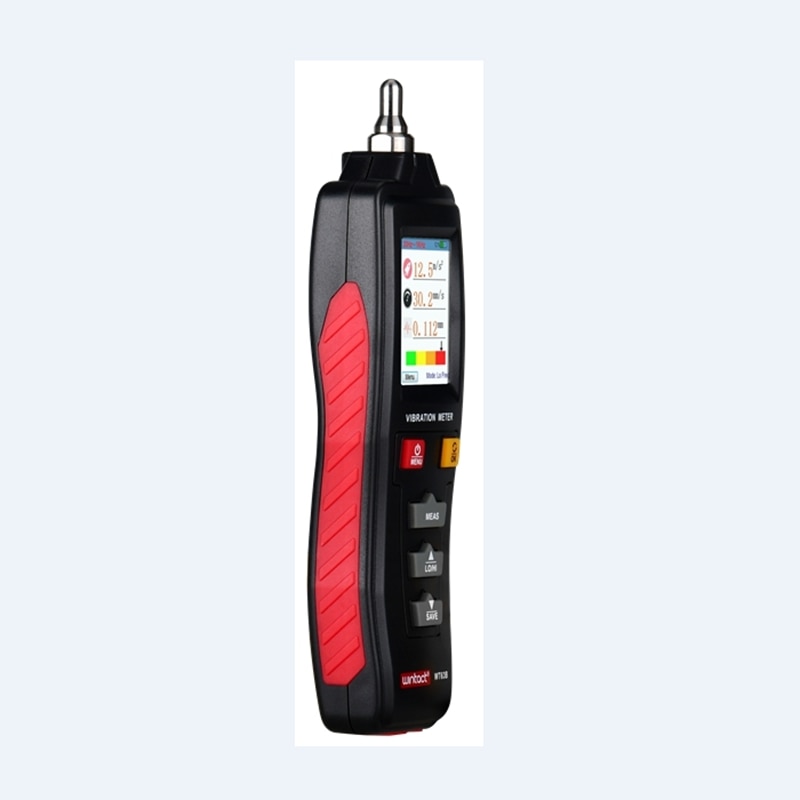

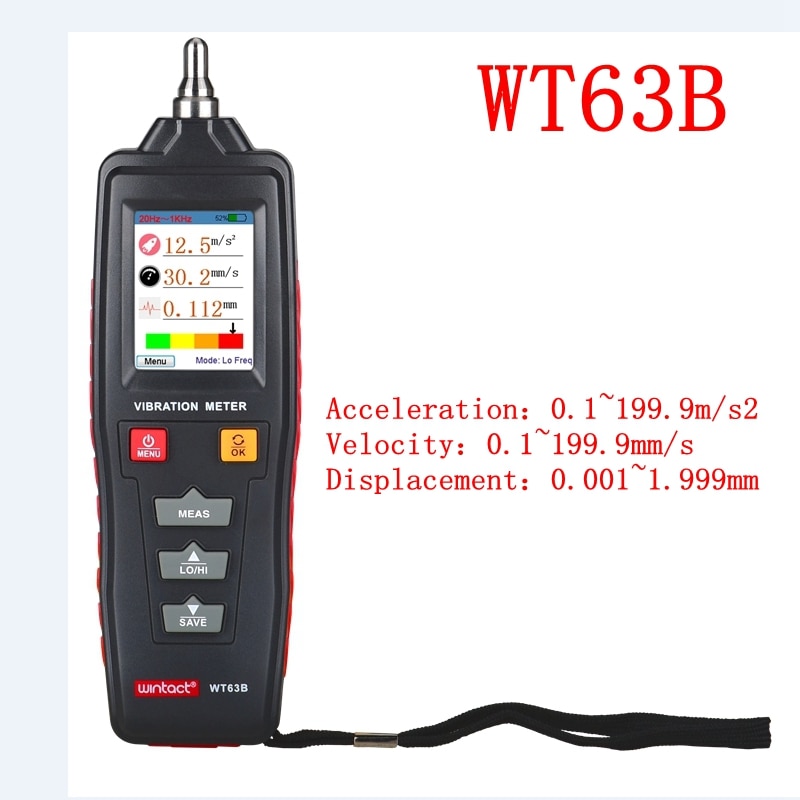

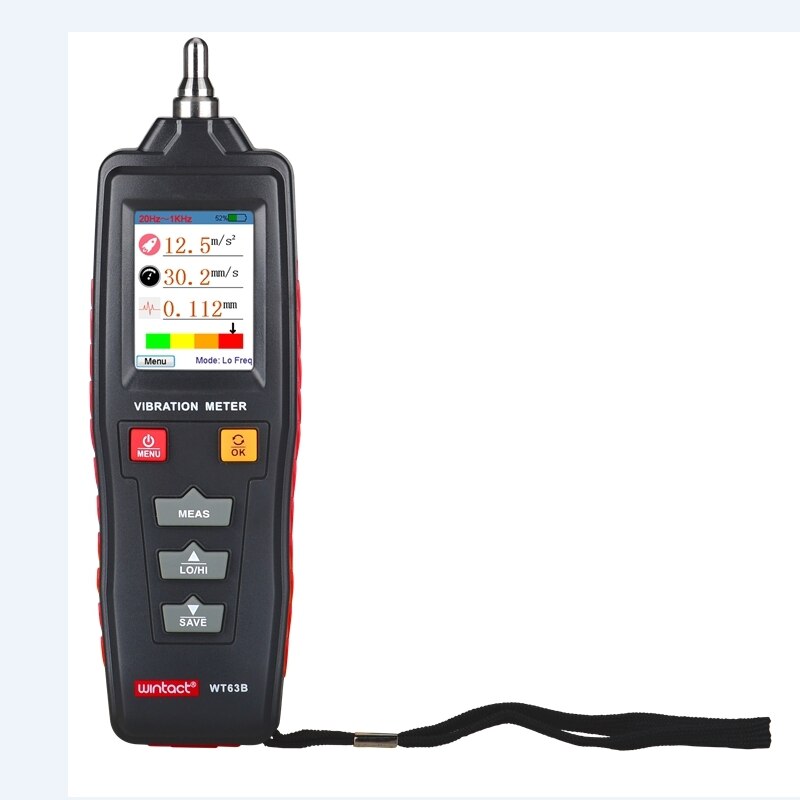

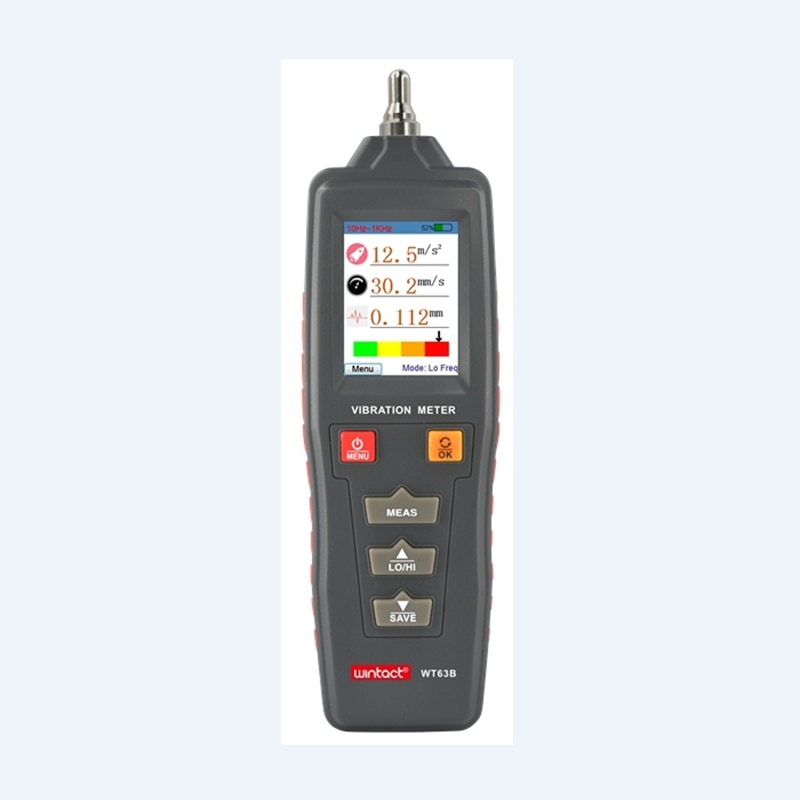

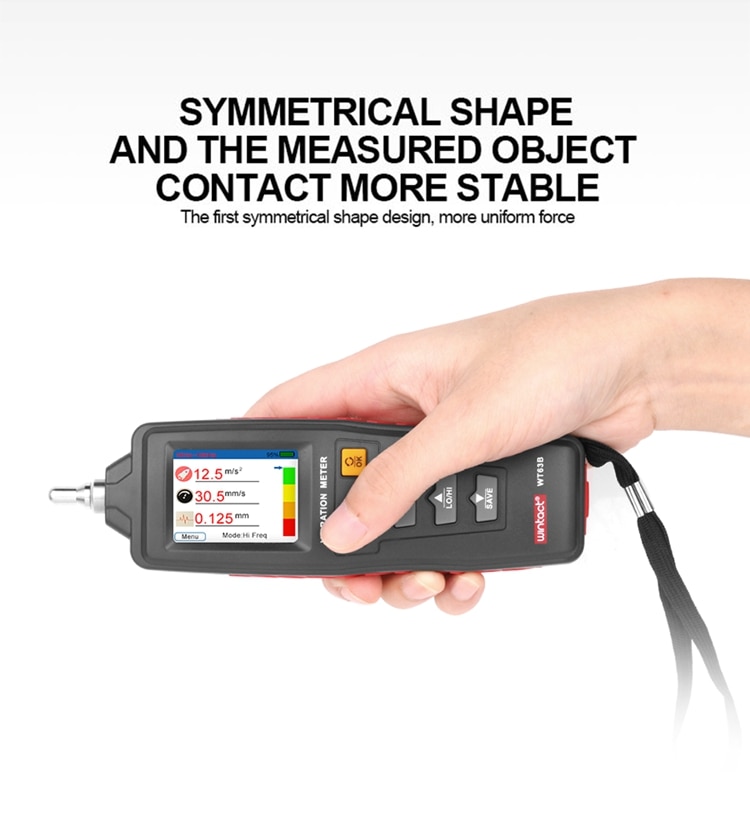

Mechanical Equipment Vibration Tester

Mechanical Equipment Vibration Tester Curve Display Acceleration Velocity Displacement Digital Vibration Analyzer Magnetic Probe

Introduction:

This product is based on piezoelectric effect of artificially polarized ceramics. It is suitable for conventional vibration measurement of mechanical equipment, especially for rotating and reciprocating machinery. It can measure vibration displacement, velocity and acceleration, and is widely used in fields like machinery manufacturing, electric metallurgy and general aerospace.

Functions:

Full display;

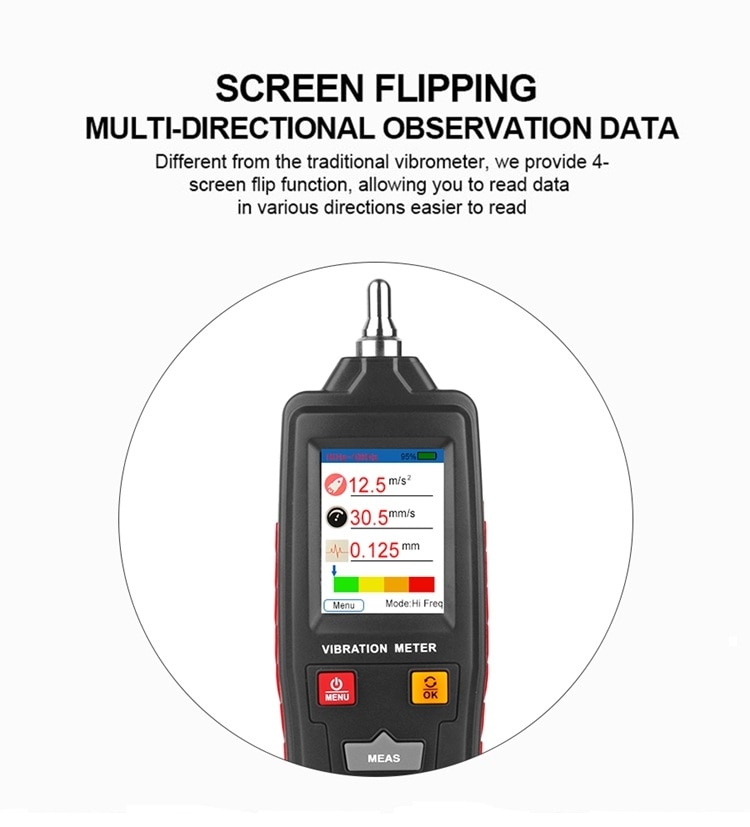

Screen flipping;
Switch acceleration measurement between high and low frequency;
high frequency (1KHz~10KHz) /low frequency (20Hz~1KHz)
Curve display;
Store and view files;
Power indicator;

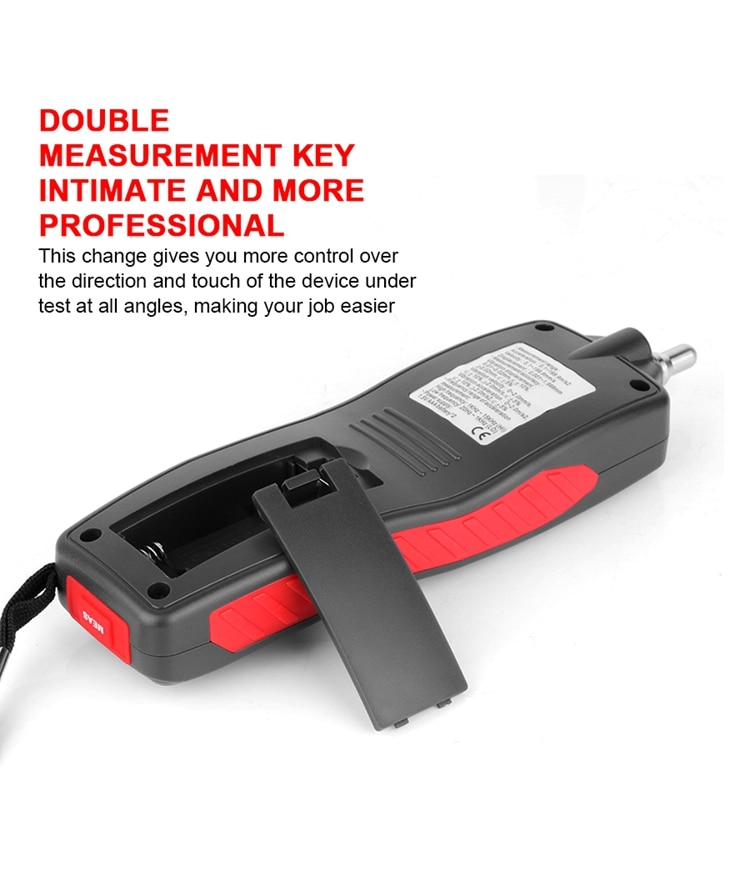

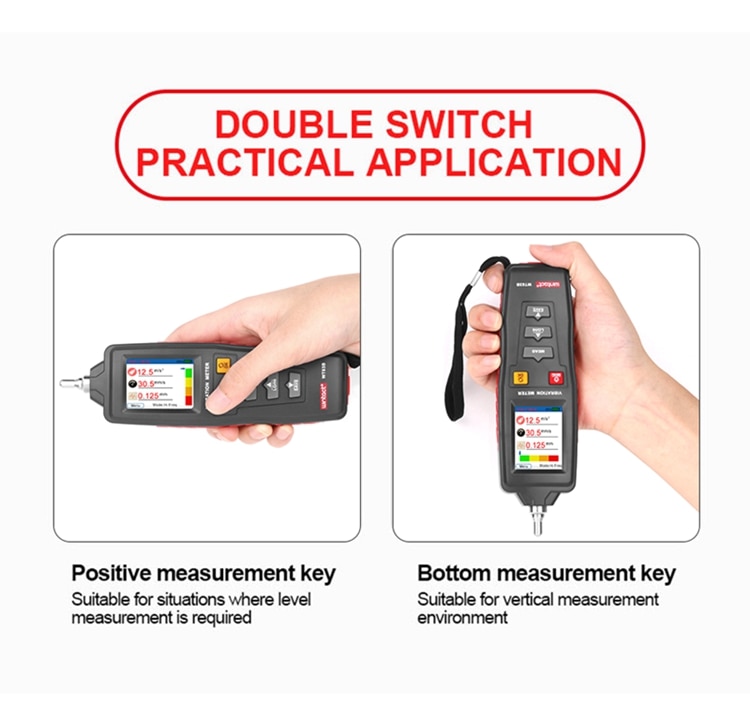

Double measurement button;
Flashlight;
Screen brightness;
Select Chinese/English;
Shutdown time setting;
Machinery grade;

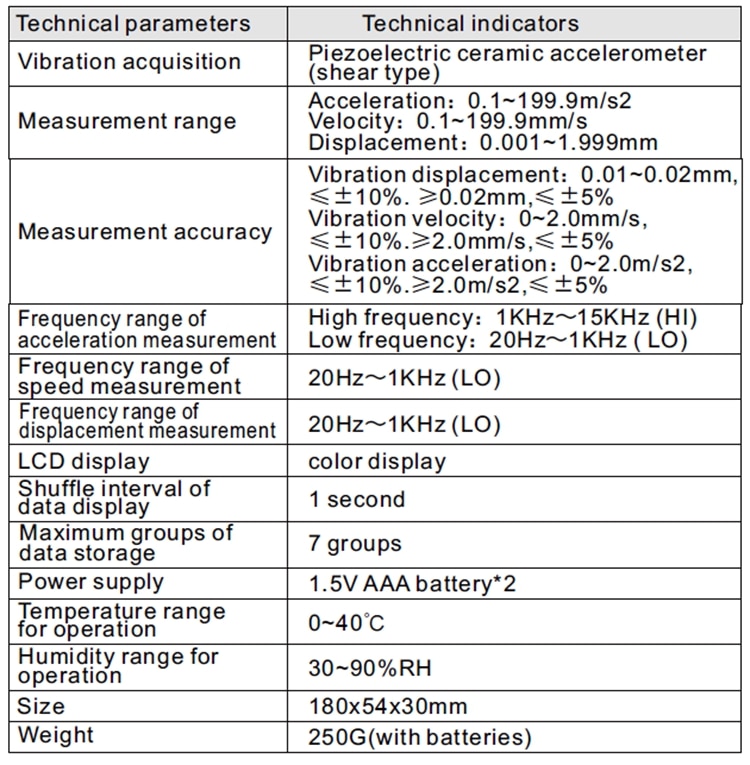

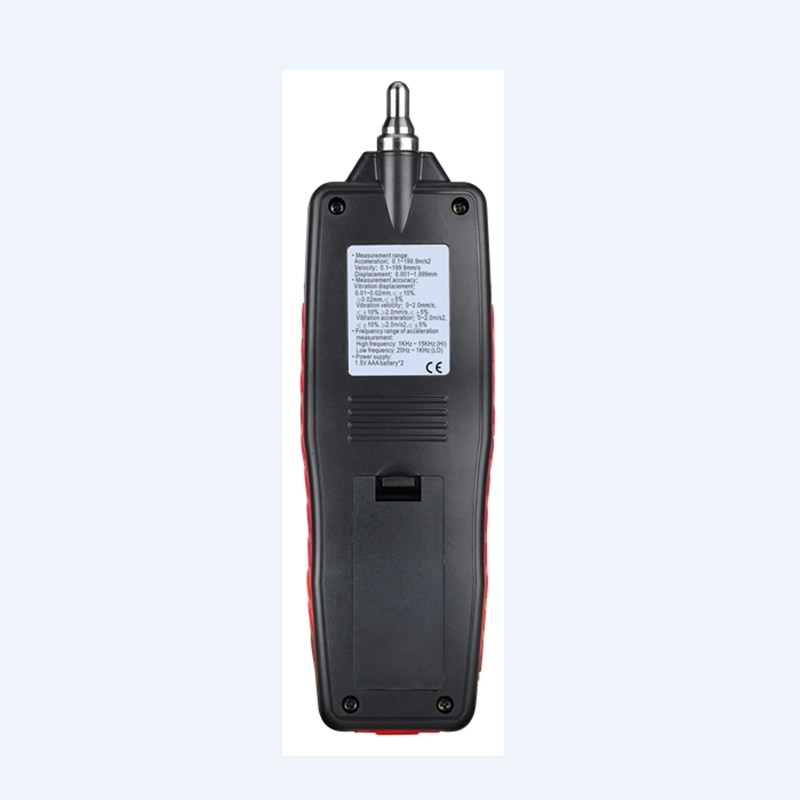

Technical parameters:

Notice:

1. Do not use the instrument in a flammable or explosive environment.
2. Keep away from dangerous voltage in case of injury.
3. Avoid strong impact, high temperature and water immersion.
4. Take out batteries if not in use for a long time.
5. Install batteries in correct polarity; replace batteries when the power is low.
6. Do not disassemble this meter or try to change internal parts.
7. Alcohol, diluent and so on are corrosive to the case, especially to the screen, so use a little water to clean the case.
8. Please operate the instrument carefully near rotating equipment. Do not leave wires and bands outside.

Package Included:

1 x Vibration Meter (Battery Not Included)
1 x English User Manual

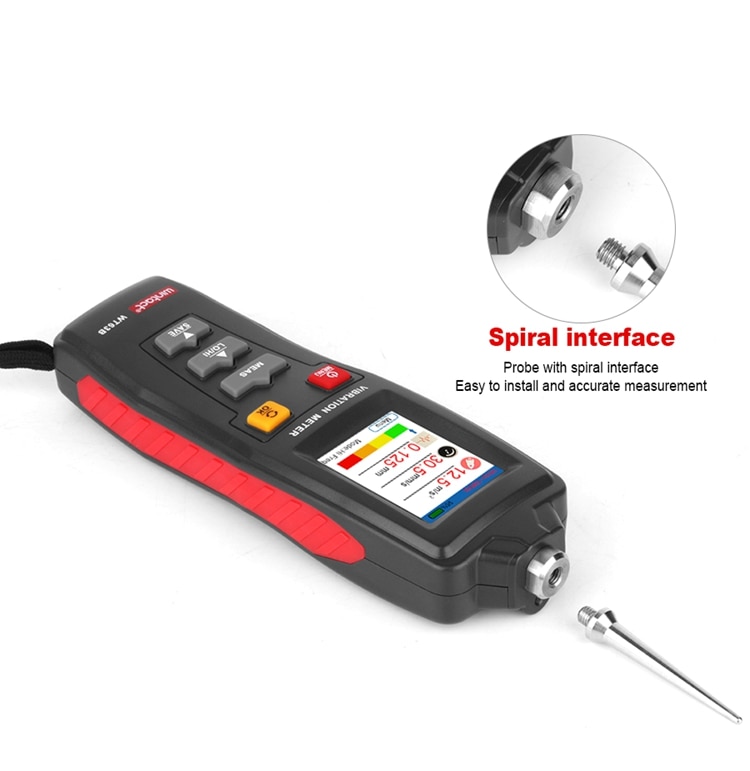

1 x Long probe (Short probe has been equipped on the product)
1 x Magnetic probe
1 x Retail Box
