MaxiSys Elite

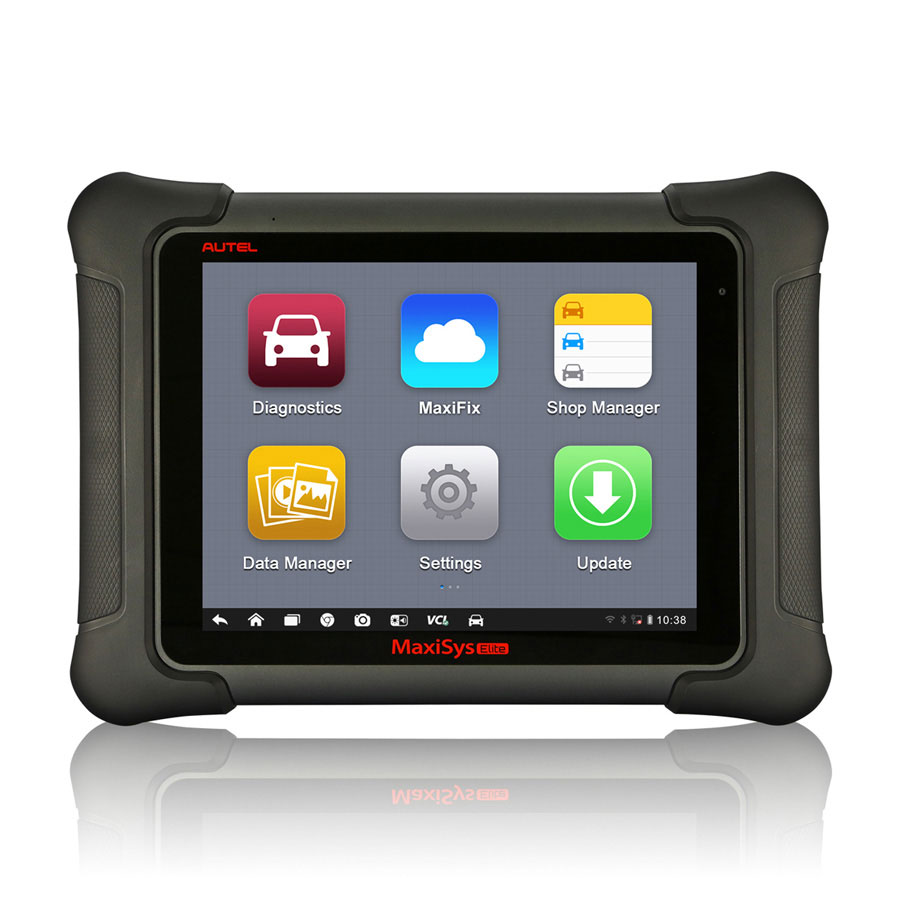

Autel MaxiSys Elite is the newest addition to the MaxiSys line of highly advanced smart diagnostic tools, is based on the fast and intuitive Android operating system. Powered by NVIDIA’s Tegra® 4, the world’s fastest mobile processor, its visually stunning 9.7” Retina display offers ultra-high resolutions up to 2048x1536 and an optimized array of sophisticated and powerful applications.

Original Autel MaxiSys Elite with J2534 ECU Programming with Wifi / Bluetooth Full Diagnostic Scanner 2 Years Free Update is a one of our MaxiSys Elite Tools, you can buy Original Autel MaxiSys Elite with J2534 ECU Programming with Wifi / Bluetooth Full Diagnostic Scanner 2 Years Free Update from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

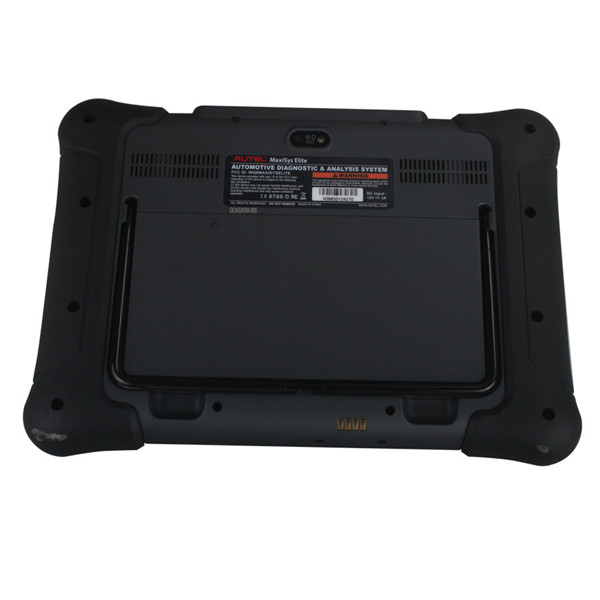

images of Original Autel MaxiSys Elite with J2534 ECU Programming with Wifi / Bluetooth Full Diagnostic Scanner 2 Years Free Update

Original Autel MaxiSys Elite with Wifi/Bluetooth OBD Full Diagnostic Scanner with J2534 ECU Programming



Autel MaxiSYS Elite Highlights:

1. Support Wifi and Bluetooth.
2. Free Update Online for 2 Years. After 2 Years, Update Subscription cost $795/Year
3. Hardware Running Speed is Twice Than Maxisys MS908S Pro, and the MaxiSys Elite provides extended battery life and intelligent power saving.
4. MaxiSys Elite Rapidly Performs Every Job from Comprehensive Vehicle Diagnostics & Analysis to Advanced ECU Programming.

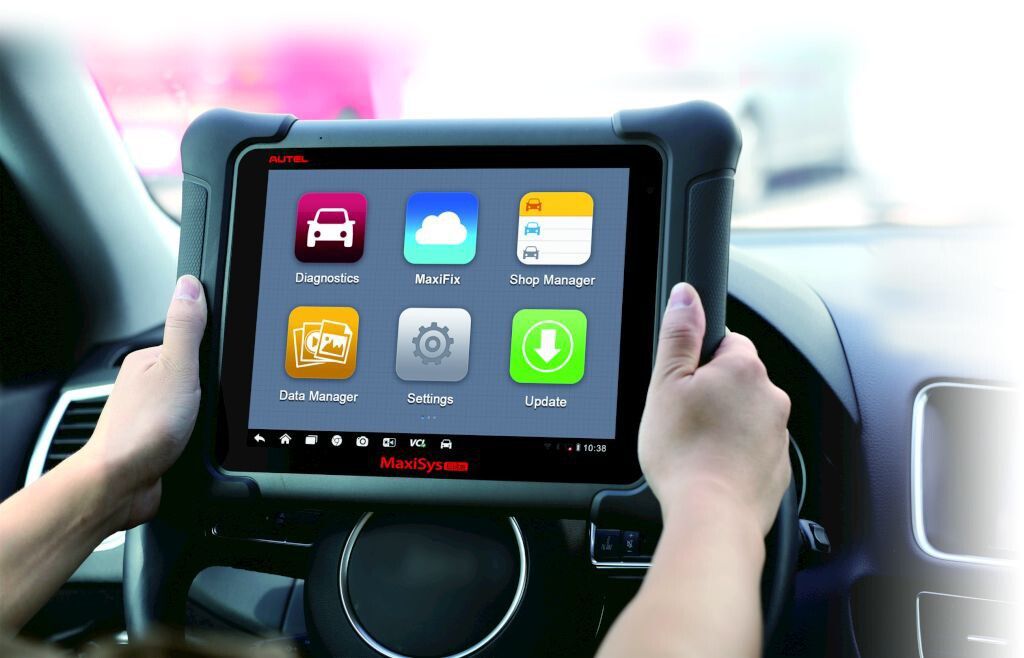

5. The MaxiSys Elite Offers a Super-Sensitive Capacitive Screen Able to Respond to Gloved, Moistened, and Even Greasy Fingers!
6. The Ergonomically Angled Docking Station Provides Optimum Visibility and Convenient Charging That Eliminates Power Concerns.
7. Handheld 9.7" Touch Screen highly advanced smart diagnostic tools from comprehensive OBDII diagnostics & services to advanced ECU coding and programming,coverage for more than 80 US domestic, Asian and European makes and models

Notice: This is US Version which can run in the United States locally Only.

Description:

Autel MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.

AUTEL MaxiSys Elite Features:

1. The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
3. Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
4. Automatic system and software updates with real-time push message notifications via internet
5. Instant remote control tech support anytime, anywhere
6. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
7. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
8. Unique ergonomic design with rubberized outer protection and a rugged internal housing
9. Autel MaxiSys Elite is equipped with the NVIDIA Tegra 4 Quad-Core Processor 1.8HGz that provides you with a fast operation speed and a quick diagnosis,the boot up time is within 20 seconds,all these give you a wonderful diagnostic experience
10. Autel MaxiSys Elite has some excellent functions such as automatically read VIN and One-Click Upgrade, Autel Cloud Technology (MaxiFix Platform, Data Management, Data Feedback) gives you support anytime, anywhere
11. Autel MaxiSys Eliter is with exceptional OE-Level functionality that works on most OBD1/OBD2 protocols, the enhanced wireless connectivity between the tablet and VCI device allows greater mobility and ease at work




AUTEL MaxiSys Elite Functions:

▪ECU matching on FORD enables you match the new ECU with your vehicle after replacing the old one
▪Coding function helps you do programming and coding on some specified control modules
▪Leading function for VW&Audi offers you a step-by-step guidance as how to fix the problem when you diagnosed the problem of the vehicle
▪Anti-theft matching can disable the lost key and add the new key’s information to program to ensure the security of your vehicle
▪SAS reset will calibrate the steering angle sensor after the replacement to make sure the ECU issued the correct steering instructions and memorize the max angle's position
▪Tire pressure reset is to make up or replace the tire, tell the ECU that the tire pressure returned to normal and keep all the information in record
▪Injector programming will write the new code to the ECU after replacement of injector, so that the injector works
▪DPF reset is to retrieve/erase DPF-related codes, reset the DPF light after the filter has been replaced
▪Throttle matching is to do ECU matching after throttle cleaning or replacement..


All Modules - Chassis, Powertrain, Body etc
Read and Clear Codes
Live Data/Record/Playback
AutoVIN Technology
SAS Functionality
ABS Functionality
DPF Functionality
EPB Functionality
Climate Control Functionality
Oil Service Functionality
Instrument Cluster Functionality
Steering Angle Sensors
Service Mileage/Interval Reset
Battery Registration/Reset
Adaption Testing
Activation Testing
Docking Station
Key Programming
J2534 Passthrough
ADAS Upgradeable
Higher Level Programming

AUTEL Maxysis Elite Vehicle List:

AUDI, BENZ, BMW, DACIA, EU FORD, AU Ford, FORD, Holden, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE,GM, CHRYSLER, FORD,SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HONDA, ACCURA, MAZDA.

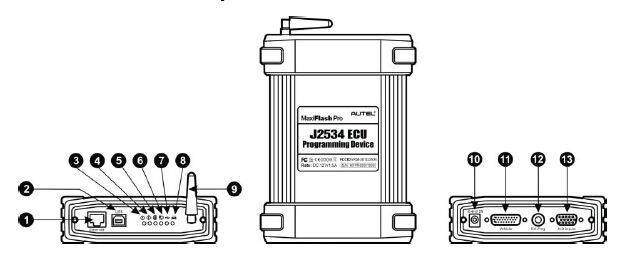

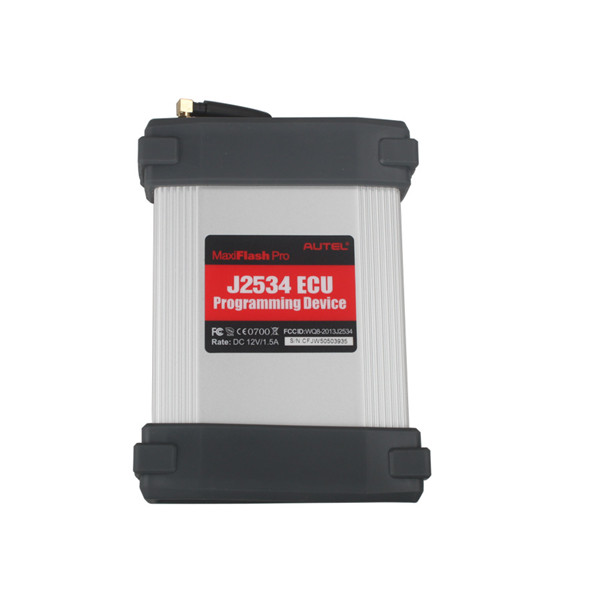

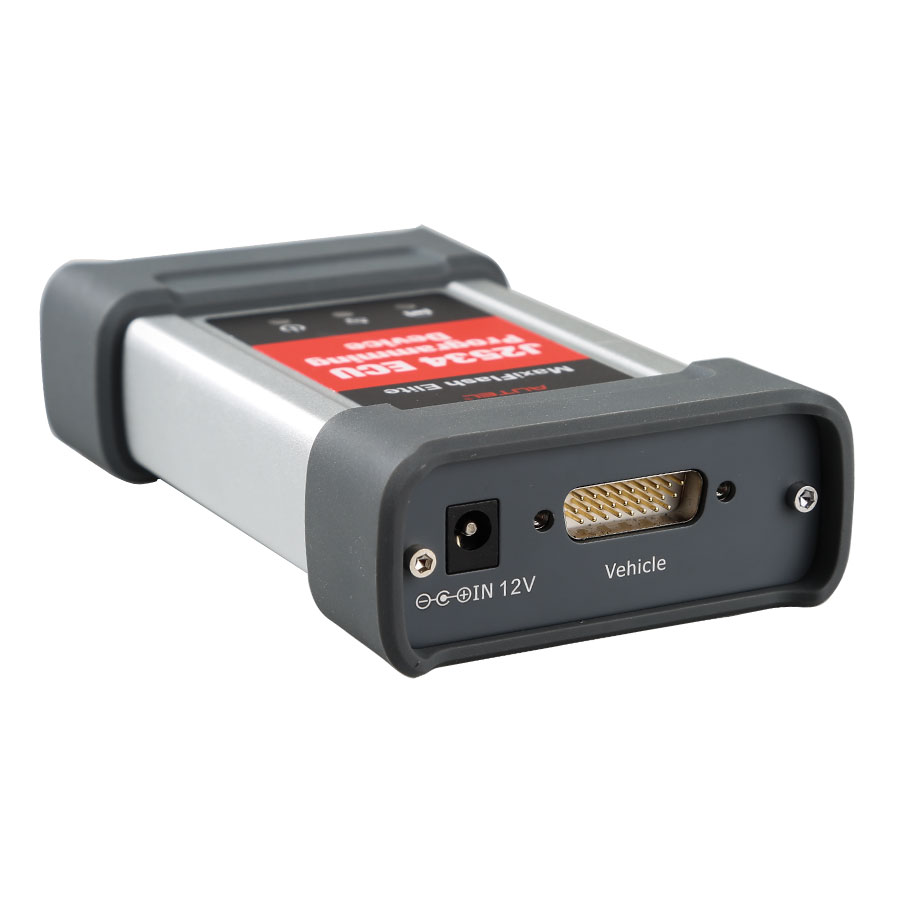

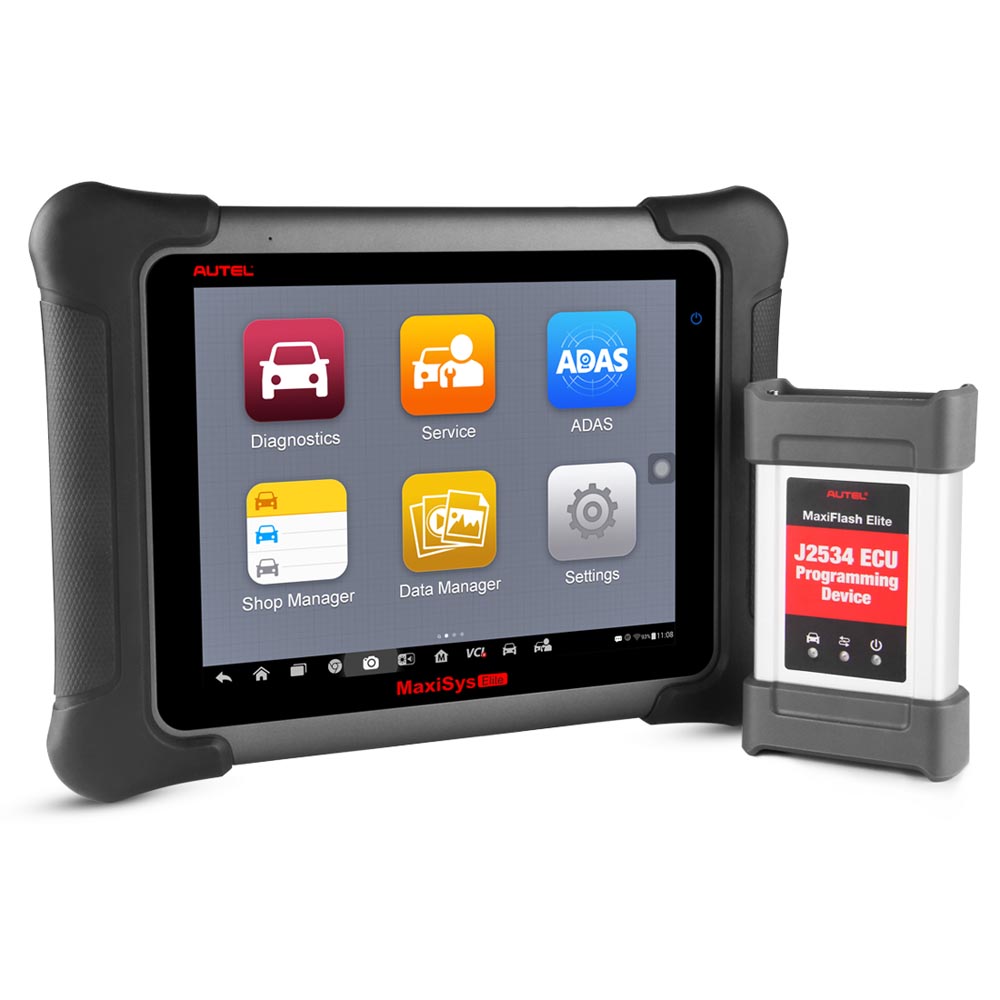

Autel MaxiSYS Elite J2534 ECU Programming Device:



1. Ethernet Port
2. USB Port
3. Power LED-illuminates solid green when powered on
4. Error LED-illuminates solid red when serious hardware failure occurs
5. BT LED-illuminates solid green when connected with the MaxiSys display tablet through BT communication
6. Ethernet LED-illuminates solid green when connected with the MaxiSys display tablet or an existing LAN via the Ethernet serial cable
7. USB Status Light-illuminates solid green when the device is properly connected and communicating with the MaxiSys display tablet or the PC via the USB cable.
8. Vehicle LED-flashed green when communicating with the vehicle’s network
9. BT Antenna
10. DC Power Supply Input Port
11. Vehicle Data Connector(DB26-Pin MVCI)
12. External Programming Voltage Output Port

Attention: Do not disconnect the reprogramming device while this status light is on! If the flash reprogramming procedure is interrupted while the vehicle’s ECU is blank or only partially programmed,the module may be unrecoverable.

Autel MaxiSYS Elite vs Autel MaxiSYS Pro 908P vs MS908 vs Mini MS905

AUTEL MaxiSys Elite Specifications:

AUTEL Maxysis Elite FAQs

Q1: Does this system come with troubleshoot feature?
A1: Of course, it can diagnose cars, Read and clear DTC, the most important is it can do ECU coding & Programming.

Q2: Can this scanner be used to calibrate seat sensors?
A2: Autel MaxiSYS Elite can do it on most cars, but if you want to make confirmation just tell us the car model, year and VIN, we will have a check and tell u the result.

Q3: Will this program ford super duty body controller?
A3: Yes it can reprogram or initialize.

AUTEL Maxysis Elite Reviews:

Review 1:
The scanner met my needs and was able to communicate with all of the vehicles that I own. I compared it to my Tech 2 scanner and the same functionality was built within this tool. And the bi-directional controls were the same and worked flawlessly. It's a very capable tool with lots of features such as reprogramming keys, fobs, modules and being able to communicate wirelessly with the vehicle.

Review 2:
A little overkill for my needs as this is a full blown professional shop caliper diagnostic and repair tool. Very expensive but you get what you pay for. The device has paid for itself already twice over. I give it a thumbs up all day long.

Review 3:
I have been a Ford Master Technician for 30 years and used about every brand diagnostic scanner over the years and this one is hands down the best and most universal scanner I have used to date! Never once have I had an issue with the Blue Tooth connection between the scanner and the VCM unlike what we use at Ford. Programs keys perfectly, bi-directional controls work flawless and is very fast processing of live data....WAY faster than Snap On Versus and the software especially for Ford is almost identical to Fords software with the IDS we use at the dealership...I actually prefer my Autel over the IDS now.

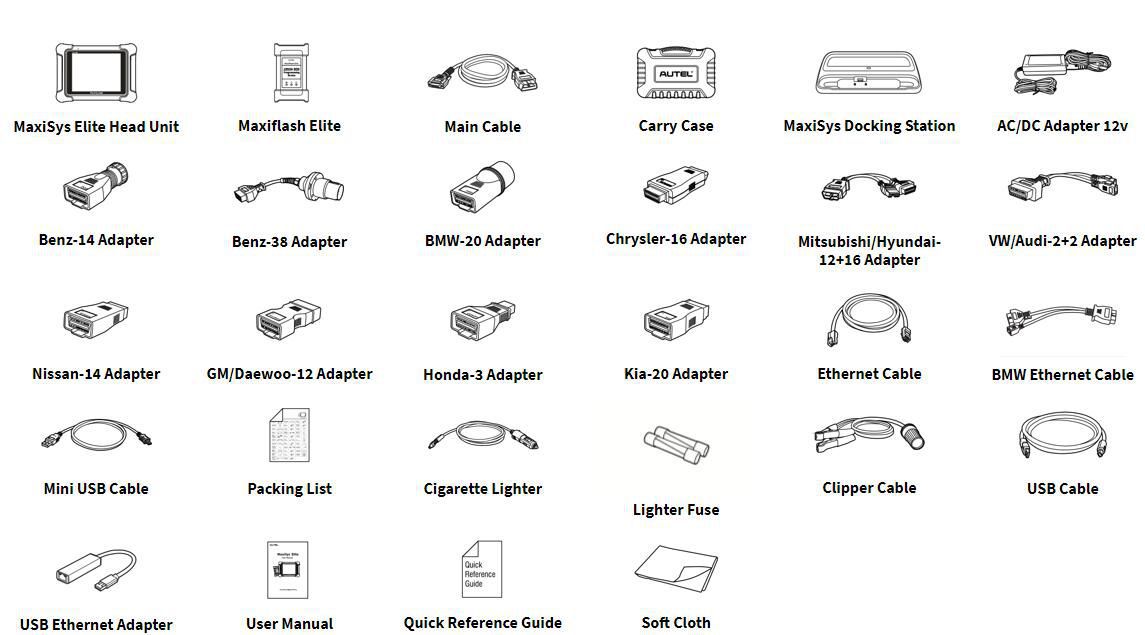

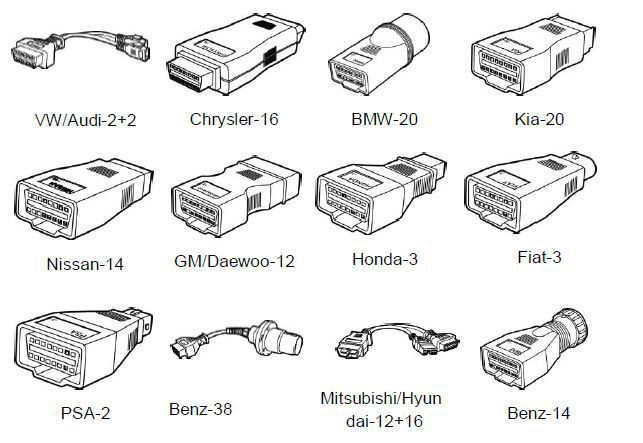

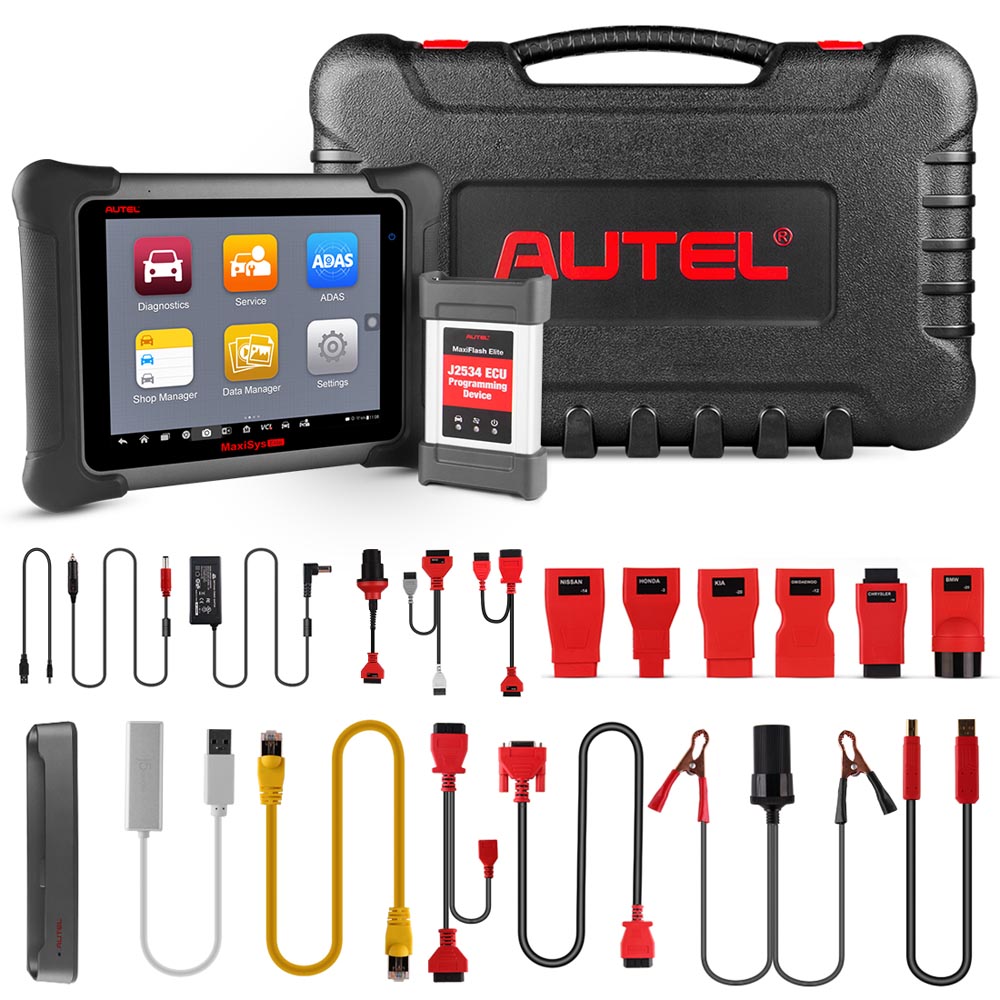

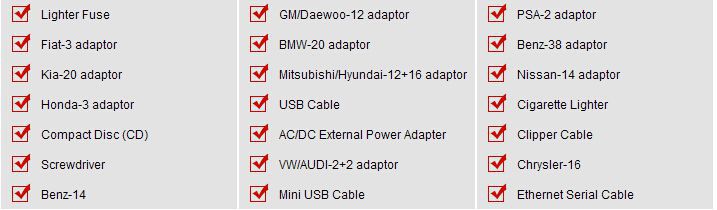

AUTEL Maxysis Elite Package Including:



1pc x Maxisys Elite Interface
1pc x Lighter Fuse
1pc x GM/Daewoo-12 adaptor
1pc x PSA-2 adaptor
1pc x Fiat-3 adaptor
1pc x BMW-20 adaptor
1pc x BENZ-38 adaptor
1pc x Kia-20 adaptor
1pc x Mitsubishi/Hyundai-12+16 adaptor
1pc x Nissan-14 adaptor
1pc x Honda-3 adaptor
1pc x USB Cable
1pc x Cigarette Lighter
1pc x Compact Disc (CD)
1pc x AC/DC External Power Adapter
1pc x Clipper Cable
1pc x Screwdriver
1pc x VW/AUDI-2+2 adaptor
1pc x Chrysler-16
1pc x Benz-14 (Optional)
1pc x Mini USB Cable
1pc x Ethernet Serial Cable
