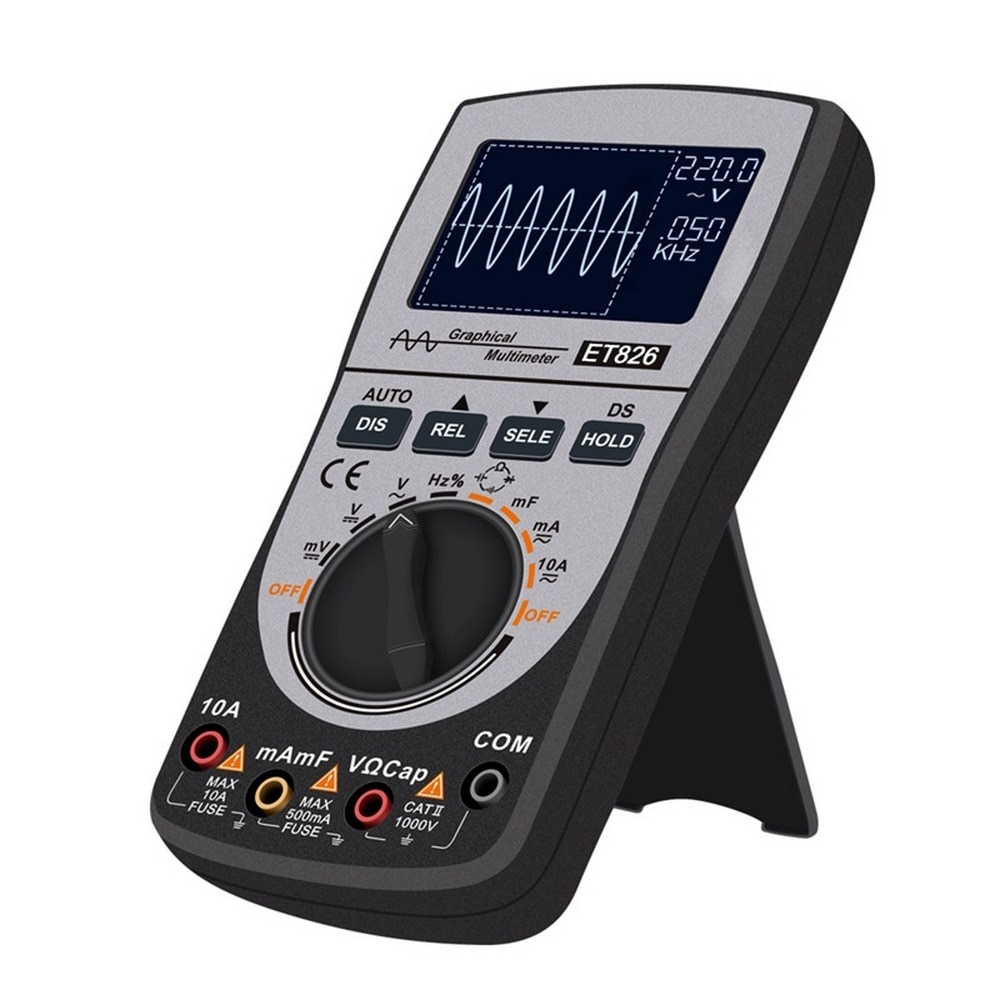

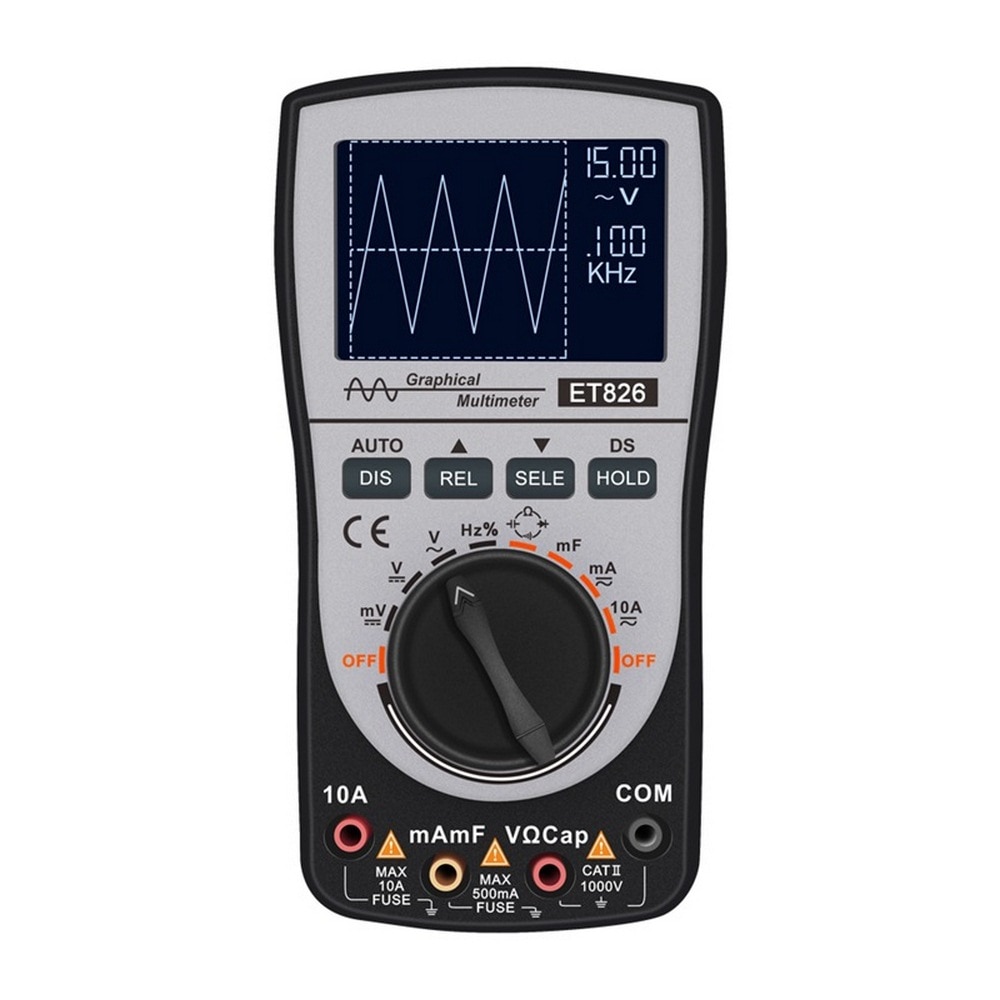

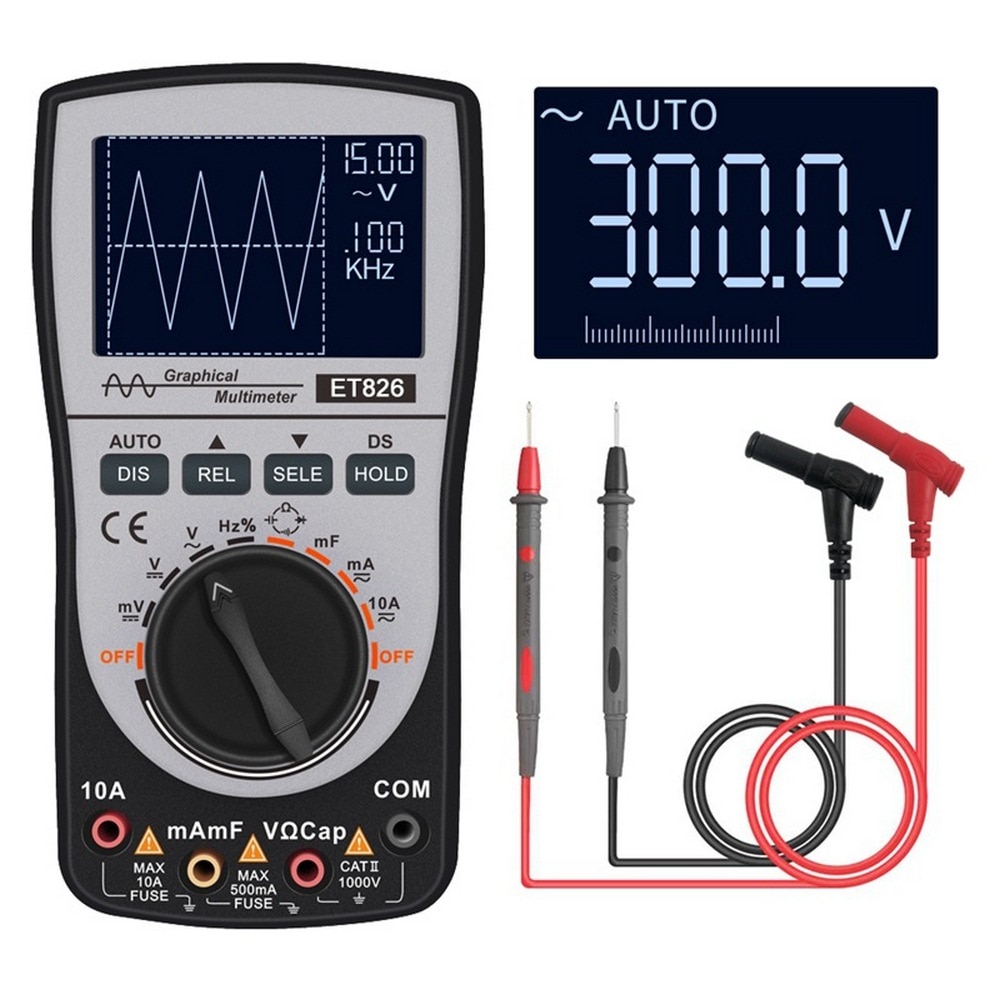

MT8206 2 In 1 Digital Oscilloscope Multimeter with Analog Bar Graph ET826 Multimeter Auto Range Backlight DC/AC Current Meter
Features:

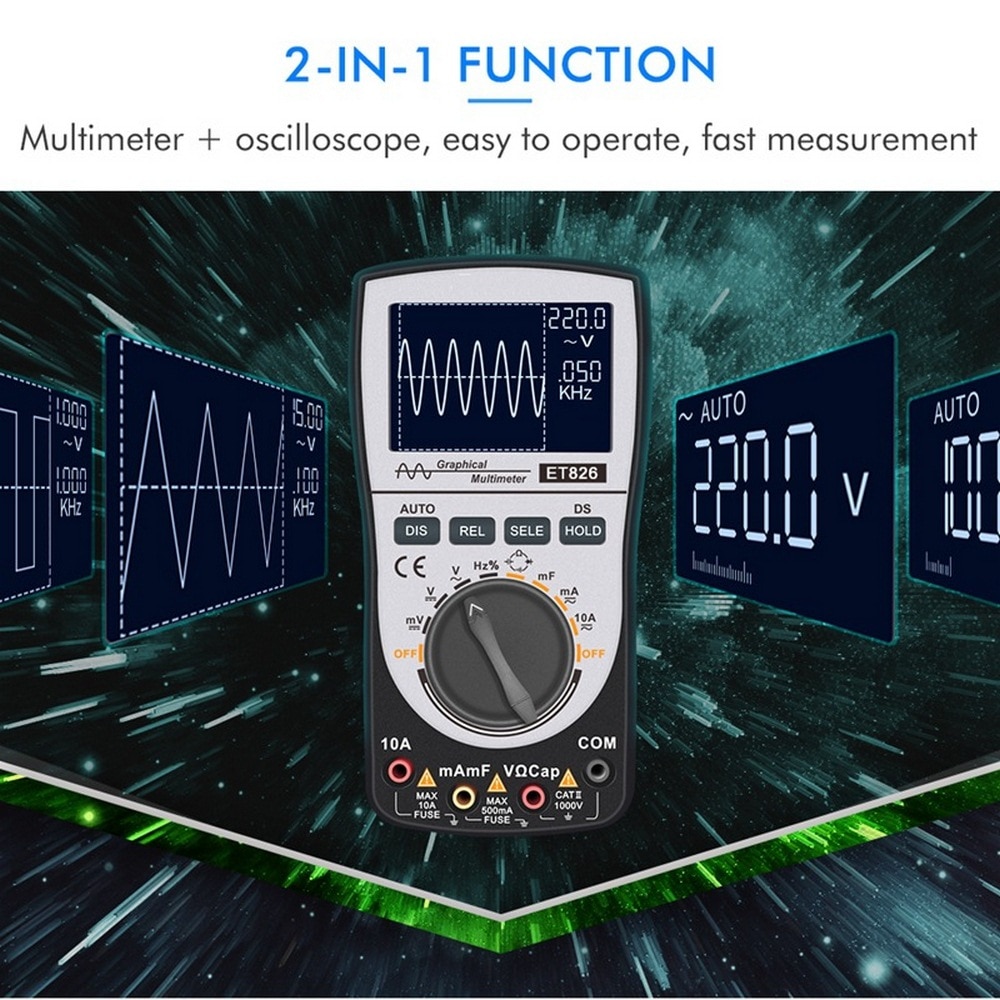

Digital multimeter with 200K high-speed A/D sampling, 4000 counts auto-range, one-button switch of graphical waveform display during measurement.
High reliability with panel calibration technology and memory calibration, sparing the need for adjustment with potentiometer.

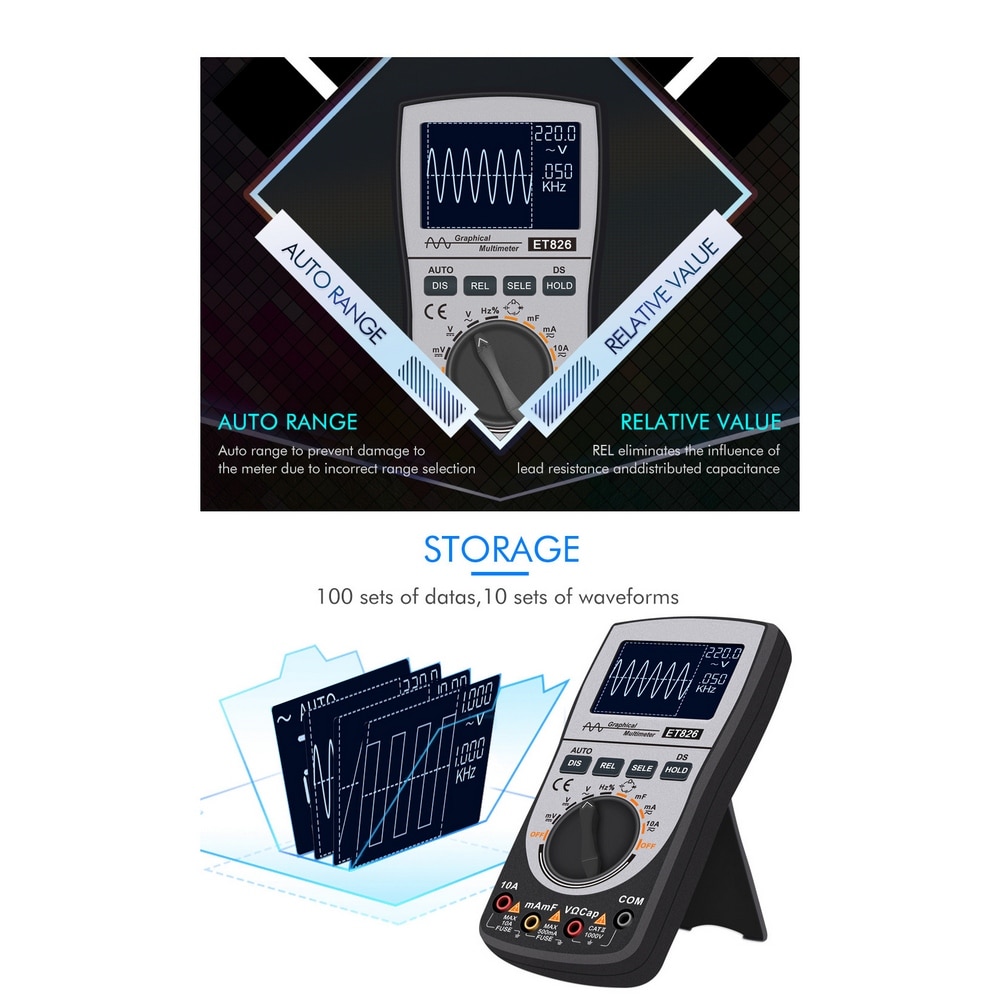

Storing 100 sets of data and 10 waveforms independently.
Capable of holding waveform and data during measurement, easy to view and analyze.

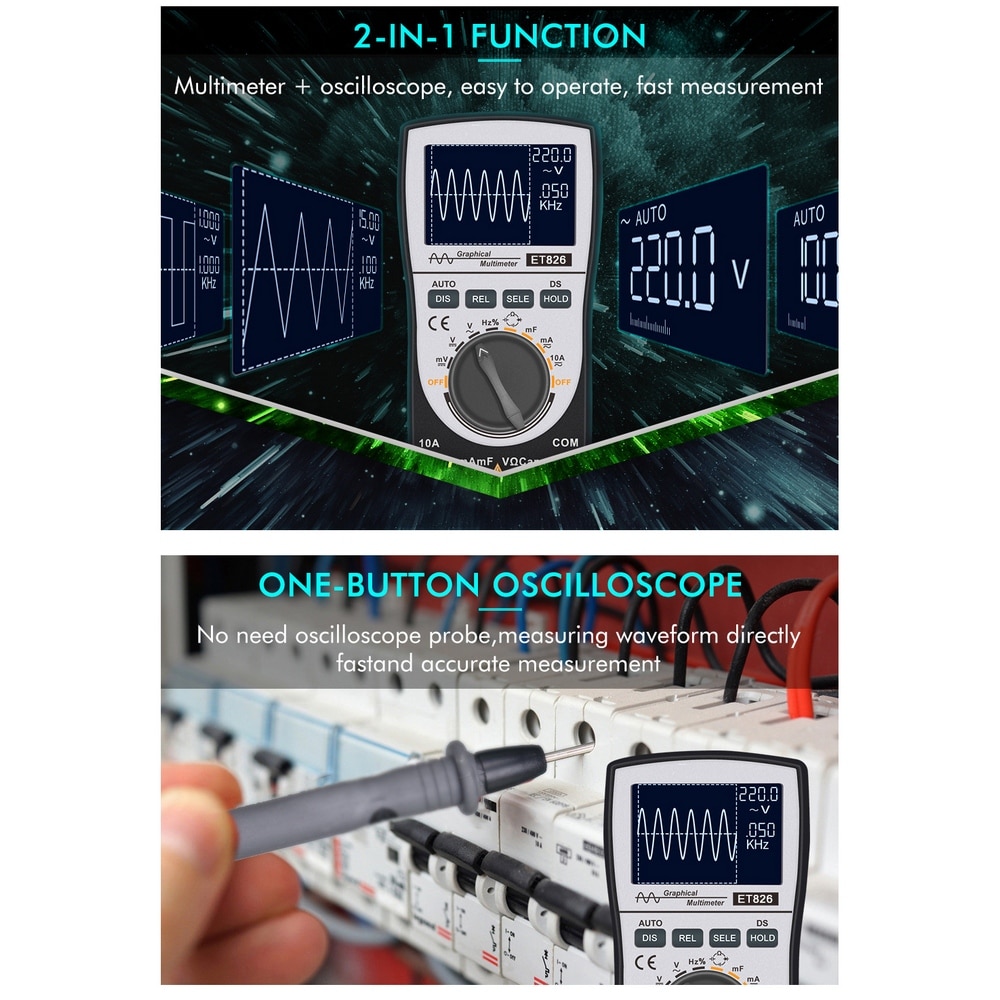

Realizing one-button automatic waveform capture, operator-friendly to learn and operate.

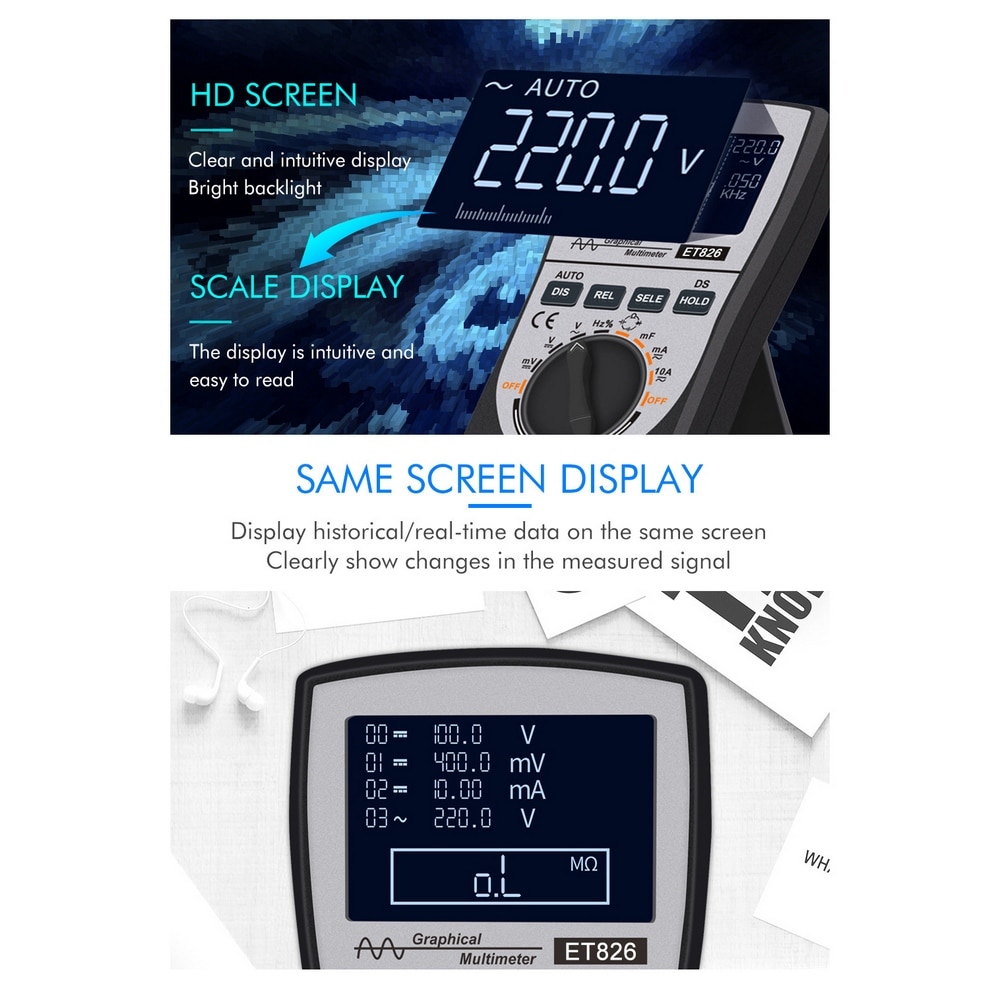

Displaying historical data and real-time measurement on the same screen with particular record reading mode for easy comparison.
AC voltage bandwidth up to 20KHz.
Innovative design for the one-key "silent mode", quiet in mastery.
Effectively eliminating lead resistance, distributed capacitance or interference signals with relative value measurement (clearing).

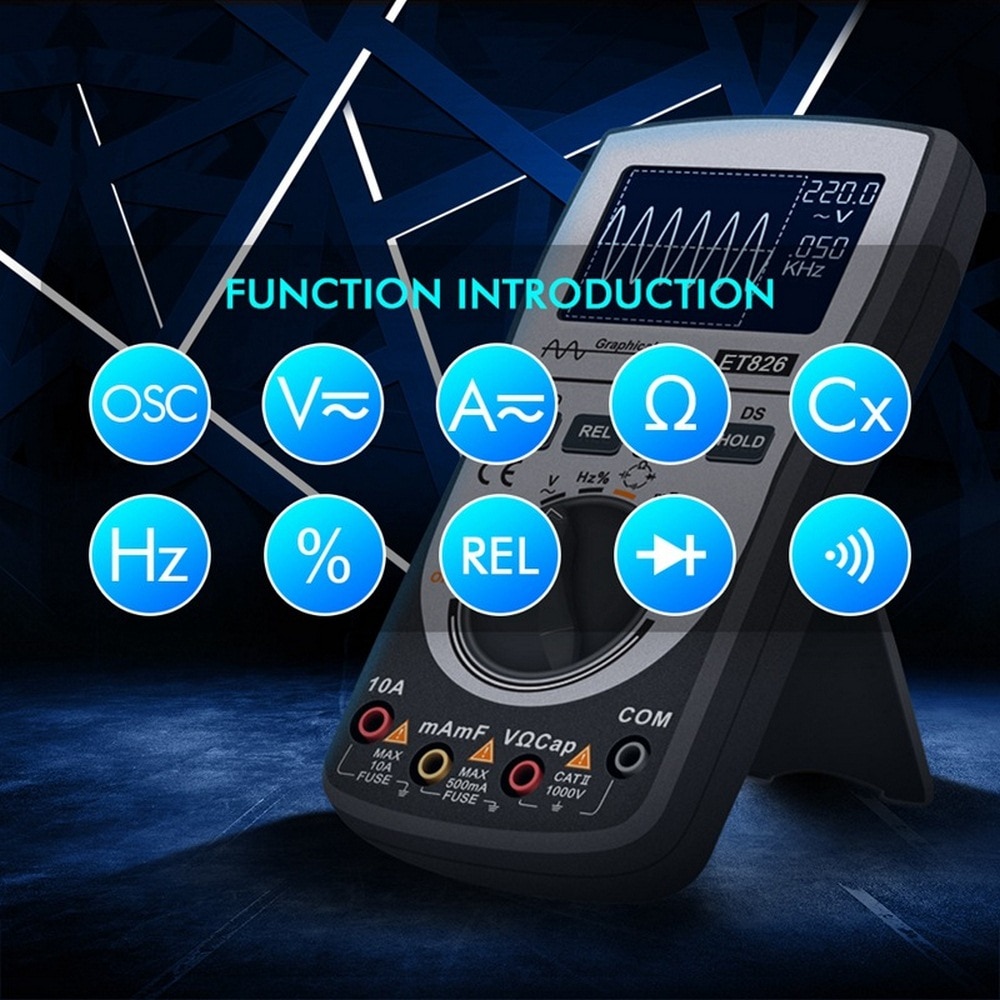

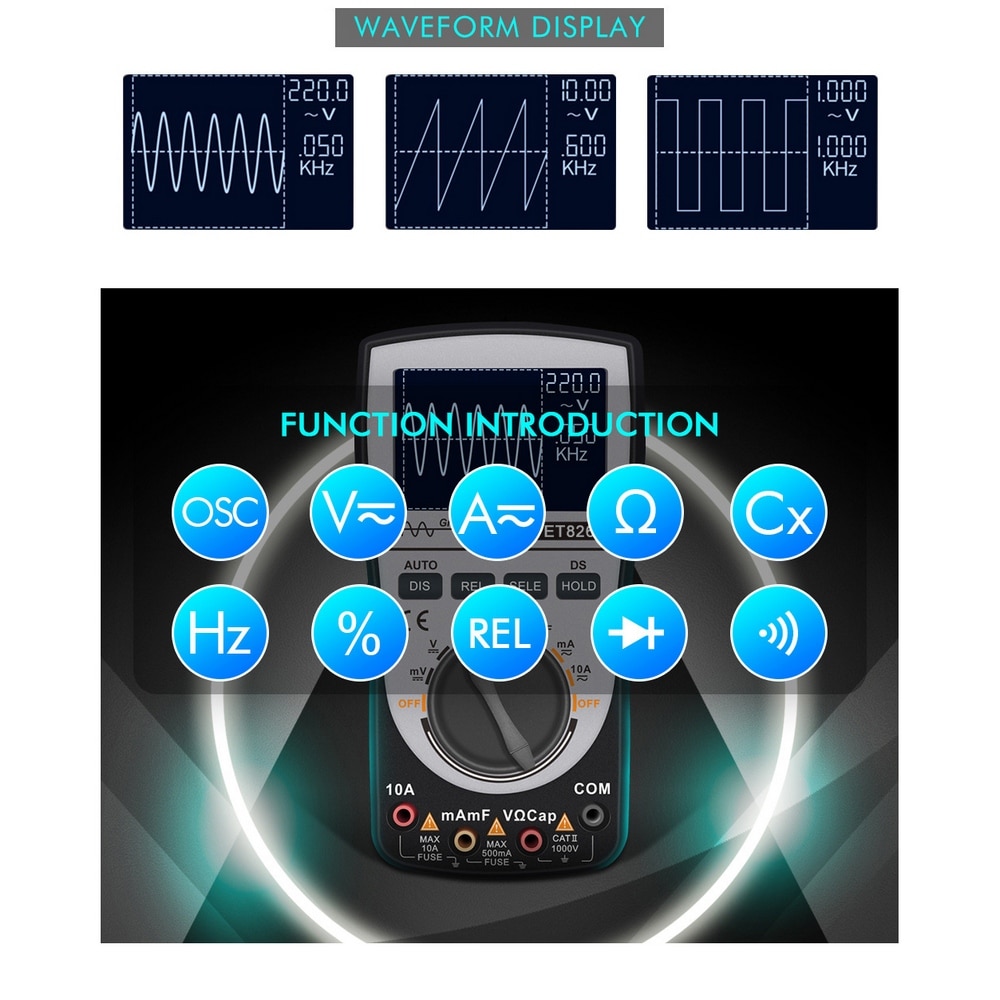

Featuring DC/AC voltage/current, resistance, capacitance/mF (large capacitance), frequency/duty cycle, diode/continuity test.
Frequency measurement with 5Hz~5MHz automatic switching range and the maximum input of 380VAC.
10A AC and DC current measurement with protection against voltage error.
Capacitance double gear design 0.1nf-100uf gear position: convenient for small capacitors to measure quickly.
10mf gear position: high capacitance and high accuracy are guaranteed.
Extending battery life with automatic shutdown function.

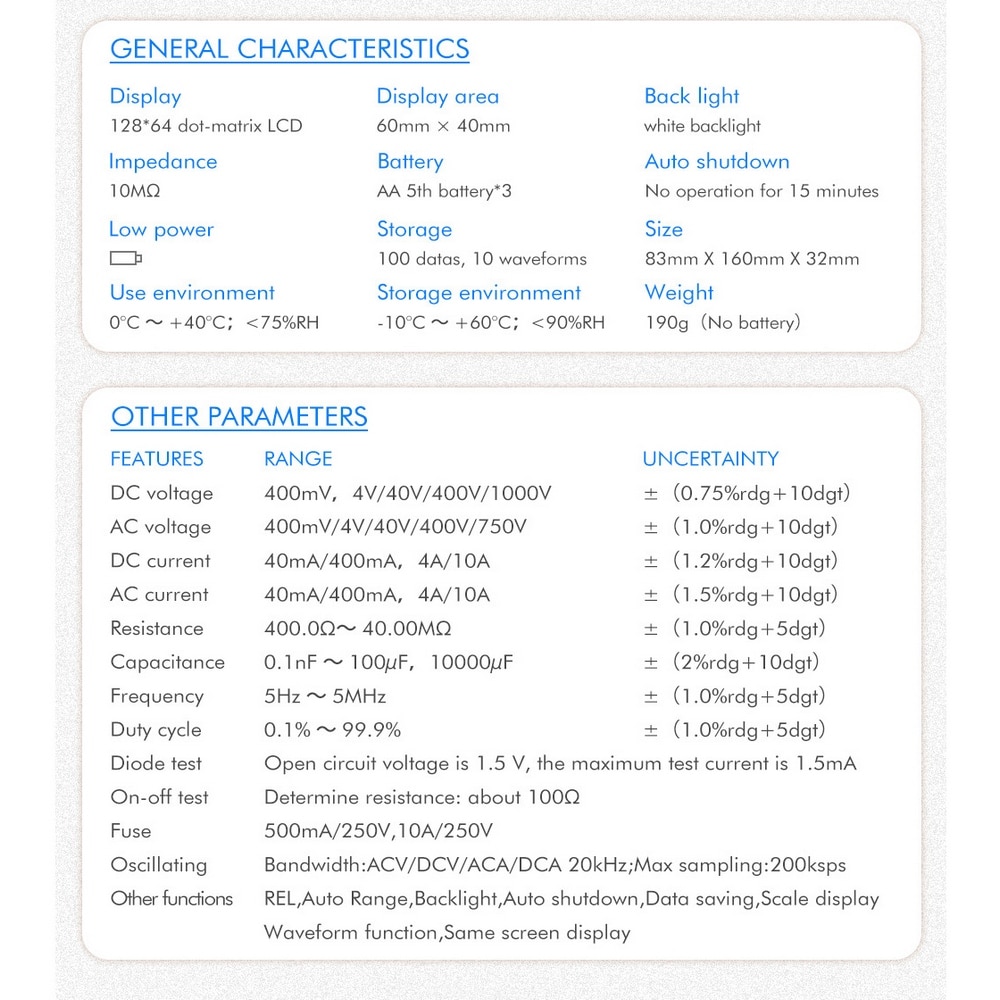

Specifications:
Material: ABS
Main color: grey

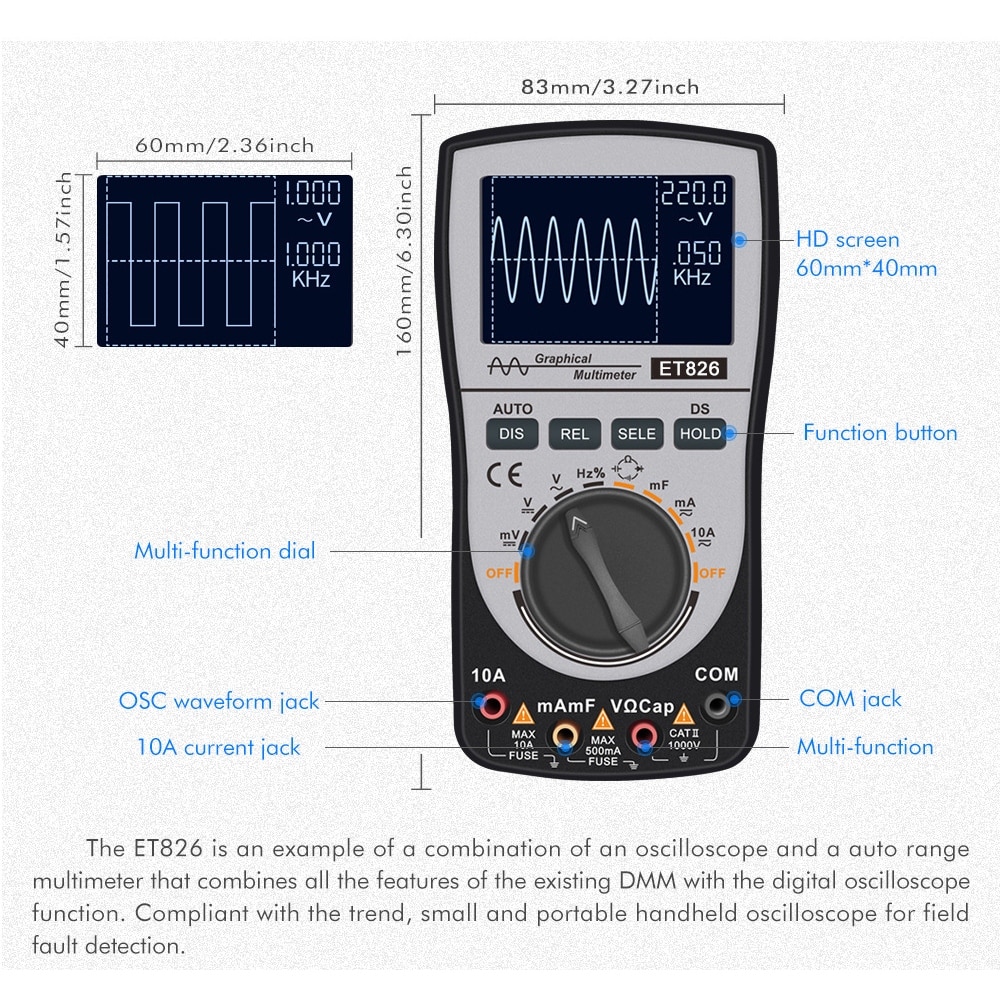

Display: LCD display, 128*64dot-matrix graphics, 4000 counts
LCD size: 60 * 40mm / 2.4 * 1.6in
Backlight: white
Power: 3 * 1.5V AA battery (not included)
Input resistance: 10MΩ
Auto sleep: yes (the meter automatically auto sleep in 15 minutes without any operation of button)
Power consumption: about 40mA
Storage capacity: DMM data: 100 groups, waveform record: 10 groups
Operation environment: 0℃~+40℃; <75%RH Storage environment: -10℃~+60℃; <90%RH Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in Item weight: 190g / 6.7ounce Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in Package weight: 360g / 12.7ounce Digital storage scopemeter: Analog bandwidth: ACV/DCV/ACA/DCA 20KHz Maximum real-time sampling rate: 200ksps Digital multimeter: DC voltage: Range: 400mV/4V/40V/400V/1000V Resolution: 0.1mV/1mV/10mV/100mV/1V Uncertainty: 400mV: ± (0.75%rdg+10dgt) 4V/40V/400V/1000V: ± (1.5%rdg+10dgt)/1000V AC voltage: Range: 400mV/4V/40V/400V/750V Resolution: 0.1mV/1mV/10mV/100mV/1V Uncertainty: 400mV: 50Hz~1KHz / ± (2.0%rdg+10dgt) no more than 1KHz 4V/40V/400V: 50Hz~400Hz / ± (1.0%rdg+10dgt) 400Hz~20KHz / ± (5.0%rdg+10dgt) 750V: 50Hz~1KHz / ± (1.5%rdg+10dgt) no more than 1KHz DC current: Range: 40mA/400mA, 4A/10A Resolution: 40mA/400mA: 10μA/100μA 4A/10A: 1mA/10mA Uncertainty: ± (1.2%rdg+10dgt) AC current: Range: 40mA/400mA, 4A/10A Resolution: 40mA/400mA: 10μA/100μA 4A/10A: 1mA/10mA Uncertainty: ± (1.5%rdg+10dgt) 50Hz~5KHz no more than 5KHz Resistance: Range: 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ Resolution: 0.1Ω/1Ω/10Ω/100Ω/1KΩ/10KΩ Uncertainty: ± (1.0%rdg+5dgt) ± (3.0%rdg+5dgt)/40MΩ Capacitance: Range: 51.2nF/512nF/5.12μF/51.2μF/100μF/10mF Resolution: 51.2nF/512nF/5.12μF/51.2μF/100μF: 10pF/100pF/1nF/10nF/100nF 10mF: 1μF Uncertainty: 51.2nF/512nF/5.12μF/51.2μF/100μF: ± (3.0%rdg+10dgt) 10mF: ± (5.0%rdg+15dgt) Frequency: Range: 5Hz~5MHz Resolution: 1Hz Uncertainty: ± (1.0%rdg+5dgt), (signal amplitude not less than 2Vp-p, ACV, MAX 380V) Diode test: open circuit voltage is about 1.5V, the maximum test current is about 1.5mA Continuity test: reference resistance is about 50Ω Fuse specification: 500mA/250V, 10A/250V Package list: 1 * Multimeter Oscilloscope 1 * Pair of Test Pens 1 * Protective Bag 1 * User Manual Note: Dear customer Pls note our product is not including battery, as battery is forbidden for air fly! This is 3 * 1.5V AA battery ! You can buy it from your country shop! Thanks for your understand and cooperation!
