MS8050 5 1 2 Digital Multimeter
MS8050 is a bench model DMM product that has high accuracy and high stability. Containing a 24 bits A/D converter and being controlled by a single-chip computer, it can operate for several ten measurement functions. It's five digits can count up to 53000.
MS8050 5 1/2 Digital Multimeter 53K Counts High Accurayc Bench/True RMS with carry box is a one of our MS8050 5 1 2 Digital Multimeter Tools, you can buy MS8050 5 1/2 Digital Multimeter 53K Counts High Accurayc Bench/True RMS with carry box from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

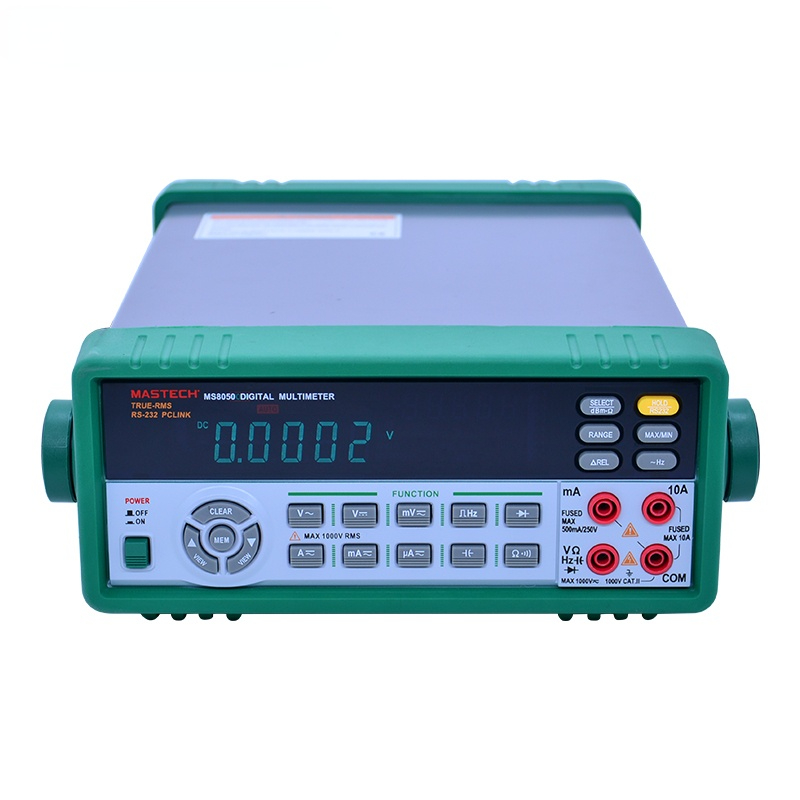

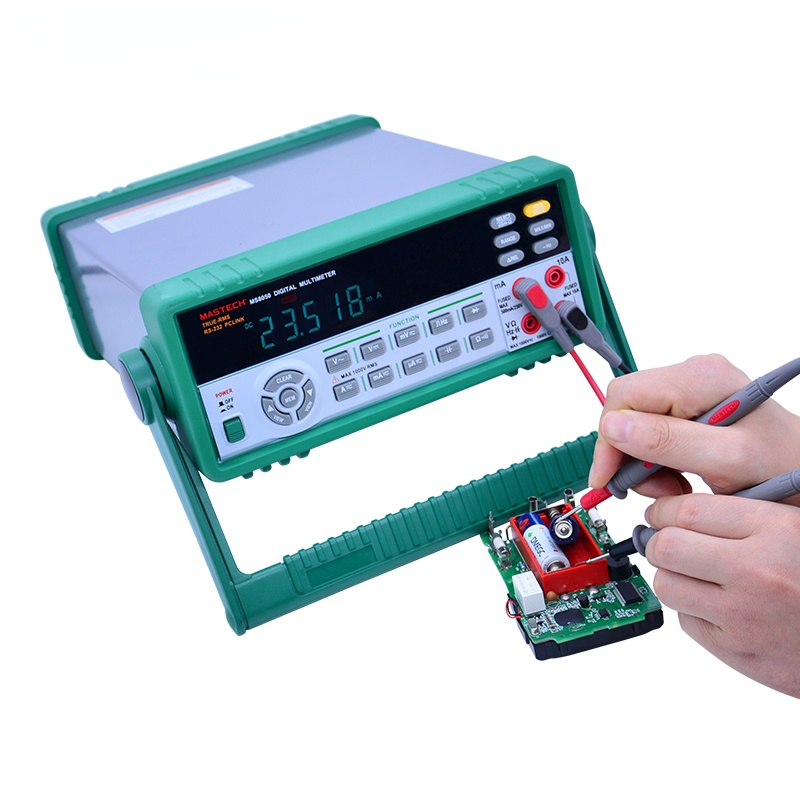

images of MS8050 5 1/2 Digital Multimeter 53K Counts High Accurayc Bench/True RMS with carry box
Please note:send without battery

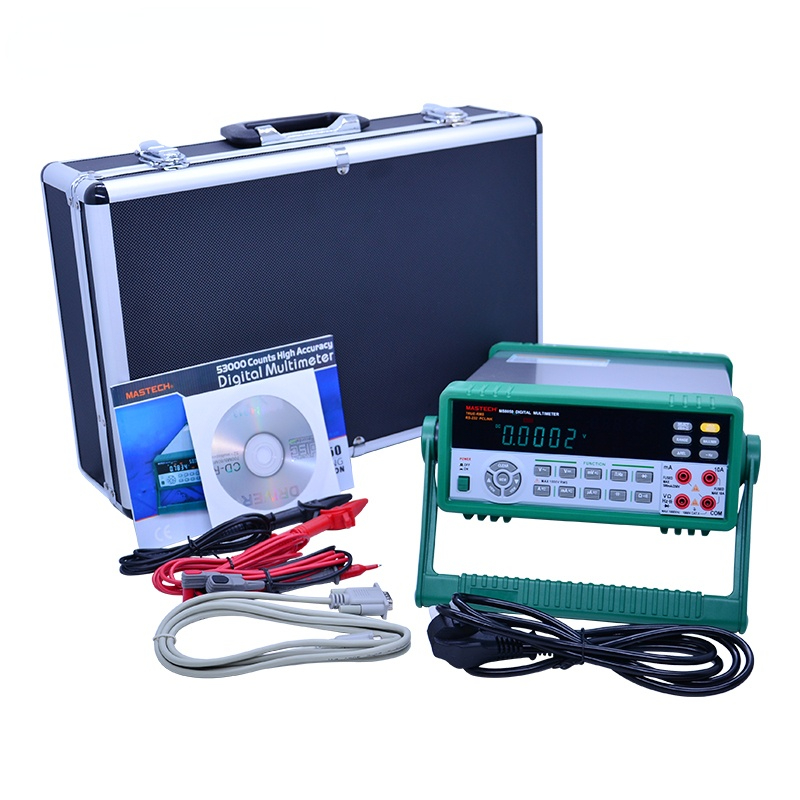

Packing list:
1*MS8050 Bench multimeter
1*Test leads
1*Test clips
1*RS232C Cable
1*CD
1*User manual
Product introduce:

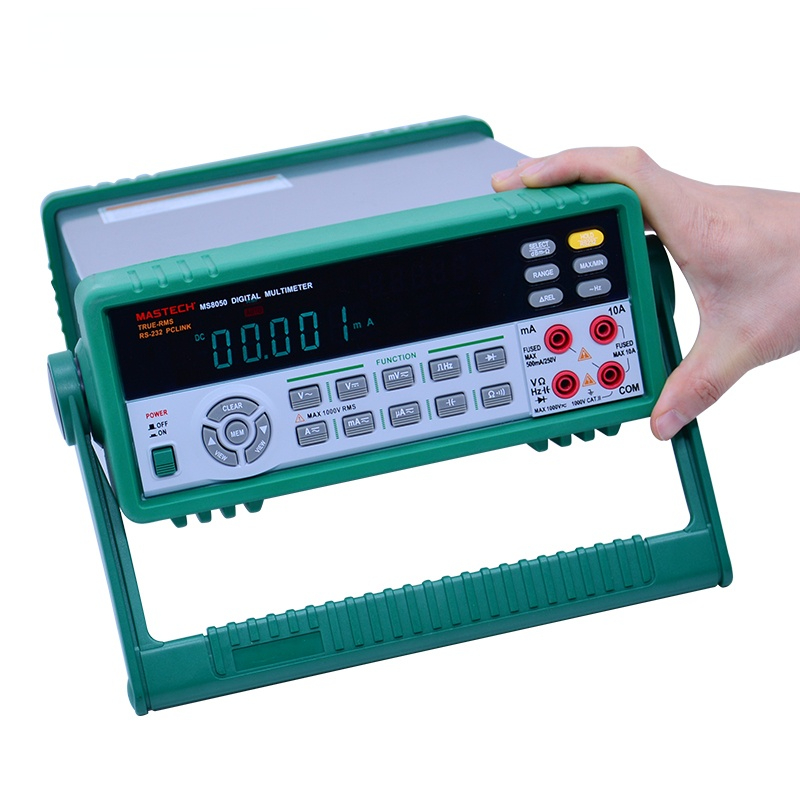

MASTECH MS8050 Digital Multimeter 53K Counts High Accurayc Bench/True RMS
MS8050 is a bench model DMM product that has high accuracy and high stability. Containing a 24 bits A/D converter and being controlled by a single-chip computer, it can operate for several ten measurement functions. It's five digits can count up to 53000.
Not only DC, AC RMS, but DC and AC mixture signal's RMS can be measured for 1000V or 10A.
The resolution of DCV is 1µV and the frequency band of voltage or current is about 20kHZ, which is sufficient for most electric measurements.
MS8050 is also a frequency counter, which can test pulse frequency above 2MHZ or linear frequency above 200kHZ, including the frequency of current.
The measurements of 50M ohm resistor, 5000µF capacitor, and maximum/minimum value, average value, relative value, power DB, diode, continuity are often useful for engineers.

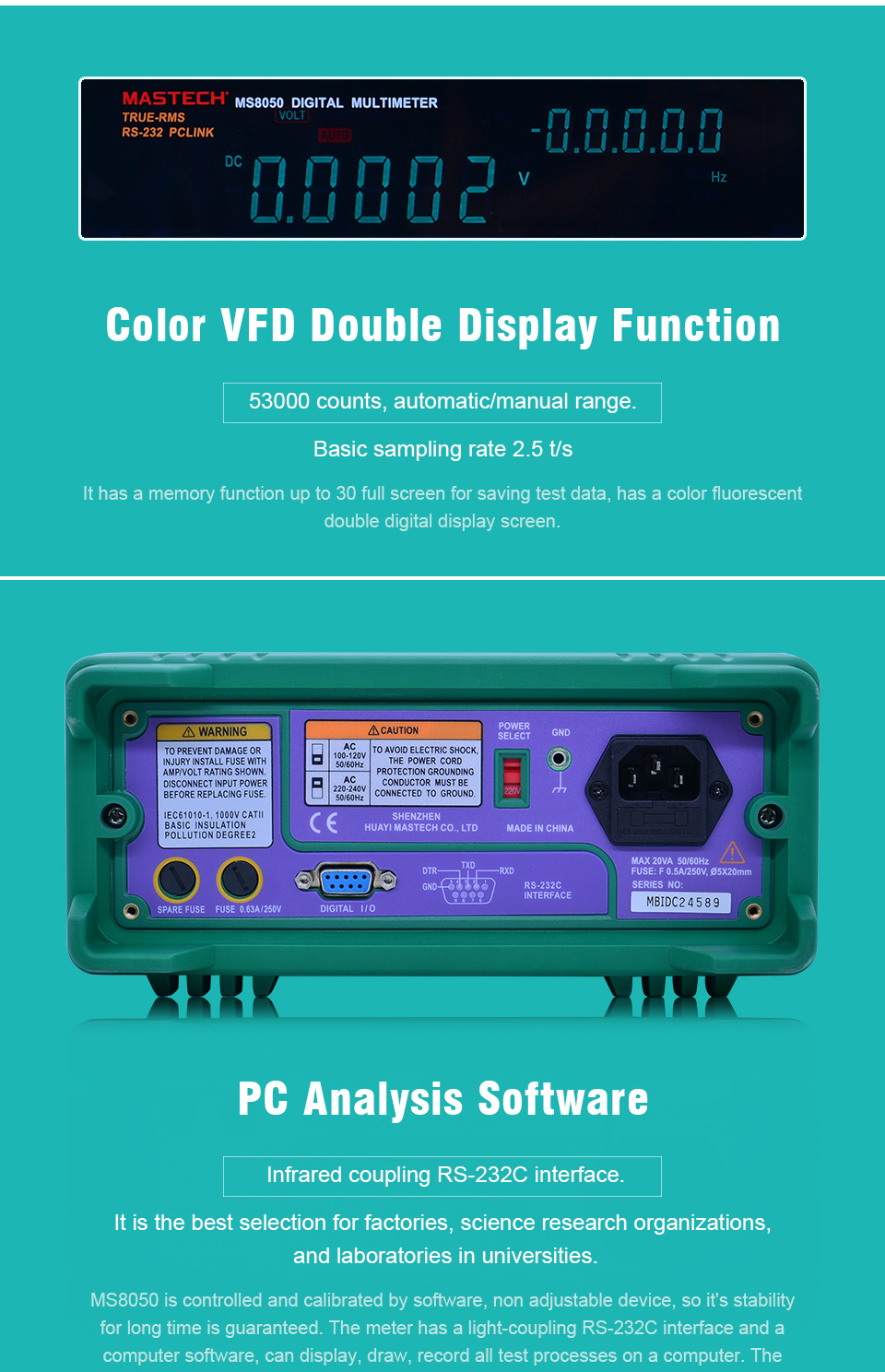

It has a memory function up to 30 full screen for saving test data, has a color fluorescent double digital display screen.
MS8050 is controlled and calibrated by software, non adjustable device, so it's stability for long time is guaranteed. The meter has a light-coupling RS-232C interface and a computer software, can display, draw, record all test processes on a computer.
The graphic software has an exclusive dynamic scale, which can describe very small changes of electric parameters.
MS8050 together with a computer becomes a very useful measurement recorder. The protection functions against some error operations get it's safety characteristic guaranteed.
It is the best selection for factories, science research organizations, and laboratories in universities.

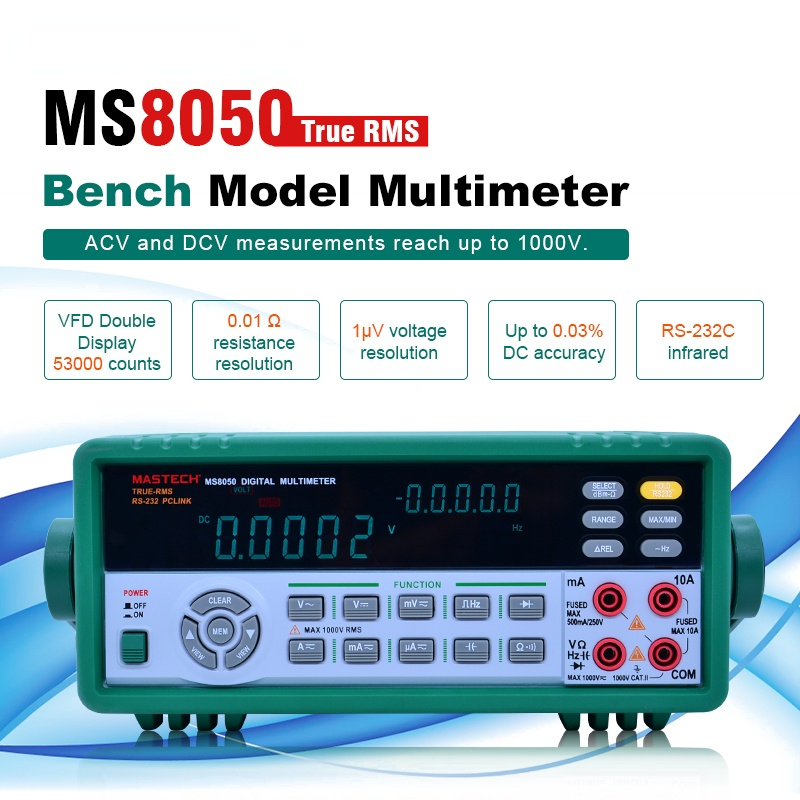

Features:
53000 counts VFD Display
ACV(TRMS)/ACV+DCV/dBm/DCV measurement up to 1000V
0.01ohm resistance and 1uV voltage resolution
Logic frequency/Linear frequency and duty cycle measurement
MAX/MIN/MAX-MIN Value, relative value, average value measurement
Data Hold and Data Logging
RS232 Interface
PC Analysis software
Diode and Continuity Test
20KHz frequency response for ACV measurement
220V/110V Power Supply

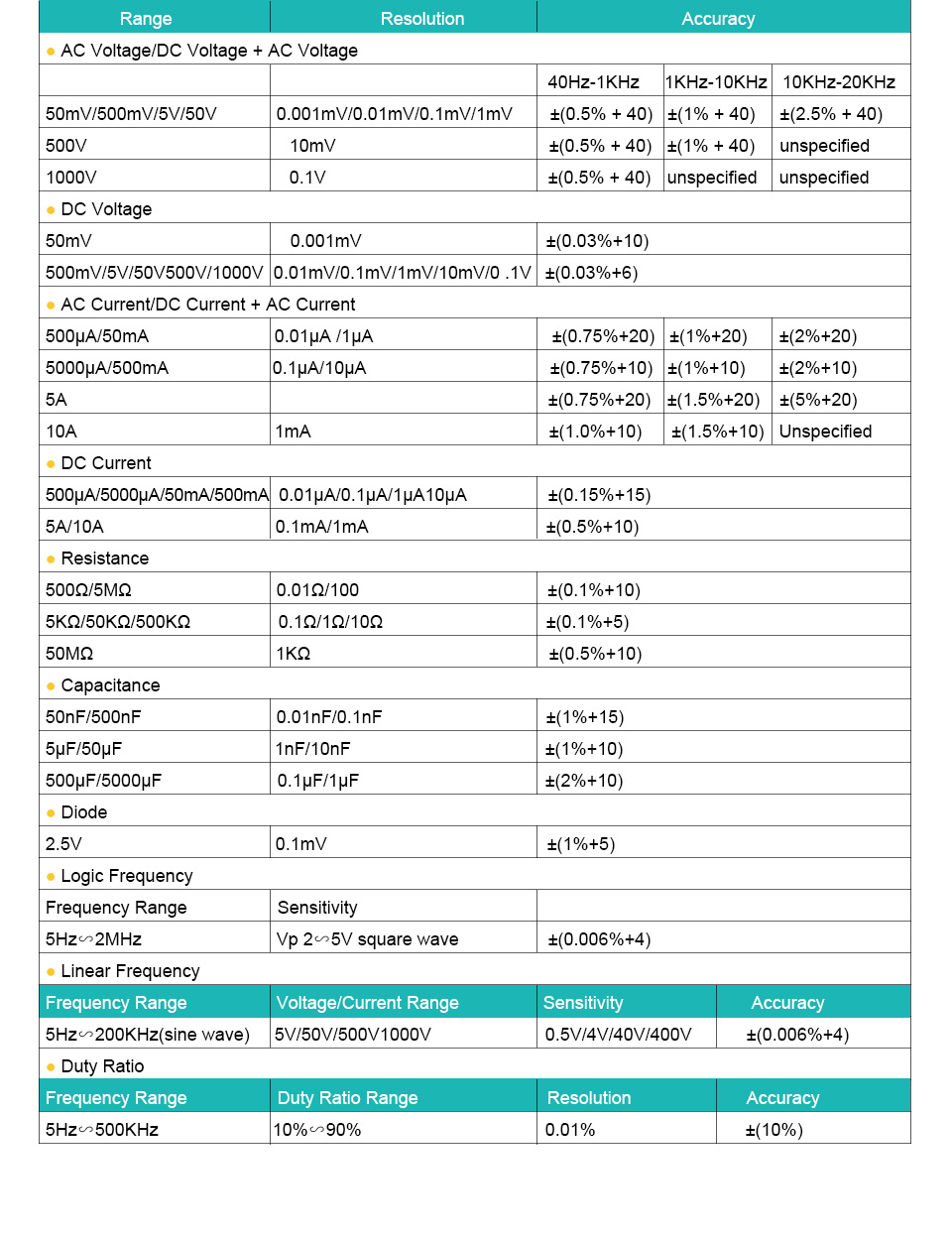

Specifications:
Counts: 53 000
DC voltage: 50/500mV/5/50/500/1000V ± 0.03%
DC + AC voltage: 50/500mV/5/50/500/1000V ± 0.5%
DC current: 500/5000µA/50/500mA/5/10A ± 0.15%
AC current: 500/5000µA/50/500mA/5A ±0.75%, 10A ±1.5%
Frequency: 5Hz ~ 2MHz ± 0.006%,
Resistance: 500 ohm/5/50/500k ohm/5M ohm ±0.1%, 50M ohm ± 0.5%
Capacitance: 50/500nF/5/50µF ±1%, 500/5000µF ±2.0%
Conductivity wire identification: yes
Diode test: yes
Data Hold: yes
Relative measurement mode: yes
Pulse ratio: 10%~90%, 5Hz~500KHz
Power source: ~220V ± 10% or ~110V ± 10%
Dimensions: 350 × 250 × 100 mm
PC interface connection: yes
