LK209C Car GPS Tracker
GPS+LBS Dual Positioning Ways: If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-2000 meters;
LK209C Car GPS Tracker 20000mAh 240 Days Standby Vehicle Car Tracker Waterproof 2G GPS Locator Tracker Magnets Drop Shock Alarm is a one of our LK209C Car GPS Tracker Tools, you can buy LK209C Car GPS Tracker 20000mAh 240 Days Standby Vehicle Car Tracker Waterproof 2G GPS Locator Tracker Magnets Drop Shock Alarm from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

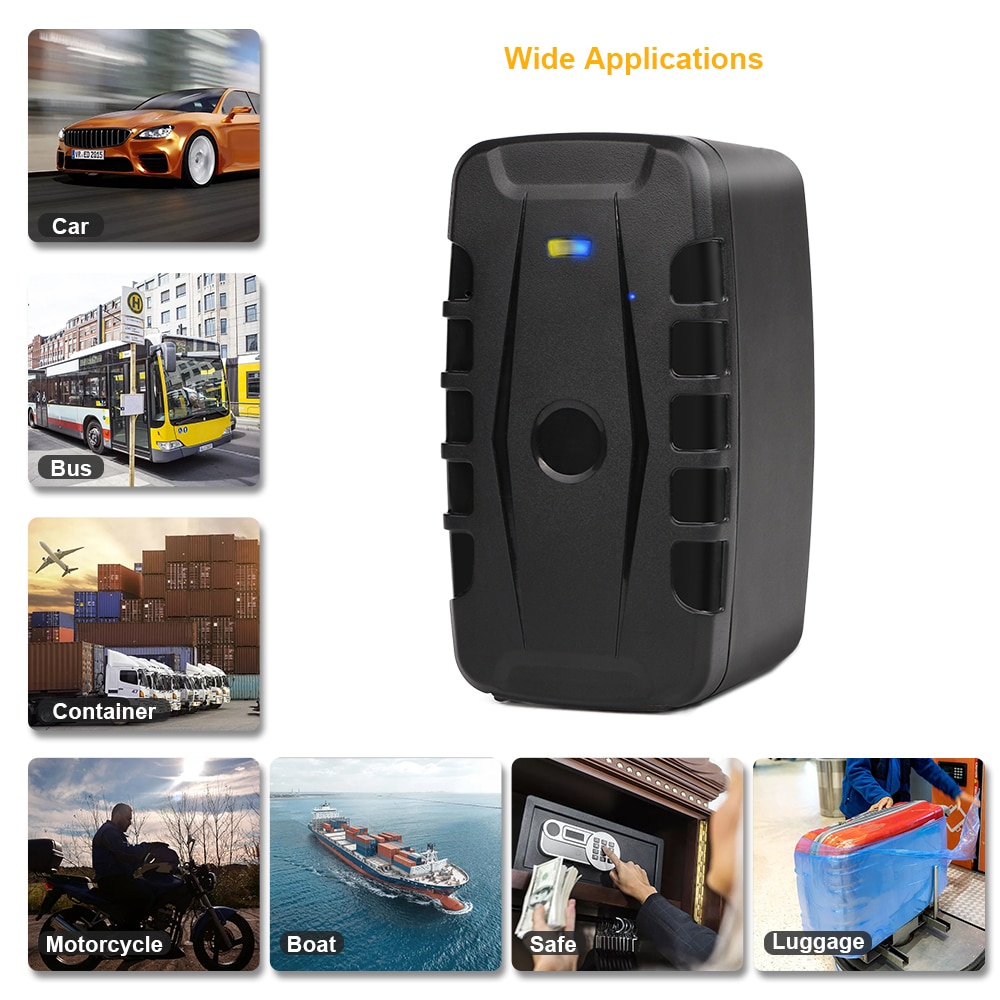

images of LK209C Car GPS Tracker 20000mAh 240 Days Standby Vehicle Car Tracker Waterproof 2G GPS Locator Tracker Magnets Drop Shock Alarm

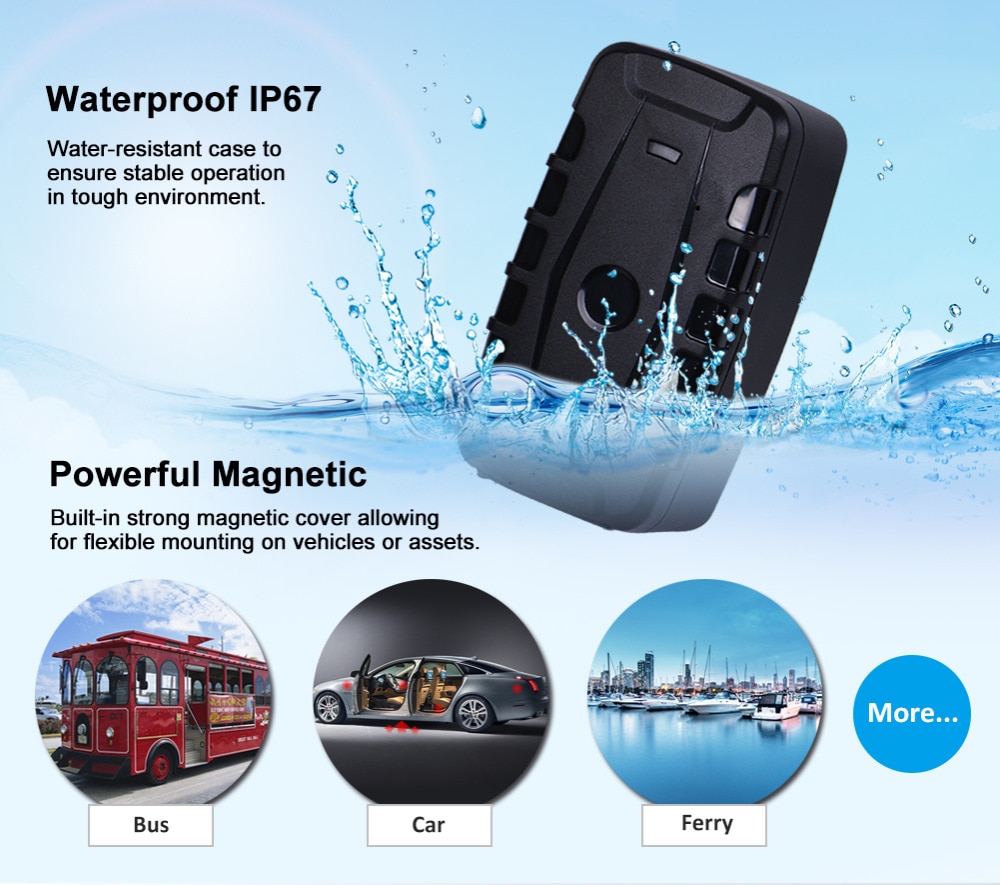

Case to ensure stable operation in tough environment.
Built-in strong magnetic cover allowing for flexiable mounting on vehicles or assets.
When the backup battery of the device is going to be 3.7V, it will send SMS"bat:low" to the authorized number every 30 minutes.
Built-in 3.7V 20000mAh rechargeable Li-ion battery, it can standby time up to 240 days
You will can remotely monitor the voice around the device, everything is under your eyes.

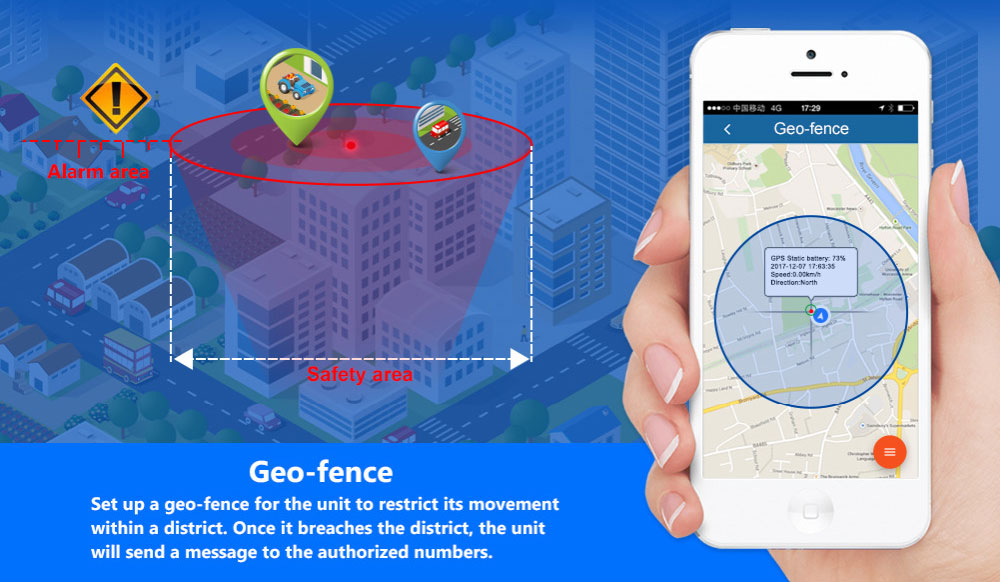

Users can set a range of Geo-fence on map, and it will alarm when the device gets in or out of presetted range via APP or SMS.
Once the tracker has been attracted on metal 15 seconds, this alarm function
When your speed is over what you set, it will send alarm to remind you keep safe.
About web tracking platform:
Web tracking platform: www.lkgps.net
Sever IP 101.1.16.228 Port 7700
About iOS/ANDROID APP Tracking:
Android version,please scan below QR code, if iOS version,please search "LKGPS" in app store to download.

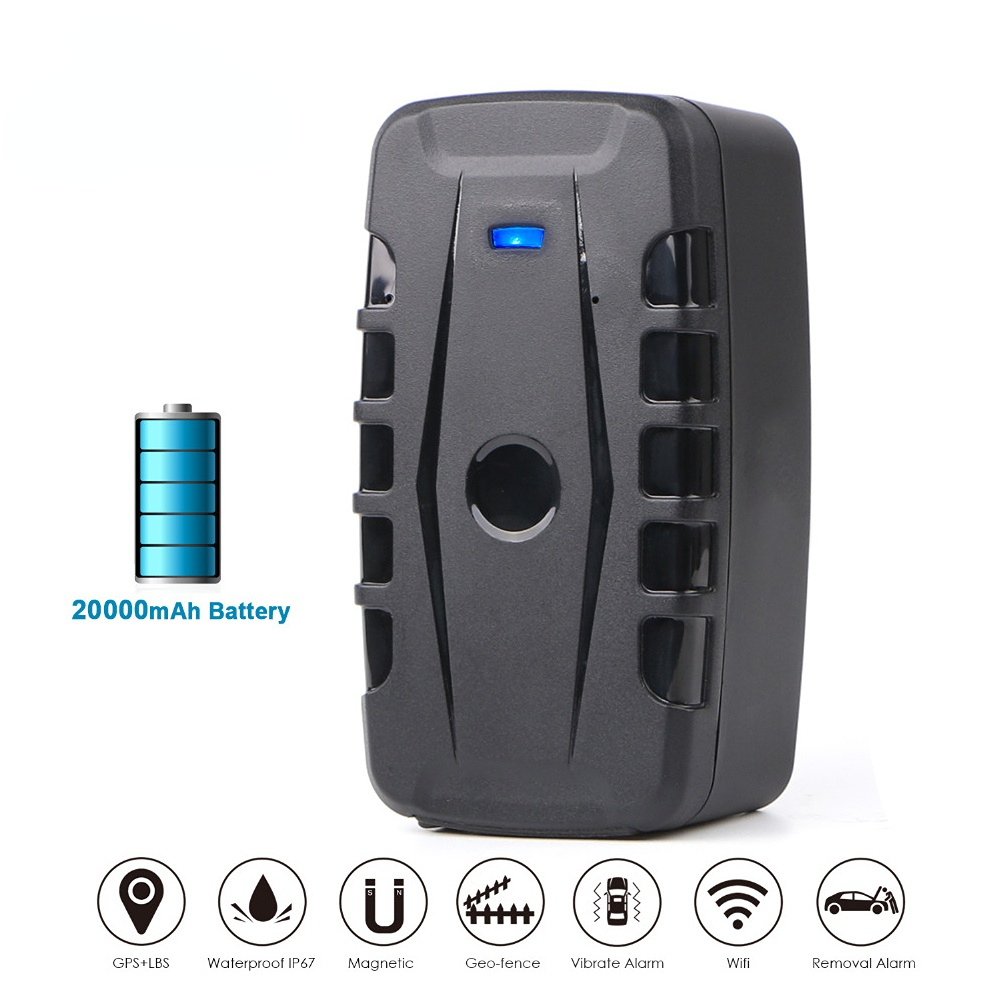

This Product LK209C is a Car GPS Tracker which is working based on the existing 2G GSM network and GPS satellites, it can locate and monitor any targets remotely by SMS, mobile APP and web tracking software!
It adopts the most advanced technology of GPS and LBS dual positioning. Besides, with built-in powerful magnet, it can be installed very easily and tightly on car, truck and any target with metal interface.
What's more, it supports 2G GSM 850/900/1800/1900Mhz, can work perfectly around the worldwide!
1. GPS+LBS Dual Positioning Ways: If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-2000 meters;
2. Realtime Tracking: You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!
3. History Route Playback: The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!
4. Long Standby Time: It has built-in 3.7V 20000mAh Li-ion battery, the standby time is up to 240 days and the working time is up to 15-20 days;
5. Powerful Magnetic: It has built-in powerful magnets, can be very easily installed.
6. Waterproof IP67: The waterproof level of this device is IP67, it can resist splash water but can't be put under water!
7. Remotely Voice Monitor: Send "Monitor+Password" to the device first, then the device will turn into monitor mode,
now if you make call to the SIM number in the device, it will pick up your call automatically and you will can monitor the voice around the device!
8. Overspeed Alarm: This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message “speed alarm!” to the admin number every 5 minutes.
9. Shock Alarm: After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm!” to the admin number when the unit get shocked.
10. Movement Alarm: When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command "move+passord", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.
11. Geo-fence: set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.
12. Sleep Mode for Saving Battery:
* Sleep by time mode: After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker.
* Sleep by shock sensor mode: After did this setting, if no shock for 5 minutes, the tracker will work under "sleep by shock" mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.

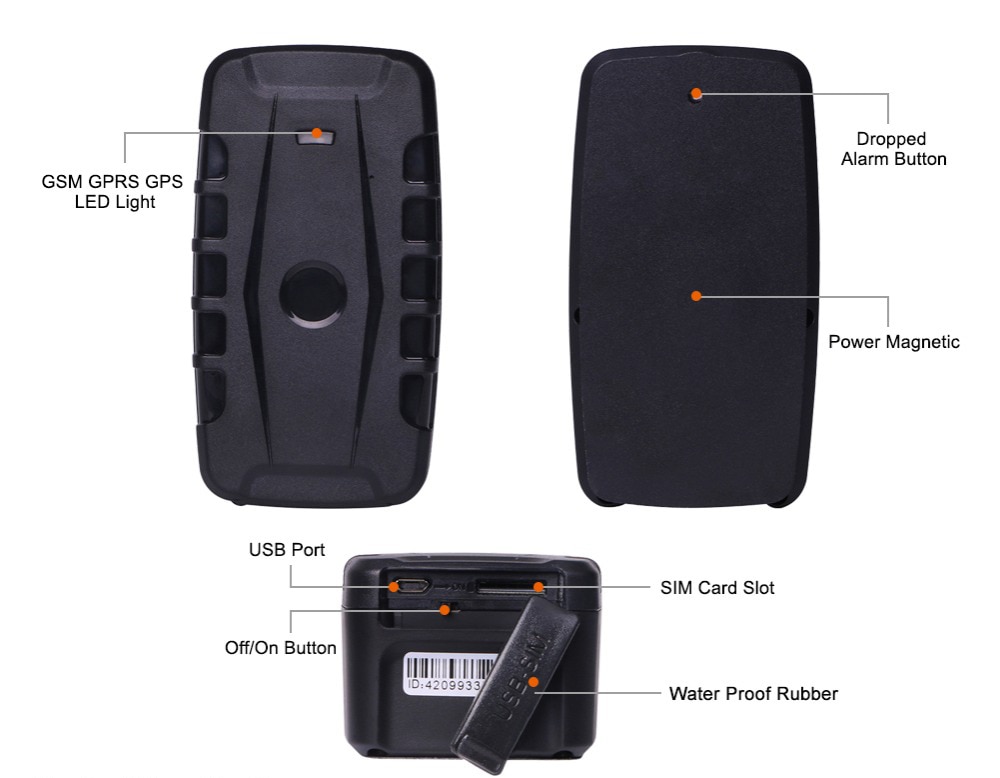

13. Dropped Alarm: there has an anti-removal induction sensor on the back side of the device. If this covered induction sensor is not covered again, the device will send "Loosing alarms!" to the admin number and SOS number by SMS!

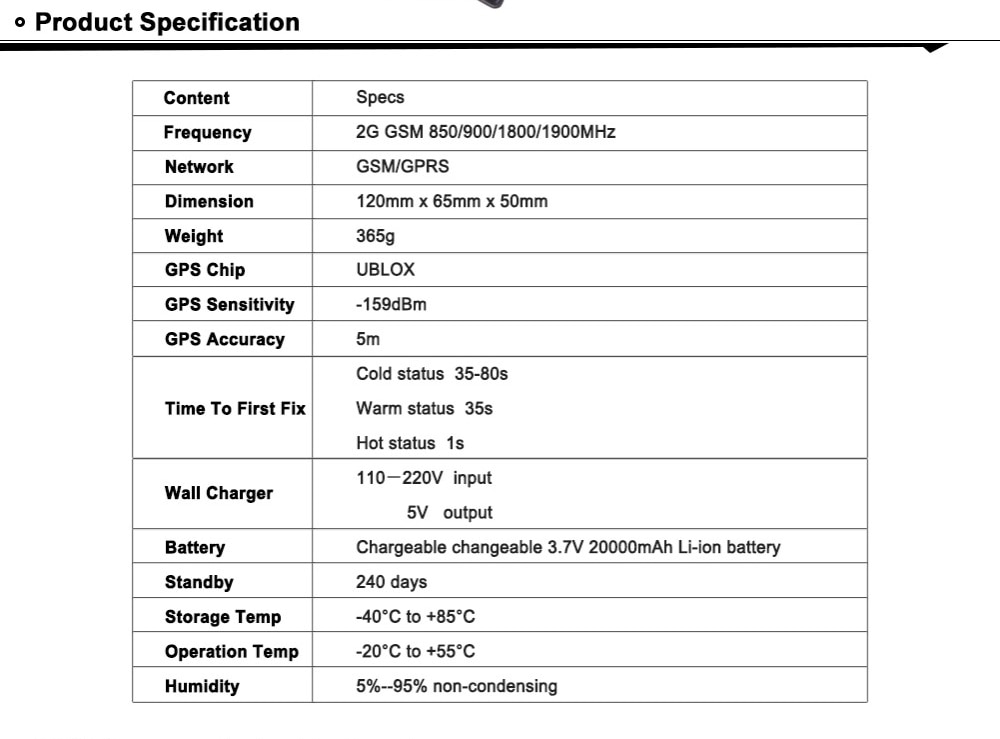

Model name: LK209C
Dim: 120mm x 65mm x 50mm
Color: Black
Network: GSM/GPRS
Band: 850/900/1800/1900Mhz
GPS chip: UBLOX
GPS sensitivity: -159dBm
GPS accuracy: 5m
Time To First Fix: Cold status 35-80s
Warm status 35s
Hot status 1s
Wall charger: 110-220V input 5V output
Battery: Built-in 3.7V 20000mAh Li-ion battery
Standby: 240 days GSM Alarm System
Storage Temp.: -40°C to +85°C
Operation Temp.: -20°C to +55°C
Humidity: 5%--95% non-condensing

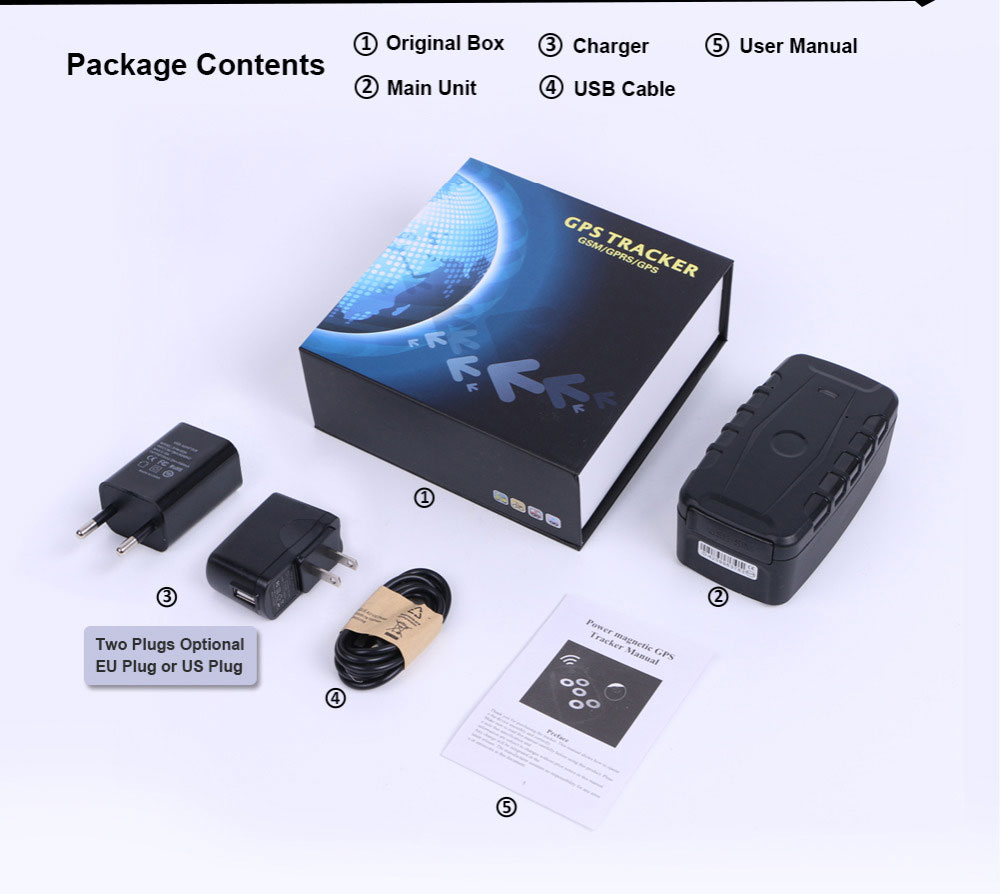

1 * LK209C(20000mAh battery)
1 * User Manual
1 * Charger
1 * USB Cable
1 * Original Box
(No SIM Card and SD Card Included)

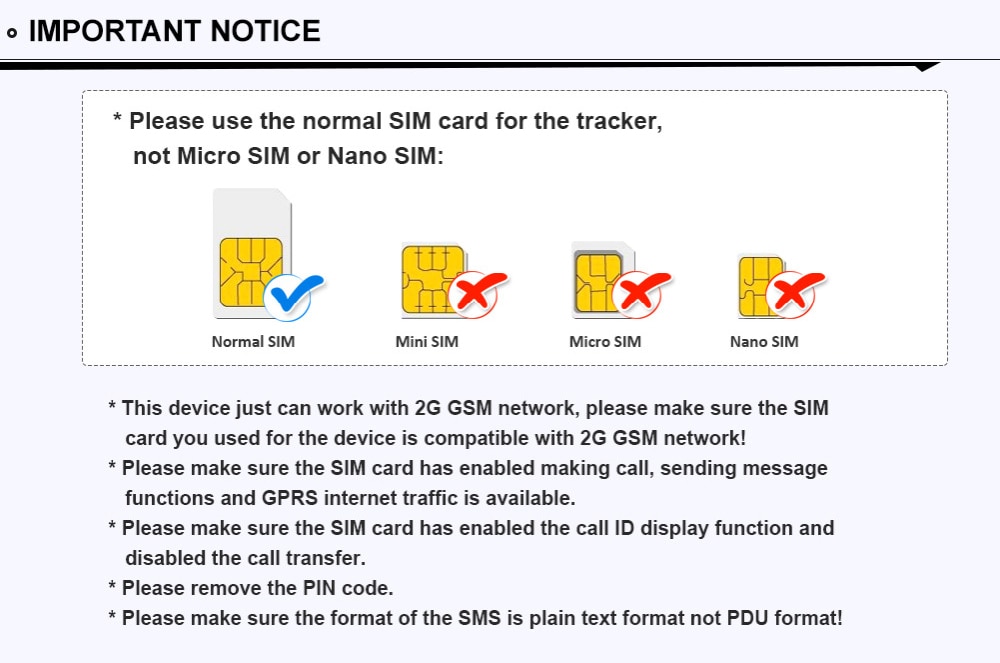

1. What should you prepare after got the device?
* Please get a suitable SIM card for this gps tracker, the SIM card must be compatible with 2G GSM network, and must be Normal Size SIM;
* Please enable the "GPRS internet data traffic" and "Caller ID Display" features of the SIM card
* Please make sure the SIM card has enough balance left and removed the PIN code;
* Please get these information from the SIM card provider: apn name,apn username, apn password, MCC number, MNC number.
2. How to log in mobile APP and web server?
* You can scan the QR code on the user guide to download the latest version APP;
* Web server link: www.lkgps.net
* You can log in the APP and web server with the ID number of your device, the default password is 123456.
3. How to enable your device to get it connect with the APP and web server ?
Please set up the device via below SMS commands to enable the device get online on the APP:
* gprs123456
* apn123456 apn name
* apnuser123456 apn user
* apnpasswd123456 apn password
For example, the tesco mobile SIM card in UK, we got APN information below:
APN name:prepay.tesco-mobile.com
APN username:tescowap
APN password:password
Then the SMS commands should be sent as below:
* gprs123456
* apn123456 prepay.tesco-mobile.com
* apnuser123456 tescowap
* apnpasswd123456 password
If without username and password, then please ignor the last two commands! Thanks!
Hope you can enjoy the device, any doubts please just feel free to contact us at any time!
