FG-100 DDS Function Signal Generator Frequency Counter 1Hz - 500KHz Signal Source Module Sine+Square+Triangle+Sawtooth Waveform, Wholesale FG-100 DDS Function Signal Generator
FG-100 DDS Function Signal Generator Frequency Counter 1Hz - 500KHz Signal Source Module Sine+Square+Triangle+Sawtooth Waveform is a one of our FG 100 DDS Function Signal Generator Tools, you can buy FG-100 DDS Function Signal Generator Frequency Counter 1Hz - 500KHz Signal Source Module Sine+Square+Triangle+Sawtooth Waveform from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

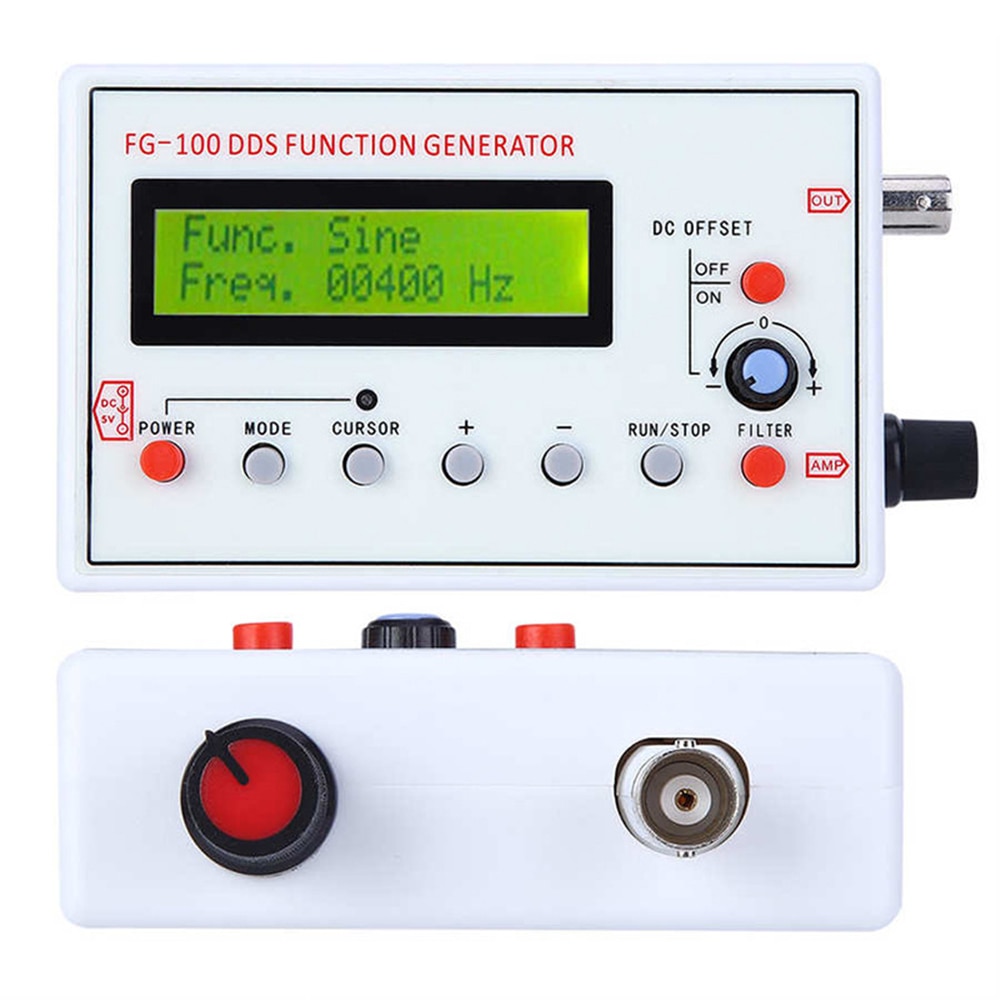

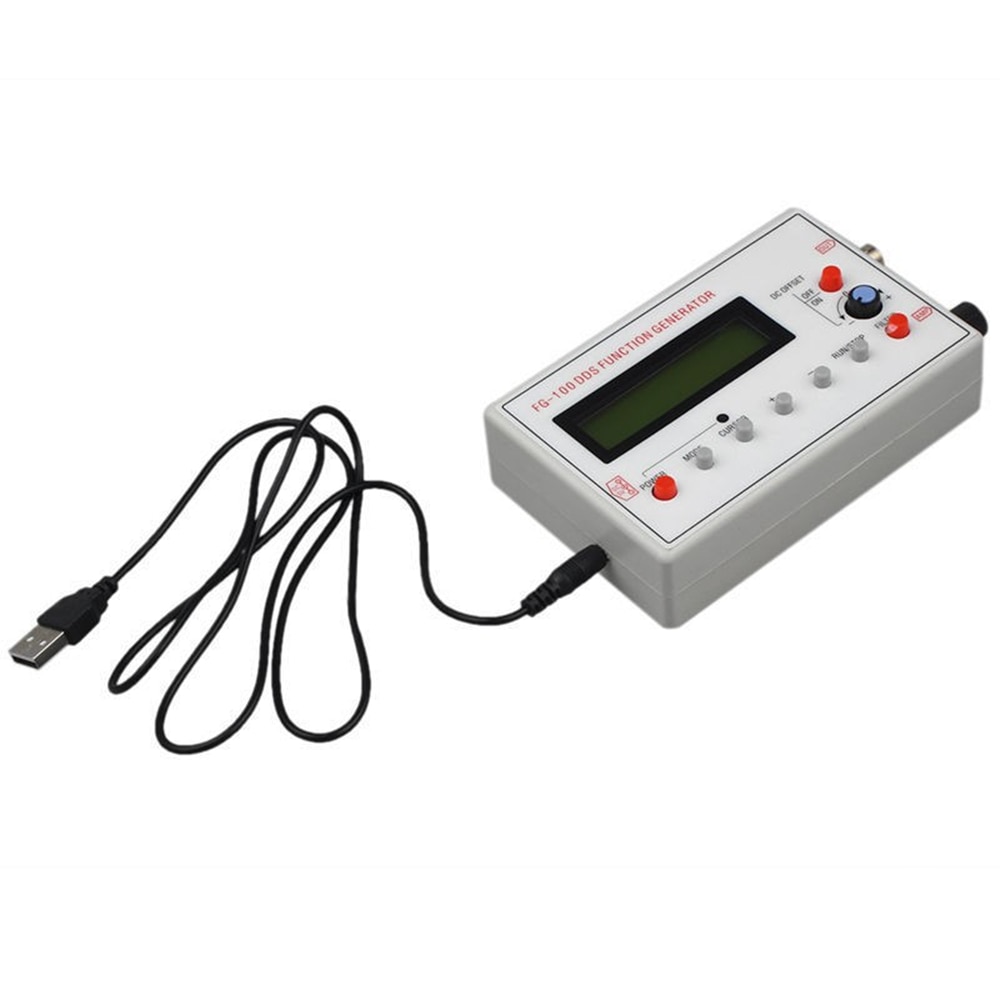

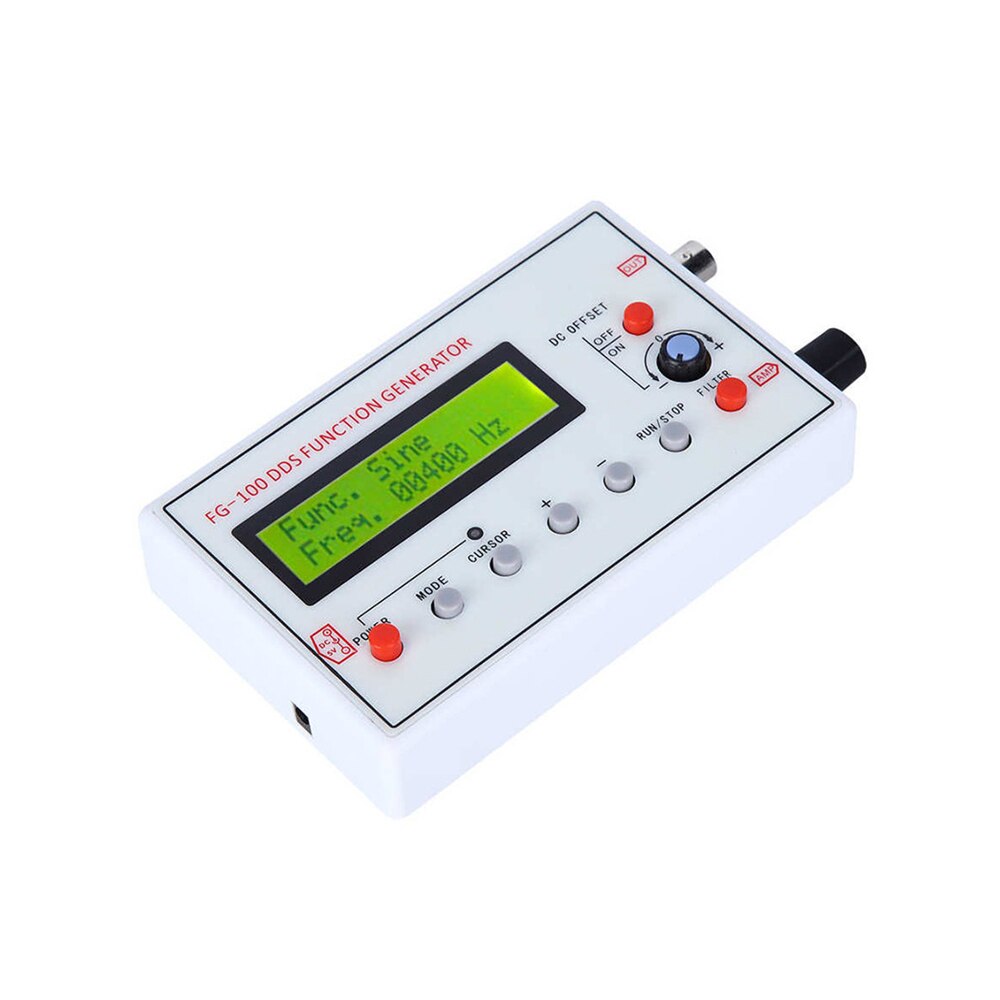

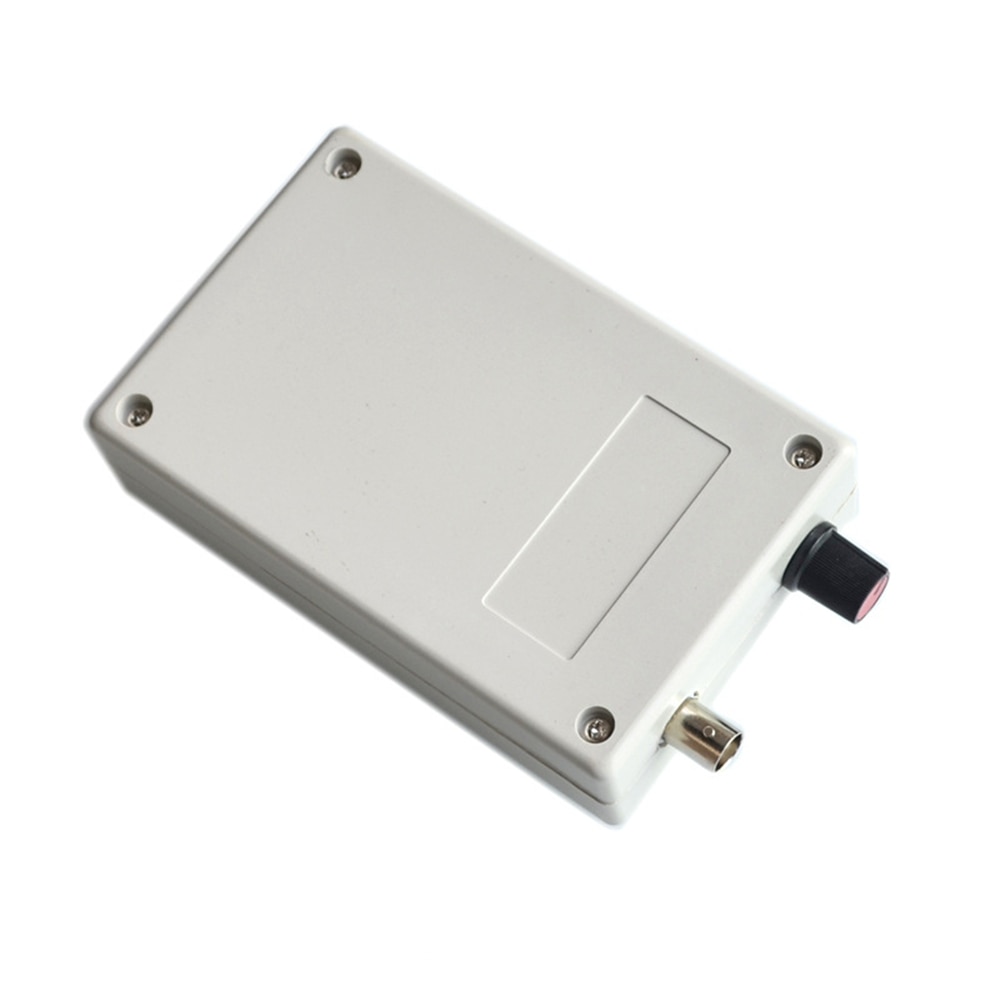

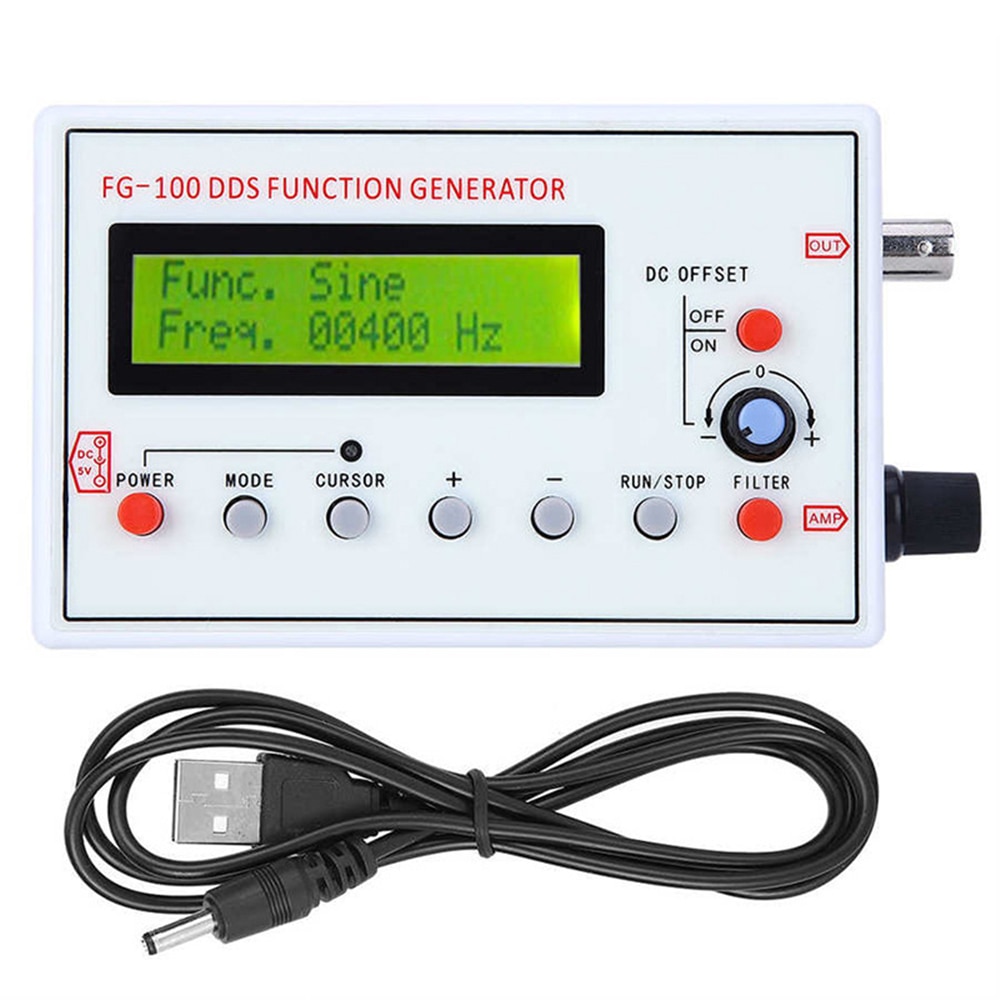

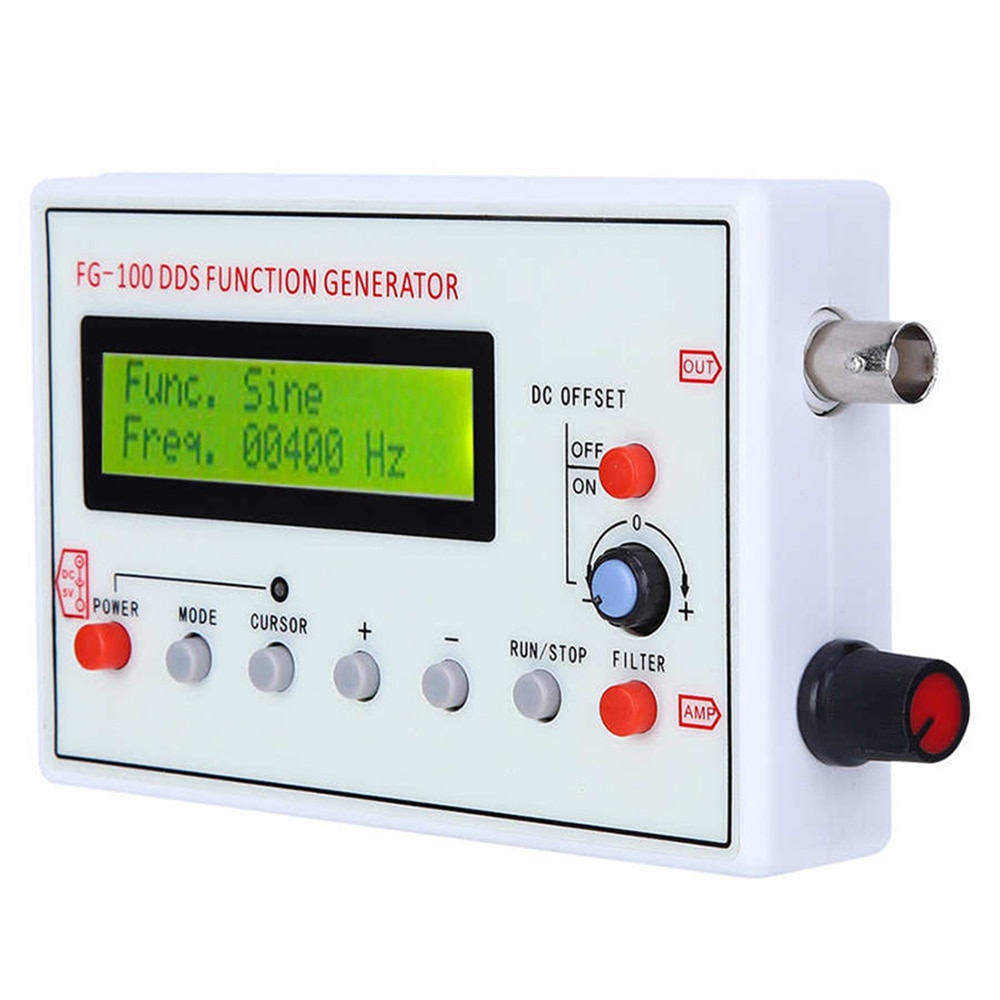

images of FG-100 DDS Function Signal Generator Frequency Counter 1Hz - 500KHz Signal Source Module Sine+Square+Triangle+Sawtooth Waveform
Small size, multiple functions, simple operation, easy to carry.
With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequenc
Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope swe
COLOR:white
Material:metal
With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequency characteristics of audio amplifier and pulse response of test and measurement.
Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope sweep time calibration factor. Square wave output also suit for oscilloscope attenuator and probe pulse adjustment, etc
The main output waveform : sine wave and square-wave, Triangular wave, sawtooth wave.
Maximum output amplitude : +/- 10Vpp (no-load)
Output impedance : 50Ohm+/-10%
Dc bias : +/- 10V (no-load)
Display : LCD1602
Material:metal
Resolution : 1 Hz
Power supply : DC 3. 5-10V
Output frequency range :
Sine wave : 1Hz-500KHz
Square-wave : 1 Hz - 20kHz (the valid range)
Triangular wave : 1 Hz - 20KHz (the valid range)
Sawtooth wave : 1 Hz - 20kHz (the valid range)
1 x FG-100 DDS Function Signal Generator
1 x USB power adapter cable
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
