ANENG ST203
Electric Digital Clamp Meter
General Feature:
This product is a battery-powered,turn rms auto ranging digital clamp multimeter with a 4000 counts LCD display and a backlight.
1. Display: liquid crystal display (LCD);
2. Maximum display: 4000 (3 3/4) bit automatic polarity display;
3. Measurement method: double integral A/D conversion;
4. Sampling rate: about 3 times per second;
5. Over range display: The highest position shows "OL";
6. Low voltage display:symbol appears;
7. Working environment:(0~40)°,relative humidity<80%;
8. Power: AAA 1.5V battery(Batteries excluded)
Functional parameter
DC voltage DCV :yes
AC voltage ACV :yes

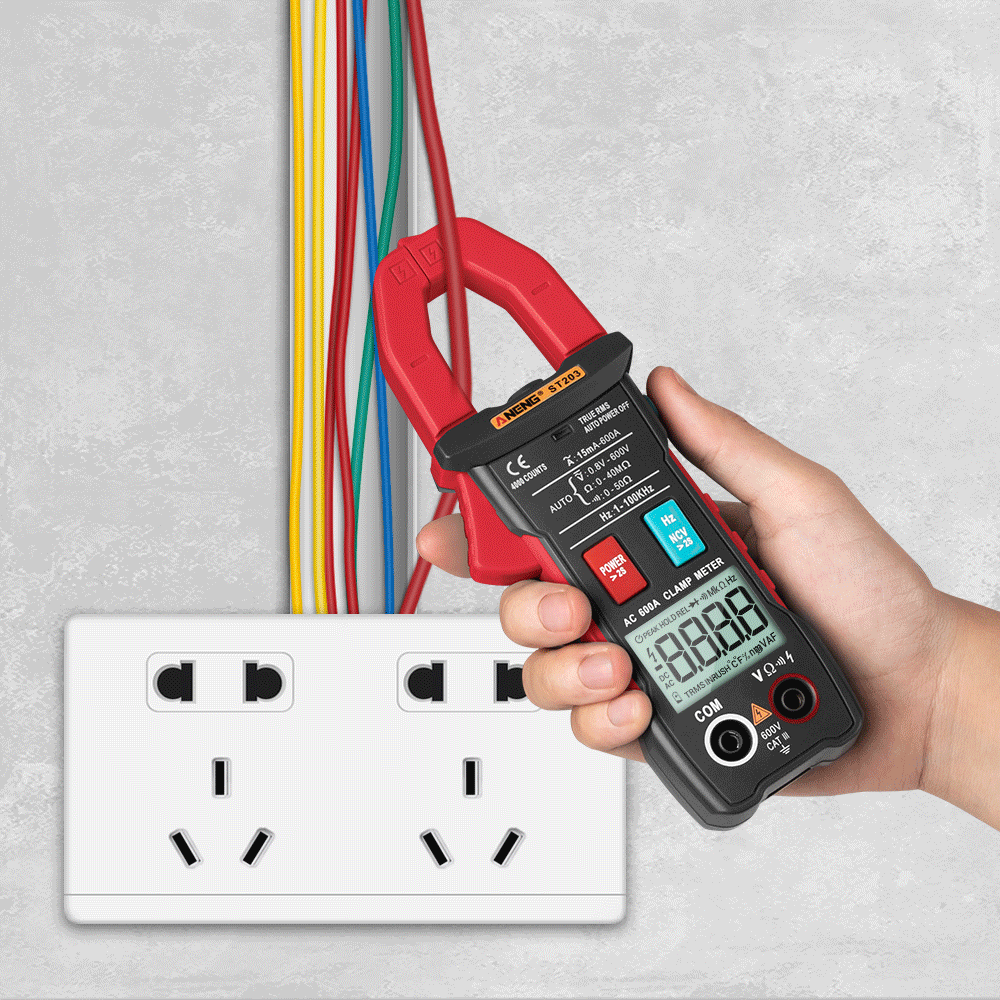

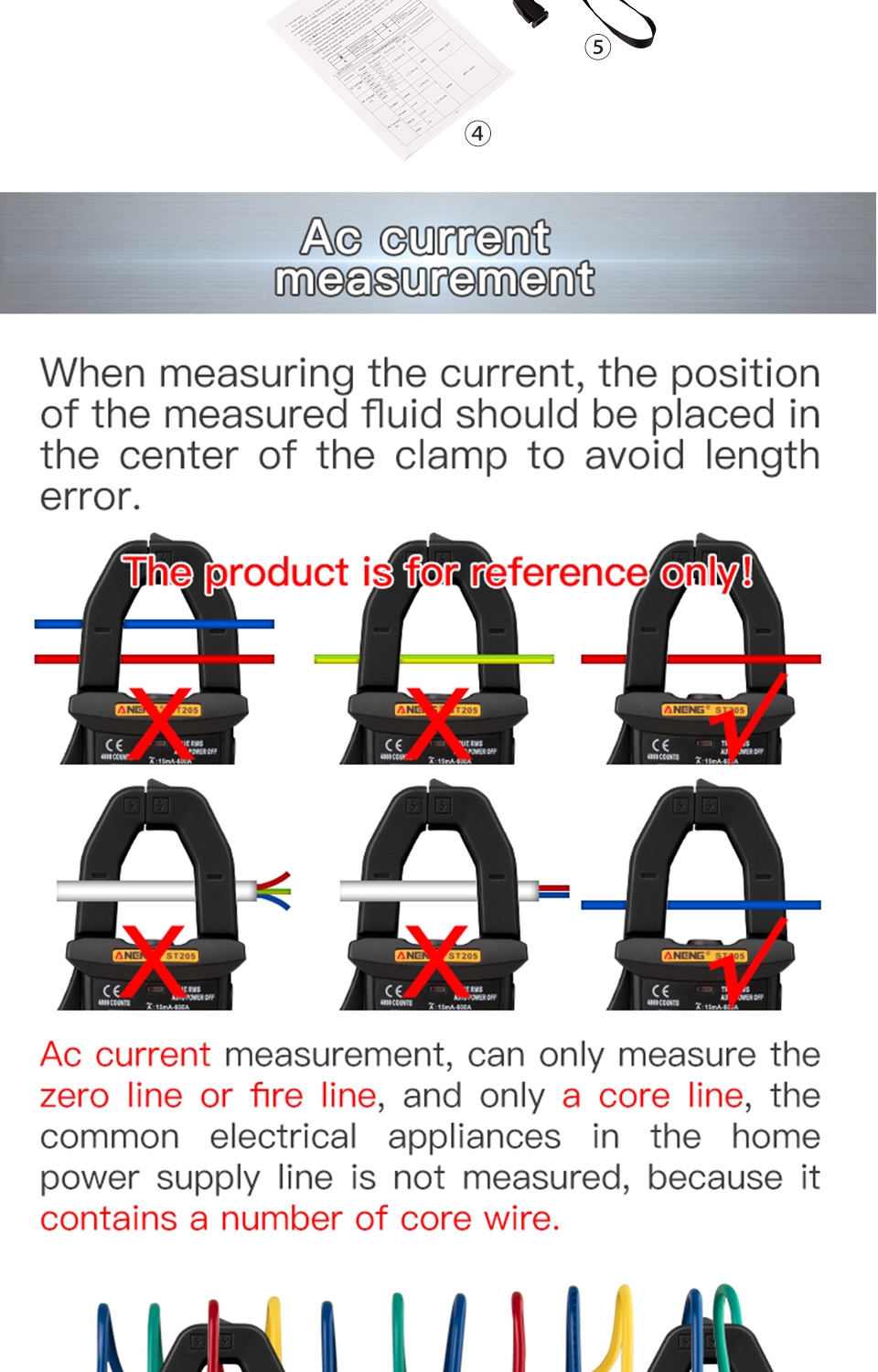

AC current ACA :yes
Resistor / On-Off Test :yes
Frequency F :yes

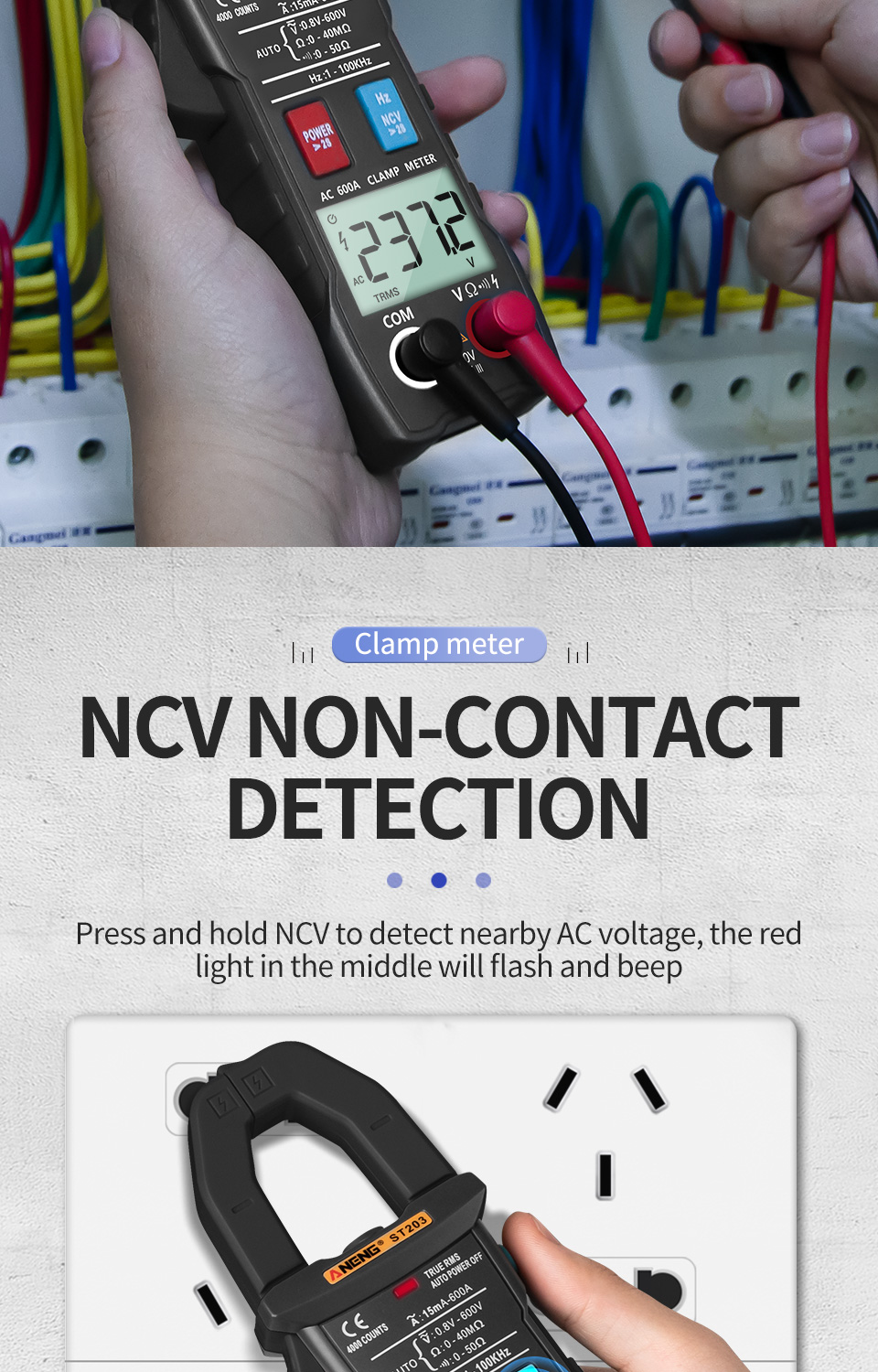

NCV :yes

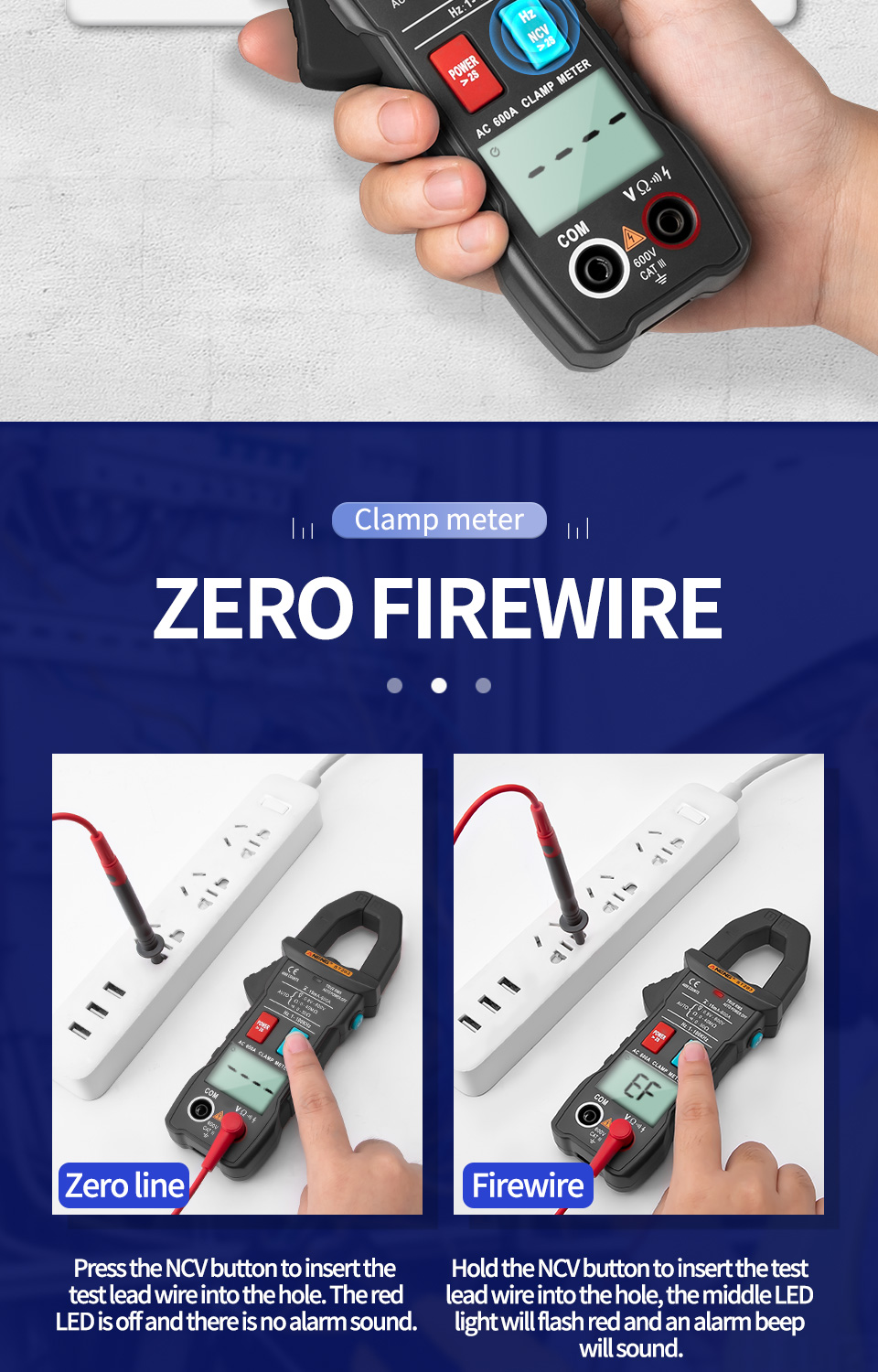

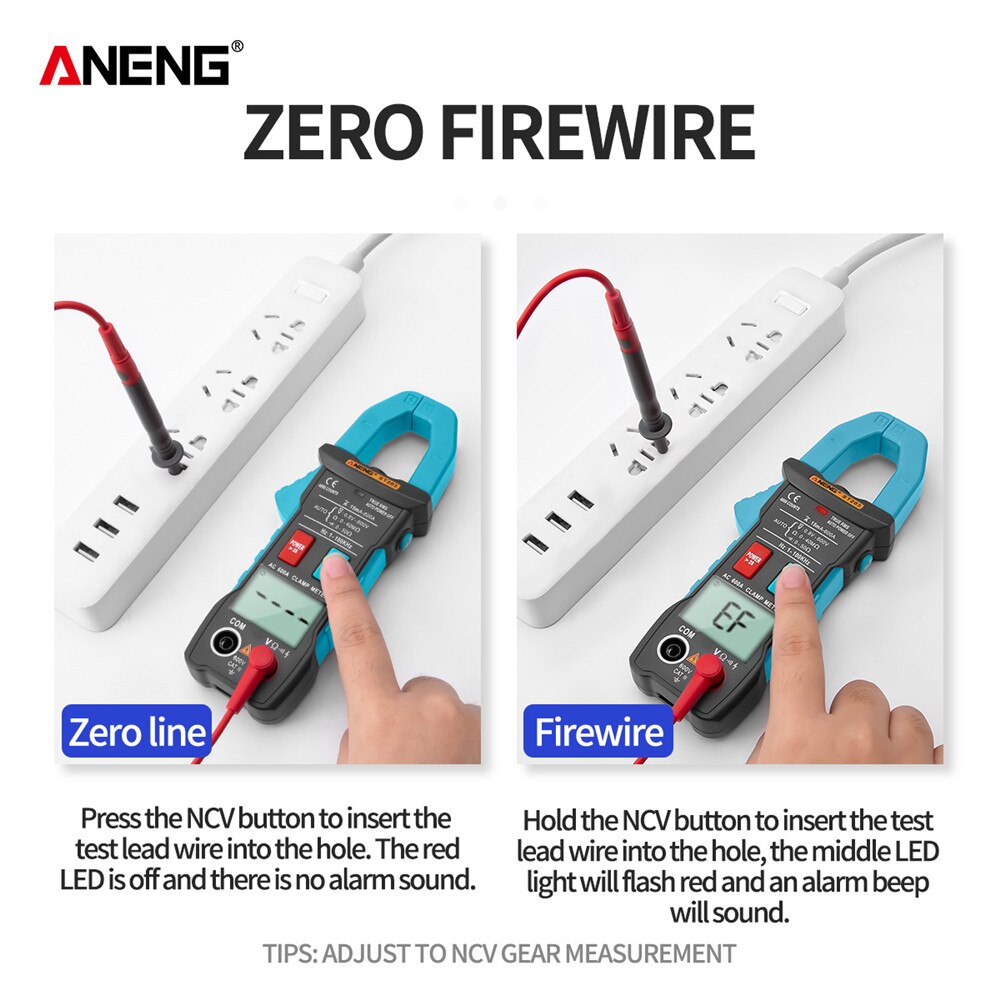

Zero line / Fire line test :yes
Full unit symbol :yes
Backlight manual/Auto off :yes
True RMS measurement :yes

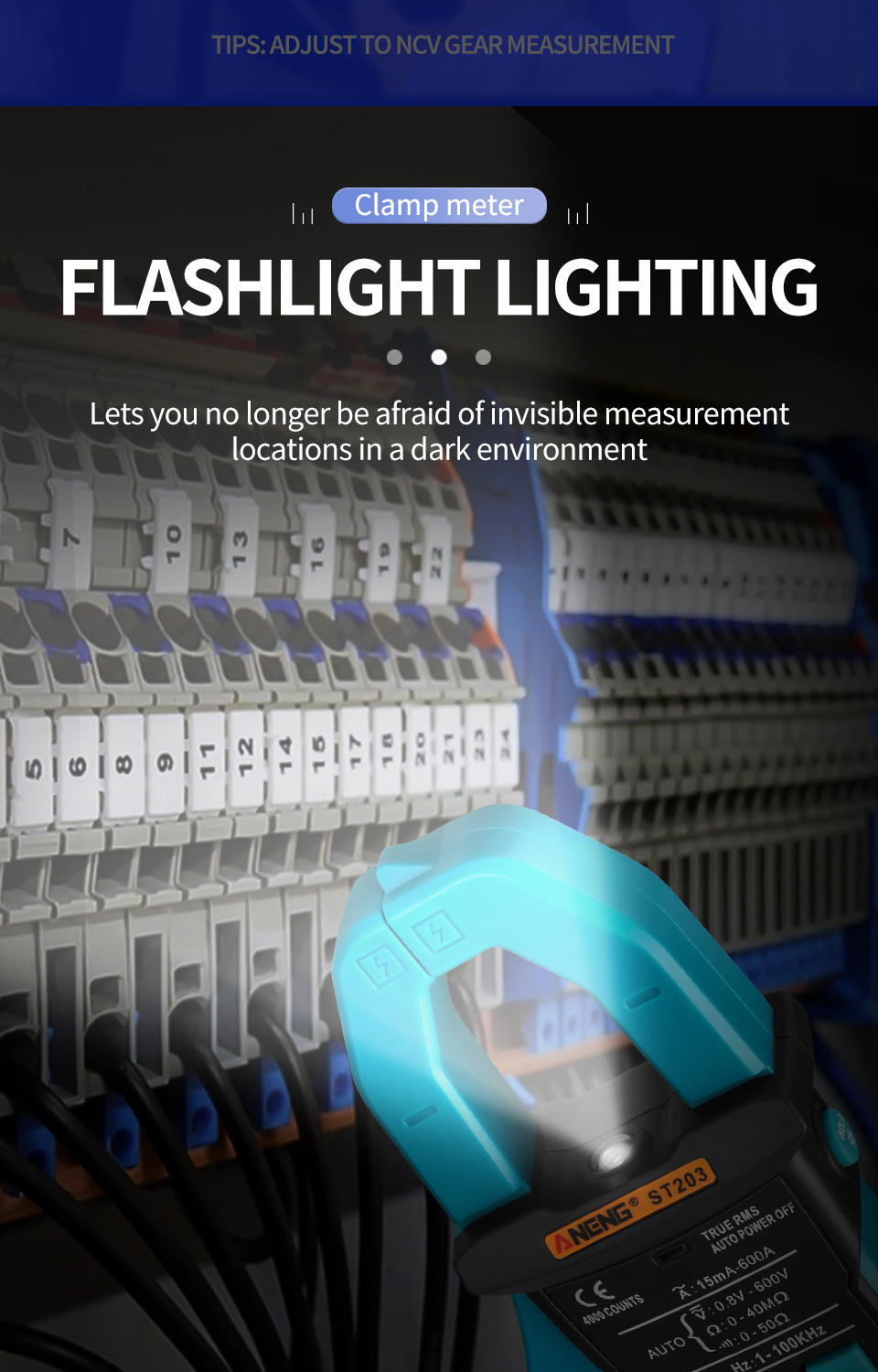

Flashlight lighting :yes

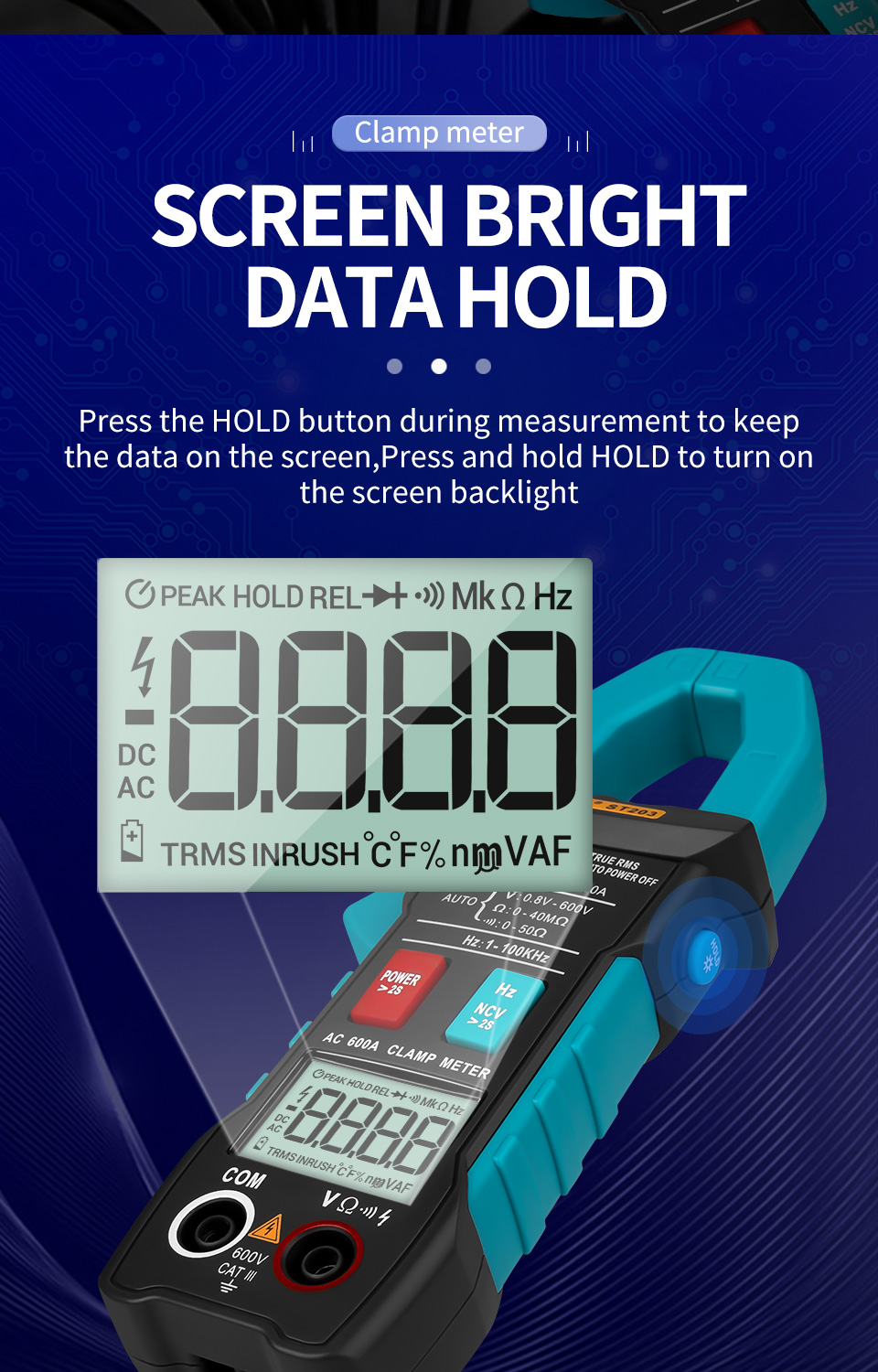

HOLD :yes

Technical Specification

Function

Range

Accuracy

DC Voltage(V)

4V/40V/400V/600V

±(0.5%+3)

AC Voltage(V)

4V/40V/400V/600V

±(1%+3)

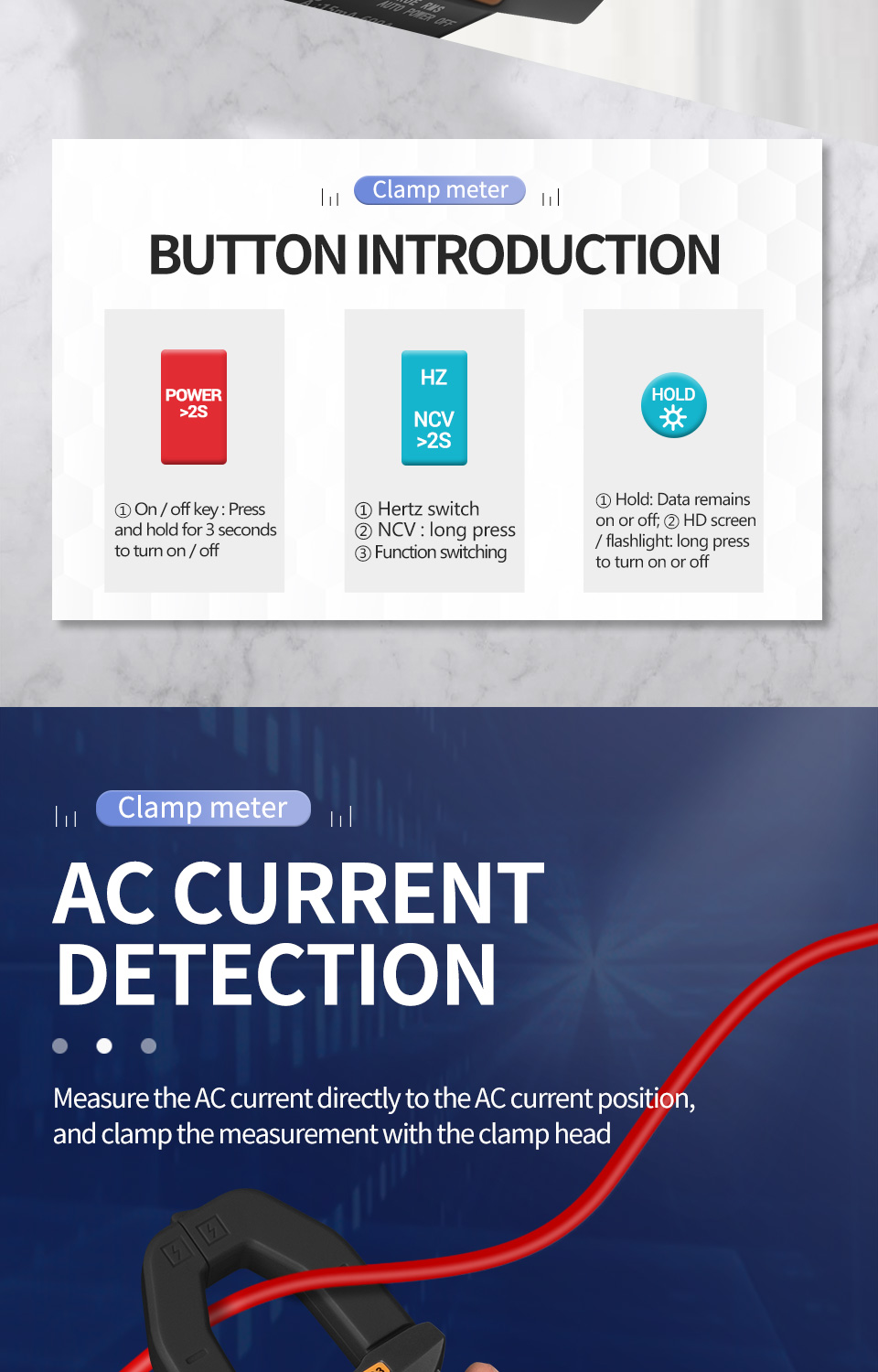

AC Current(A)

4A

±(5%+5)

40A/400A/600A

±(2.5%+8)

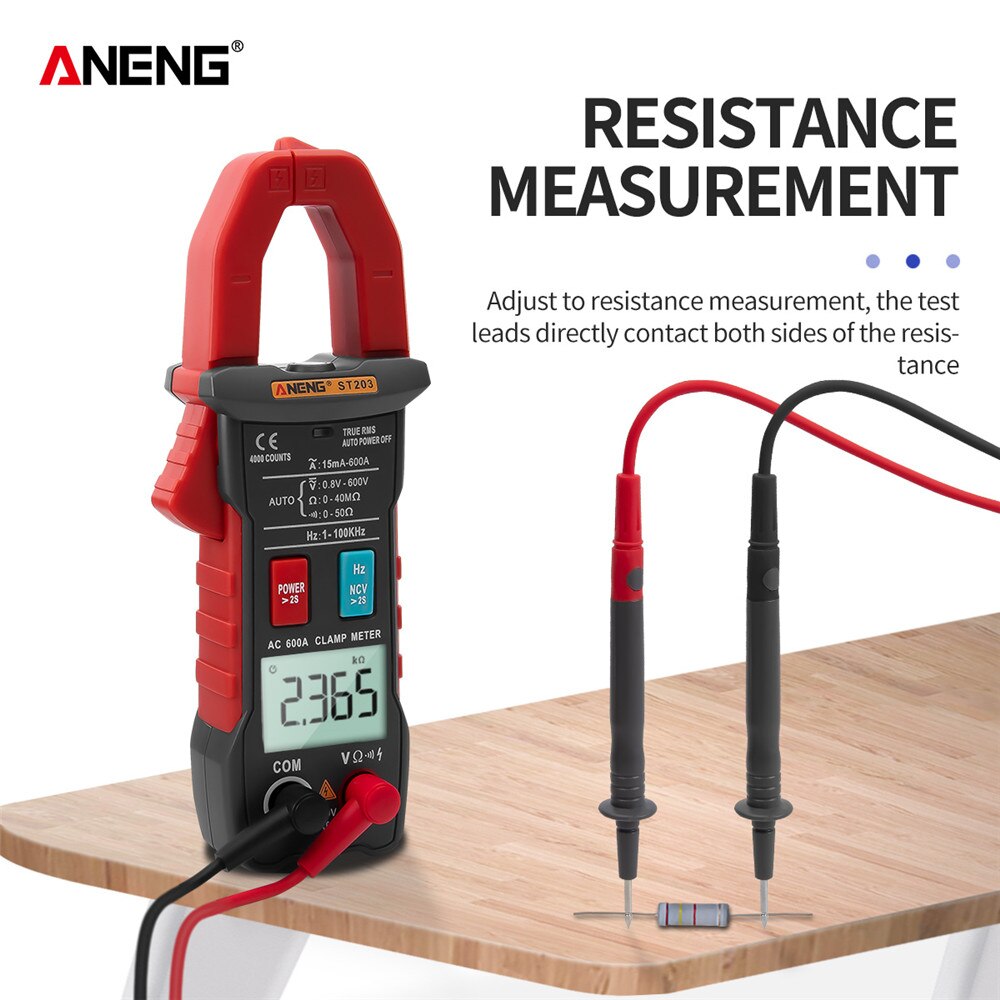

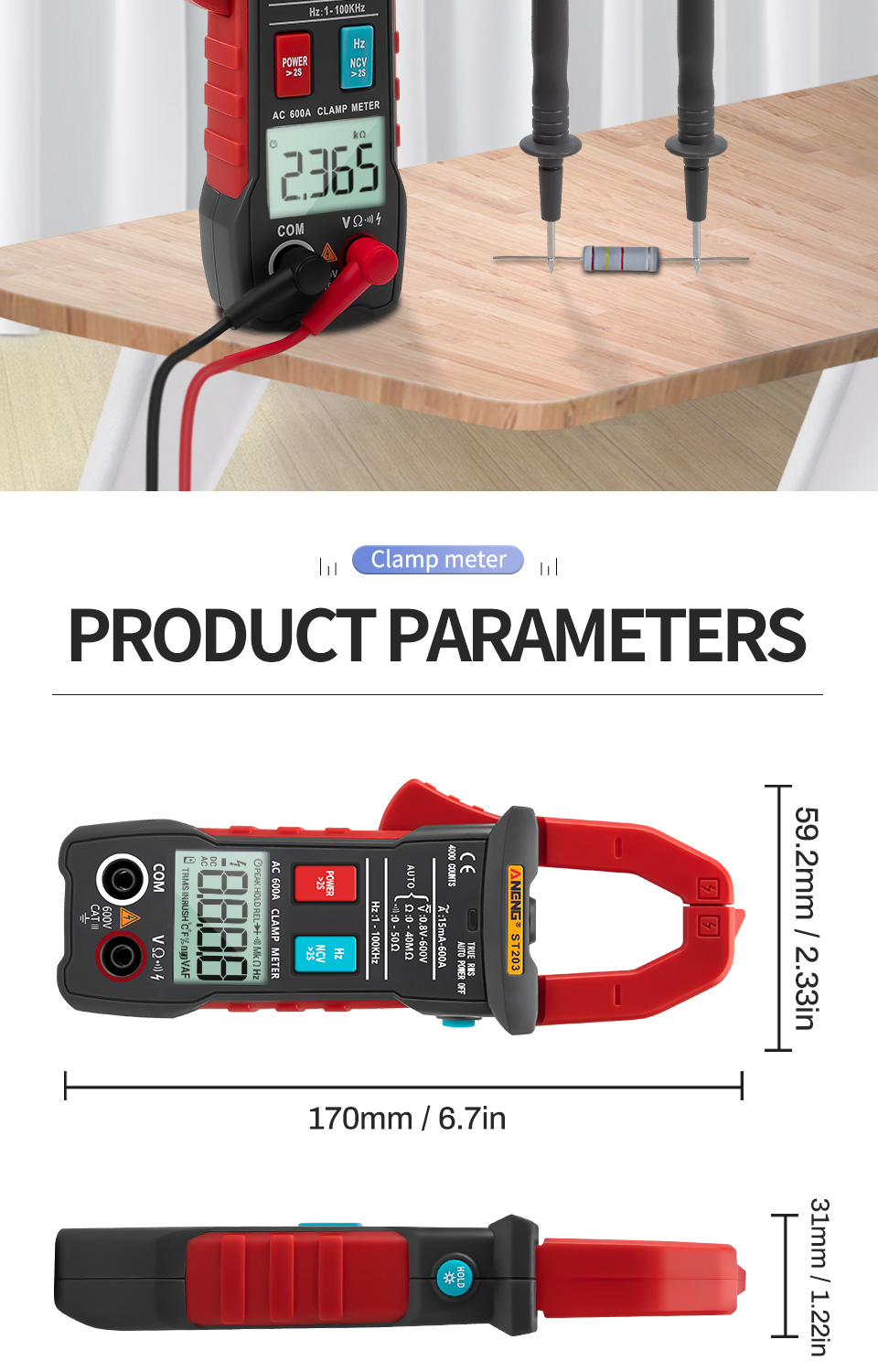

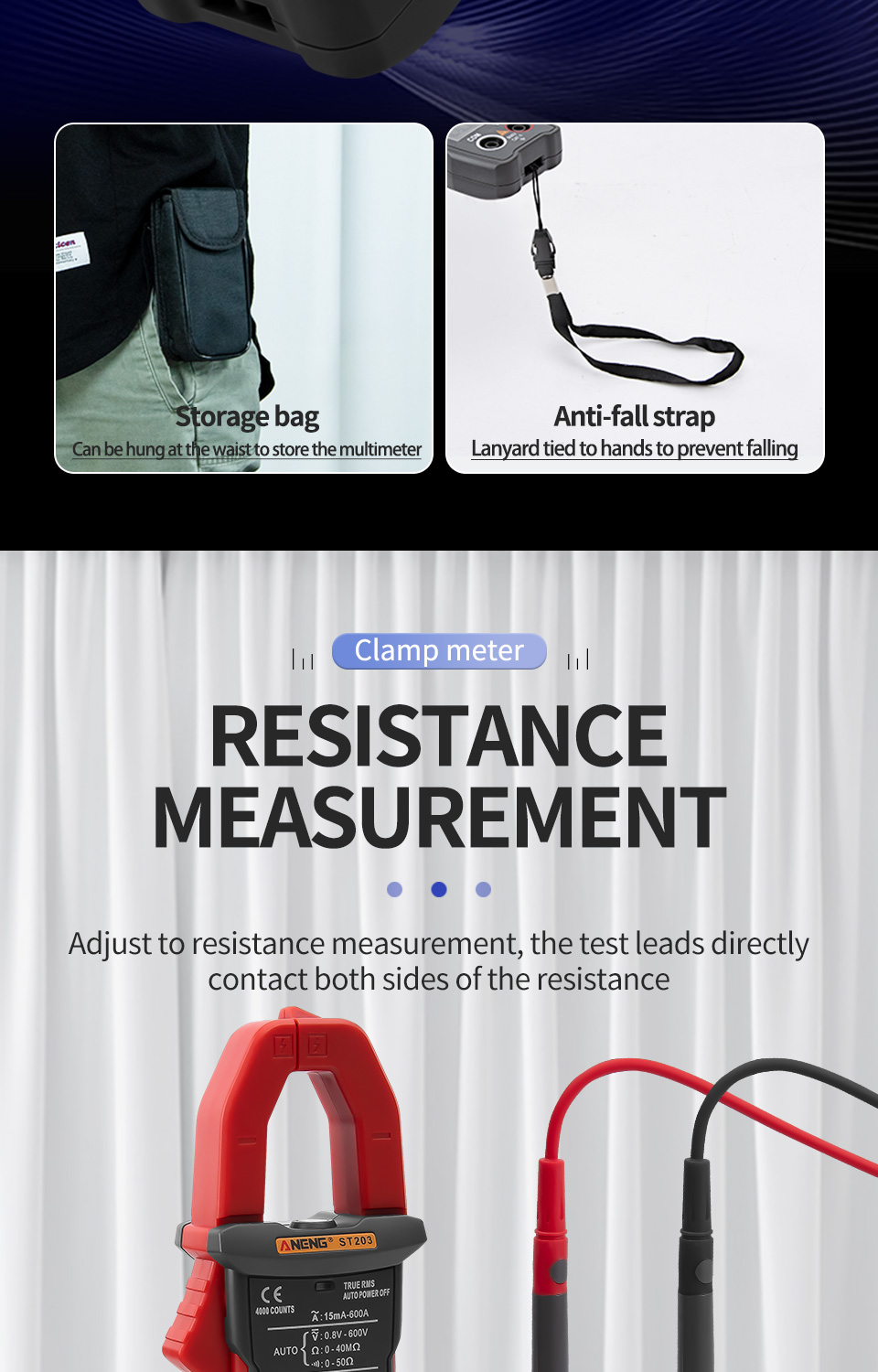

Resistance

4KΩ

±(1.5%+3)

40KΩ/400KΩ/4MΩ

±(0.5%+3)

40MΩ

±(1.5%+3)

Frequency

4Hz/40Hz/400Hz/4kHz/40kHz/400kHz/1MHz

±(0.1%+2)

Continuity test

YES

Peak hold/Flashlight

YES

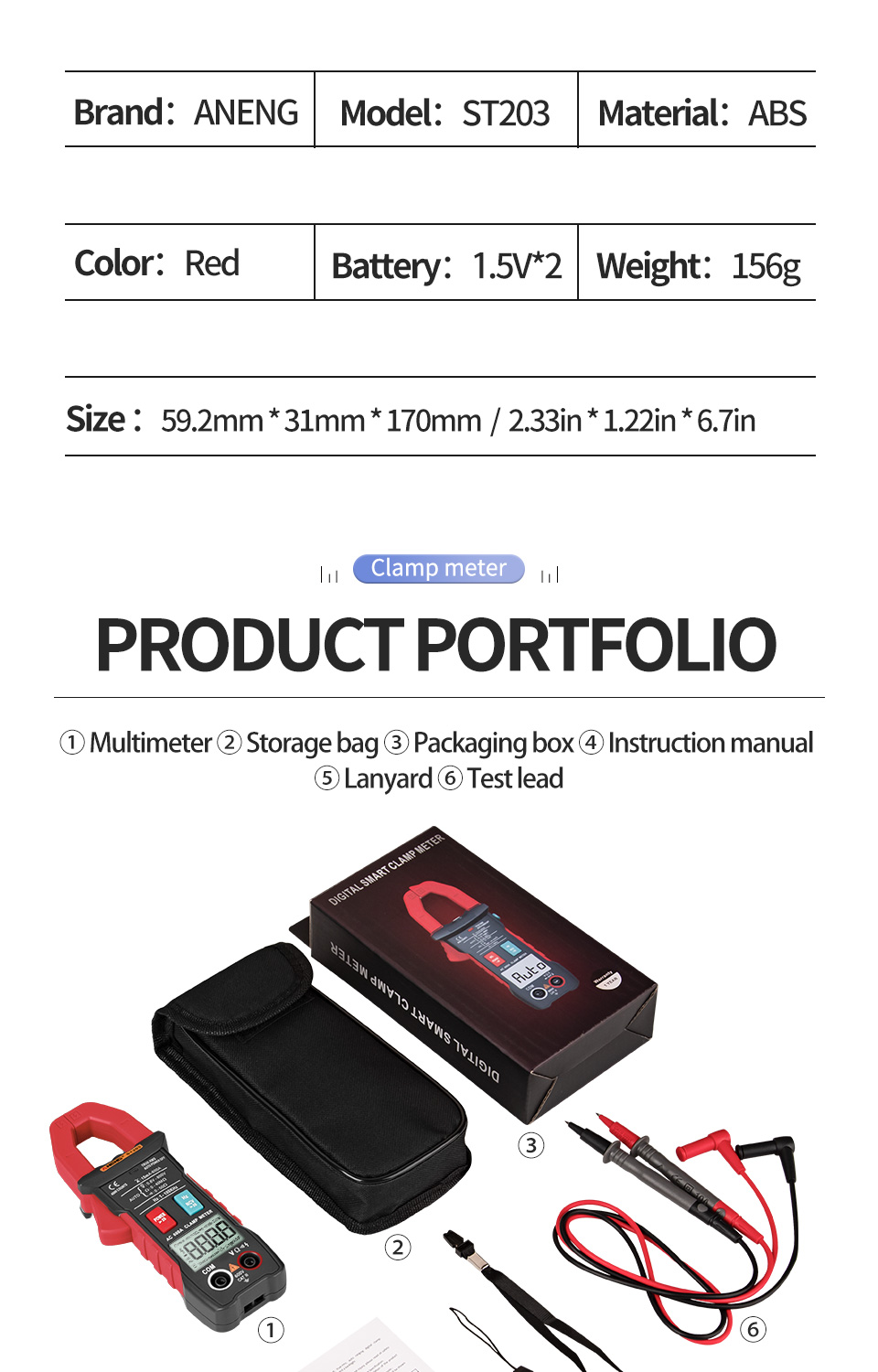

Package Include:
1*clamp meter
1*manual,
1*pair of test leads,A
1*packaging box,
1*storage bag

ANENG ST201 Digital Clamp Meter Multimeter 4000 Counts Clamp Ammeters Capacitor Tester Automotive Voltage Current Tester tools

Features:
1. This is a clamp multimeter,high reliability,high accuracy and portability.
2. Multifunction: Can accurately measure AC/DC voltage current, resistance.
3. With LCD backlight display,convenient to read data in dark.
4. More advantages: Manual range,data hold,diode test,continuity test.
5. Widely use: It's a perfect tool for the laboratory,factory and home.

Specifications:
Product Name: Clamp ammeters
DC Voltage: 200mV-2V-20V-200V-600V
AC Voltage: 200mV-2V-20V-200V-600V
AC Current: 2A-20A-400A
Measuring Capacitance Range: 40nF-400nf-4uF-40uF-400uF
Resistance ohm: 200-2K-20K-200K-2M-20M
Buzzer Function: Yes
Max LCD display: Yes
Data Hold Function: Yes
Max Display: 4000 Counts
Battery Type: 2 x 1.5V (AAA Battery) (Not Included)
Color: Red,Blue
Material: Plastic, Electronic Parts

Package List:
1 x Clamp Digital Multimeter
1 x Test leads
1 x User Manual
1 x storage bag
