Mini temperature controller with socket.
With clear LED display for better readability.
Wide temperature measuring range.
Heating or cooling control.
All parameters setting can be saved after short circuit.
Directly power output.
high Control precision 0.1 centigrade
Can be used for domestic freezer, refrigerator,industrial chiller, steamer, industrial

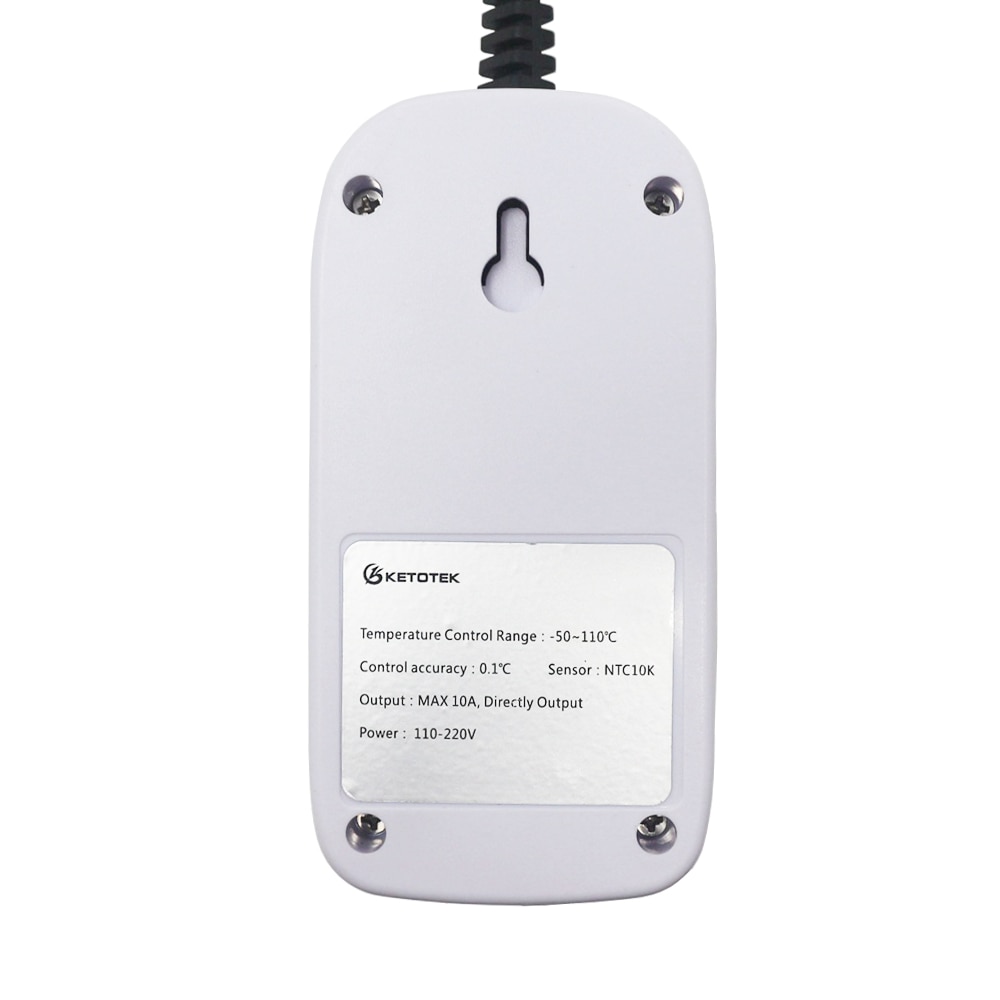

Parameters
|
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
|
|
|
| |
|
| |
|
|
The max current of output is 10A (110Vac/220Vac). In order to make sure the controller work under high performance condition. We recommend to use maximum power ≤ 800W when you use resistive load such as heating rod, heating pad, electric water heater etc. We recommend to use maximum power ≤ 275W when you use inductive load such as compressor , heat pump etc.
The sensor can not put in the water for a long time, if you need that, please contact us.
1 x Thermostat
1 x English Manual

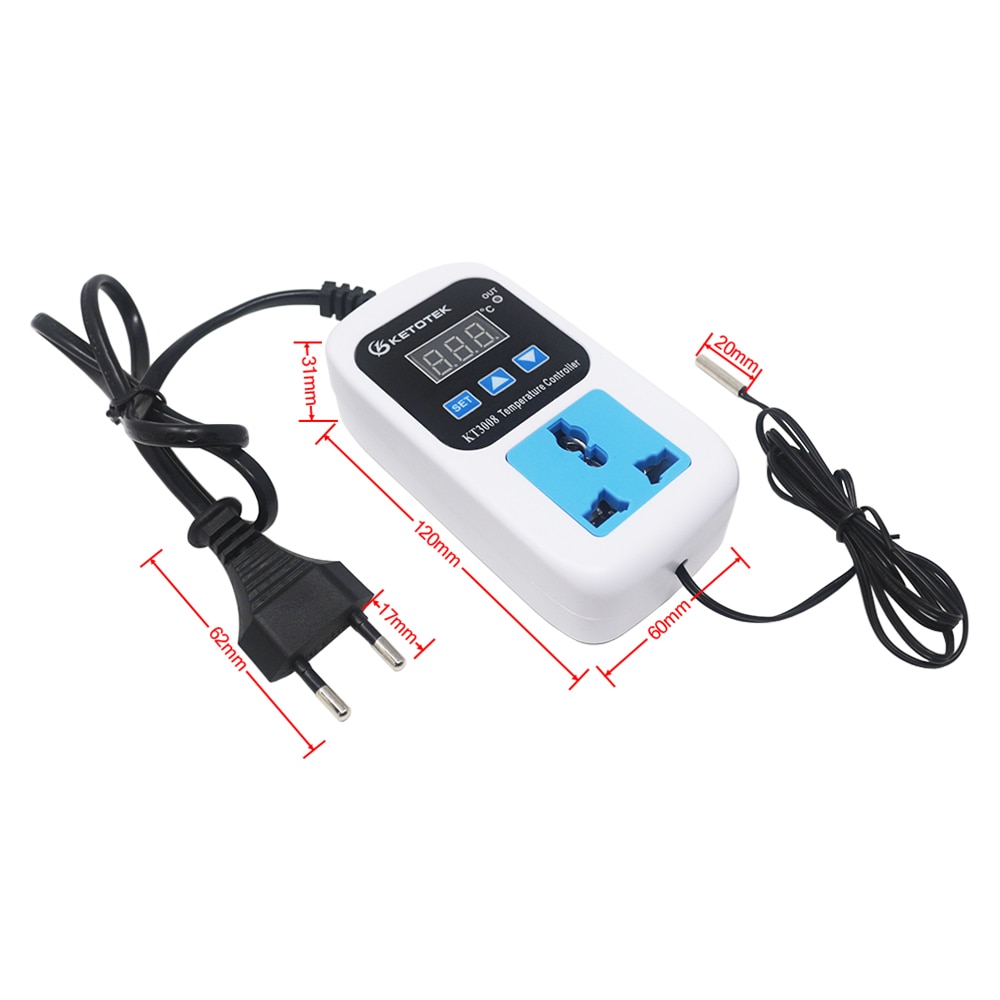

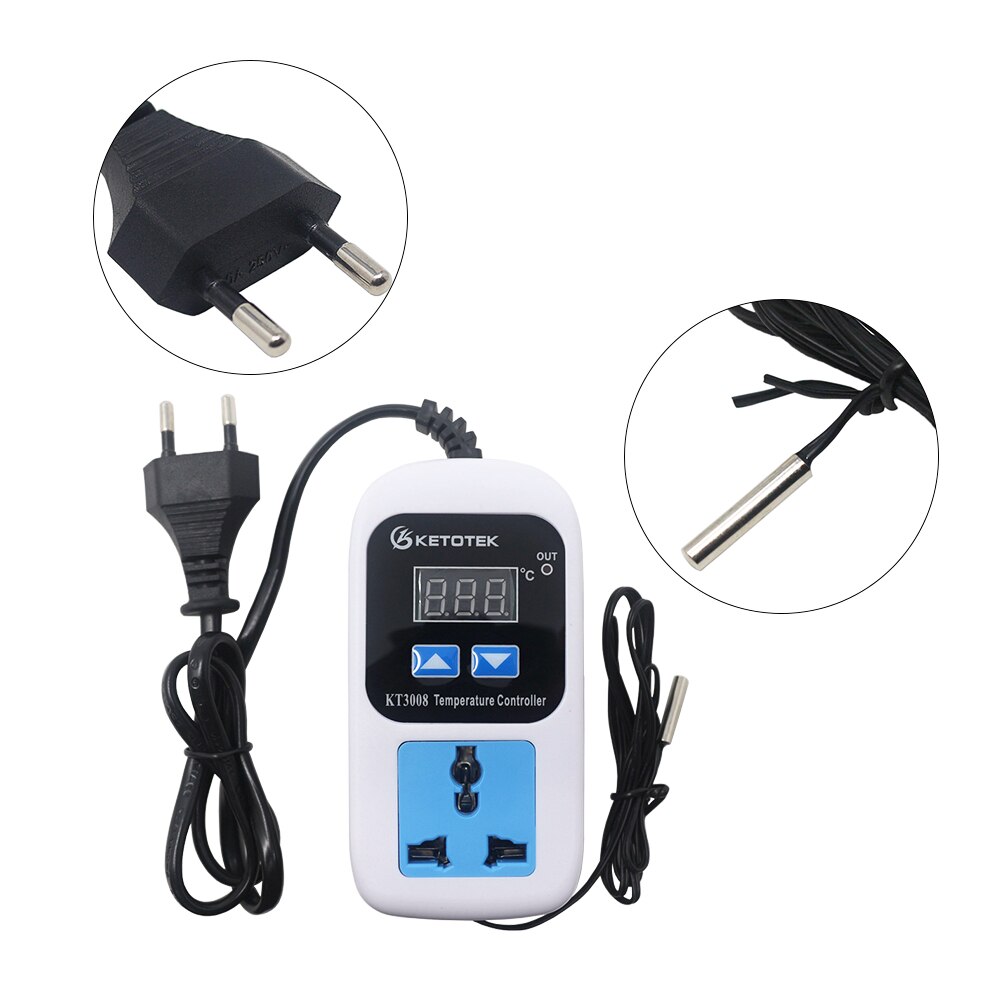

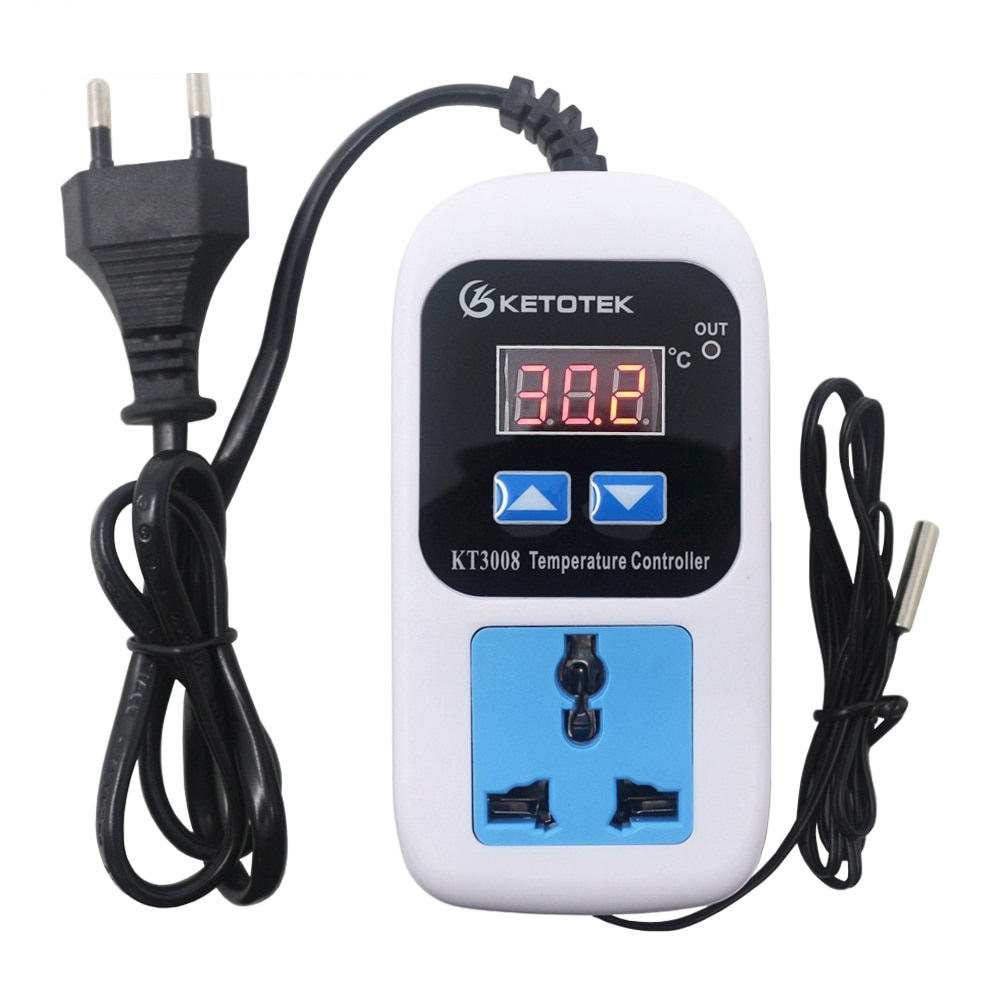

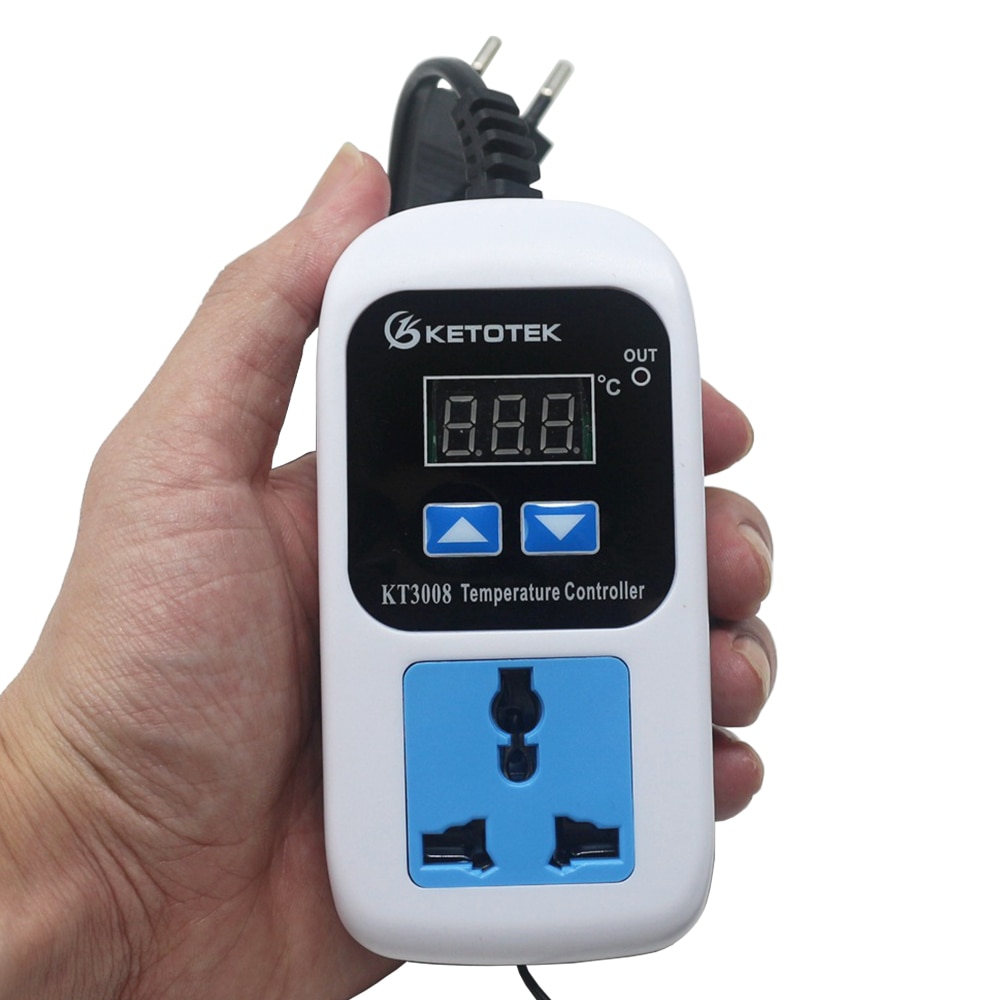

KT3008
Key Operation Instruction
In normal working status, screen display real time temperature. press UP key once. Screen display start temperature.press Down key once. Screen display stop
temperature.
Hold UP key. led flash,press UP or Down to change start temperature.
Hold Down key. led flash, press UP or Down to change stop temperature.
When set start temperature ≥ stop temperature, the controller will work in cooling mode.You can use cooler as load.
For example, set start temperature 35 °C , stop temperatre 32 °C .Cooler work when temperature ≥ 35°C,Cooler stop when temperature≤32°C
When set start temperature ≤ stop temperature, the controller will work in heating mode.You can use heater as load.
For example, set start temperature 45 °C , stop temperatre 60 °C .Heater stop when temperature ≥ 60°C,heater work when temperature≤45°C
When the Led display LLL, check the sensor connected well or change the sensor.
When the Led display HHH, the temperature is Beyond measurable range of sensor.

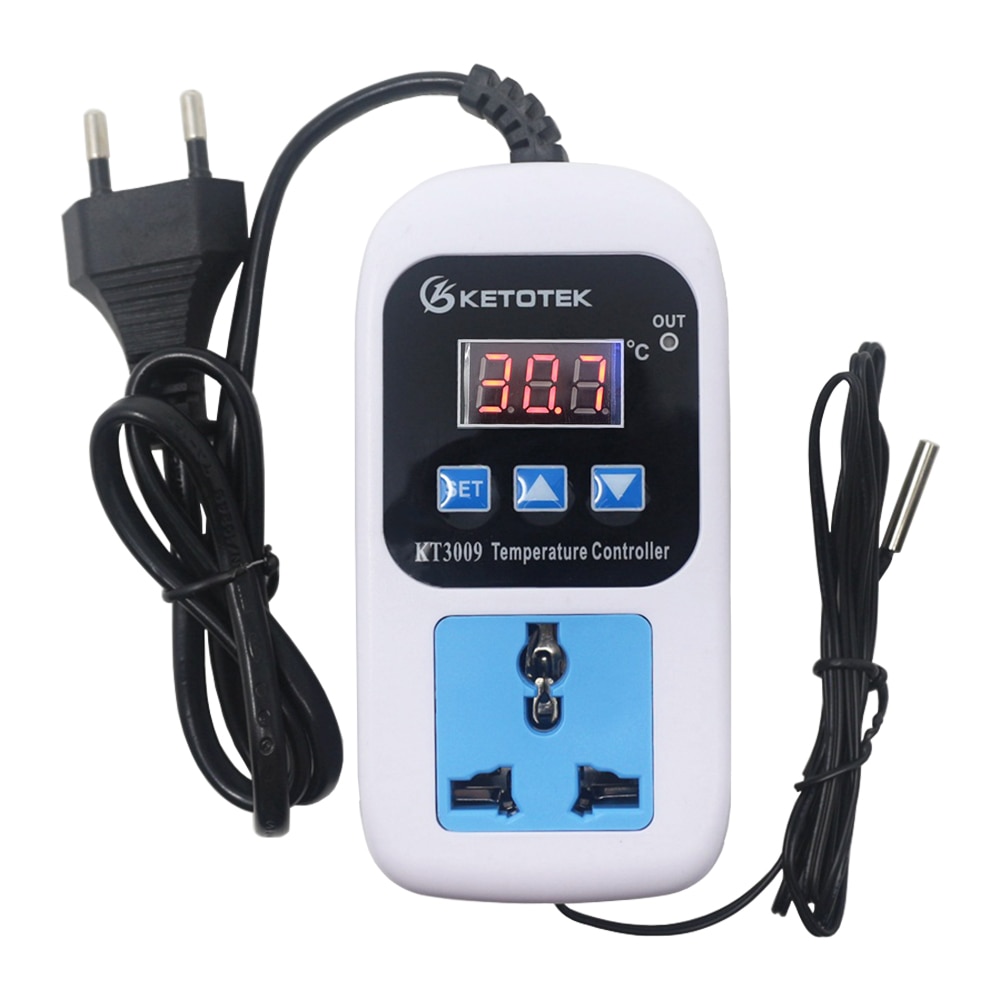

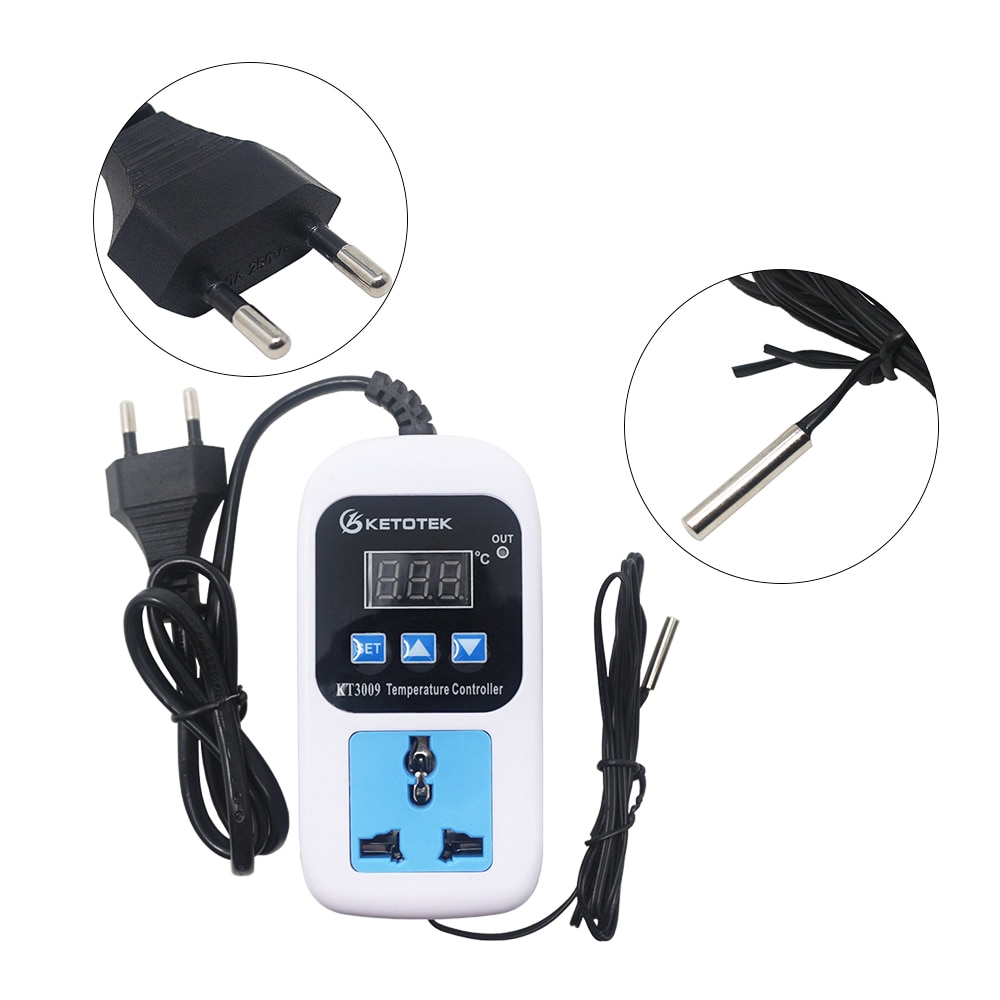

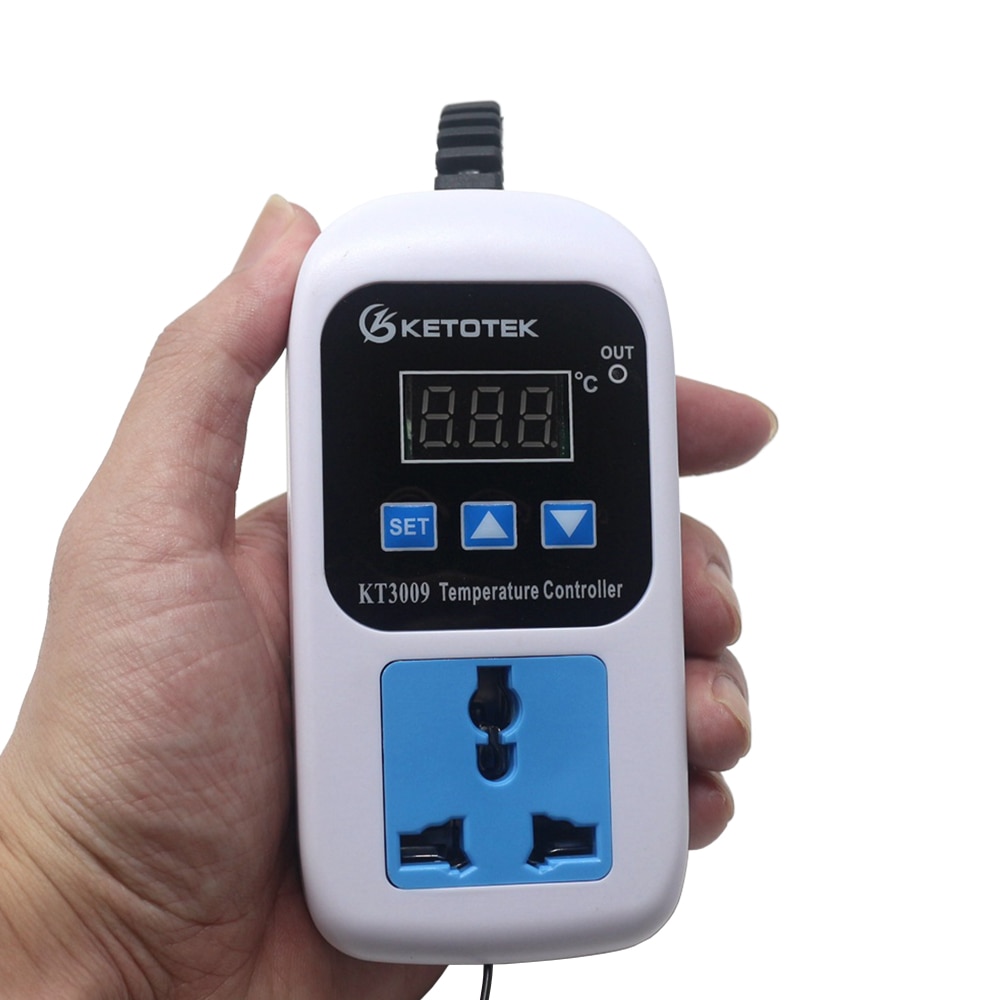

KT3009

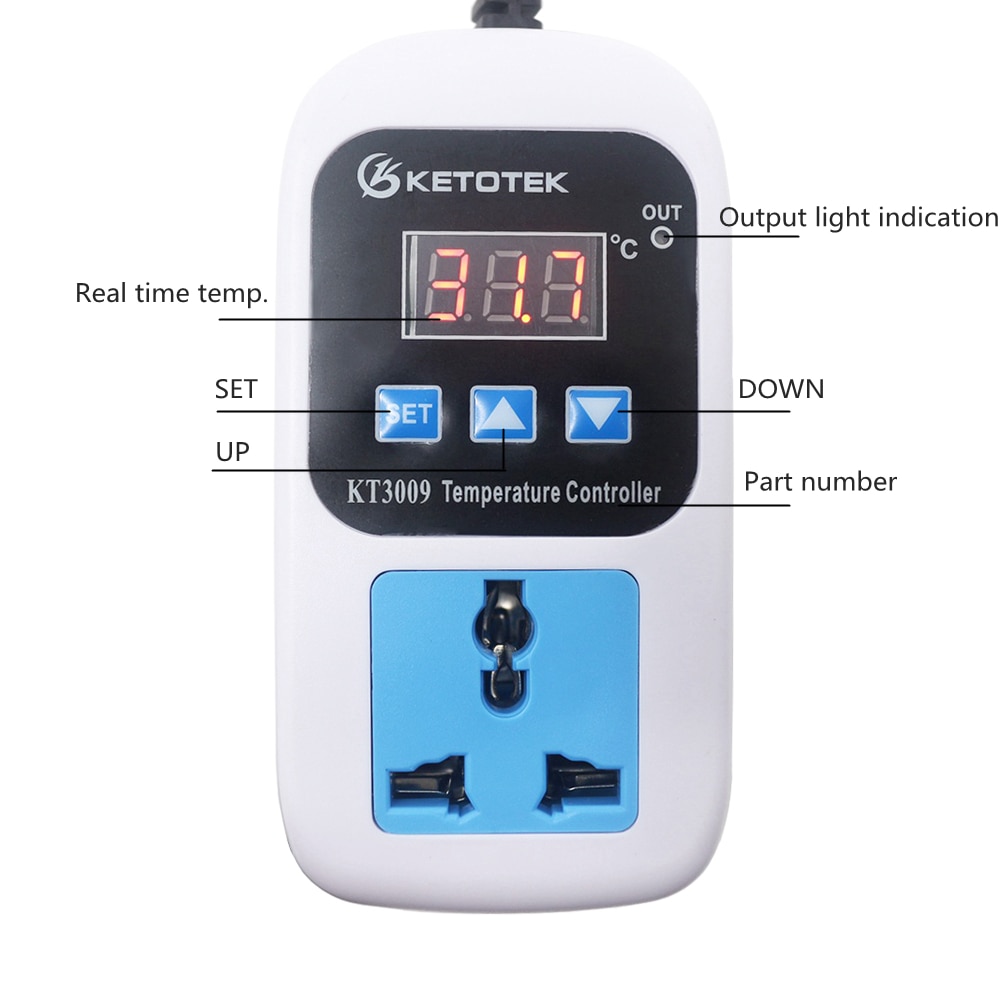

In normal working status, screen display real time temperature. press UP key once. Screen display start temperature.press Down key once. Screen display stop temperature.
Press SET key. Led display P0, press UP or Down to switch code P0 P1 P2 P3.
