Digital Clamp Meter AC DC Current NCV Multimeter Pinza Amperimetrica True RMS Capacitance Ohm Hz Temperature Voltage Tester, GD112 Clamp Meter is an intelligent true effective value multimeter, Intelligent identification and manual function are integrated, which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use, Wholesale Digital Clamp Meter

GD112A GD112B GD112C Digital Clamp Meter AC DC Current NCV Multimeter Pinza Amperimetrica True RMS Capacitance Ohm Hz Temperature Voltage Tester is a one of our Digital Clamp Meter Tools, you can buy GD112A GD112B GD112C Digital Clamp Meter AC DC Current NCV Multimeter Pinza Amperimetrica True RMS Capacitance Ohm Hz Temperature Voltage Tester from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

images of GD112A GD112B GD112C Digital Clamp Meter AC DC Current NCV Multimeter Pinza Amperimetrica True RMS Capacitance Ohm Hz Temperature Voltage Tester

GD112A GD112B GD112C Digital Clamp Meter AC DC Current NCV Multimeter Pinza Amperimetrica True RMS Capacitance Ohm Hz Temperature Voltage TesterGD112A GD112B GD112C Digital Clamp Meter AC DC Current NCV Multimeter Pinza Amperimetrica True RMS Capacitance Ohm Hz Temperature Voltage TesterGD112A GD112B GD112C Digital Clamp Meter AC DC Current NCV Multimeter Pinza Amperimetrica True RMS Capacitance Ohm Hz Temperature Voltage TesterGD112A GD112B GD112C Digital Clamp Meter AC DC Current NCV Multimeter Pinza Amperimetrica True RMS Capacitance Ohm Hz Temperature Voltage TesterGD112A GD112B GD112C Digital Clamp Meter AC DC Current NCV Multimeter Pinza Amperimetrica True RMS Capacitance Ohm Hz Temperature Voltage TesterGD112A GD112B GD112C Digital Clamp Meter AC DC Current NCV Multimeter Pinza Amperimetrica True RMS Capacitance Ohm Hz Temperature Voltage Tester

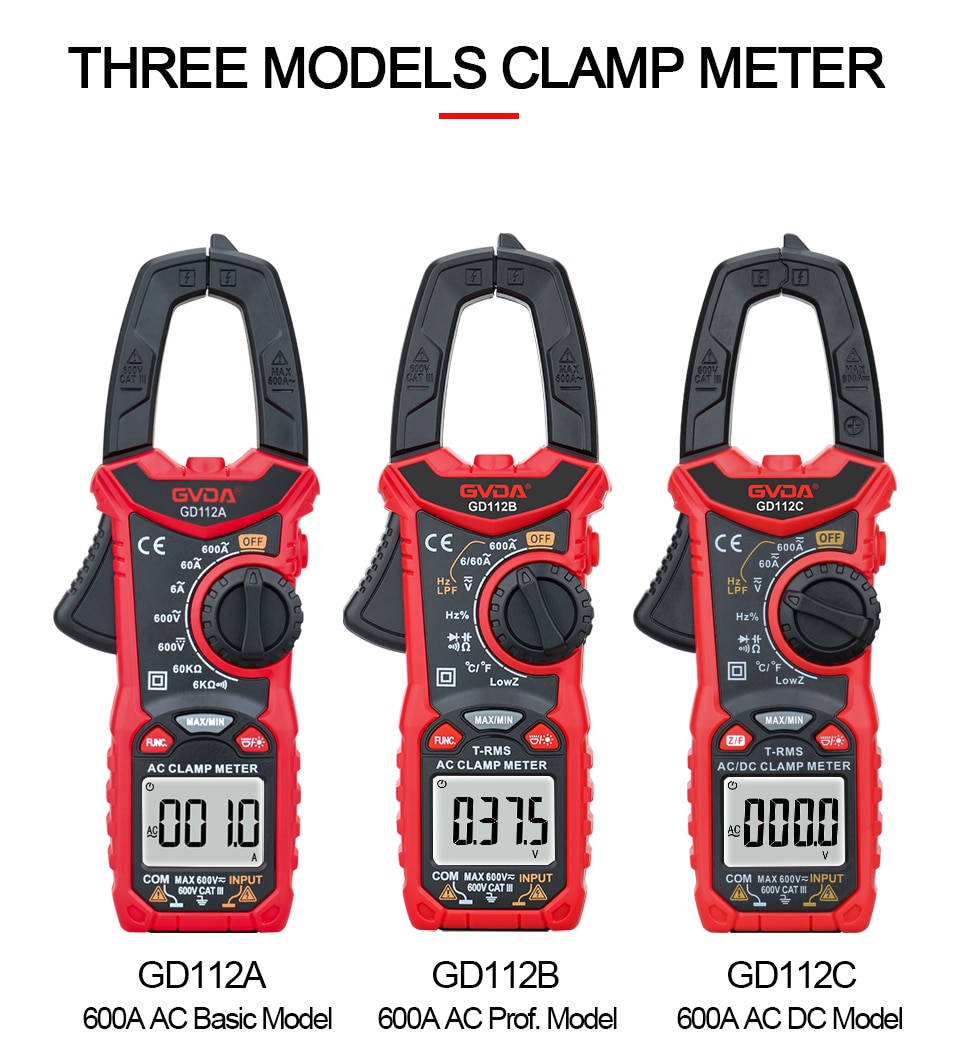

GVDA Clamp Meter Series Digital Multimeter High Precision Voltage Current Tester Ohm Capacitance 600V AC DC True RMS Tester
GVDA Clamp Meter is an intelligent true effective value multimeter, Intelligent identification and manual function are integrated, which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use

Product Features


1) Maximum display: Maxium 6000 Counts display

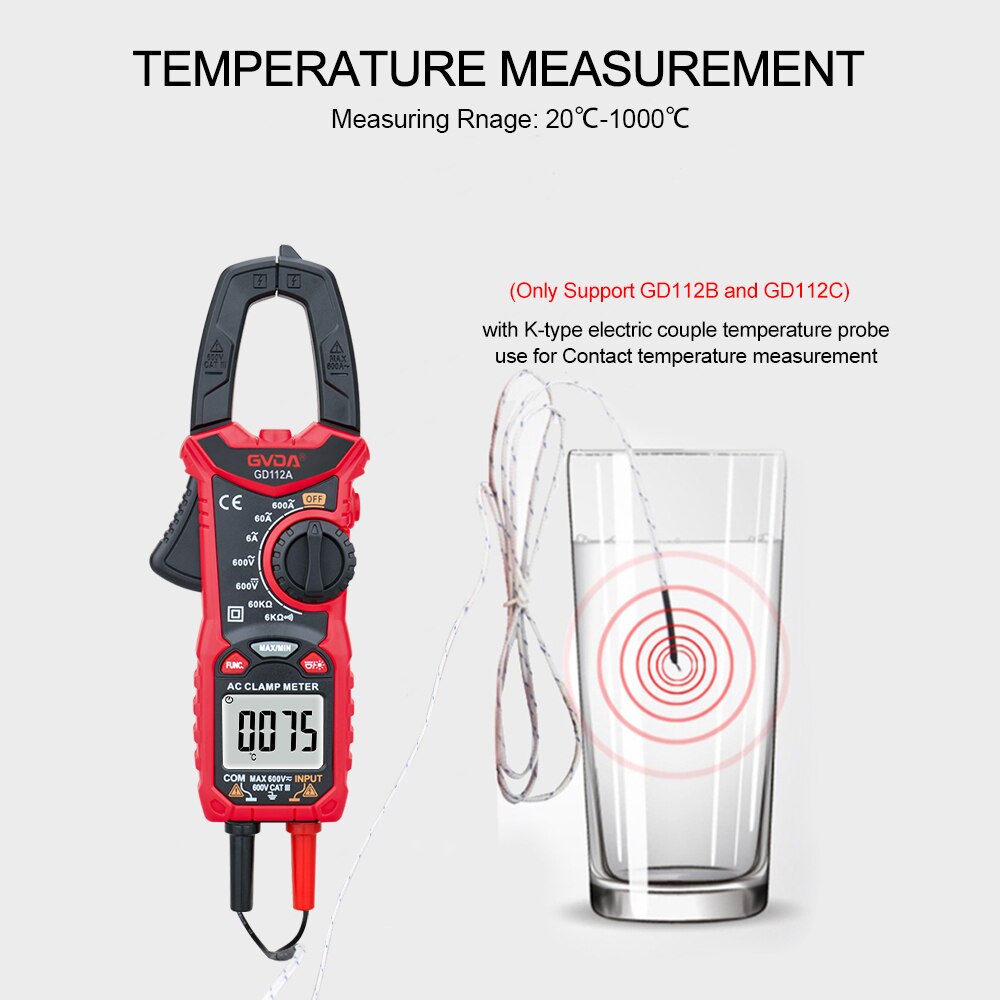

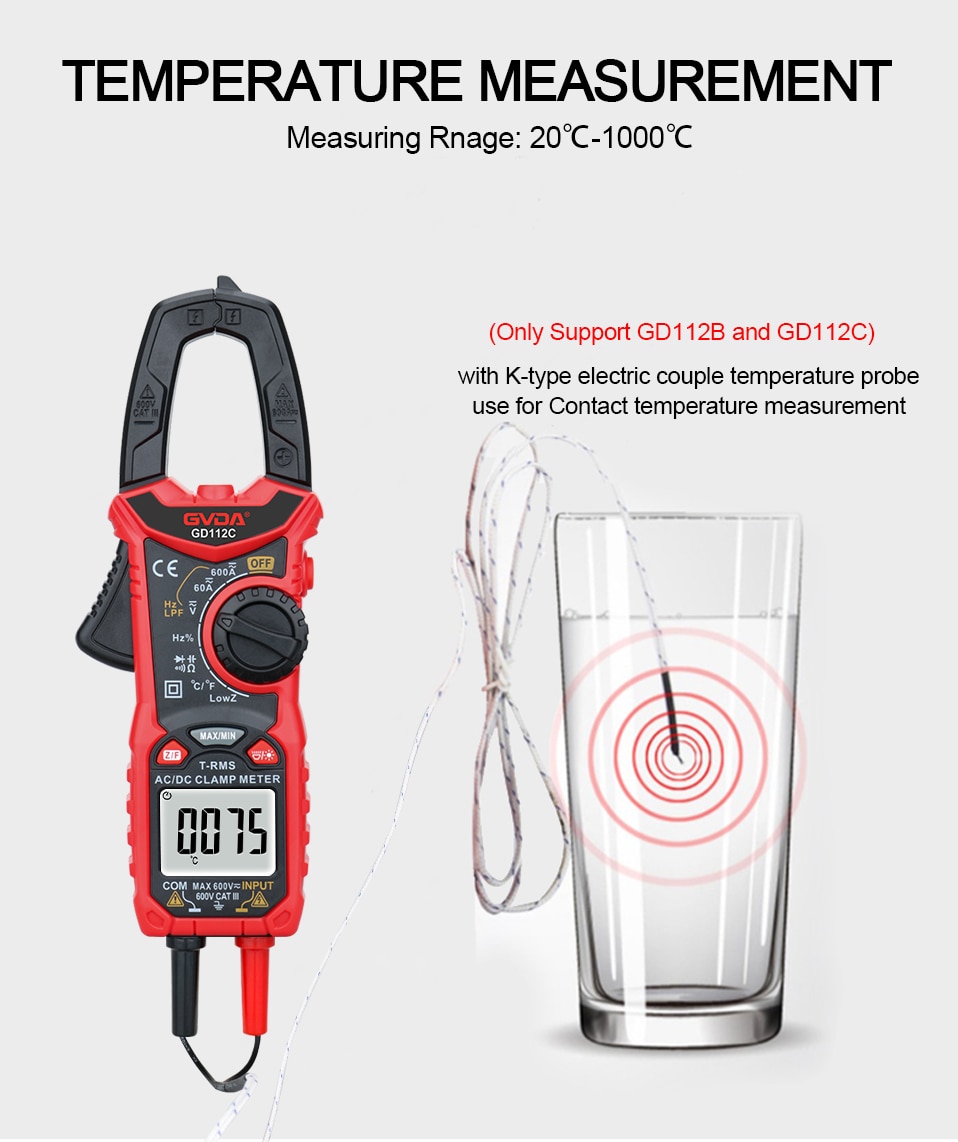

2) Temperature Measurement only for GD112B GD112C

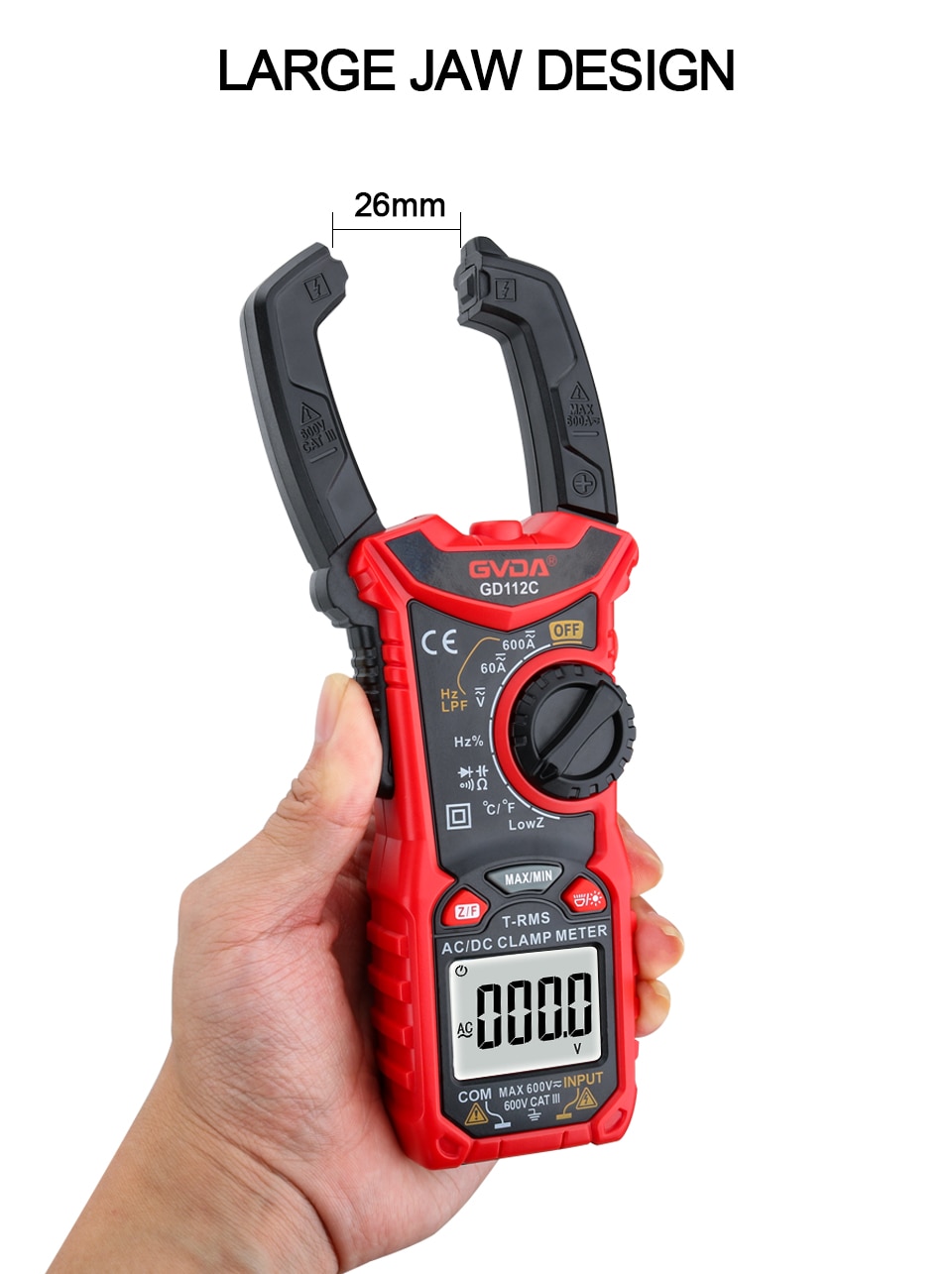

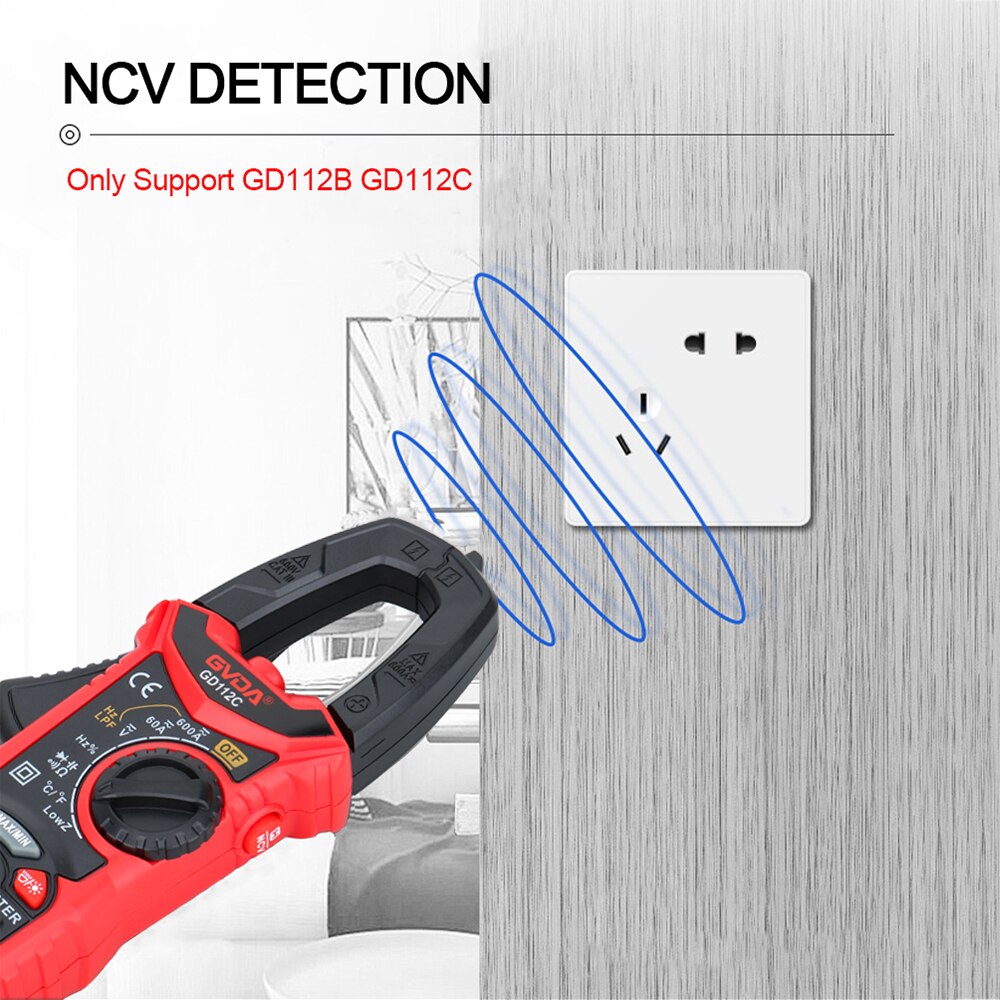

3) NCV Detection with 26mm Larger Jaw Design

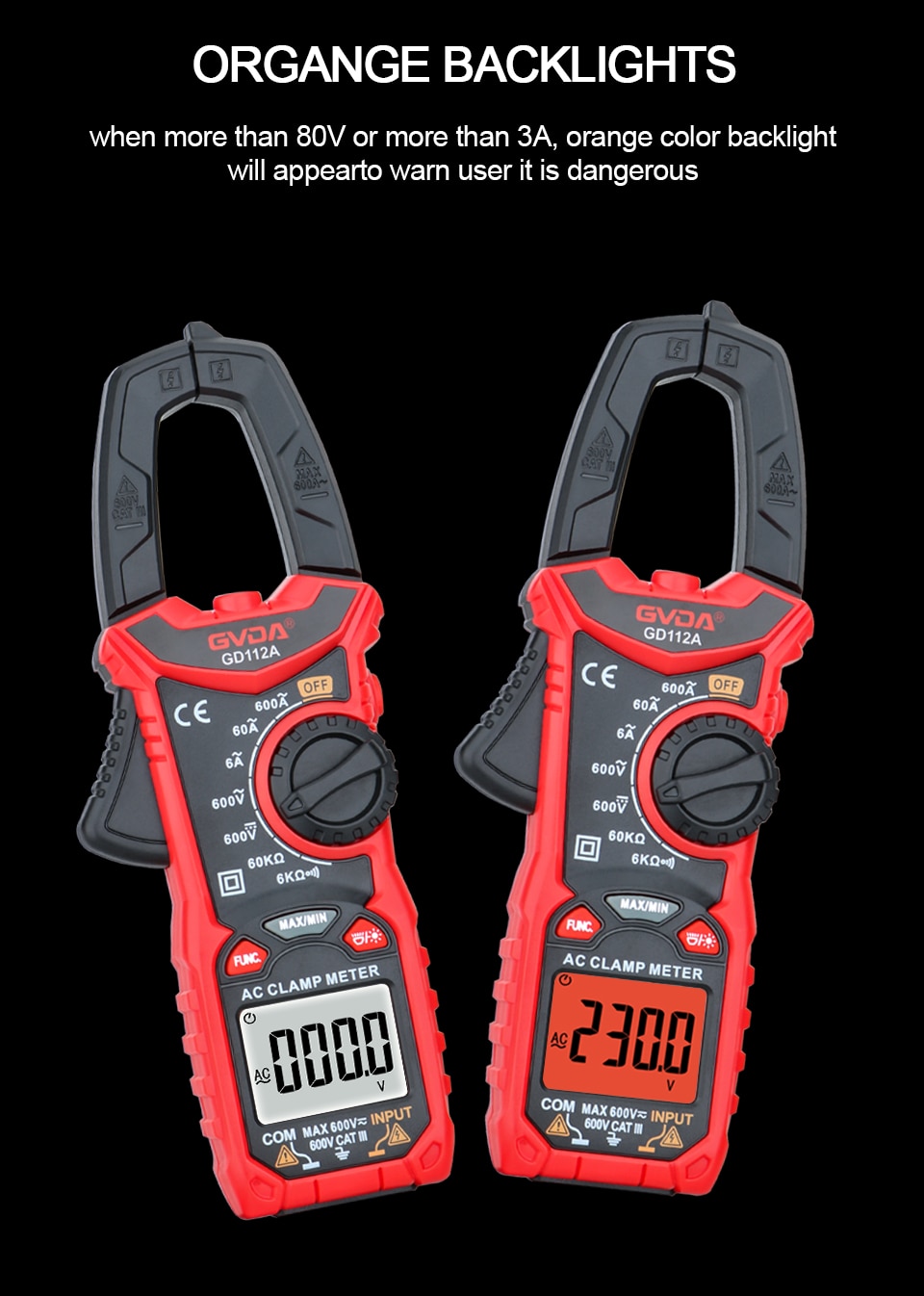

4) when more than 3A, or more than 80V Orange backlights will
appear on LCD and Warn the user it is dangerous
5) Working environment: (0-40)°C,relative humidity <80%
6) Power Supply: 2x 3AAA Batteries ( not include)
7) True RMS Value

Technical Details


Functions
GD112A
GD112B
GD112C
Range
Manual
Auto
Auto
AC Voltage
600V
600mV/6V/60V/600V
600mV/6V/60V/600V
DC Voltage
600V
6V/60V/600V
6V/60V/600V
AC Current
6A/60A/600A
DC Current
X
X
6A/60A/600A
Resistance
6KΩ/60KΩ
600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
Capacitance
X
10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF
Frequency
X
10Hz/100Hz/1kHz/10kHz/100kHz/1mHz/10mHz
Duty Cycle
X
1%-99%
Temperature
X
-40~1000C, -40F~1832F
Display Counts
6000 Counts

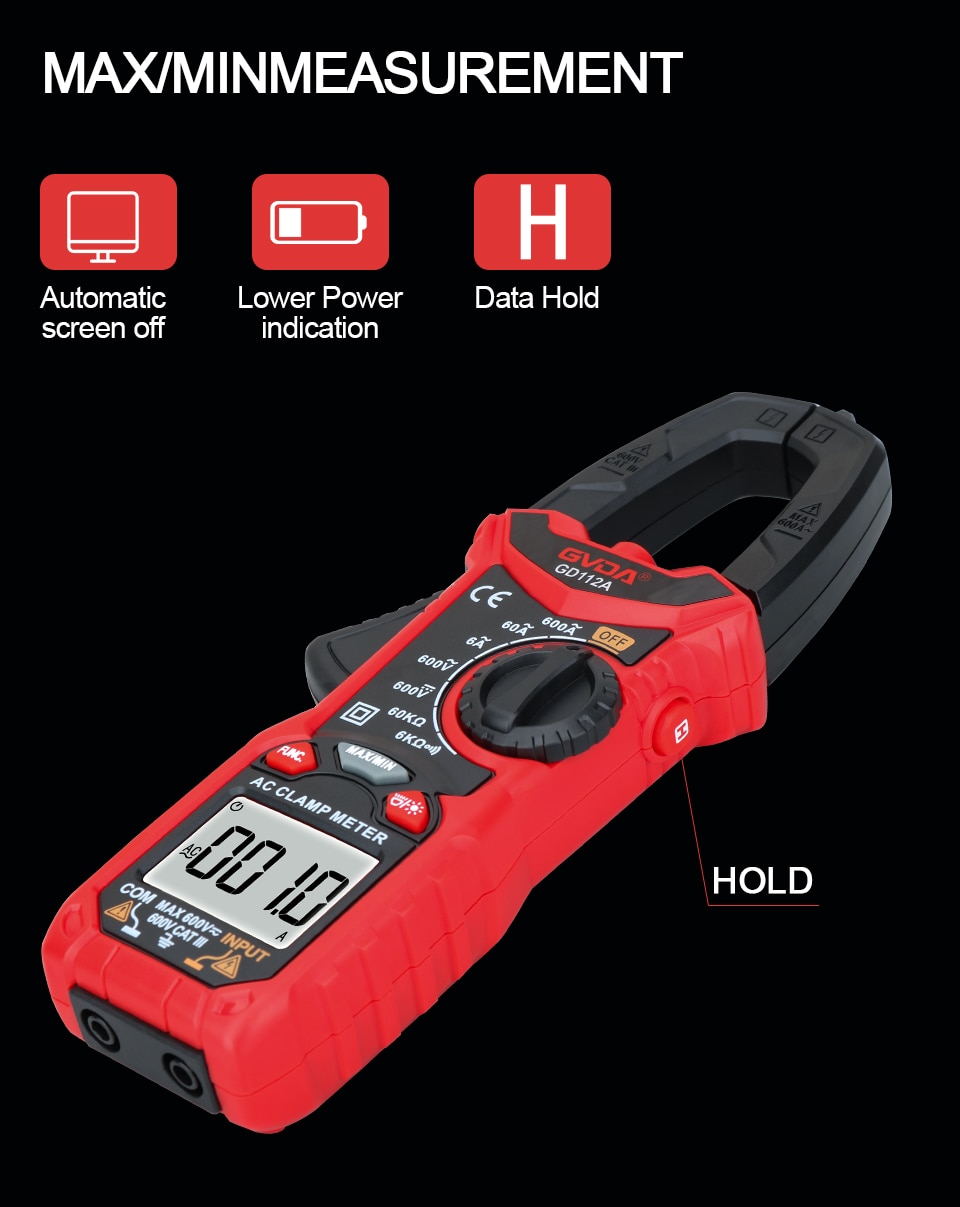

Max/Min
V
V
V
Continuity
V
V
V
Auto off
V
V
V
Data Hold
V
V
V
Double backlight
V >3A, >80V
V >3A, >80V
V >3A, >80V

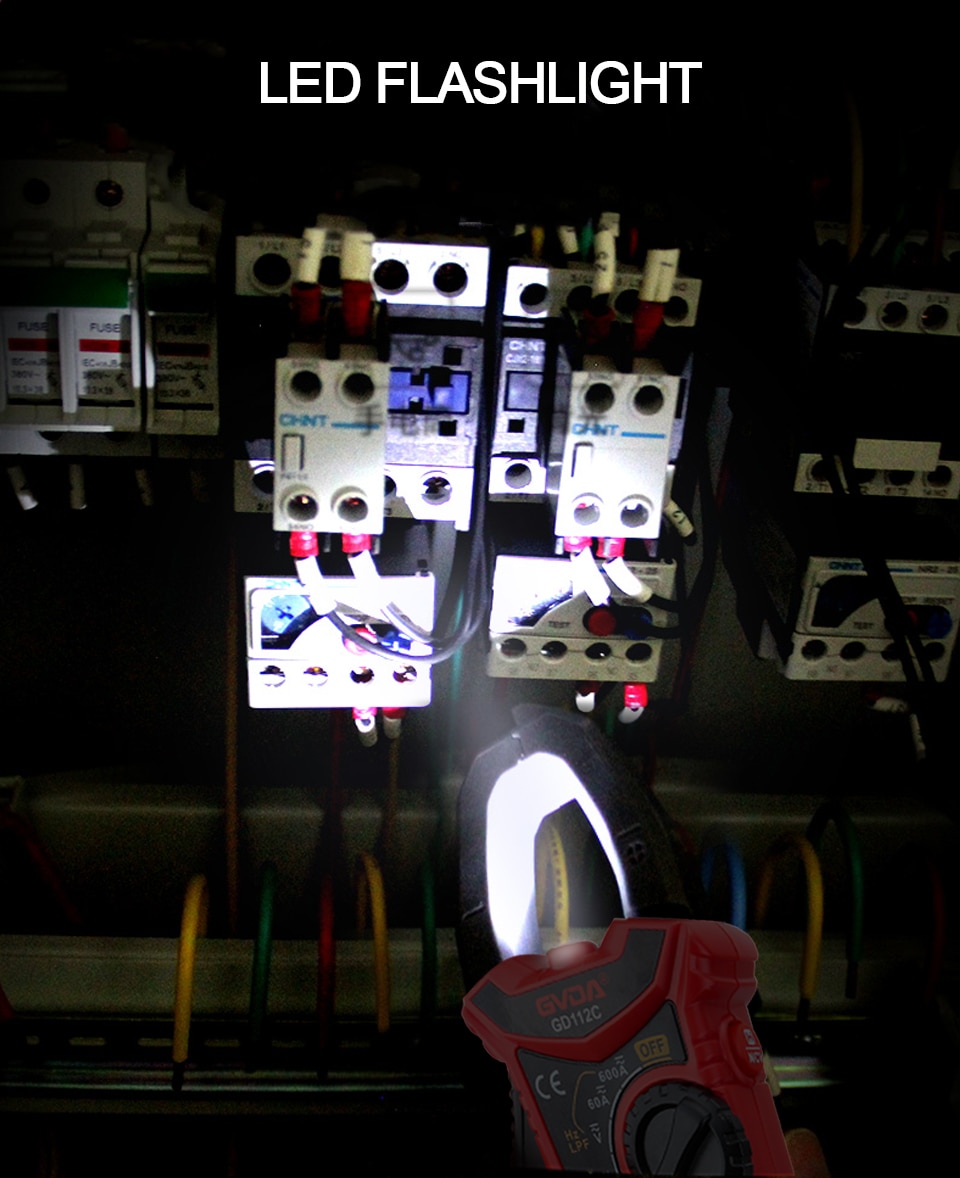

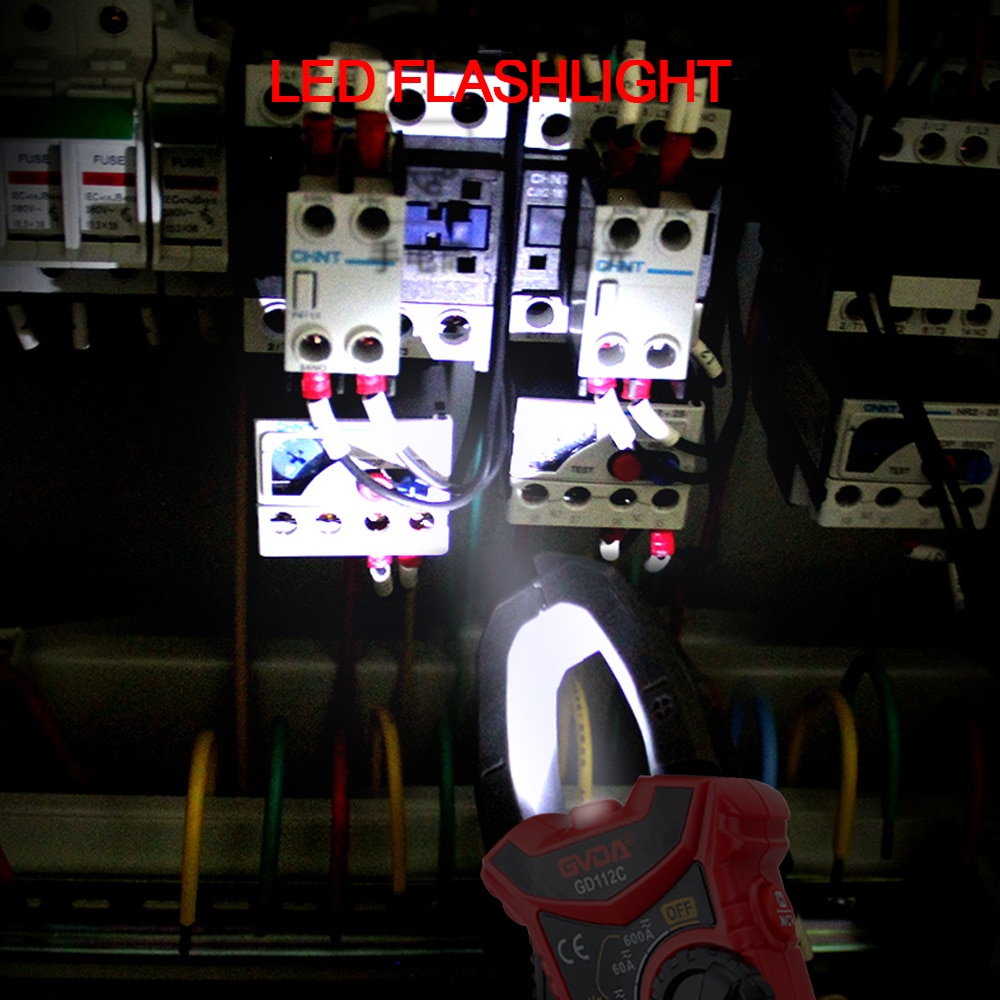

Flashlight
V
V
V
Diode Test
X
V
V
Temperature
X
V
V

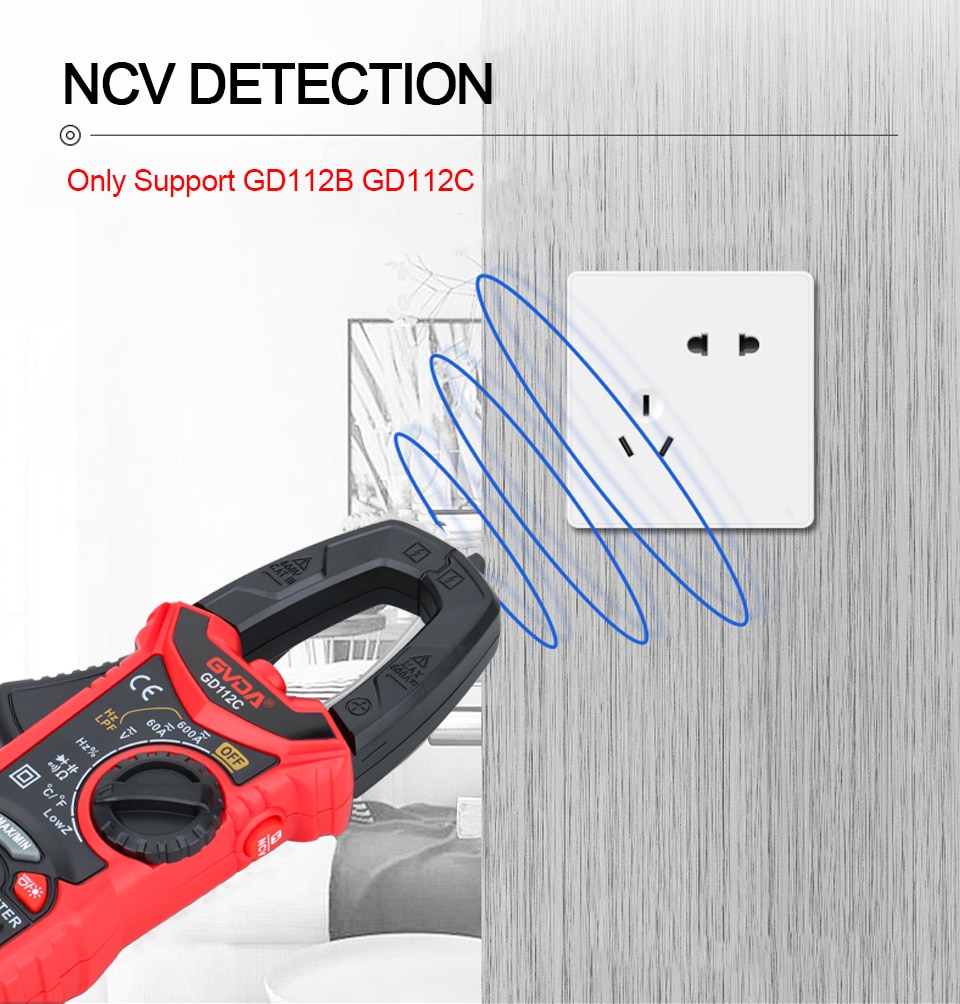

NCV Detection
X
V
V
Frequency /Duty
X
V
V
DCA Zero
X
X
V
Ture RMS
X
V T-RMS
V T-RMS
Capacitance
X
V 99.9mF
V 99.9mF
LowZ
X
V
V
LPF
X
V
V

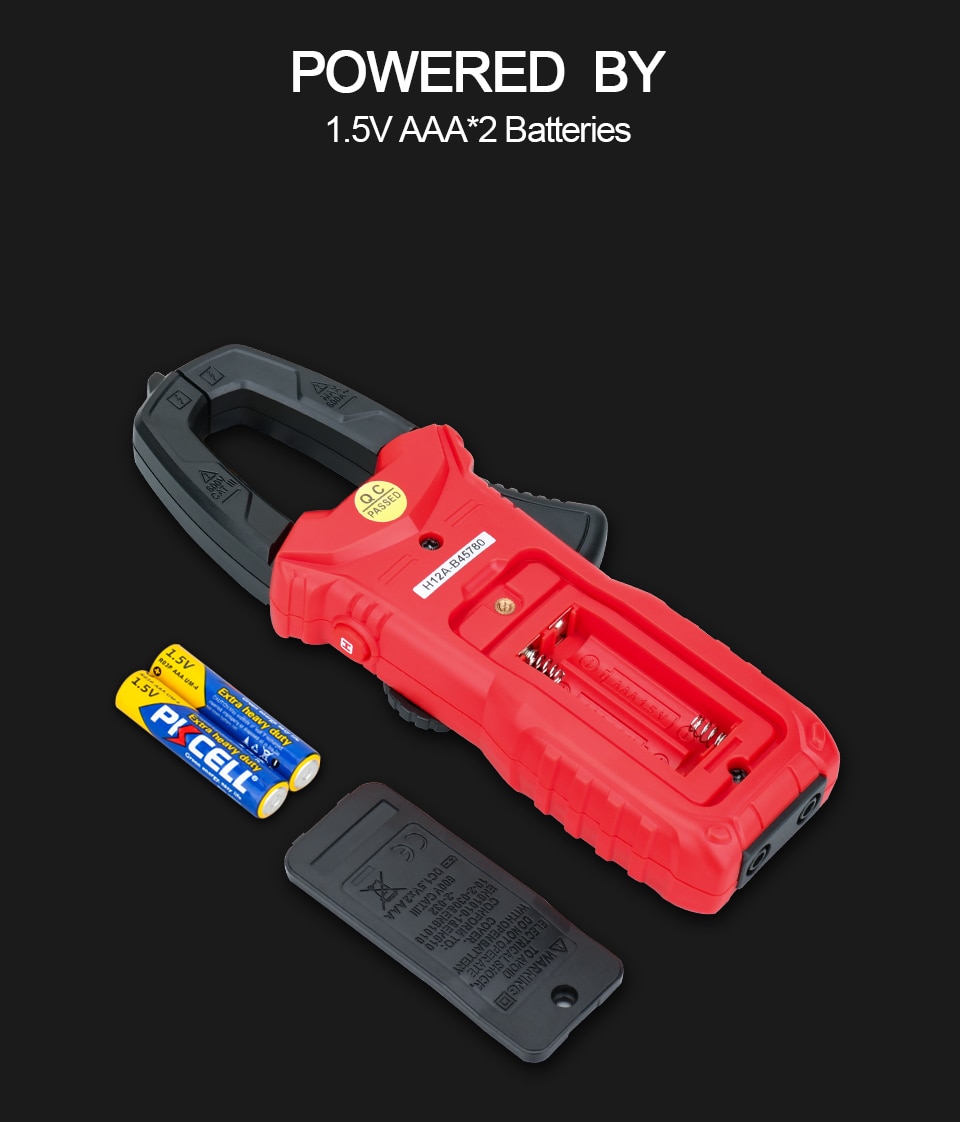

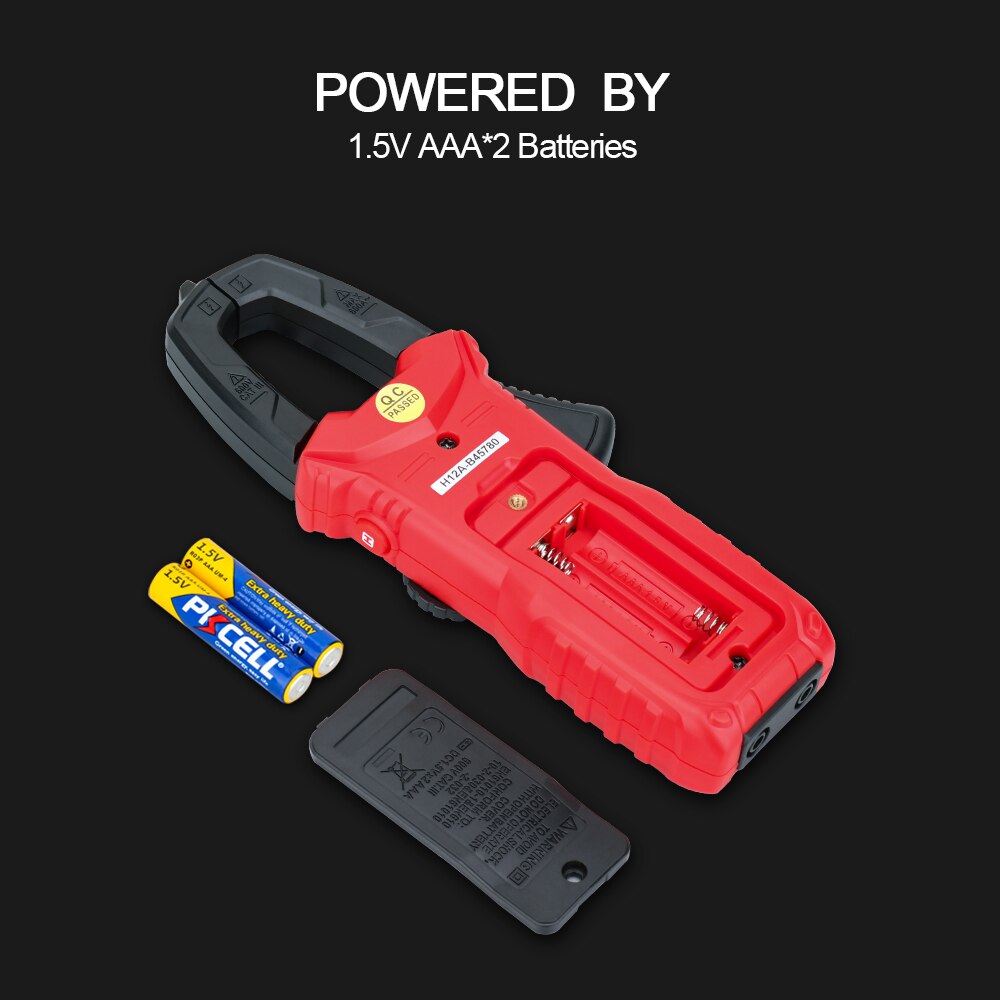

Powered By
2x 1.5V Batteries

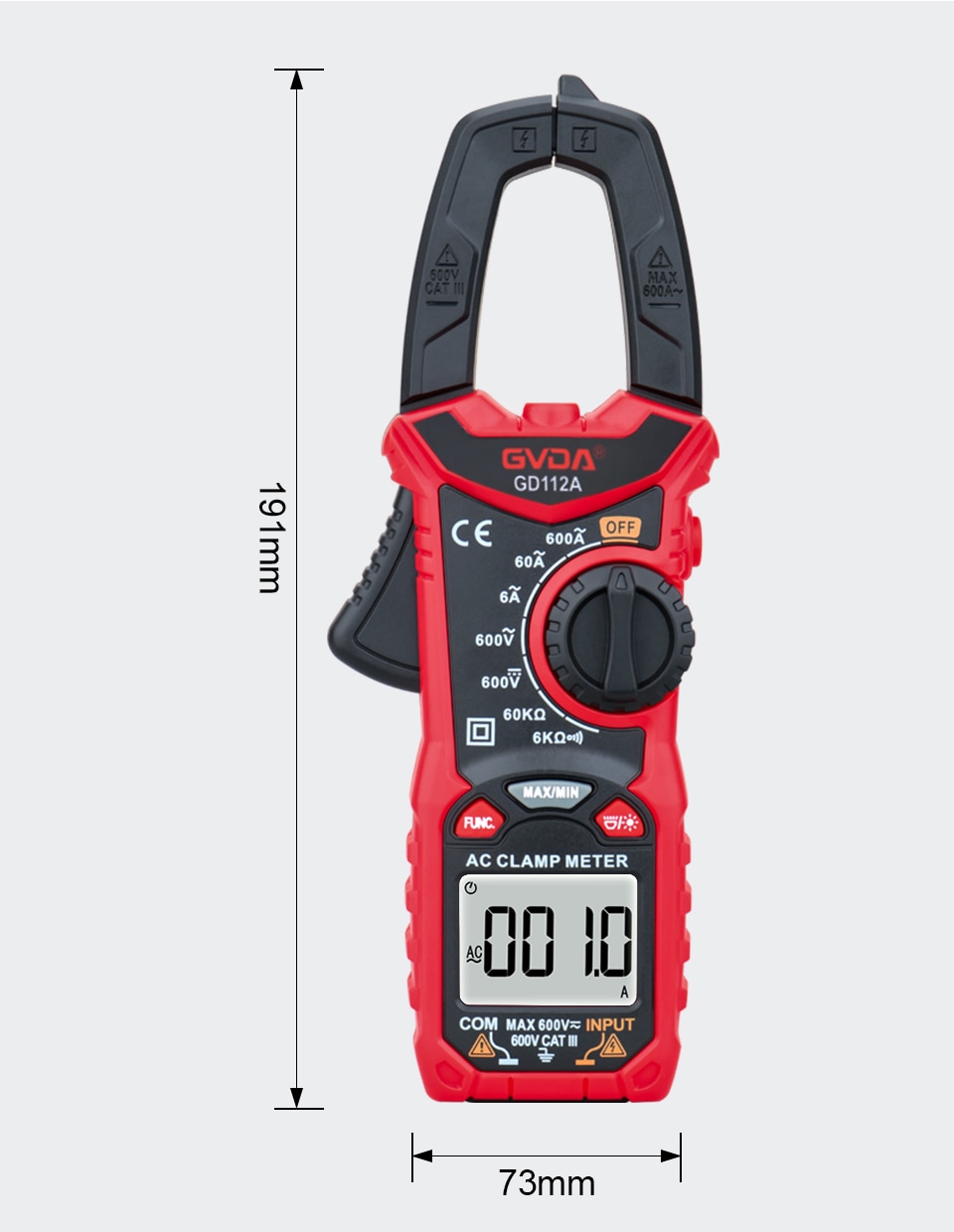

Product Size
193mm x 73mm x 34mm
Jaw Size
26mm
Safety Rating
EN61010-1, -2-030 EN61010-2-033, EN61326-1 CATIII 600V
Packing Contents

1X Clamp Meter, 1pc User manual , 1pc Test Pen
