Hantek DSO5102P Digital Storage Oscilloscope Portable USB Osciloscopio Handheld Oscilloscopes 2 Channels 100MHz 1GSa/s 40K is a one of our DSO5102P Digital Storage Oscilloscope Tools, you can buy Hantek DSO5102P Digital Storage Oscilloscope Portable USB Osciloscopio Handheld Oscilloscopes 2 Channels 100MHz 1GSa/s 40K from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

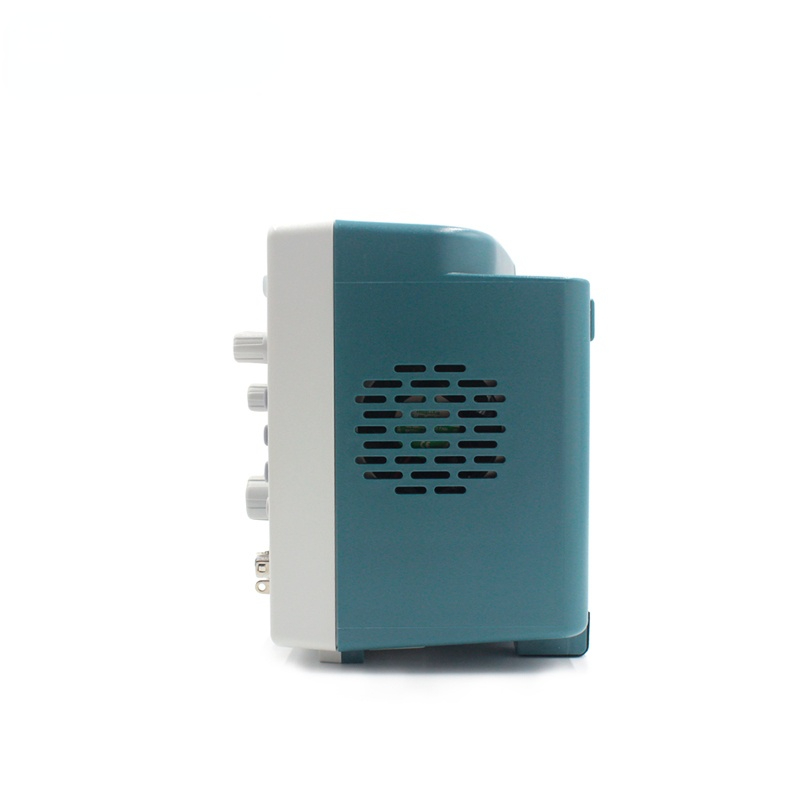

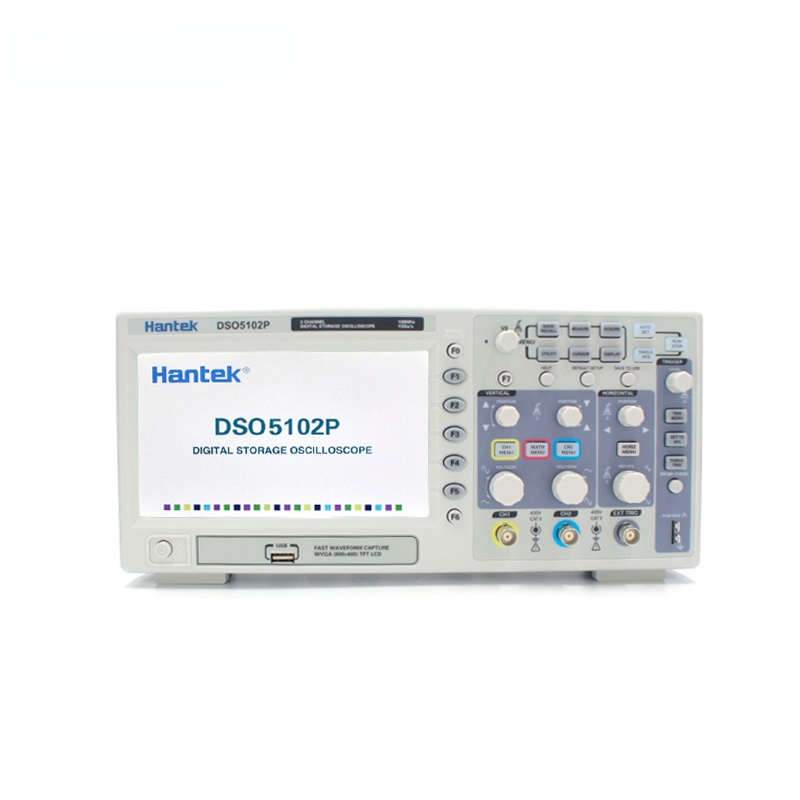

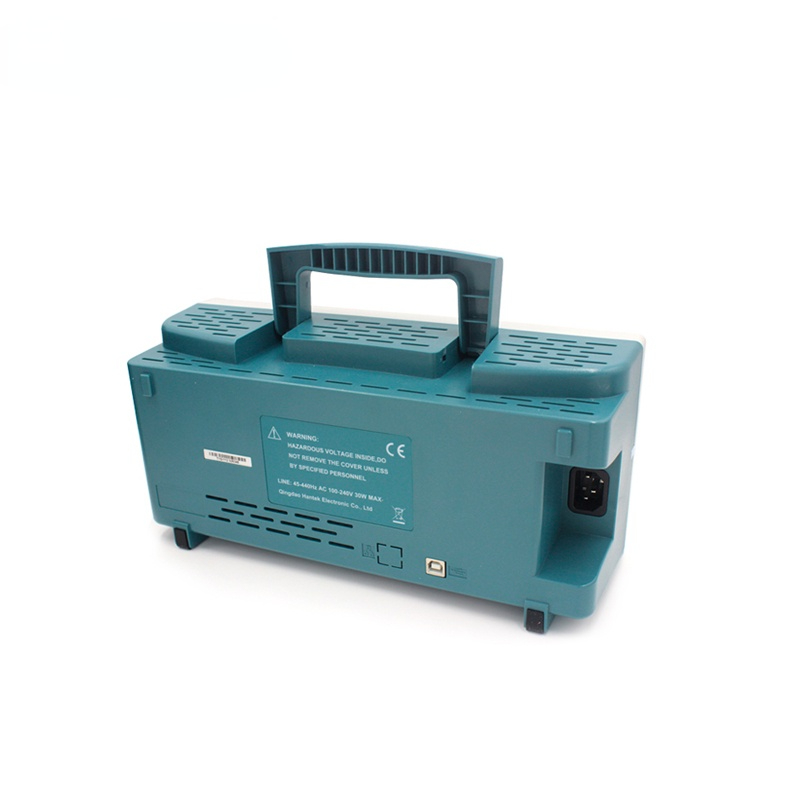

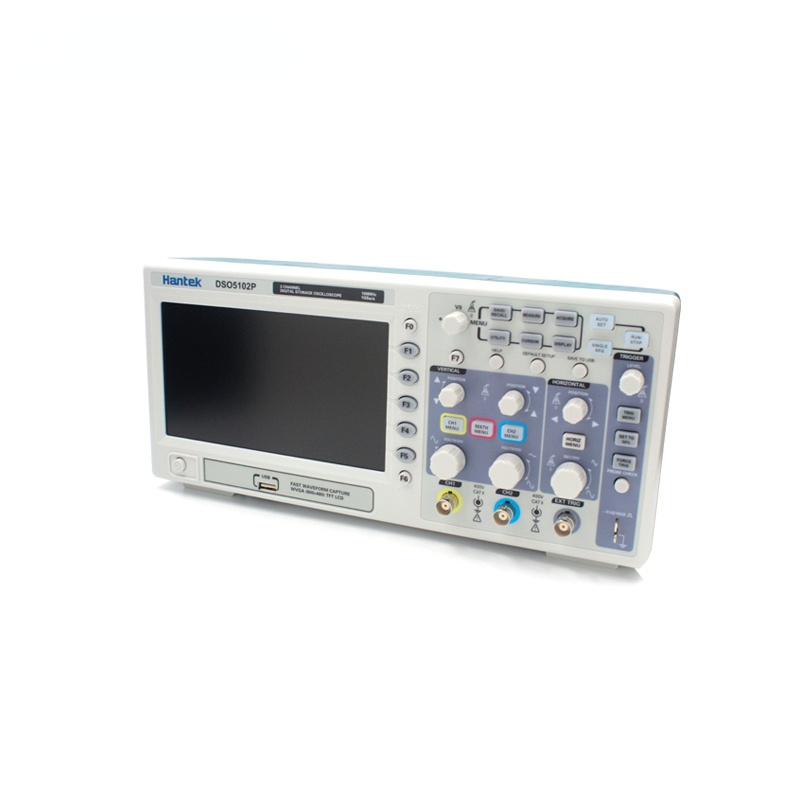

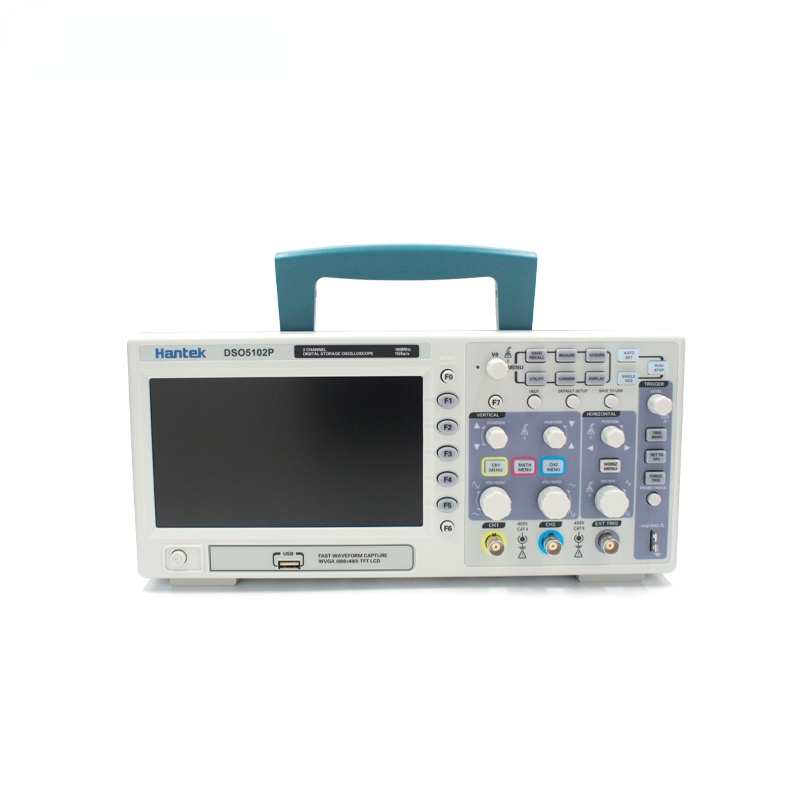

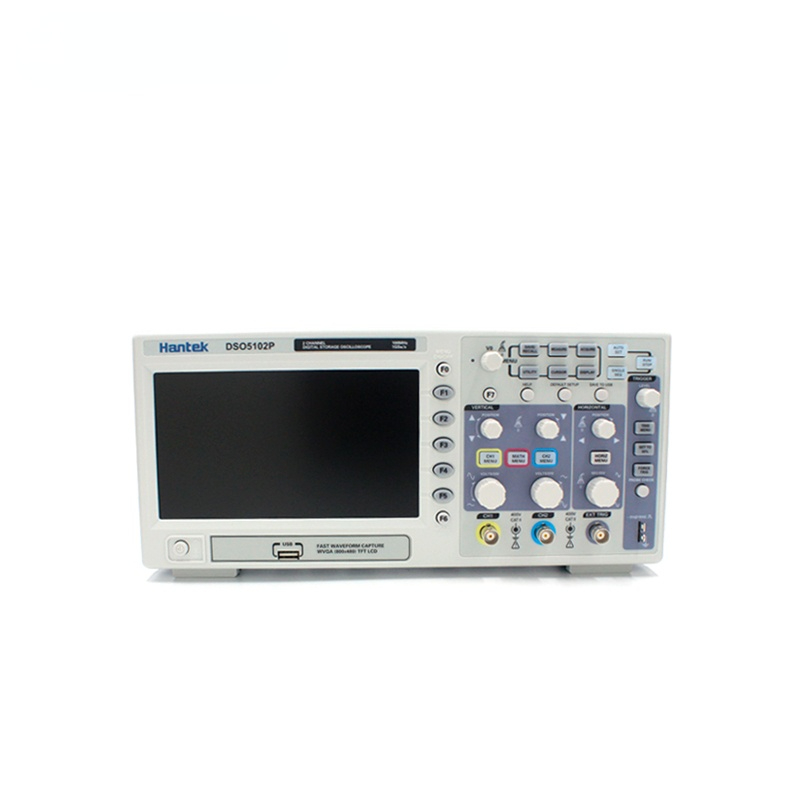

images of Hantek DSO5102P Digital Storage Oscilloscope Portable USB Osciloscopio Handheld Oscilloscopes 2 Channels 100MHz 1GSa/s 40K
-
100MHz bandwidths
-
2 Channels
-
1GSa/s Real Time sample rate
-
Large (7.0-inch) color display,WVGA(800x480)
-
Record length up to 40K
-
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
-
USB host and device connectivity, standard
-
Multiple automatic measurements
-
Four math functions, including FFTs standard
-
Provides software for PC real-time analysis
-
VGA Optional
-
Software:
Operating system: Windows NT, Windows 2000, Windows XP ,VISTA
|
| DSO5202P | DSO5102P | DSO5072P |
| Bandwidth | 200MHz | 100MHz | 70MHz |
| Channel | 2 | ||
| Real-Time Sample | 1GSa/s | ||
| Equivalent Sample | 25GSa/s | ||
| Memory Depth | 40K | ||
| Rise Time | 1.7ns | 3.5ns | 5ns |
| Time Base Accuracy | 50ppm | ||
| Time Base Range | 2ns/div-40s/div | 4ns/div-40s/div | |
| Input Impendance | 1M | ||
| VOLTS/DIV Range | 2mV/div-5V/div | ||
| A/D Converter | 8 bit | ||
| Position Range | 50V(5V/div), 40V(2V/div-500mV/div), | ||
| DC Gain Accuracy | 3% for Normal or Average acquisition mode, 5V/div to 10mV/div; | ||
| Bandwidth Limit | 20MHz | ||
| Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative | ||
| Trigger Source | CH1, CH2, EXT, EXT/5, AC Line | ||
| Math | +,-,x,÷,FFT | ||
| Cursor Measurement | Voltage difference between cursors: V; | ||
| Auto Measuerment | Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF | ||
| Display | 7" TFT 16K Color LCD, 800*480 dots | ||
| Size | 313mm x 108mm x 142mm | ||
| Weight | 2.08KG | ||
| Standard Probe | PP200x2 | PP150X2 | PP80X2 |
-

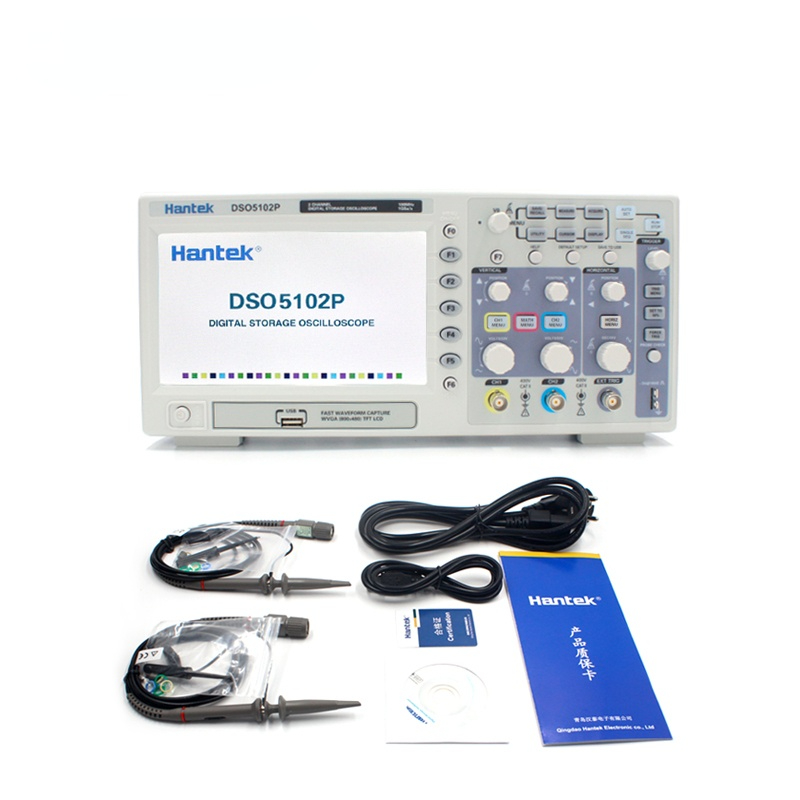

1 x 5102P Oscilloscope Host
-
2 x Connecting Lines
-
1 x USB Cable
-
1 x Installation CD
-
1 x Power line
-
1 x Original box
-
