Creator C420

Creator C420 is a new code reader for BMW and OBDII. Using 2.4-inch color screen, the display content is more abundant. Coming with 4G memory, C420 supports multiple languages. Small and flexible, it is easy to carry and use. No battery, plug and play. With an upgrade function, the software can be updated at any time.

Creator C420 BMW Features:

[Focus on BMW/MINI] - As what you've seen, Creator has a variety of OBD2 code readers compatible for BMW/MINI, C420 is one of the most cost-effective scan tools for BMW/MINI vehicle owners. C420 works on the BMW/MINI most 2001 and newer. 1997-2004 cars may need a 20 pin adaptor (not included).
[Full Systems & All OBD2 Functions] - Creator C420 diagnostic tool supports diagnosis functions for all systems Including ENG, ABS, SAS, SRS, TPMS, EPB, IMMO, BMS, etc. In addition, C420 code reader is also a universal OBD code reader for checking engine light, reading and erasing codes on all brands cars' OBD system.
[Advanced Reset Features] - CBS reset, battery registration, oil reset, vehicle check, ABS reset, SRS reset, SAS reset, EPB reset, DPF service, throttle body alignment, microfilter, spark plugs, etc. One Creator C420 scan tool is enough for professional diagnosis.
[Easy to Operate] - C420 BMW diagnostic tool via 2.4" TFT 240K true color LCD display screen to indicates the test results , with the silicone keypad you can easy to access the each of menu options, Rugged drop-proof case Prevent falling, the menu layout on the screen is easy to understand and you will no trouble to figuring out how to do what you needed.
[Lifetime Free Update] - Many OBDII scanners for BMW require to pay an additional fee for new upgrades after the warranty period has expired. C420 supports lifetime free software upgrades, new parameters, functions and the latest vehicle data are constantly updated via the USB port over the Internet. Just a few easy steps, the scanner will always be up to date with the latest system within minutes.

Note: The battery registration does not support BMW cars before 2004, and also does not support the E chassis (3'_E46, 5'_E39, 7'_E38, X3'_E83, X5'_E53, Z3'_E36, Z4'_E85/E86, MINI'_R50/R51, R52/R53). For the above models, you just need to replace the battery directly, because these models do not require battery registration (at the time, there was no concept of battery registration).

C420 BMW Code Reader Functions:

Support BMW 2001-2021 models, including full system fault detection.
Support BMW's common maintenance reset function, such as oil reset, brake pad reset, vehicle inspection, DPF, etc.
Support throttle matching, battery registration (after 2006) and other special functions
Support multiple languages(including: English, Simplified Chinese, Traditional Chinese, German, Spanish, French)

1. Creator C420 OBD2 Scanner Compatible for BMW and Mini

Creator C420 OBD2 scanner for BMW and Mini is a professional scan tool for non-mechanics to do your home diagnostic work. This car code reader supports all OBD2 functions and full BMW systems diagnosis to read & clear the fault codes, show you the live data in graph on the 2.4” TFT screen and turn off the MIL after repair or maintenance.

Compatible for BMW and Mini(Include : Drive , Chassis and Body All System)

C420 works on the BMW and Mini most 2001 and newer. 1997-2004 cars may need a 20 pin adaptor (not included):

1 Series: 1'_E81/E82/E87/E88, 1'_F20/F21, 1'_F52
2 Series: 2'_F22/F23, 2'_F45/F46, 2'_F87
3 Series: 3'_E46, 3'_E90/E91/E92/E93, 3'_F30/F31/F34/F35, 3'_F80
4 Series: 4'_F32/F33/F36, 4'_F82/F83
5 Series: 5'_E39, 5'_E60/E61, 5'_GT(F07), 5'_F10/F11/F18, 5'_F90, 5'_G30/G31, 5'_G38
6 Series: 6'_E63/E64, 6'_F06/F12/F13, 6'_G32
7 Series: 7'_E38, 7'_E65/E66/E68, 7'_F01/F02/F03/F04, 7'_G11/G12
X Series: X1'_E84/F48/F49, X2'_F39, X3'_E83/F25/G01, X4'_F26, X5'_E53/E70/F15/F85, X6'_E71/E72/F16/F86
Z Series: Z4'_E85/E86, Z4'_E89, 3'/Z3'_E36
I Series: I'_I01/I02

MINI: MINI'_R50/R52/R53, MINI'_R55/R56/R57/R58/R59/R60/R61, MINI'_F54/F55/F56/F57/F60

2. Full Systems Scanner for BMW and Mini

Creator C420 Code Reader for BMW and Mini is capable of reading and clearing trouble codes of all major systems, including ECM (Engine), TCM (Transmission), ABS (Antilock Brake System), SRS (Airbag), BCM (Body Control Module), EPS (Eletronic Power Steering), HVAC (Heat, Ventilation and Air Conditioning), TPMS (Tire Pressure Monitor System), EPB (Electronic Parking Brake), etc, allows you to get a faster and more accurate test result on all electronic systems. C420 code reader is also a universal OBD code reader for checking engine light, reading and erasing codes on all brands cars' engine system.

3. Advanced Features for BMW and Mini

Powertrain Module: Engine System, Transmission System, Battery Energy System, Wheels System, Transfer case, Electrical Machine Electronics, Diesel Fuel Pump, Gear, etc.

Suspension Module: Accumulator Management Electronics System, Steering System, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS, etc.

Body Module: SRS Airbag System, Camera, Audio Radio System, Gateway System, Charging Interface Module, Parking Assistance, Power Control Unit, Light, Battery Charging System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition, Electric Windows, etc.

Electrical Module: Centralized control system for engine and power transmission, chassis integrated control and safety system, Intelligent body electronic system, communication and information system, entertainment system, etc.

Note: The battery registration does not support BMW cars before 2004, and also does not support the E chassis (3'_E46, 5'_E39, 7'_E38, X3'_E83, X5'_E53, Z3'_E36, Z4'_E85/E86, MINI'_R50/R51/R52/R53). For the above models, you just need to replace the battery directly, because these models do not require battery registration (at the time, there was no concept of battery registration).

OBDII & EOBD Software:

Works on all 2001 and later OBDII compliant PETROL European vehicles
Works on all 2004 and later OBDII compliant DIESEL European vehicles
Works on all 1996 and later OBDII compliant US and Asian vehicles
Easily determines the cause of the “Check Engine Light ( MIL)”
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Identifies pending codes
Reads live PCM datastream
Graph displays live PCM datastream
Read I/M Readiness Status
Displays live O2 sensor test data
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current OBD-II protocols

Creator C420 OBD2 Code Reader Specifications:

1) Display: 2.4 inch color display, 320 x 240 pixels
2) Working temperature: - 20 ℃ -- 75 ℃
3) Storage temperature: -40 ℃ -- 120 ℃
4) Input voltage: 8V -- 24V

Differences Among C110+, C420 and C501:

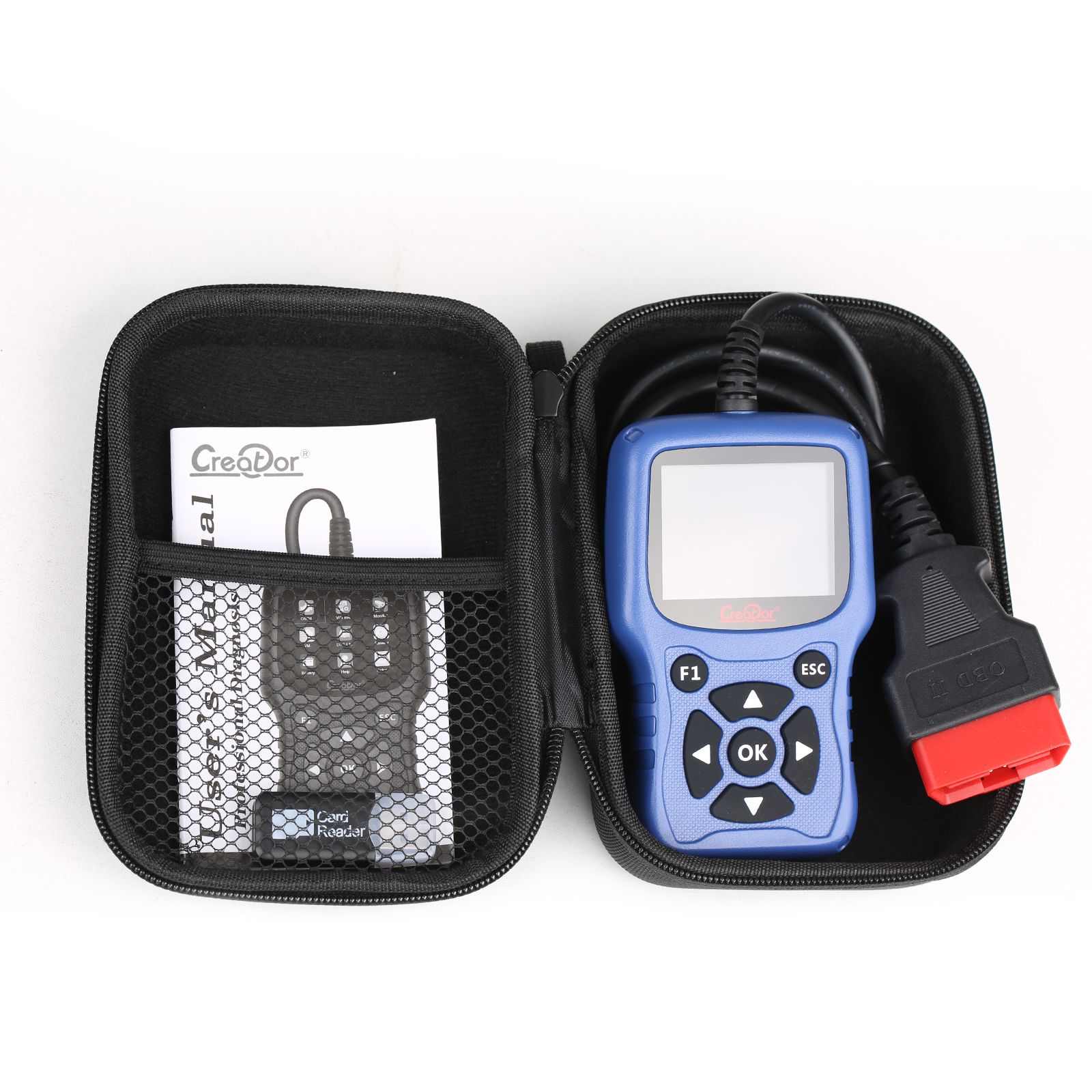

Package Includes:

1pc x Creator C420 Host
1pc x TF card reader
1pc x Manual
1pc x Cloth bag
