AO2 PTB-18.10 is used all kinds of to test with oxygen in the relevant instrument, for instance: Automotive exhaust detecting instrument, the detecting instrument in environment protecting mode of waste gas, the test instrument of oxygen index.
O2 PTB-18.10 Oxygen Sensor O2 Sensor Gas Sensor AO2 CiTiceL with Molex Connector is a one of our British city oxygen sensor Tools, you can buy O2 PTB-18.10 Oxygen Sensor O2 Sensor Gas Sensor AO2 CiTiceL with Molex Connector from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

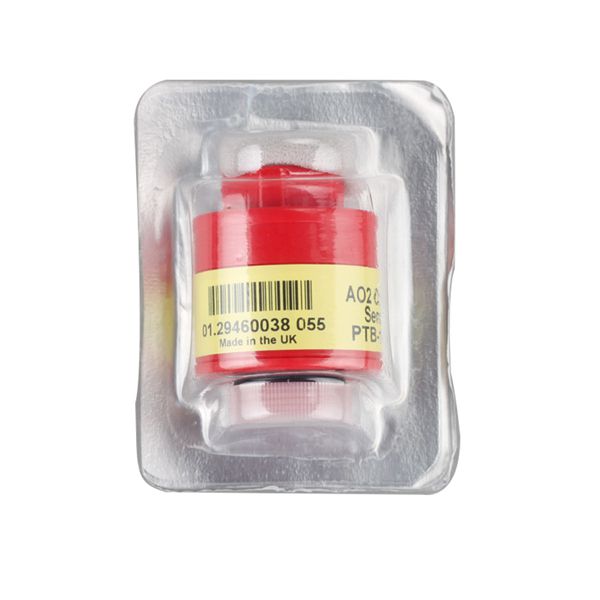

images of O2 PTB-18.10 Oxygen Sensor O2 Sensor Gas Sensor AO2 CiTiceL with Molex Connector
AO2 PTB-18.10 Oxygen Sensor O2 Sensor Gas Sensor AO2 CiTiceL with Molex connector
AO2 PTB-18.10 Key Features & Benefits:
Molex Connector
Linear Output from 0-100% Oxygen
AO2 PTB-18.10 Description:
AO2 PTB-18.10 oxygen sensor used on the oxygen index measure apparatus is a consumable. The chemical reaction has taken place after it contacted with the air. Generally speaking it is one year to use effective date. The packaging of the oxygen sensor must be hermetic, for it is full of nitrogen in the sealed plastics package. The best to keep the temperature 0 degrees - between 20 degrees.
AO2 PTB-18.10 Technical Specifications
MEASUREMENT:
Operating Principle: Partial Pressure Electrochemical
Measurement Range: 0-100% O2
Output:9 - 13 mV in Air
Response Time (T90 ):<5 s
ELECTRICAL:
On Board Temperature: <2% O2 equivalent
Compensation: variation from 0°C to 40°C
Connector:
3 Pin Molex header
(MOLEX 22-29-2031)
Recommended Mating Part:
Molex 3-Way Housing
(MOLEX 22-01-2035)
Molex Crimp Terminals
(MOLEX 08-45-0110)
ENVIRONMENTAL:
Typical Application: Vehicle Exhaust Analysis
Operating Temperature Range: -20°C to +50°C
Operating Pressure Range:0.5 - 2.0 Bar
Differential Pressure Range: 0 to 500 mBar max
Operating Humidity Range: 0 - 99% RH non-condensing
LIFETIME:
Standard Warranty: 12 months from date of despatch
