Bluetooth elm327 V15 OBD2 Mini OBD2 Bluetooth Scanner
Bluetooth elm327 V1.5 OBD2 Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth
Bluetooth elm327 V1.5 OBD2 Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth is a one of our Bluetooth elm327 V15 OBD2 Mini OBD2 Bluetooth Scanner Tools, you can buy Bluetooth elm327 V1.5 OBD2 Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

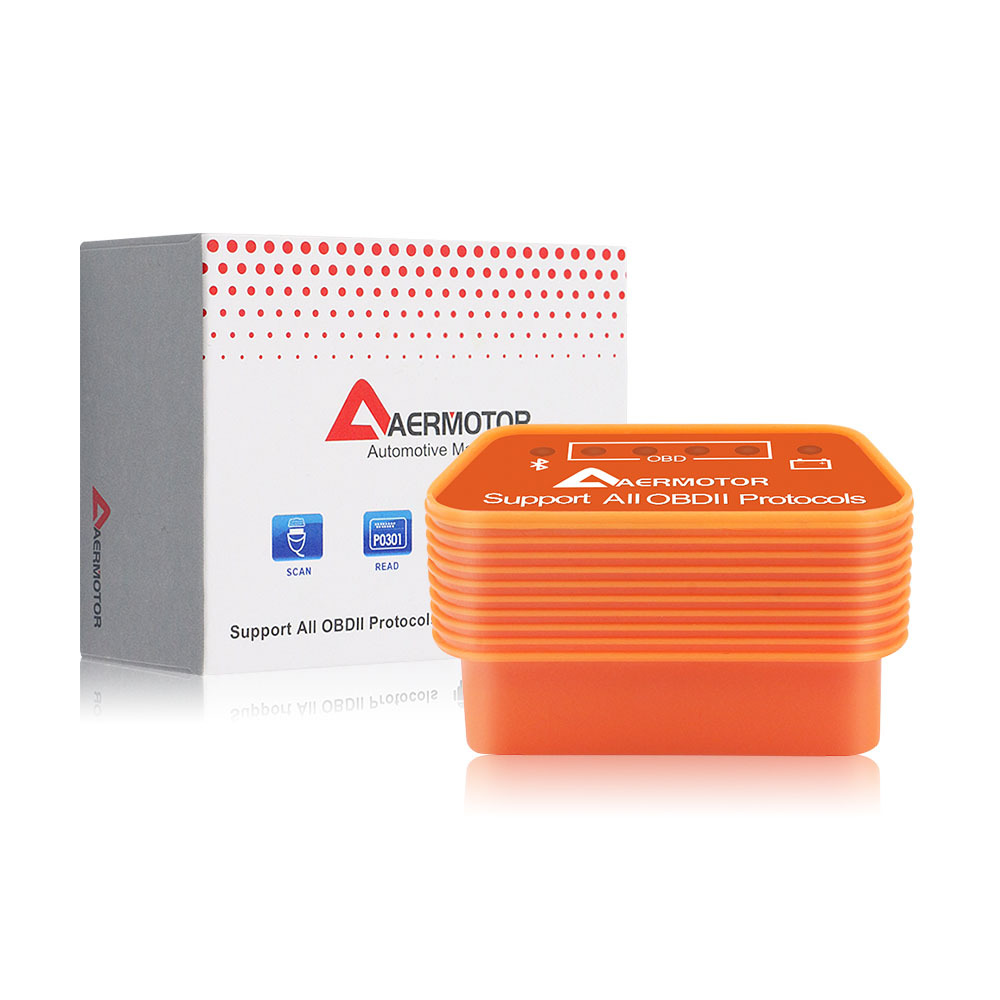

images of Bluetooth elm327 V1.5 OBD2 Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth
Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth. Supports All OBD2 Protocol works on Android Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).
Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth.
Top 4 Reasons To Get Mini OBD2 Bluetooth Scanner:
1.Version: V1.5
2 Works with all OBD-II compliant vehicles
3. Wireless (Bluetooth)
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Mini OBD2 Bluetooth Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
Support System: Android and Windows
Working Voltage: 9v ~ 16v
Working Current: 35mA
Standby Current: 25mA
Operating temperature: -40 ℃ - 85 ℃
Working Humidity: less than 60%

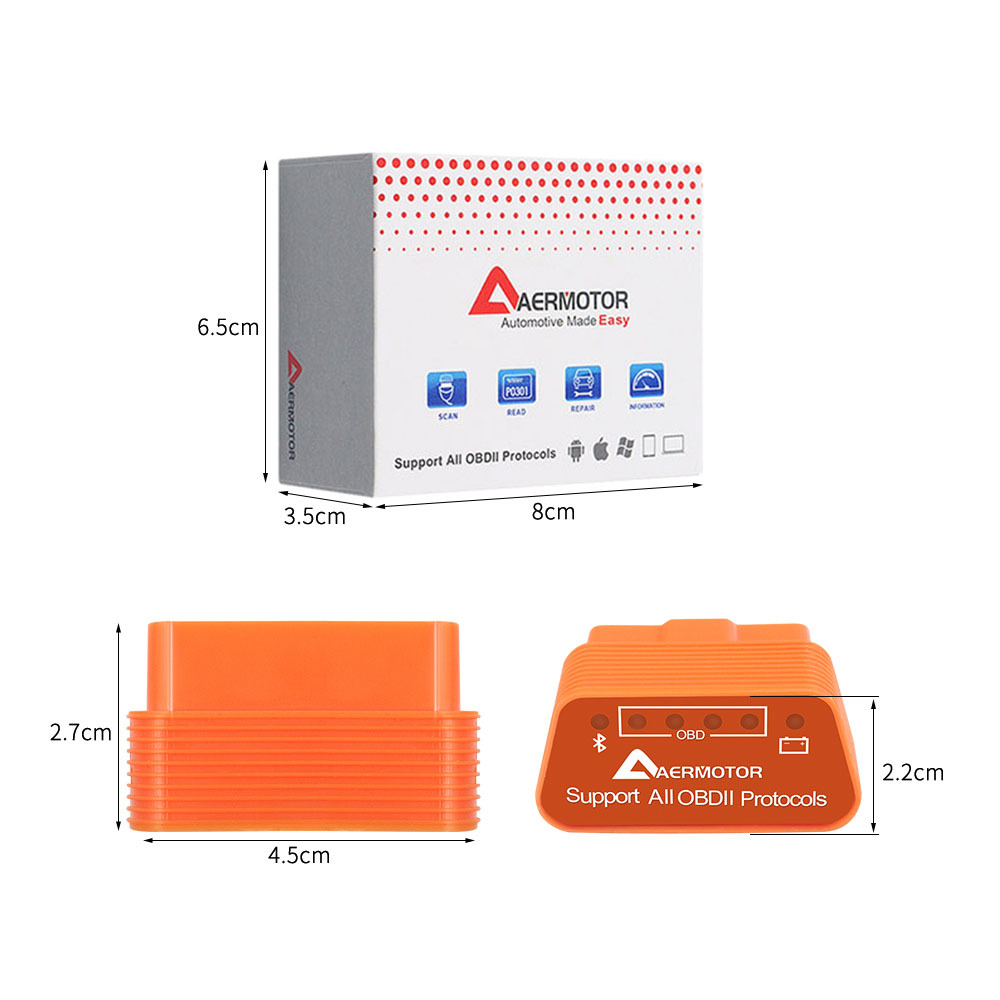

Size: 45mm * 25mm * 65mm
Compatible systems:
Software support platform: Windows XP, Windows 7/8, Android, Symbian .
Compatible software:
Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian : OBDScope
Package List:
1pc x Mini OBD2 Bluetooth 2.0 Scanner
1pc x CD
