Automotive Smoke Detector

OEM A6 this automotive diagnostic leak detector is designed for testing leaks in vehicle pipe systems. It can be used on all cars, motorcycles, snowmobiles, ATV, light trucks, boats, etc.

OEM A6 Automobile Pipeline Smoke Leak Detector with Pressure Gauge Test Leak in Vehicle Pipe Systems for Cars, Motorcycles, Snowmobiles, ATV, Boats is a one of our Automotive Smoke Detector Tools, you can buy OEM A6 Automobile Pipeline Smoke Leak Detector with Pressure Gauge Test Leak in Vehicle Pipe Systems for Cars, Motorcycles, Snowmobiles, ATV, Boats from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

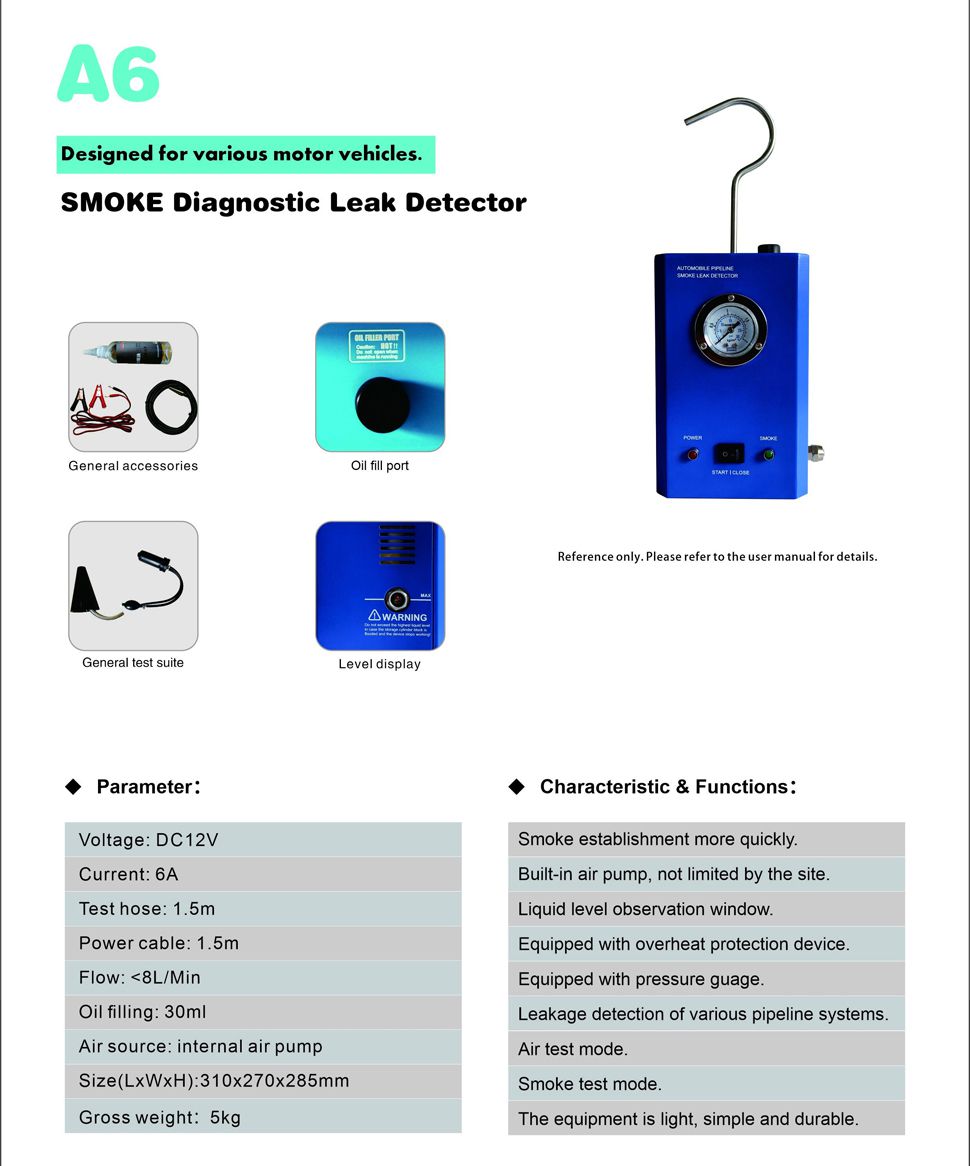

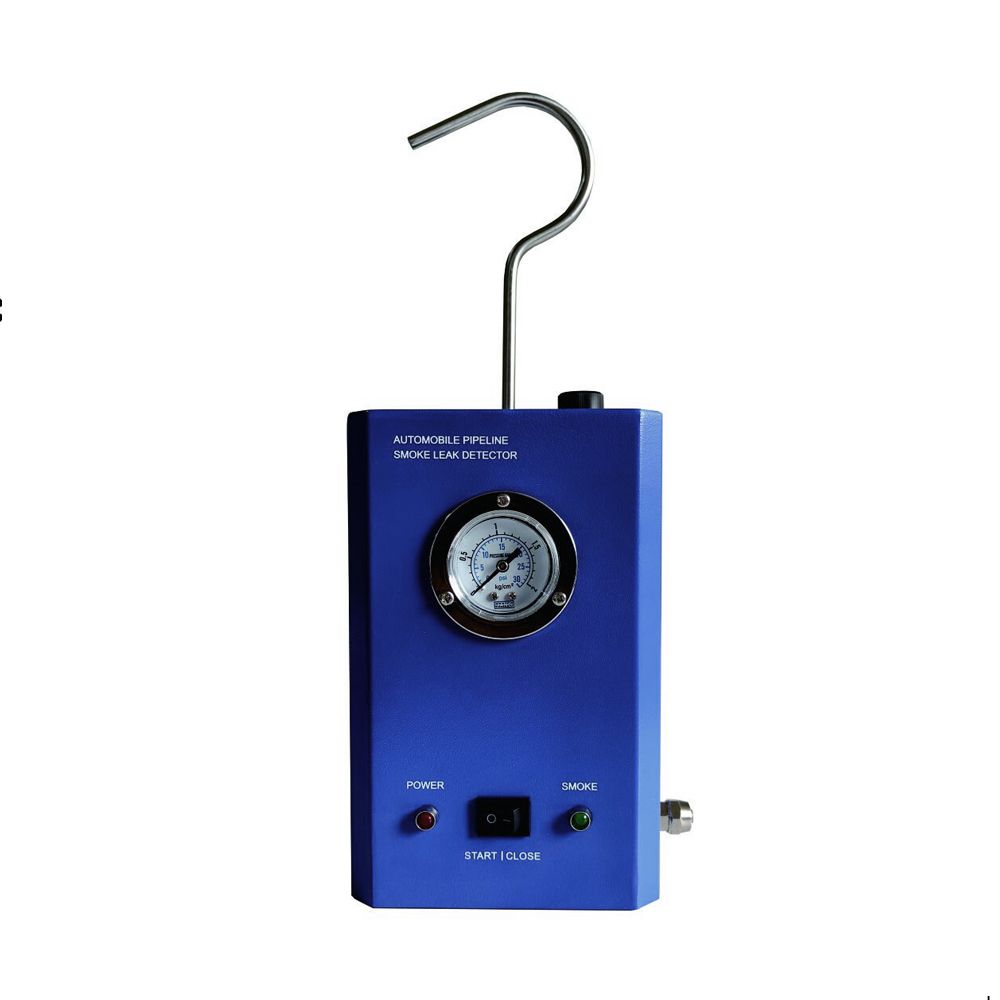

images of OEM A6 Automobile Pipeline Smoke Leak Detector with Pressure Gauge Test Leak in Vehicle Pipe Systems for Cars, Motorcycles, Snowmobiles, ATV, Boats

lightweight, simple and durable



How to use it?

Prepare the Unit

1.Mount the Power Cords to the Power Inlets.

Note: Red plug to red socket and black plug to black socket.

2.Mount the Smoke Tube to the Smoke Outlet, and lock it with the quick clamp.

Note: Use the Velcro Strap to collect the Power Cords and the Smoke Tube before storage.

3.Open the Oil Filler Port, fill smoke oil into the reservoir, note the Oil Level Indication Window, make sure the oil level do NOT exceed the Max line. If the smoke oil is overfilled, turn the unit upside down to drain some oil out.

4. Now the unit is ready to use.

Note: Pay attention to the Oil Level Indication Window before use. If the oil level is close to the bottom, the unit will need a refill.

Test Run

1.Connect 12V vehicle battery with the clamps on the Power Cords. The Power Indicator will be ON and the unit will start generating air pressure.

Note: red clamp to positive (+), and black clamp to negative (-).

2.Block off the smoke nozzle on the Smoke Tube with fingertip, the Pressure Gauge will indicate the real time output pressure.

3.Switch on the smoke mode switch, the smoke mode indicator will be ON. The unit will start producing smoke.

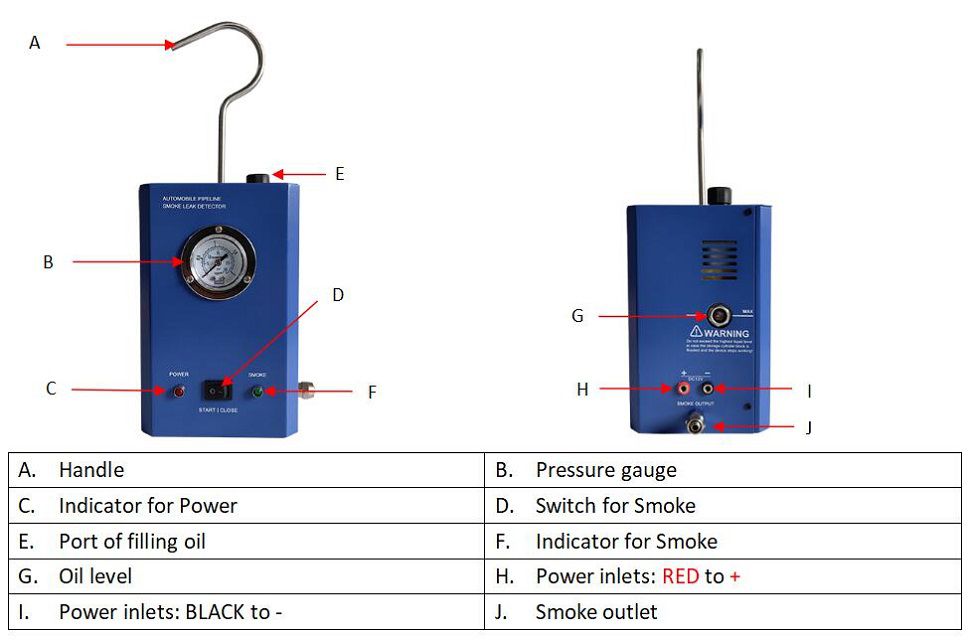

Product Structure:



Product Specifications:

Power Supply: DC12V /6A

Flow Rate: <8L/Min

Test hose:1.5m

Power cable:1.5m

Oil filling: 30ml

Air source: internal air pump

Size: 310 x 270 x 285mm

Gross weight: 5KG

Test pressure: 15psi

High temperature protection: YES

Package Includes:

1pc x Main Unit

1pc x Inflatable Adaptor

1pc x Power Cords

1pc x Smoke Tube

1pc x Intake Adaptor Core

1pc x User Manual

1pc x Certification
