Autel MaxiPRO

Autel MaxiPRO MP808BT Pro is a 7-inch wireless Android-based touchscreen tablet with All Systems Scan functionality and an extensive Service Menu for U.S., Asian, and European vehicles, 1996 and newer. The MP808BT PRO, which is equipped with a Bluetooth-enabled VCI, can read and erase codes, view Freeze Frame data and view and graph Live Data for all available systems.

Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with ECU Coding Refresh Hidden Upgrade of MS906 MP808 DS808 is a one of our Autel MaxiPRO Tools, you can buy Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with ECU Coding Refresh Hidden Upgrade of MS906 MP808 DS808 from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

images of Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with ECU Coding Refresh Hidden Upgrade of MS906 MP808 DS808

Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with ECU Coding Refresh Hidden Upgrade of MS906 MP808 DS808Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with ECU Coding Refresh Hidden Upgrade of MS906 MP808 DS808Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with ECU Coding Refresh Hidden Upgrade of MS906 MP808 DS808Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with ECU Coding Refresh Hidden Upgrade of MS906 MP808 DS808

Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with Unlock Hidden Functions

Autel MP808BT PRO features a powerful Cortex-A55 1.8 GHz processor and 64 GB onboard memory. It offers technicians an extensive service menu, enabling them to quickly perform the most common service tasks. Advanced features include AutoVIN to instantly identify the vehicle make, model, and year and a cloud-based report management feature to share and manage reports.

Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with Unlock Hidden Functions

Highlights:

1. 2 years free update,needs Registration time from May 31th to Dec 31th,2023
2. Comes With Full Set Non-Standard OBD Adapters to Work on More Vehicle.
3. 64GB On-Noard Memory for Better Performance
4. Android 11 Operating System for Fast Boot-Up and Multitasking
5. With Latest Configuration, It Has Achieved a Giant Leap in Vehicle Coverage and Diagnostic Service.
6. Multi-Language Supported: English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian. (After you get the package, just tell us your SN of MP808BT to activate the language you need)

New Added Functions - Expand Your Business

1. VAG Guided Functions (Same As MK906BT/MS906BT): The guidance function means that it will prompt the steps of the operation or remind the preparation actions that need to be done. Guided Functions is compatible with Audi/ VW/ Skoda/ Jetta etc.
2. Refresh Hidden (Same As MS906 Pro/ MK906 Pro): Refresh means release or restart, and we need to personalize the settings through this function. You can adjust the settings already in the system according to your needs such as turning off the seat belt reminder light. Compatible with Audi/ VW/ Skoda/ Jetta etc.
3. Add-on Compatible Tool
* With with MV108/ MV105: Giving view to crowded and narrow areas inside the car that are hard to check
* Work with Autel BT506, Expanded systems diagnostic to battery systems: Equipped with battery tester BT506, MP808BT Pro can be upgraded to a special battery tester scan tool. You can perform complete battery system detection, such as battery reset, in/out vehicle battery diagnosis, etc.

Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with Unlock Hidden Functions

Features:

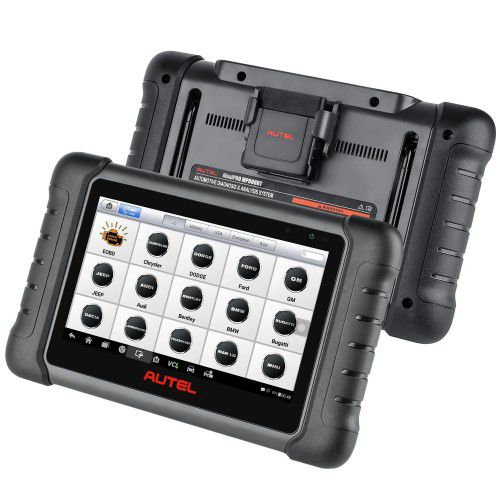

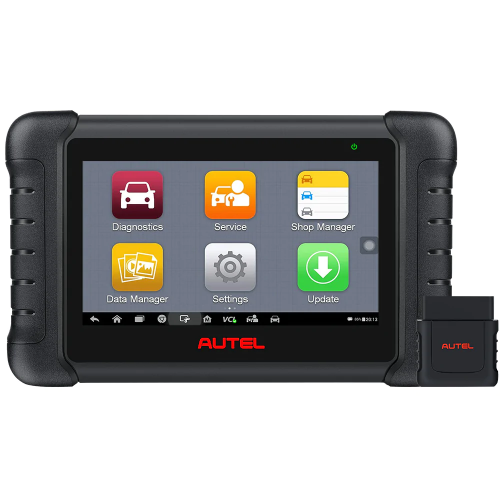

All Systems/All Service 7-inch touchscreen wireless tablet
Compatible with U.S., Asian and European vehicles, 1996 and newer.
Read and Erase Codes on all available vehicle systems.
View Freeze Data and View and Graph Live Data.
AutoVIN technology for rapid vehicle identification
Exceptional OE-Level system coverage for all electronic systems
Cloud-based report management for easy viewing and sharing
Powerful Cortex-A55 processor (1.8 GHz) processor
7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
64GB On-board Memory for better performance
Android 11 Operating System for fast boot-up and multitasking
Ergonomic design with rubberized outer protection and a rugged internal housing to withstand everyday shop use.
Shop Management application designed to maintain customer information and vehicle history data.

Wide Vehicle Coverage

Autel MP808BT diagnostic scanner tool comes with unparalleled vehicle coverage of more than 80 American, Asian and European vehicle makes, with full set Non-Standard OBD adapters, it can support more vehicle than normal scanner.

Protocols Supported:

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Functions:

1. Full System Diagnostics

MP808BT Pro performs complete capabilities for all systems, not only includes 4systems diagnoses but all the other systems including Body, Chassis, Powertrain, Communication and more. You can get all the functions to fix your repair work more quickly with MP808.

1) Read hard codes on various systems. You are able to know the meaning of the trouble codes and figure out what's wrong with your systems.
2) Erase different DTCs easily after the problem has been carried out. Do remind that the check engine light will be turned off when you cleared the codes.
3) Retrieve live data to make sure all the systems run normally. The parameter item can be displayed in different forms, such as text, waveform graph, digital and more.
4) Active test is to test output elements. You can figure out whether a specific subsystem or component in your car functions well or not by using this tool to make the tester outputs function instead of checking in ignition status

Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with Unlock Hidden Functions

2. ECU Coding for Unlock Hidden Functions

Autel Updates in MaxiPRO MP808BT Pro has been added with the with Advanced ECU Coding functions. Tap Update icon to update the device' s system and vehicle software to newest to get the ECU Coding functions. More functions related to ECU are now available in MP808BT Pro, for instance:

* Unlock Hidden Functions: works on Audi, VW, Skoda etc.
* Offline Coding: works on Chrysler, Bentley, Bugatti, Lamborghini, LT3, Seat, Man_LD, Peugeot, Citroen, Opel, Vauxhall, Porsche, Mitsubishi and etc.
* Online Coding: works on Peugeot, Citroen, DS_EU etc.
* VAG Guided Functions: works on Audi, VW, Skoda etc.
Note: ECU Coding only works on very few cars, do send the 17 digit VIN to check compatibility before you order.

Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with Unlock Hidden Functions

3. FCA Auto Auth

Autel MP808BT Pro can access SGW Secure Gateway on 2018 and newer Chrysler, JEEP, Dodge, Fiat vehicles. Easily access the FCA ECU module to perform
complete diagnostic and services.

How To access SGW?
3 steps as follows: Account-Activation-Access!
1. Authorized OEM Access Account Registration;
2. Confirm Compatible Diagnostic Platform;
3. Immediate Authorized Secure Gateway Access. Note: FCA Auto auth only can be used in USA, Canada, and Mexico.

4. VAG Guide Functions

With step-by-step guides, you can follow instructions to complete the vehicle repair quickly and efficiently, speed up repairing, win more business for professional technicians.

5. Battery Test Function

Battery Test function is a battery and electrical system analysis function that uses adaptive conductance, an advanced battery analysis method to produce a more accurate examination of the battery's cold cranking ability and reserve capacity, which is vital to determining a battery's true health. It enables technicians to view the health status of the vehicle's battery and electrical system. Together with the BT506, this application can complete battery & starting and charging system tests and display the test results.

Battery Test function includes In Vehicle Test and Out of Vehicle Test Function.

* In-vehicle Test is used for testing batteries that are installed in a vehicle. An in-vehicle test includes battery test, starter test, and generator test. These tests help determine the health status of the battery, the starter, and the generator, respectively.
* Out-vehicle Test is used to test the condition of batteries that are not connected to a vehicle. This function aims to check the health status of the battery only.
Note: You need MaxiBAS BT506 to perform the battery test function (Need purchasing separately)

6. Special Functions:

Supports a wide range of special functions, including Oil Reset, EPB, SAS, BMS, DPF, TPMS, and many more
1) Oil reset service: It allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2) EPB: The service is important in the maintenance of electronic braking system's safety and efficiency.
3) BMS: The service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4) DPF: The service specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5) SAS: The service helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6) TPMS: The service makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
7) ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.

Full Bi-Directional Control (Active Test), Pinpoint the Error in Second

Featured with the bi-directional control / active test, the MP808BT PRO diagnostic tool can accurately figure out whether a specific system, component or subsystem in vehicles goes well and pinpoint the location of the problem by interactively operating and testing the vehicle’s related actuators.

Here are some common examples of Active test:

Turn the fuel pump on and off;
Switch the SRS light on and off;
Cycle the a/c clutch on and off;
Perform an evaporative emissions leak test;
And more......
Note: Please send us your VIN# to us to help you check the compatibility before purchase.

Autel MaxiPRO MP808BT Pro OE-Level Full System Diagnostic Tool with Unlock Hidden Functions

OE-Level All Systems Diagnosis, Fix All Difficult Problems, Win Your More Business

Autel MP808BT PRO diagnostic scan tool, diagnose like an OEM Scanner, shorten the diagnostic time and reduce the diagnostic fee.

Super fast and accurate diagnosis for all systems
This Autel diagnostic tool can access all available systems on 10,000+ cars, such as Engine, AT, ABS, SRS, IMMO, air conditioning system, steering angle system, air suspension system, etc. and perform OE-level diagnoses, which enable the mechanics/workshops to perform the same level of diagnosis, analysis, and maintenance as the OEM dealer.

Auto VIN technology: identifies your vehicle easily and fast.
This automotive scan tool features the latest VIN-based Auto VIN Scan function, whcih can identify CAN vehicles in just one touch, scan all the diagnosable ECUs on every vehicle quickly, and run diagnostics on the selected system easily.

Stable Wireless BT Connection: offers quick data transmission.
The VCI of MP808BT PRO provides a wide wireless working range (about 33 feets or 50 m) and stable BT communication for the vehicle and this diagnostic scanner.

Auto VIN & Auto Scan (2023 Newest 2.0 Ver.)
Autel MP808BT PRO wireless diagnostic scanner comes with latest VIN-based Auto VIN 2.0 technology to identify vehicle and retrieve vehicle information in seconds, 3X faster than competitors!
Combined with the Auto Scan technology, MP808BT PRO can automatically performs comprehensive scan over all vehicle ECUs to locate system faults and retrieve DTCs.

Key Fob Programming
Autel MP808BT PRO has IMMO Keys function to protect your car from being stolen. (Only Support Asian cars with low-grade IMMO system)

Add A Key: Add On An Extra Key To The Vehicle
Reset Key: Relearn The Key
All - Keys - Lost: Not supported

User-friendly Functions
MaxiFix - Gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.
Data Manager - The Data Manager application is used to store, print, and review the saved files for future reviews.
Academy - Autel provides tutorials and technical bulletins written by top-notch technicians and product experts
Shop Manager - Help you manage the workshop information, customer information records, and much more.
Remote Desk - Pre-download teamviewer app for convenient remote tech-support.

Specification:

Operating System

Android 11

Processor

Cortex-A55 quad-core processor (1.8GHz)

Memory

4GB RAM & 64GB On-board Memory

Display

7-inch LCD capacitive touchscreen with 1024x600 resolution

Connectivity

Wi-Fi (802.11a/b/g/n/ac)
USB 2.0,Mini USB 2.0
Wireless BT V2.1+EDR
HDMI Type A
SD Card (Support up to 64GB)

Sensors

Light sensor for brightness auto adjust

Audio Input/Output

Input: N/A
Output: Beep

Power and Battery

3.7 V/5000mAh lithium-polymer battery
Charges via 5 VDC power supply

Input Voltage

5 V/1.5 A

Operating Temp

0 to 50°C (32 to 122°F)

Storage Temp

-20 to 60°C (-4 to 140°F)

Protocols

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6

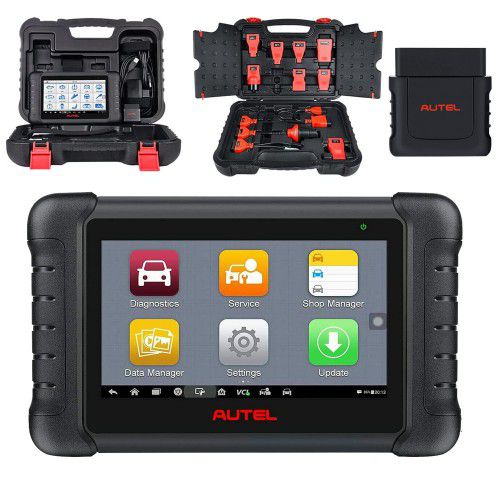

Package List:

1set x MaxiPro MP808BT PRO
