Autel MaxiIM IM608 Pro with IMMO XP400Pro OBDII Car Auto Diagnostic Tool

Note：

IM608+XP400 PRO=IM608 PRO
We sell the set of IM608+XP400PRO=IM608 PRO

NO IP LOCK!!!!

Support 12 Languages: English, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Swedish, Russian. (Please leave the S/N of machine to authorize the language you want after you receive it.)

If you buy IM608+XP400PRO,XP400 and XP400 PRO are included in the package.

100% original Autel IM608 Key programmer tool, no IP restrictions, support multiple languages

Please Note:

1. We are Authorized Distributor of Autel. We promise: All our store products are 100% Original Autel Genuine !!! If not, Double compensation will be provided!!!
2. IM608 After-sales Service: 1 Year Warranty & 1 Year Free Update
3. Support Multiple Languages: English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian.

Modify language steps：

Since the original language of the device is English, you can send me the SN on the back of the machine after receiving the scanner (SN is 11 alphanumeric characters)

Oversea Warehouse Shipping:

1/ From CN: All countries (DHL/Fedex: 15-60 days shipment.)
2/ From Spain: European countries, we have paid the tax. ( 7-15 Days shipment)
3/ From US: USA, we have paid the tax. ( 7-15 Days shipment)
4/ From AU: Autralia, we have paid the tax. ( 7-15 Days shipment)
5/ From Russia: Russia, we have paid the tax. ( 7-15 Days shipment)
6./From UK:we have paid the tax. ( 7-15 Days shipment)

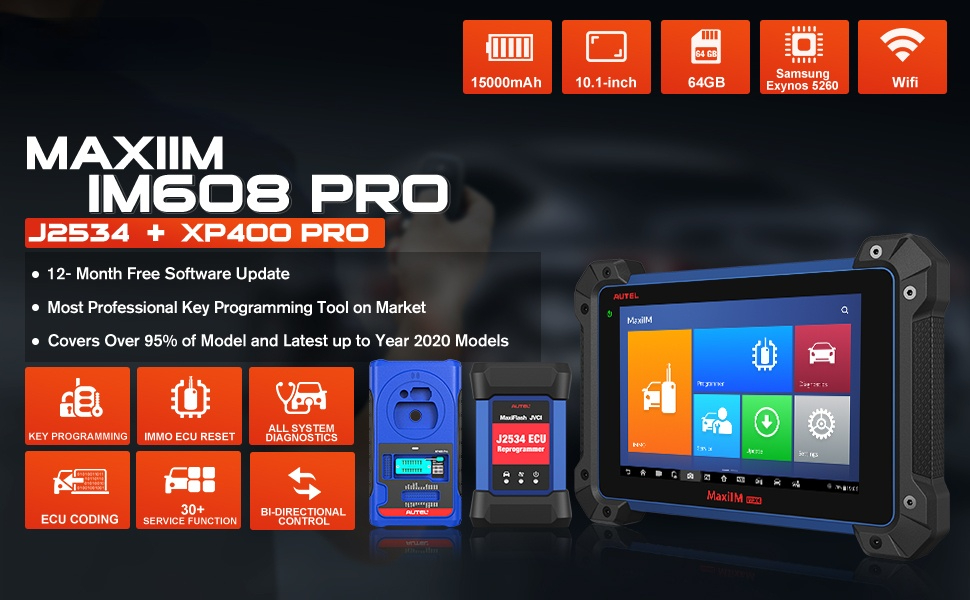

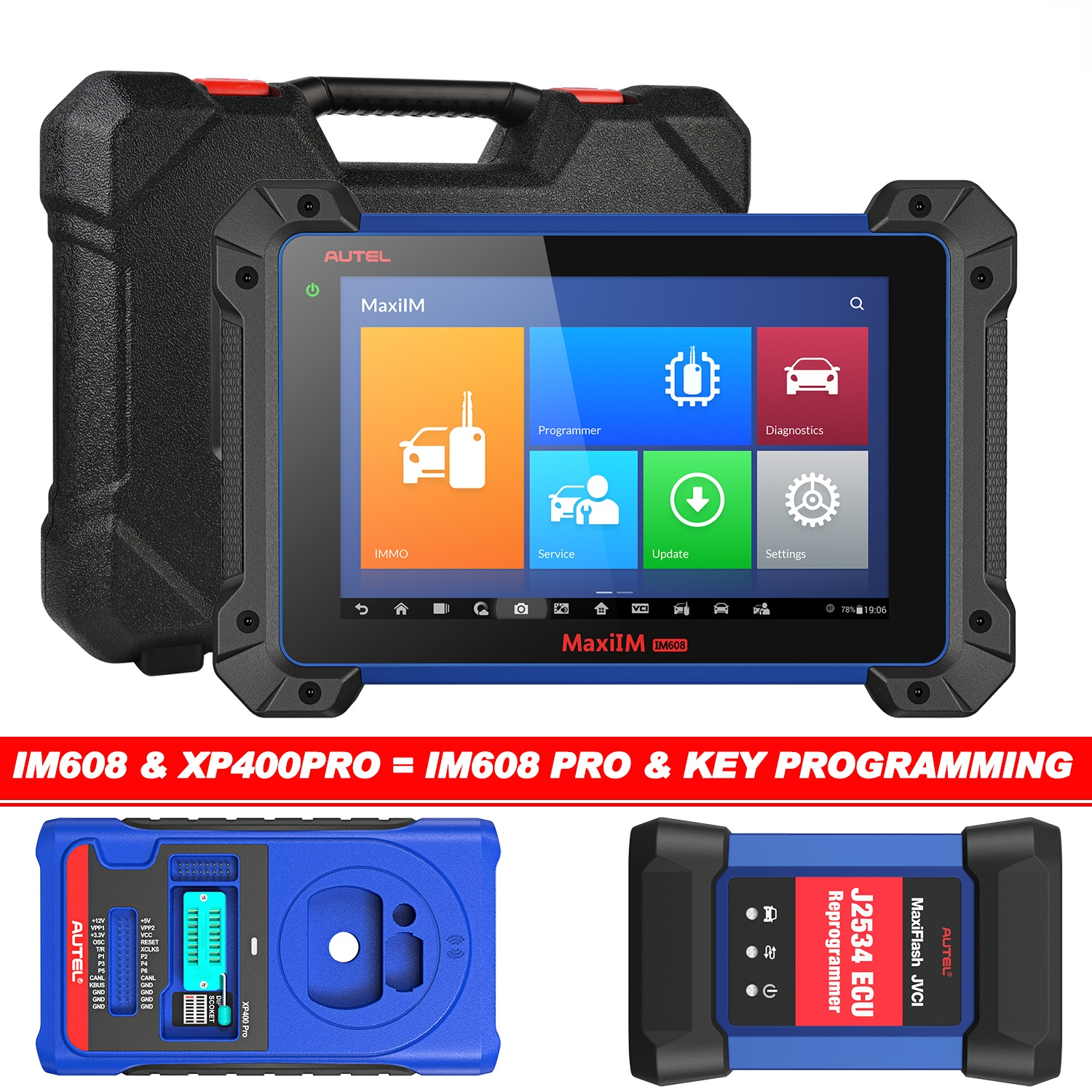

IM608 + XP400 PRO=IM608 PRO

The IM608PROKPA is a comprehensive key and immobilizer programming package of the MaxiIM IM608 Pro 10.1-inch Android touchscreen tablet, XP400Pro key and chip programmer, the wireless JVCI J2534 pass thru programming device and the Key Programming Adapter kit. The IM608 Pro enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle. The IM608 Pro is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 Pro include the ability to perform active test, coding and adaptations.

Autel IM608 Pro Main Features

• IMMO & Key Programming Bundle
• MaxiIM IM608 Pro 10.1-inch Android Touchscreen Tablet
• Program IMMO & Keys for U.S., Asian and European Vehicles
• XP400Pro Key and Chip Programmer
• JVCI Wireless J2534 Pass Thru Programming Device
• Includes IMKPA Key Programming Adapter Kit

IMMO Functions

1.Auto Detect Make/Model/Year/System
2.Read PIN (All Key Lost)
3.Key Learning
4.IMMO ECU Reset/Adaption
5.IMMO ECU Refresh/Coding
6.Remote Learning
7.AUDI Q5/A4/A5 2015-2017 Key Learning
8.VW MQB Key Learning
9.BMW FEM/BDC Key Learning and Adaption
10.BMW CAS4 Key Learning and Adaption
11.Mercedes Key Learning
12.2015-2018 Land Rover & Jaguar write key via dump
13.Volvo Smart Key Learning/knob-style smart key
14.Advanced Programming Functions
15.EEPROM Read/Write
16.MCU Read/Write
17.Key Programming
18.Mercedes Key Read/Write
19.Remote Frequency Detect
20.OE-Level Diagnostics

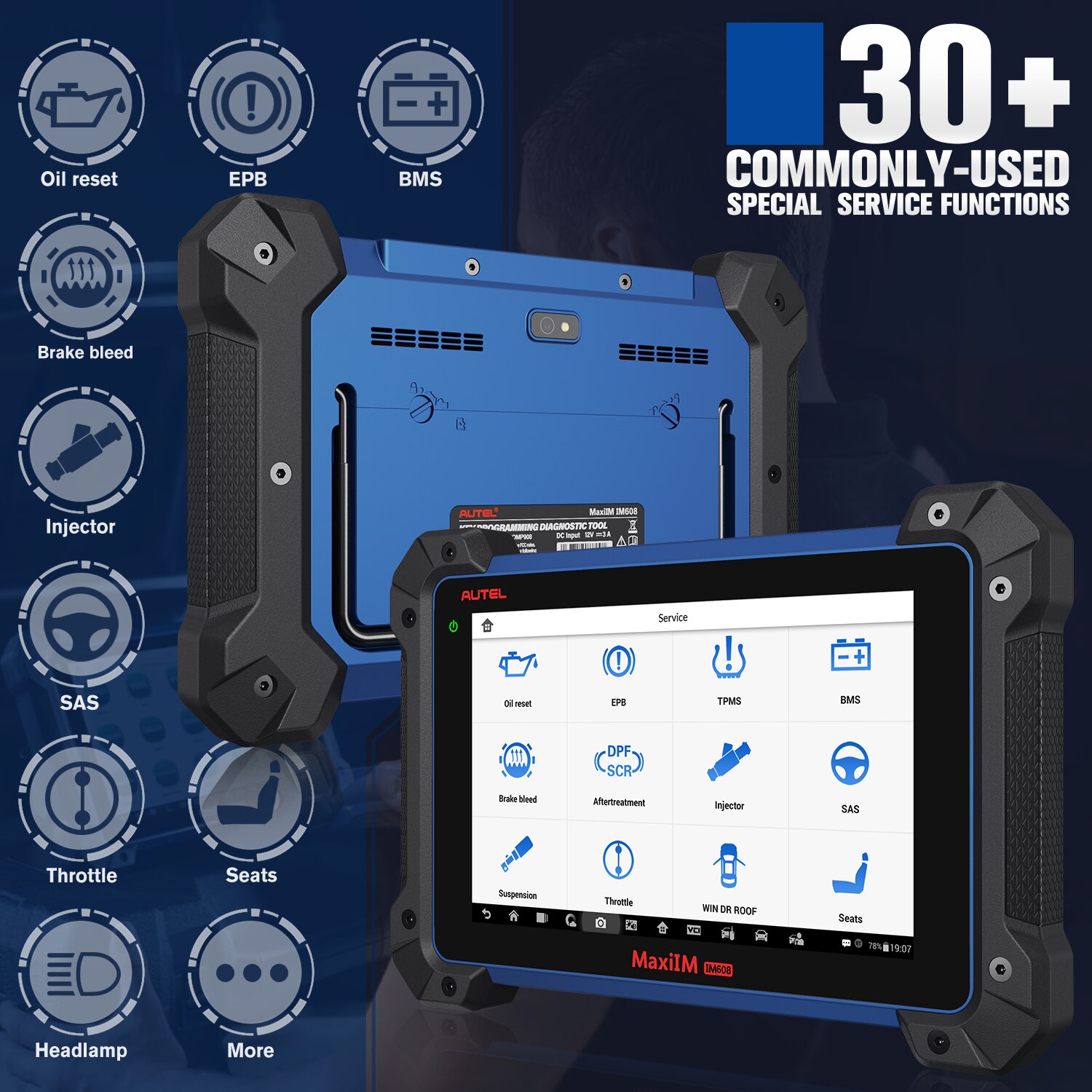

All System Diagnostics & Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)

1.Oil Service Reset
2.Parking Brake Pad Relearn After Replacement
3.Steering Angle Sensor Relearn
4.Battery Registration and Reset
5.Diesel Particulate Filter Regeneration
6.Tire Pressure Monitoring System
7.Active Test
8.ECU Coding
9.VW/Audi Component Protection
10.Complete Service Functions

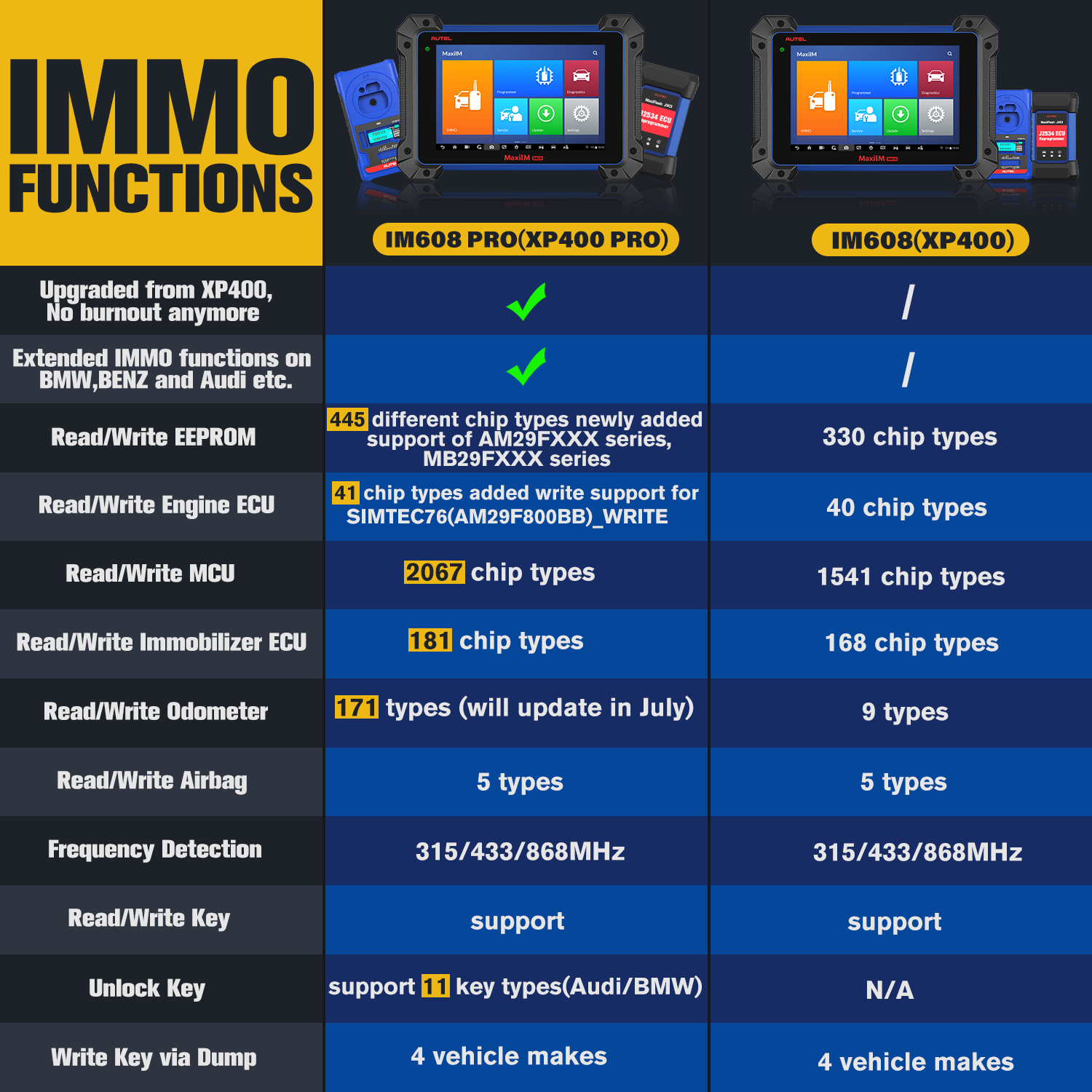

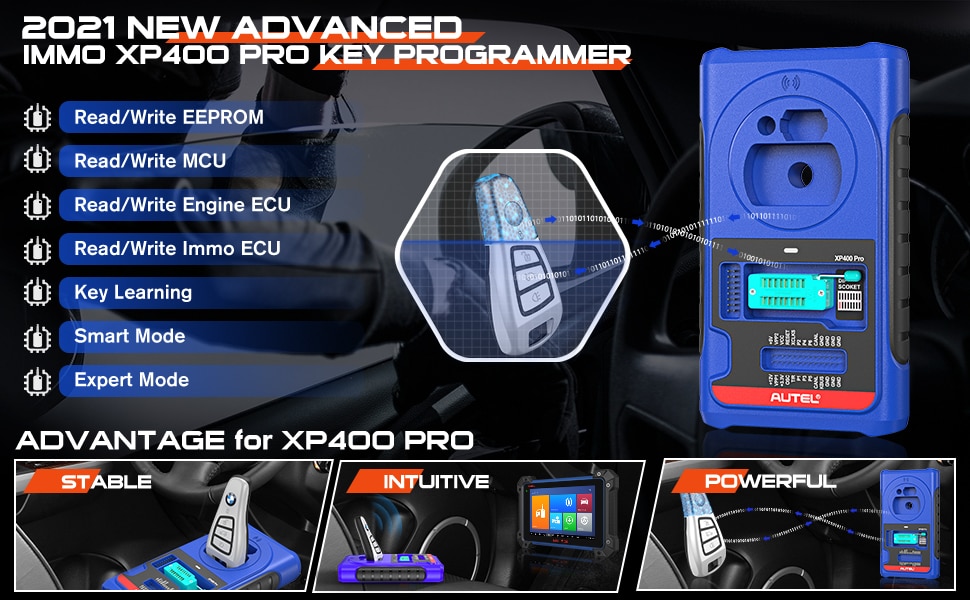

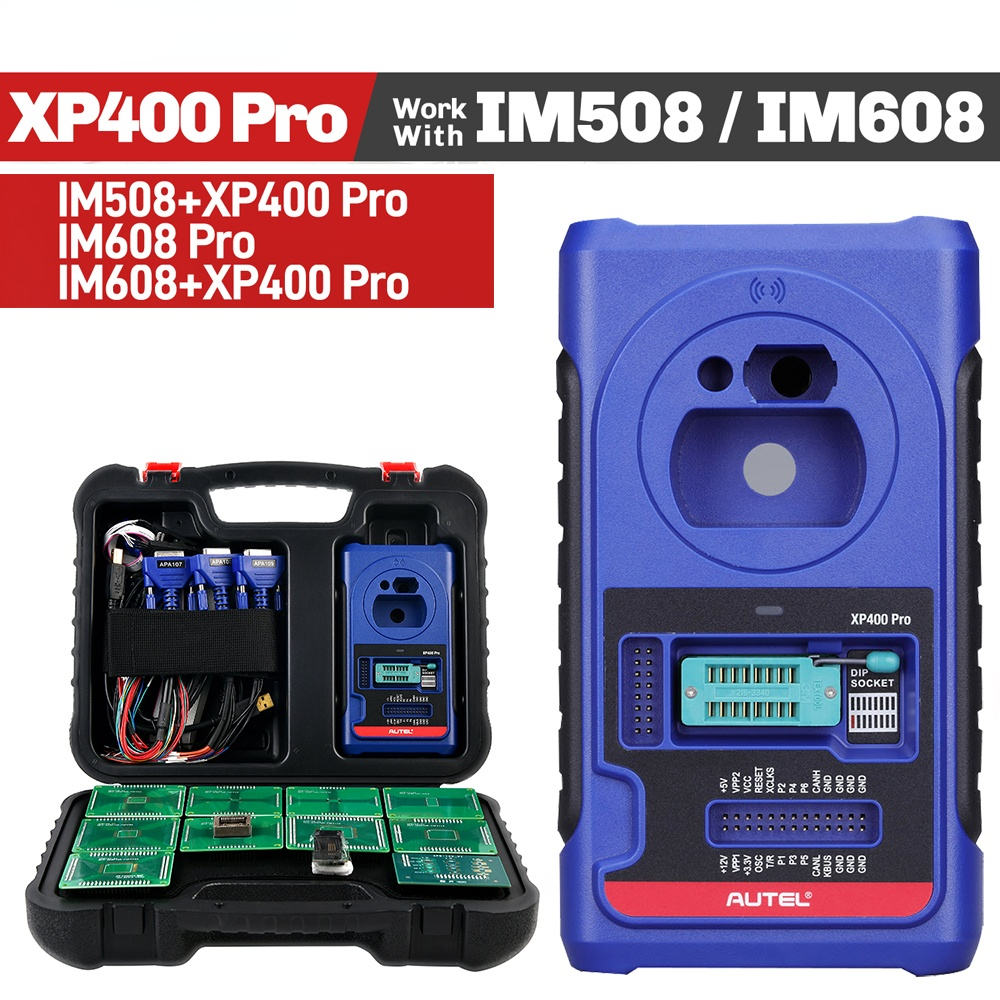

XP400 Pro adds support for following Chips:

1.EEPROM-->AMD-->AM29FXXX series chip
2.EEPROM--> FUJITSU-->MB29FXXX series chip
3.EEPROM-->ST-->M29FXXX series chip
4.Engine control module-->ST-->M29FXXX series chip
5.IMMO-->BENZ-->ESL_W209_W906 (Motorola) read/write/erase function
6.IMMO-->BMW-->EWS3 module read/write function
7.REMOTE_RENEW(renew key)-->NEC-->V51 and V5 chip read/write/erase

XP400 Pro adds support for following Adapter Board:

1.APB113 PCF79XX adapter board
2.APB114 EWS3 adapter board
3.APB115 NEC Adapter board
4.APB118 NEC ELV adapter board
5.APB119 TB28FXXX adapter board
6.APB120 TMS370 adapter board
7.APB121 AM29FXXX adapter board
8.APB122 AM29FXXX adapter board 1
9.APB123 AM29FXXX adapter board 2
10.APB126 M35080/D80 adapter board
11.APB127 MC68HC0(7)05BXX adapter board
12.APB128 MC68HC05X32 adapter board

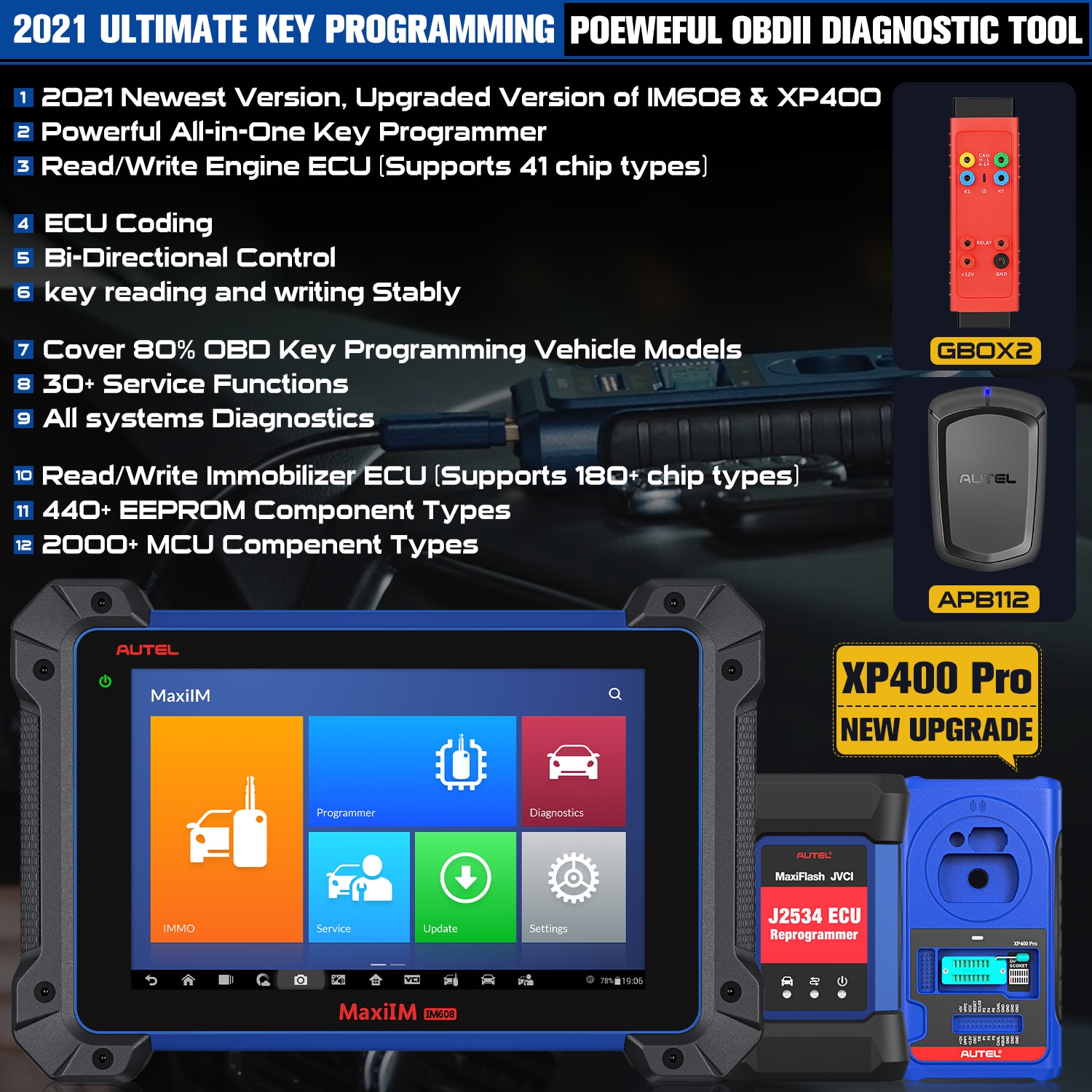

Advanced Key Programming Functions

1.Exclusive Smart Mode to guide Key Programming
2.Auto Read IMMO Data via OBD
3.One-tap Key Programming via OBD & Easy-to-use Remote Programming
4.With the newly upgraded key programmer XP400 Pro

Extensive Vehicle & Functionality Coverage

1.Support Diagnostics & IMMO Programming for 10,000+ Models;
2.Support Models Up to 2020;
3.All System Diagnostics and Advanced Maintenance Services;
4.BENZ -- 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;
5.BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;
6.Volkswagen / Audi -- Add Key / All Key Lost via OBD for 2013 - 2020 Models;
7.GM -- Read IMMO Password, Add Key / All Key Lost up to 2020;
8.Ford -- Add Key / All Key Lost (No PIN Needed) up to 2020;
9.Mazda -- Add Key / All Key Lost (No PIN Needed) up to 2020;
10.FCA -- Read IMMO Password, Add Key / All Key Lost up to 2020;
11.Renault -- Add Key / All Key Lost (No PIN Needed) up to 2020
12.Jaguar LandRover -- Add Key / All Key Lost up to 2019
13.Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump

Bonjour Service Support

SUPERIOR MECHANICS ASSISTANT:
In addition to the MaxiCOM standard features and special functions, there are also a host of enhanced features that are specifically designed for common repair shop work, including; Relearn parking brake pad position after replacement, Force fuel injector regeneration and adjustment, Battery registration and reset, Sensor relearning after repair or replacement

SHOP MANAGER:
You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.

DATA MANAGER:
The best solution for the data related operations, you can store, print, and review the saved files in Image, PDF,Review Data, Apps Uninstall or Data Logging.

REMOTE DESK:
You can directly get ad-hoc remote support from Autel via Team Viewer software.

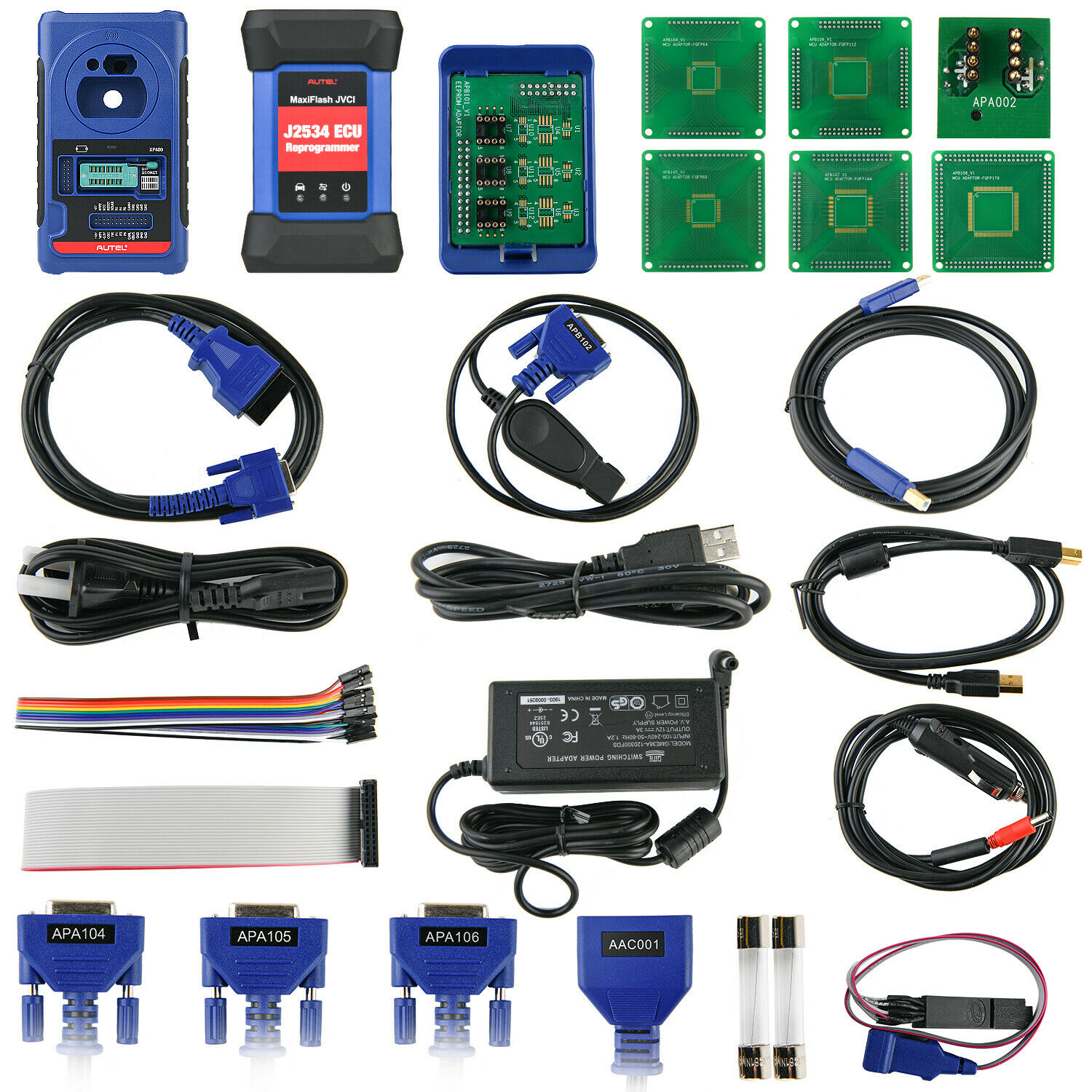

Autel MaxiIM IM608 Packling List:

1x Autel MaxiIM IM608 Main Unit
1x APC101 USB Cable
1x APA101 Signal Cable
1x MaxiFlash JVCI
1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)
1x APA103(EEPROM Clamp)
1x XP400
1x APB102 MB IR Cable
1x APA104 ECU Clamp
1x Main Cable
1x APB104(MCU_FQFP64)
1x APA105(MCU Clamp)
1x USB Cable (2m)
1x APB105 MCU_FQFP80
1x APA106(MC9S12 Clamp)
1x Mini USB Cable
1x APB106(MCU_FQFP144)
1x APA107(Connect Cable)
1x AC/DC 12V Adapter
1x APB107(MCU_FQFP144)
1x Quick Reference Guide
2x Light Fuse 6*30mm
1x APB108(MCU_FQFP176)
1x Packing List
1x Cigarette Lighter
1x APA002(EEPROM Socket)
1x Carrying Case 634*170*404mm
1x AAC001

XP400 PRO Packling List:

1pc x XP400 Pro Main Unite
1pc x APB129 – EEPROM Adapter
1pc x APA002 – EEPROM Socket
1pc x APB125 – Mercedes Infrared Collector
1pc x APB103 – MCU_PLCC52 Adapter
1pc x APB104 – MCU_FQFP64 Adapter
1pc x APB105 – MCU_FQFP80 Adapter
1pc x APB106 – MCU_FQFP112 Adapter
1pc x APB107 – MCU_FQFP144 Adapter
1pc x APB108 – MCU_FQFP176 Adapter
1pc x APB109 – MCU_FQFP32 Adapter
1pc x APB110 – MCU_FQFP48 Adapter
1pc x APB111 – MCU_SO28 Adapter
1pc x APA101 – Spare Signal Cable
1pc x APC101 – USB Cable (Standard USB –Type B USB)
1pc x APA103 – EEPROM Clamp
1pc x APA107 – ECU Cable
1pc x APA108 – MCU Cable
1pc x APA109 – MC9S12 Cable
1pc x Dupont Line

Autel IMKPA Packing list：

1*APB113
1*APB114
1*APB115
1*APB118
1*APB119
1*APB120
1*APB121
1*APB122
1*APB123
1*APB126
1*APB127
1*APB128
1*Storage Case

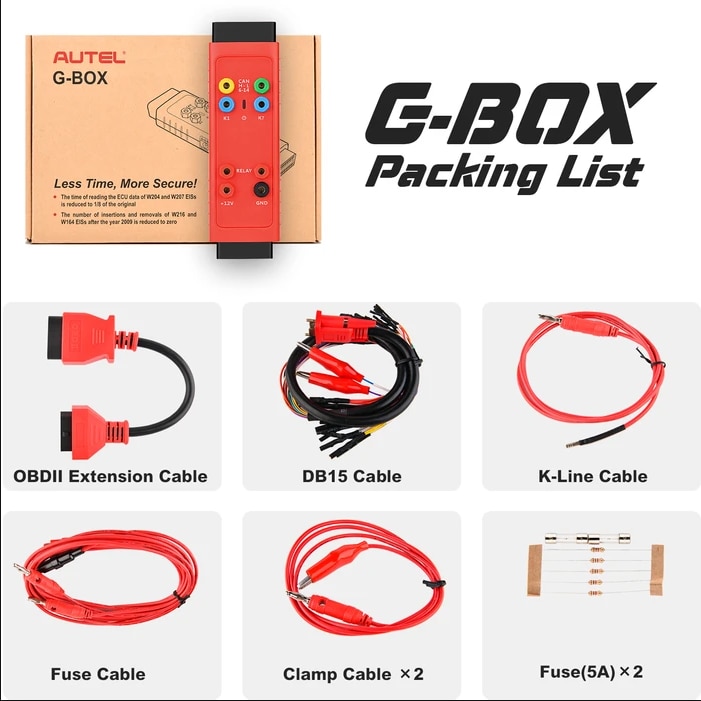

Autel G-BOX2 Package Included:

1pc x Autel G-BOX2
1pc x DB15 Cable
1pc x K-Line Cable
1pc x Fuse Cable
2pcs x Fuse (5A)
2pcs x Clamp Cable
1pc x OBDII Extension Cable
1pc x Quick Reference Guide

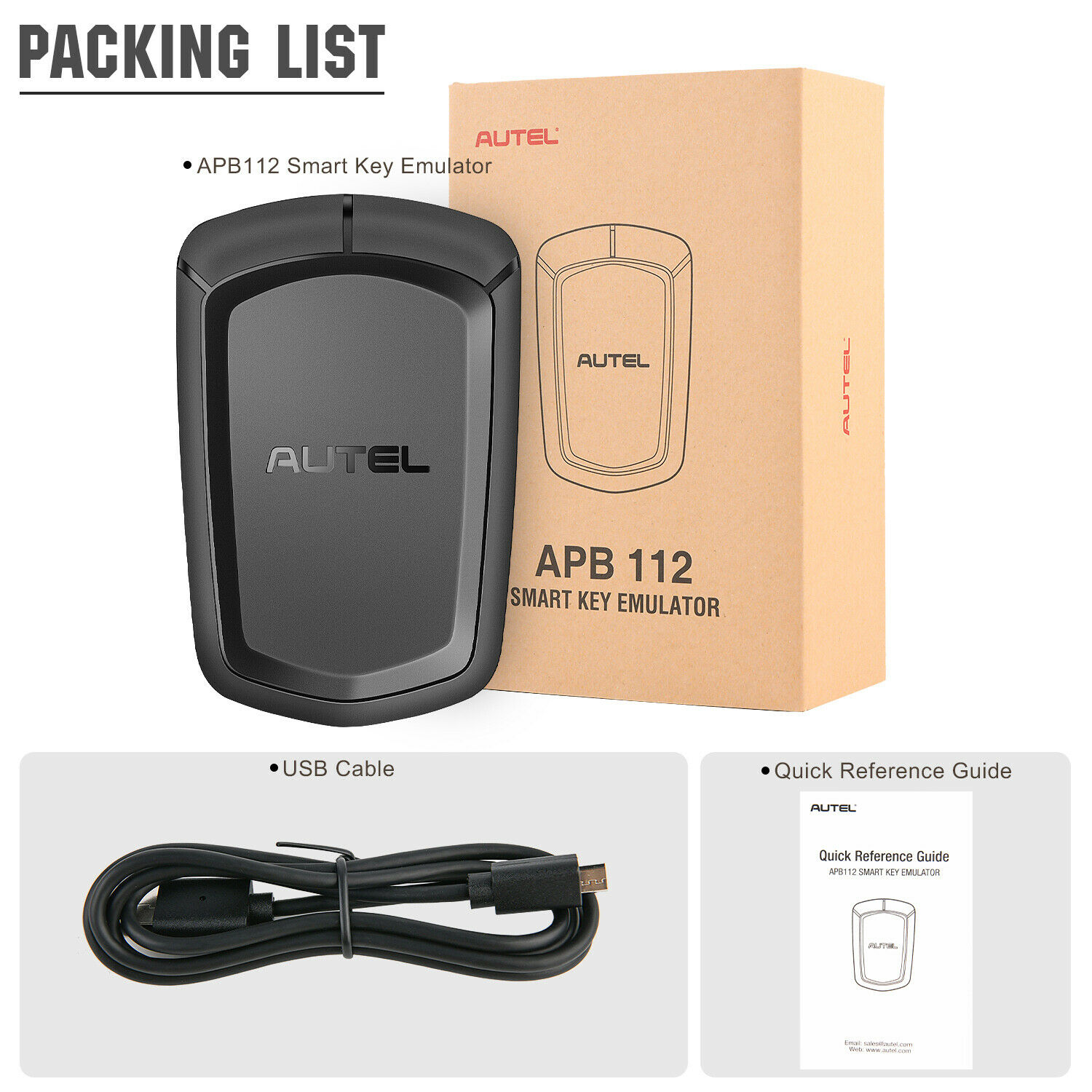

AUTEL APB112 Package List:

1pc x APB112 Smart Key Simulator
1pc x USB cable
1pc x Quick Reference Guide
