All Sun EM3081 Digital Multimeter
All-Sun EM3081 Autorange digital multimeter 3 1/2 1999 low battery indication overload protection MULTIMETER automotive tester
Latest All-Sun EM3081 Digital Multimeter for Measuring DC and AC Voltage is a one of our All Sun EM3081 Digital Multimeter Tools, you can buy Latest All-Sun EM3081 Digital Multimeter for Measuring DC and AC Voltage from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

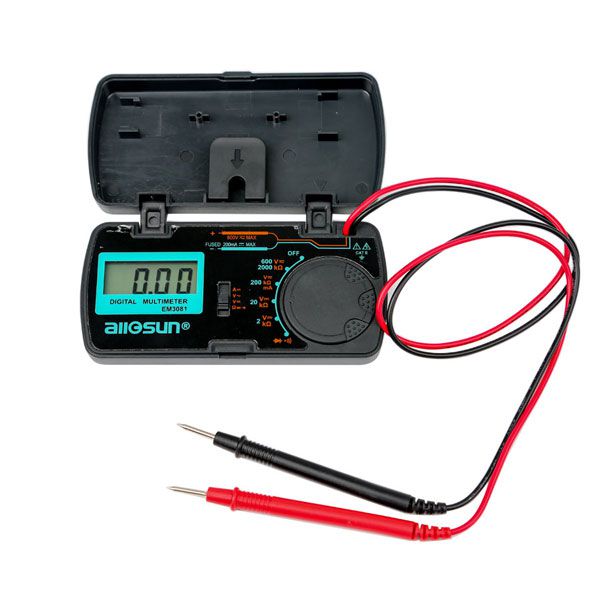

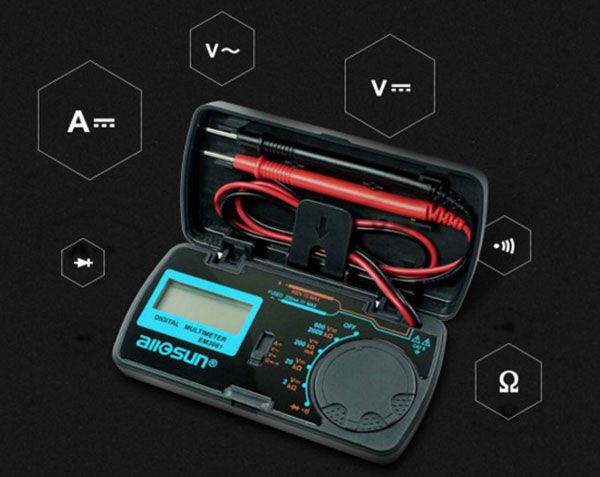

images of Latest All-Sun EM3081 Digital Multimeter for Measuring DC and AC Voltage
All-Sun EM3081 Digital Multimeter for Measuring DC and AC Voltage EM3081 Diagnostic Tester

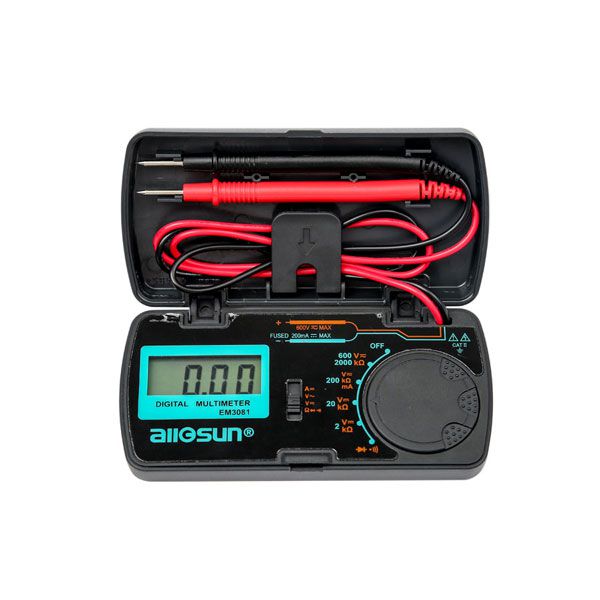

All-Sun EM3081 Feature :
1) Display: 3 1/2-digit LCD with a max,reading of 19992) Overrange indication: Only figure"1" shown on the display
3) Negative Polarity Indication: Negative sign"-"shown on the display automatically
4) Sampling Rate: Approximate 2 to 3 times/sec
5) Operation Environment: Temperature:0-40 degree
Relative humilty:<75%
6) Storage Temperature: Temperature:-10-50 degree
Relative humilty:<85%
All-Sun EM3081 DC Voltage:
| Range | Resolution | Accuracy |
| 2V | 0.001V | ± (1.0%+5) |
| 20V | 0.01V | ± (1.0%+5) |
| 200V | 0.1V | ± (1.0%+5) |
| 250V | 1V | ± (1.0%+5) |
Input Impedance:1MΩ
Max.Allowable Input Voltage:250V dc
Max.Open Circuit Voltage:About 0.4V
Overload Protection:250V DC/AC rms

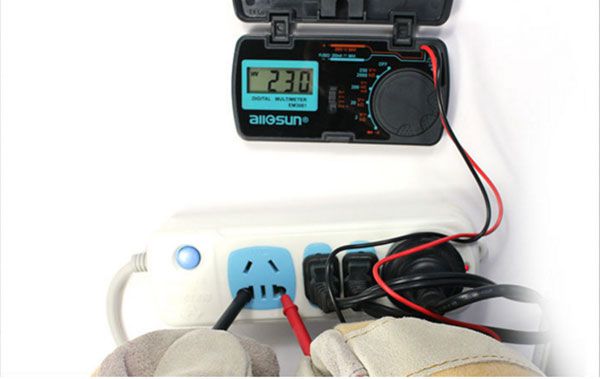

All-Sun EM3081 AC Voltage:
| Range | Resolution | Accuracy |
| 200V | 0.1V | ± (1.2%+10) |
| 250V | 1V | ± (1.2%+10) |
Input Impendace:About 500KΩ
Frequency Range:40Hz to 400Hz
Max.Allowable Input Voltage:250V ac rms
Responable:Average.calibrated in rms of sine wave
DC Current:
| Range | Resoulation | Accuracy |
| 2kΩ | 0.001kΩ | ± (1.2%+5) |
| 20kΩ | 0.01 kΩ | ± (1.2%+5) |
| 200kΩ | 0.1 kΩ | ± (1.2%+5) |
| 2000kΩ | 1 kΩ | ± (1.2%+5) |

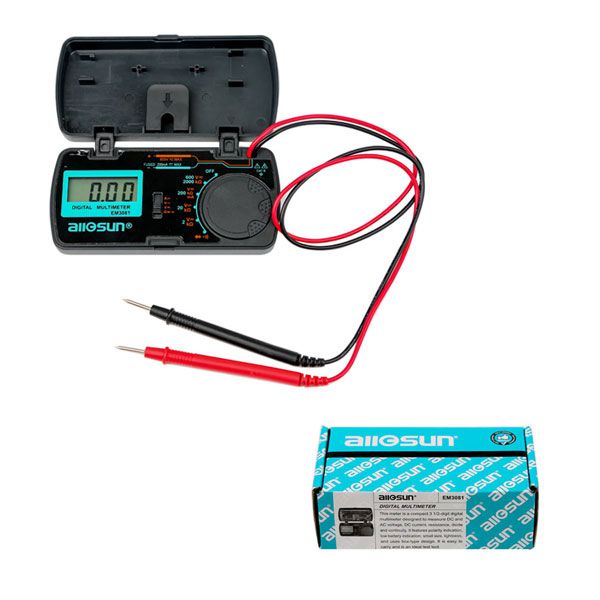

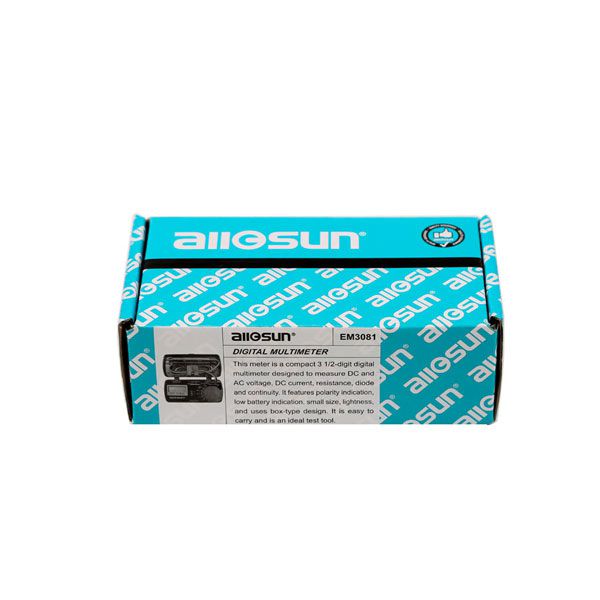

Package includes:
1pc x All-Sun EM3081 Digital Multimeter for Measuring DC And AC VoltageGo to Buy: Latest All-Sun EM3081 Digital Multimeter for Measuring DC and AC Voltage
